New
H121
Coaxial cable Belden H121 75Ohm 100m
High quality outdoor 5 mm coax cable - 75 Ohm and 100 m
112.53 €
93.00 € tax excl.
in stock, shipped in 2-3 days

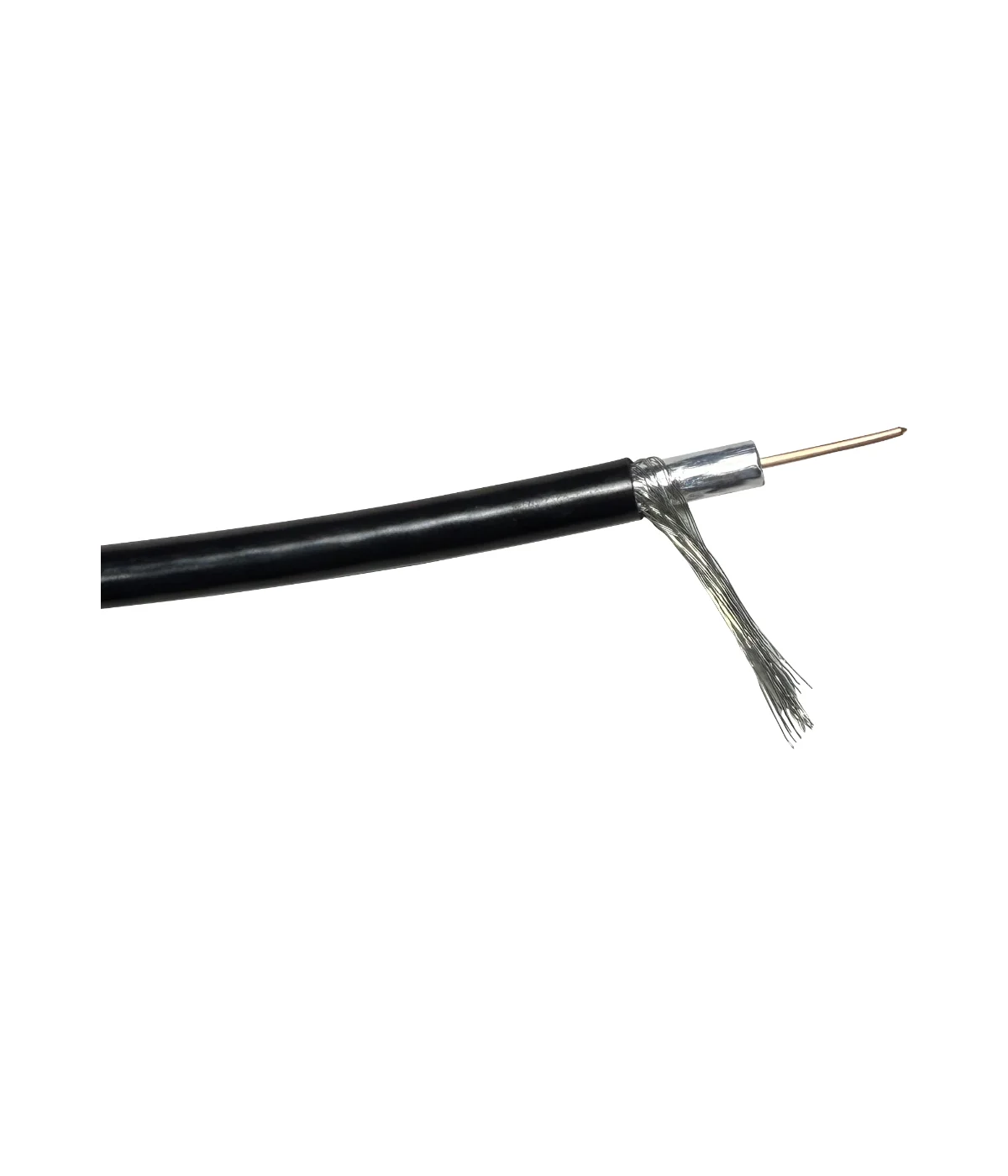

This is a high-quality 75 Ohm coaxial cable from the world-renowned manufacturer Belden. It is a 5 mm cable with PE insulation, designed for permanent outdoor installation (UV stable). The cable shielding is aluminium (Al) tape and tinned copper. The center conductor is copper (Cu). This cable is suitable for connecting RX antennas or as an antenna element, for example, in a Bi-Dir Beverage antenna.
Specifications
| Impedance | 75 Ohm |
|---|---|
| Frequency range | DC to 3 GHz |
| Diameter | 5 mm |
| Outer jacket | PE |
| Conductor | 21 AWG, 0.8 mm bare copper |
| Isolation | FPE |
| Shielding | AL tape + Tinned copper |
| Insertion Loss (100m) | 2.3 dB @ 5 MHz |
| Length | 100 m (spool) |
| Weight | approx. 2.2 kg |
Downloads & Resources
Cable type:
H121
Length:
100 m (approx.)
Frequency range:
DC to 3 GHz
Impedance:
75 Ohm
