New

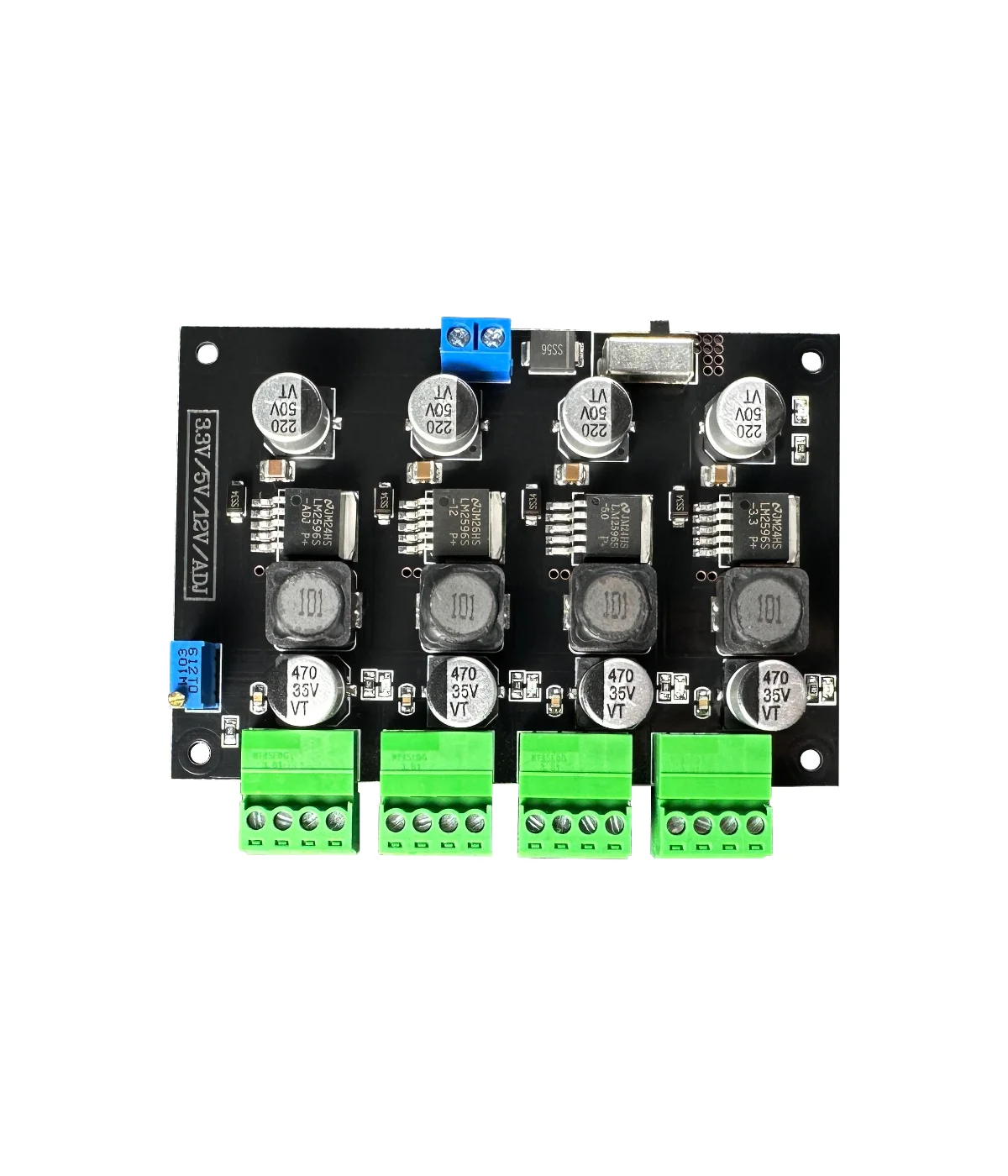

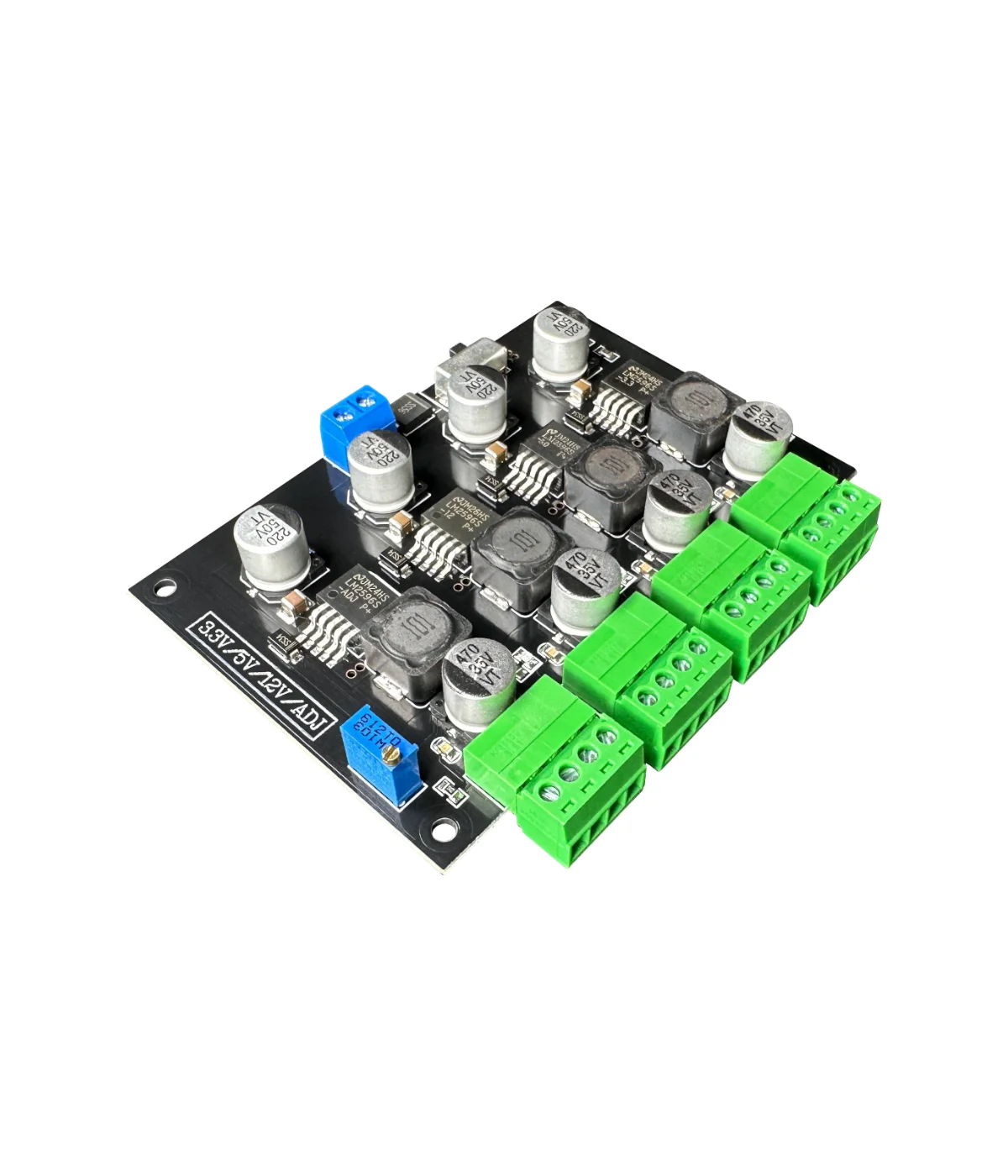

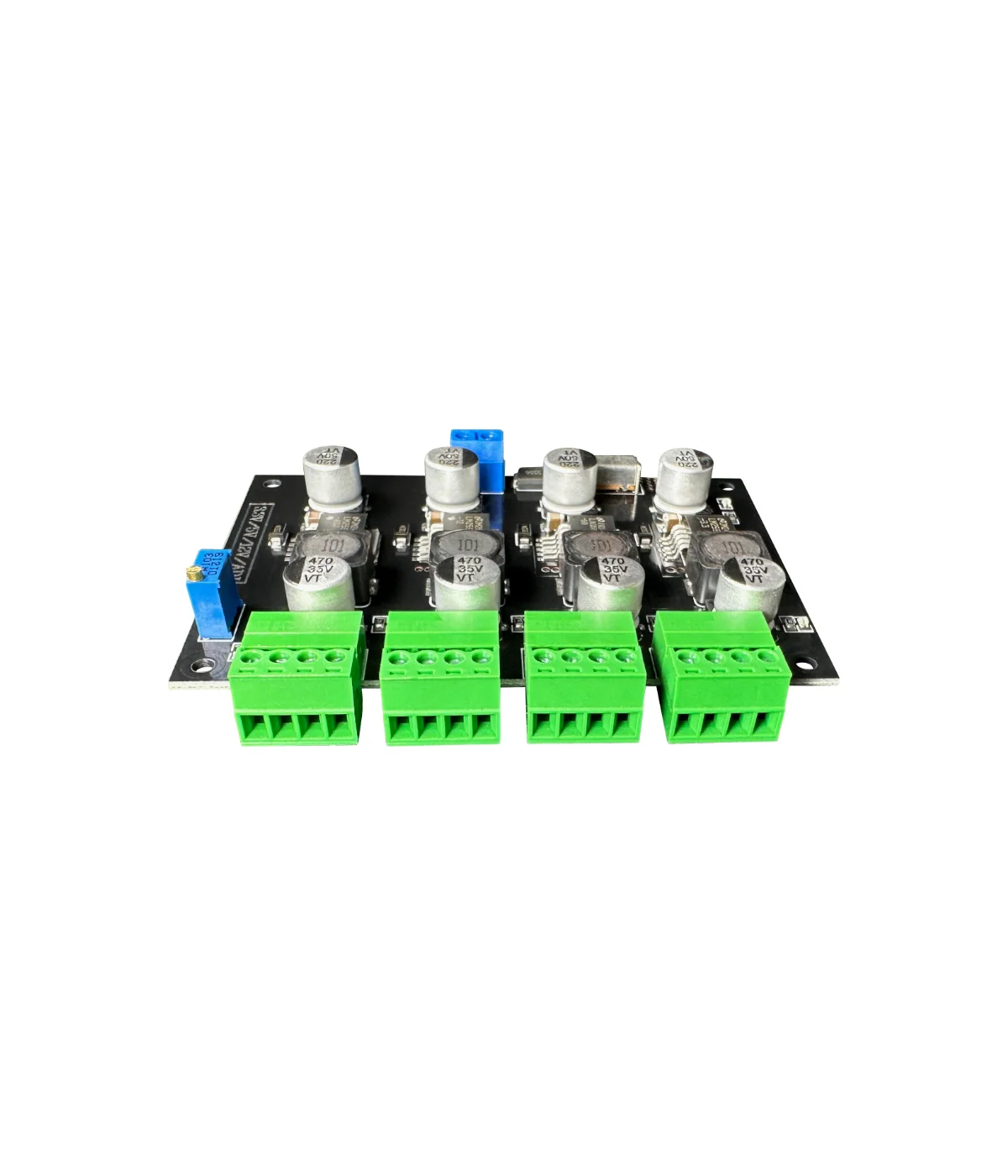

DC/DC Step-down multioutput converter LM2596 3A module
4-output DC/DC converter module (LM2596), up to 3A per output - assembled, screw terminals
15.00 €
15.00 € tax excl.
in stock, shipped in 2-3 days
This is a DC/DC converter module with 4 outputs: 3 fixed and 1 adjustable. There are four LM2596 150kHz DC converters. This DIY power supply module for your projects offers three fixed outputs - 3.3V, 5V and 12V - plus one adjustable output. There is also an ON/OFF switch and LED indicators. The module is based on four LM2596 converters, and each output can be loaded with a maximum of 3A. Use it as a universal DC/DC converter with multiple outputs.
Specifications
| Based on | 4x LM2596 |
|---|---|
| Input voltage | up to 40 V DC |
| Fixed outputs | 3.3 V, 5 V, 12 V |
| Adjustable output | Yes |
| Output current | up to 3 A per output |
| Switching frequency | 150 kHz |
| Controls | ON/OFF switch, LED indicators |
| Connection | Screw terminal sockets |
