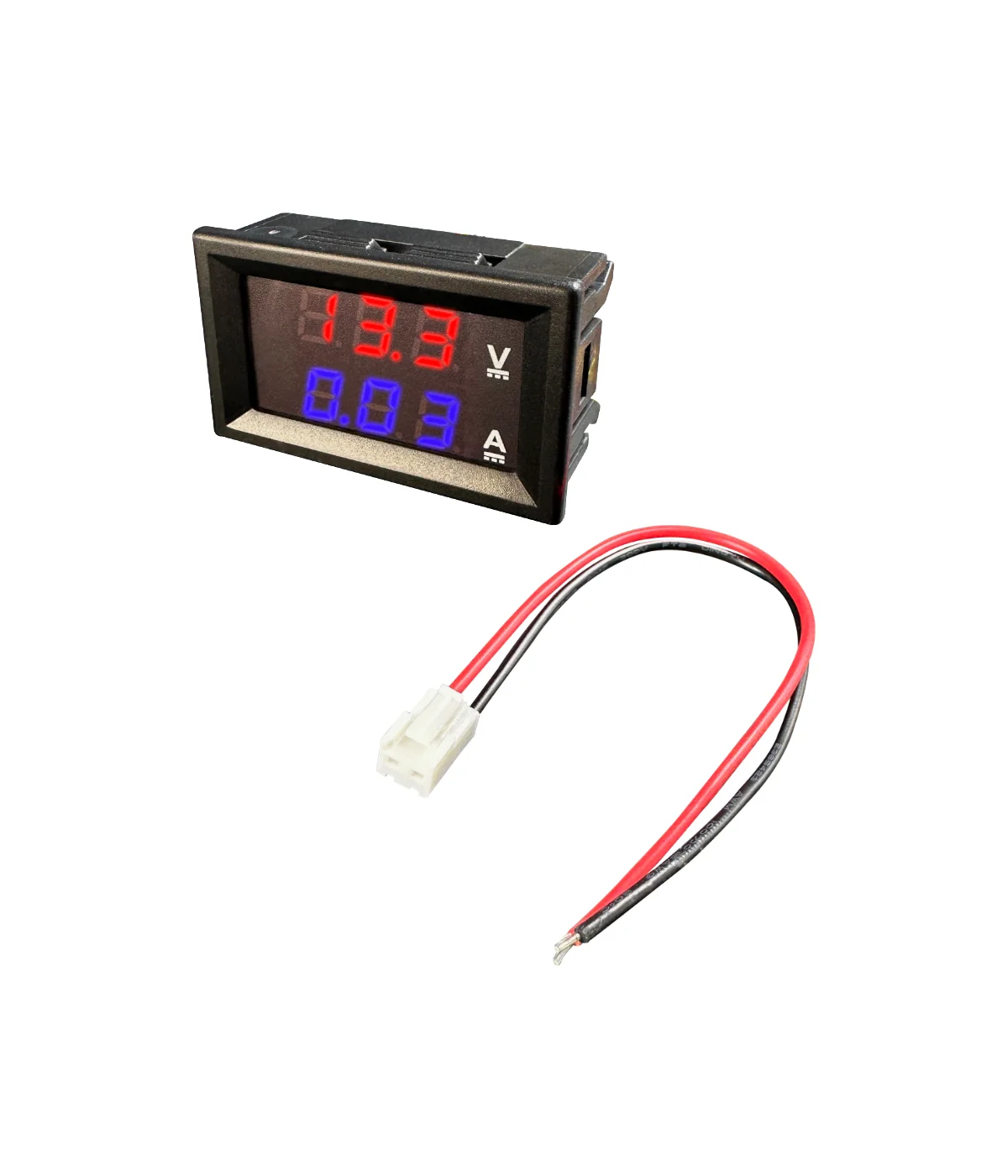

Digital V-meter and A-meter DC 0 ~ 100V 0 ~ 10A
Panel volt/ammeter module, 0 - 100V, simple power supply meter, ideal for DIY
8.00 €
8.00 € tax excl.
in stock, shipped in 2-3 days

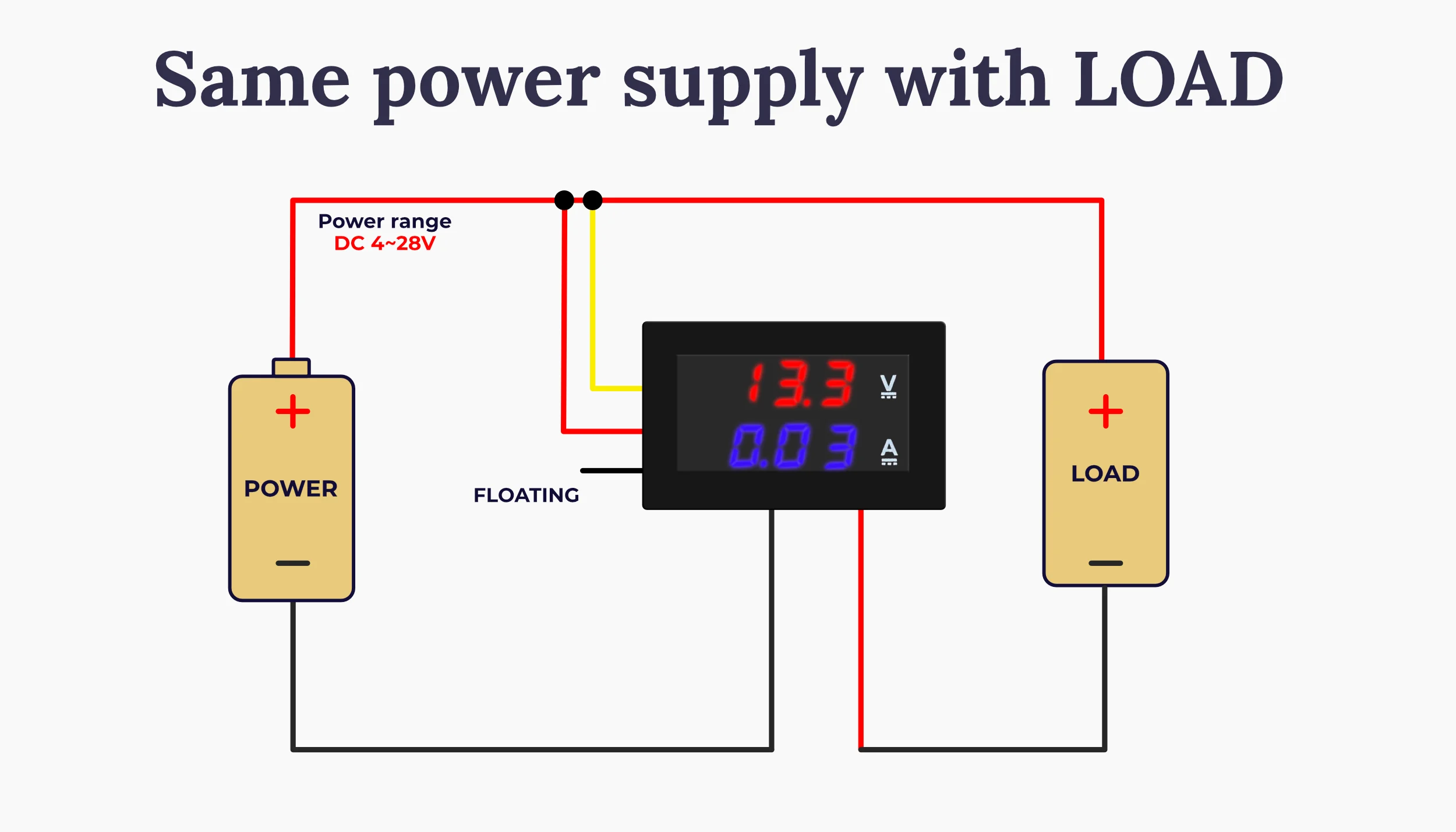

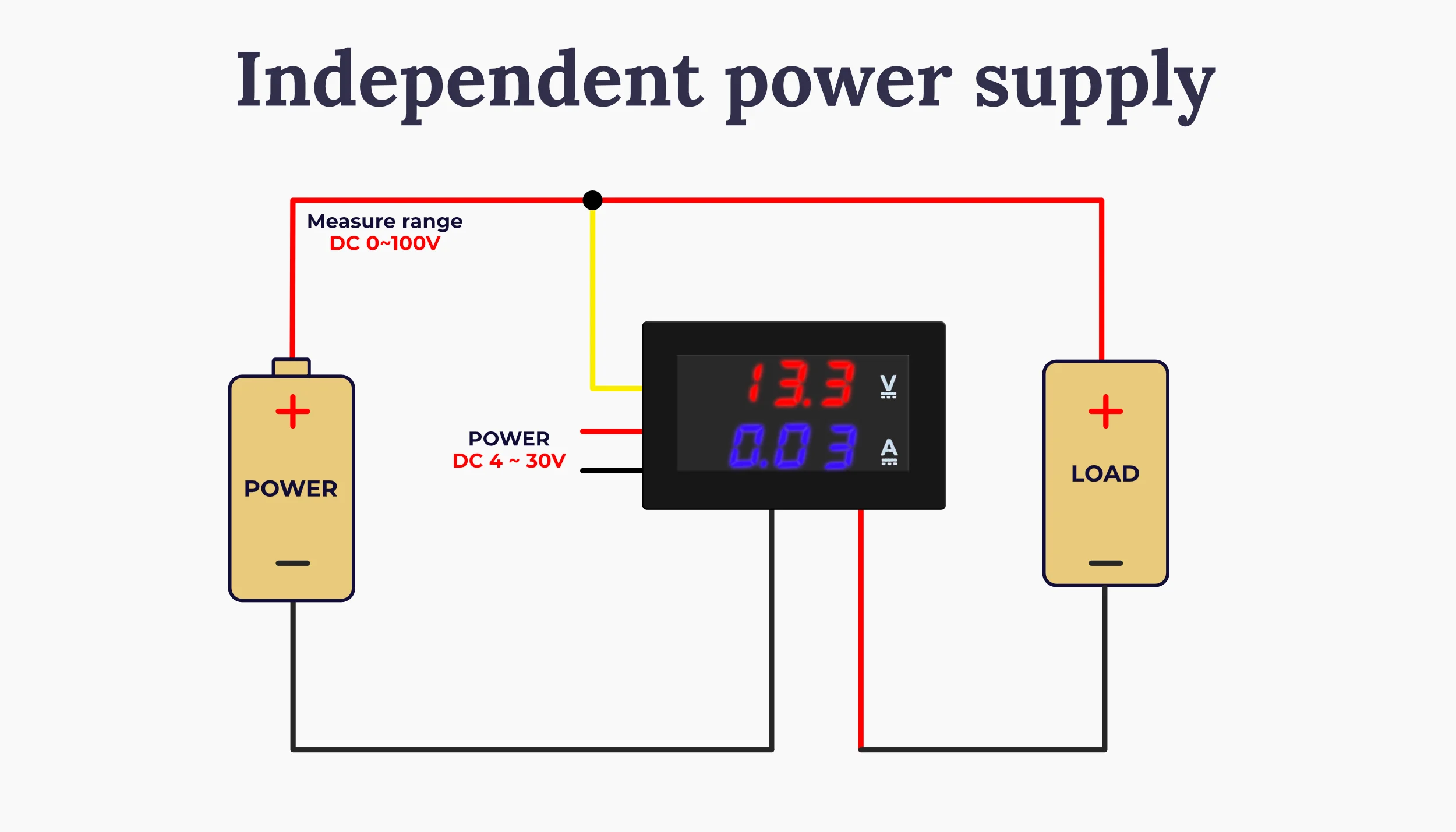

This is a very simple panel mount voltmeter and ammeter for your projects. It has a built-in current shunt for measurements between 1 and 10A. You can connect the supply voltage directly to the device when it is lower than 30V DC. When measuring higher voltage, an external power supply for the meter must be connected.
⚠ Current below 1A has a larger measurement error — the device is designed for 1 to 10A. Use an external current shunt to measure higher currents.
Specifications
| Module power supply | DC 4.5 - 30 V |
|---|---|
| Voltage measuring range | 0 - 100V DC |
| Current measuring range | 1 - 10A DC |
| Voltage resolution | 0.1 V |
| Current resolution | 0.01 A |
| Refresh rate | ≥ 500 ms |
| Measuring accuracy | 1% (±1 digit) |
| Supply current | < 20 mA |
| Operating temperature | -10 to 65 ℃ |
| Operating humidity | 10 - 80% (non-condensing) |
| Mounting hole | 45.5×26.5 mm |
