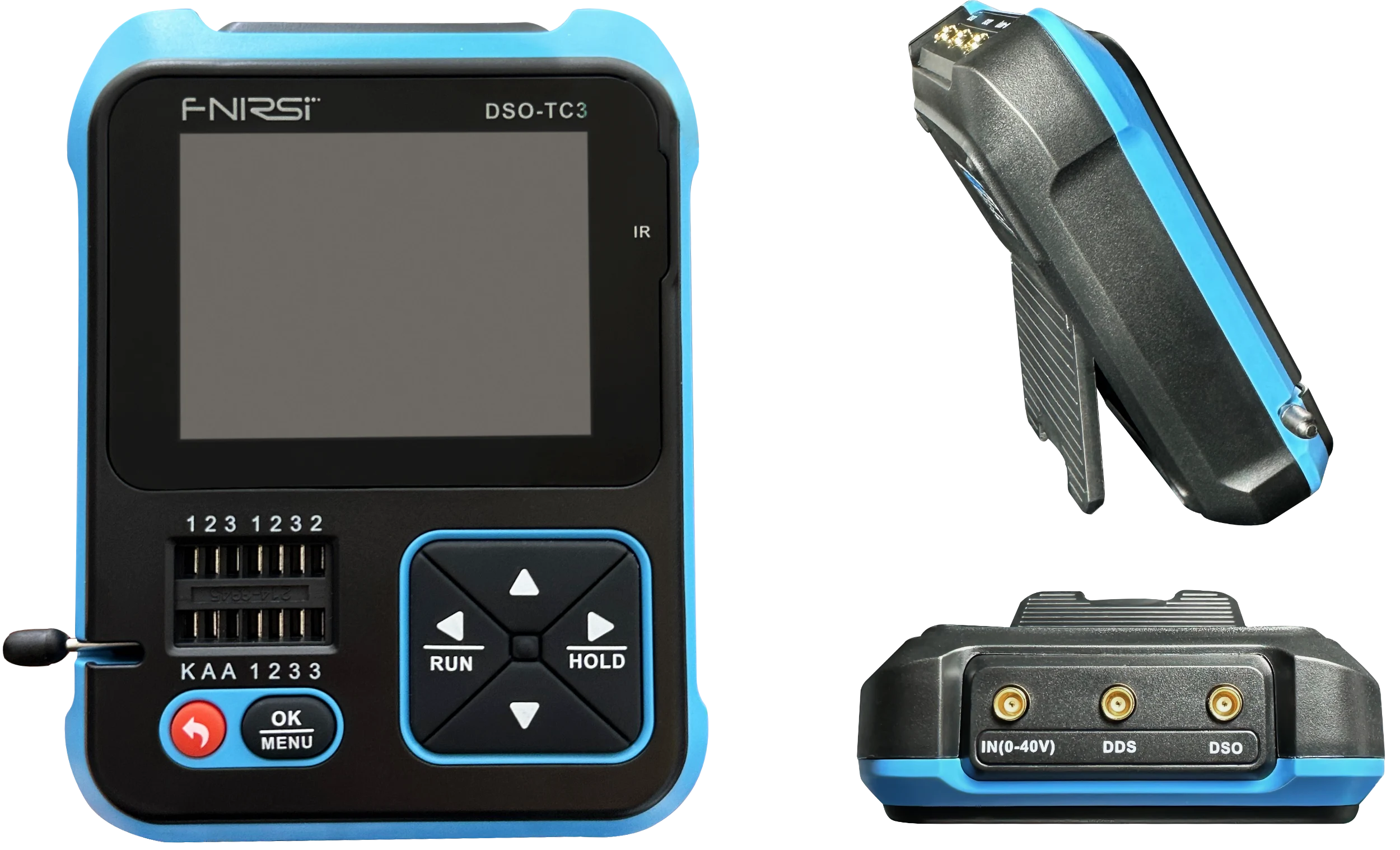

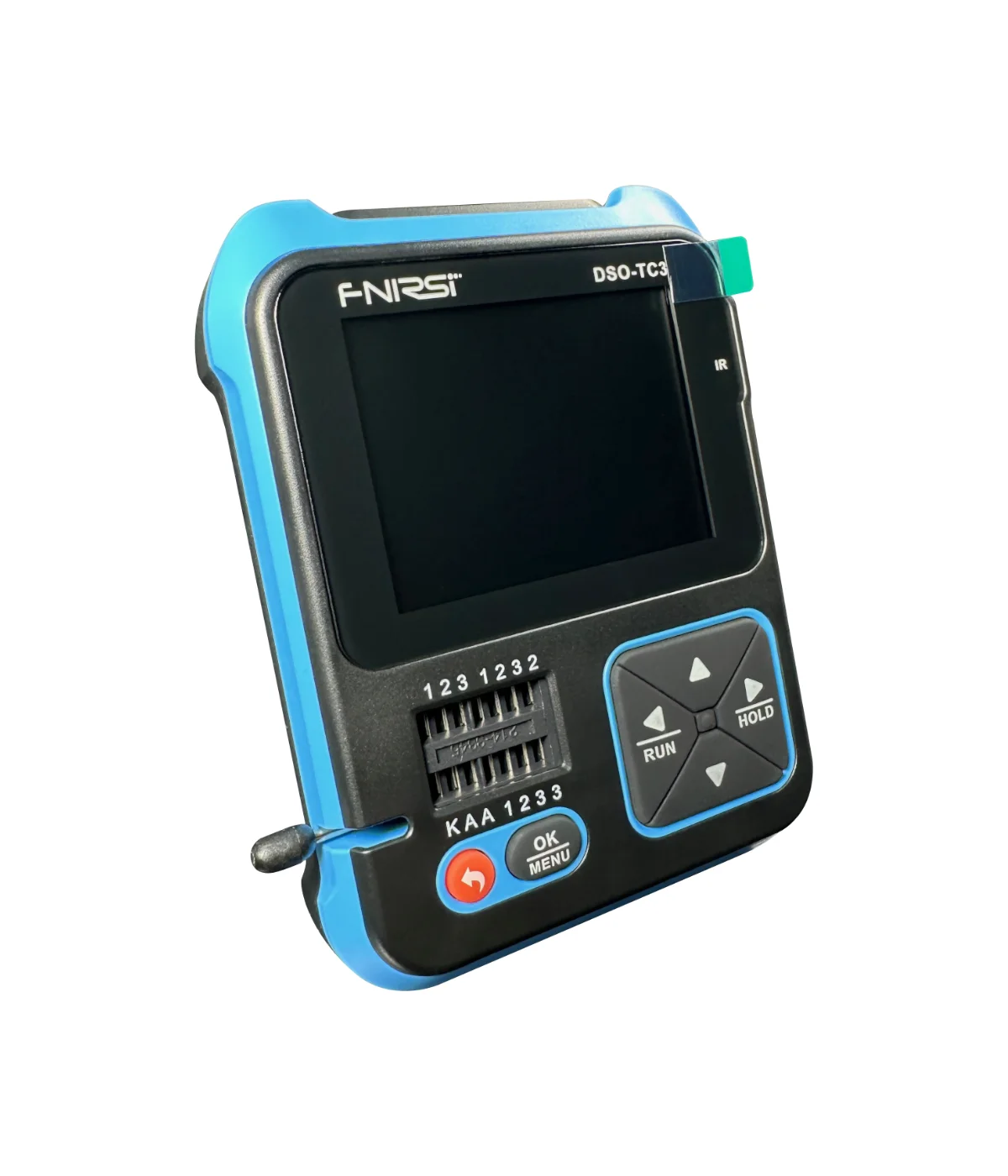

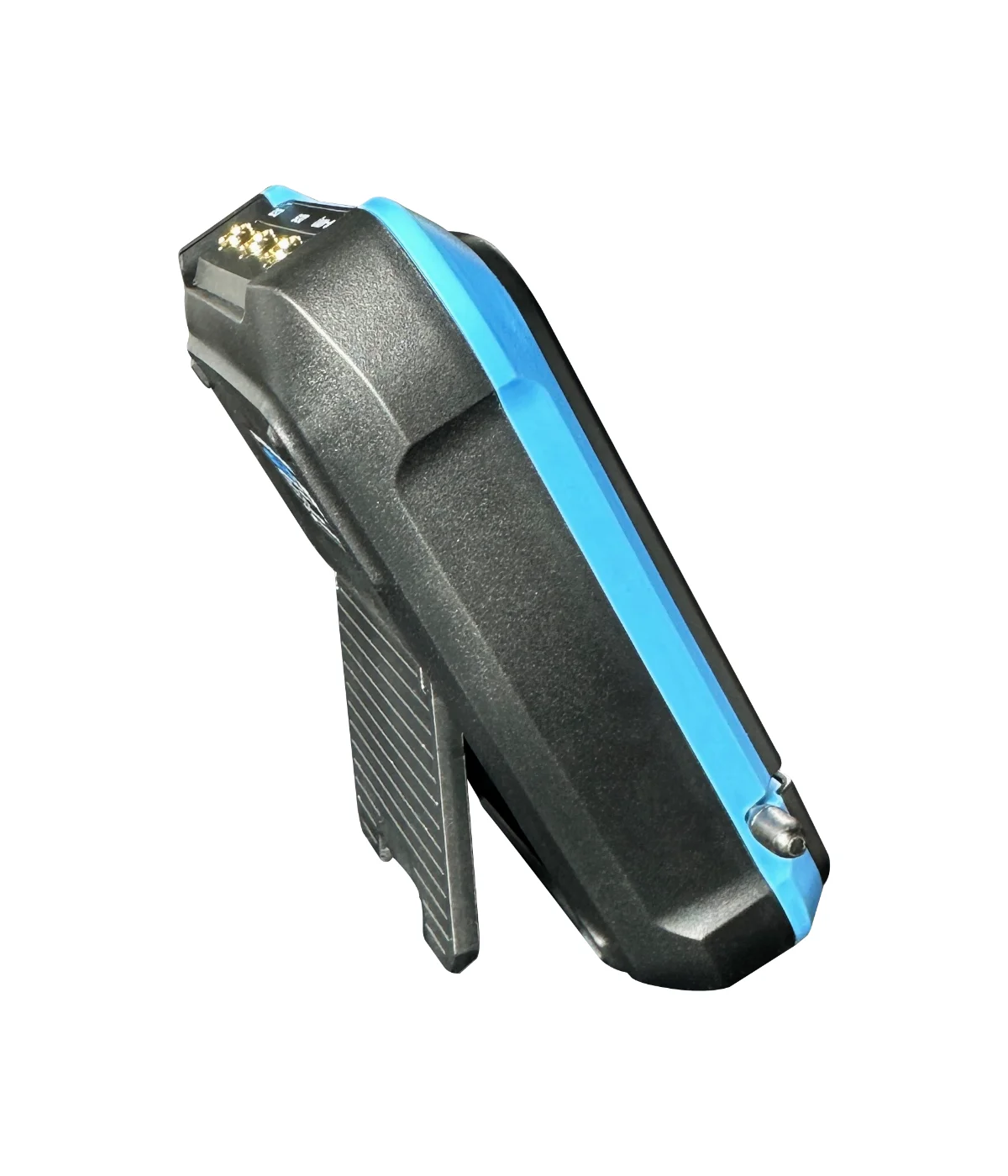

Fnirsi DSO-TC3 multimeter part tester
Handheld Fnirsi 3in1 - oscilloscope, signal generator and component tester, 2.4 inch screenÂ

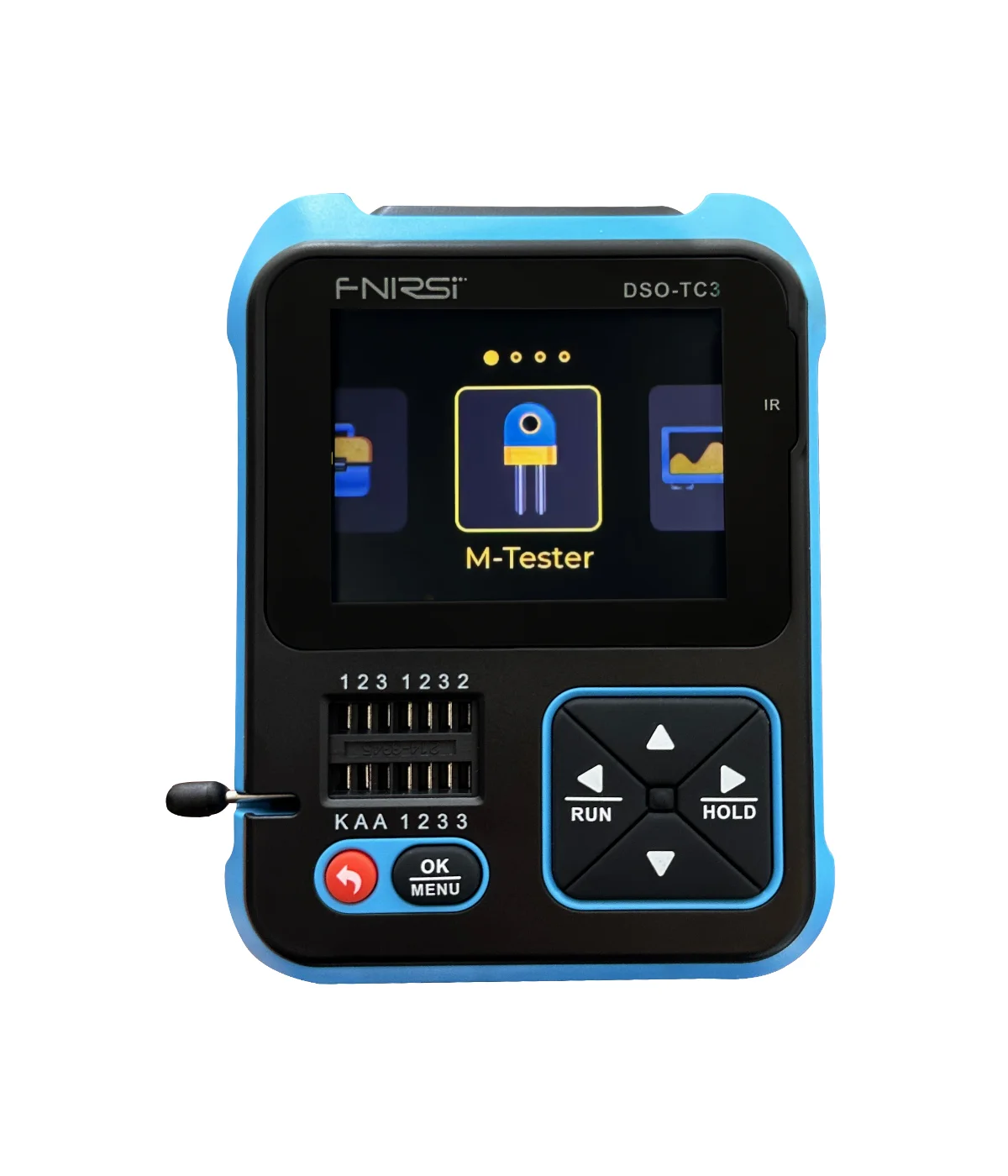

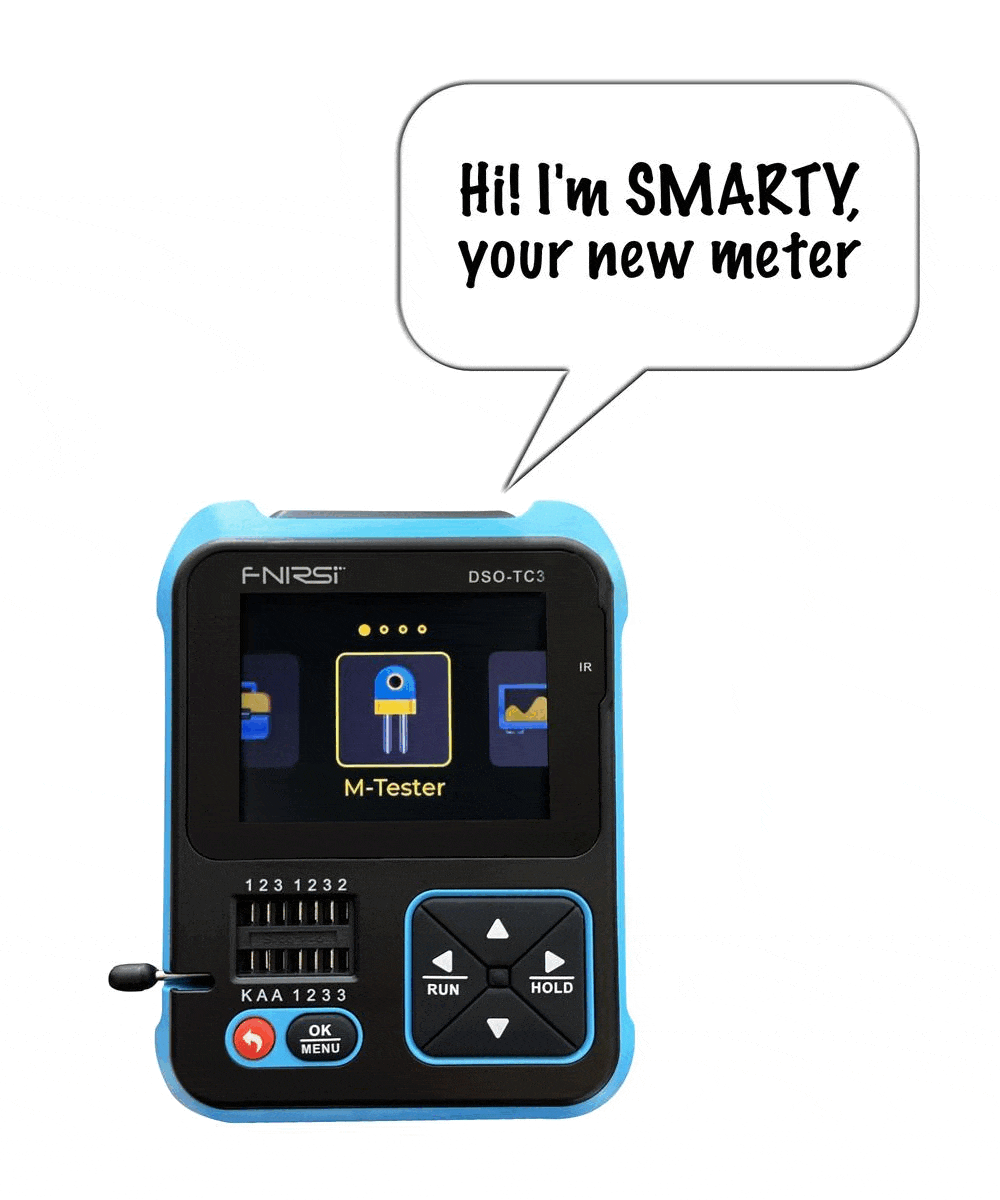

Call it a smarty meter - the FNIRSI DSO-TC3 crams a digital oscilloscope, signal generator, universal component tester, voltmeter, temperature sensor reader and IR decoder into one pocket-sized device with a 2.4" display and built-in lithium battery. It comes fully equipped: component measurement leads, a signal generator output cable, and oscilloscope probes (X1, X10) with adapter, all ready to go out of the box.
The oscilloscope handles basic waveform measurements, the generator offers 6 selectable signal shapes with adjustable frequency and amplitude, and the universal tester identifies a huge range of electronic components - automatically detecting pinout and measuring key parameters along the way.

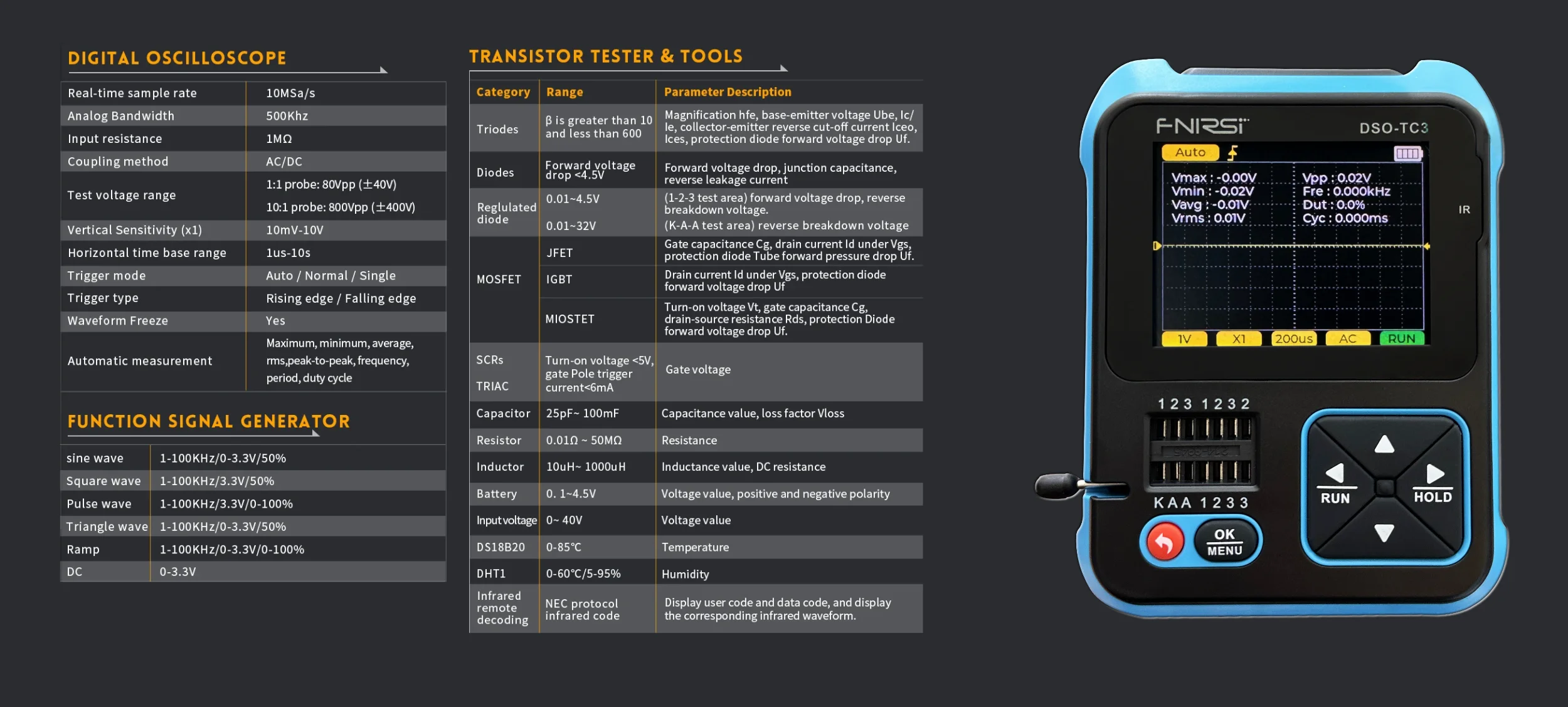

Specifications
General
| Screen | 2.4 inch TFT |
|---|---|
| Supply voltage | lithium battery |
| Charging | by USB-C, +5 V |
| Size | 79x103x31 mm |

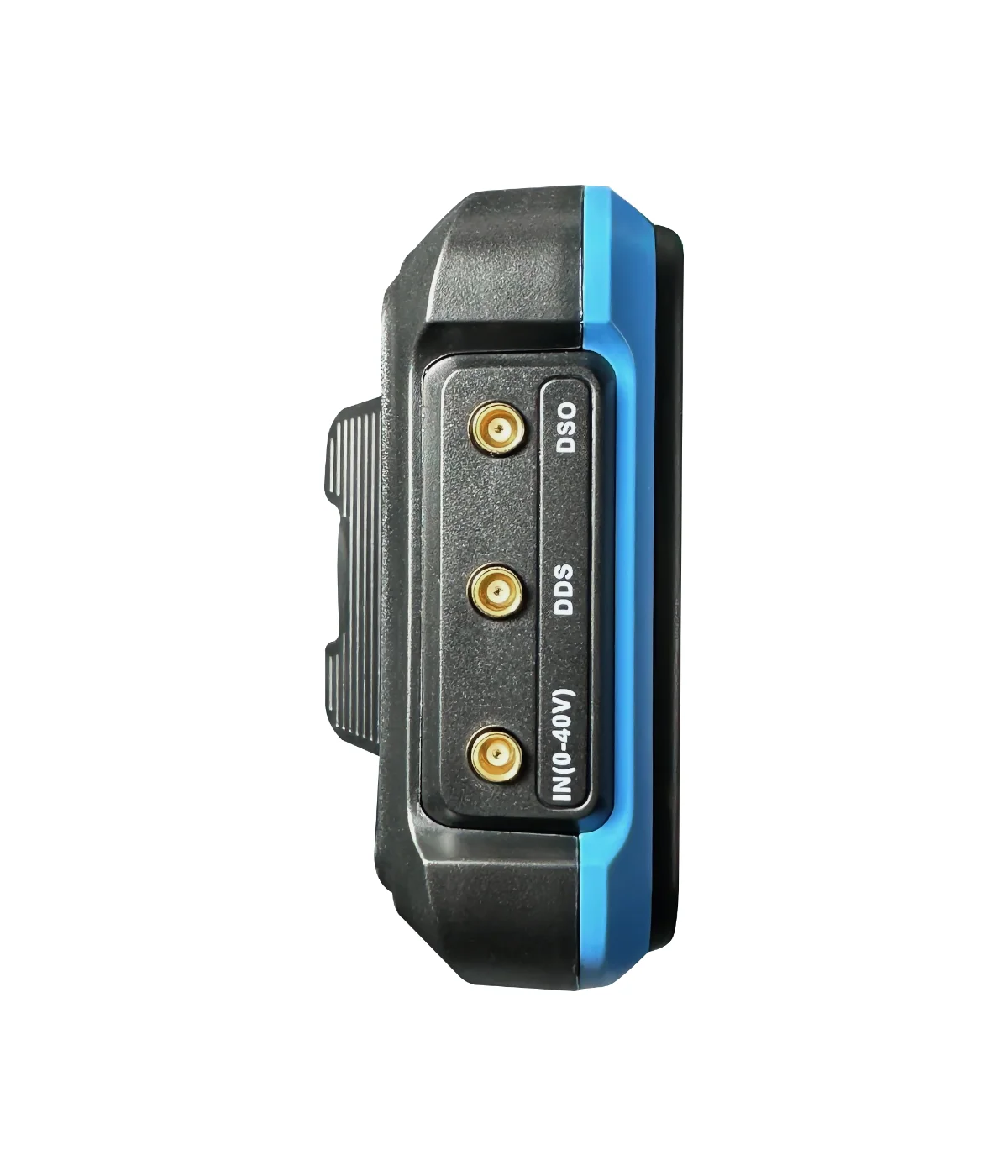

| Connector IN | signal IN 0 to 40 V |
| Connector DDS | output of signal generator |
| Connector DSO | input of oscilloscope |
| Connector Test socket | connect part to any pin of 1,2 ,3. K-A-A area is special for Voltage testing |
Oscilloscope
| Real-time sampling rate | 10 MSa/s |
|---|---|
| Analog Bandwidth | 500 kHz |
| Input Impedance | 1 MOHm |
| Coupling | AC/DC |
| Voltage range | 400 V |
| Vertical sensitivity (X1) | 10 mV to 10 V |
| Horizontal time base range | 1 µs - 10 s |
| Trigger mode | Single, Normal, Auto |
| Trigger type | Rising/Falling edge |
| Waveform freeze | Yes |
| Automatic measurement | Yes |

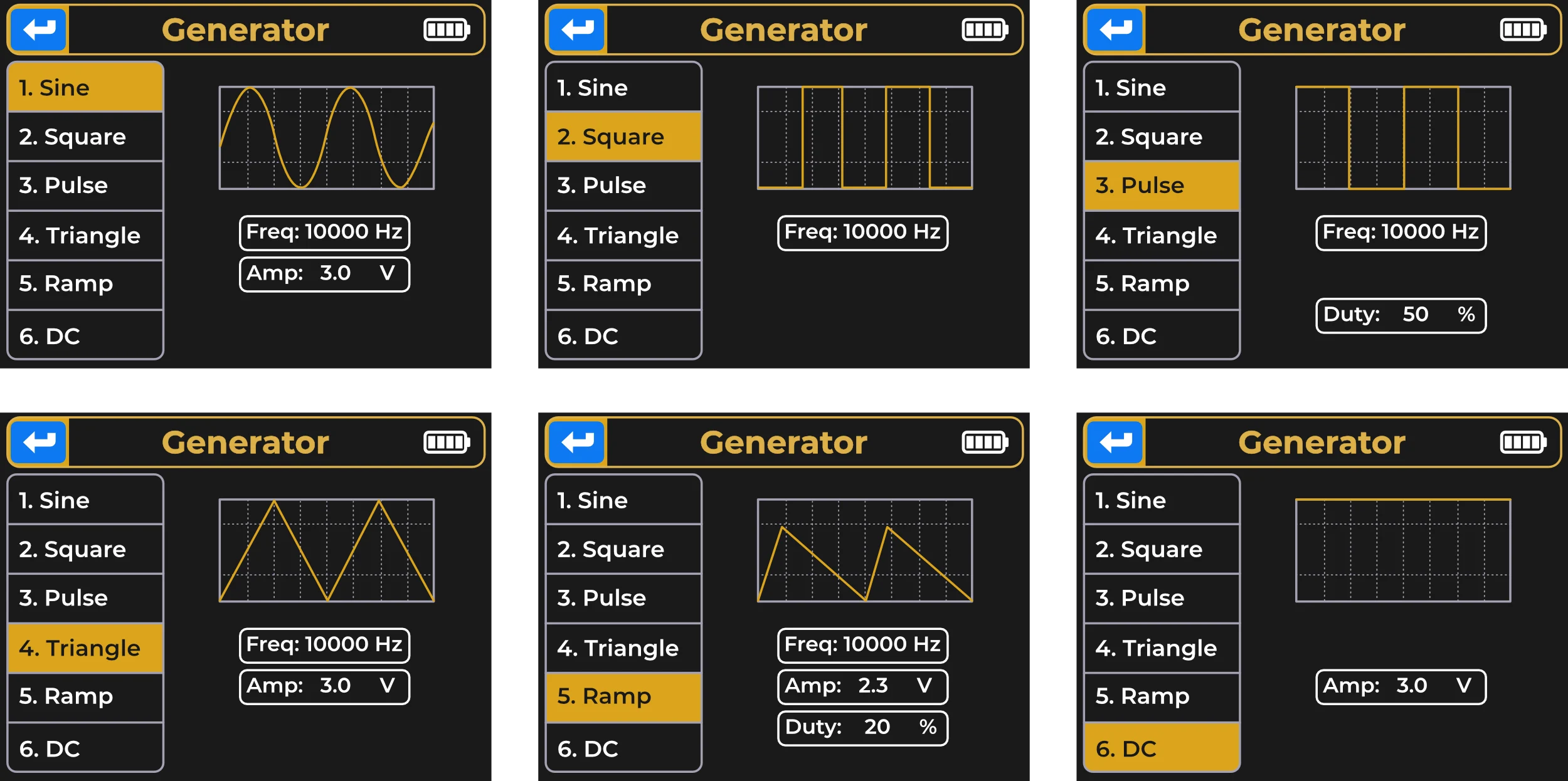

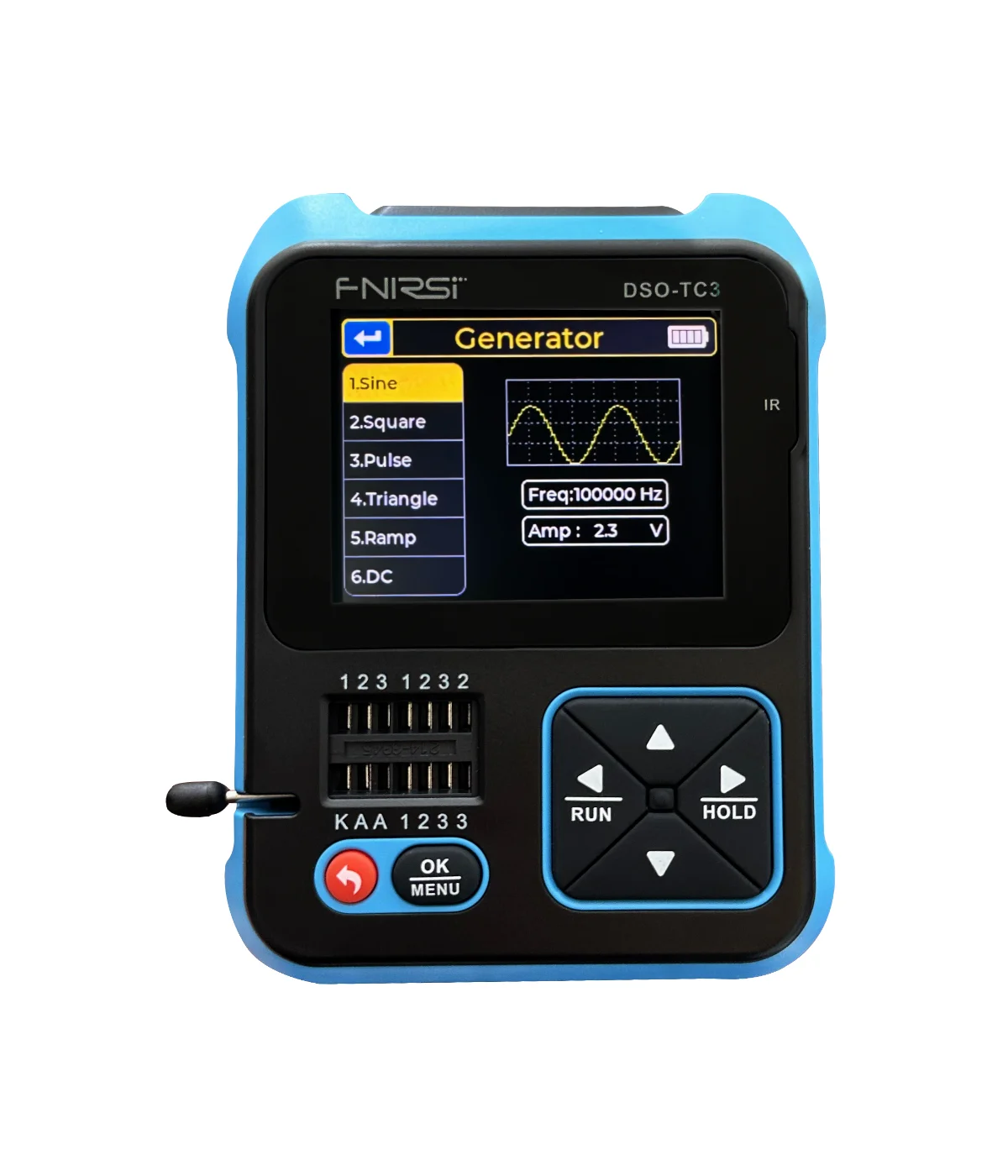

Signal Generator
6 selectable waveforms with adjustable frequency and amplitude.
| Sine wave | 1 to 100 kHz, 0 to 3.3 V, 50% |
|---|---|
| Square wave | 1 to 100 kHz, 0 to 3.3 V, 50%Â |
| Pulse wave | 1 to 100 kHz, 3.3 V, 0 to 100% |
| Triangle wave | 1 to 100 kHz, 0 to 3.3 V, 50%Â |
| Ramp | 1 to 100 kHz, 3.3 V, 0 to 100% |
| DC out | 0 to 3.3 V |
Electronic Component Tester

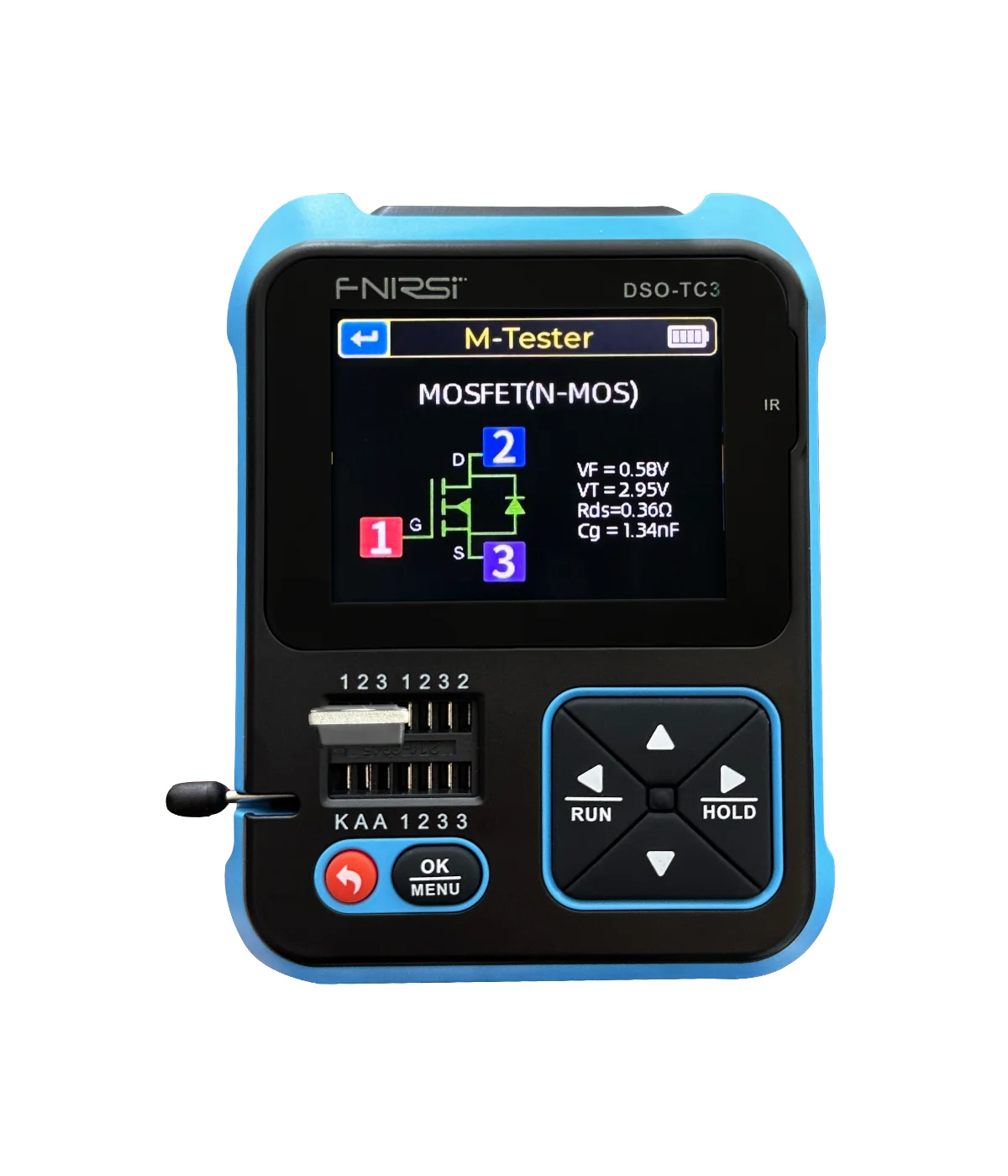

Automatically identifies and measures transistors (NPN, PNP, N-channel and P-channel MOSFETs, junction MOSFETs), diodes, dual diodes, resistors, capacitors (including ESR) and other passive components - with automatic pin connection detection.

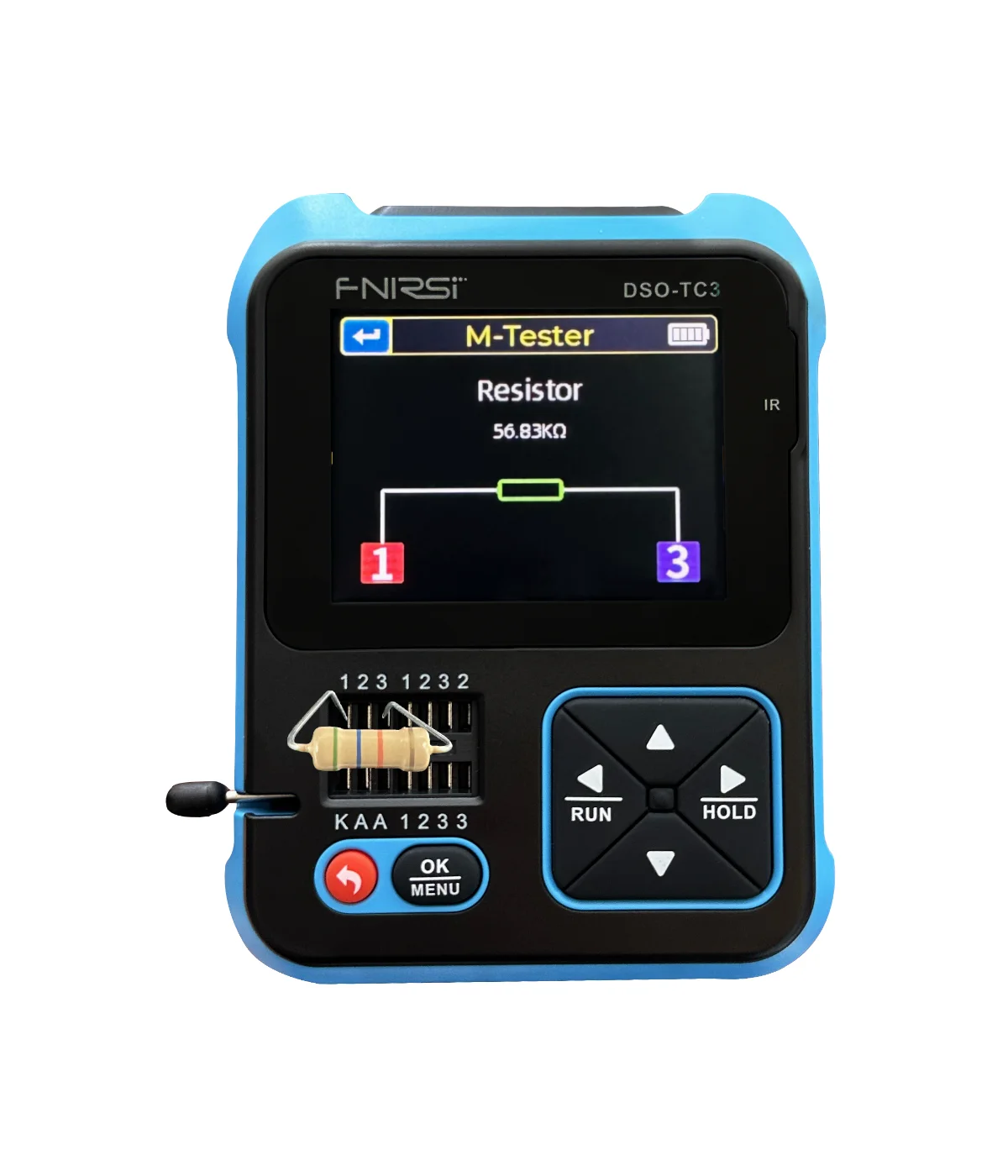

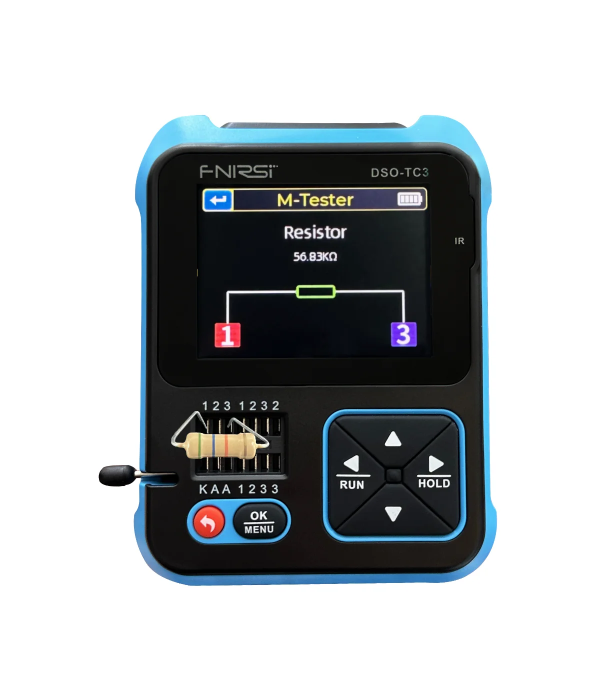

| Resistor | 0.01 Ohm to 500 MOhm |
|---|---|
| Inductor | 10 µH to 1000 mH |
| Triodes | Gain, type, usage etc. |
| MOSFET | Cg, Vgs, Uf, Vt, diode |
| Triac | Gate voltage |
| Capacitor | 25 pF to 100 mF, ESR, Vloss |
| Battery | 0.1 to 4.5 V |

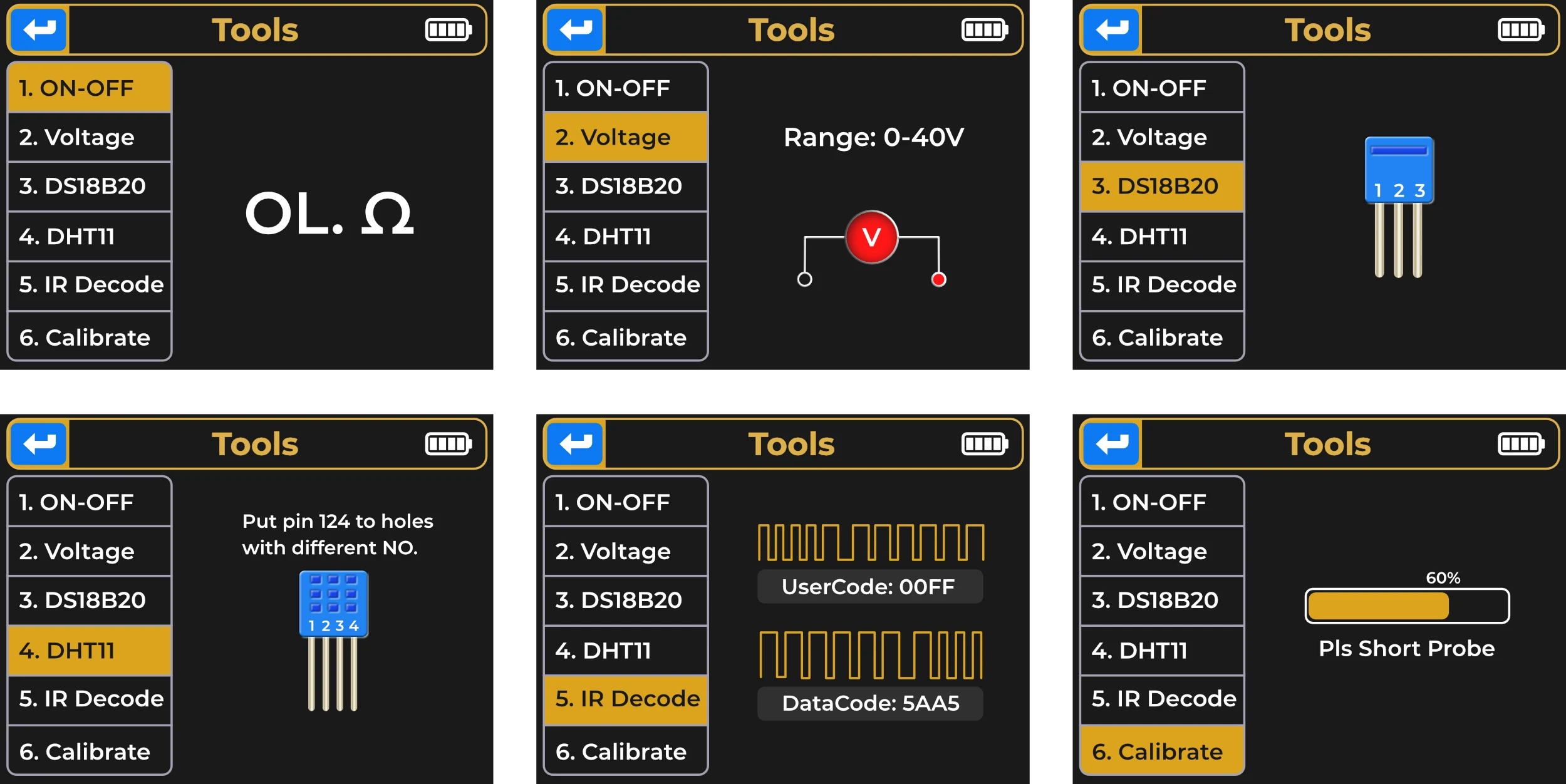

| V-meter | 0 to 40 V DC |
| DS18B20 | 0 to 85 ℃ |
| DHT11 | 0 to 60 ℃, 5 - 95% |
| IR LED | NEC protocol |
- TRIODES: Ices, ICEo, Uf are displayed only when valid.
- DIODES: Junction capacitance and reverse leak current are displayed only when valid.
- MOSFET: The turn-on and turn-off voltage of the FET must be less than 5 V.
- MOSFET: Displayed only when there is a protection diode.
- CAPACITOR: Vloss is displayed only when valid.
- INDUCTOR: Two-leg components; inductance is measured only when resistance is less than 2.1 kΩ.
Downloads & Resources
Gallery
In the box

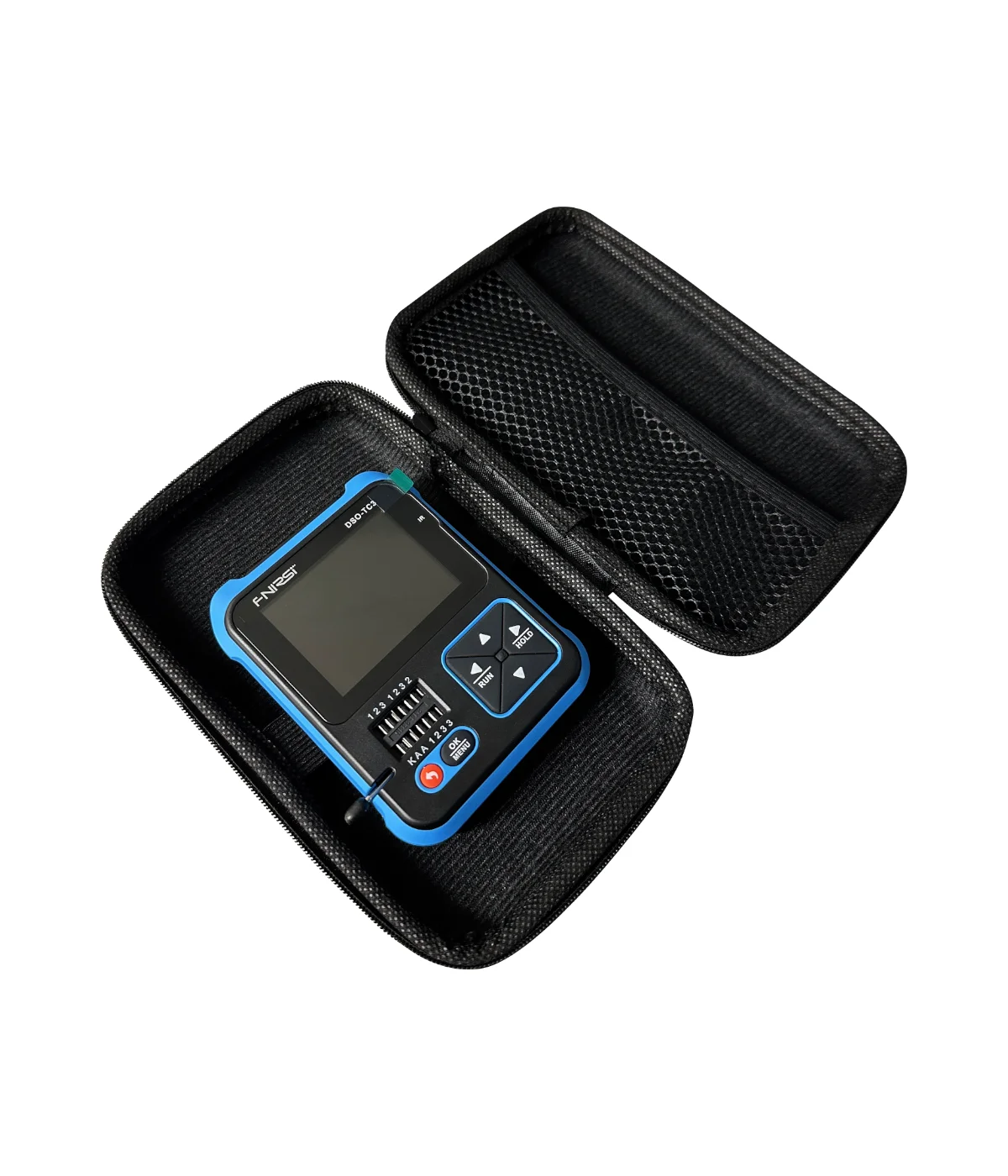

- Fnirsi DSO-TC3 meter

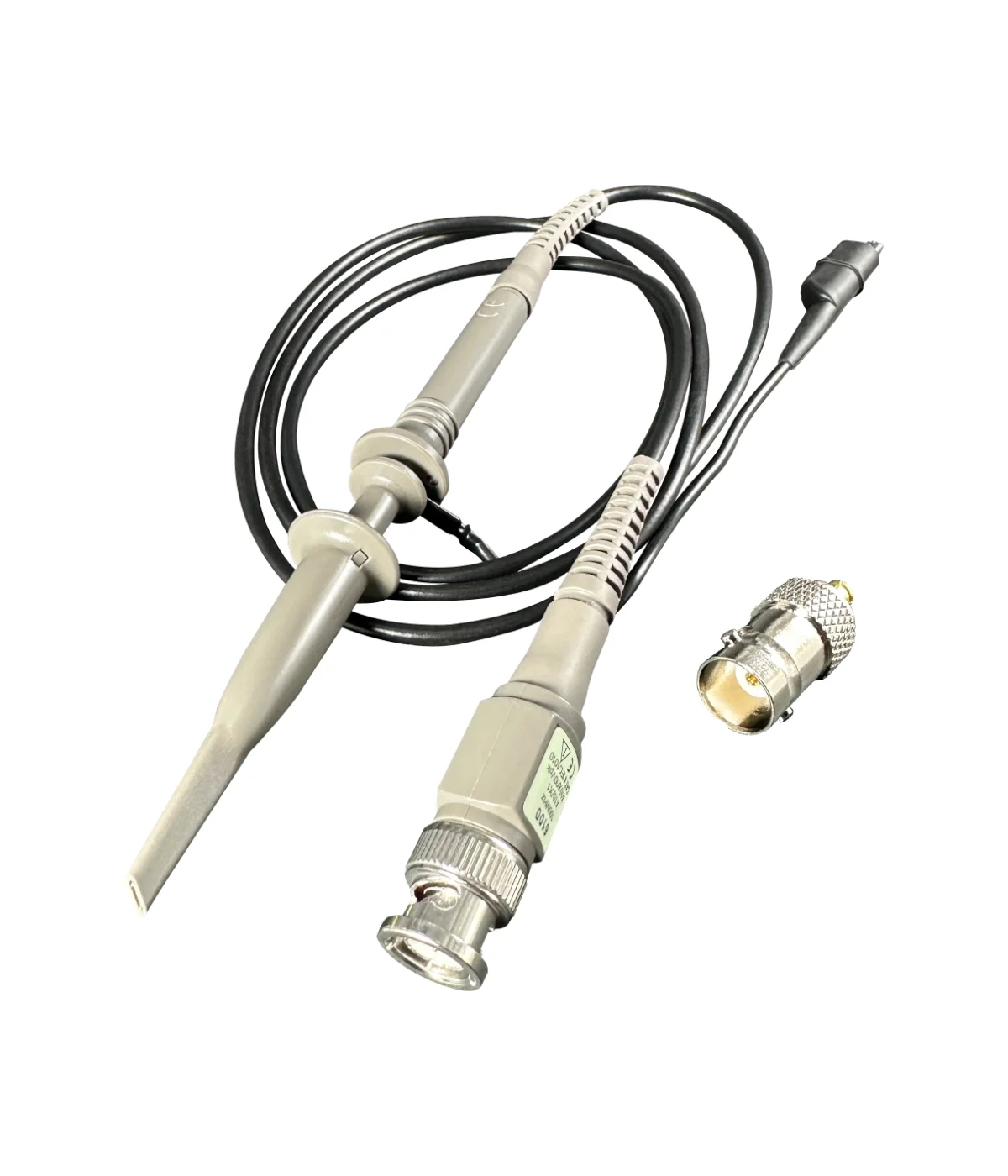

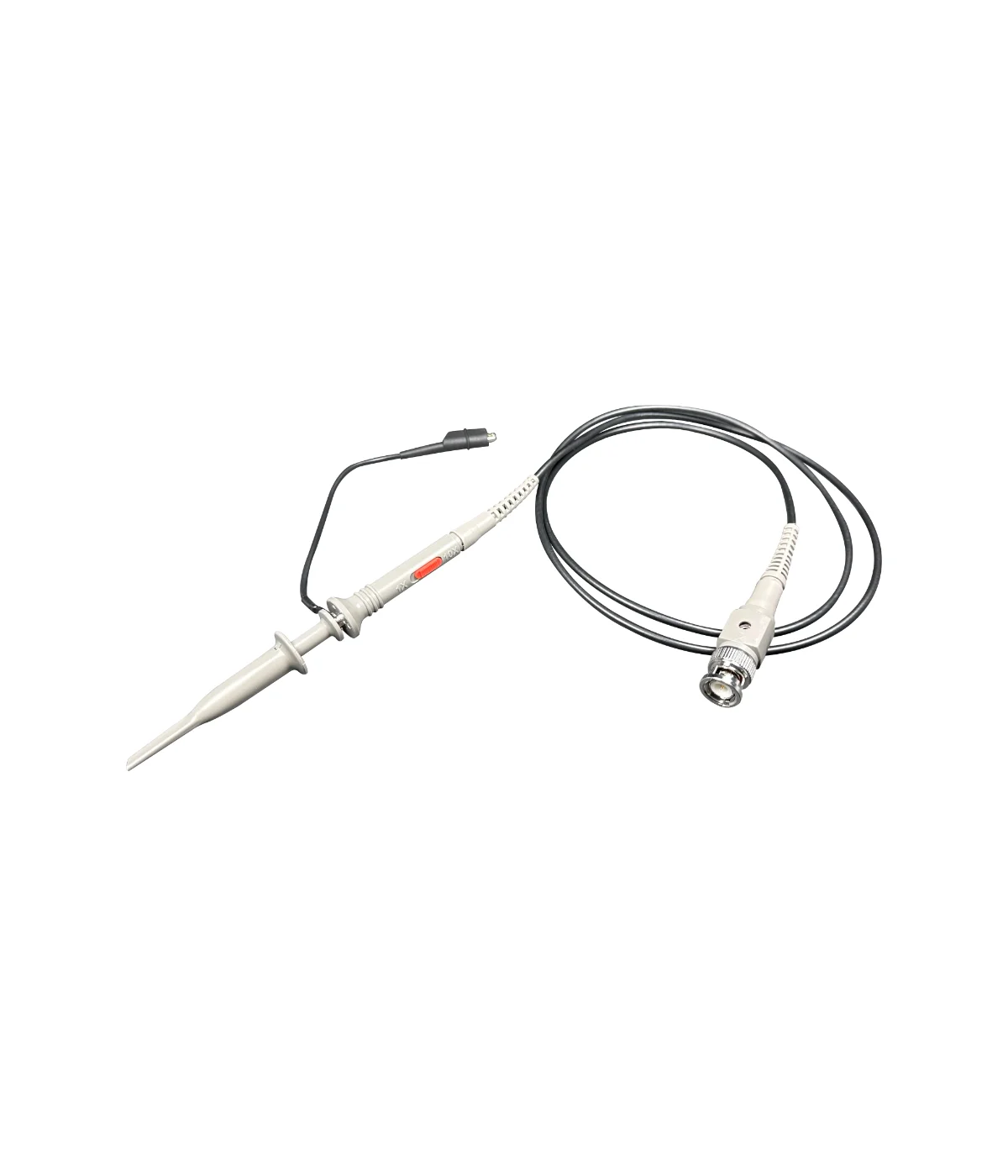

- High voltage probe P6100

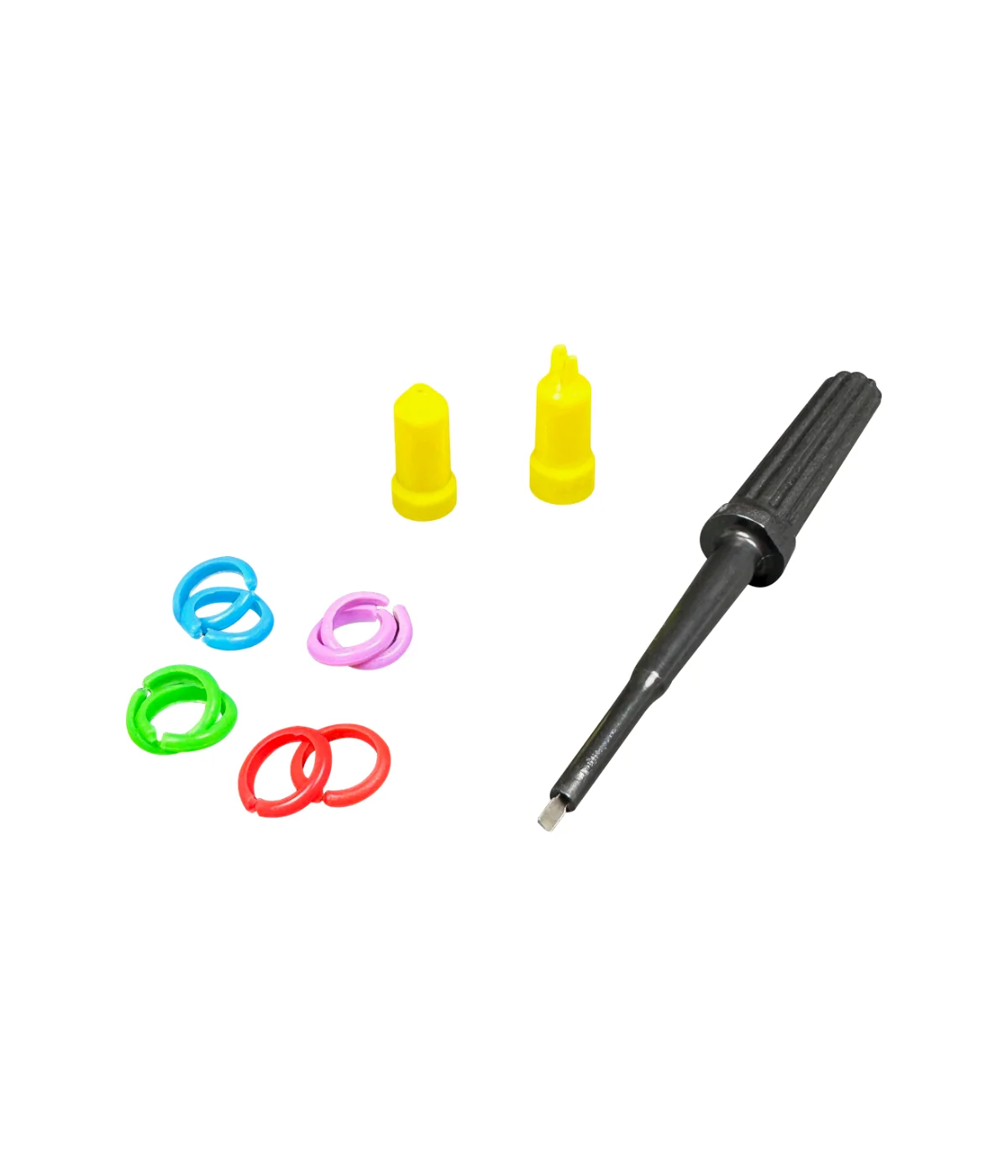

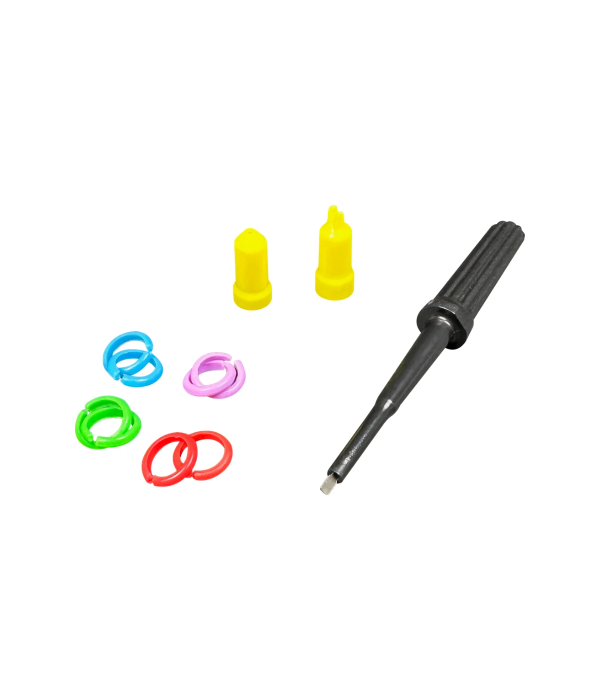

- Ordinary probe

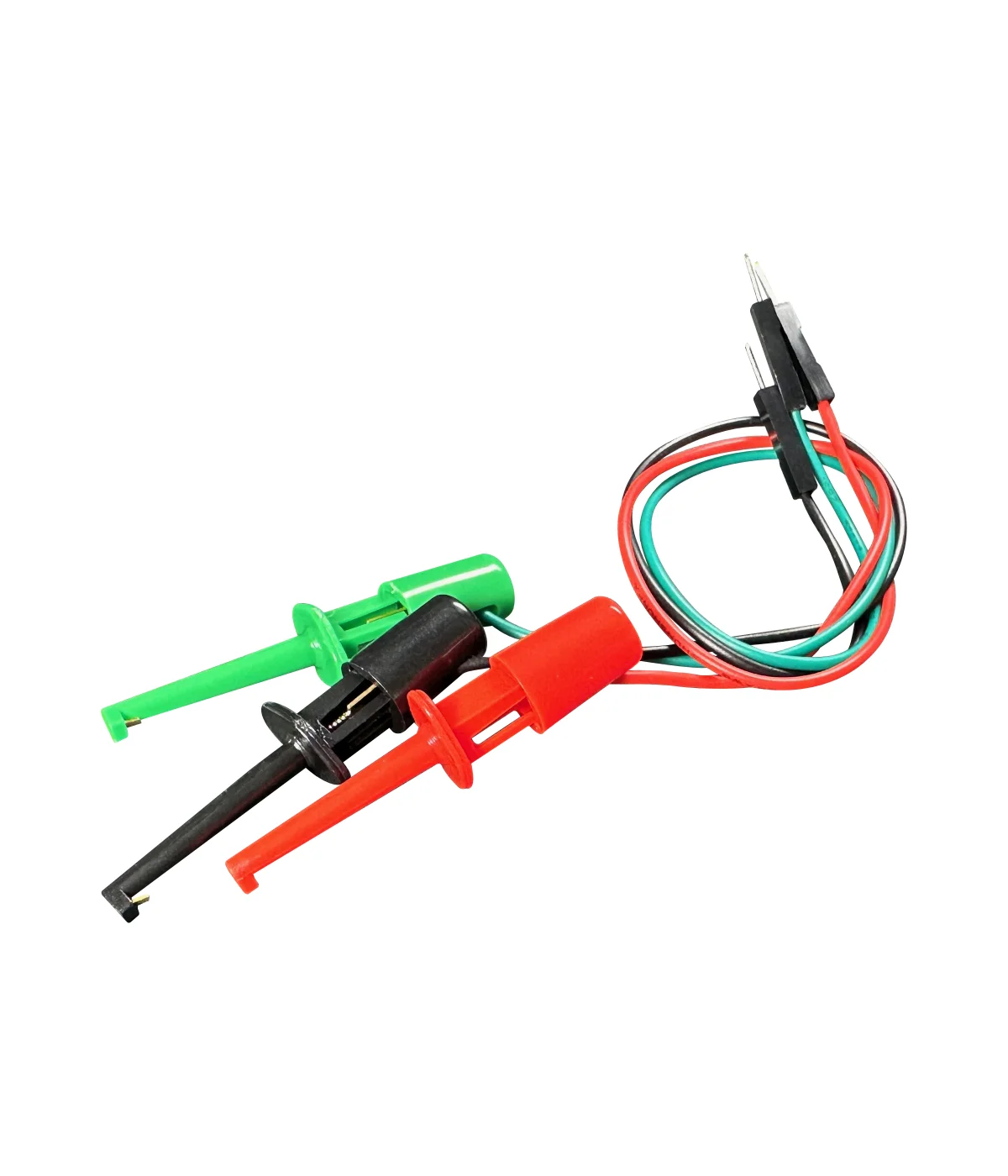

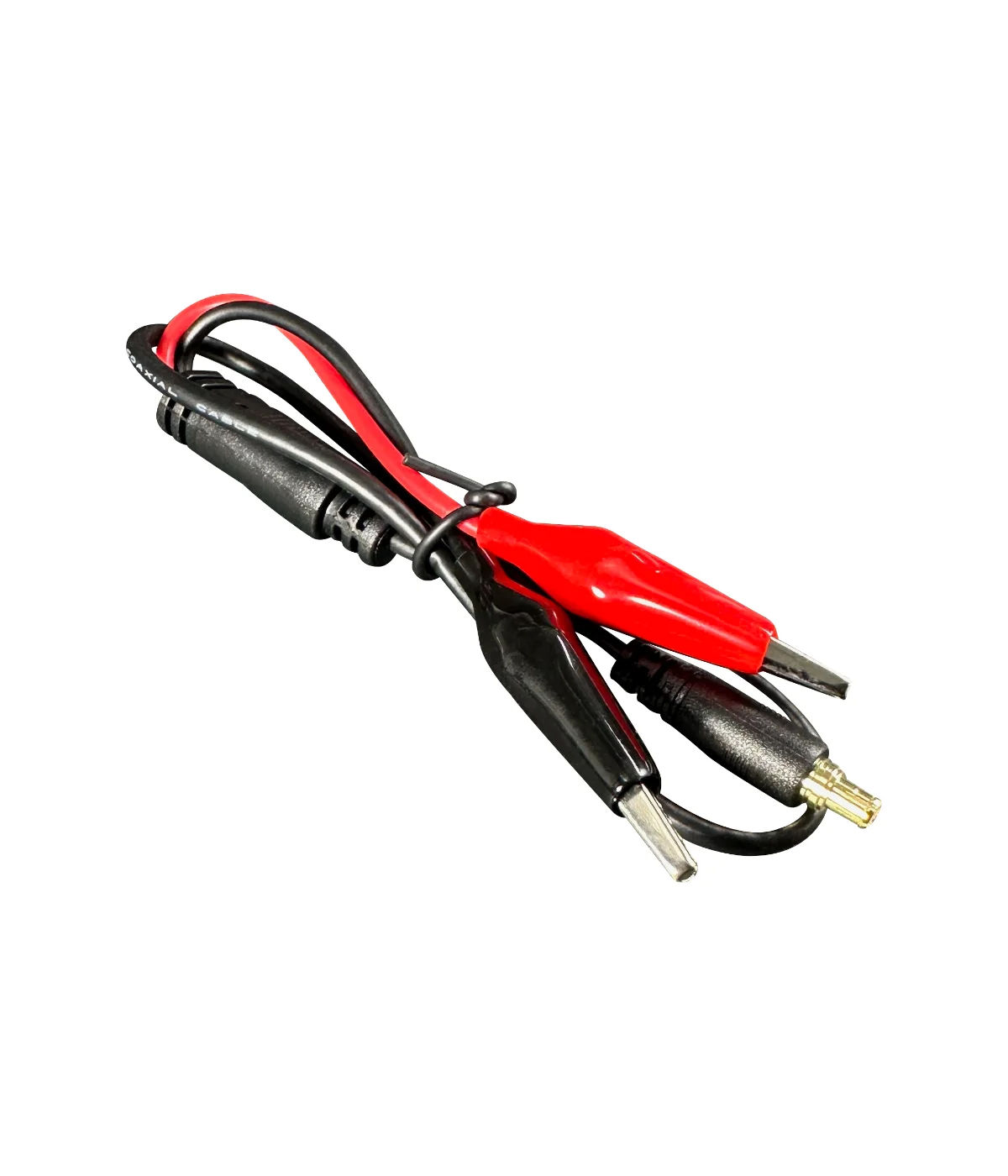

- Test hooks
- Adapter

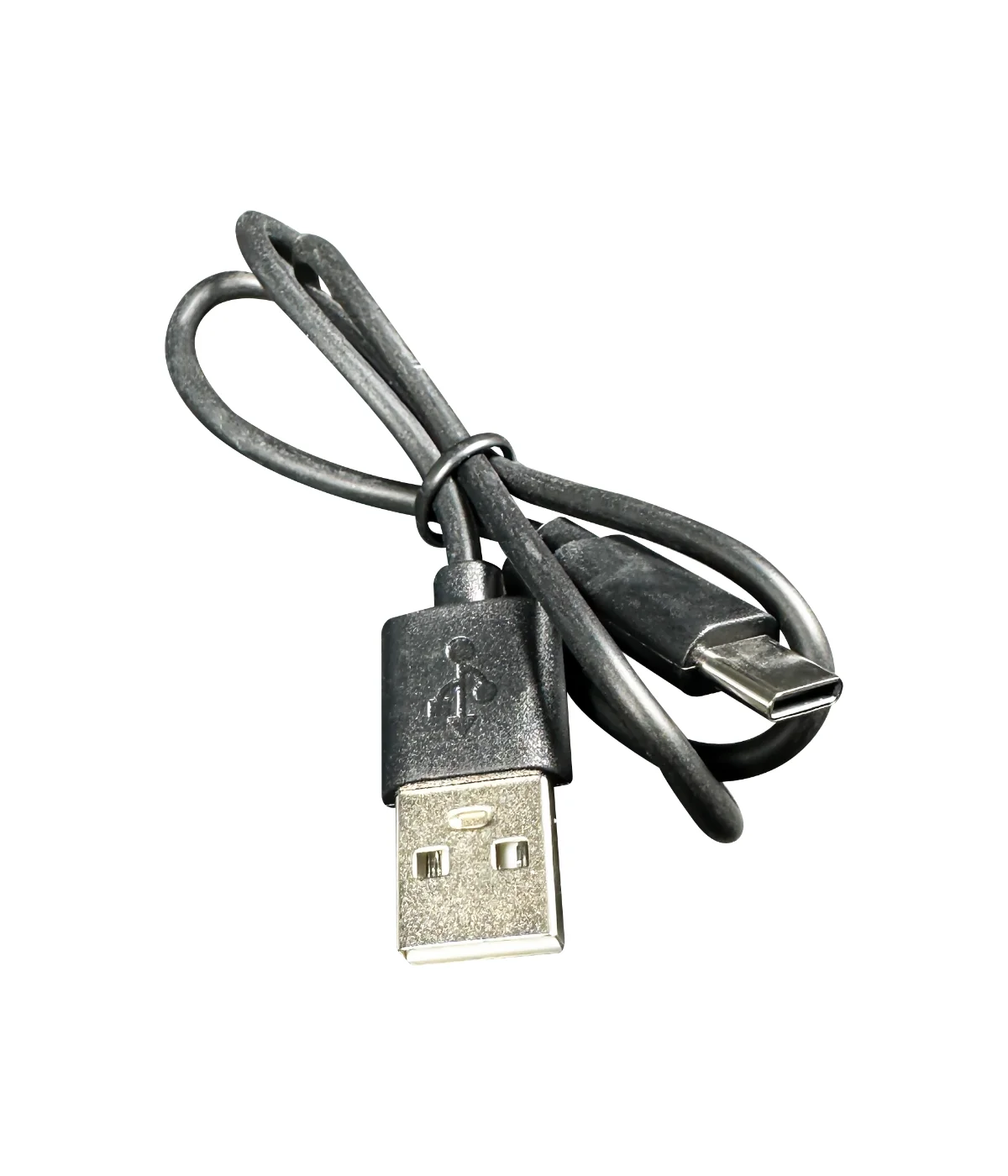

- USB-C charging cable

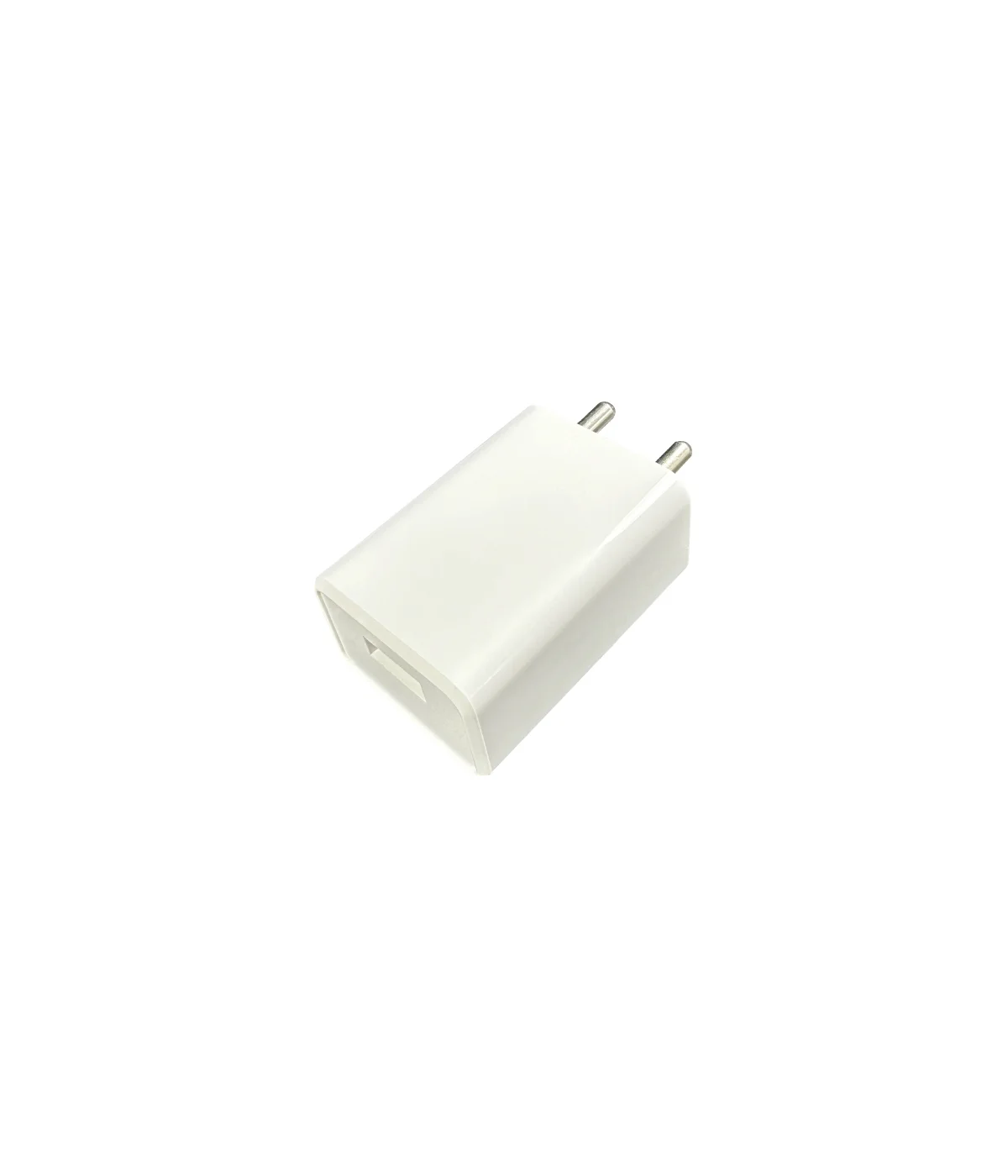

- 5V charger EU type
- Paper manual
