New

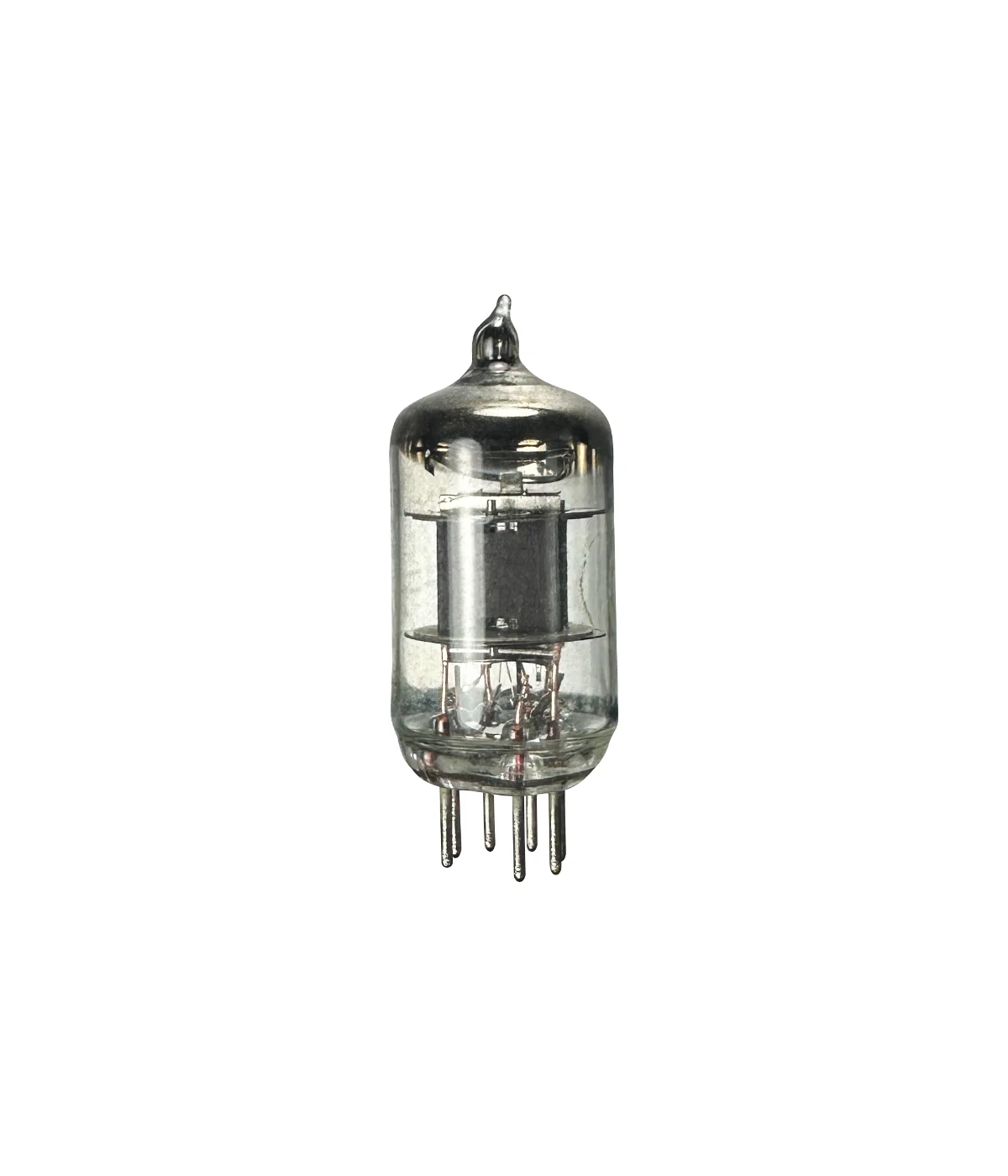

Tube 6J1 (EF95) RF/AF pentode
Pentode tube 6J1, EF95 - low noise pentode
4.24 €
3.50 € tax excl.
in stock, shipped in 2-3 days
The 6J1 is Chinese amplifier pentode similar to EF95. I tis low noise, high slope primarily intended pentode for RF and AF preamplifiers. You can build very simply one tube receiver or small AF preamplifier with low anode voltage.
Specifications
| Type | sharp cut-off RF pentode |
|---|---|
| Base | 7-pin |
| Heater voltage | 6.3 V |
| Heater current | 170 ± 20 mA |
| Anode voltage (typ.) | 120 V |
| Screen (g2) voltage (typ.) | 120 V |
| Anode current | 7.35 mA (+3.38/-2.75) |
| Mutual conductance | 5.1 ± 1.4 mA/V |
| Input capacitance | 4.3 pF (+0.5/-0.4) |
| Anode voltage (max.) | 200 V |
| Anode dissipation (max.) | 1.8 W |
| Screen dissipation (max.) | 0.55 W |

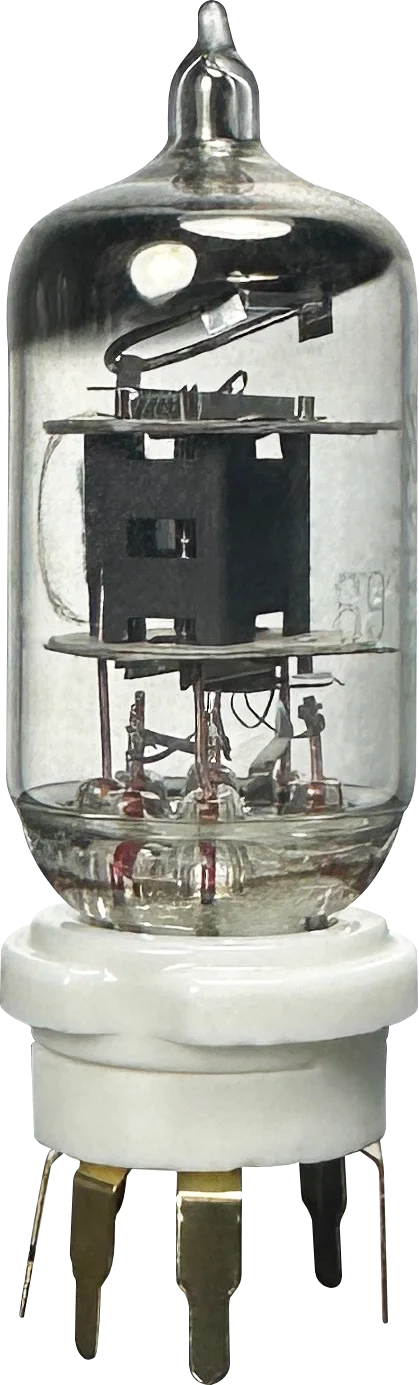

Tube with ceramic socket
