New

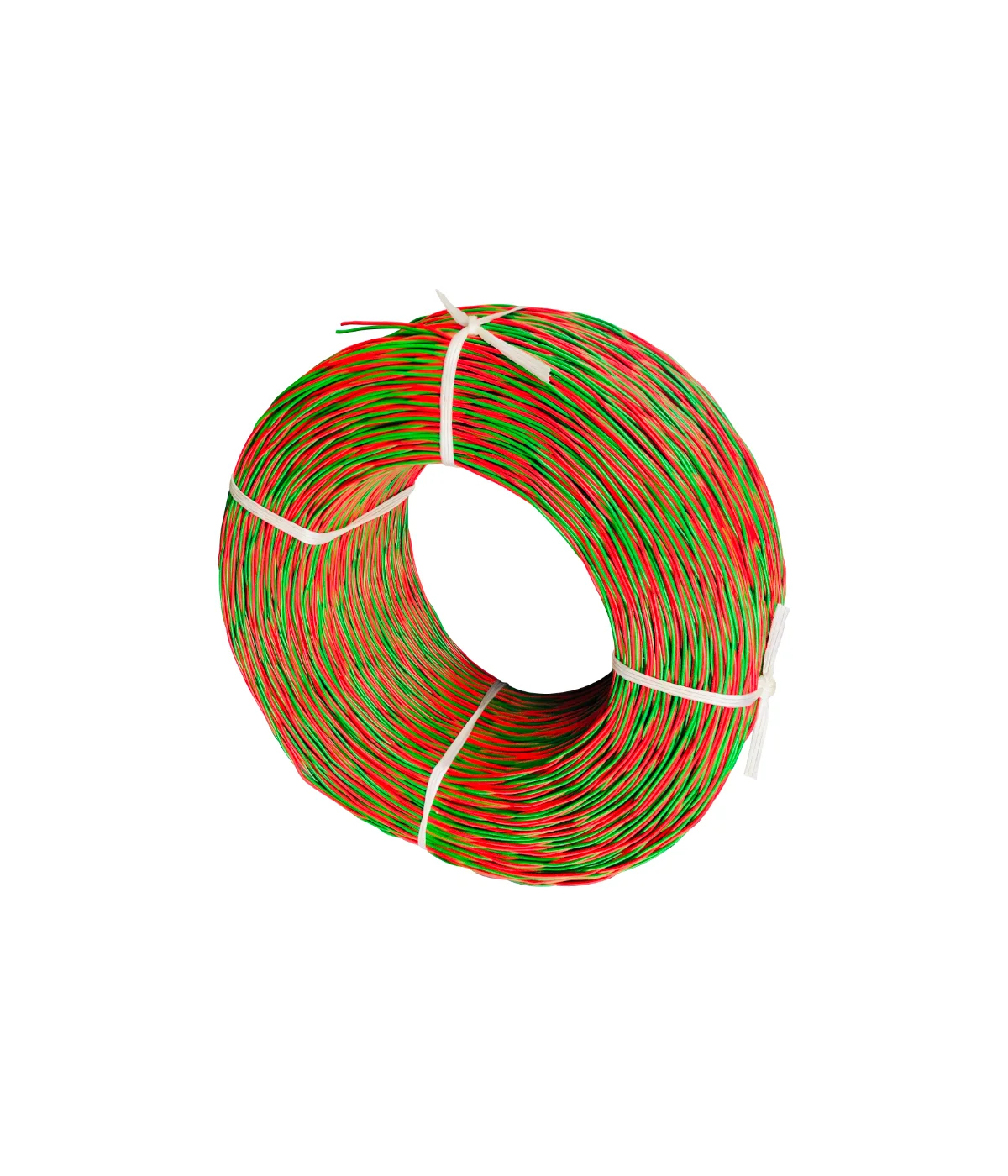

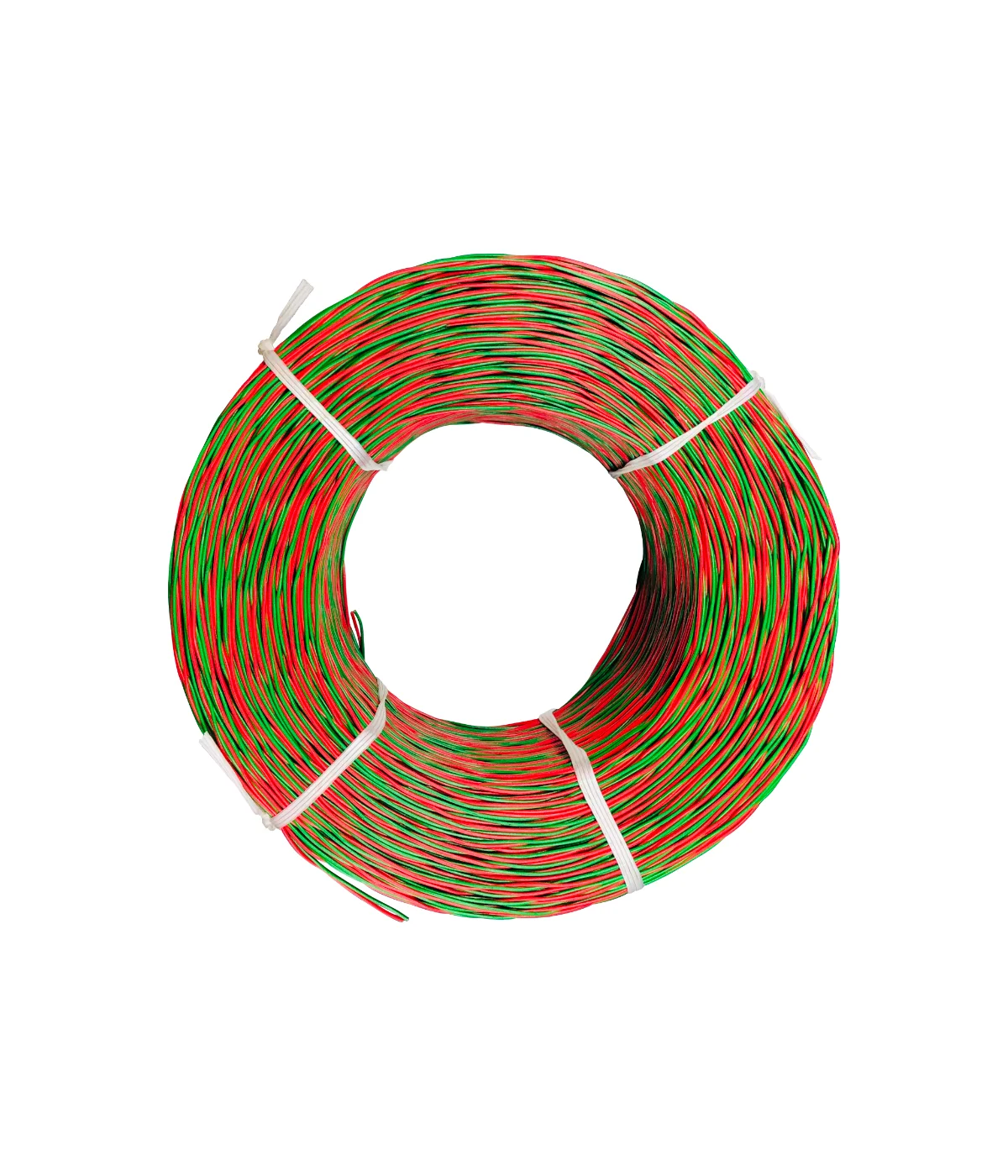

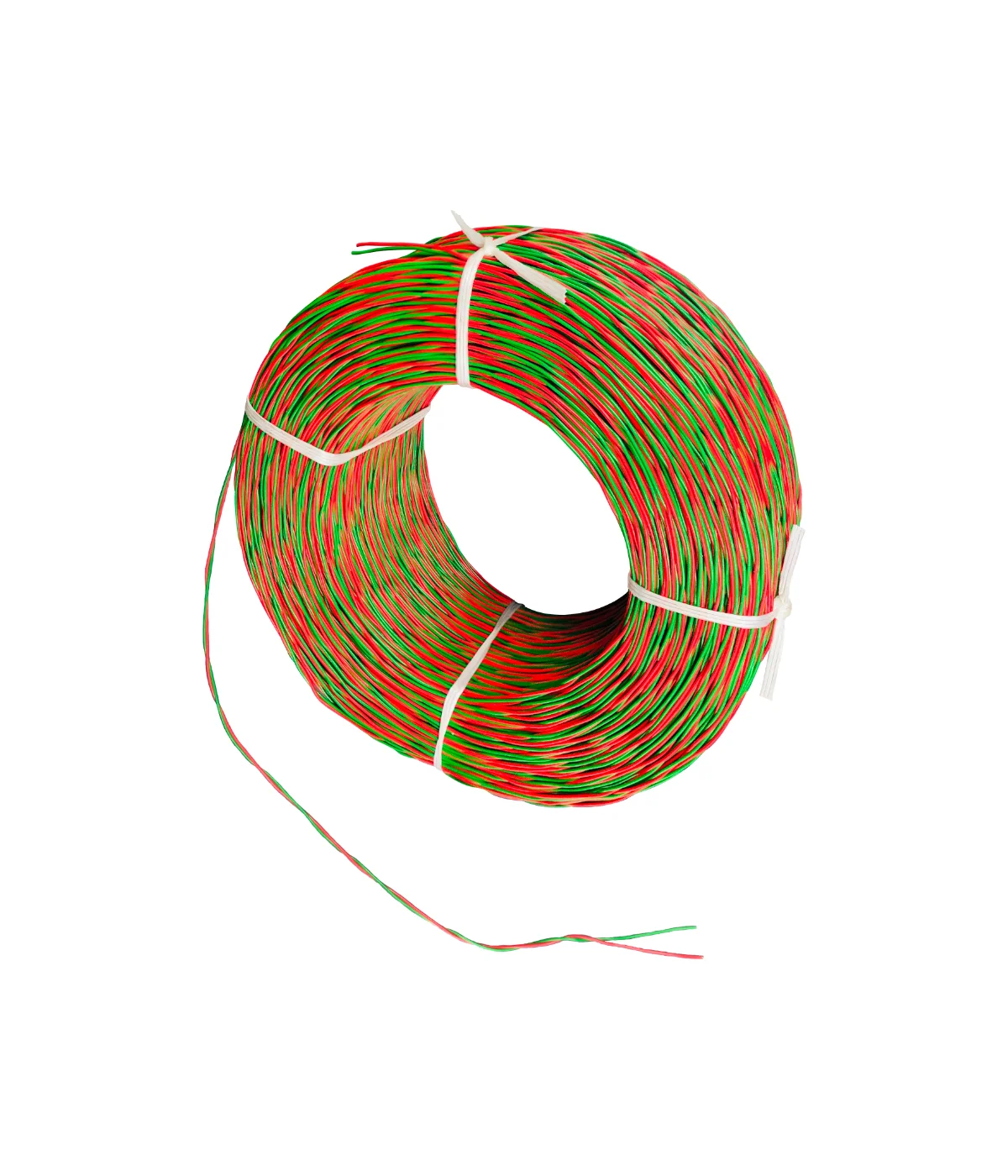

Twisted pair of wires 150Ohm 0.5mm - 300m/984ft
150Ohm twisted pair of wires, 0.5mm/24AWG - lightweight, ideal for portable Bi-Directional Beverage antennas
75.00 €
75.00 € tax excl.
in stock, shipped in 2-3 days

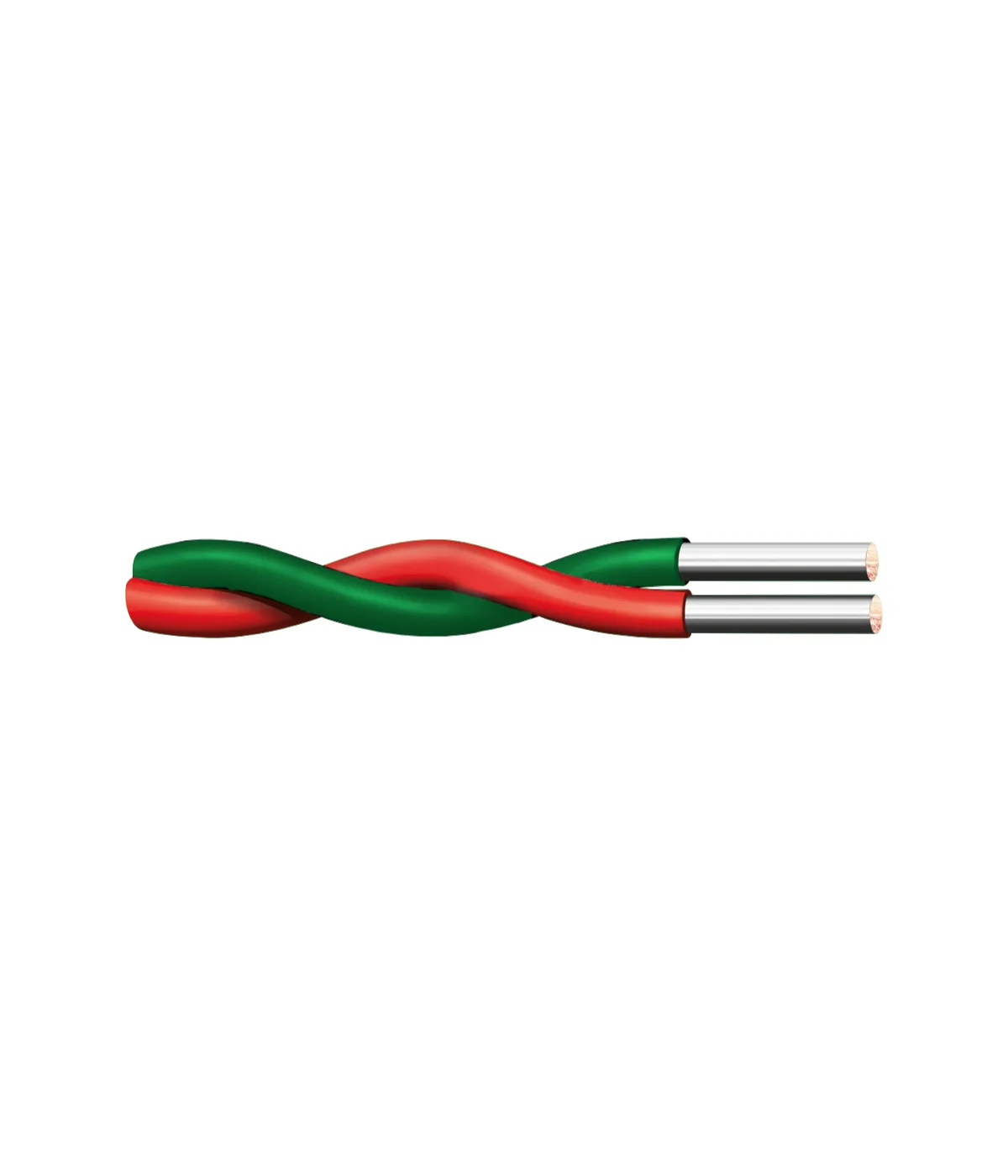

This is a twisted pair of wires with an impedance of approximately 150 Ohms. Suitable for portable or permanent Bi-Dir beverage antenna installation. One of the options for the Bi-directional Beverage antenna is construction with a 150 Ohm line — this twisted pair of wires can be used as an antenna element. This lightweight, thin variant is especially suitable for portable operation. The wires are copper tinned with PVC insulation. Package contains approx. 300 m.
⚠ 0.5mm wire is not recommended for areas prone to ice.
Specifications
| Conductor | Copper tinned |
|---|---|
| Wire diameter | 0.5 mm, 0.2 mm², 24 AWG |
| Insulation | PVC, max. 1.1 mm |
| Impedance | ~ 150 Ohm |
| Resistance | 94.8 Ohm/km |
| Operating voltage | max. 500 V |
| Test voltage | 2 kV |
| Temperature range | -40 to +60 ℃ |
| Length | approx. 300 m (984 ft) |
| Weight | approx. 1.5 kg (5.9 kg/km) |
