Twisted pair of wires 150Ohm 0.8mm - 300m/984ft
150Ohm twisted pair of wires, 0.8mm/20AWG - for permanent Bi-Directional Beverage antenna installation
129.00 €
129.00 € tax excl.
in stock, shipped in 2-3 days

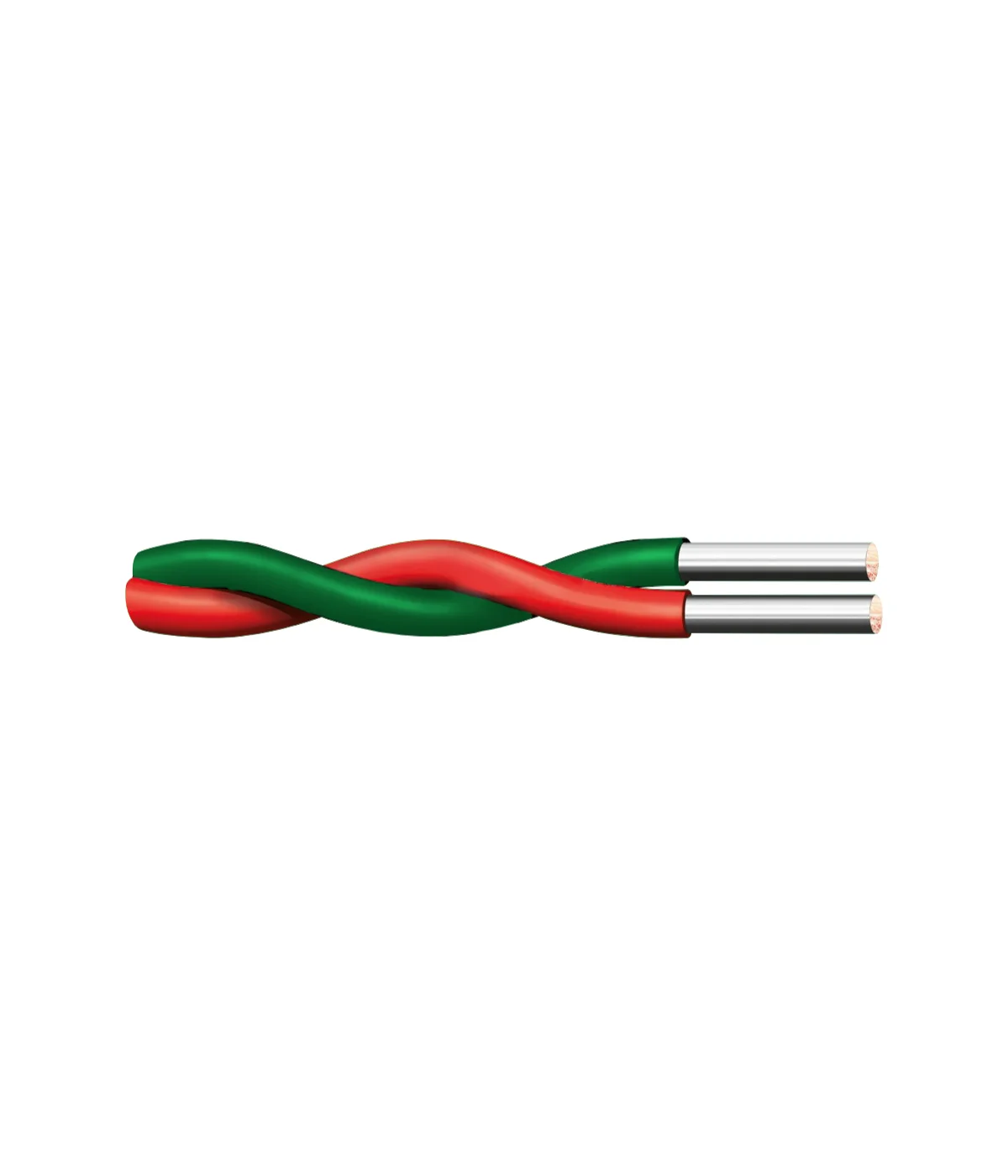

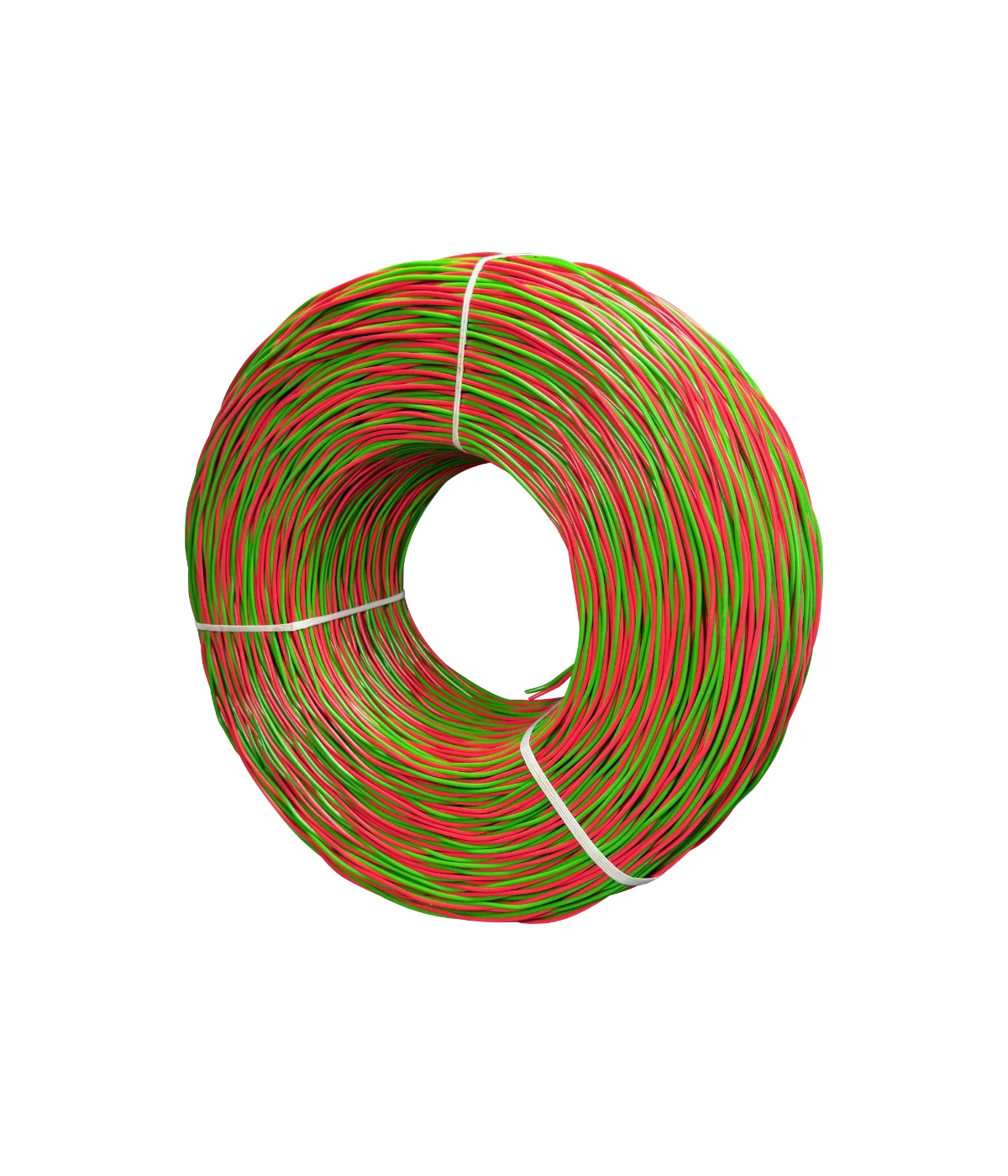

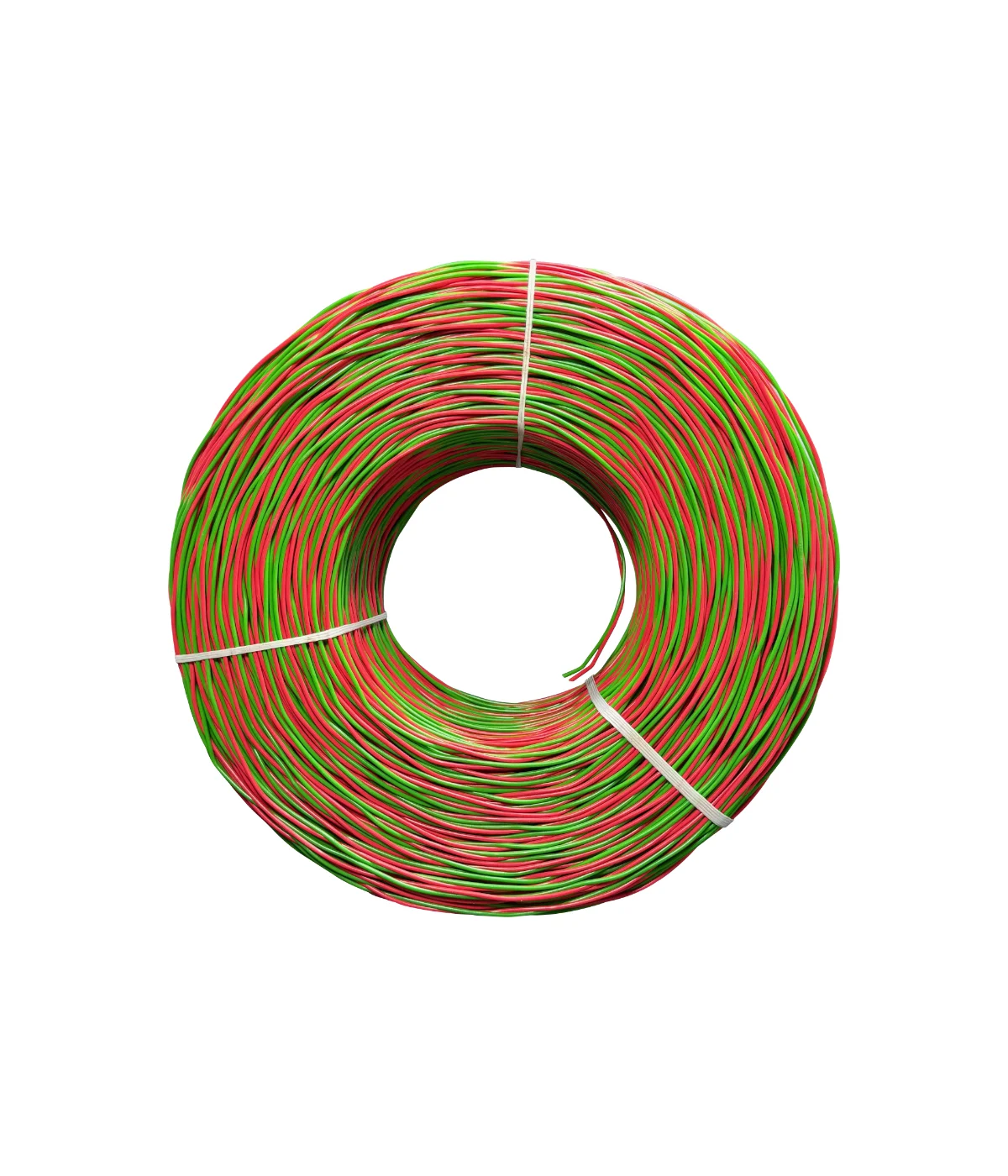

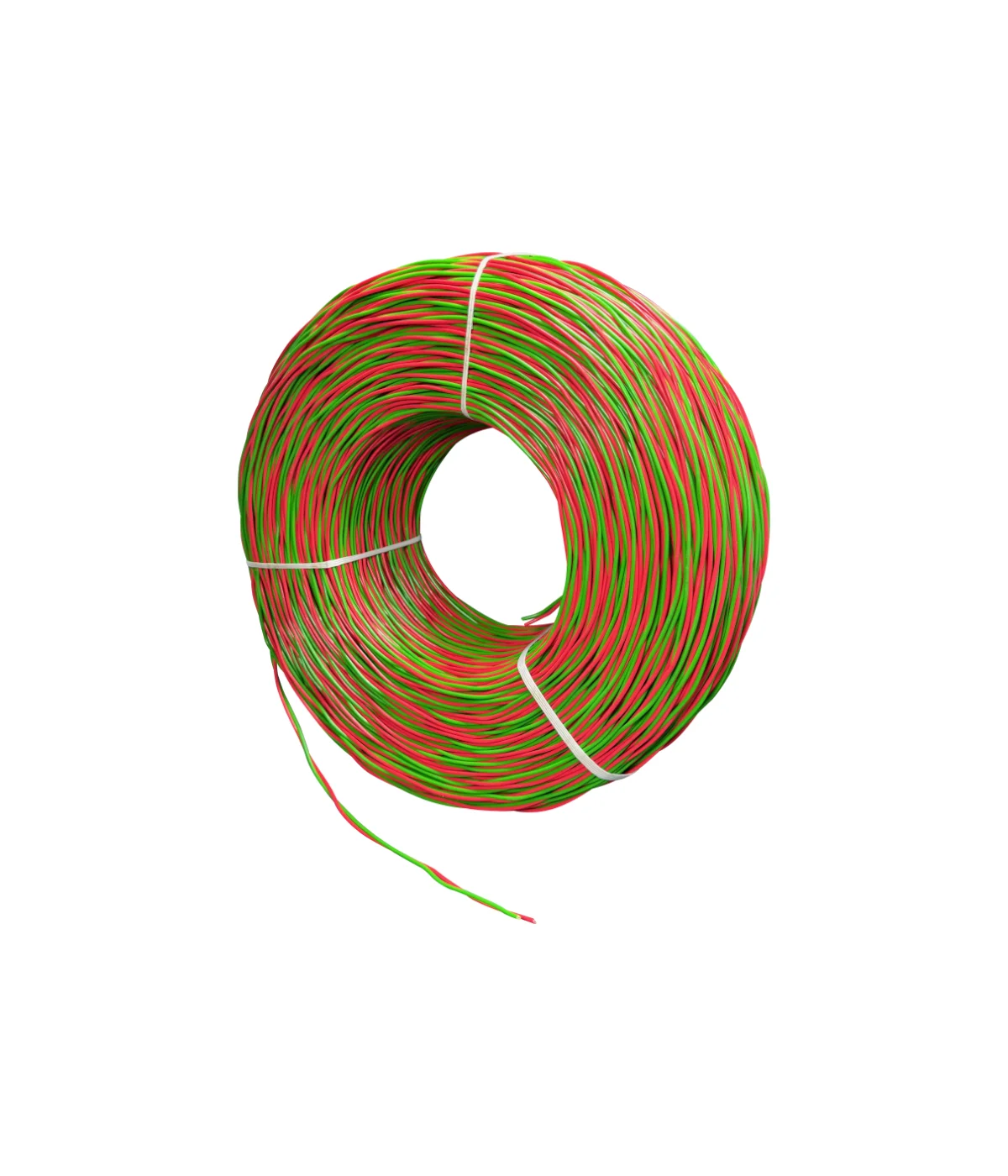

This is a twisted pair of wires with an impedance of approximately 150 Ohms. Suitable for portable or permanent Bi-Dir beverage antenna installation. One of the options for the Bi-directional Beverage antenna is construction with a 150 Ohm line — this twisted pair of wires can be used as an antenna element. This thicker variant is built for permanent installation. The wires are copper tinned with PVC insulation. Package contains approx. 300 m.
Specifications
| Conductor | Copper tinned |
|---|---|
| Wire diameter | 0.8 mm, 0.5 mm², 20 AWG |
| Insulation | PVC, max. 1.6 mm |
| Impedance | ~ 150 Ohm |
| Resistance | 36 Ohm/km |
| Operating voltage | max. 500 V |
| Test voltage | 2 kV |
| Temperature range | -40 to +60 ℃ |
| Length | approx. 300 m (984 ft) |
| Weight | approx. 3.9 kg (13 kg/km) |
