Audio 7 band equalizer
7-band audio equalizer with headphone preamp (NE5532), ±12 dB, drives 16 - 600 Ohm, USB powered
29.00 €
29.00 € tax excl.
in stock, shipped in 2-3 days

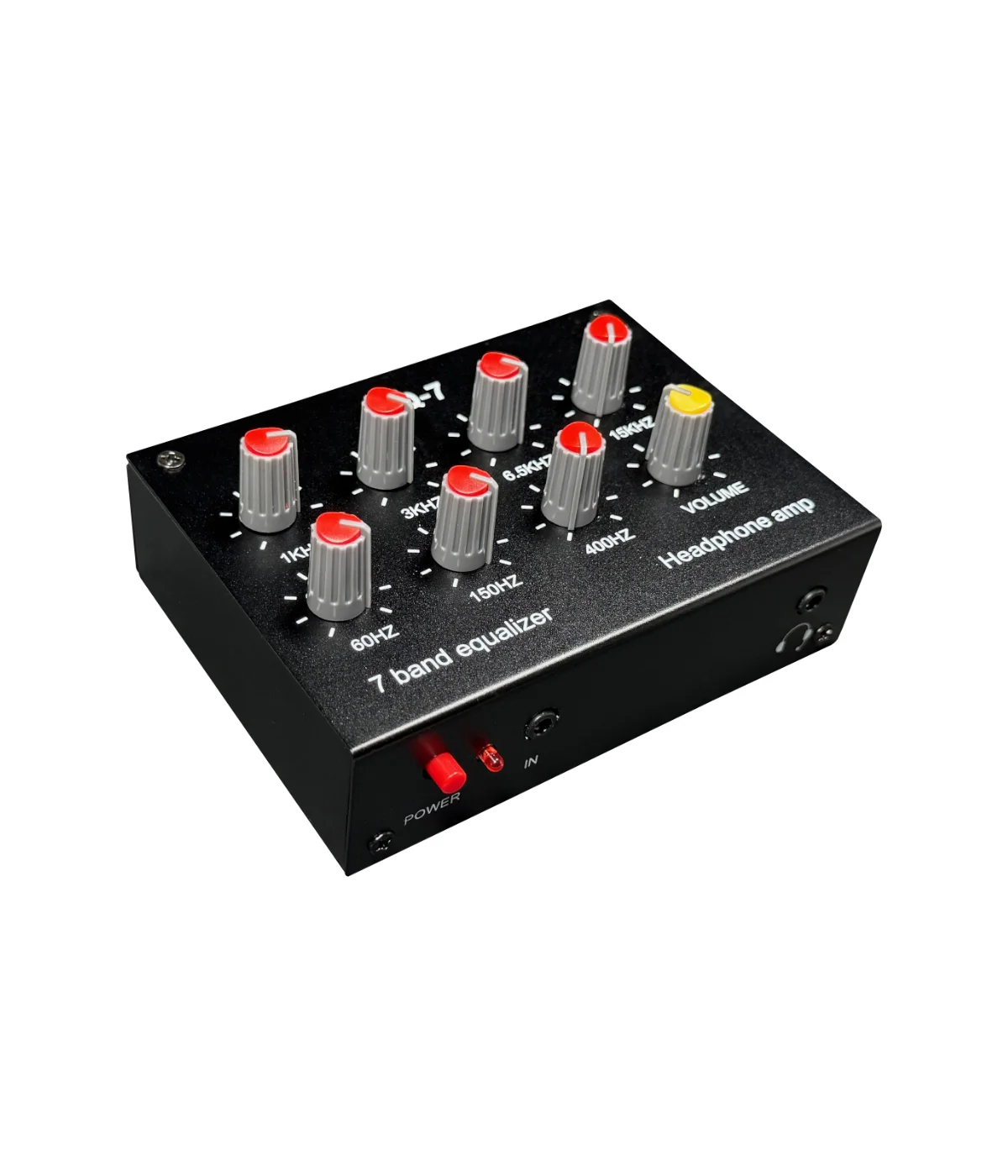

This is a simple seven-band equalizer with a preamplifier. Frequency settings range from deep bass to ultra-high frequencies, adjustable within ±12 dB. The output amplifier lets you drive headphones with an impedance of 16 to 600 Ohms. Inputs and outputs can be connected either via RCA connectors or a 3.5mm jack.

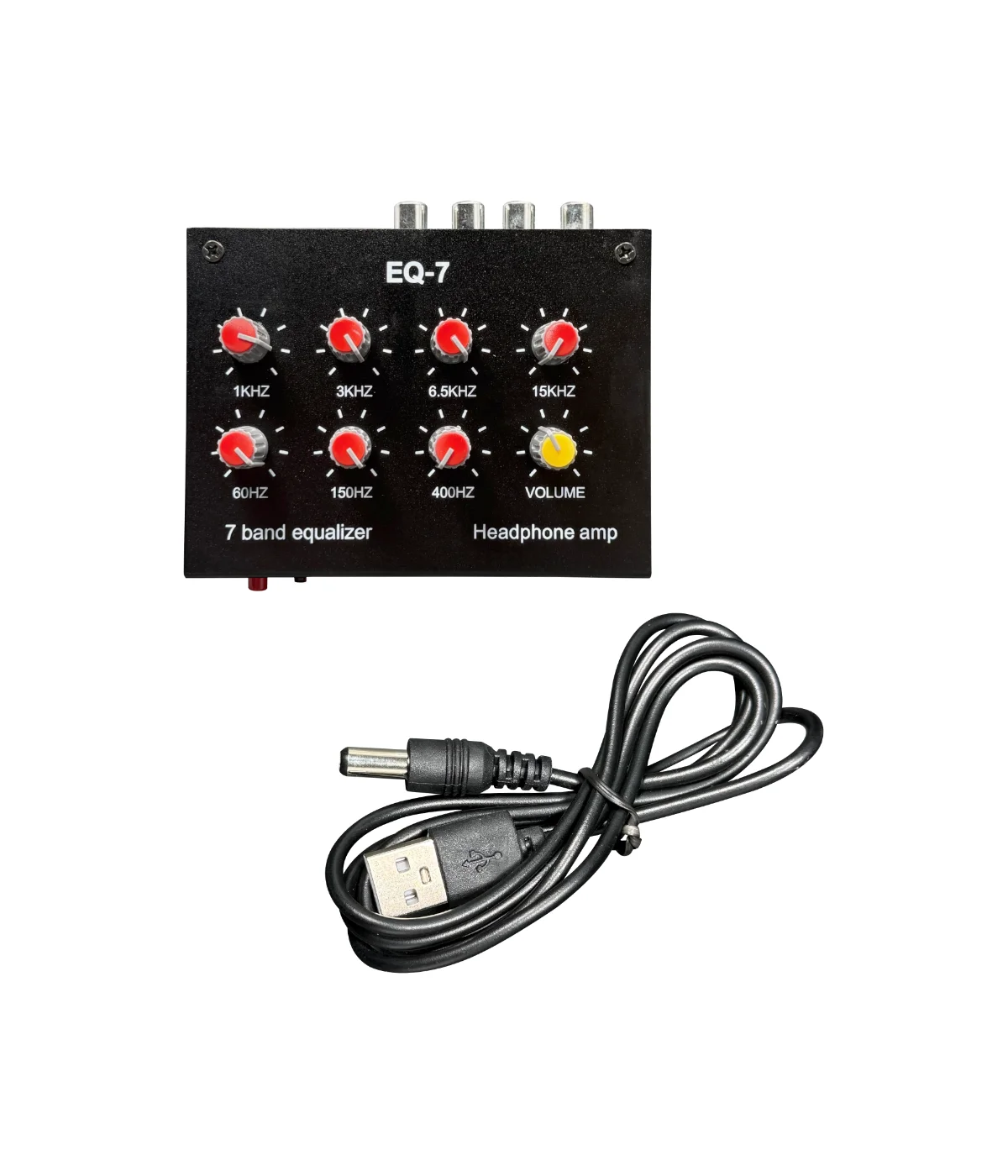

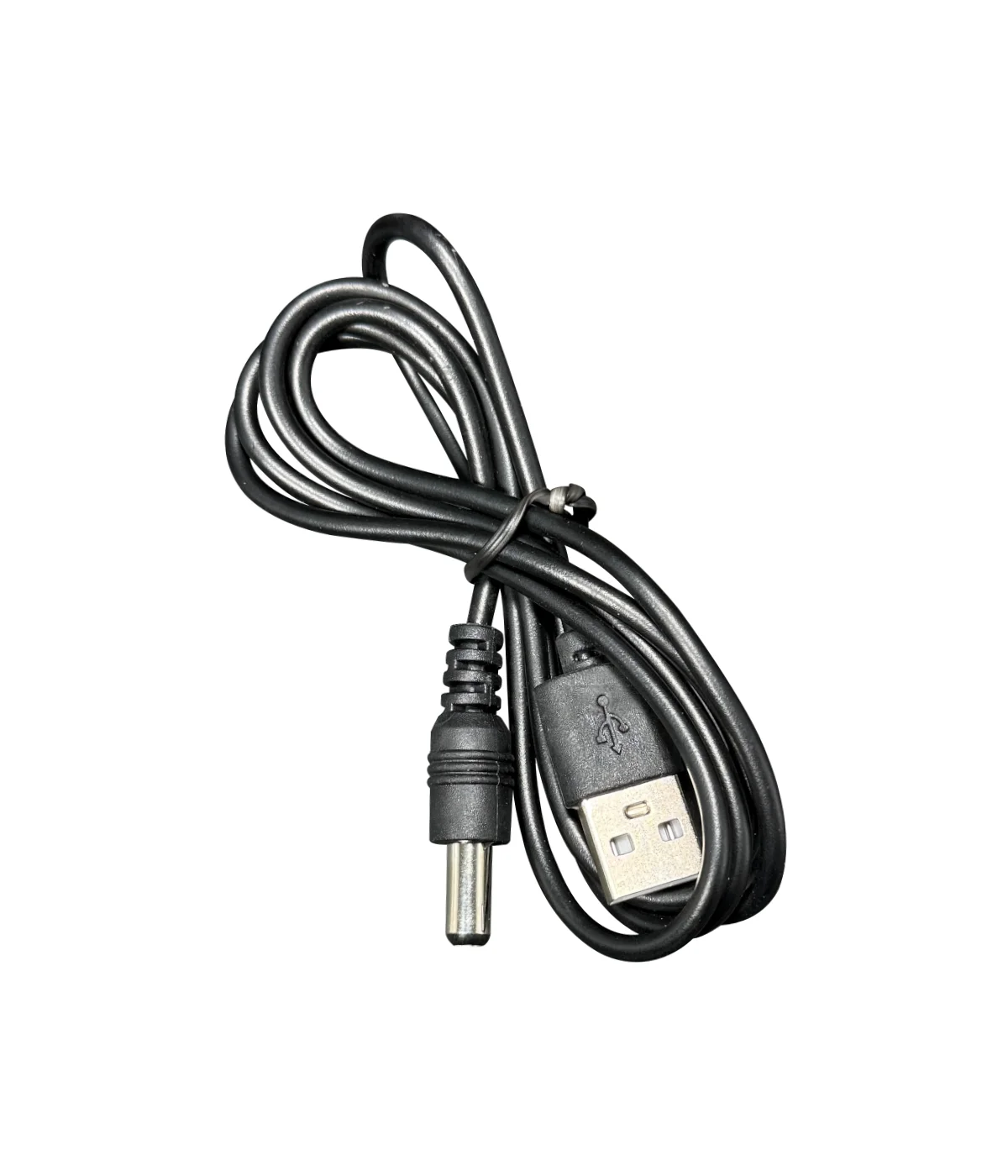

The power supply range is 5 to 12V, and the device can also be powered from USB using the included cable. Use it as an audio equalizer or a headphone preamp.
Specifications
| Channels | Stereo in/out |
|---|---|

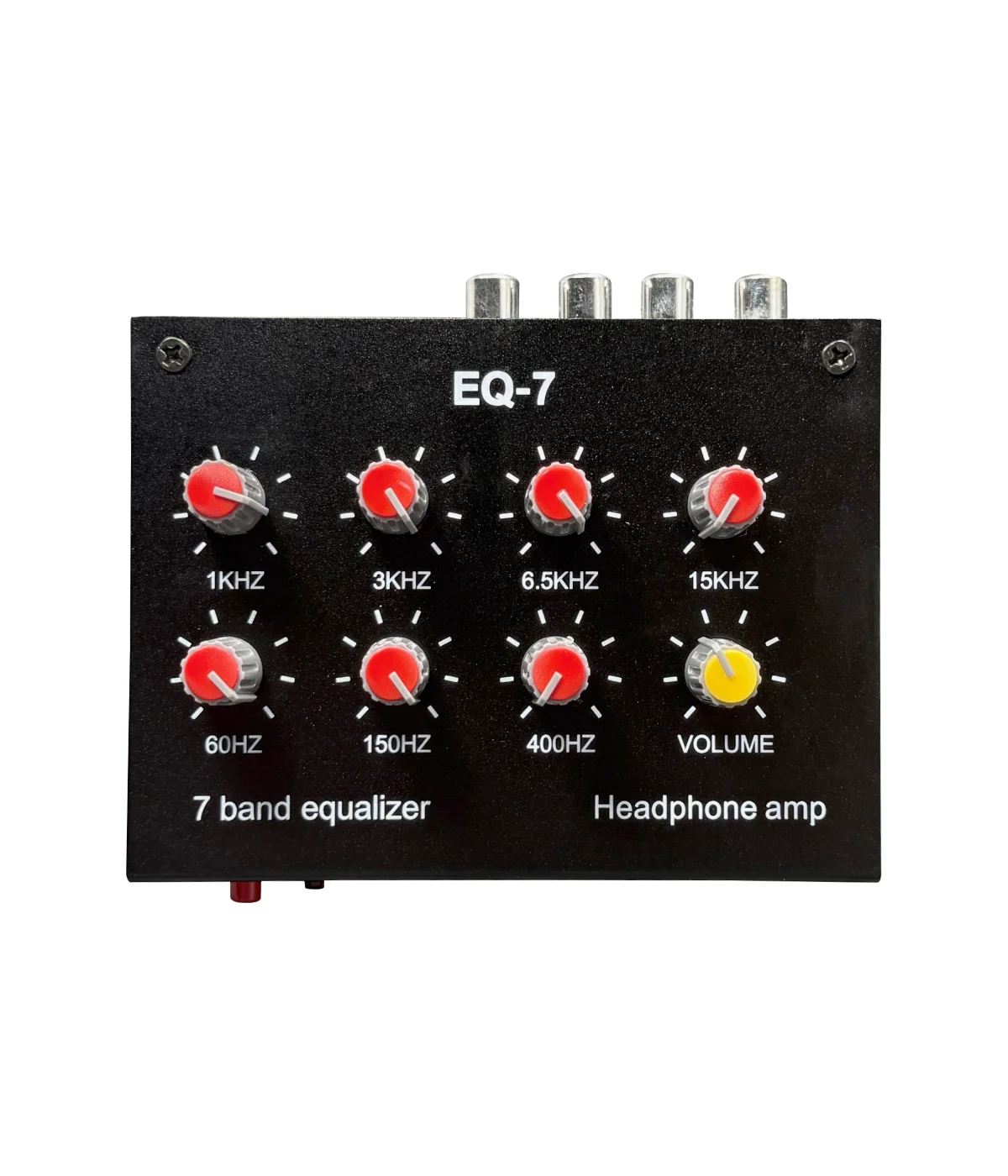

| Equalizer bands | 7 (60, 150, 400, 1k, 3k, 6.5k, 15k Hz) |
| EQ correction | ± 12 dB |
| Preamplifier | NE5532 |

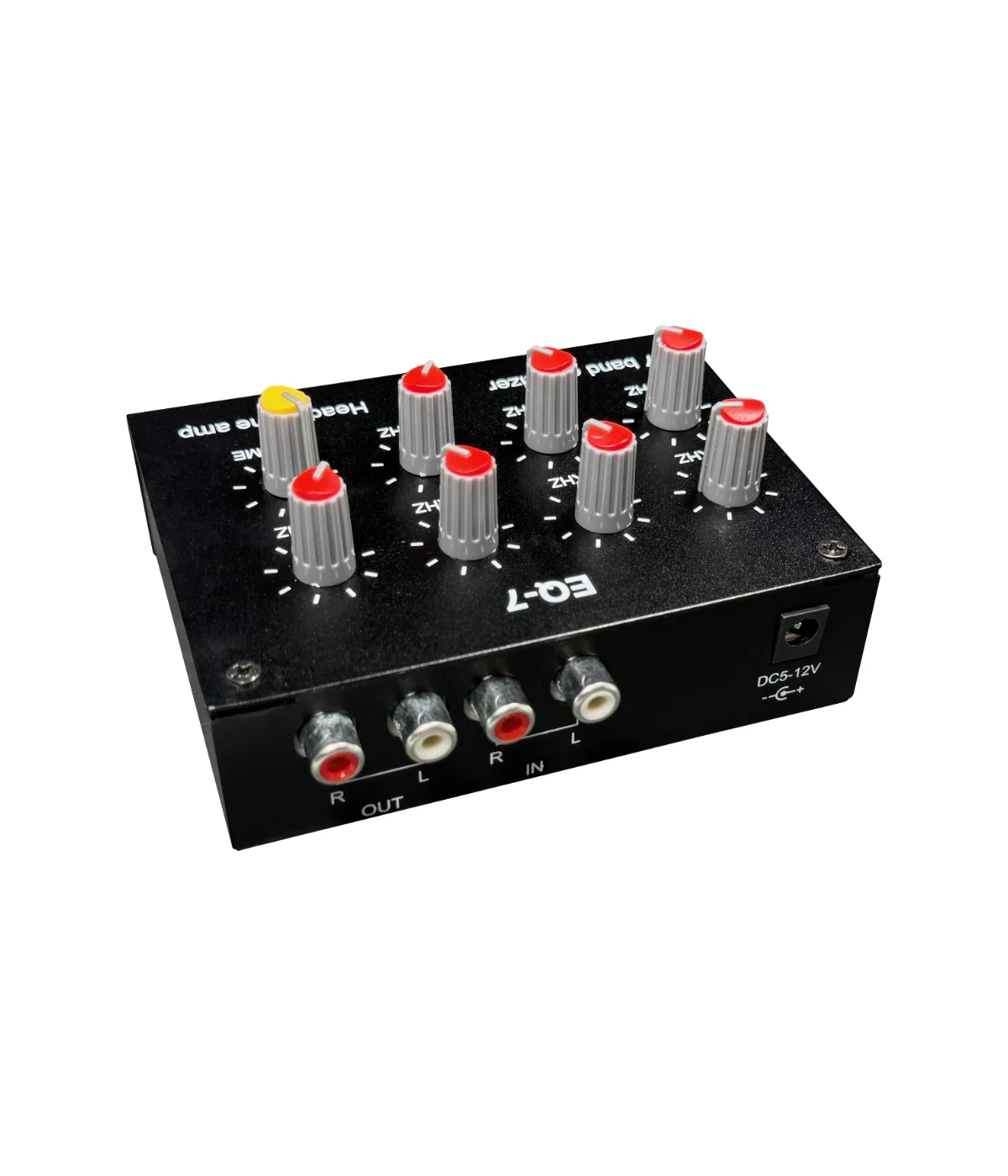

| Connectors | RCA in/out, 3.5mm jack in/out, 6.3mm jack audio |
| Input impedance | 20 kOhm |
| Output impedance | 16 - 600 Ohm |
| DC supply | 5 - 12 V, max. 0.4 A |
| DC input | 5.5x2.1 mm |
| Size | 11.5x10.4x3.4 cm |
💡 Watch out for ground loops and a good power supply - both can cause humming. It's best to set the gain so that you're driving your TRX at a reasonable level, with the volume on the EQ-7 sitting in the first third of its range. Proper gain staging like this reduces any added noise.
