Tube Stereo Preamplifier, 6J1, High Impedance | hamparts.shop

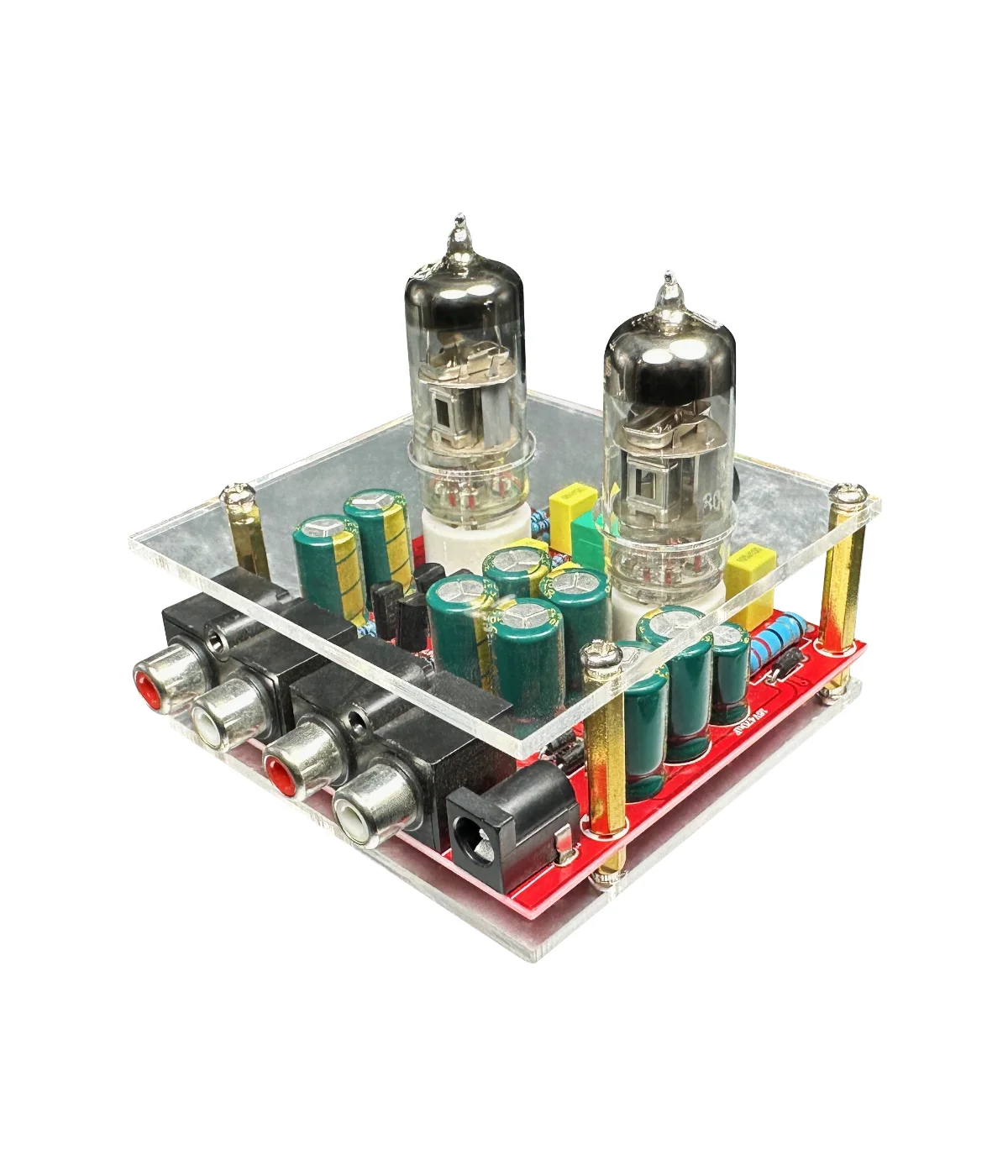

Tube stereo audio preamplifier

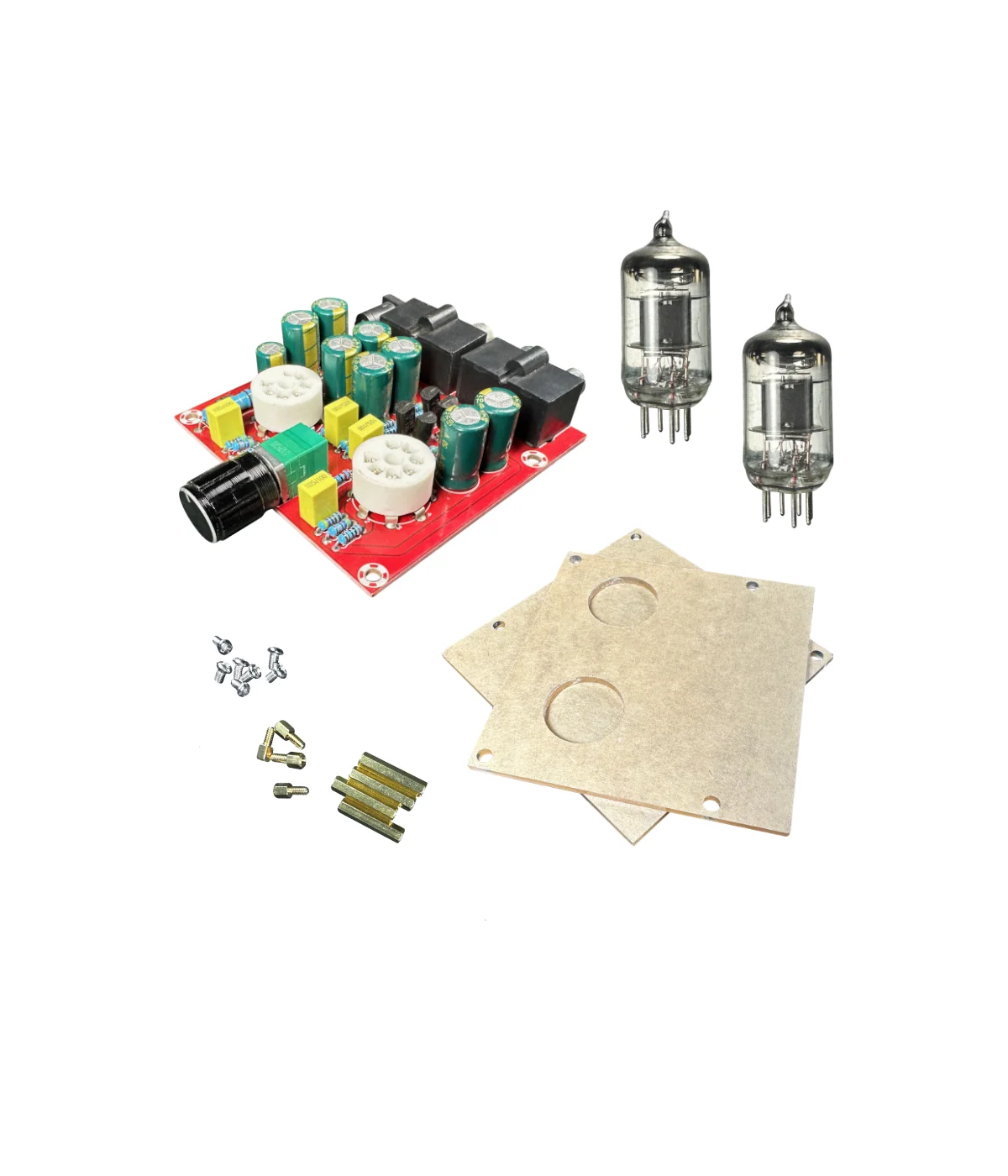

Tube stereo preamp (2x 6J1, triode), high impedance, 15 dB gain - safe 12V AC supply, assembled + enclosure KIT

Read moreShow less

16.00 €

16.00 € tax excl.

25.00 €

in stock, shipped in 2-3 days

Details

Features

Attachments

Reviews

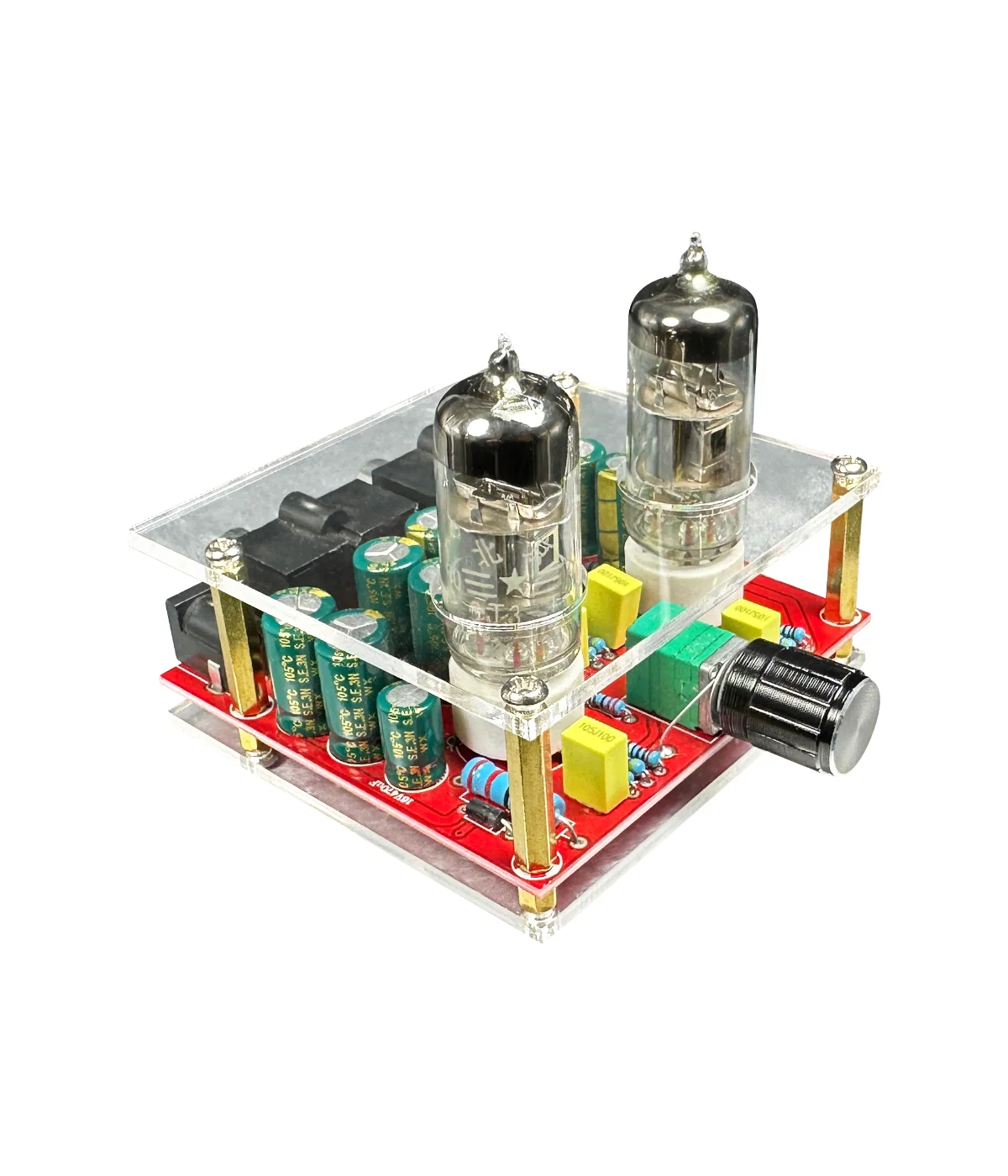

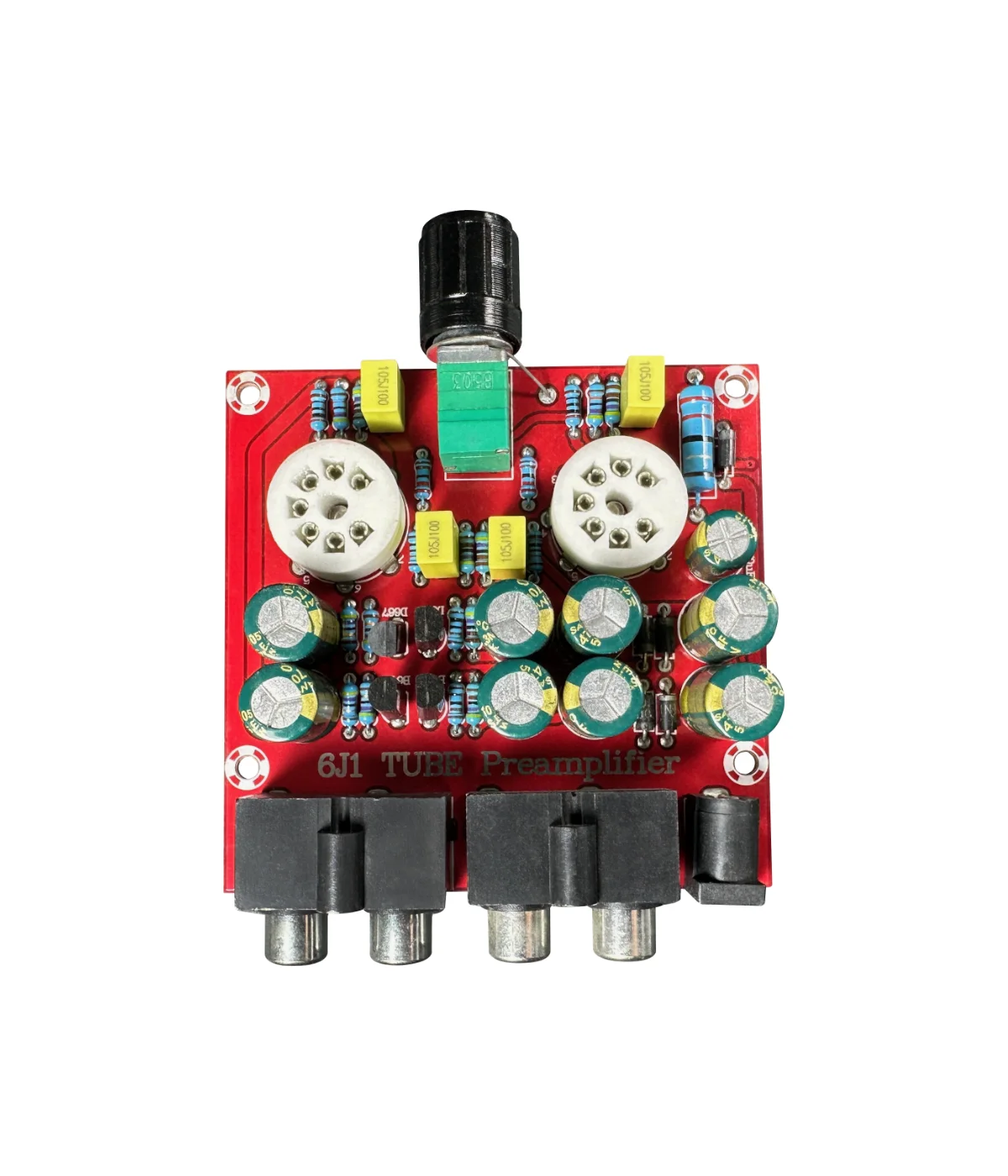

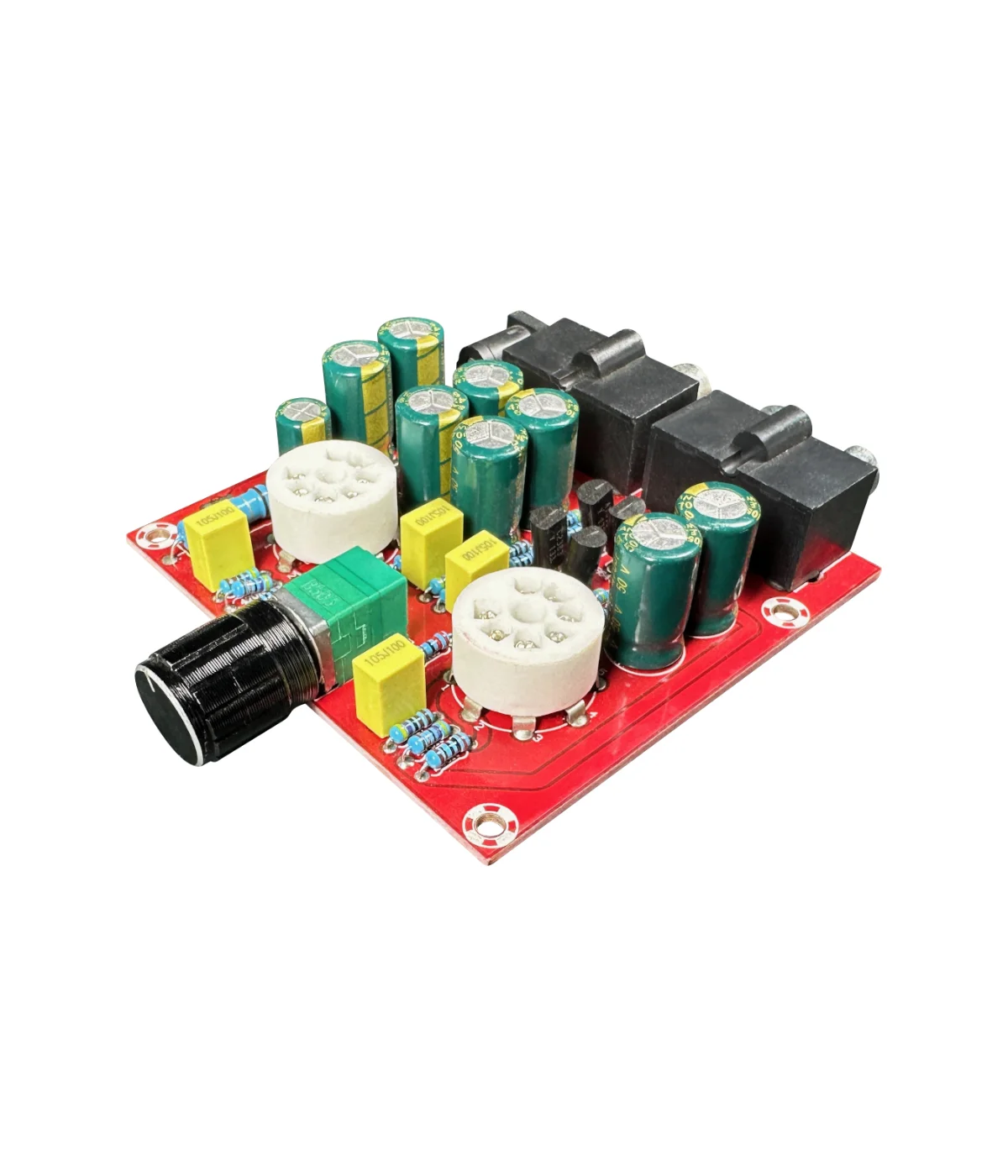

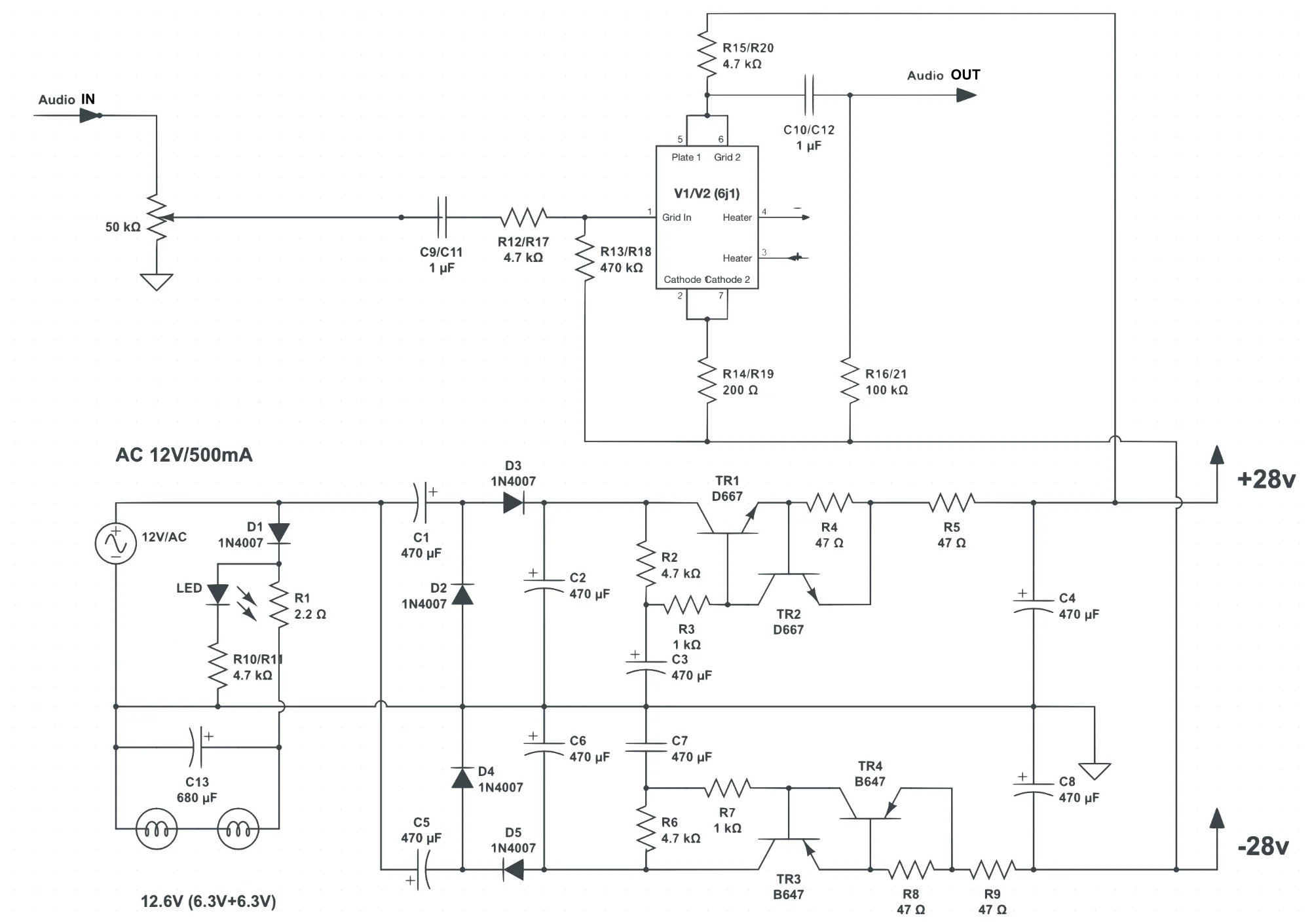

This is a simple stereo audio high impedance preamplifier with two 6J1 tubes wired as triodes. The board needs a 12V AC power supply, and the maximum plate voltage on the board is around 56V DC — a small, safe voltage for your experiments, generated internally by an onboard AC-to-±28V DC converter. It is a preamplifier with high impedance input and output, ideal for amplifying the signal from a microphone, for audio sound cards, or for high-impedance headphones (>600Ω). Use it as a high impedance preamp, a dynamic mic preamp, a sound card input stage, or as an audio preamp ahead of a further tube stage.

⚠ Attention! This preamp does not work with classic speakers or low-impedance headphones at the output. A transformer must be used for a low-impedance output.

Specifications

Channels	Stereo

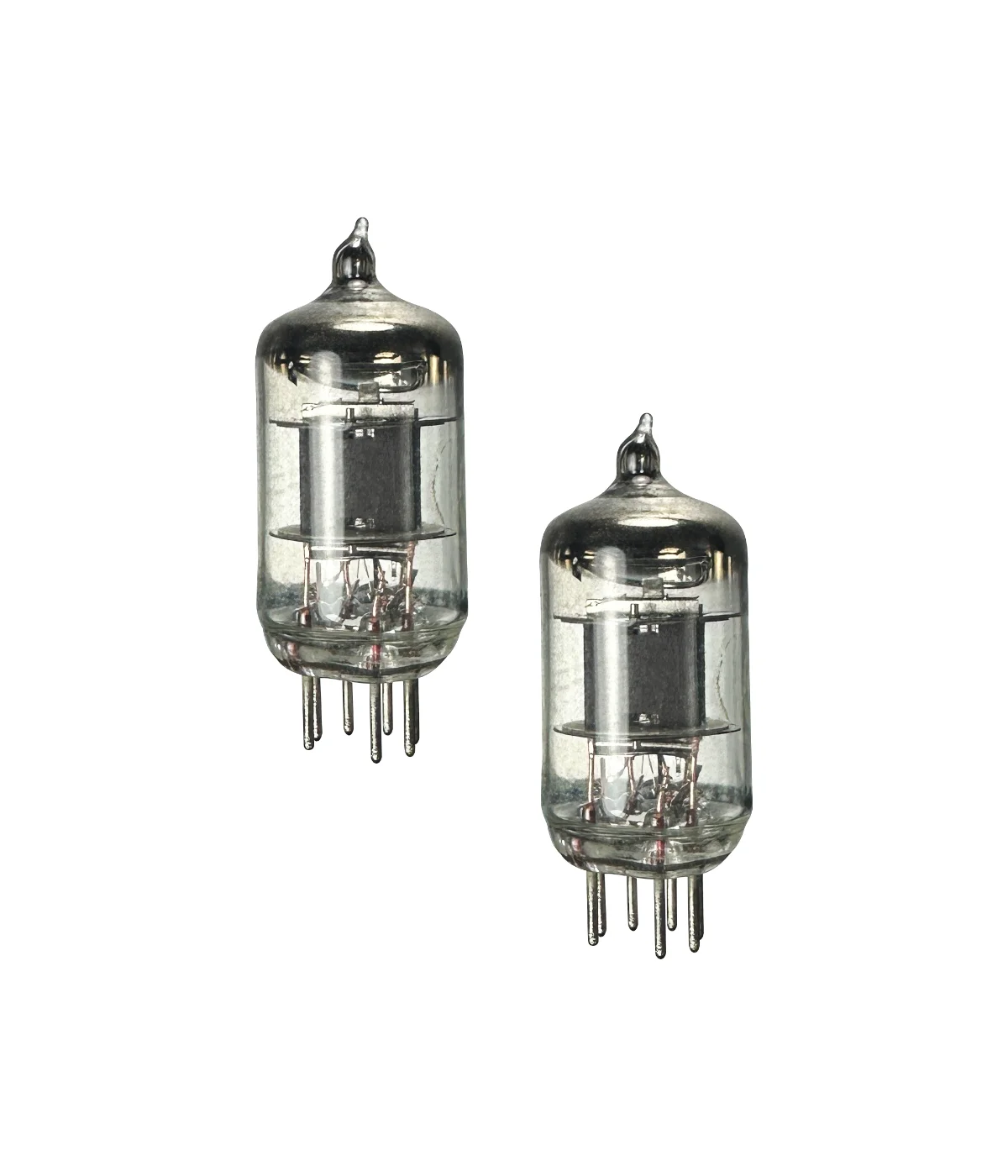

Tubes	2x 6J1, triode-wired
Power supply	12 V AC, up to 0.8 A
Voltage conversion	Internal AC-DC converter, ± 28 V DC rails (56 V plate voltage)
Current draw	up to 300 mA at startup, settling to 170 mA

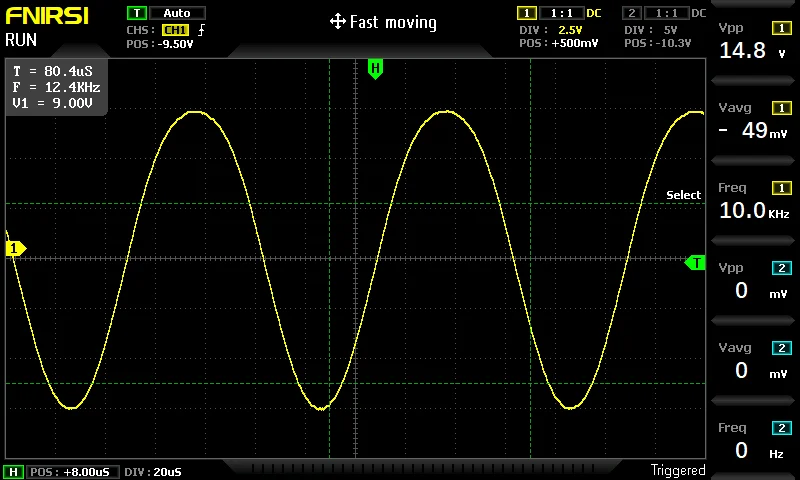

Gain	15 dB
Max. input signal	2 Vpp
Output impedance	High, 3 kOhm
Controls	Tandem potentiometer with switch (volume/on-off)

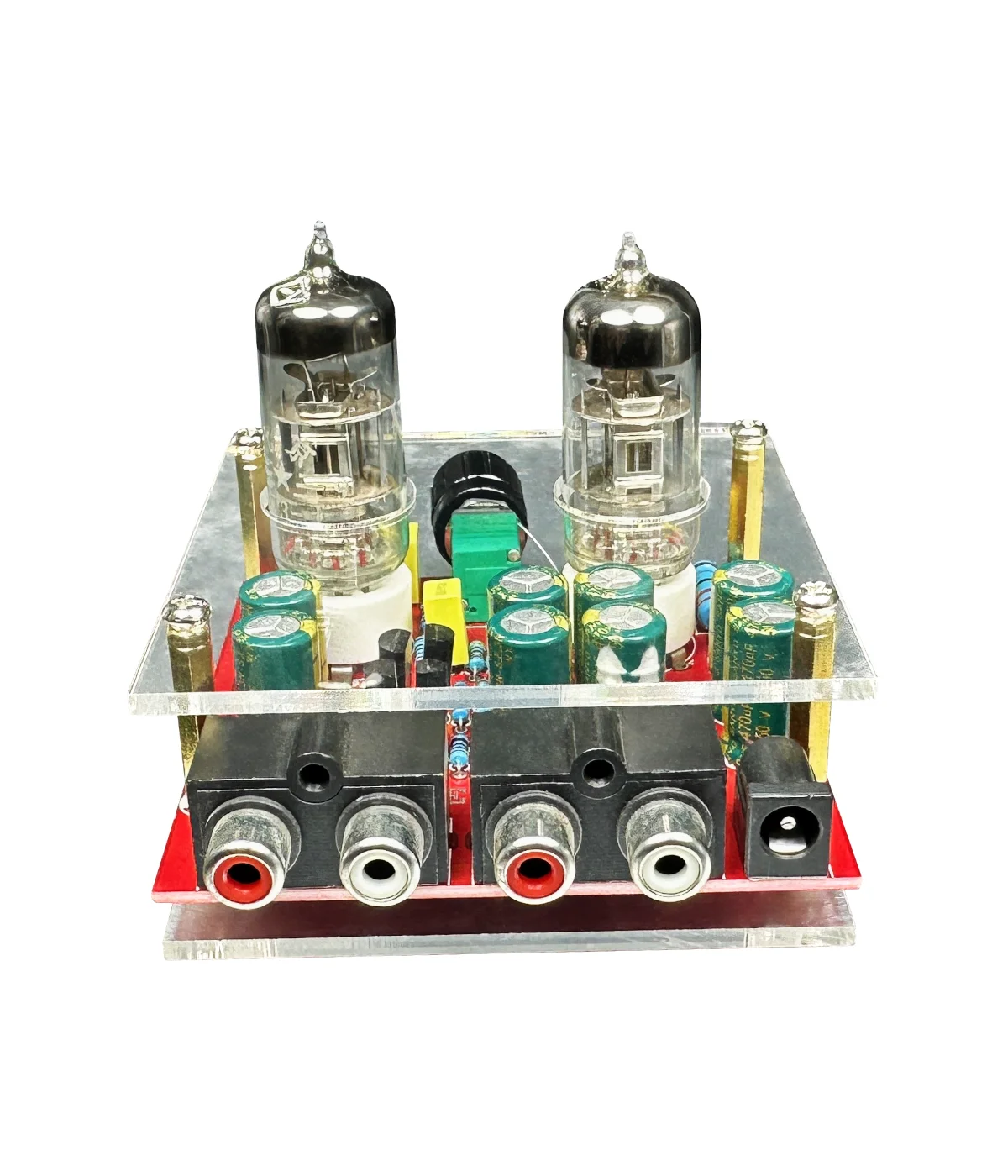

Connectors	RCA in/out

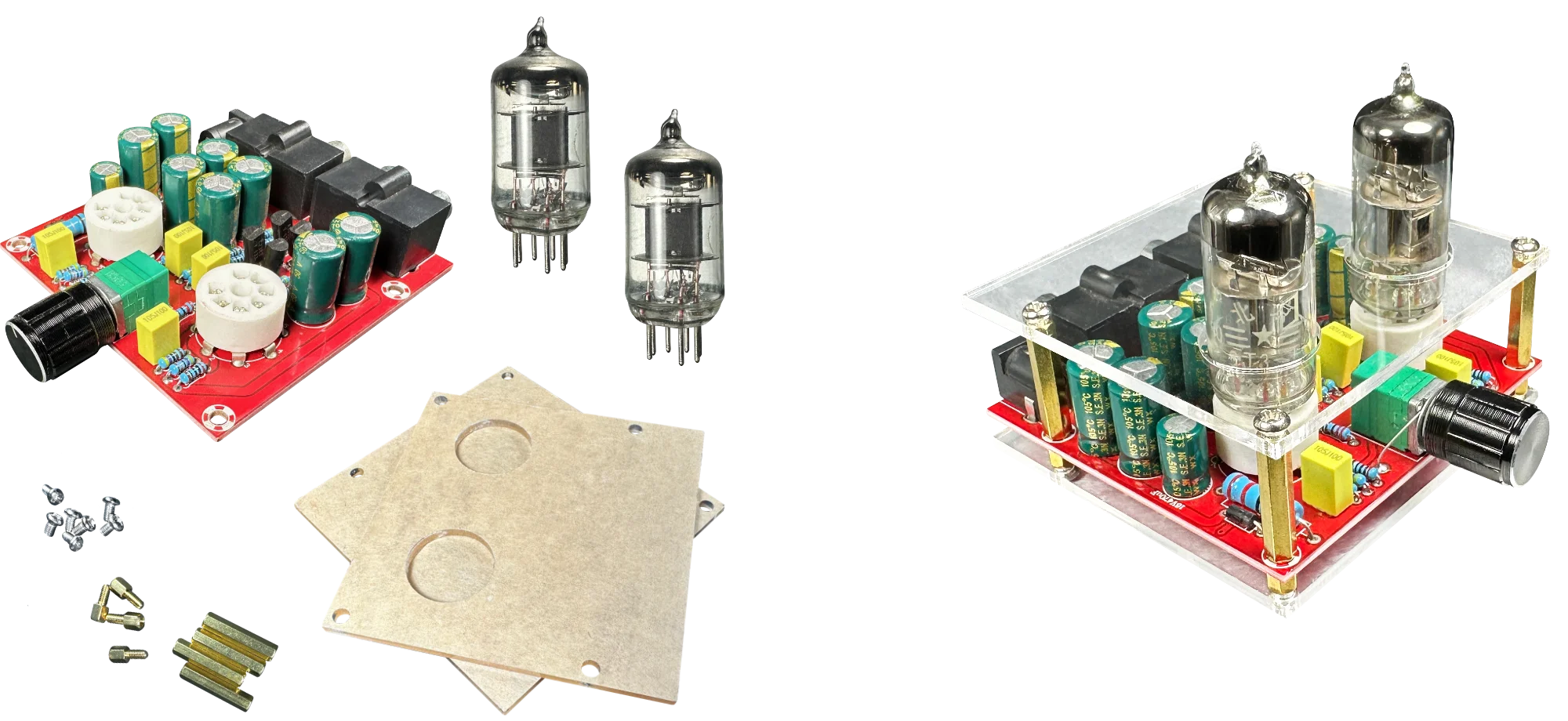

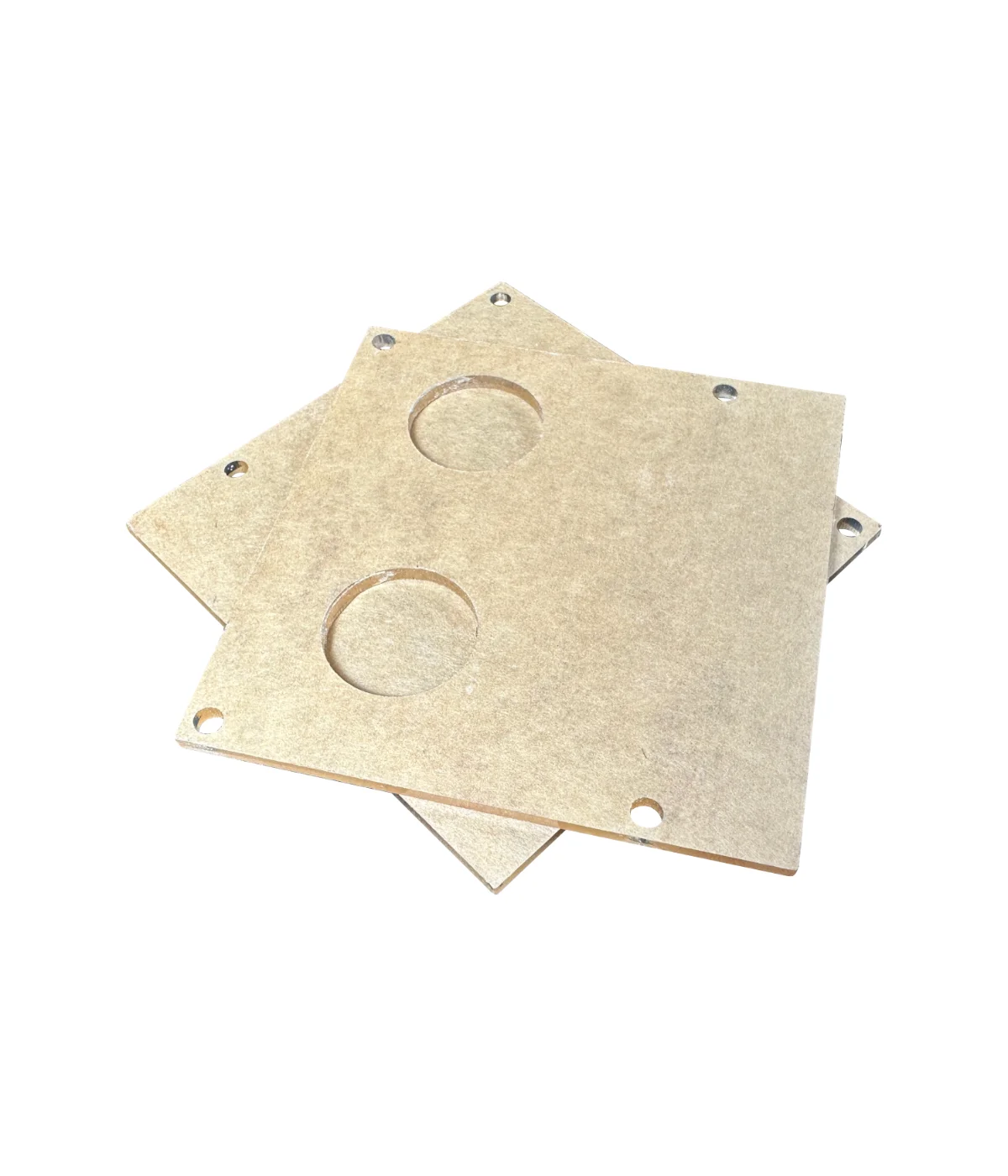

Assembly	Assembled board, enclosure as a kit
