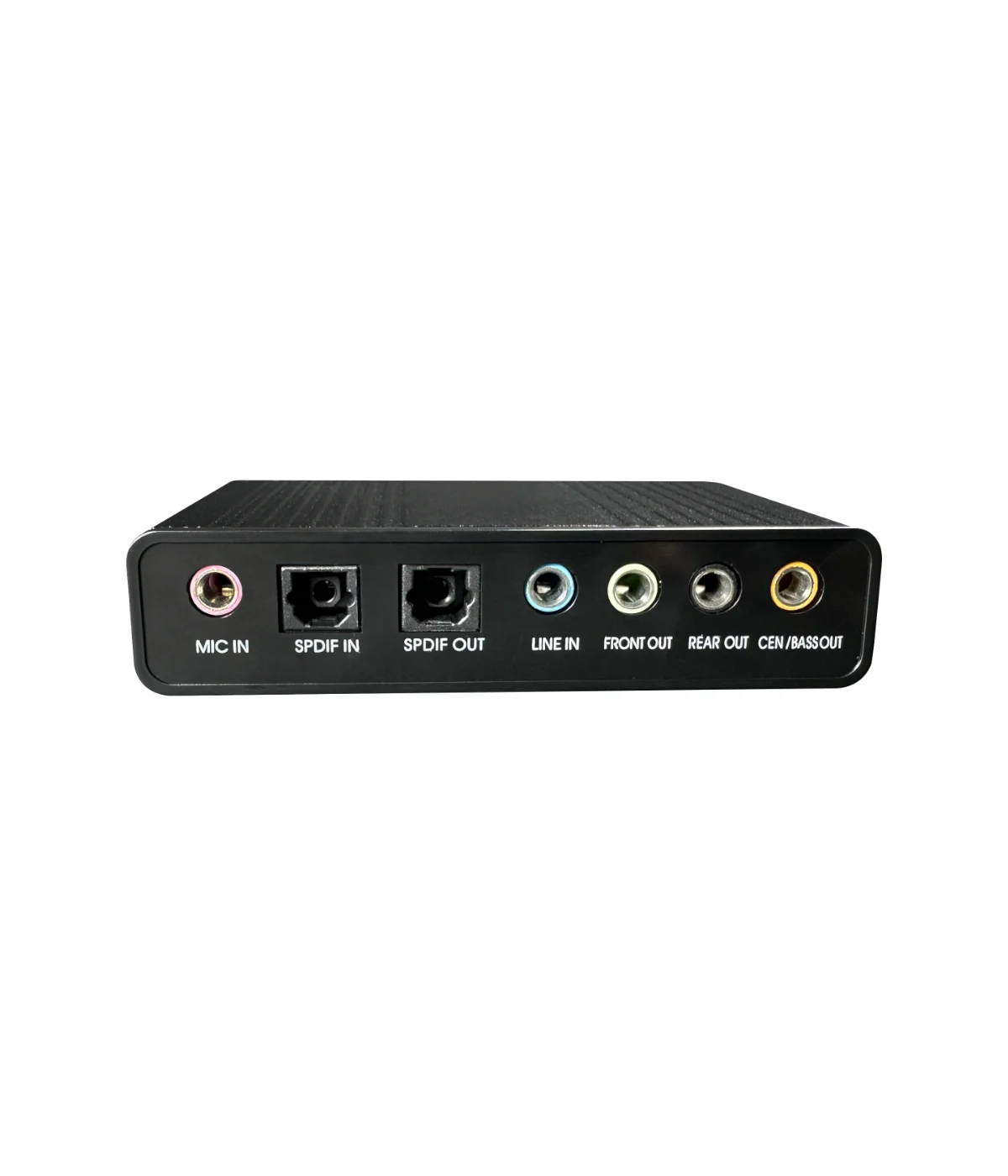

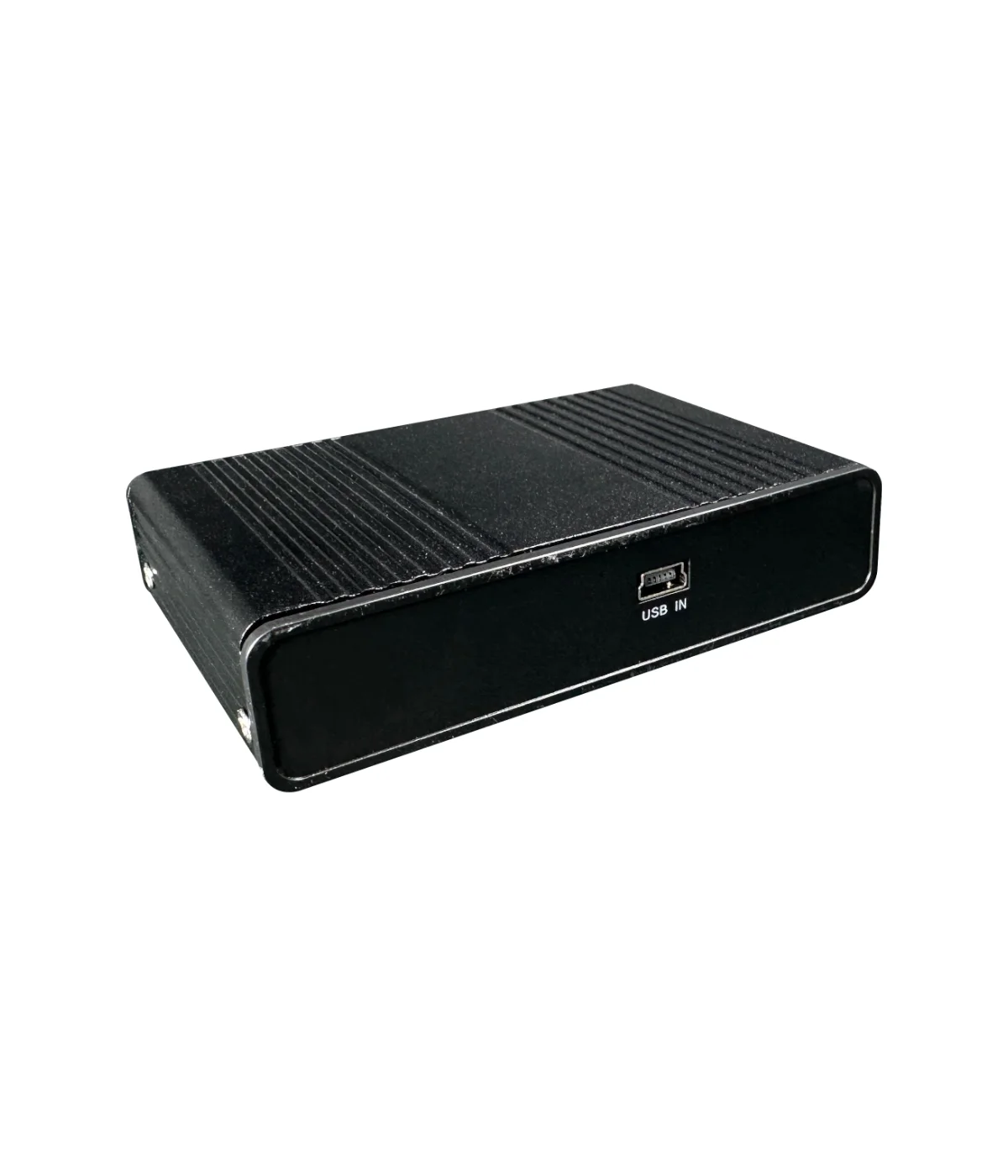

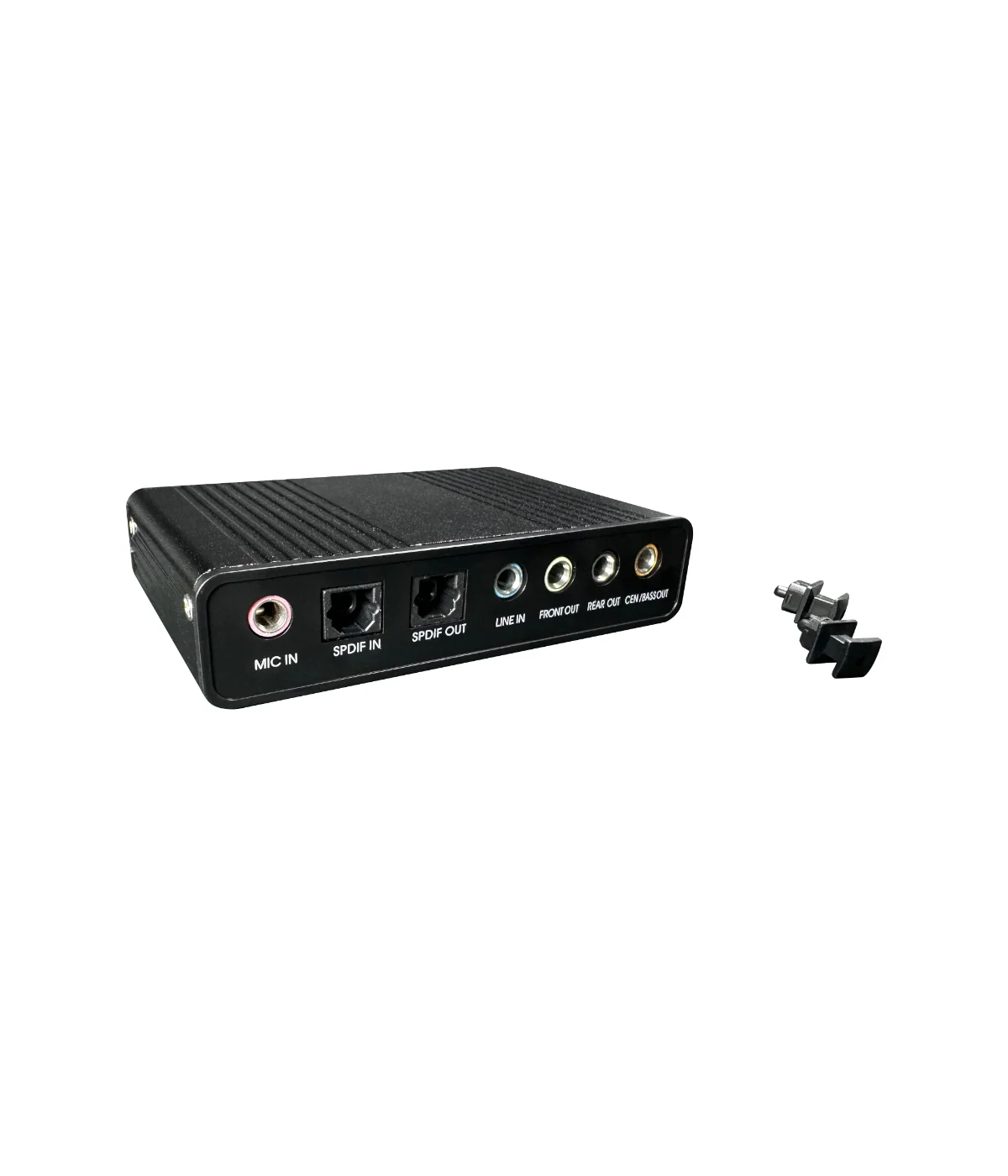

USB audio sound card CM6206
USB sound card (CM6206), SPDIF optical I/O for TRX isolation - Windows/Linux/Mac, digital mode ready
This is a simple USB sound card for hobby use and for connecting to a TRX. Thanks to its SPDIF optical ports, some TRXs can be connected with a fiber optic cable to achieve perfect galvanic isolation between the radio and the PC — eliminating the ground loops that plague many digi mode setups. The C-Media CM6206 is a cheap and solidly performing audio codec chip supporting 16-bit/48kHz audio, with 7 input/output ports in total. This sound card is suitable not only for TRX use, but also for audio equipment measurement purposes. Use it as a USB audio card, for TRX and digi mode work, for audio measurements, or with musical instruments.
Specifications
| Based on | C-Media CM6206 |
|---|---|
| Analog inputs | MIC, stereo Line IN |
| Optical input | SPDIF IN |
| Analog outputs | FRONT, REAR, CEN/BASS OUT |
| Optical output | SPDIF OUT |
| Isolation | SPDIF optical, for galvanic isolation |
| Loop-back test | -3 dB @ 85 Hz |
| OS compatibility | Windows, Linux, Mac |
| Mode compatibility | AFSK, FT8 and similar digi modes |
| Connectors | 3.5 mm jack |
| Dimensions | 88x67x20 mm |
Downloads & Resources
Gallery

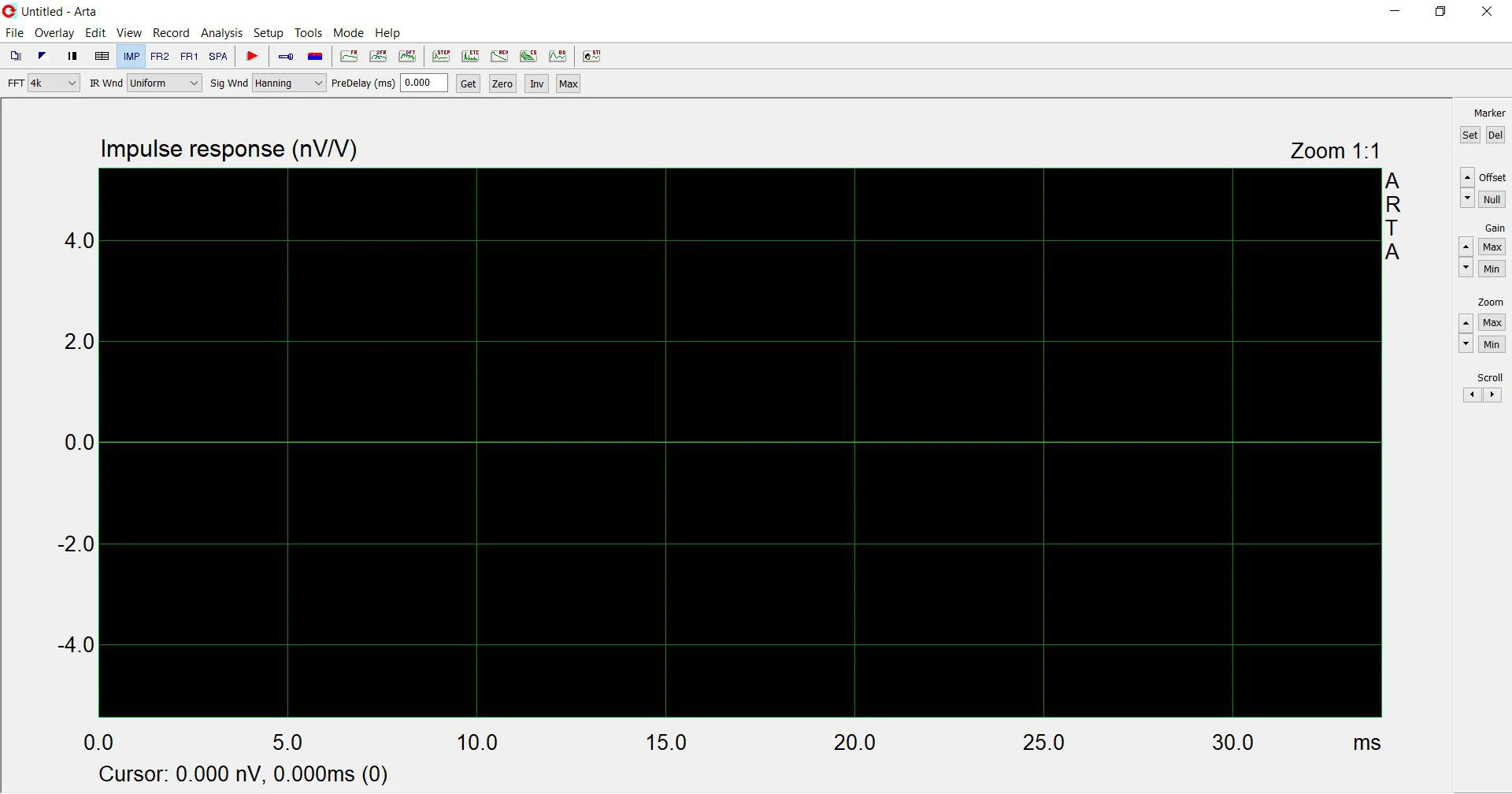

Audio measurement tool ARTA

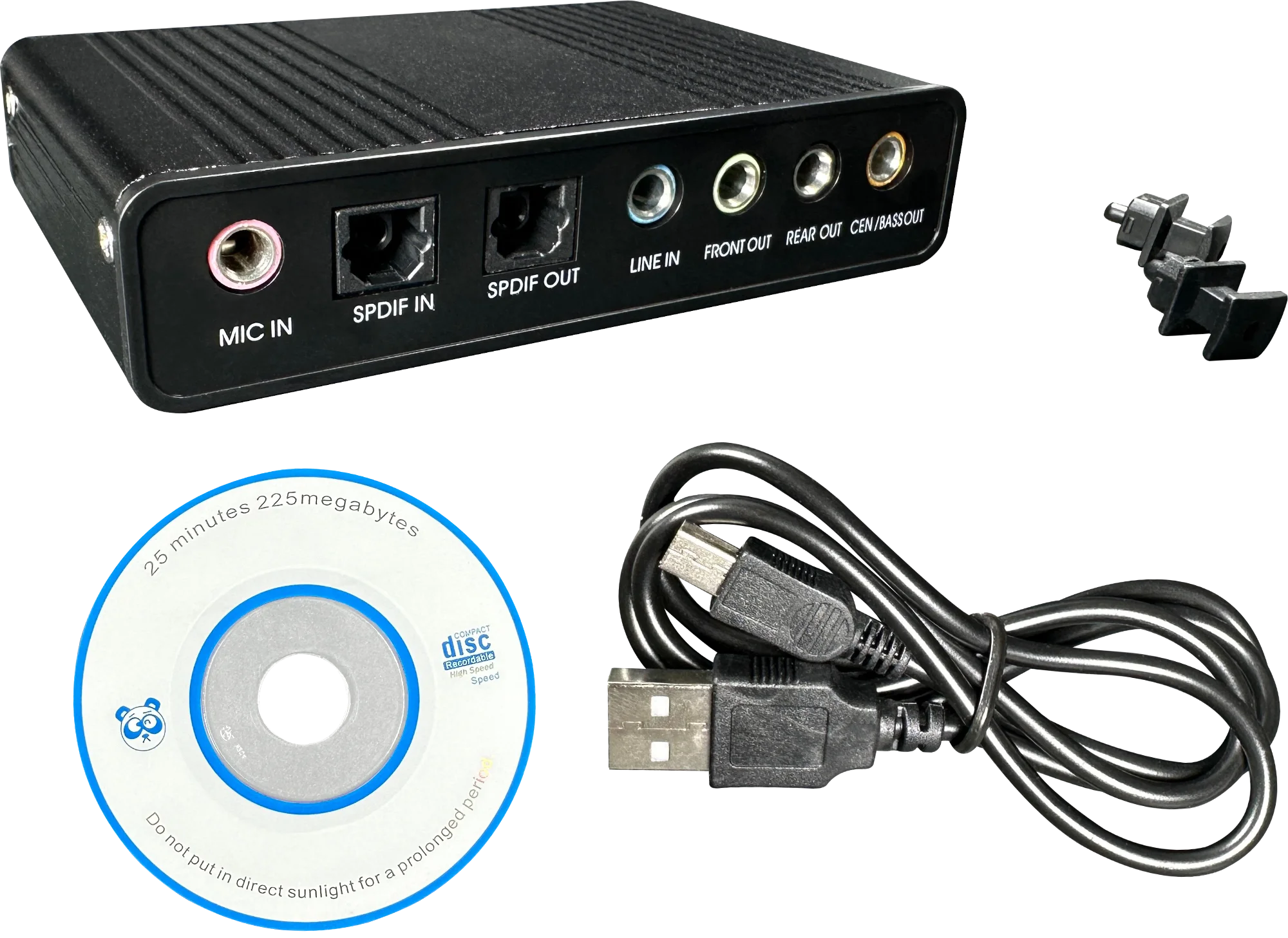

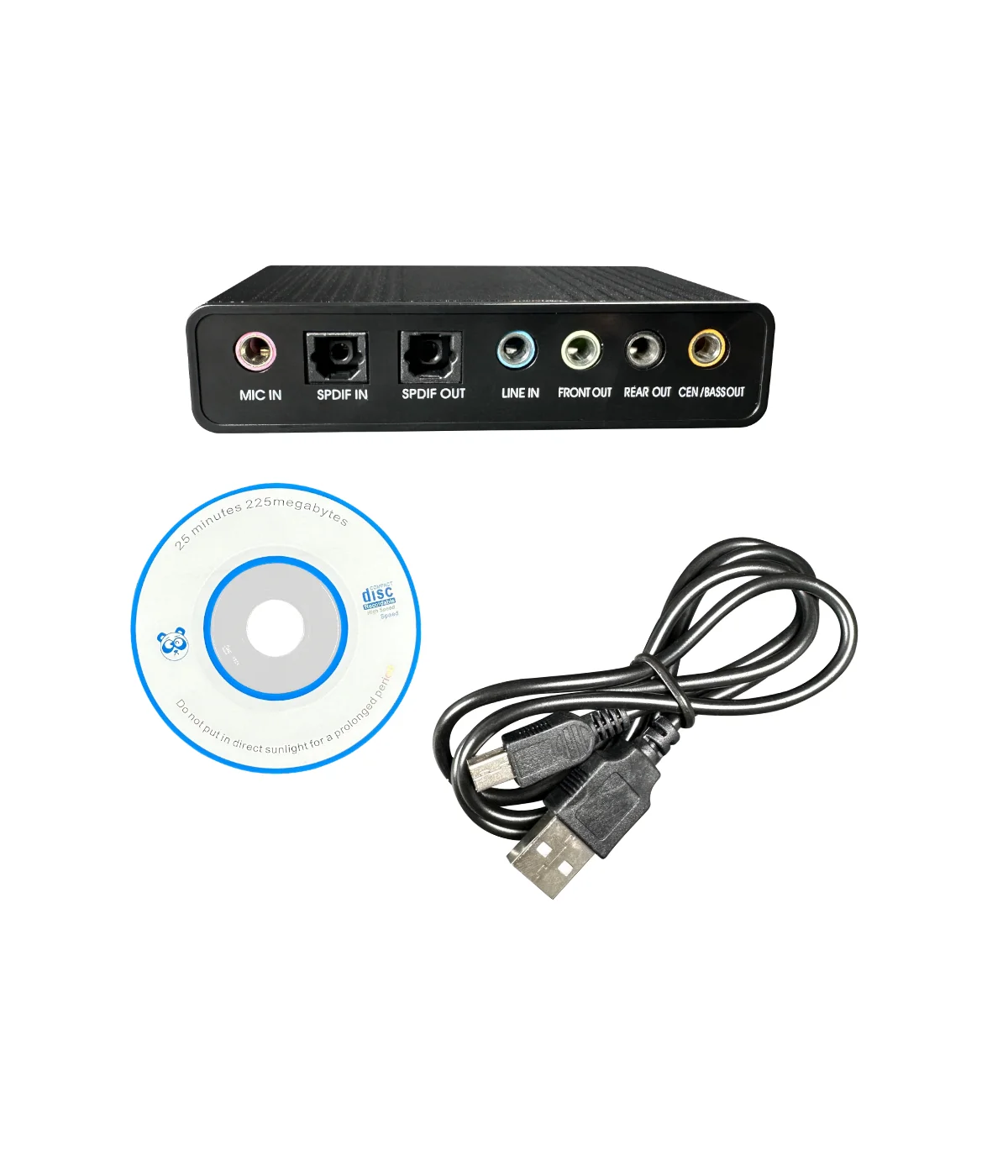

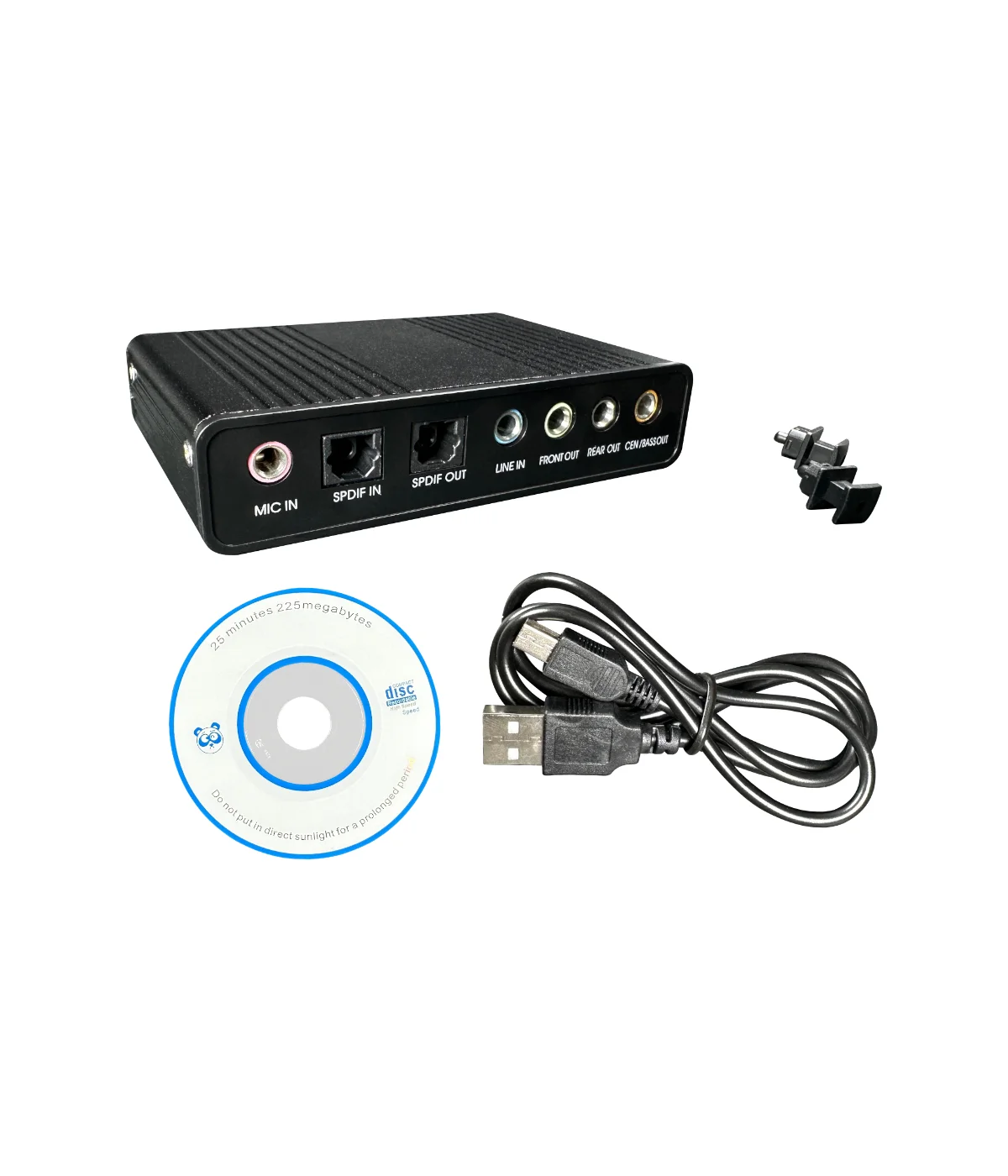

In the box
- USB sound card (CM6206)
- USB A to B cable
- Driver CD
- Rubber grommets/plugs
