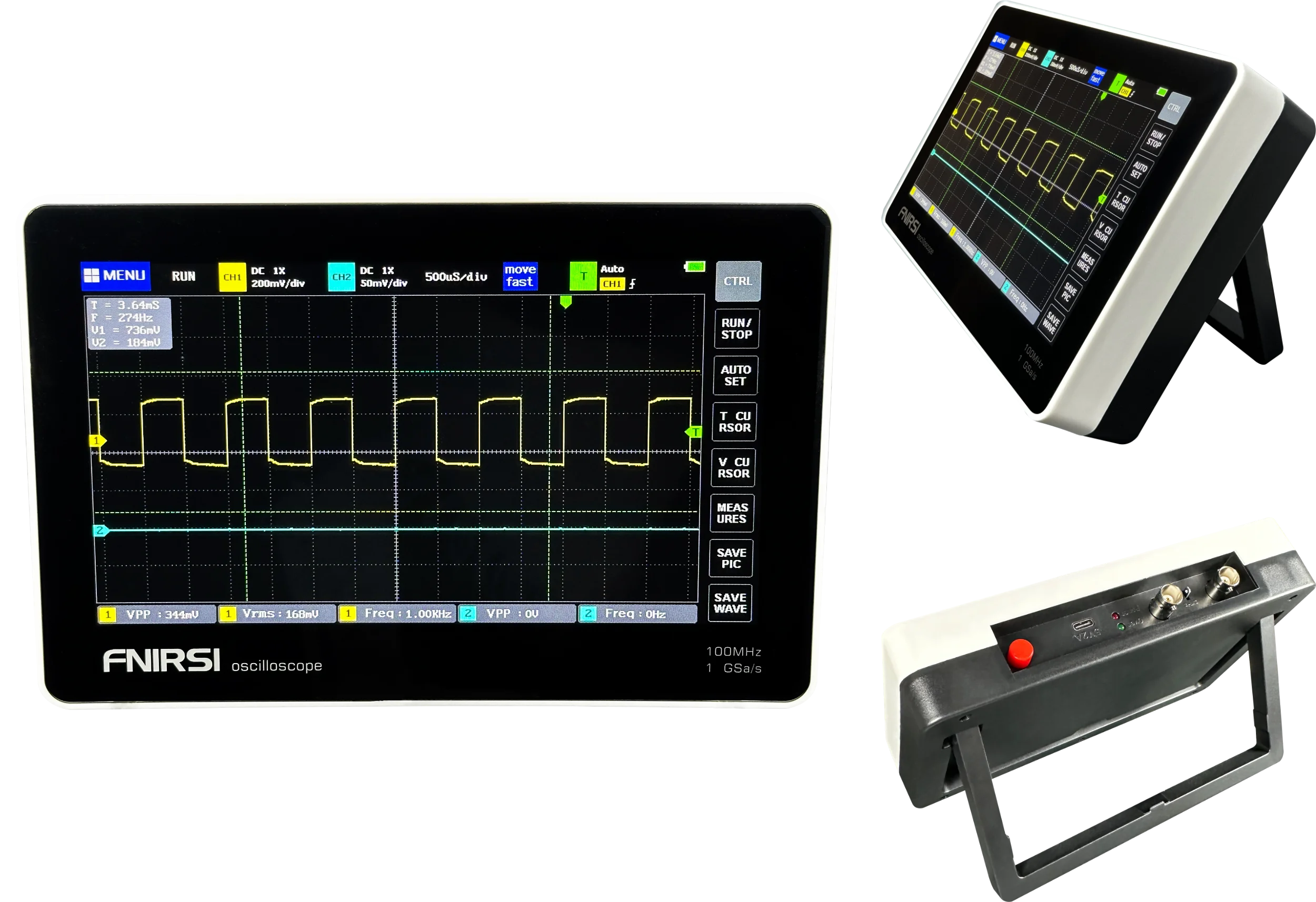

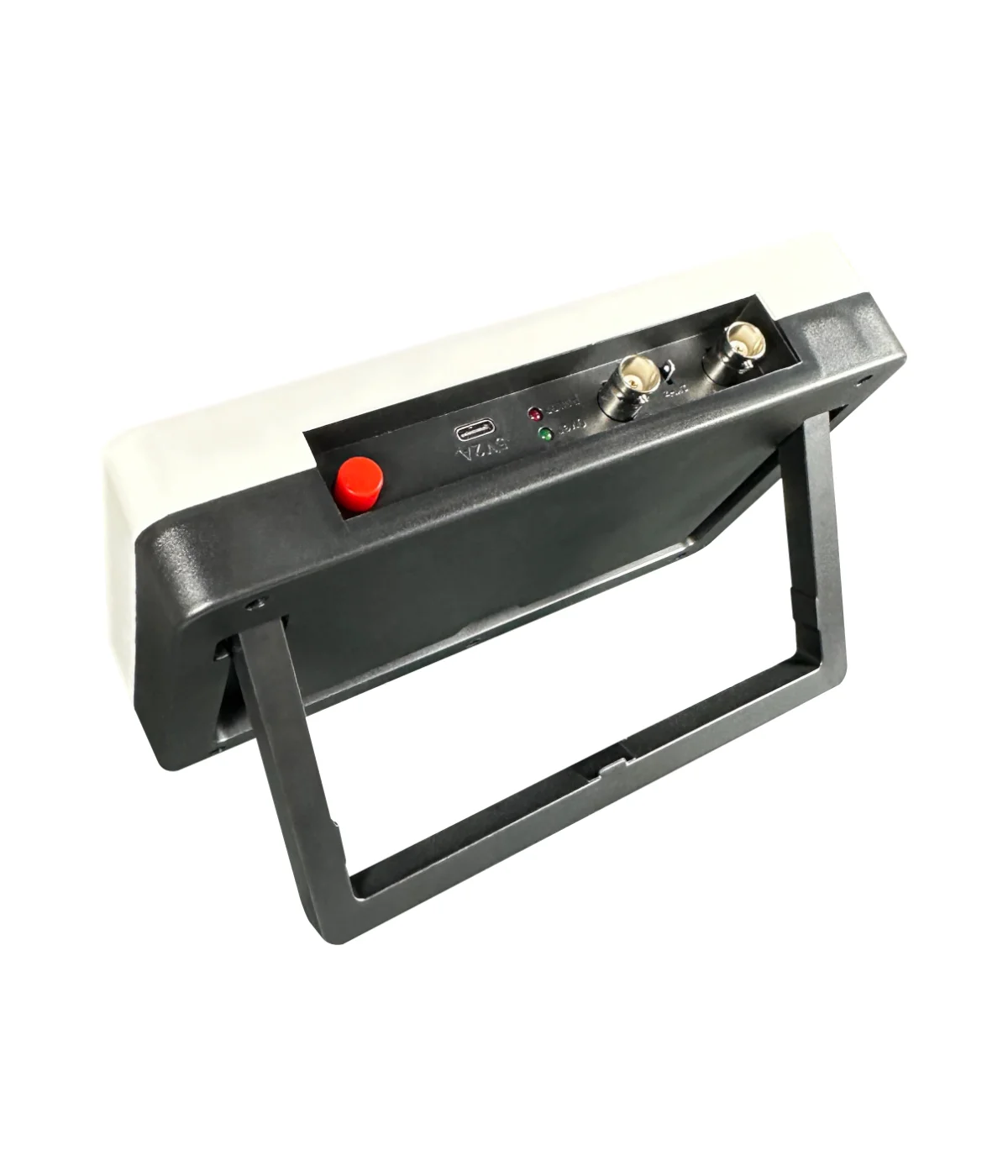

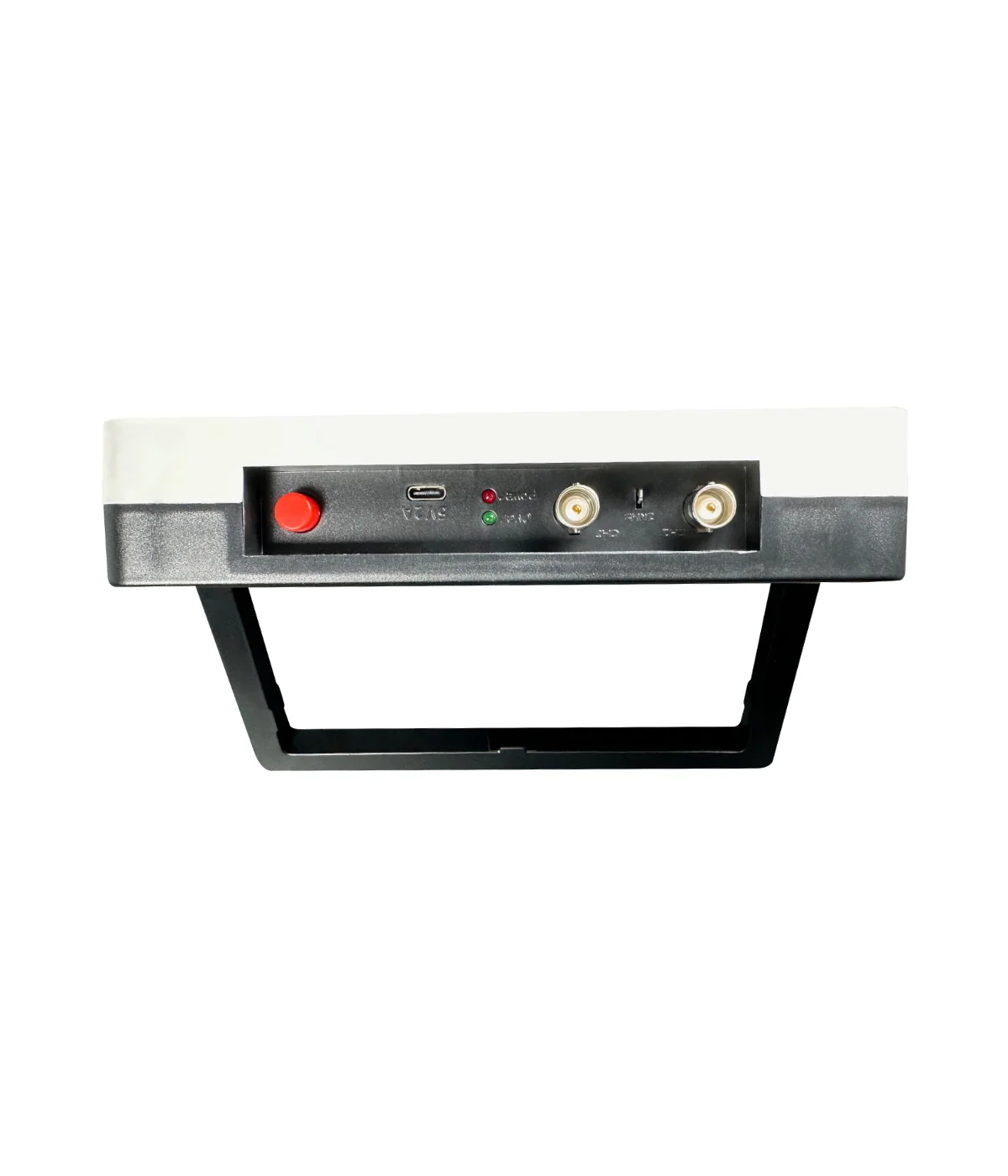

Fnirsi 1013D Digital Tablet Oscilloscope
2-channel oscilloscope, 7 inch touchscreen, 100 MHz, 1 GSa/s

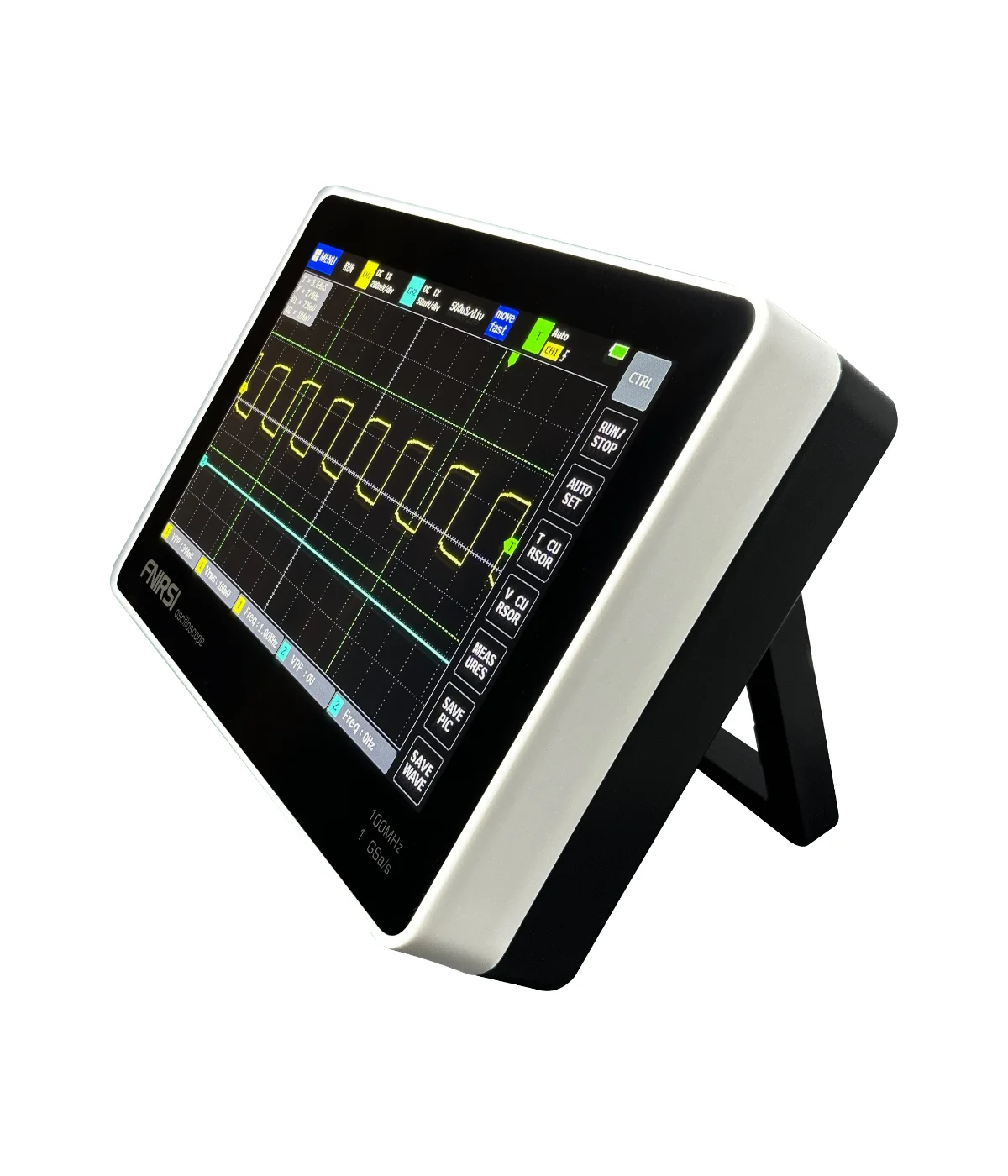

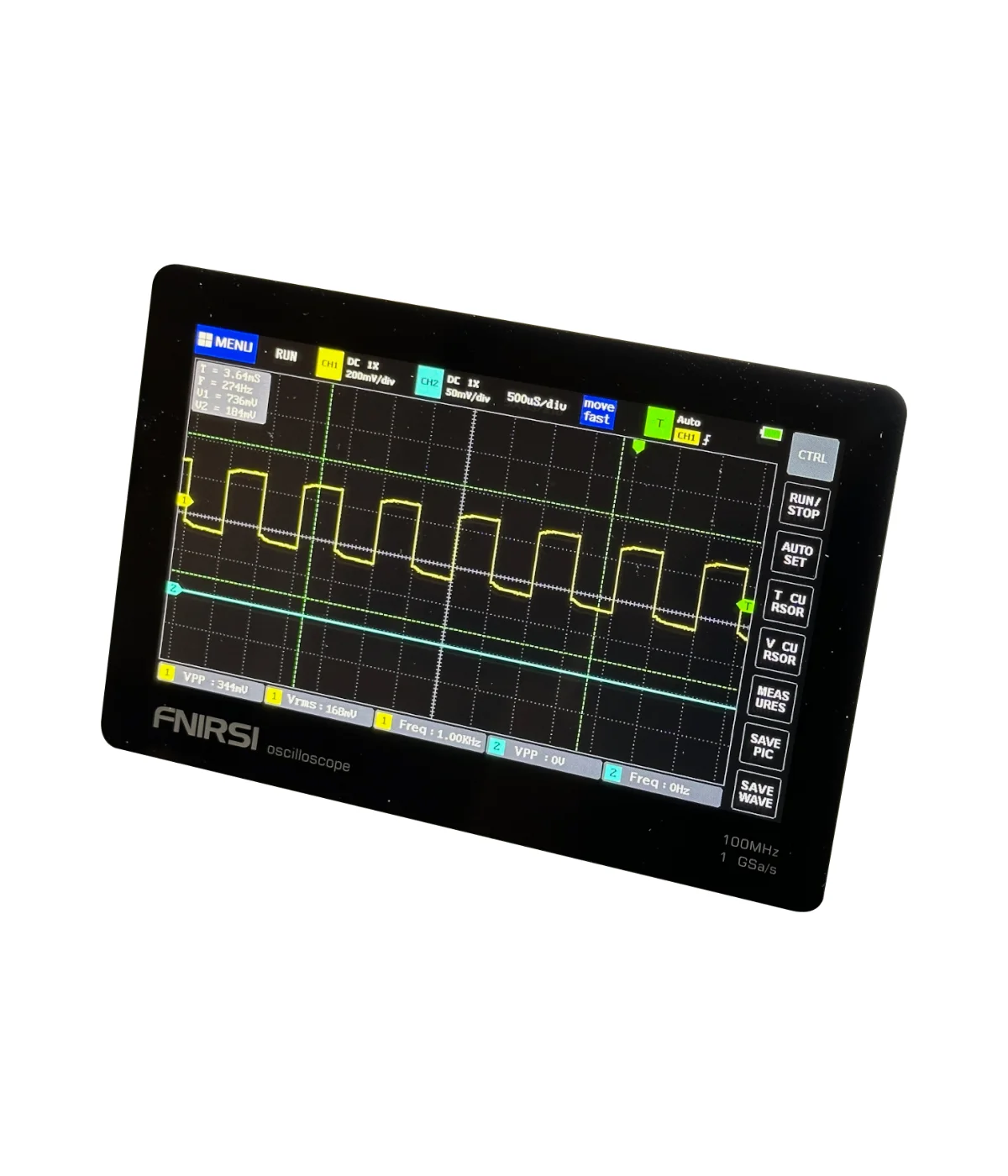

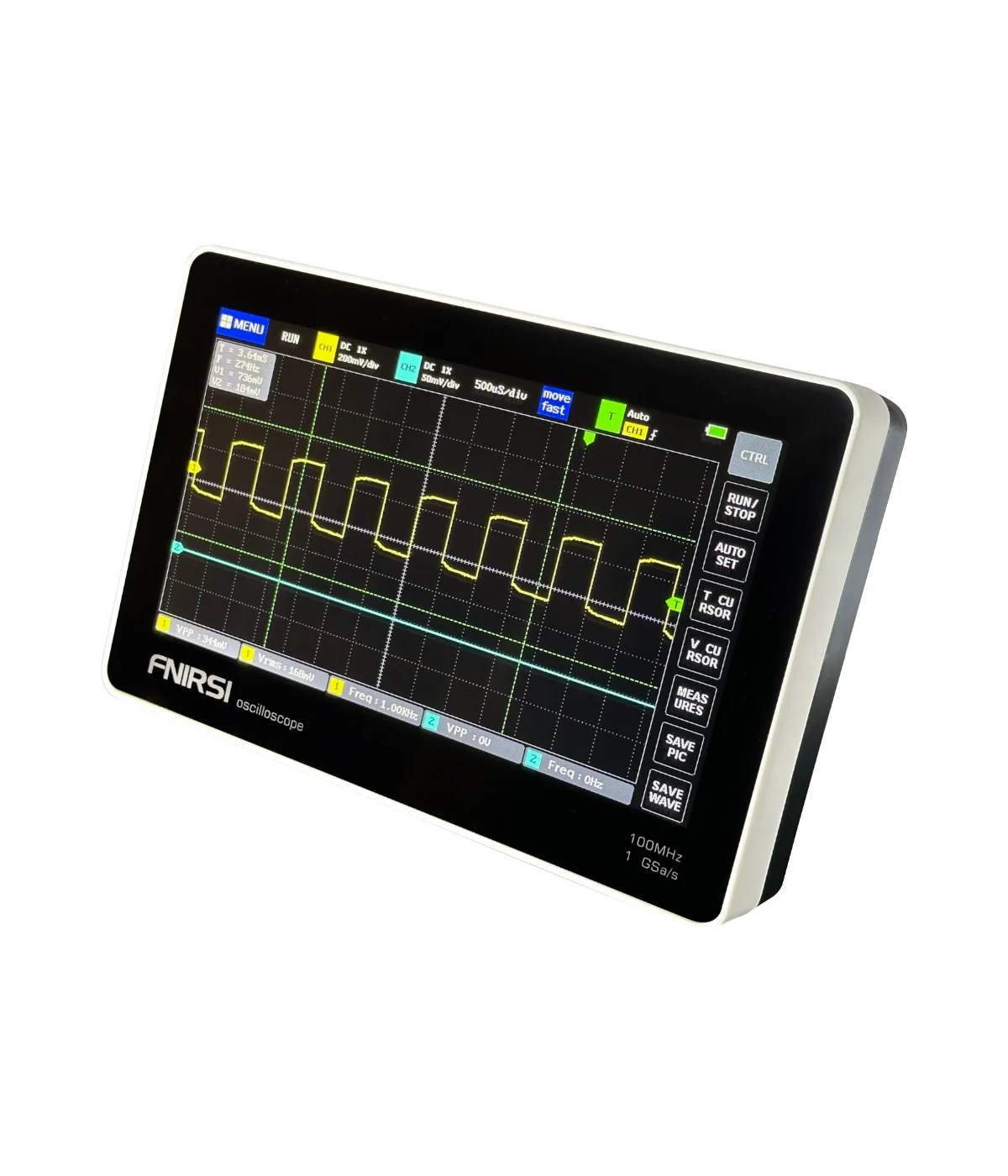

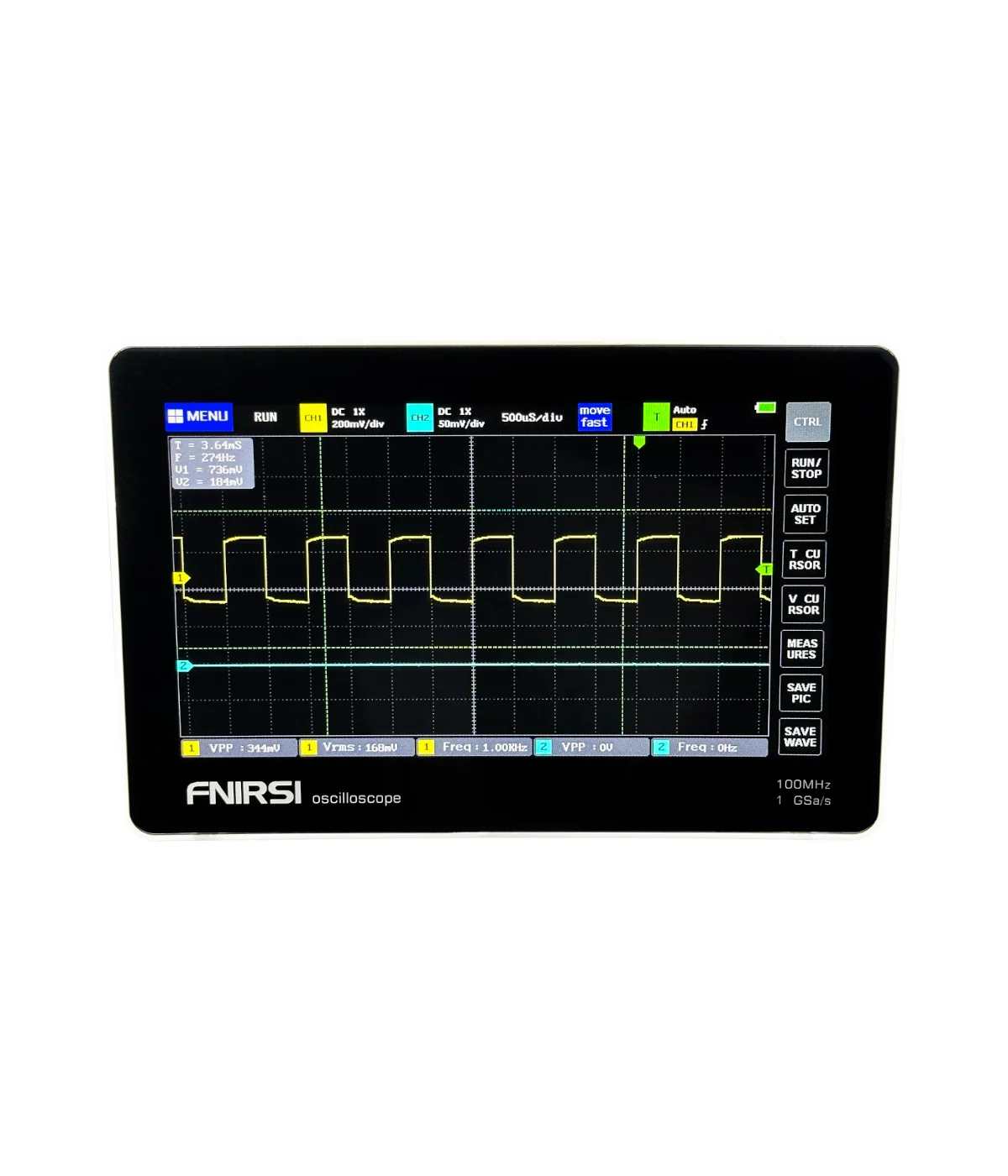

Bench-grade measurement meets tablet-style convenience - the FNIRSI 1013D packs a full dual-channel oscilloscope into a slim, 7" touchscreen body built for maintenance work and hobby projects alike. Capture signals up to 100 MHz analog bandwidth at a 1 GSa/s sampling rate, with intelligent anti-burn protection and a 10X probe rated to withstand 400 V. The bright 800×480 capacitive display puts your waveforms front and center, while built-in FFT lets you dig into the spectral characteristics of any signal you're chasing.
With 1 GB of onboard storage for up to 1000 screenshots and 1000 waveform captures - pulled off easily over USB - the 1013D is ready to document as much as it measures.

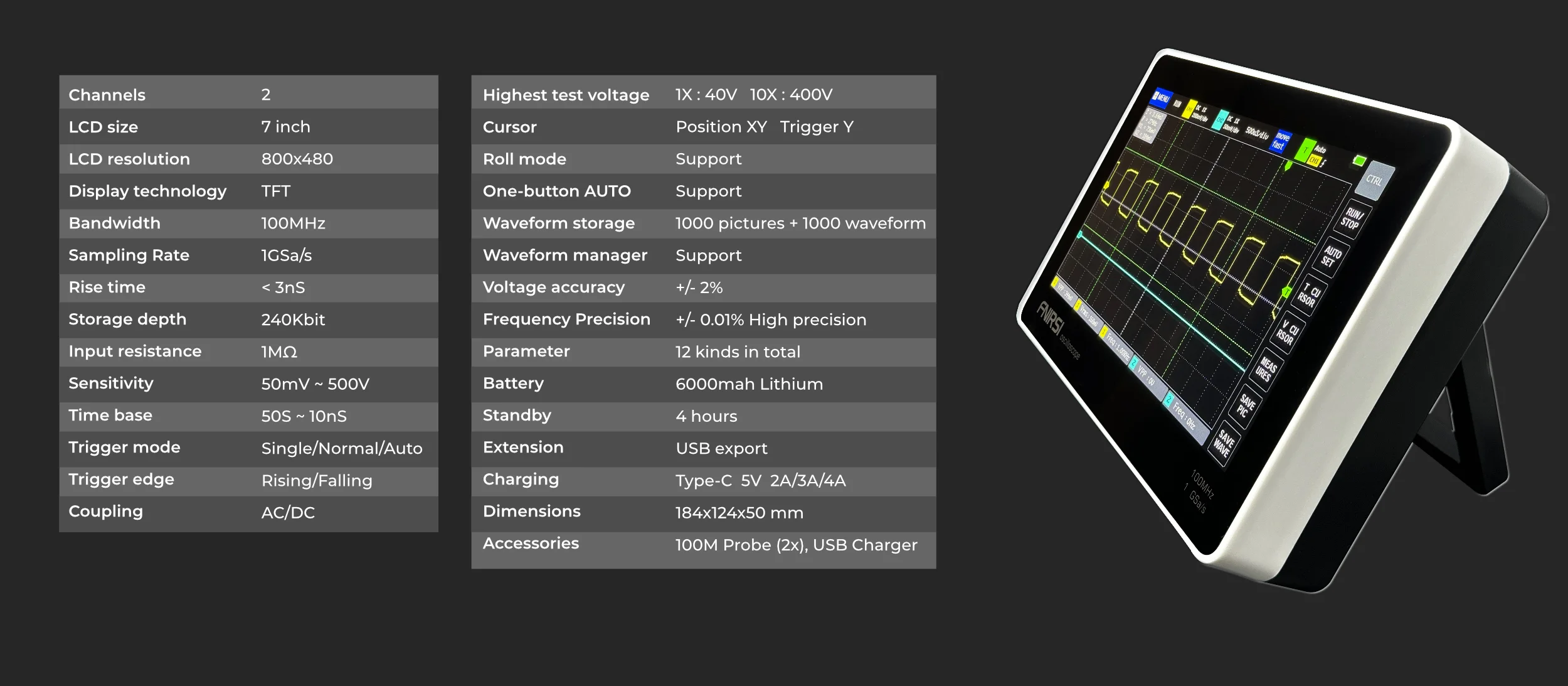

Specifications
| Material | ABS |
|---|---|
| Color | black and white |
| Analog band width | 100 MHz * 2 |
| Number of channels | 2 channels |
| Maximum real time sampling rate | 1 GSa/s |
| Vertical sensitivity | 50 mV/div ~ 500 V/div |
| Horizontal time base range | 50 S/div ~ 10 nS/div |
| Maximum test voltage | 40 V (1X probe), 400 V (10X probe) |
| Storage depth | 240 Kbit |
| Input restance | 1 M |
| ADC precision | 8 bits |
| Coupling mode | AC/DC |
| Trigger mode | Single, Normal, Auto |
| Trigger edge | Rising edge/Falling edge |
| External trigger voltage | 0 ~ 40 V |
| Screen | 7 inch (800x480) |
| Operating | capacitive touching screen + gesture |
| Extension ports | USB picture export |
| Battery | built-in lithium battery 6000 man |
| Size | 184x124x50 mm |
Firmware Instructions
- Download the firmware and unzip the file. Rename it to FSI-1013.bin.
- Select USB Connection on the oscilloscope and connect it to your computer. A new storage disk will appear — copy the downloaded firmware onto it.
- Turn the device off and back on to display the upgrade interface. (There are two screen vendors used in this device, so two firmware files exist. If the screen isn't accurately sensitive after updating one, update the other and repeat the same steps.)
Gallery
In the box
- Fnirsi 1013D Oscilloscope

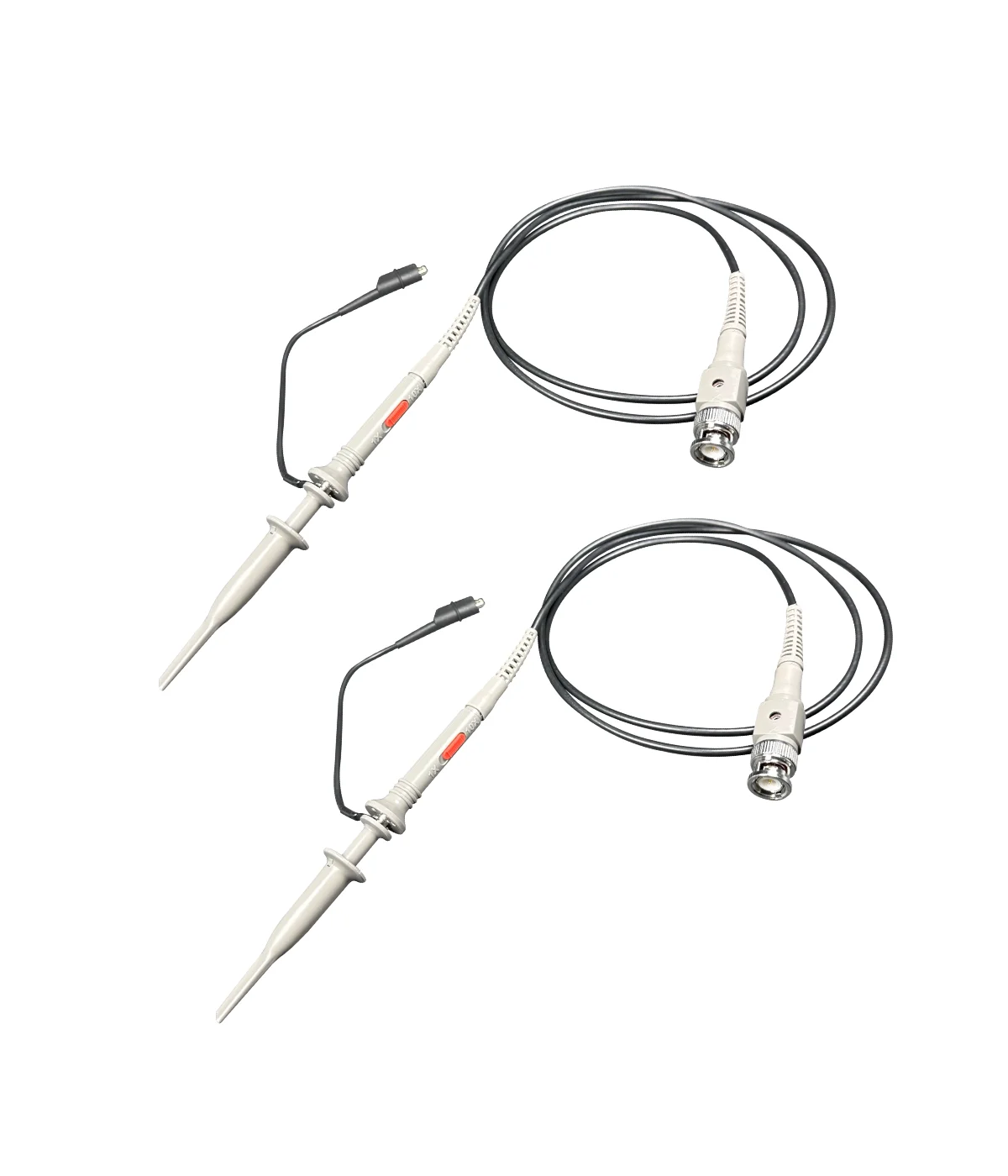

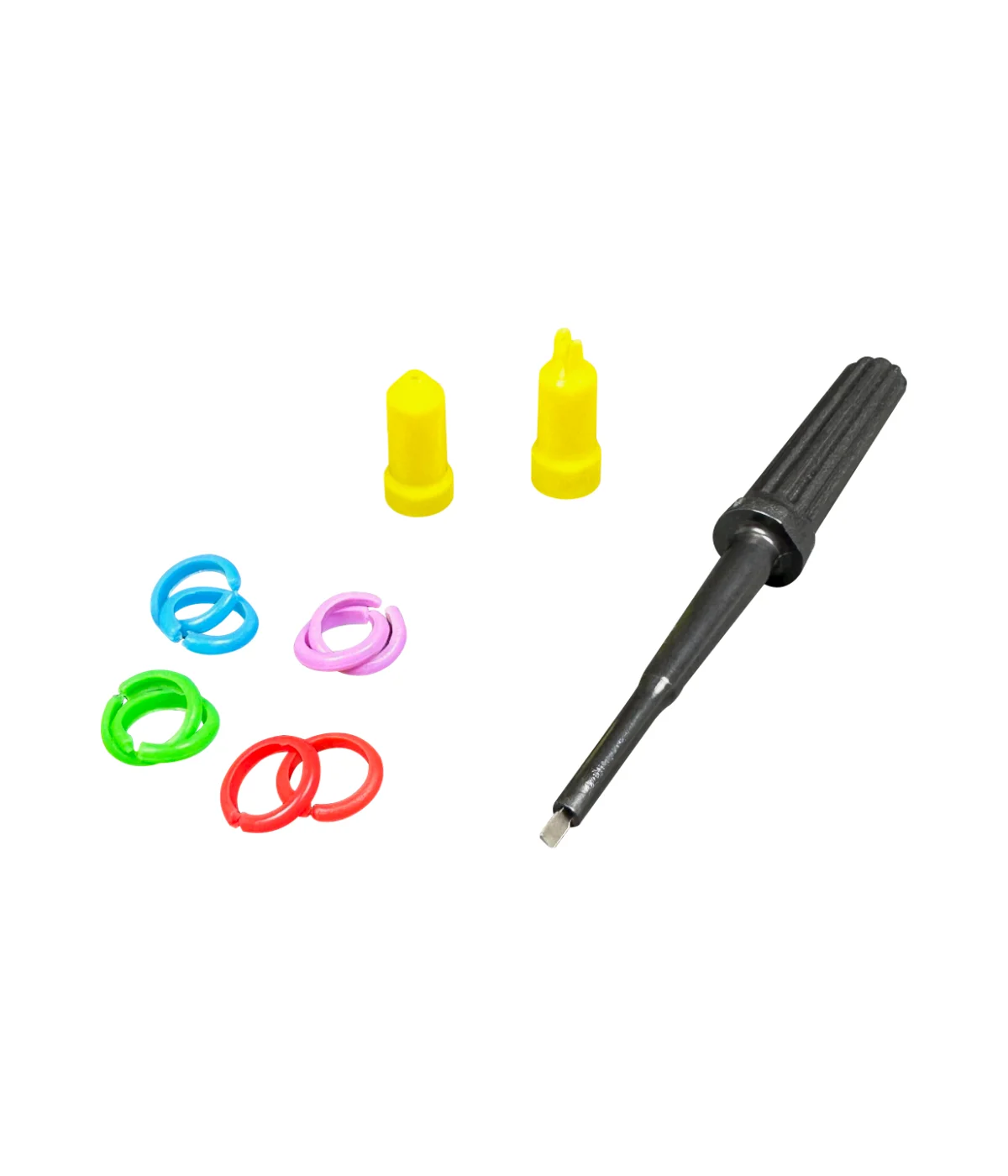

- High voltage probes

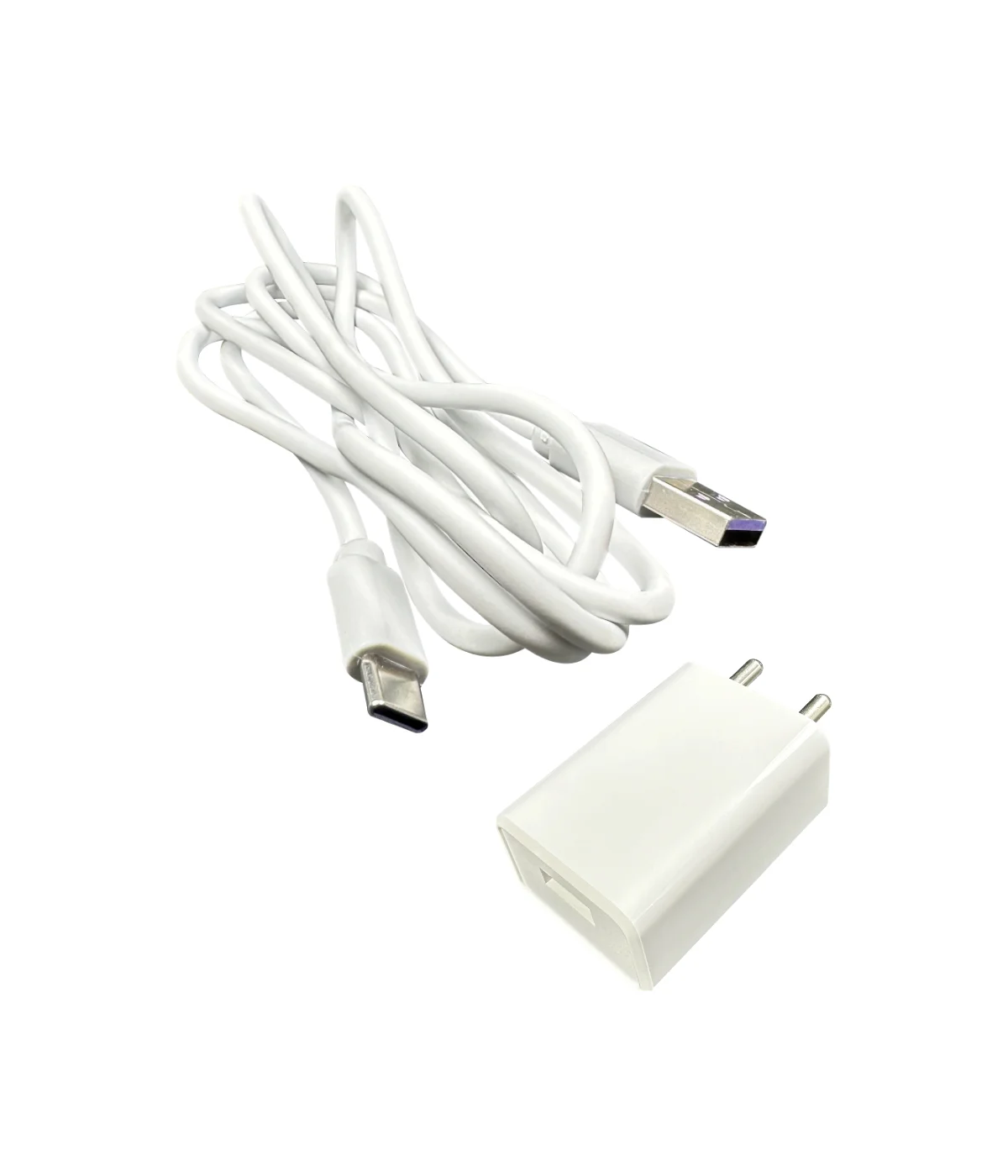

- Charging cable type-C
- Charger EU type
- Paper manual
