Fnirsi 1014D Digital Oscilloscope | hamparts.shop

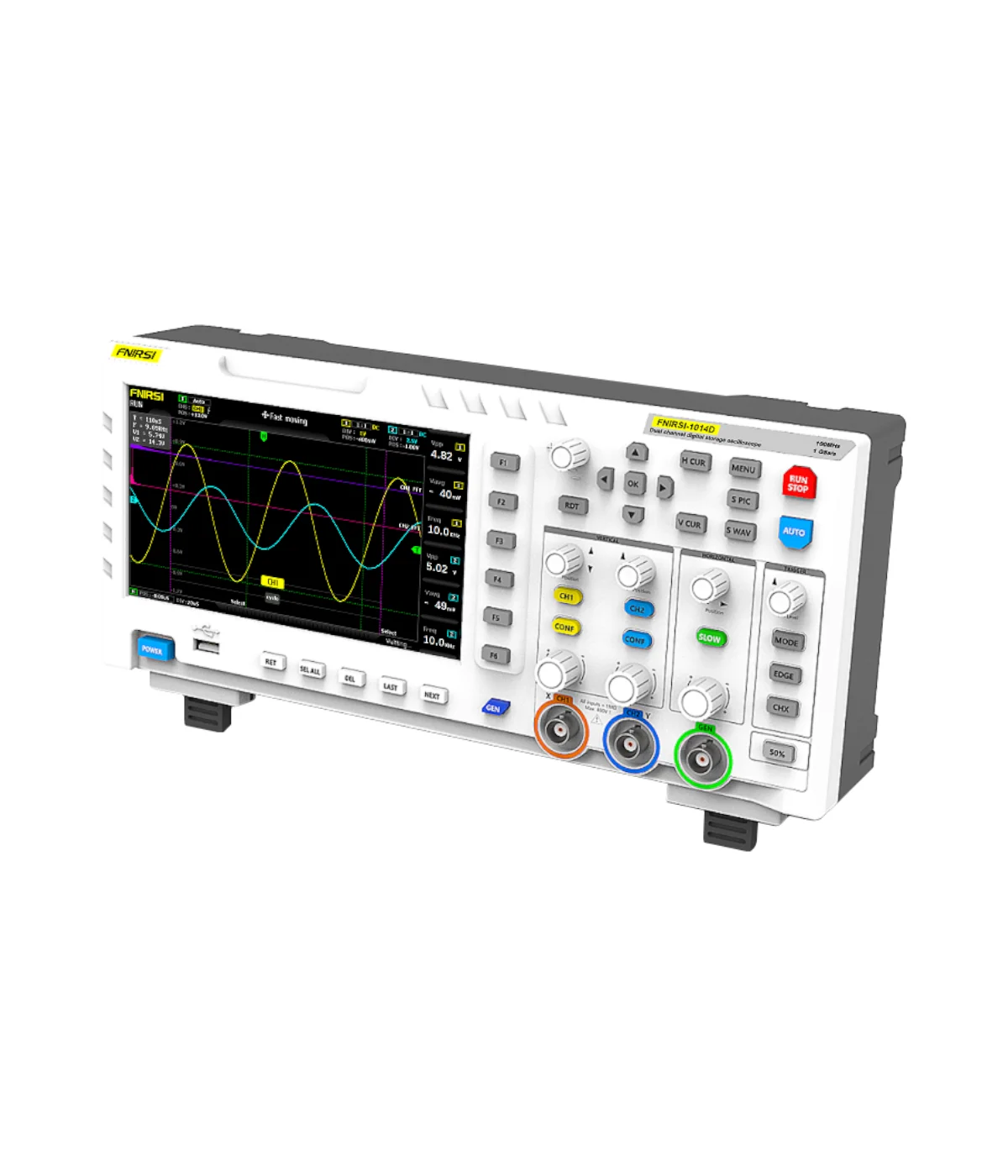

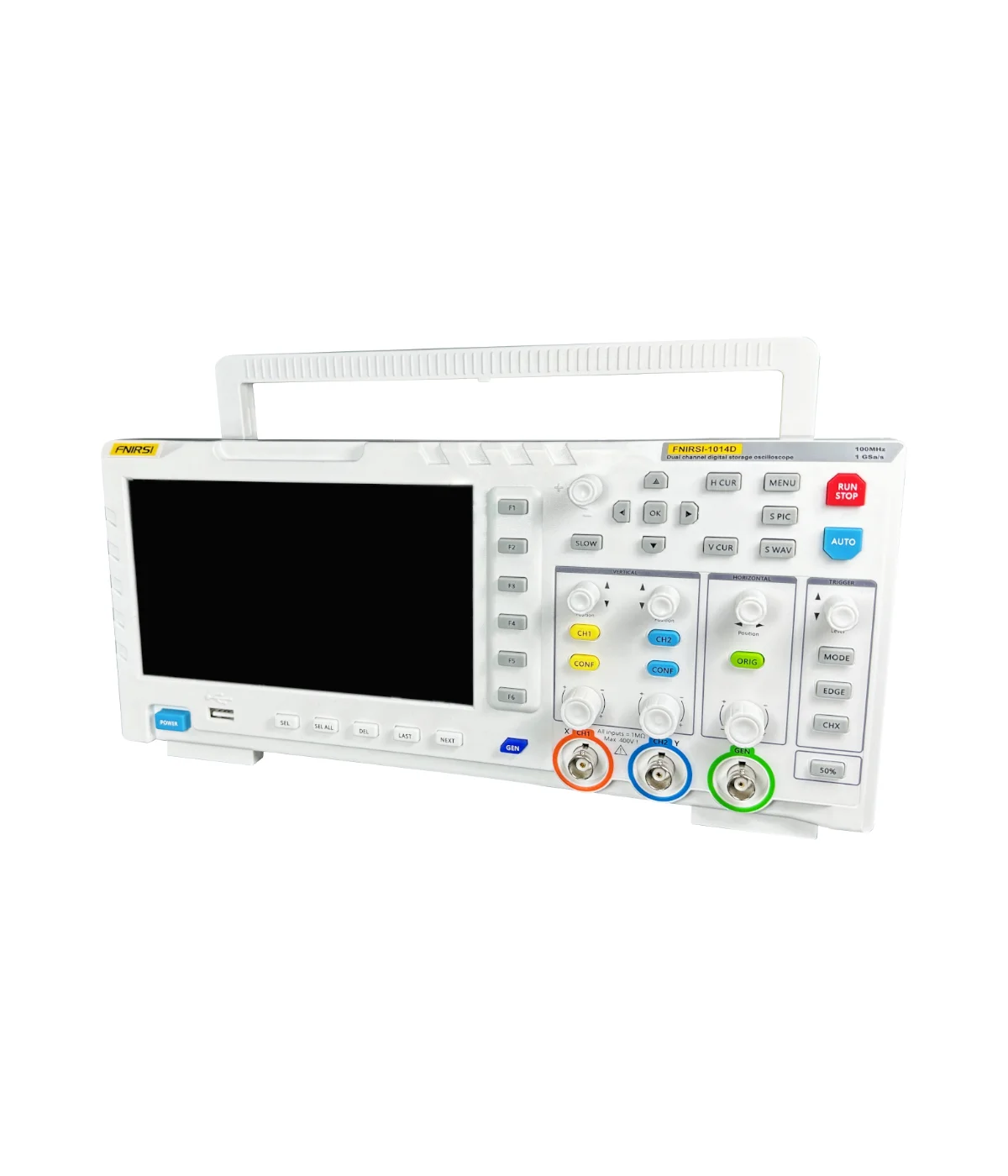

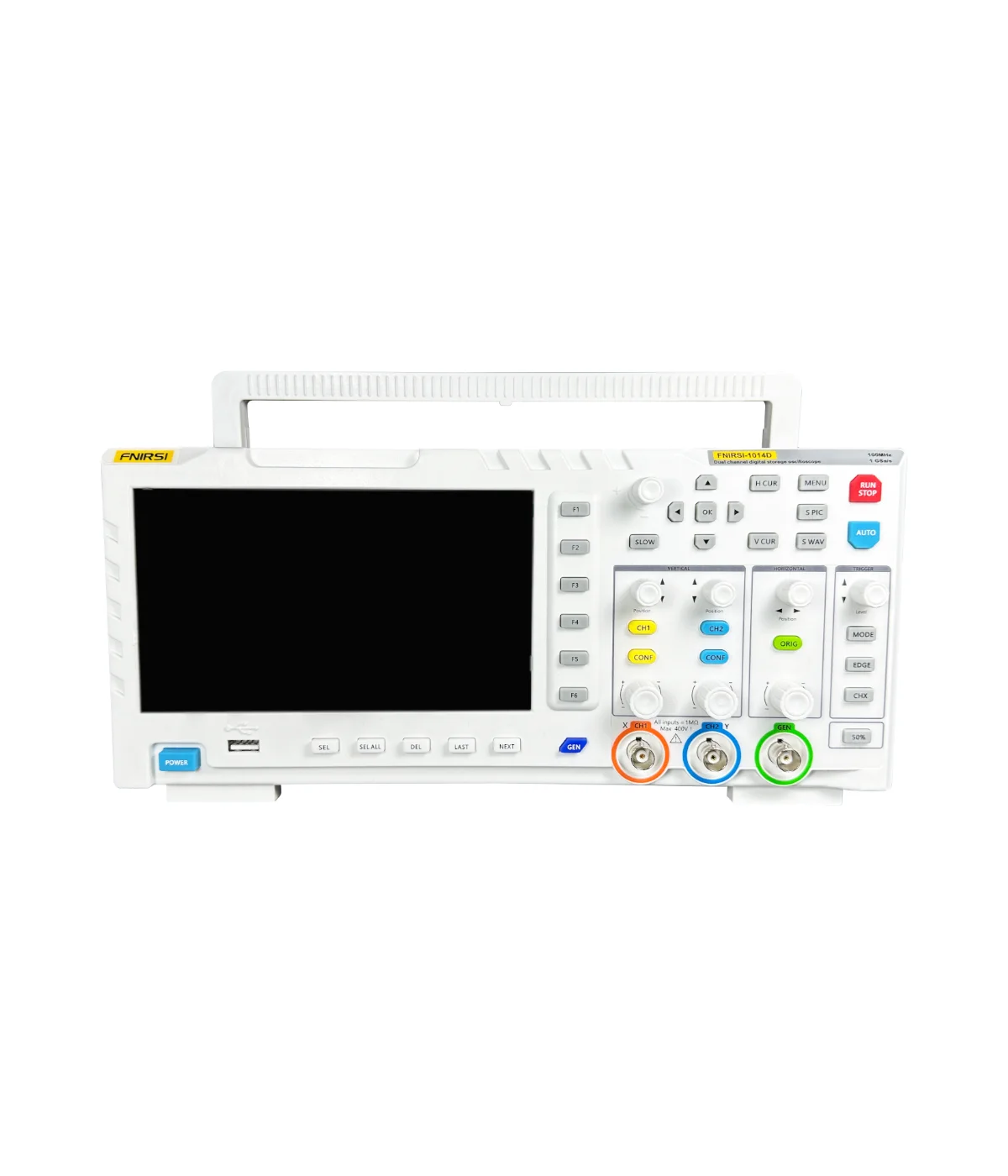

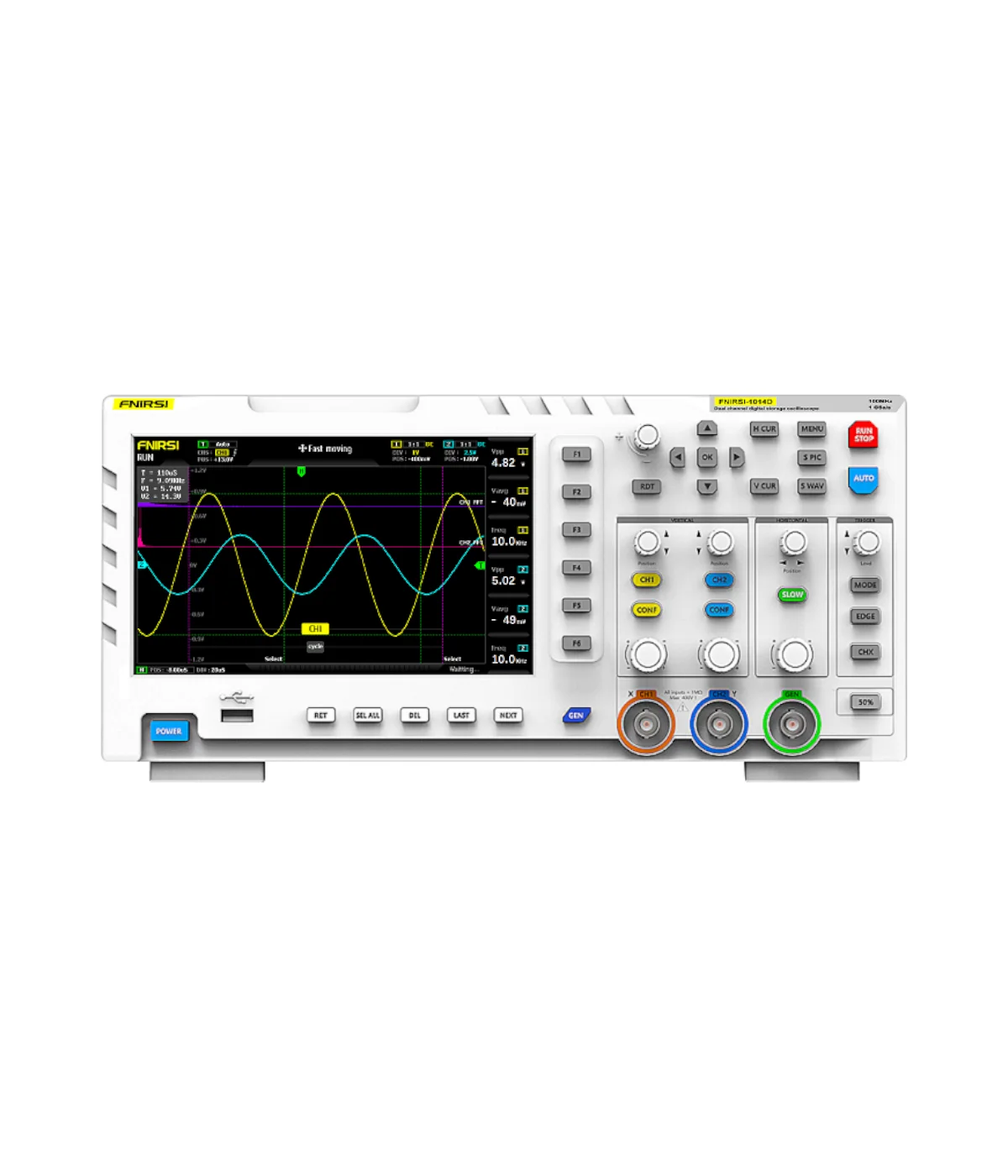

Fnirsi 1014D Digital Oscilloscope

2-channel oscilloscope, 7 inch screen, 100 MHz, 1 GSa/s, 12 functions generator

Read moreShow less

125.00 €

125.00 € tax excl.

145.00 €

in stock, shipped in 2-3 days

Details

Features

Attachments

Reviews

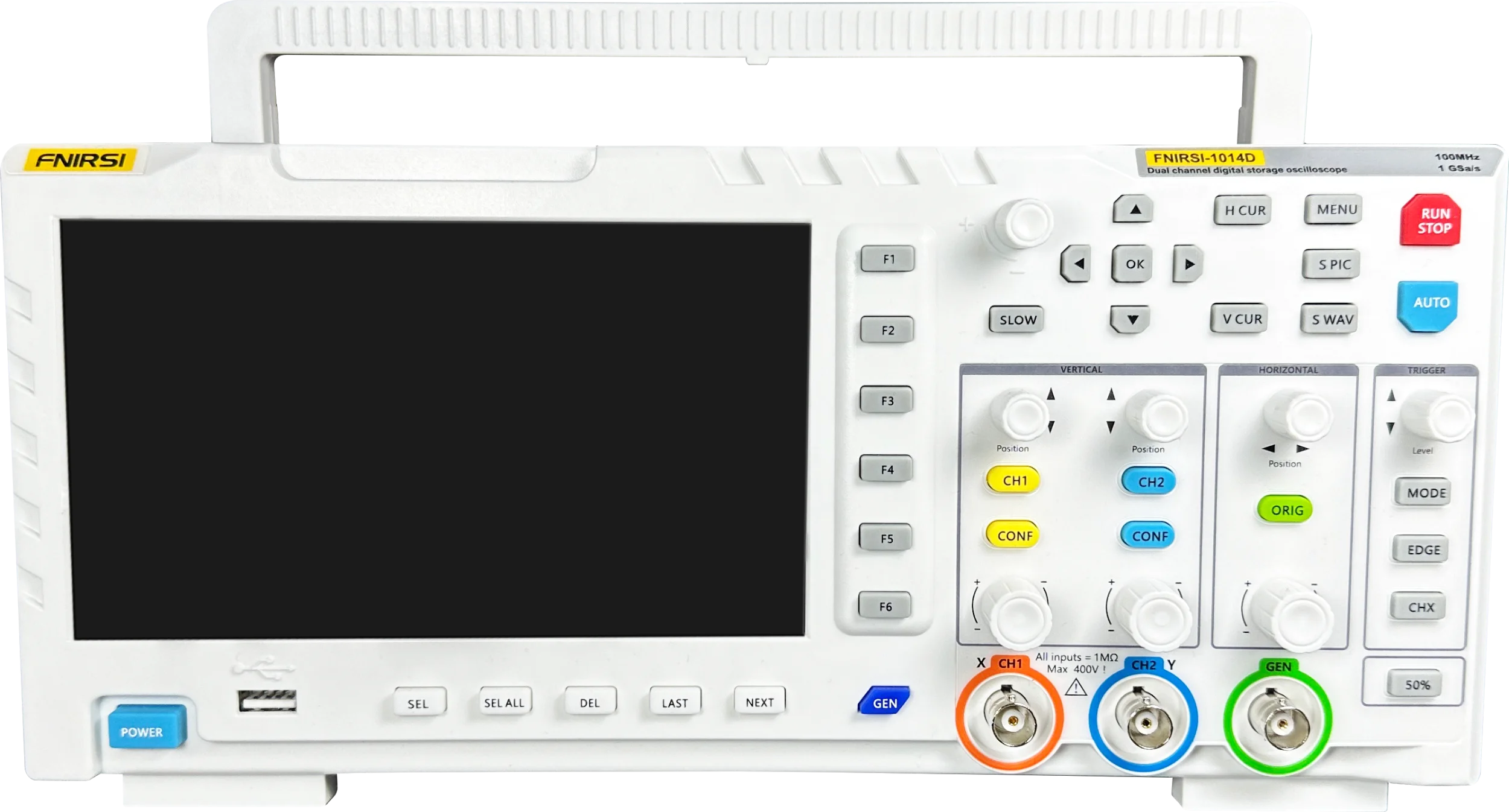

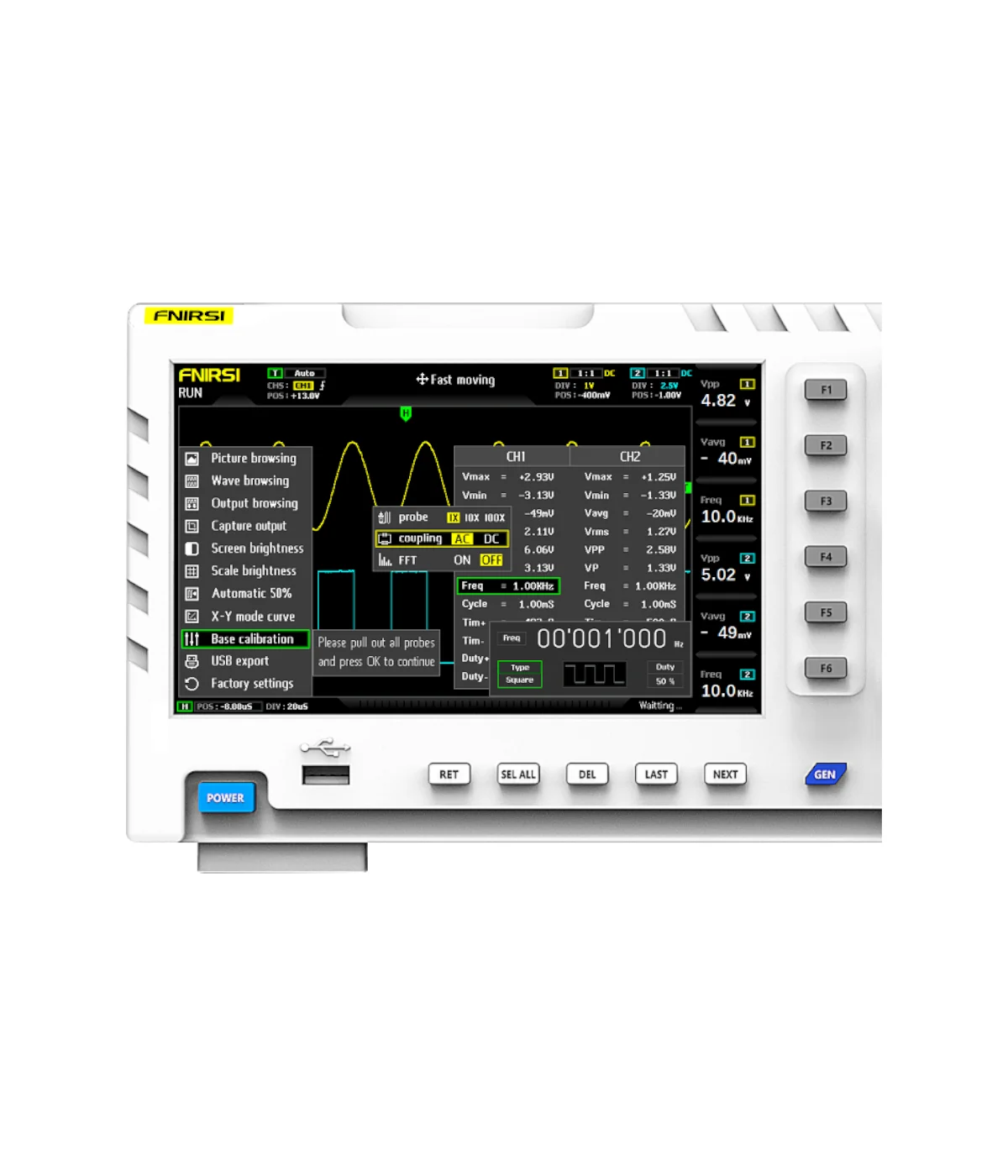

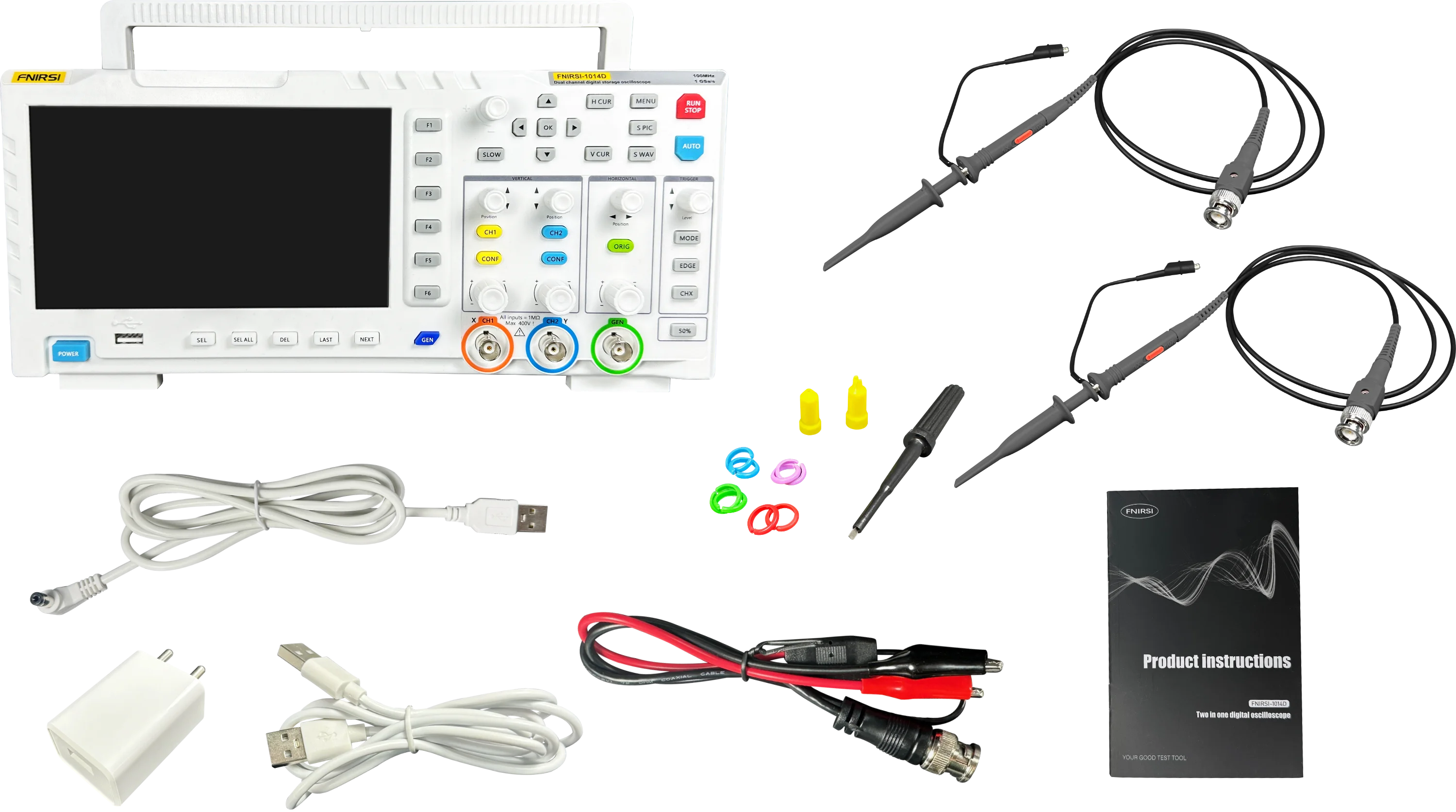

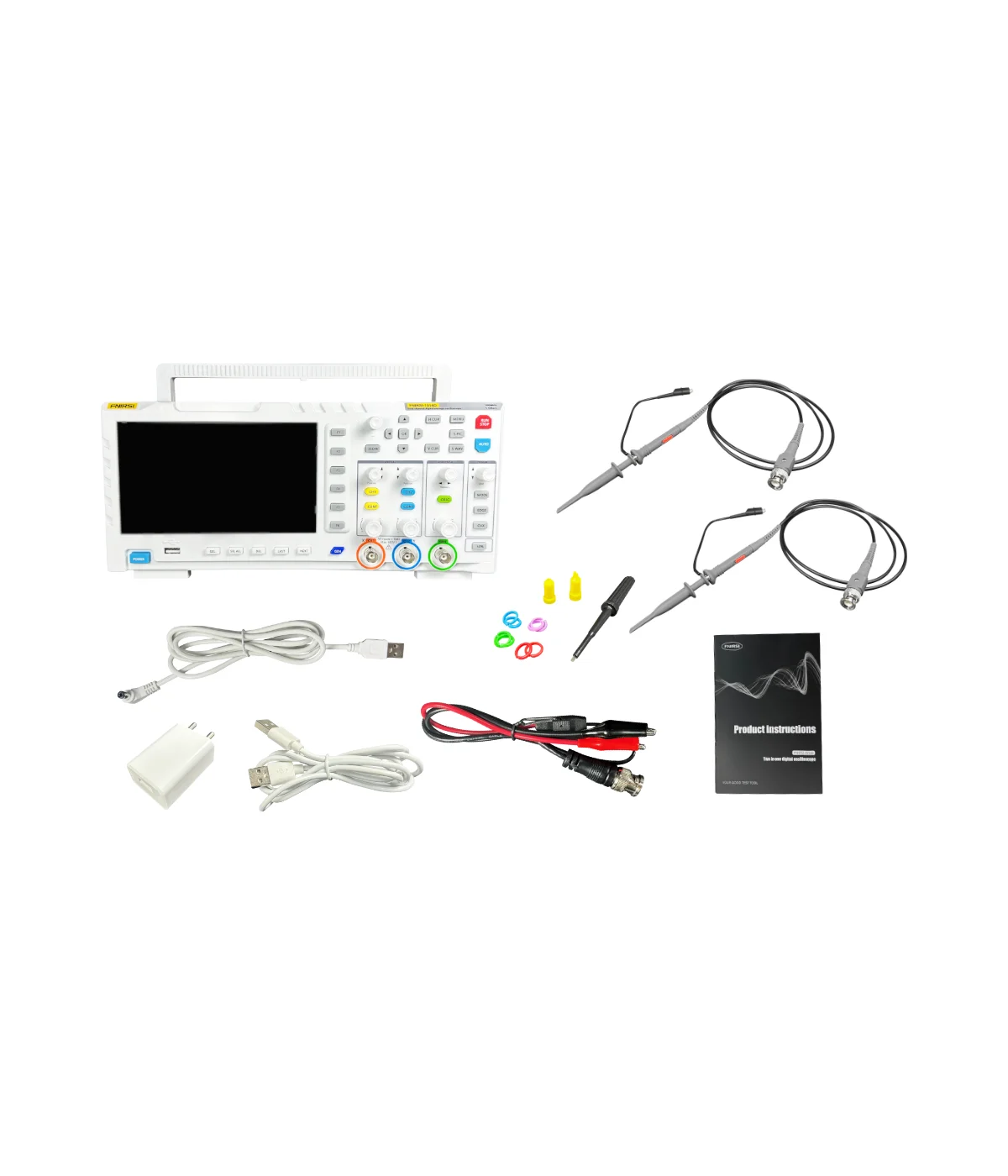

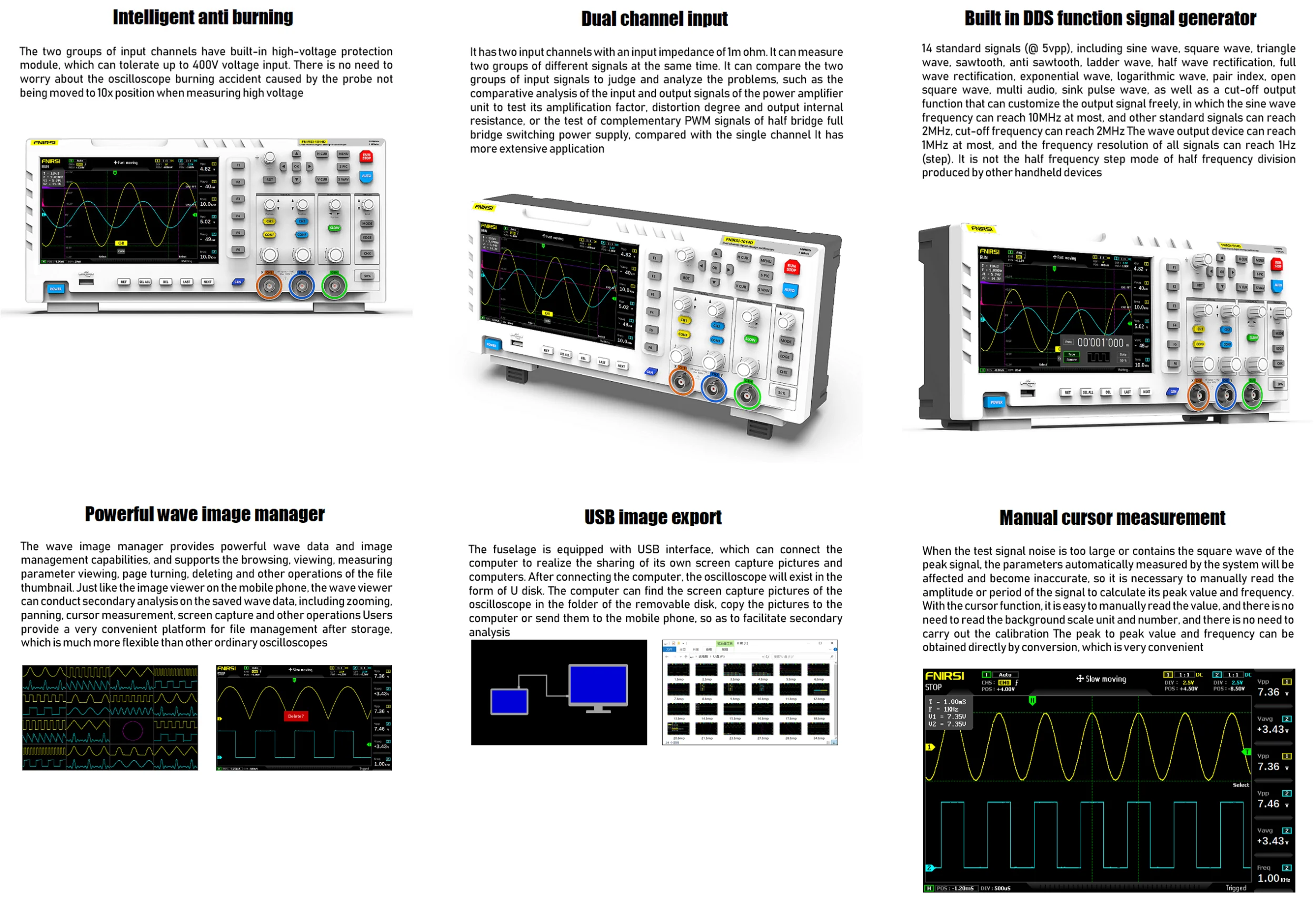

The FNIRSI 1014D takes the bench oscilloscope further, pairing a full dual-channel 100 MHz scope with a built-in DDS signal generator offering 12 different waveform functions - including the ability to play back a captured signal. Sample at up to 1 GSa/s, probe up to 400 V with the included 10X probe, and dig into your signals with built-in FFT analysis. The bright 7" 800×480 capacitive touchscreen keeps everything readable at a glance, and with 1 GB of onboard storage for screenshots and waveform captures, documenting your work is as easy as plugging in a USB cable.

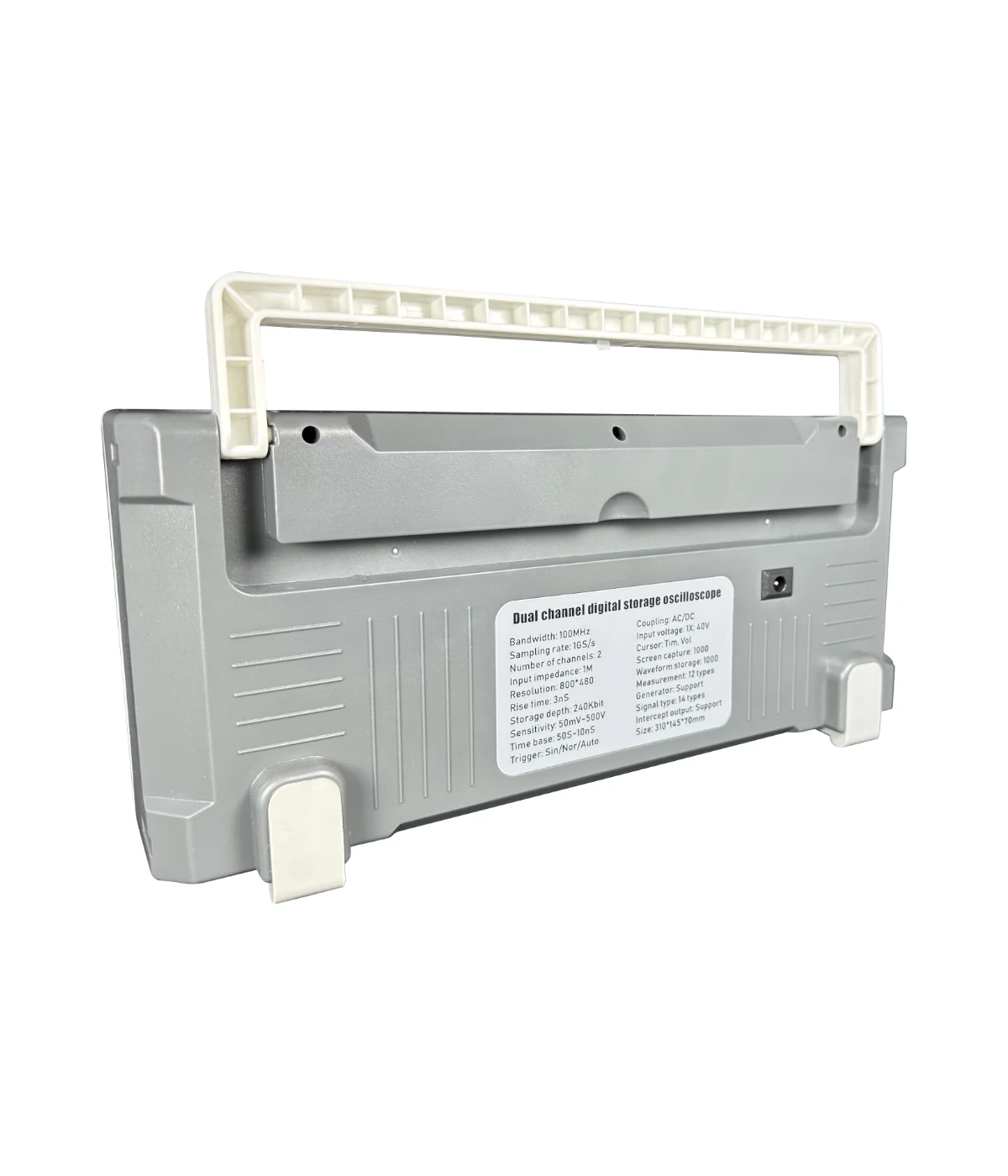

Specifications

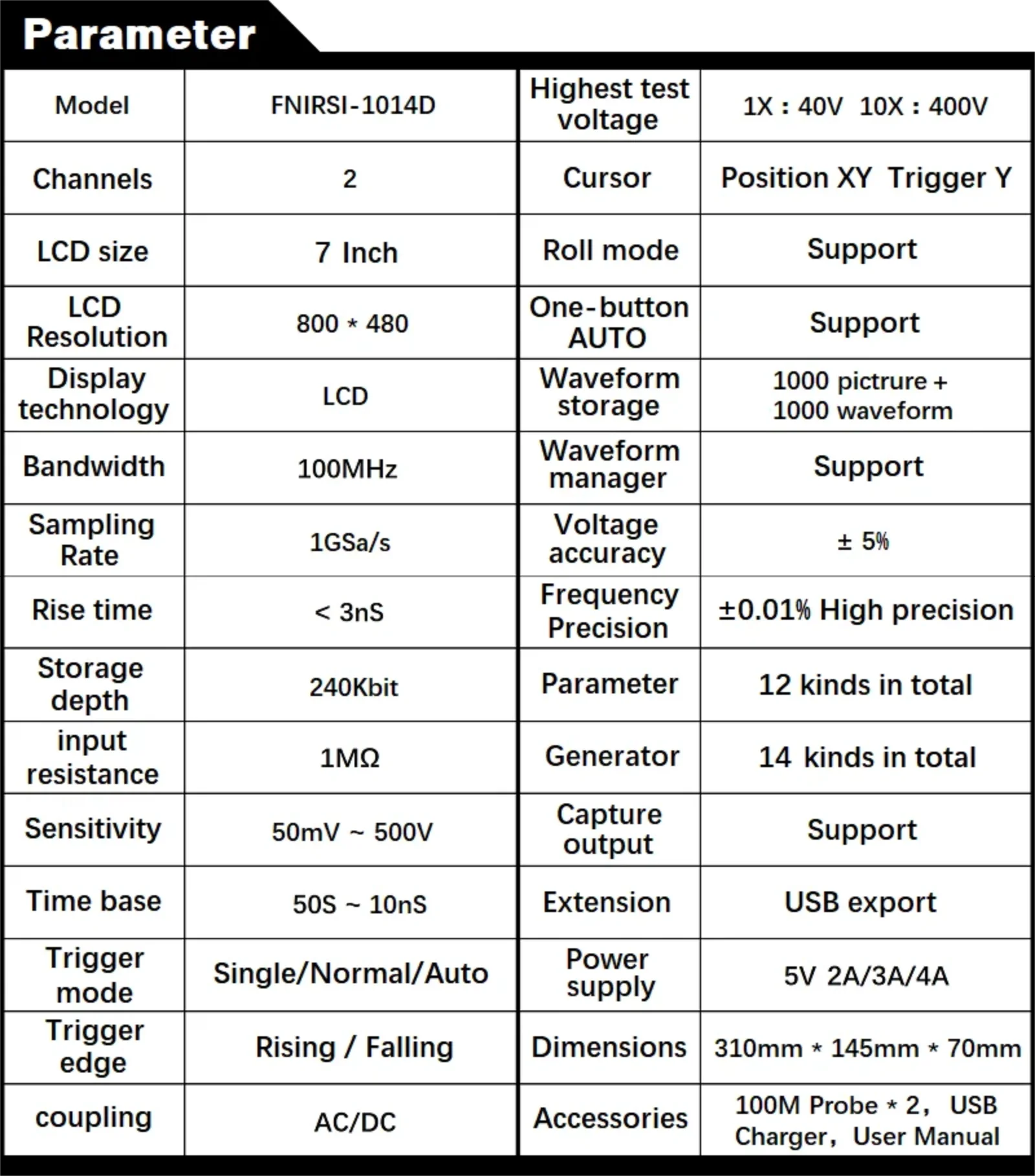

Analog band width	100 MHz * 2
Number of channels	2 channels
Maximum real time sampling rate	1 GSa/s
Vertical sensitivity	50 mV/div ~ 500 V/div
Horizontal time base range	50 S/div ~ 10 nS/div

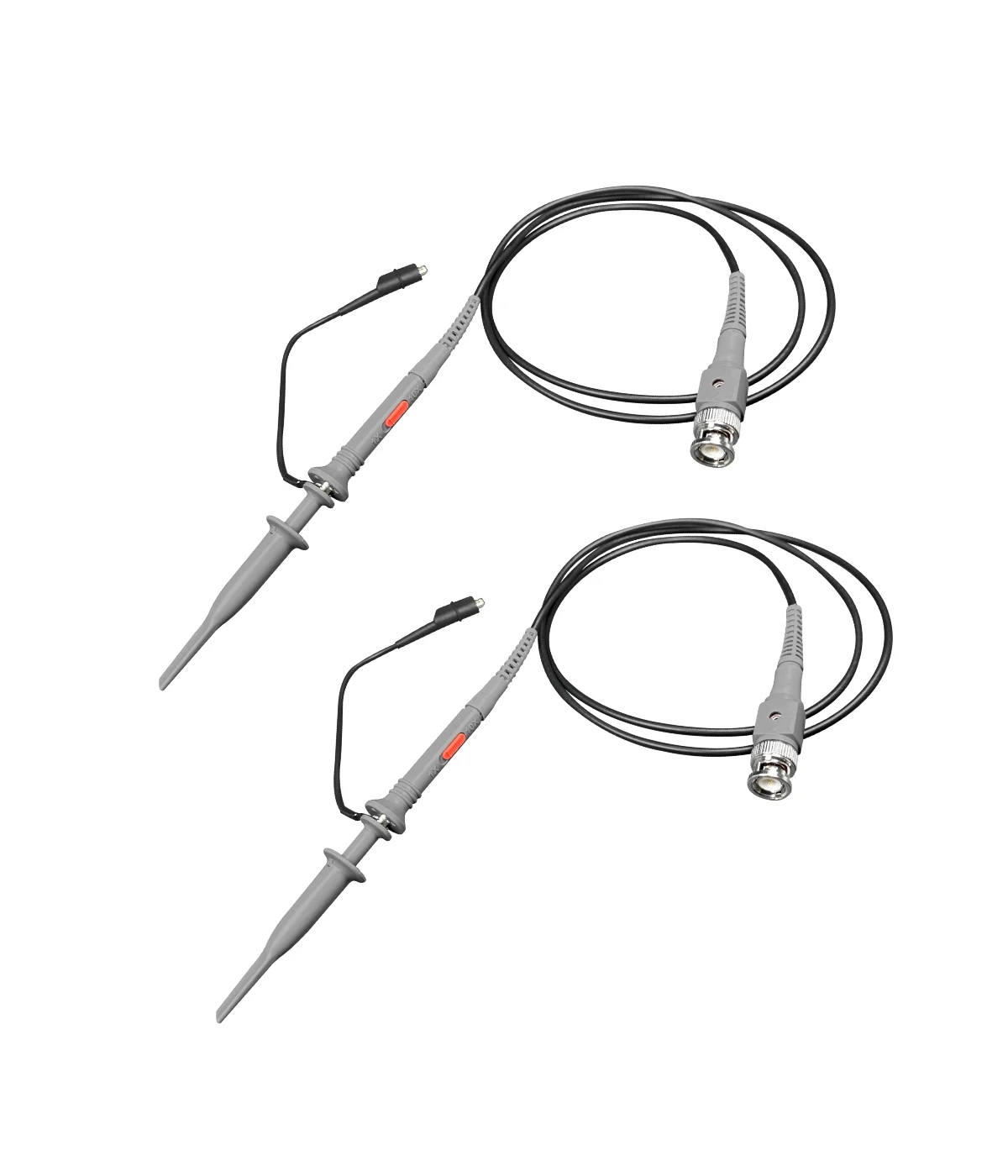

Maximum test voltage	40 V (1X probe), 400 V (10X probe)
Storage depth	240 Kbit
Input restance	1 M
ADC precision	8 bits
Coupling mode	AC/DC
Trigger mode	Single, Normal, Auto
Trigger edge	Rising edge/Falling edge
External trigger voltage	0 ~ 40 V
Screen	7 inch (800x480)
Extension ports	USB picture export
Power supply	DC jack from USB charger
Size	310x145x70 mm

Downloads & Resources

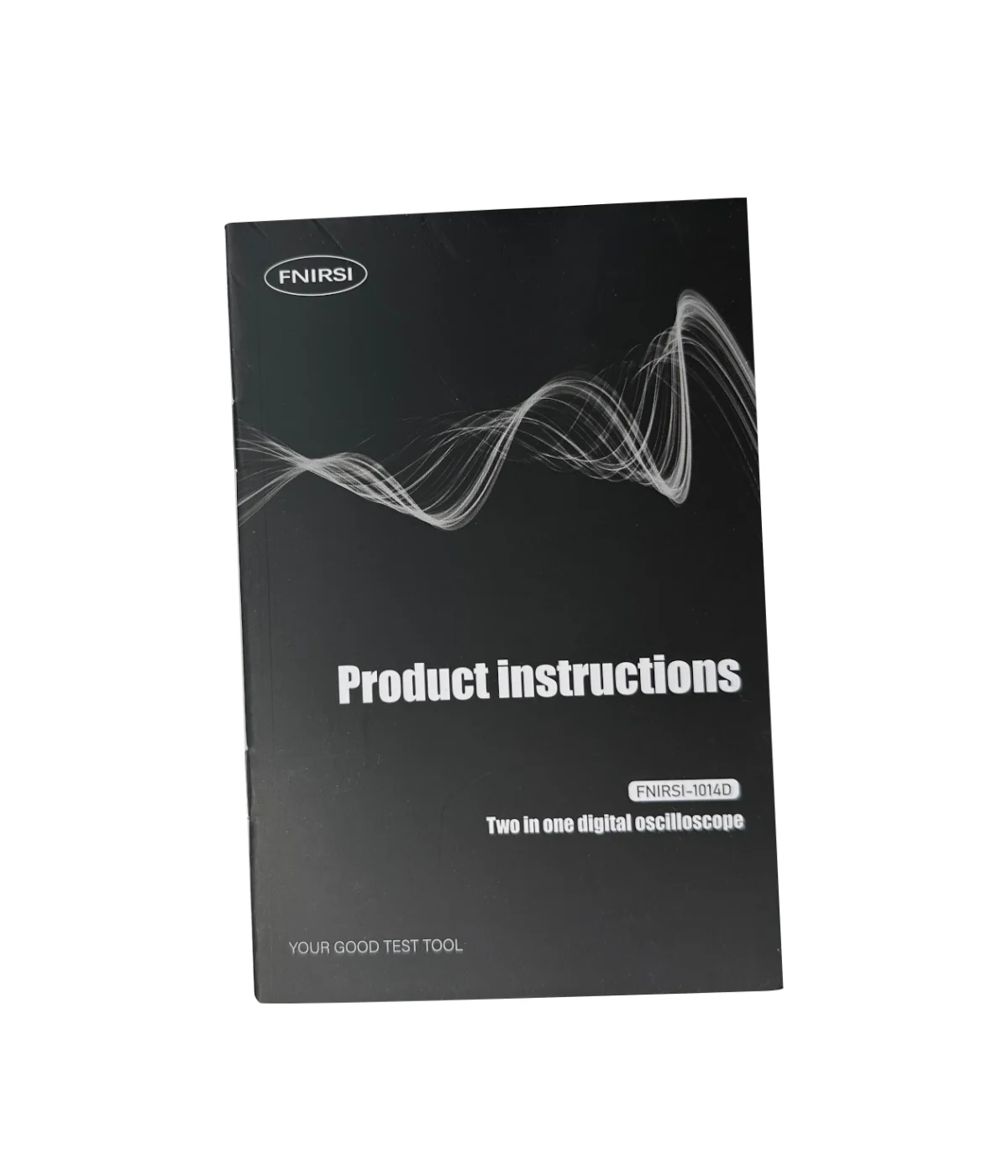

📄 Download manual at Fnirsi.com

💾 Download firmware

Firmware Instructions

Download the firmware and unzip the file. Rename it to FSI-1014.bin.
Select USB Connection on the oscilloscope and connect it to your computer via a data cable. A new storage disk will appear — copy the downloaded firmware onto it.
Turn the device off and back on to display the upgrade interface. (There are two screen vendors used in this device, so two firmware files exist. If the screen isn't accurately sensitive after updating one, update the other and repeat the same steps.)

⚠ You can find the firmware file in our Attachments section.
