Fnirsi DSO152 Digital Oscilloscope

1-channel handheld oscilloscope, 2.8 inch screen, 200 kHz

Read moreShow less

29.00 €

29.00 € tax excl.

39.00 €

in stock, shipped in 2-3 days

Details

Features

Attachments

Reviews

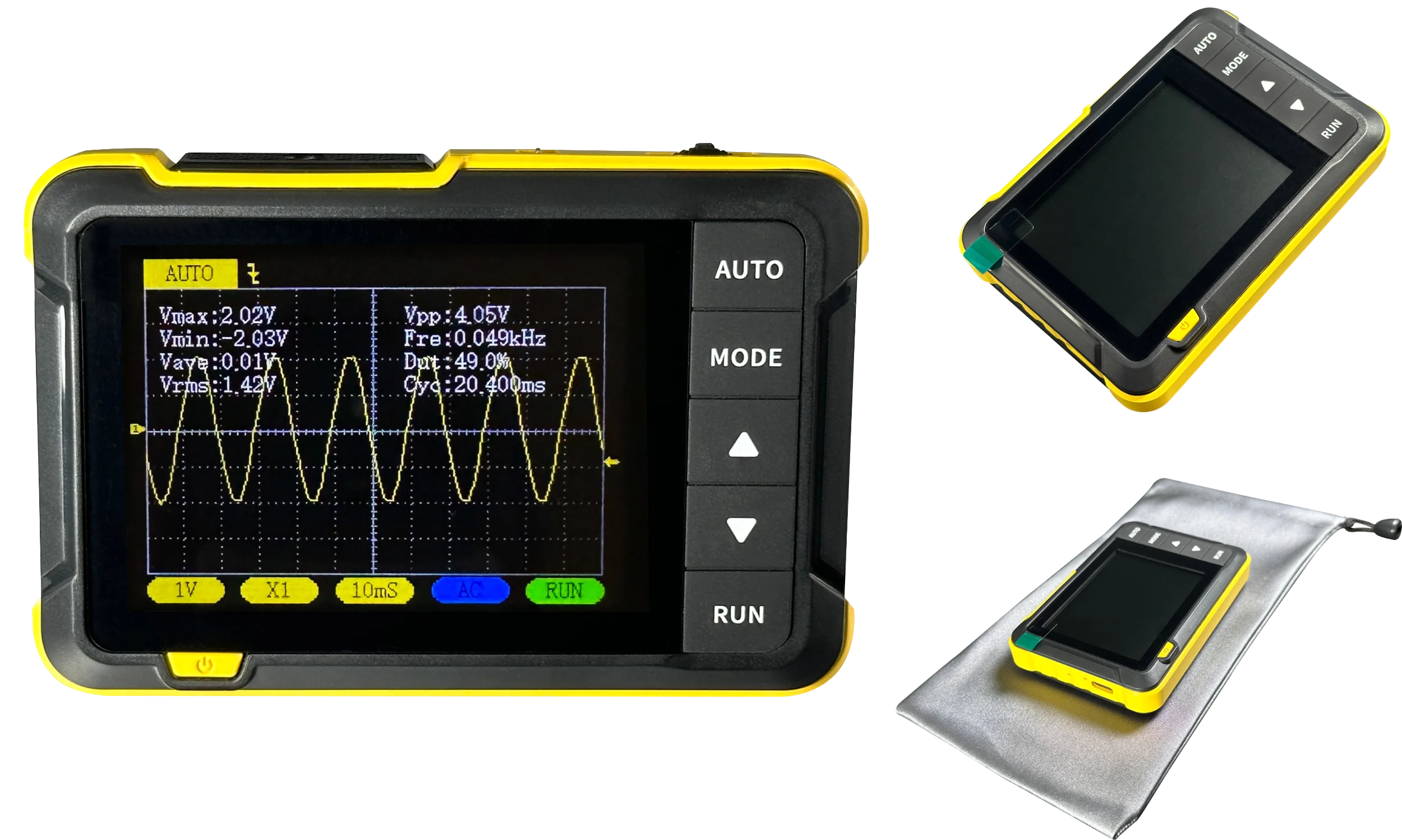

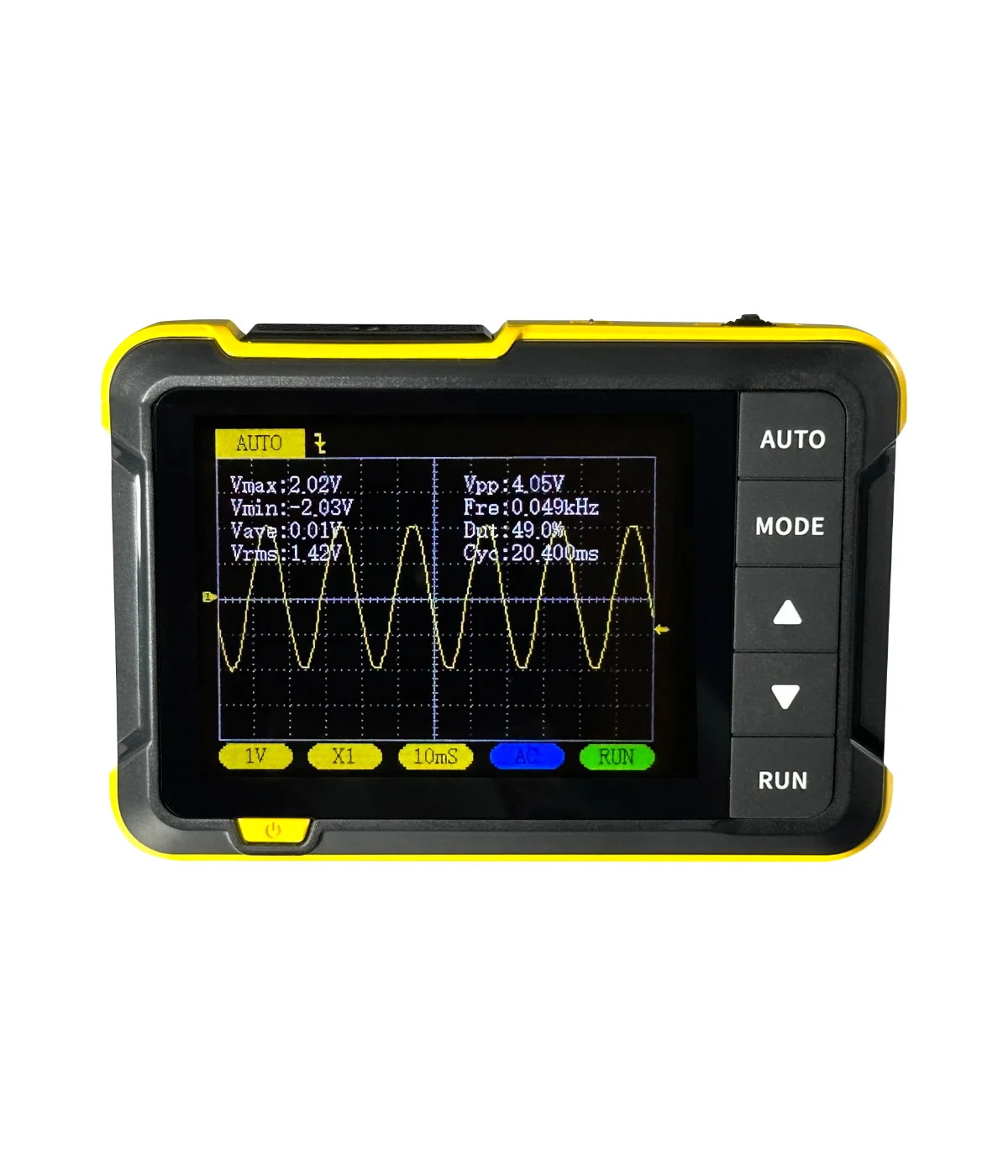

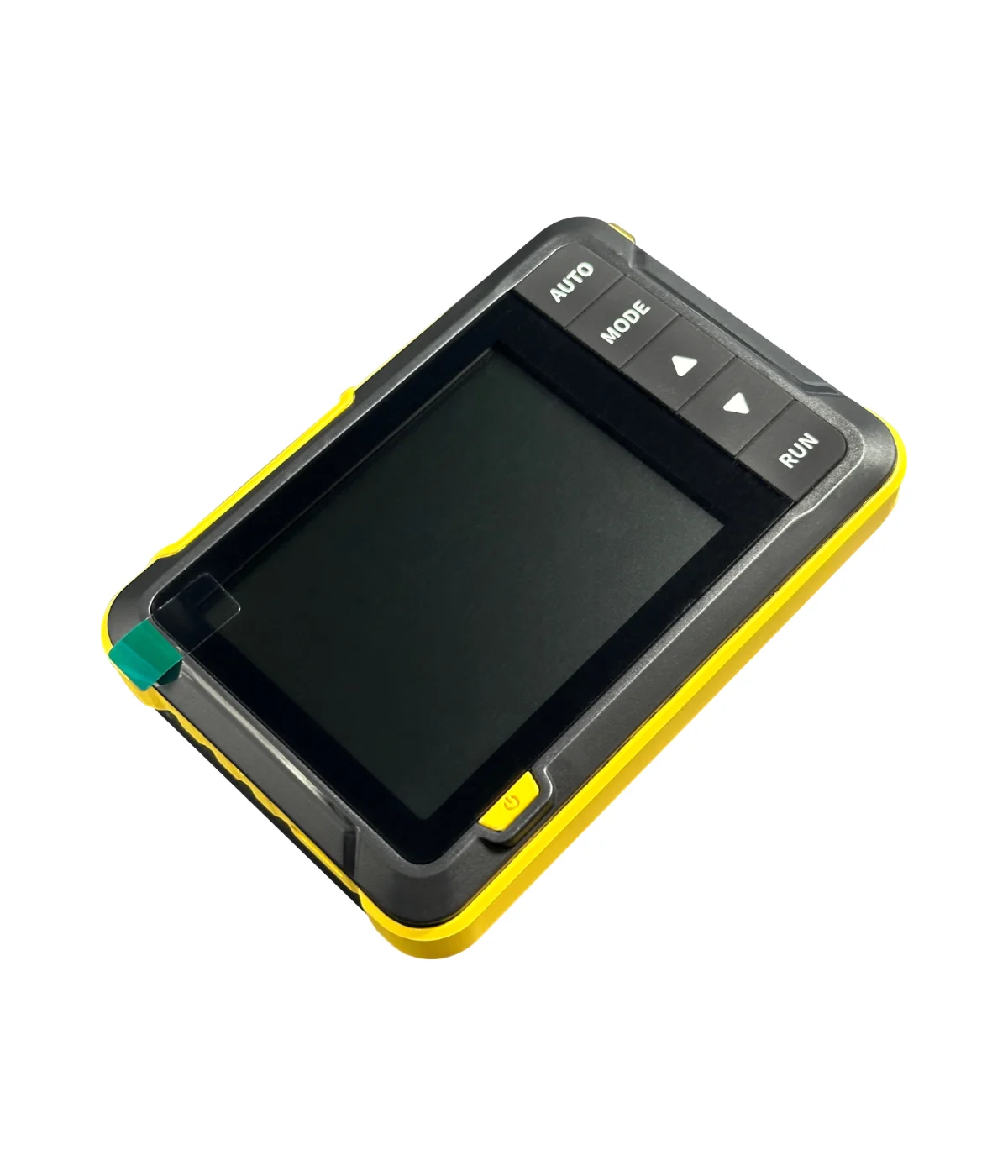

Small enough to slip in a pocket, the FNIRSI DSO152 is a single-channel handheld oscilloscope built for everyday hobby troubleshooting. It samples at 2.5 MS/s with a 200 kHz bandwidth and full trigger support — single, normal and automatic — so it handles both periodic analog signals and non-periodic digital ones with equal ease. Measure voltages up to ±400 V, calibrate instantly with the built-in 1 kHz square wave signal, and read it all on a sharp 2.8" LCD. A convenient AUTO joystick button simplifies setup, and the built-in 1000 mAh battery keeps you working for about 4 hours on a full charge.

Specifications

Material	ABS
Sampling rate	2.5 MS/s
Bandwidth	200 kHz
Number of channels	1 channel
Vertical sensitivity	10 mV/div ~ 20 V/div
Horizontal time base range	10 uS/div ~ 50 S/div

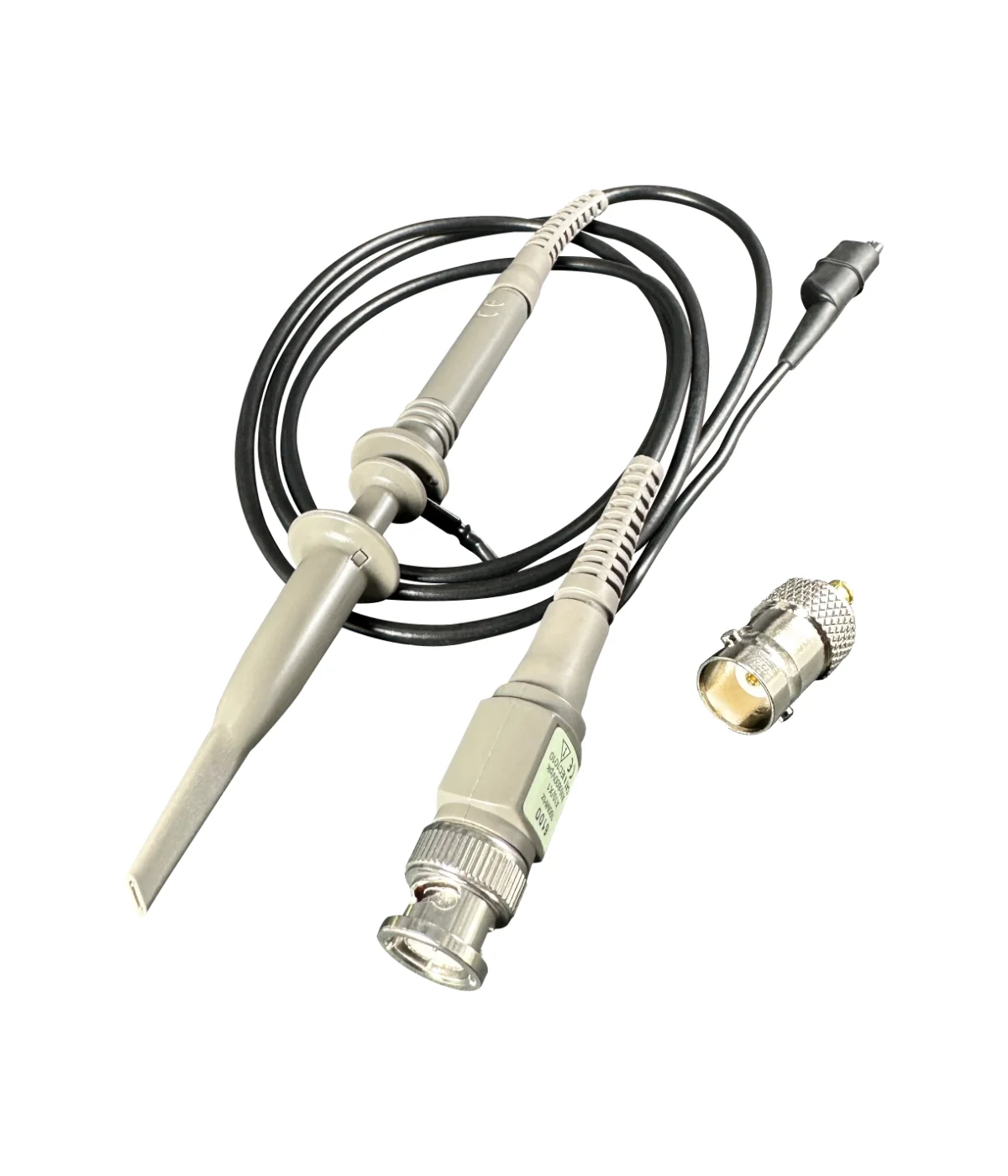

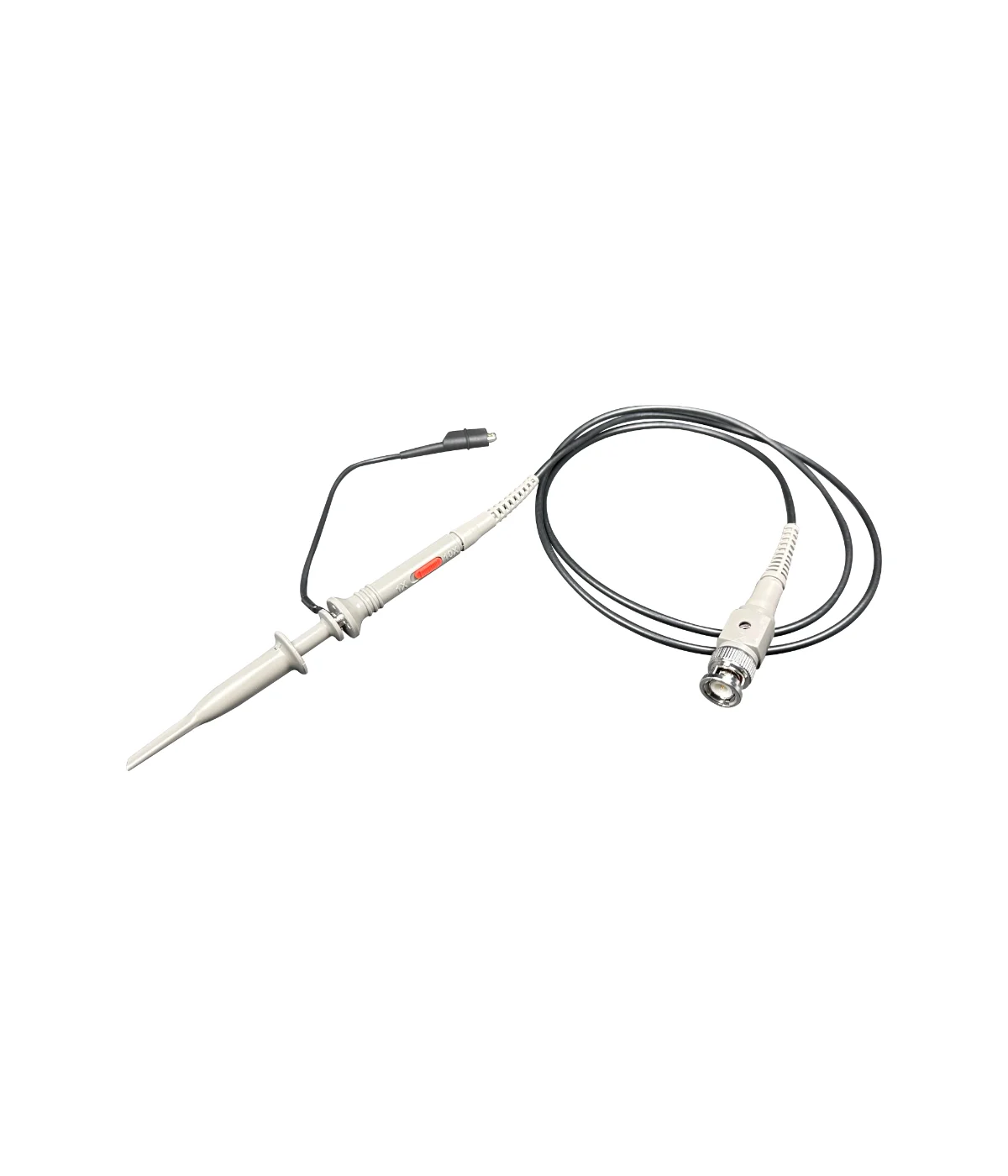

Maximum test voltage	40 V (1X probe), 400 V (10X probe) Vpp = 80 and 800 V
Coupling mode	AC/DC
Trigger mode	Single, Normal, Auto
Screen	2.8 inch (320x240)

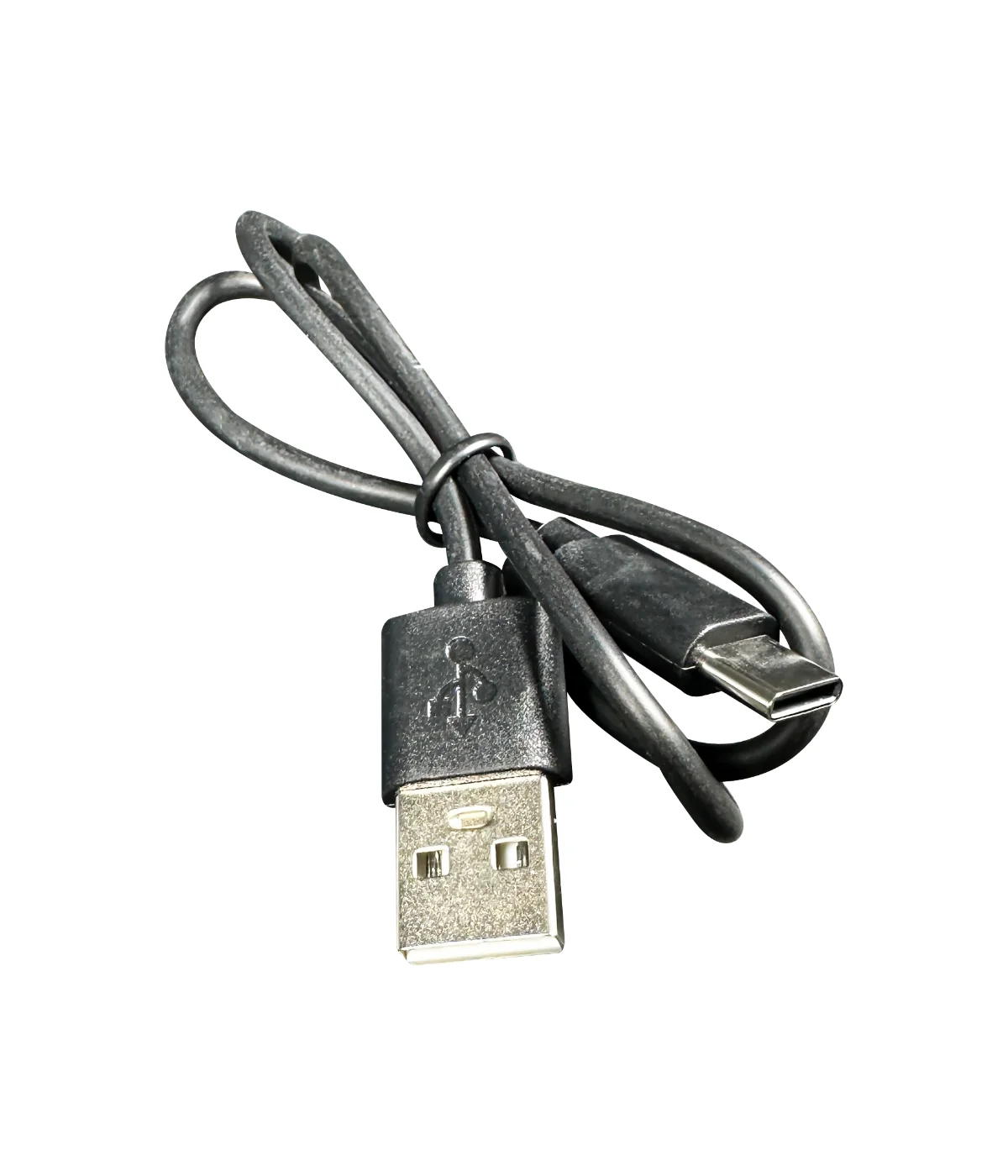

USB charging	5V 1A
Battery	1000 mAh lithium battery

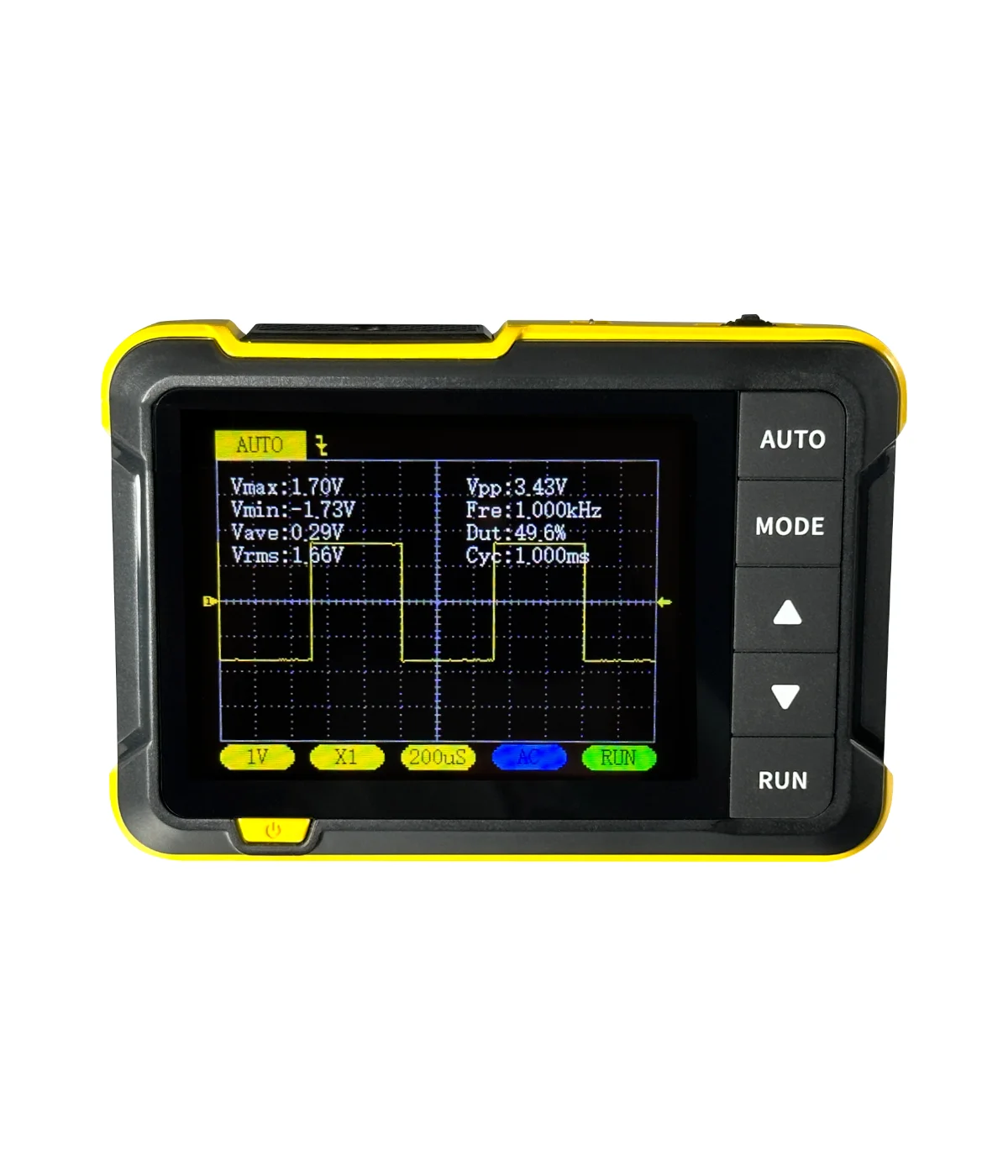

Calibration output	1 kHz square
Size	99x68.3x19.5 mm
Weight	100 g
