New
3.95 inch

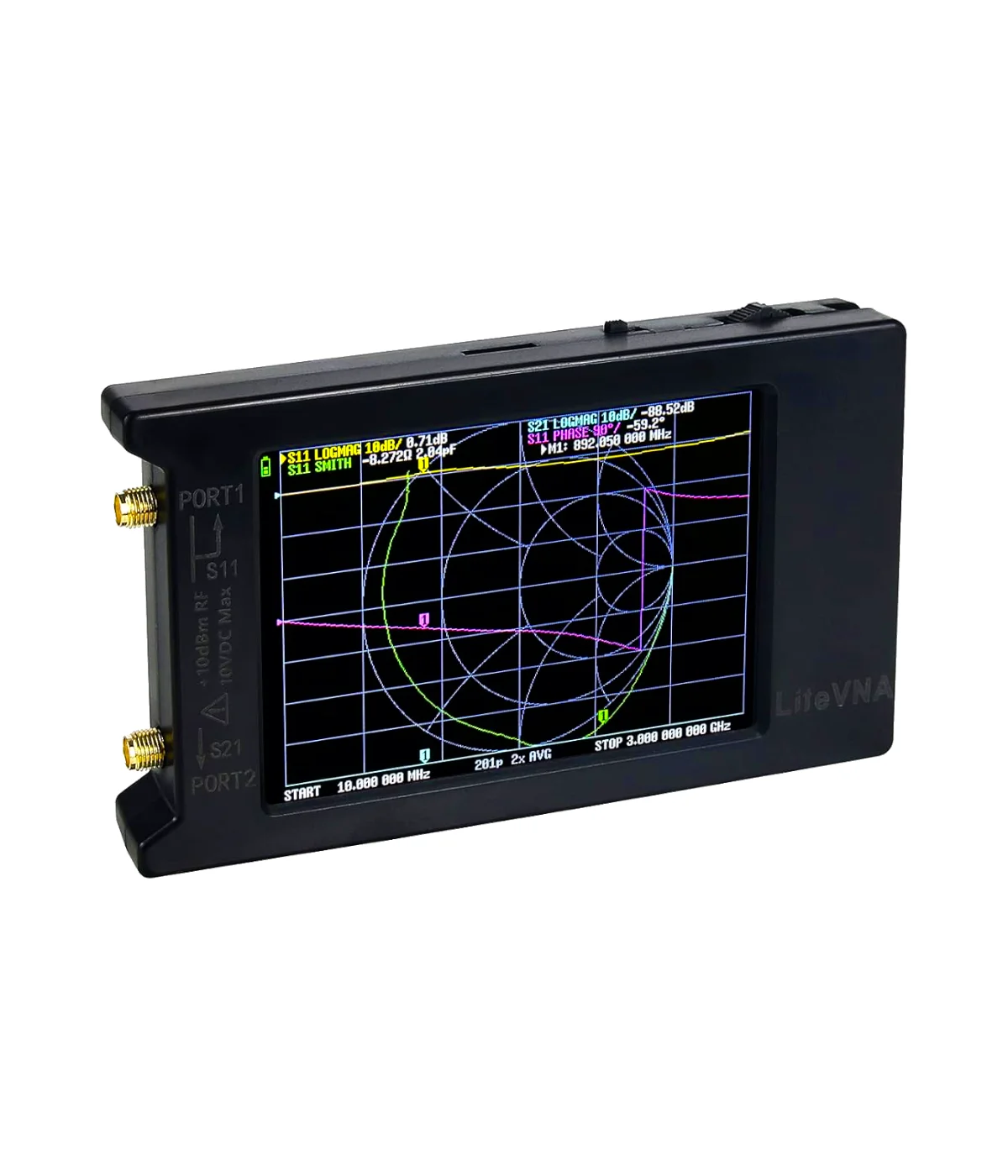

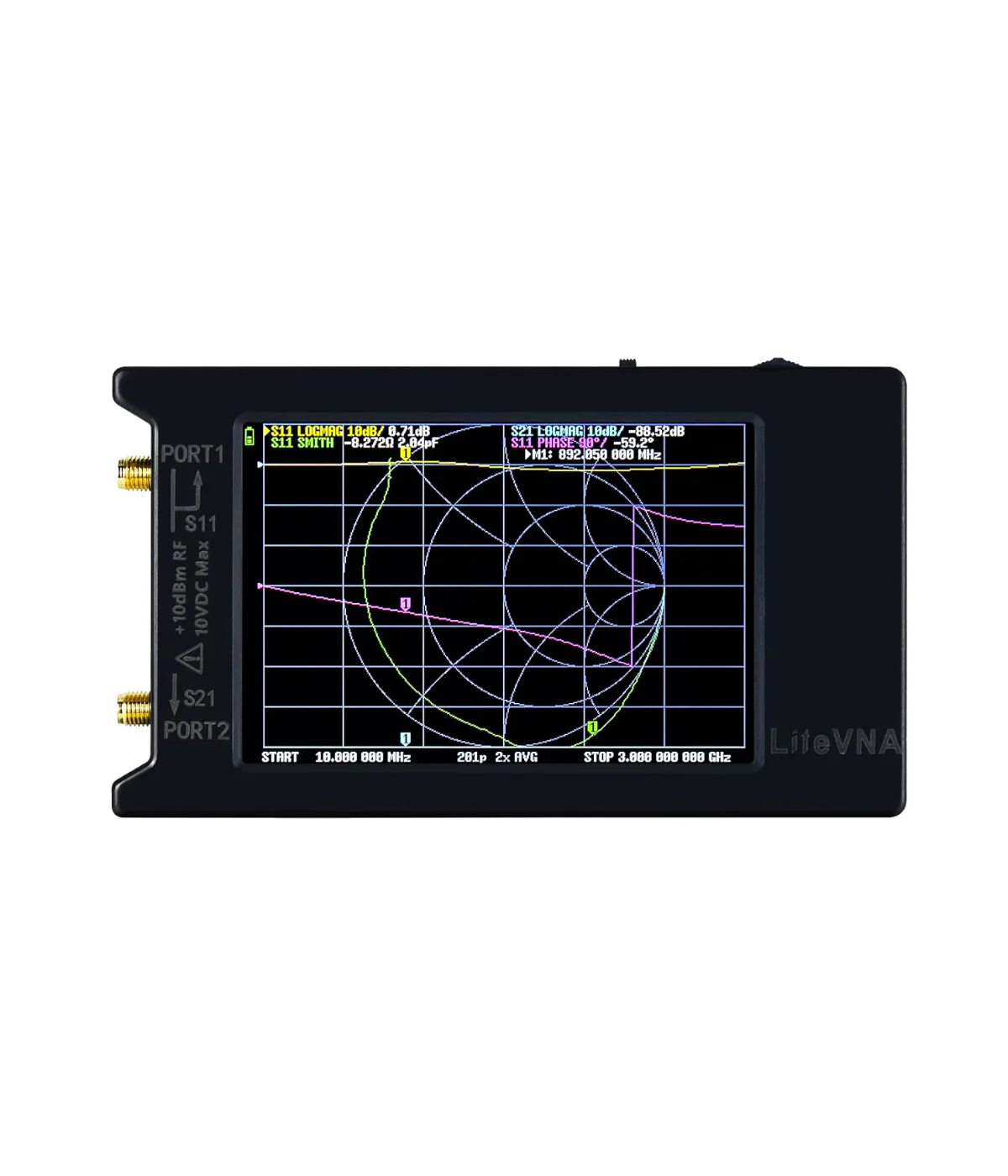

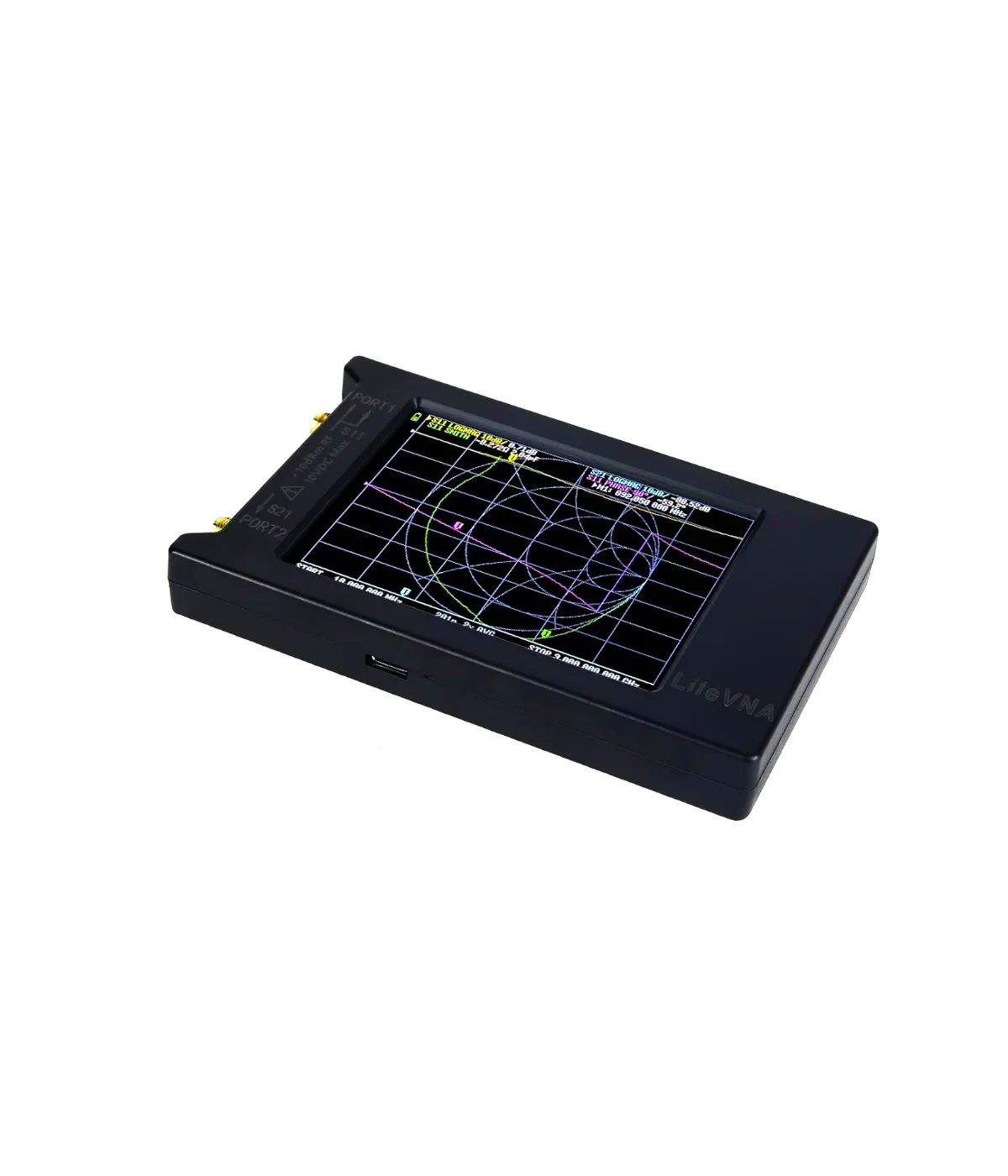

LiteVNA64 Vector Network Analyzer
2-port VNA 50 kHz to 6.3 GHz (ver. 0.3.1), 3.95 inch LCD antenna analyzer, works with PC
169.00 €
169.00 € tax excl.
in stock, shipped in 2-3 days
Compact, powerful and precise - the LiteVNA64 packs a full 50 kHz to 6.3 GHz sweep with 800 scan points into a pocket-sized plastic enclosure. HW version 0.3.1 brings improved ESD protection, reduced background noise, and fixes the zero-interference issue seen when running on external power. Measure insertion loss, return loss, impedance, admittance, phase, delay, SWR, cable length and fault location - all on a crisp 4" LCD, wherever your project takes you.
Specifications
| Frequency range | 50 kHz to 6.3 GHz |
|---|---|
| Frequency accuracy | min. 10 kHz |
| RF Input power | max. 10 dBm |
| S21 Dynamic range | 70 dB (3 GHz), 50 dB (6 GHz) |
| S11 Dynamic range | 50 dB (3 GHz), 40 dB (6 GHz) |
| Sweep points | up to 1024 |
| Sweep points PC | up to 65535 |
| Sweep speed | 800 point/s |
| Charge/Data | USB Type-C |
| Memory | Micro SD |
| Screen | 3.95 inch LCD (480x320) |
| Battery | 2x 18650 lithium |
| Battery life | up to 5 hours |
Downloads & Resources
Gallery
VNA comparison table

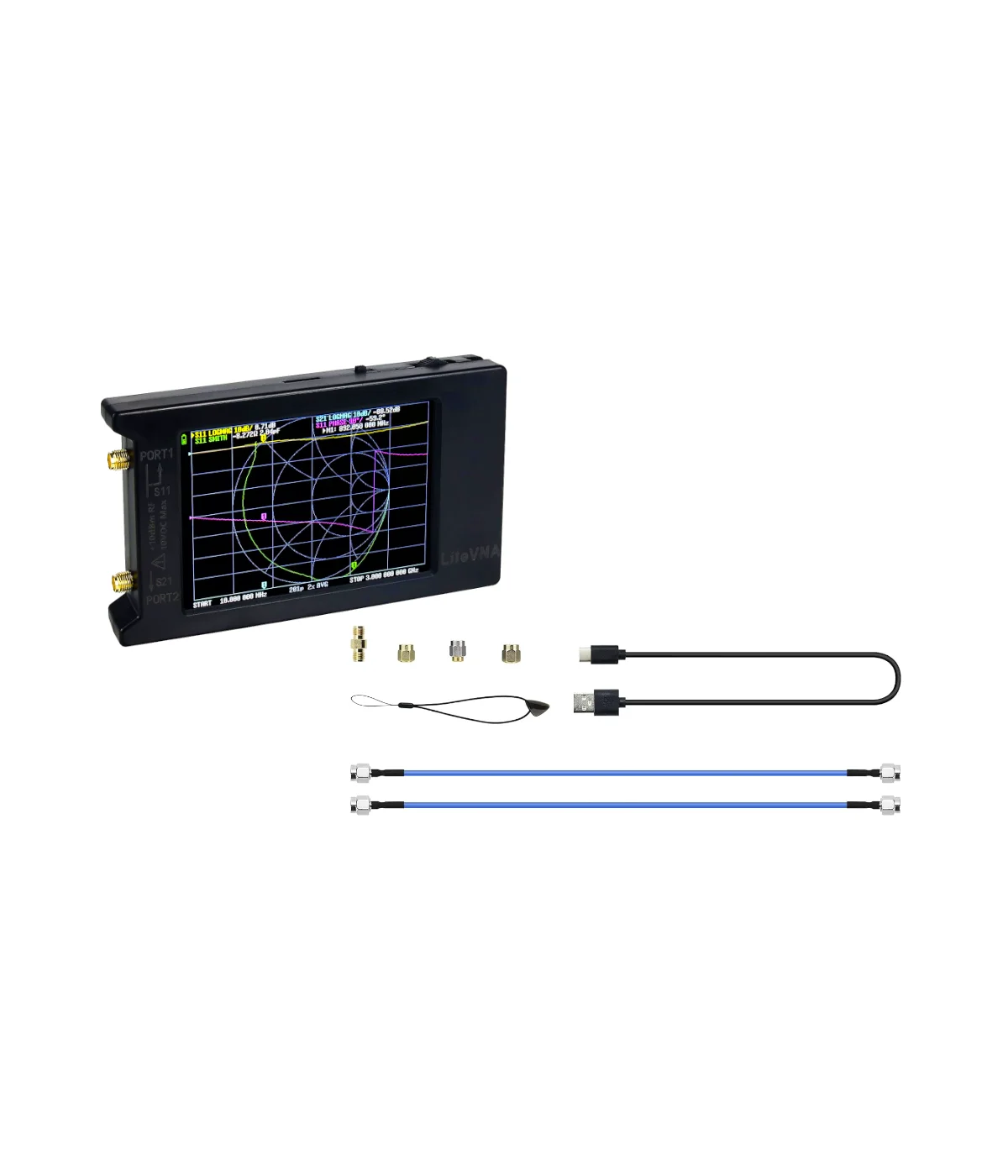

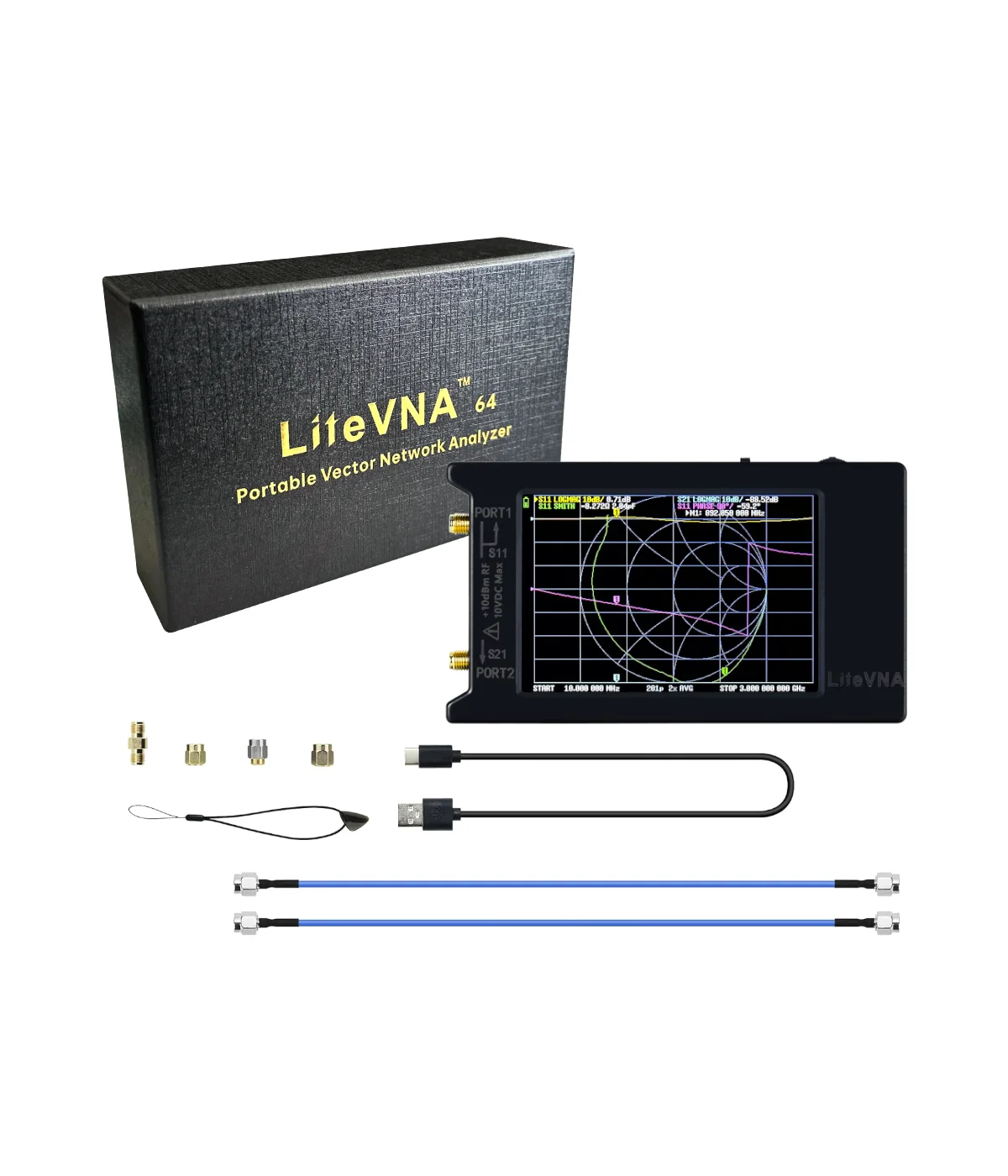

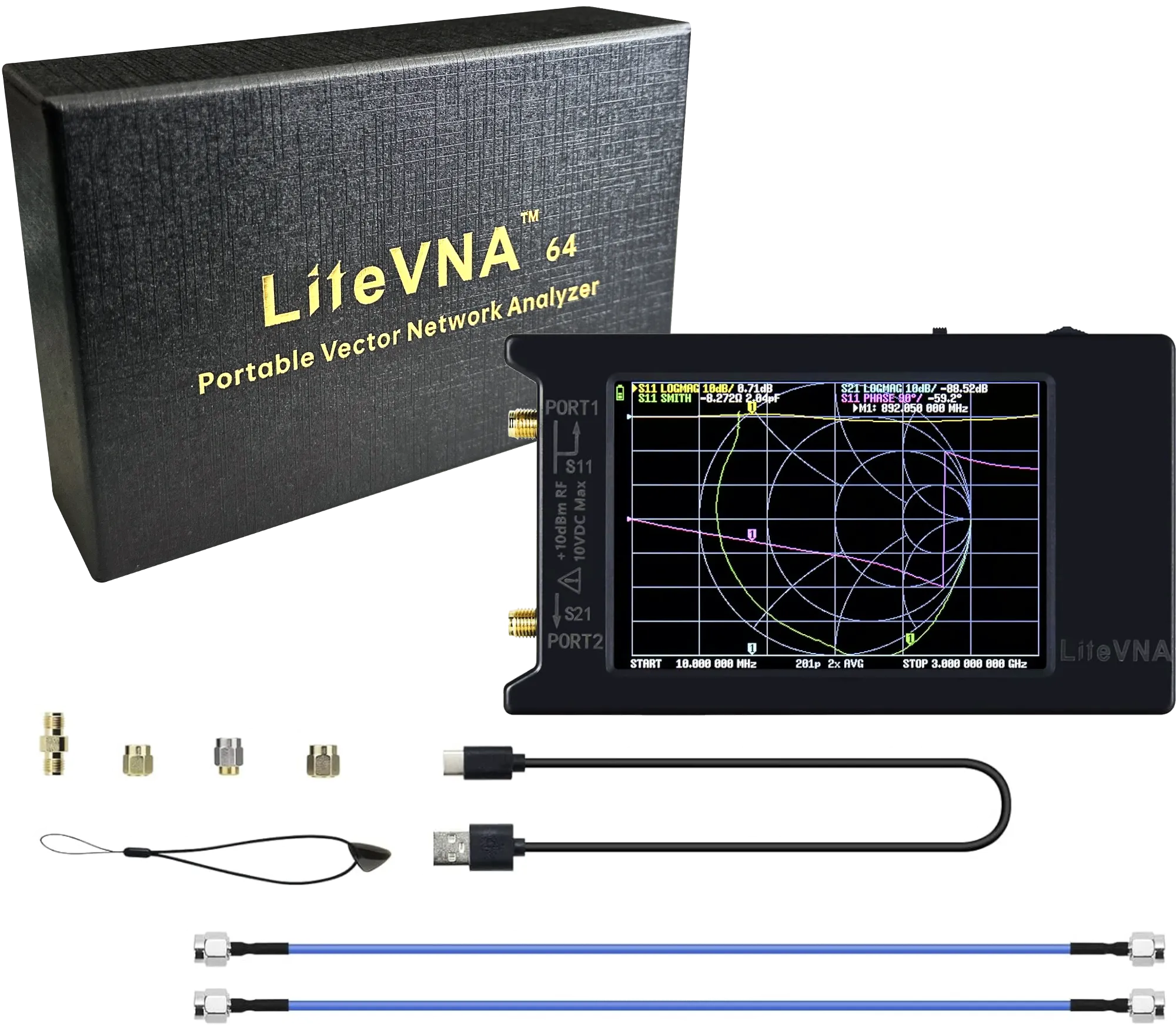

In the box
- LiteVNA64
- 2pcs pigtail SMA cable
- 4pcs SMA connectors and adapter
- Control pick
- Type-C cable
- Packing box
Frequency range:
50 kHz to 6.3 GHz
Screen:
3.95 inch
