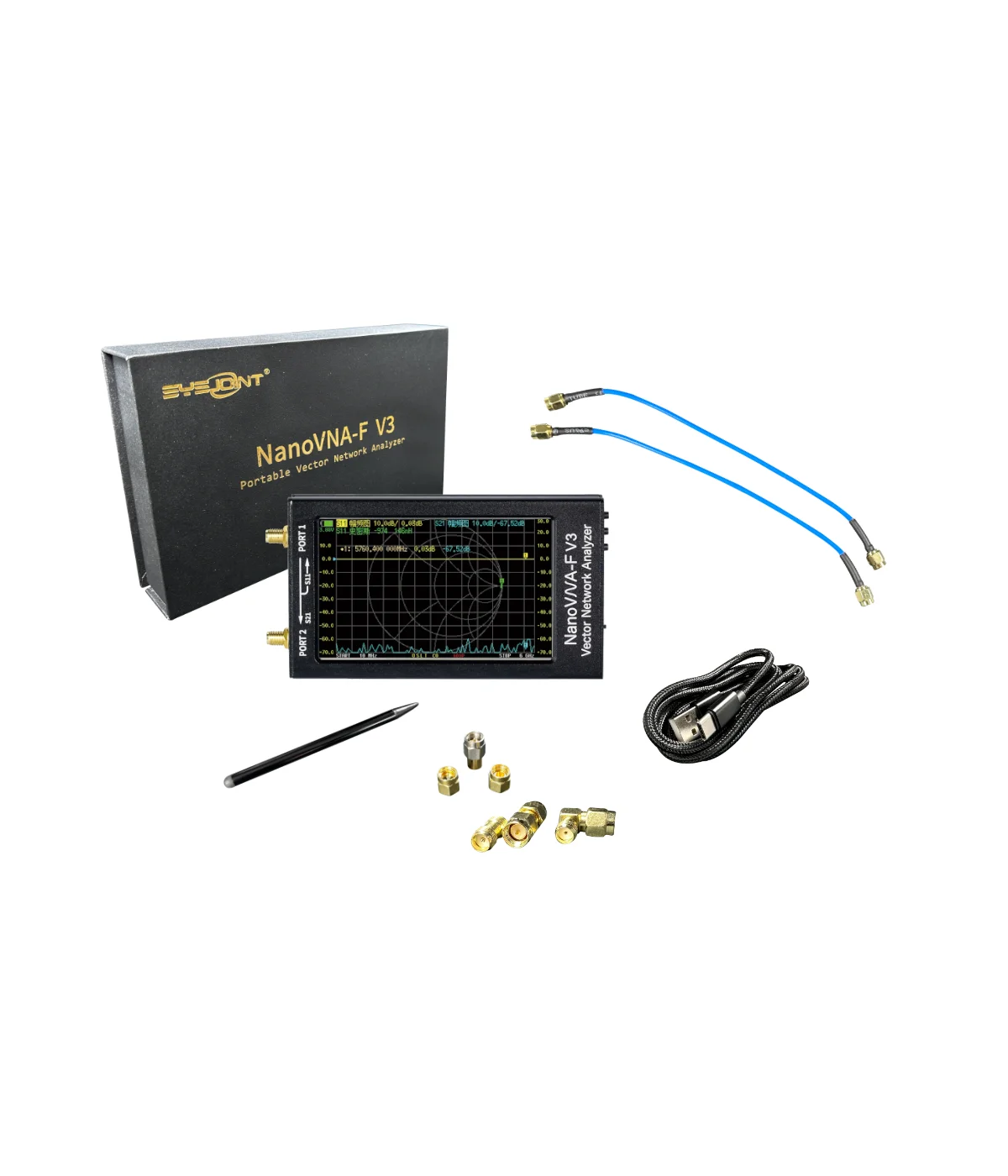

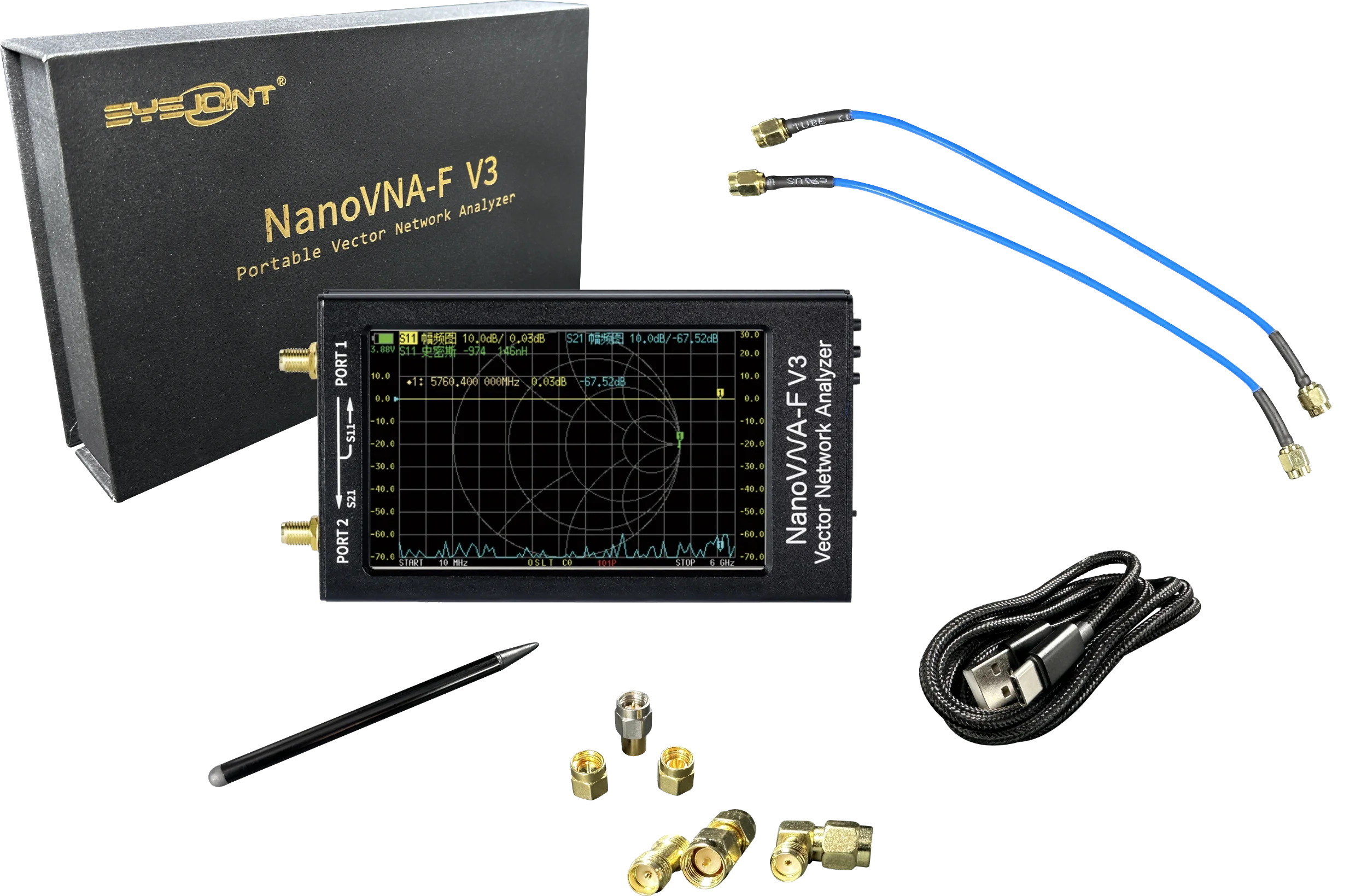

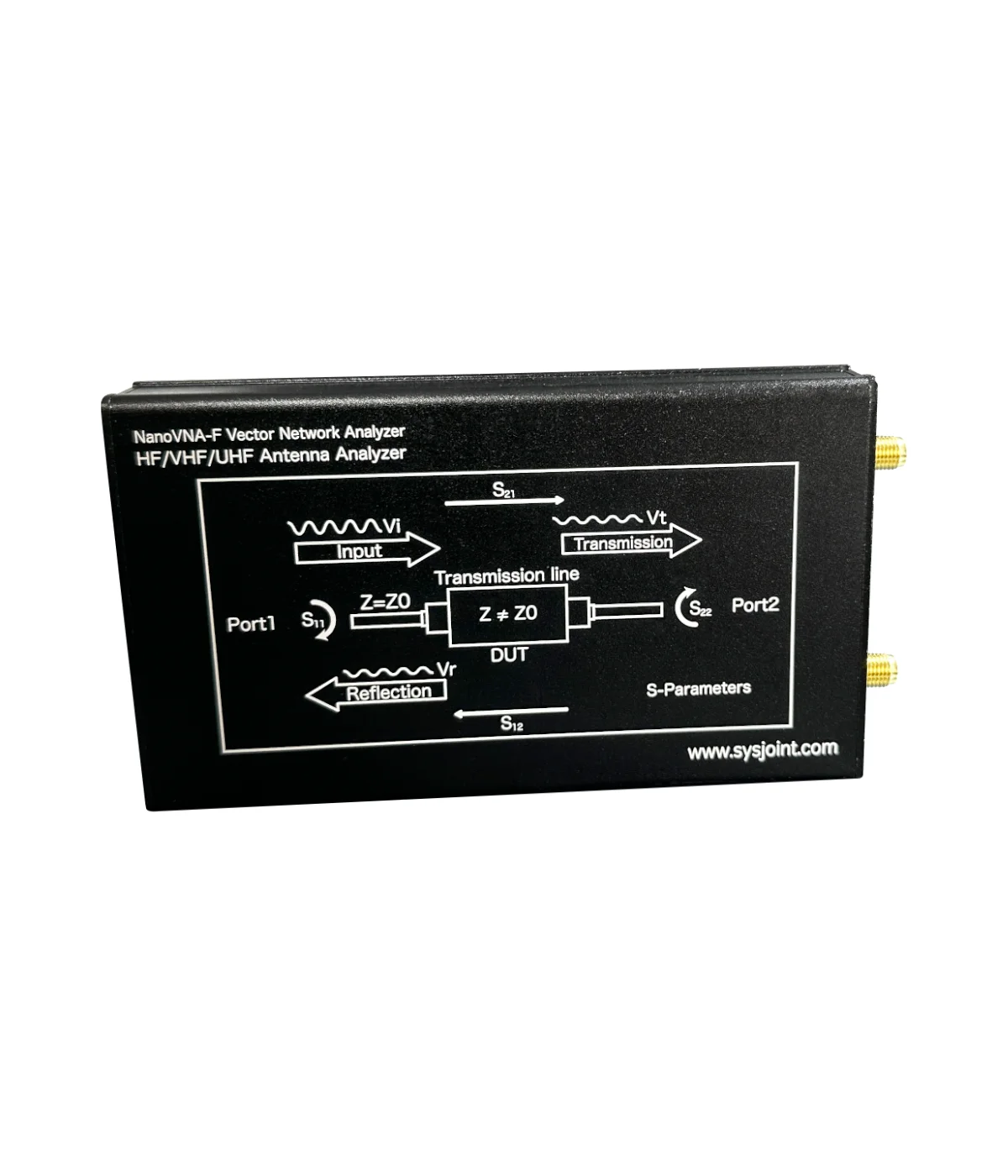

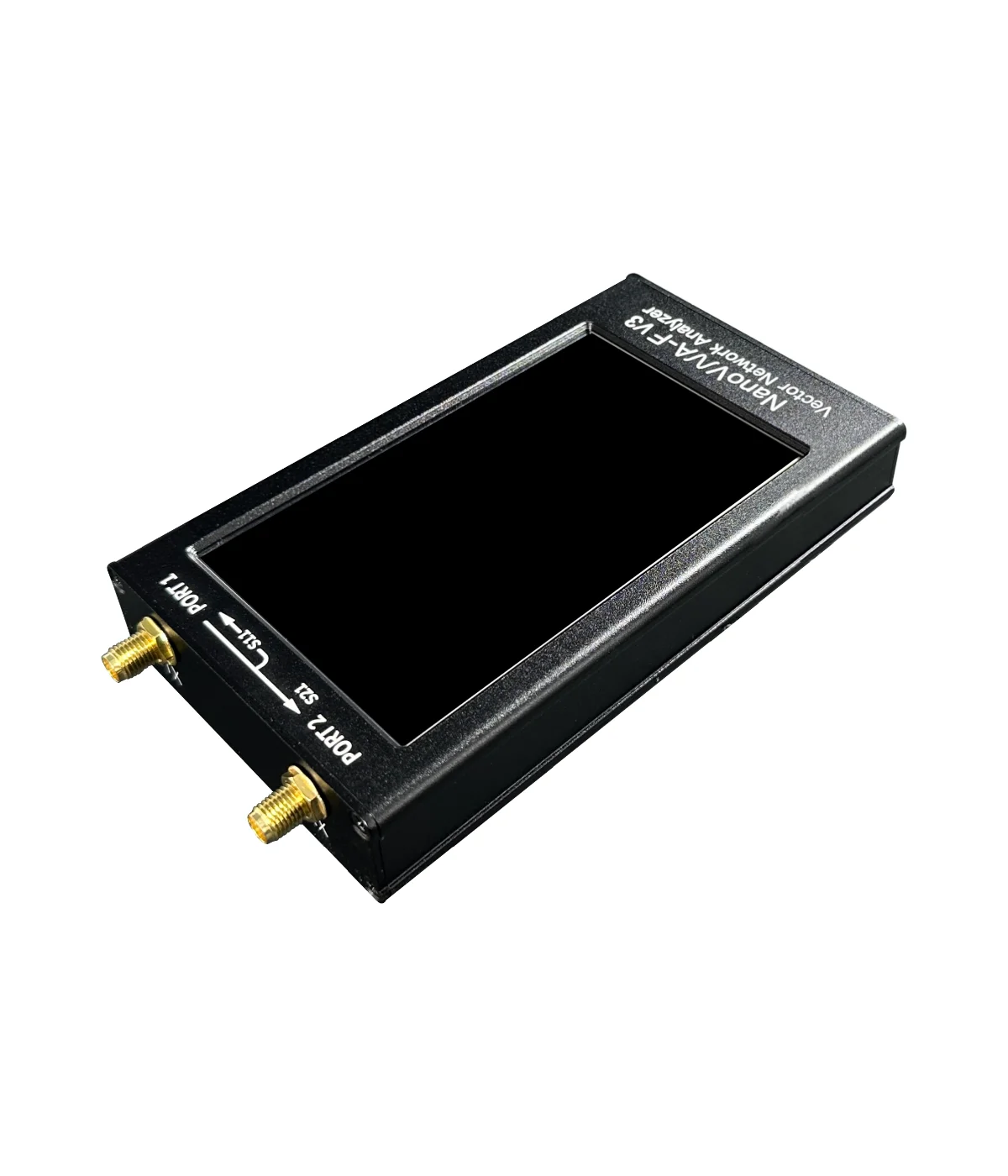

NanoVNA-F V3 Vector Network Analyzer

2-port VNA 1 MHz to 6 GHz, 4.3 inch screen signal generator, antenna analyzer

Read moreShow less

245.00 €

245.00 € tax excl.

in stock, shipped in 2-3 days

Details

Features

Attachments

Reviews

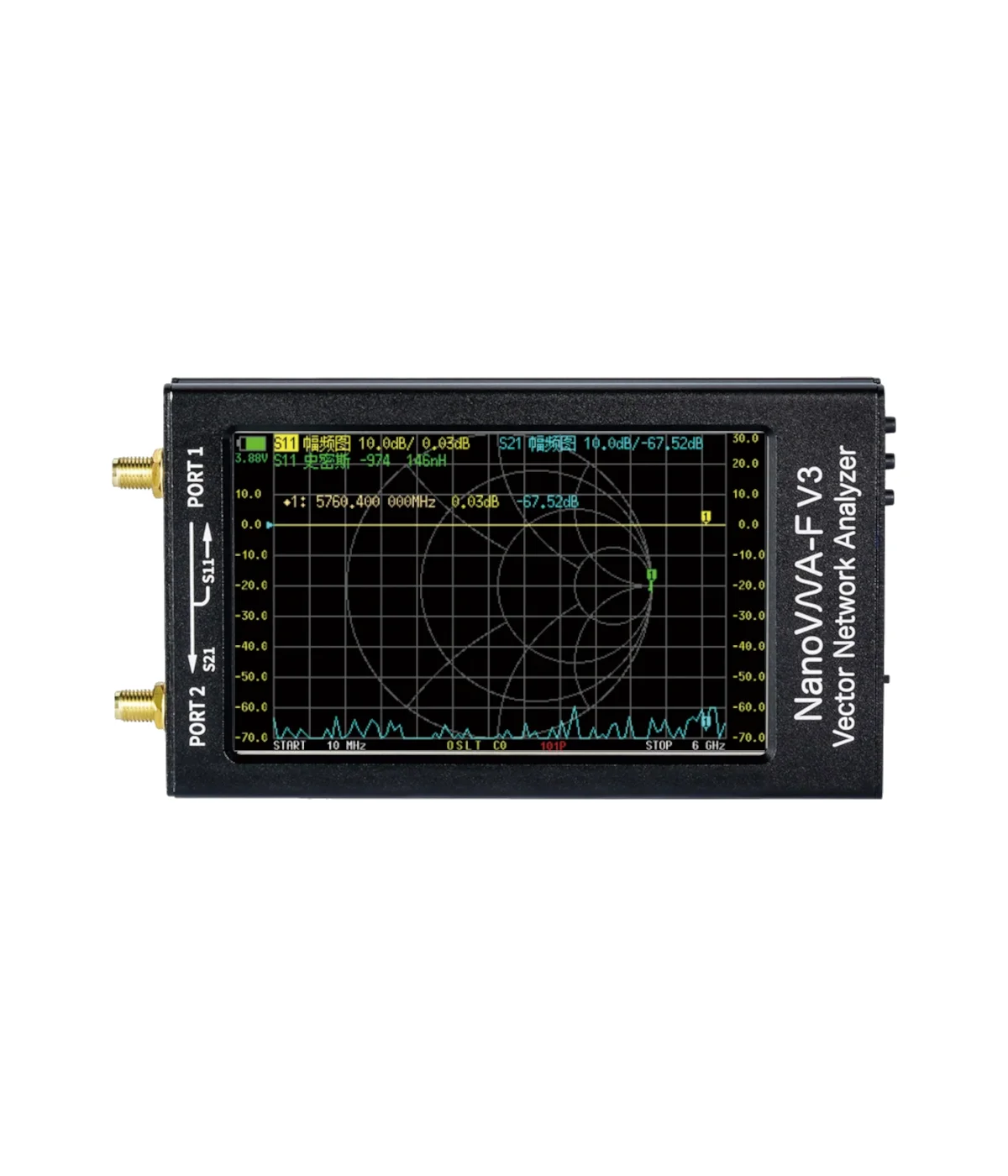

Built for serious antenna and cable work in the field, the NanoVNA-F V3 packs a rugged metal enclosure and a 1MHz–6GHz sweep across 801 scan points — doubling both the range and resolution of the earlier generation. It doubles as a signal generator over that same 1MHz–6GHz span, and its high-resolution IPS display stays sharp and readable even outdoors in bright sun. Measure insertion loss, return loss, impedance, admittance, phase, delay, SWR, cable length and faults, and keep working for up to 5 hours on the built-in battery.

Specifications

Frequency range	1 MHz to 6 GHz
RF Output power	max. -10 dBm
RF Input power	max. 0 dBm, DC < 5V
S21 Dynamic range	65 dB (1.5 GHz), 60 dB (3 GHz)
S11 Dynamic range	50 dB (1.5 GHz), 40 dB (3 GHz)
Sweep points	801
Sweep speed	200 points/s
Traces	4
Markers	4
Frequency accuracy	min. 10 kHz
Charge/Data	USB Type-C
Screen	4.3 inch IPS TFT (800x480)
Battery	2x 18650 lithium
Battery life	up to 5 hours
