New
3.95 inch
NanoVNA H4 Vector Network Analyzer
2-port VNA 10 kHz to 1.5 GHz, 3.95 inch screen antenna analyzer
79.00 €
79.00 € tax excl.
in stock, shipped in 2-3 days

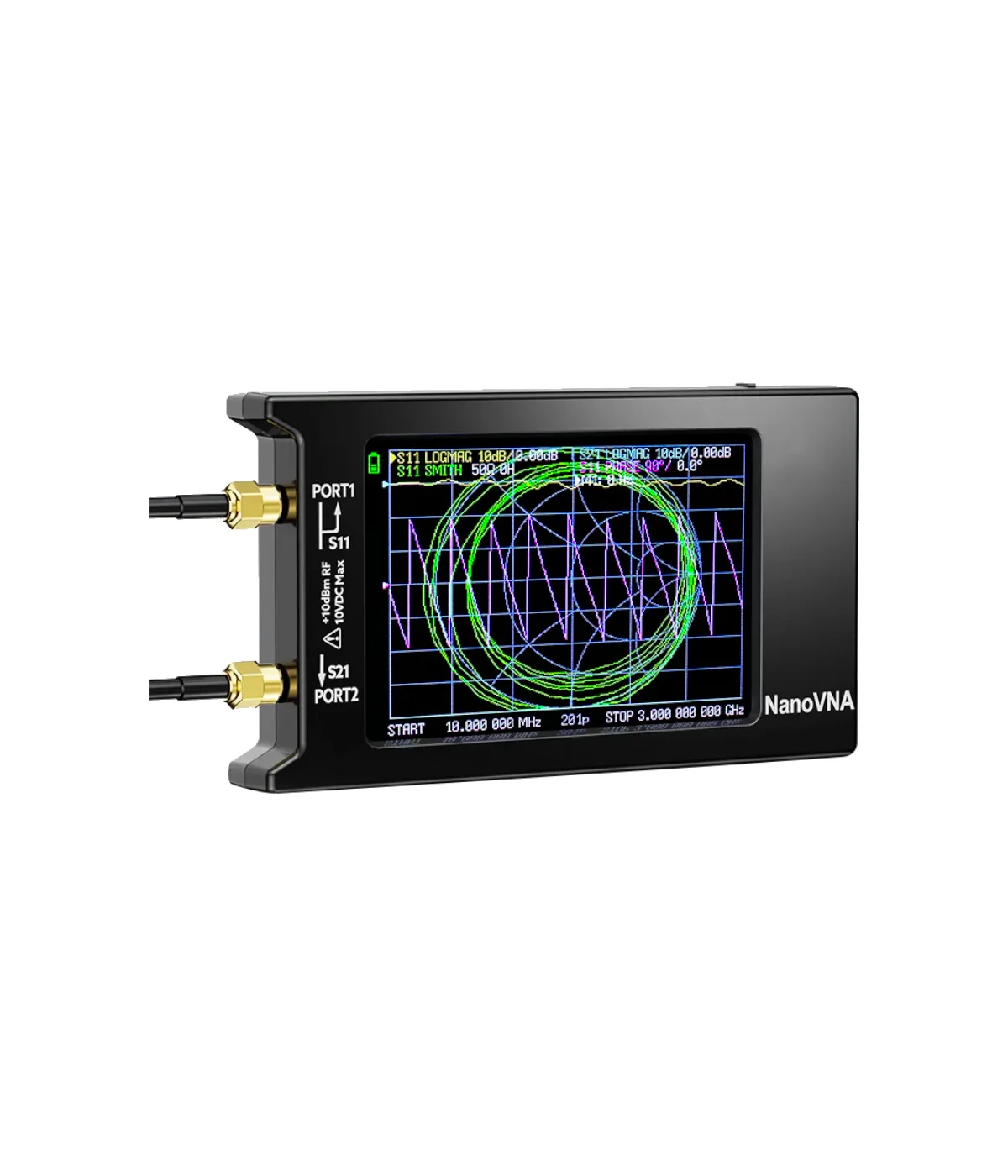

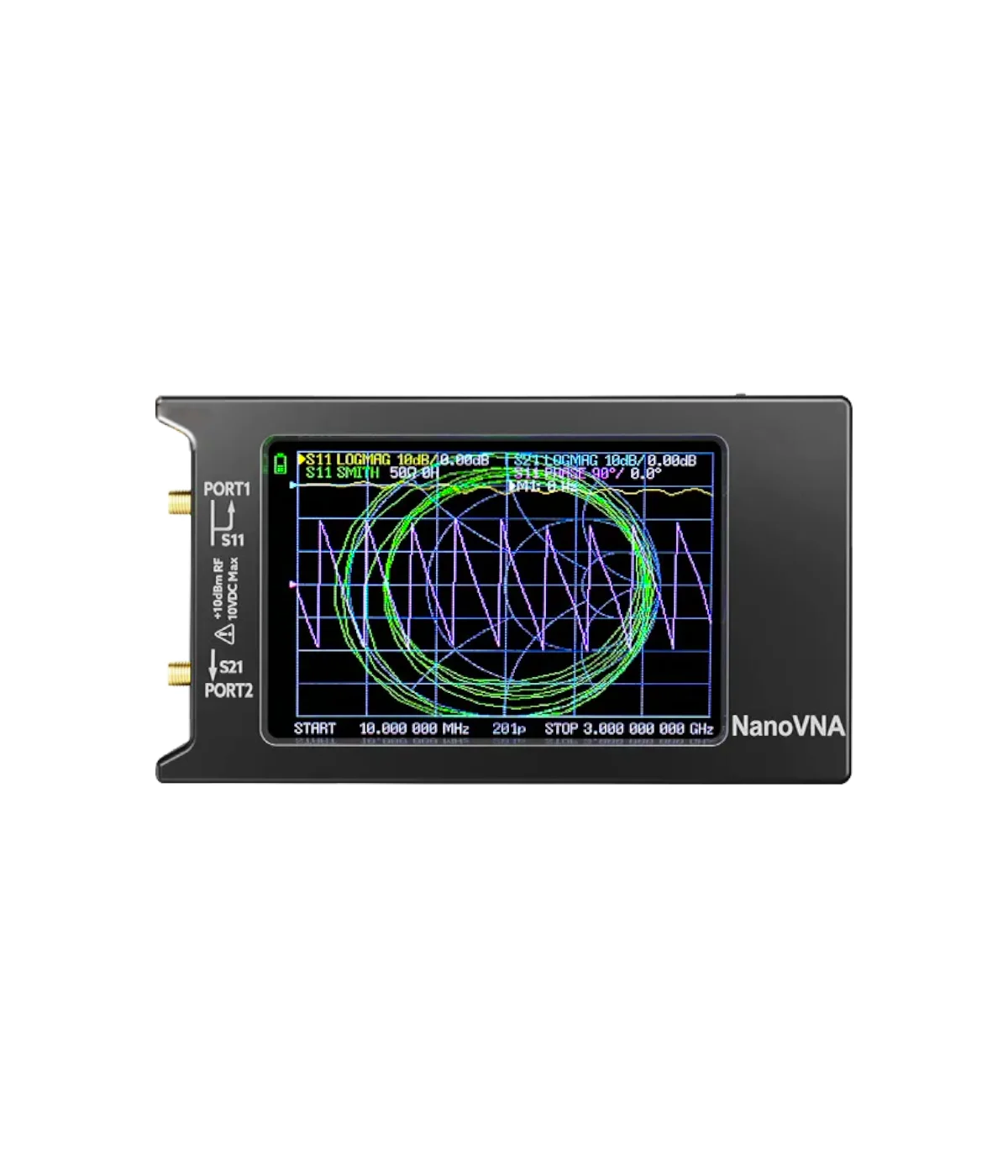

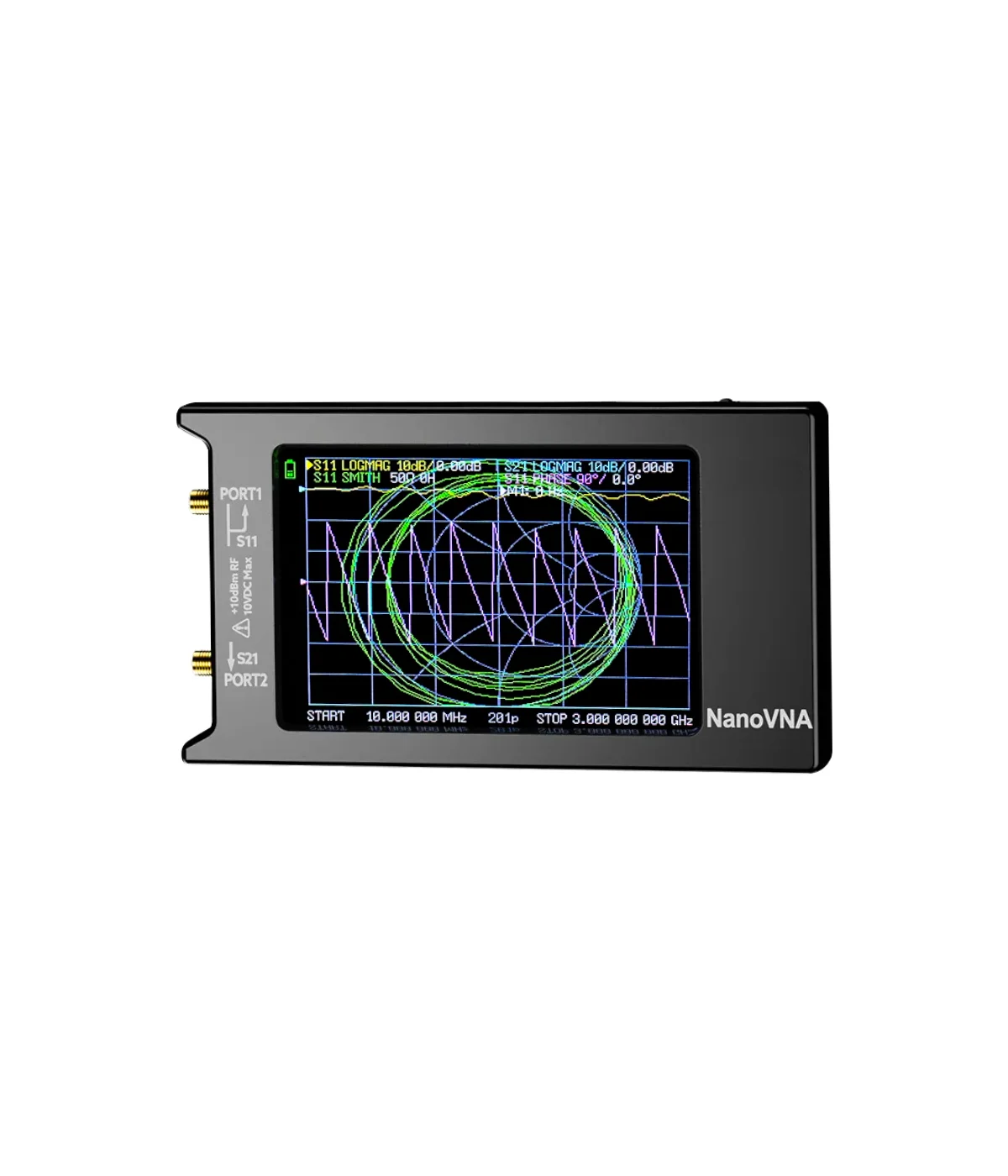

Meet the NanoVNA H4 - a powerful, portable VNA in a lightweight ABS enclosure, built for antenna work on the go. It covers 10kHz to 1.5GHz with a crisp 3.95" display (320×480), all powered by a built-in 1950mAh lithium battery that keeps you working for hours. Save screenshots straight to an SD card, or connect to your PC and unlock the full potential of NanoVNASaver software for deeper analysis and richer visualisation of your measurements.
Specifications
Traces4| Frequency range | 10 kHz to 1.5 GHz |
|---|---|
| RF Output power | 0 dBm (± 2) |
| S21 Dynamic range | 70 dB (300 MHz), 60 dB (900 MHz), 40 dB (1.5 GHz) |
| S11 Dynamic range | 60 dB (300 MHz), 50 dB (900 MHz), 30 dB (1.5 GHz) |
| Sweep points | 101 |
| Markers | 4 |
| Frequency tolerance | < 2.5 ppm |
| Frequency stability | < 0.5 ppm |
| Charge/Data | USB Type-C |
| Screen | 3.95 inch TFT (320x480) |
| Battery | 2x 1950 mAh lithium |
| Memory | SD card up to 32 GB |
| Paper box | 75x133x18 mm |
Downloads & Resources
Gallery
VNA comparison table
VNA software example

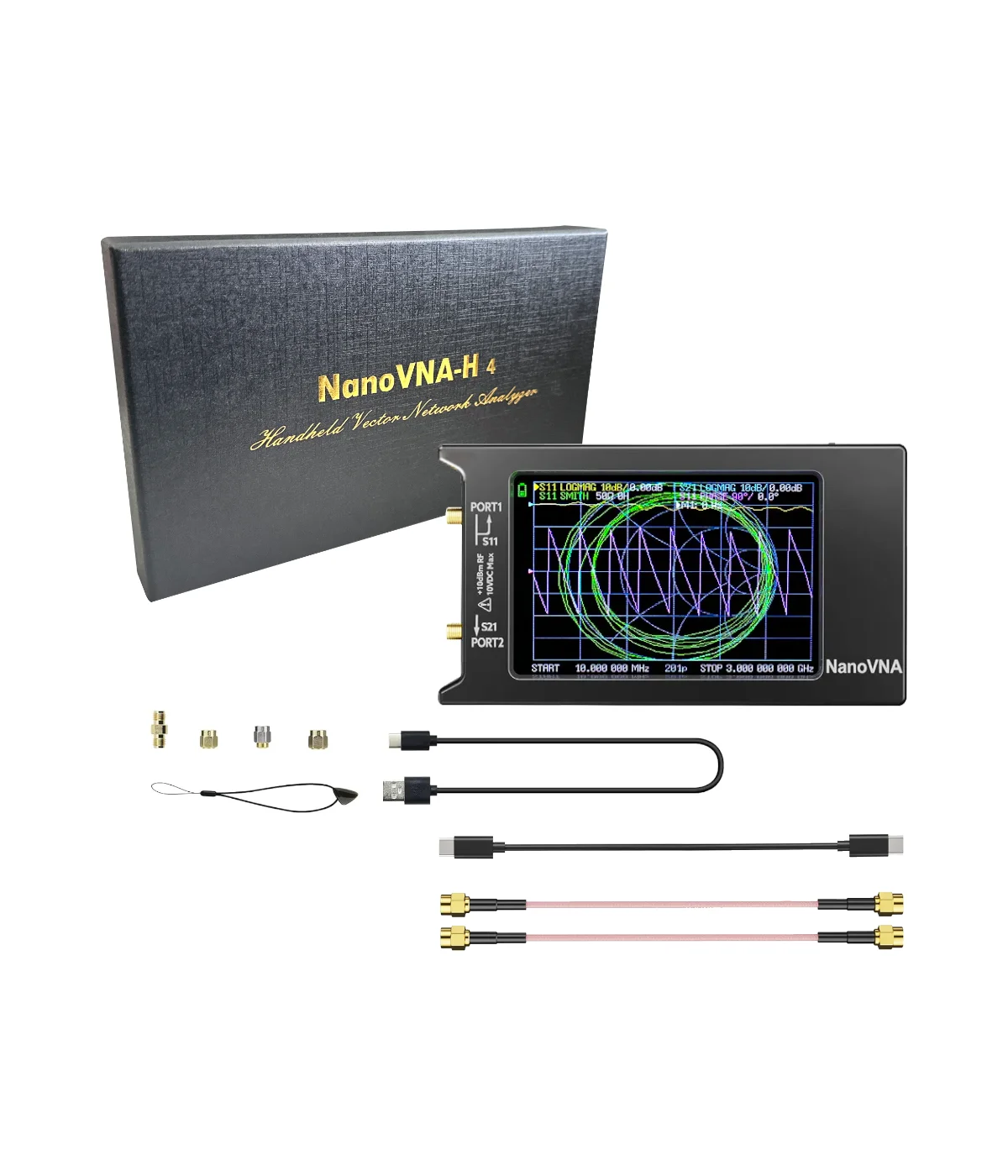

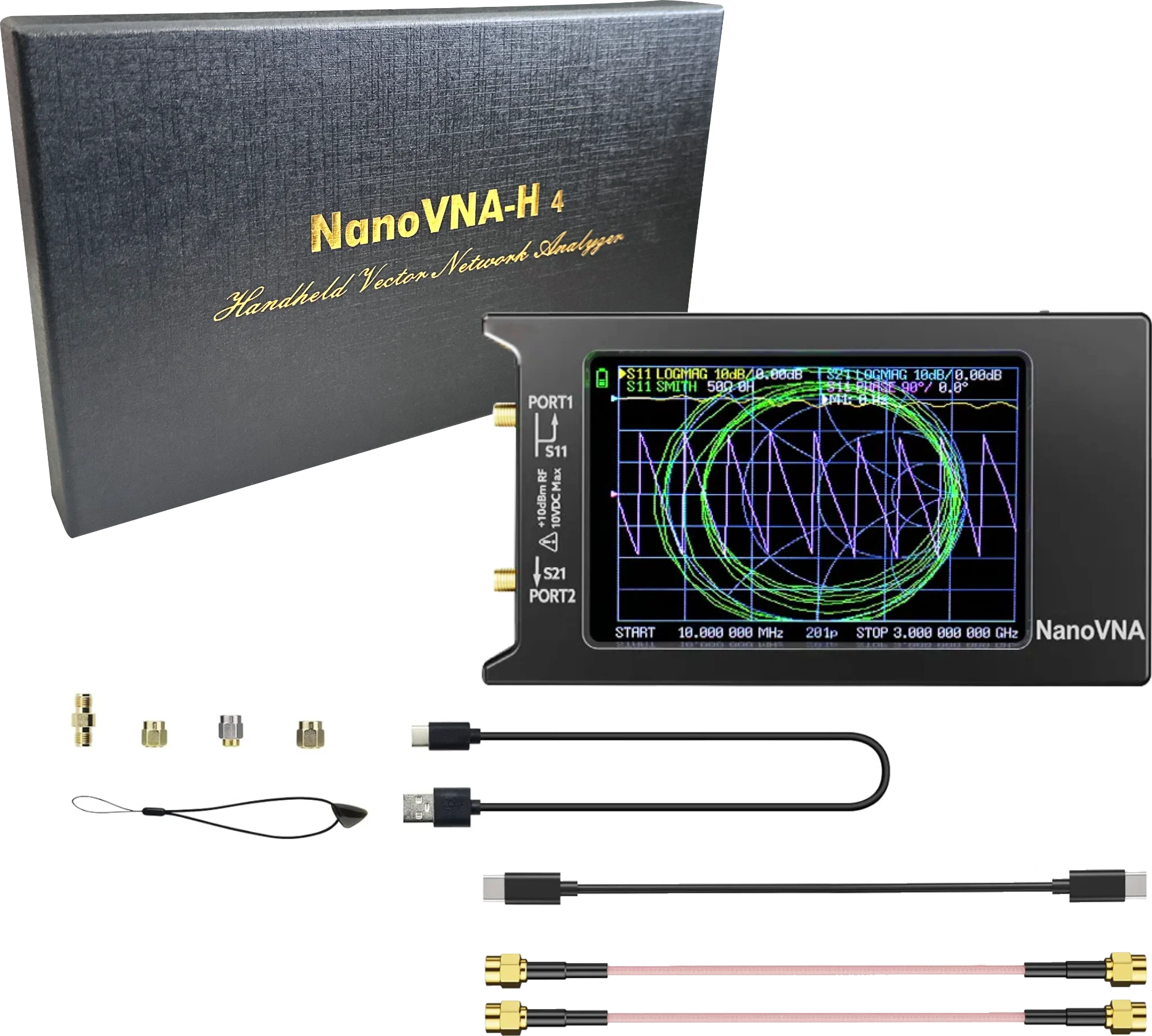

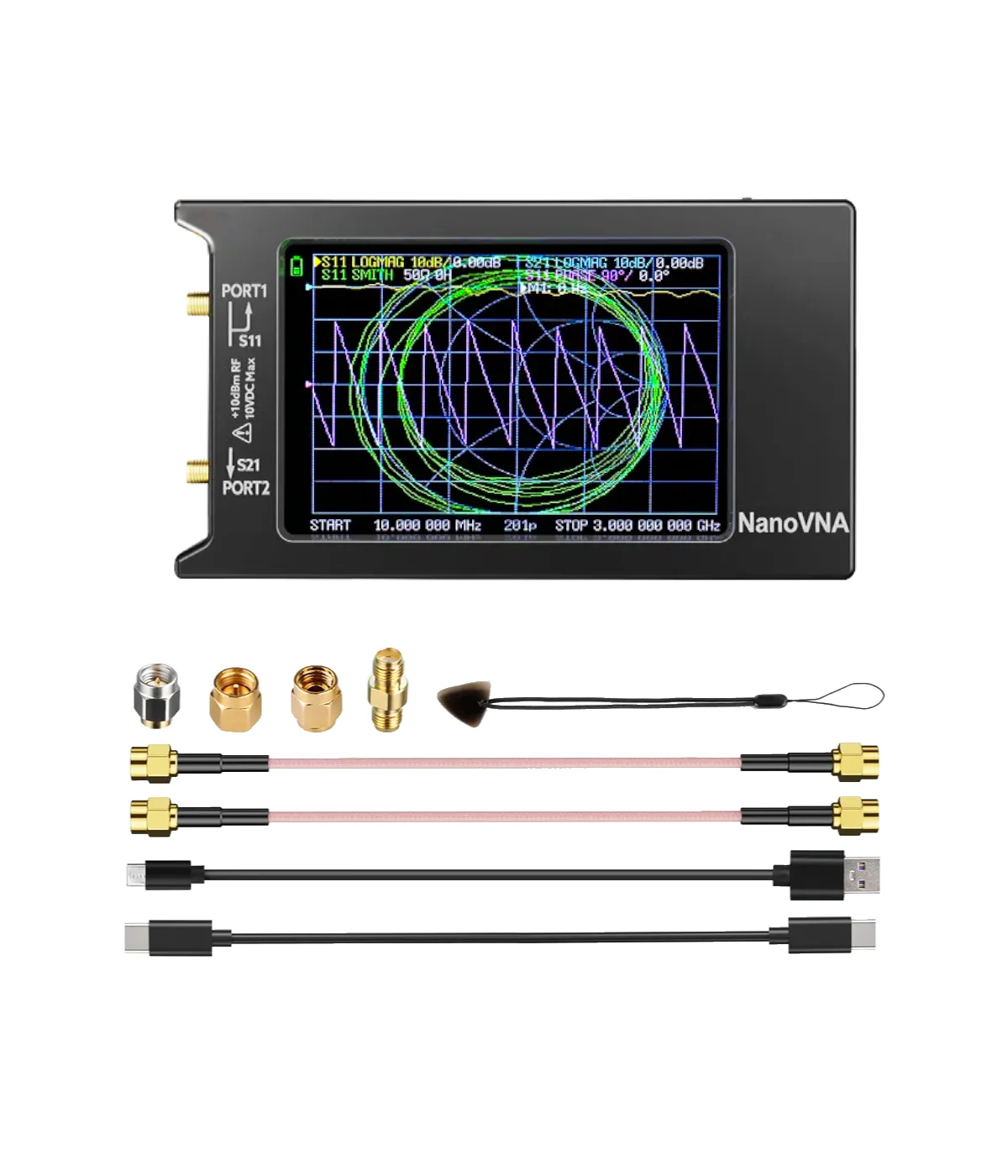

In the box
- NanoVNA H4
- 2pcs pigtail SMA male-male RG-316 (15 cm)
- 1pc SMA connector SMA male-male
- 3pcs SMA calibration kit (OPEN/SHORT/LOAD)
- Type-C cable
- Type-C to Type-C cable
- Control pick
- Packing box
Frequency range:
10 kHz to 1.5 GHz
Screen:
3.95 inch
