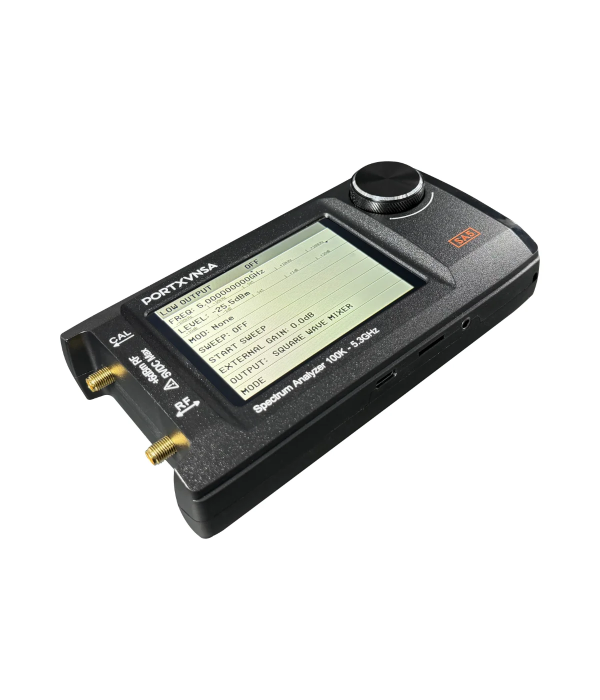

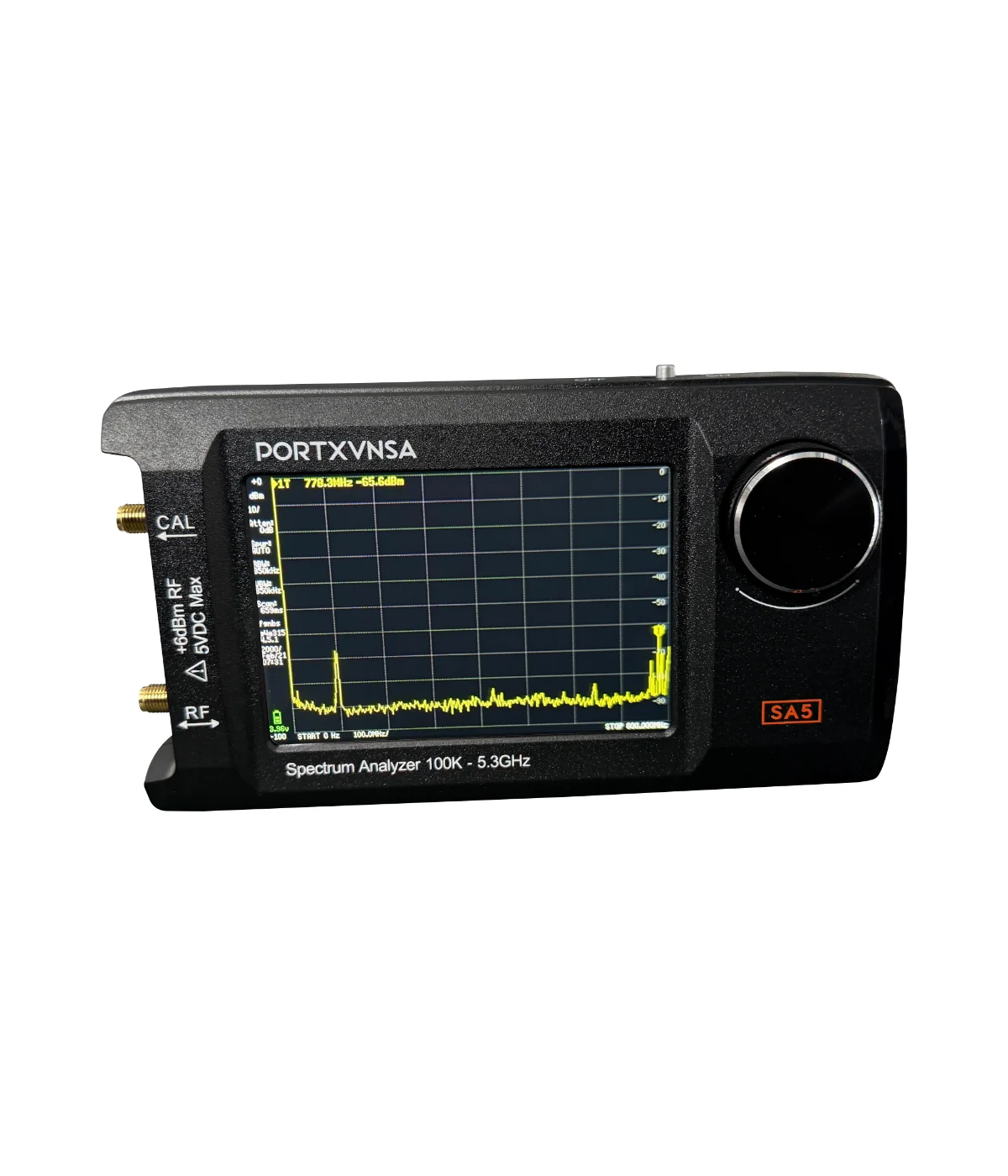

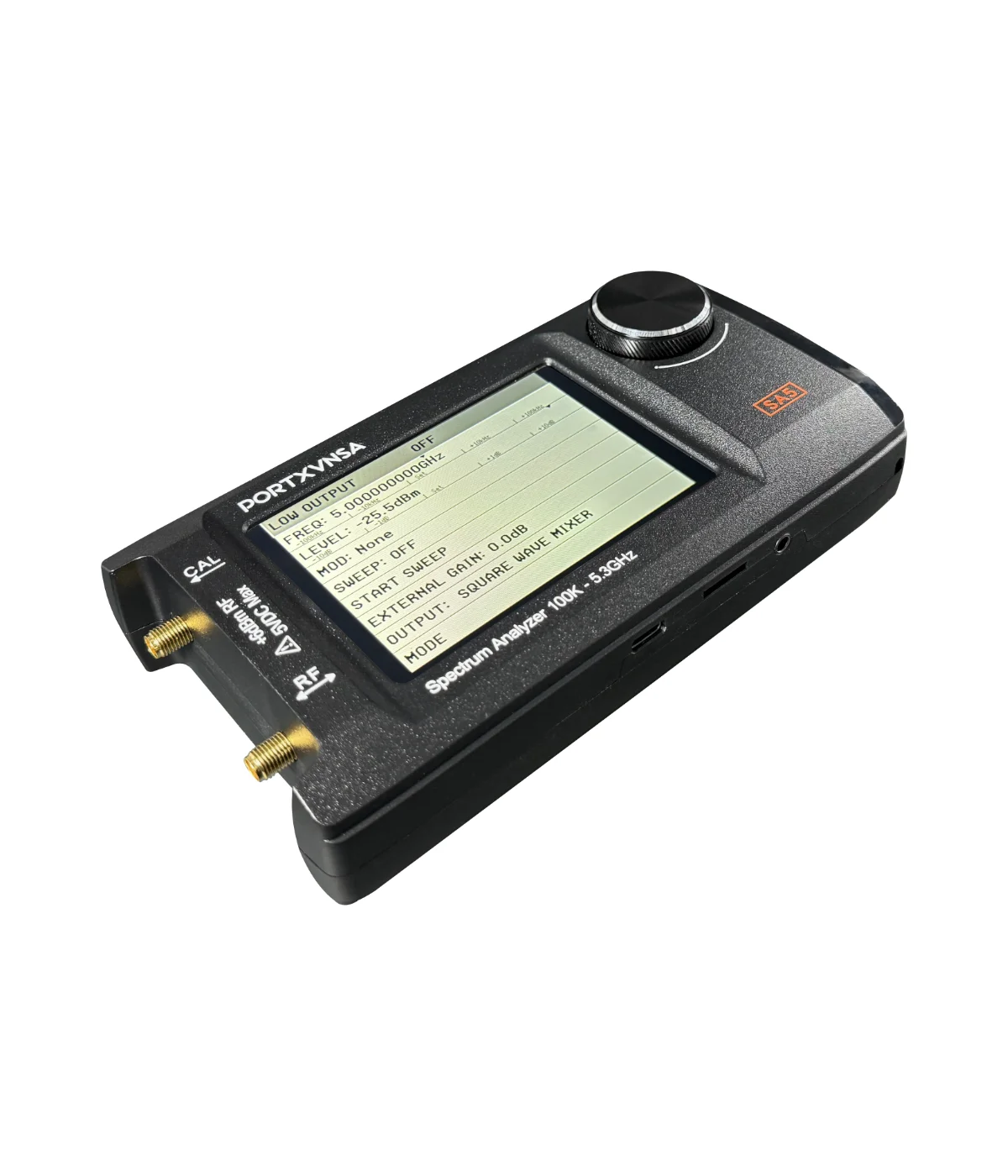

SA5 PORTXVNSA Spectrum Analyzer

Handheld 4 inch screen Spectrum analyzer 0.1 MHz to 5.3 GHz, works up to 12 GHz with Signal generator

Read moreShow less

149.00 €

149.00 € tax excl.

in stock, shipped in 2-3 days

Details

Features

Attachments

Reviews

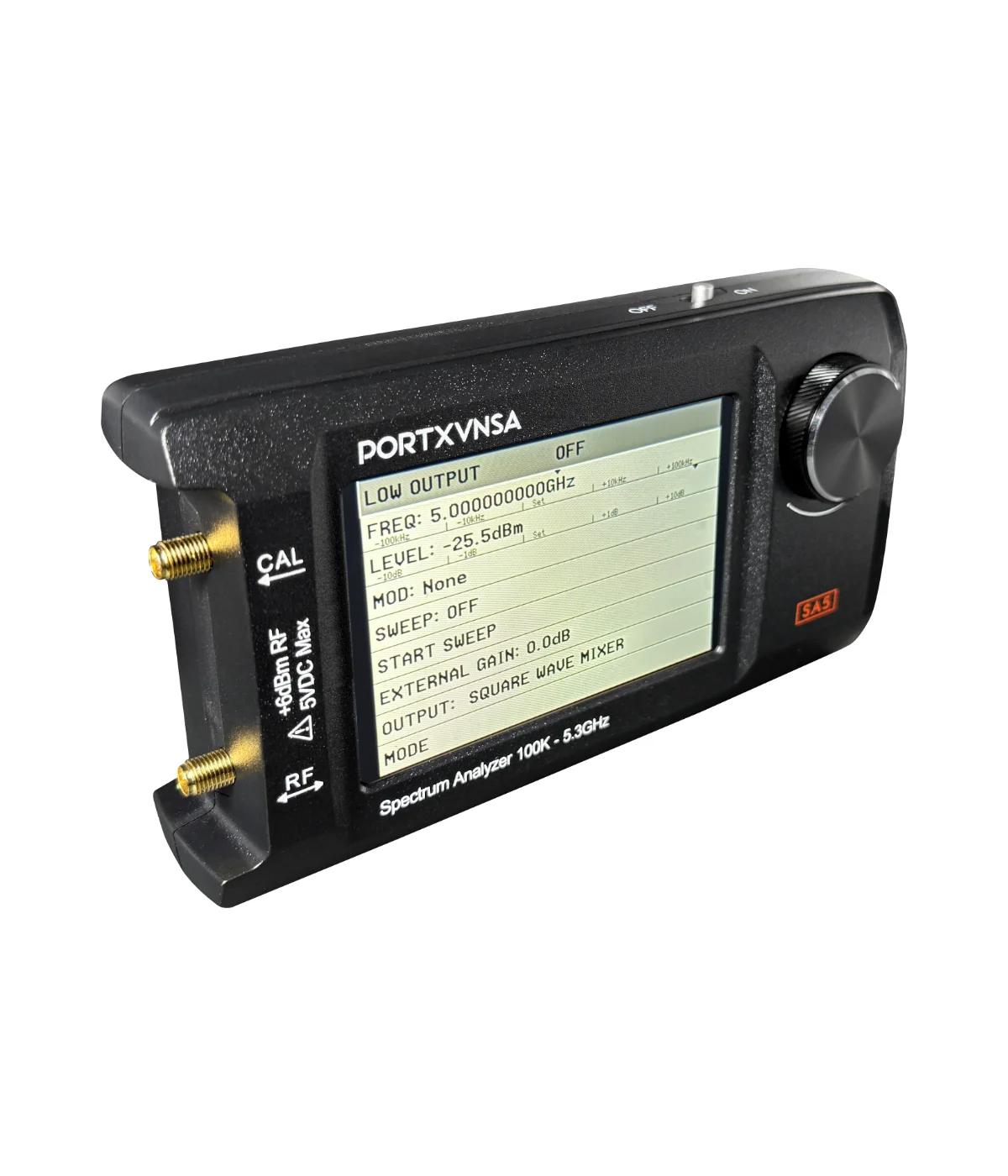

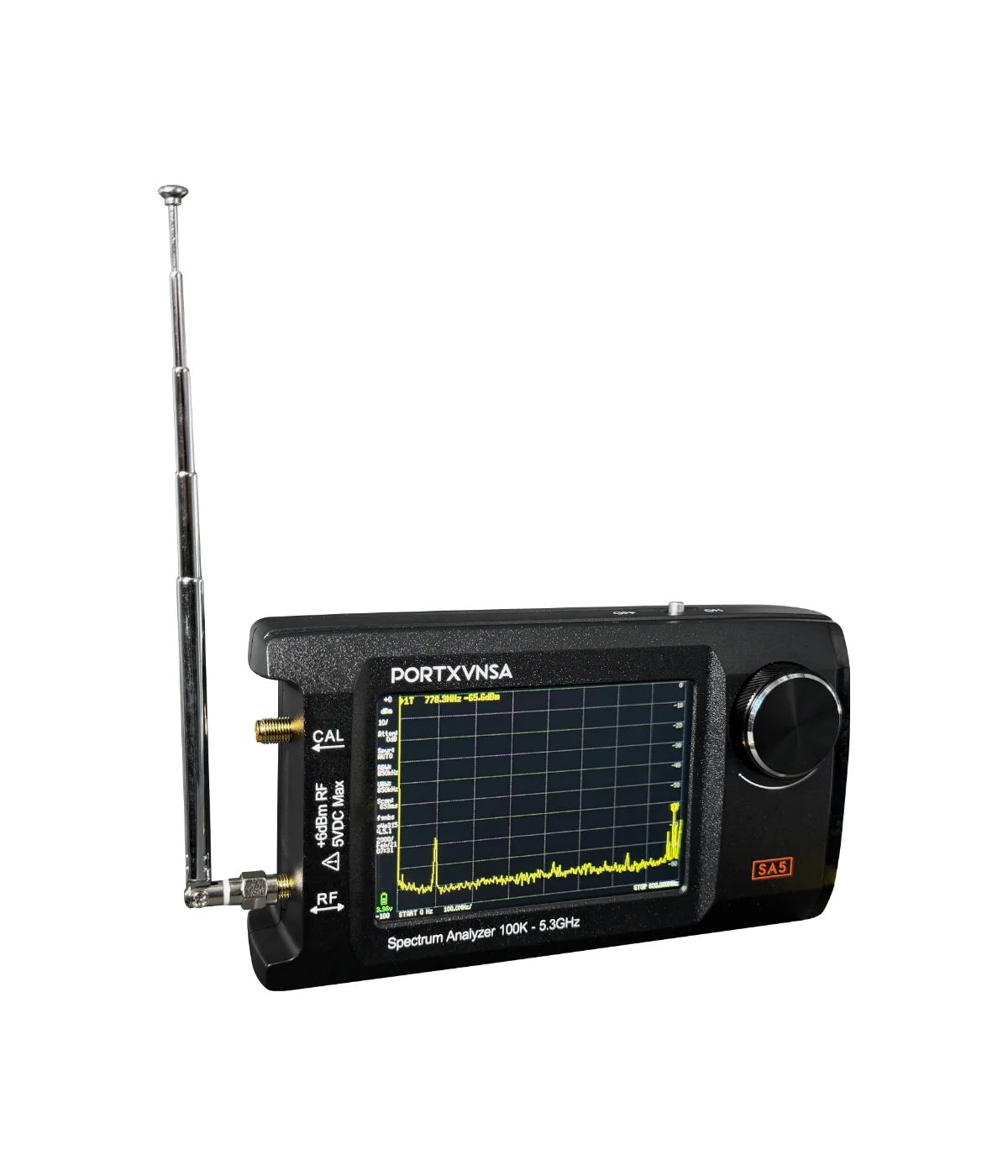

The SA5 brings serious spectrum analysis into a durable, pocket-friendly enclosure. It measures cleanly from 100 kHz to 800 MHz, with ultra calibration extending precise measurement up to 5.3 GHz and signal monitoring reaching as far as 12 GHz. A large knob and 4" IPS touchscreen make navigation effortless, while the built-in battery keeps you scanning for up to 10 hours. Switch it into Signal Generator mode and you've got a sine wave source across the same 100 kHz to 800 MHz range, plus square wave output up to 4.4 GHz.

Specifications

General

Screen	4 inch (480x320) resistive touch
Displayed points	max. 450 per scan
Power supply	5V USB (1.3 A max)
Battery operation	up to 10 hours

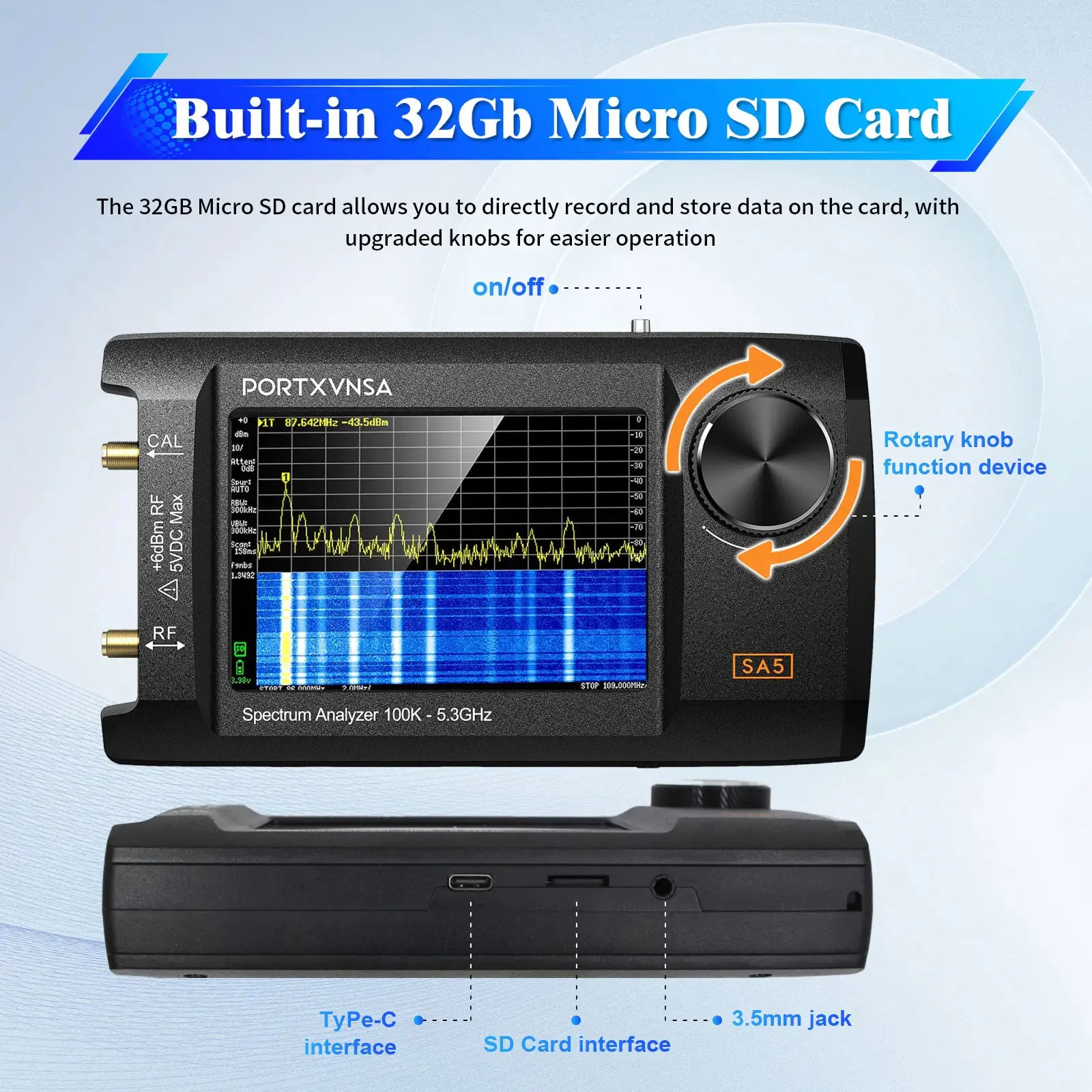

SD card slot	microSD, 32 GB card included
Audio output	3.5 mm jack

Spectrum Analyzer

Frequency range (normal mode)	100 kHz to 800 MHz
Frequency range (ultra mode)	100 kHz to 5.3 GHz
Signal monitoring	up to 12 GHz
Max. input level	+10 dBm (0 dB internal ATT)
Max. DC input	± 5 V
Input impedance	50 Ω (input ATT > 10 dB)
Compression point	1 dB at -1 dBm (0 dB internal ATT)
Phase noise	-108 dB/Hz @ 100 kHz offset, -115 dB/Hz @ 1 MHz offset
Dynamic range	30 kHz RBW of 70 dB
Absolute power level accuracy	± 2 dB (after calibration)
Resolution filters	Manual (0.2, 1, 3, 10, 30, 100, 300, 600, 850 kHz) or Auto
Built-in LNA (optional)	20 dB, Noise Figure 5 dB
Screen resolution	51, 101, 145, 290 or 450 points
Headphone output	AM only
