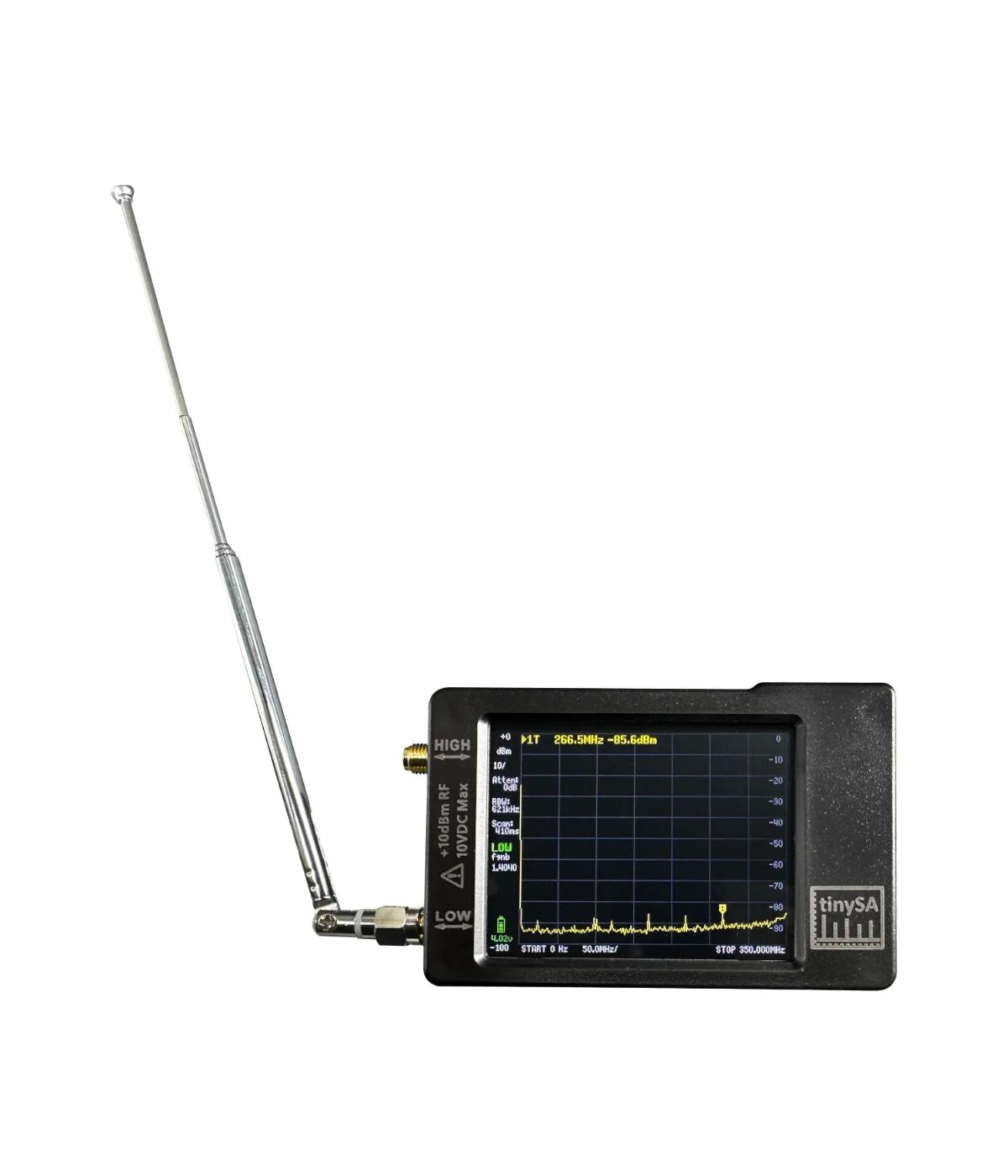

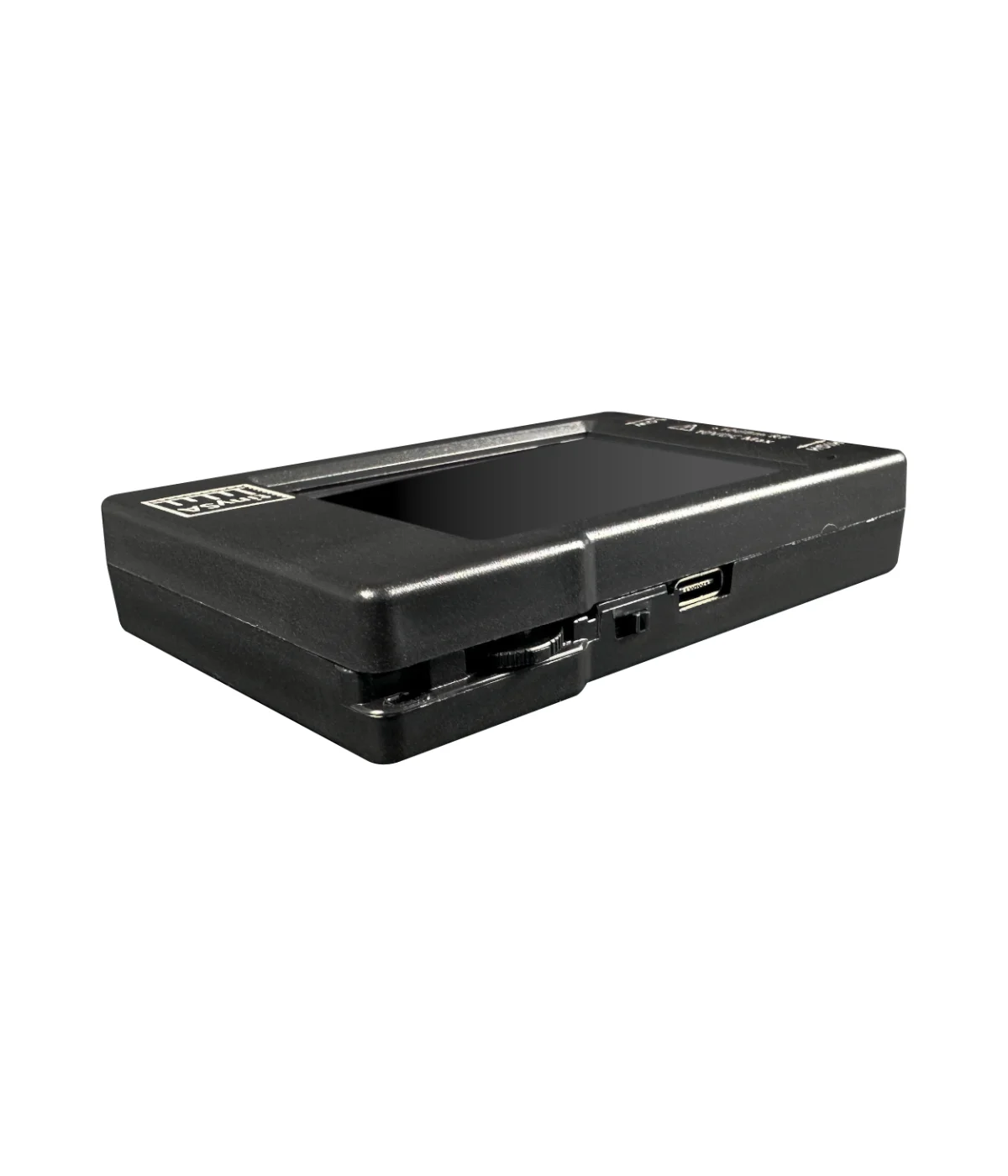

TinySA Spectrum Analyzer
Handheld Spectrum analyzer 2.8 inch TinySA version V0.3.1_E (added EMC protection diodes), RF generator, PC controlled SA+TG.
60.00 €
60.00 € tax excl.
in stock, shipped in 2-3 days
The TinySA fits a full spectrum analyzer and RF signal generator into a compact handheld unit with a 2.8" resistive touch display. Low Input mode covers 100 kHz to 350 MHz, while High Input mode reaches 240 to 960 MHz - between them, you're covered for MF, HF, VHF and UHF work. HW version 0.3.1_E adds EMC protection diodes for extra reliability in the field. Note: this model has no SD card slot and no audio output, and runs for a minimum of 2 hours per charge.
Specifications
General
| Screen | 2.8 inch (320x240) resistive touch |
|---|---|
| Displayed points | max. 290 per scan |
| Power supply | 5V USB (0.5 A max) |
Spectrum Analyzer Low Input mode (MF/HF/VHF)
| Frequency range | 100 kHz to 350 MHz |
|---|---|
| Max. input level | +10 dBm with 0 dB internal ATT |
| Input impedance | 50 Ohm (input ATT > 10 dB) |
| Compression point | 1 dB at -1 dBm with 0 db internal ATT |
| Phase noise | -90 dB/Hz at 100 kHz offset, and -115 dB/Hz at 1 MHz offset |
| Dynamic range | 30 kHz RBW of 70 dB |
| Absolute power lever accuracy | ± 1 dB (after calibration) |
| Resolution filters | Manual (3, 10, 30, 100, 300, 600 kHz) or Auto |
| Built-in (optional) | 20 dB LNA with Noise Figure of 5 dB |
| Screen resolution | of 51, 101, 145 or 290 |
| Resolution filters | Manual (0.2, 1, 3, 10, 30, 100, 300, 600, 850 kHz) or Auto |
Spectrum Analyzer High Input mode (UHF)
| Frequency range | 240 to 960 MHz |
|---|---|
| Max. input level | +10 dBm with 0 dB internal ATT |
| Input impedance | 50 Ohm (input ATT > 10 dB) |
| Compression point | 1 dB at -6 dBm with 0 db internal ATT |
| Dynamic range | 30 kHz RBW of 50 dB |
| Absolute power lever accuracy | ± 1 dB (after calibration) |
| Resolution filters | Manual (3, 10, 30, 100, 300, 600 kHz) or Auto |
Signal generator Low output mode
| Sine wave output | 100 kHz to 350 MHz |
|---|---|
| Output level | -76 dBm to -6 dBm |
| Harmonics | below -40 dB of fundamental |
| Functionalities | AM, NFM and WFM modulation |
Signal generator High output mode
| Square wave output | 240 kHz to 960 MHz |
|---|---|
| Output level | -38 dBm to +13 dBm |
| Functionalities | NFM and WFM modulation |
Reference generator spec
| Optional square wave output | -26 dBm @ High output |
|---|---|
| Frequency | 1 MHz, 2 MHz, 4 MHz, 10 MHz, 15 MHz or 30 MHz |
Gallery

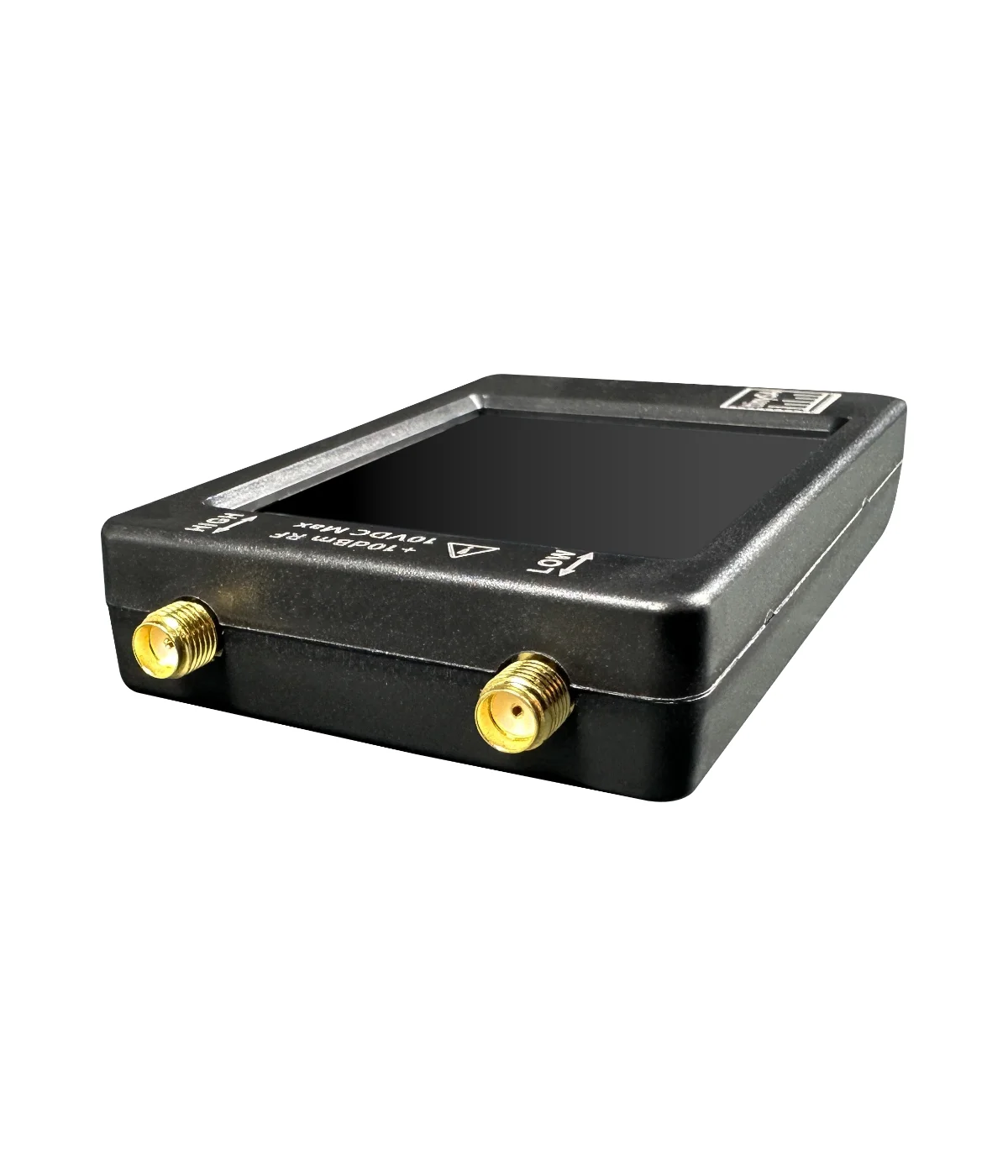

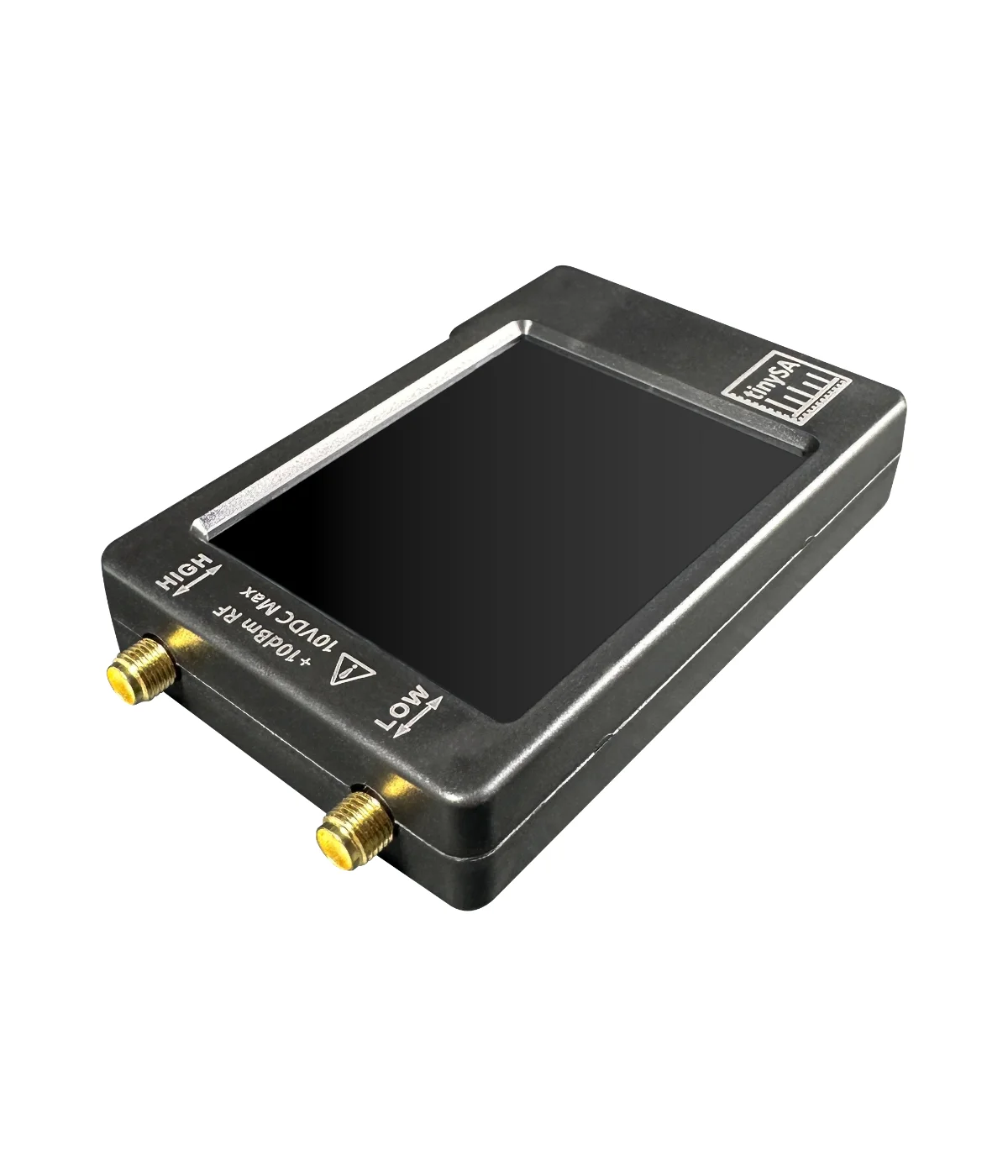

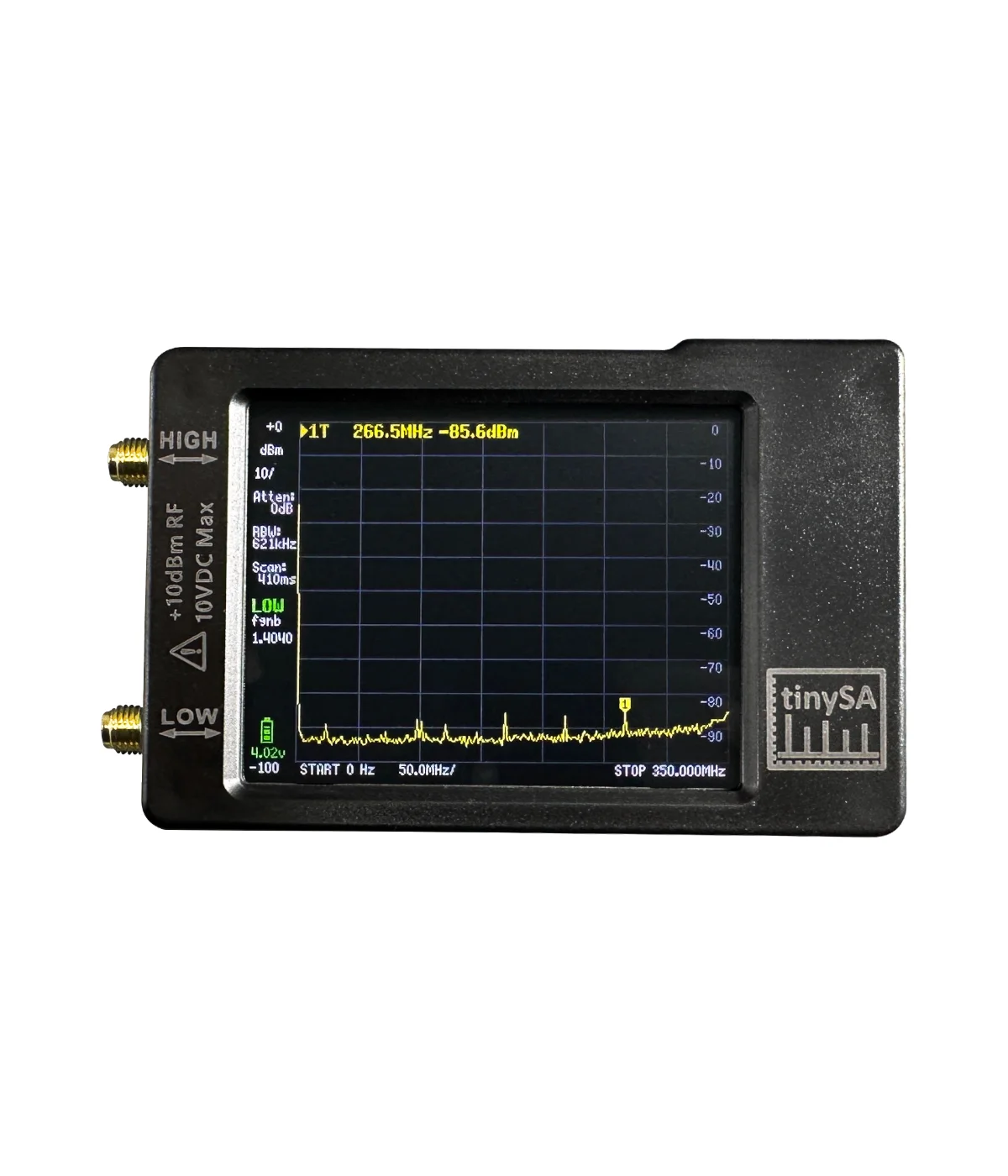

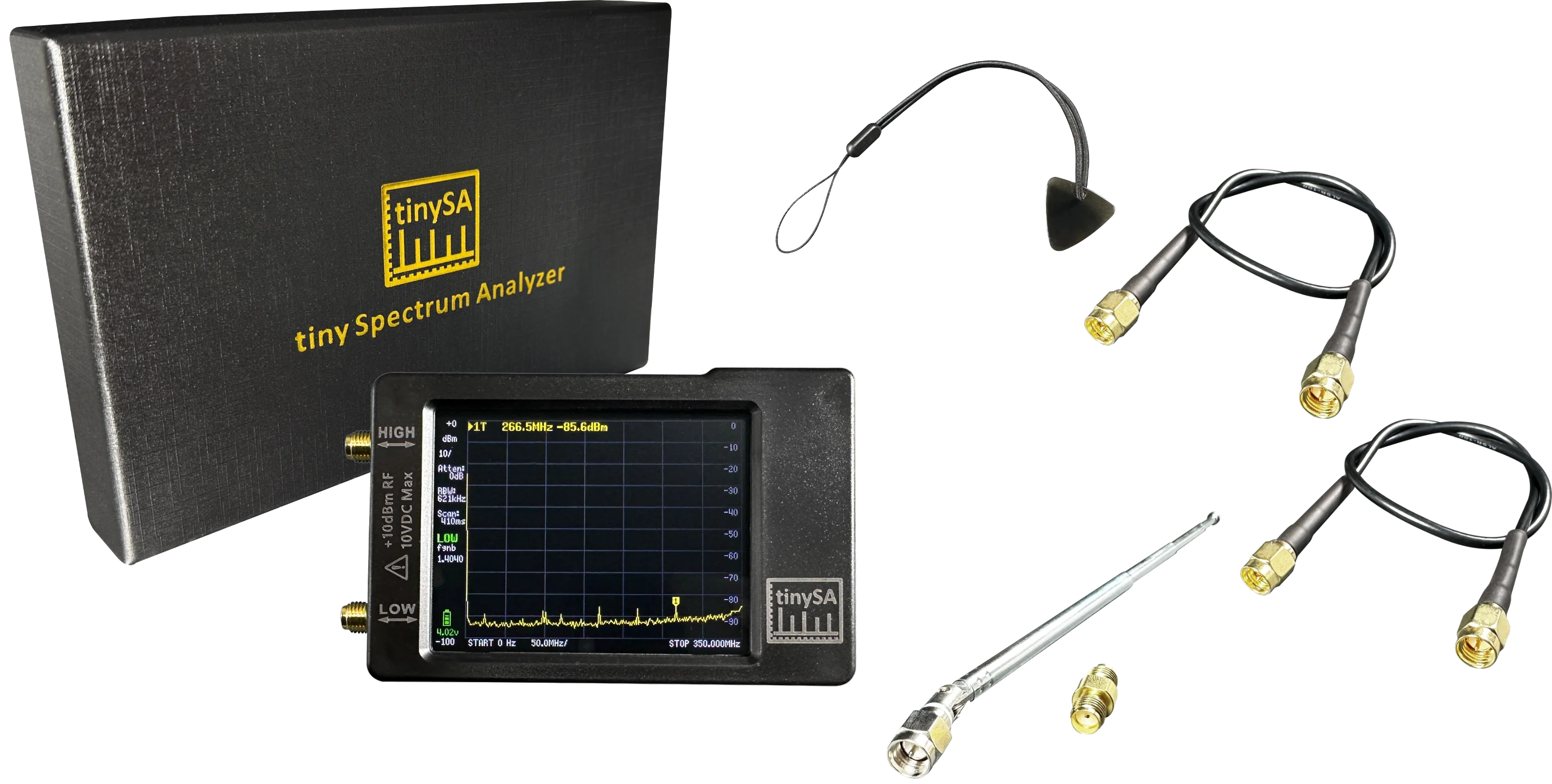

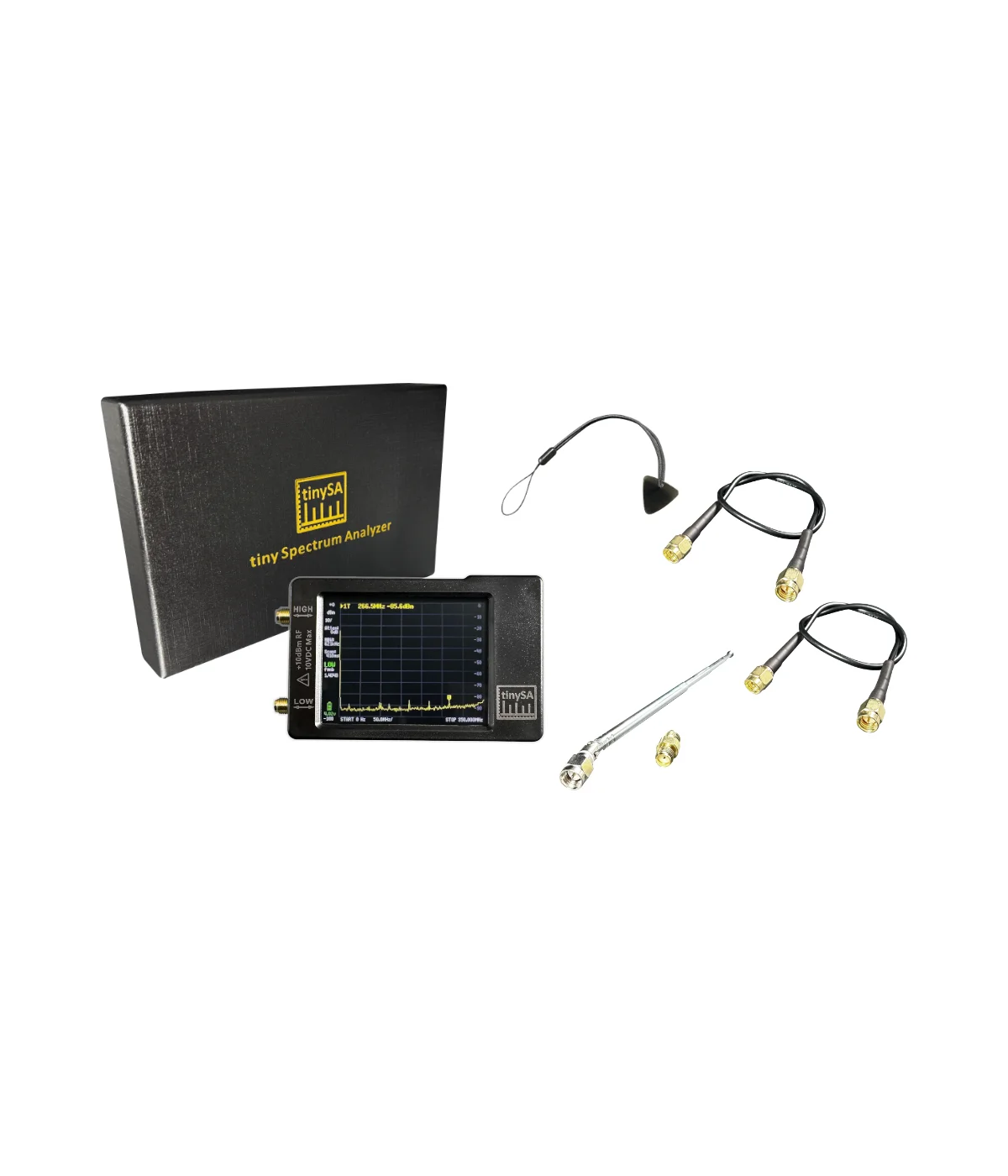

In the box
- TinySA Spectrum analyzer
- 2pcs SMA pigtail cable
- SMA male-male adapter
- Telescopic antenna with SMA (30 cm)
- USB-C charging cable
- Control pick
- Packing box
Frequency range:
100 kHz to 350 MHz
Screen:
2.8 inch
