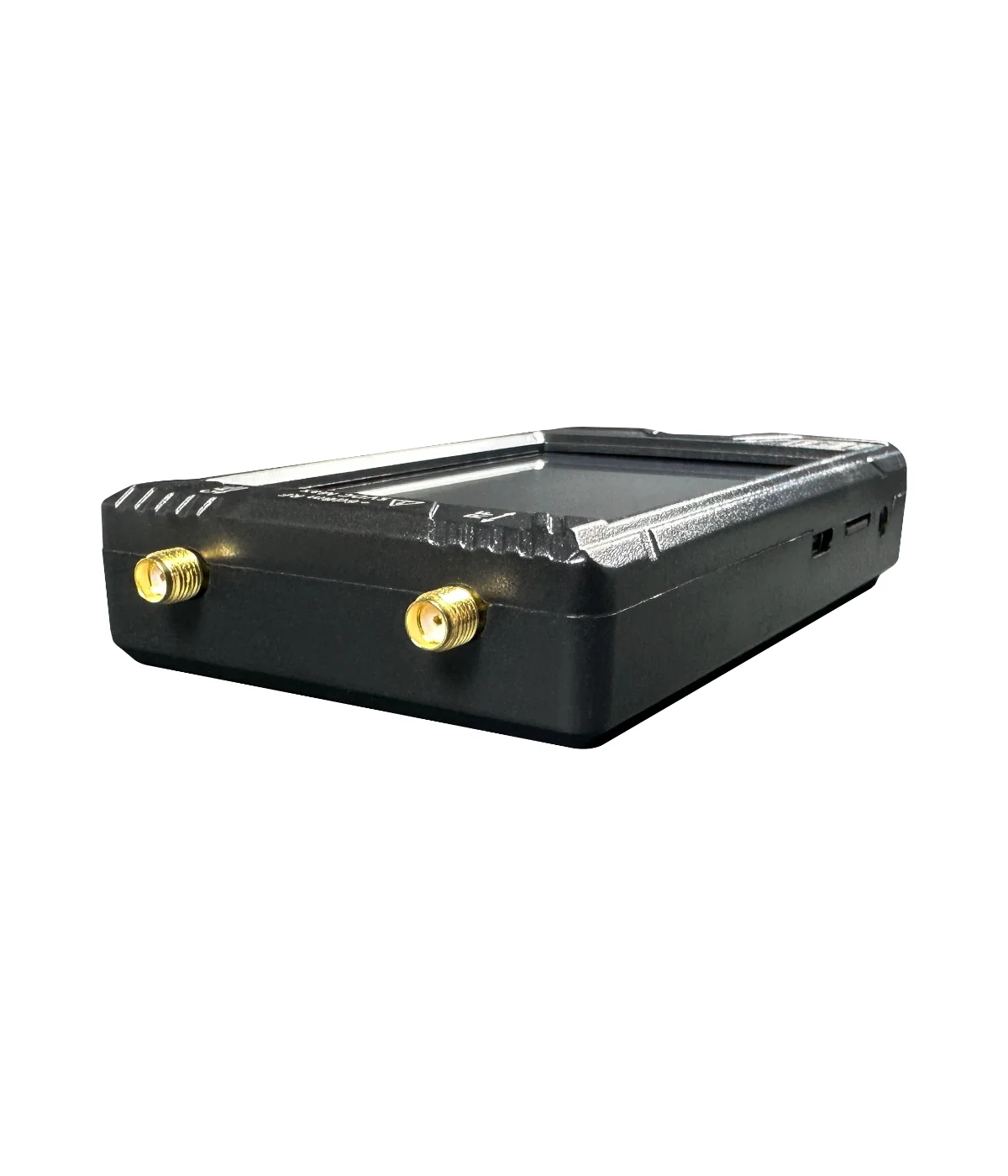

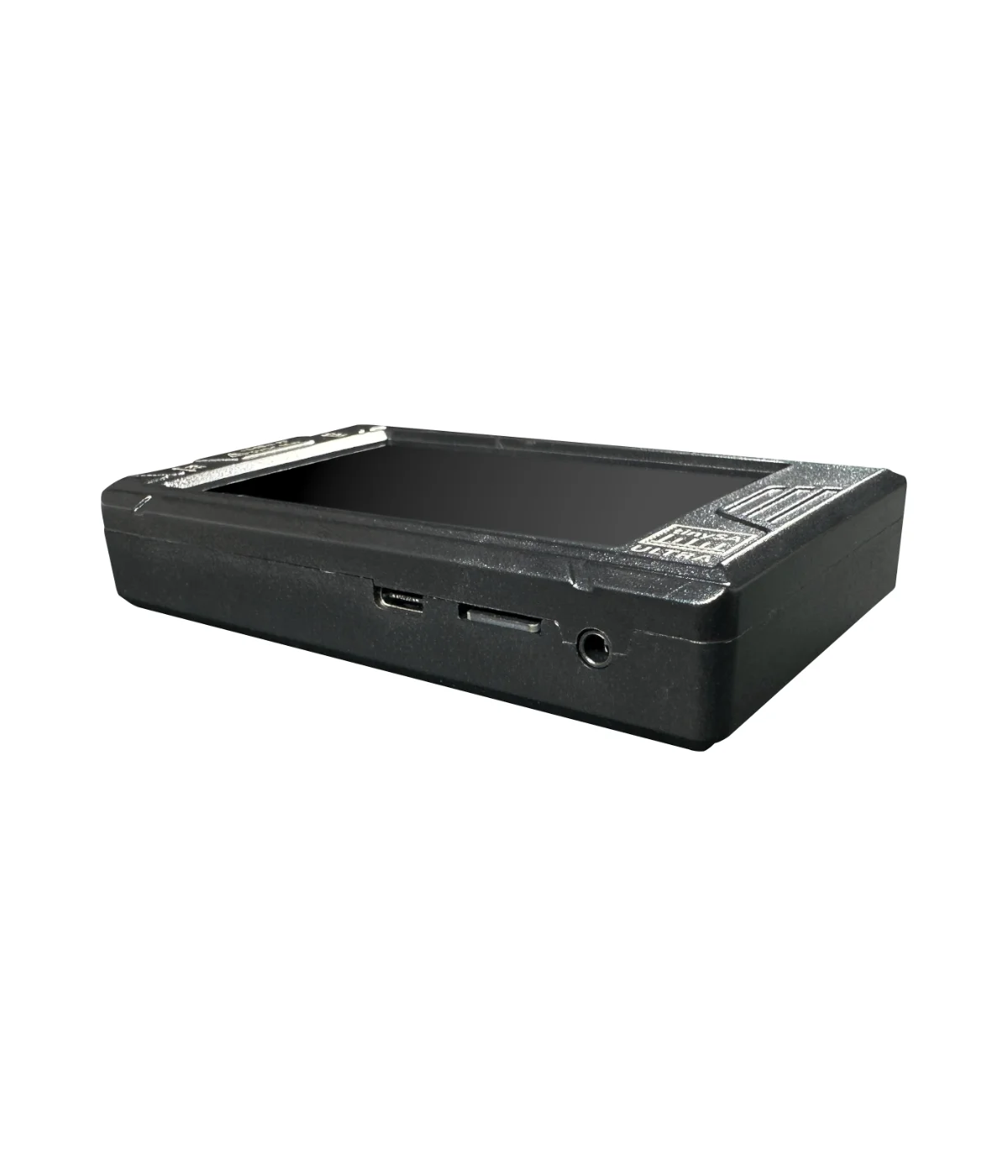

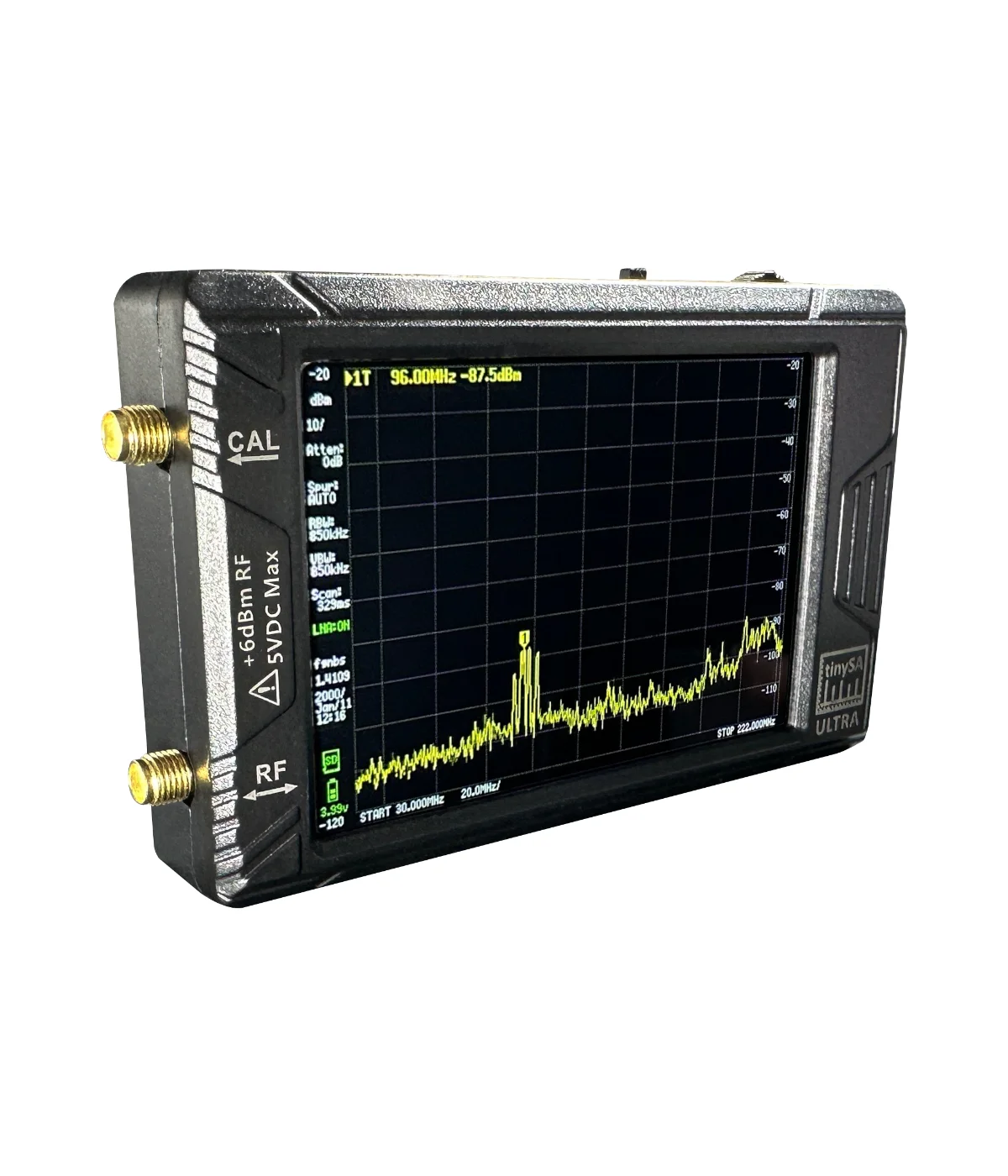

TinySA ultra Spectrum Analyzer
Handheld Spectrum analyzer 4 inch TinySA ultra, 100 kHz to 6 GHz with. RF generator, Spectrum monitoring, PC controlled SA+TG
160.00 €
160.00 € tax excl.
in stock, shipped in 2-3 days
Step up to the TinySA Ultra for a wider sweep and a bigger picture - literally. Its 4" touchscreen displays up to 450 points per scan, gaplessly covering 100 kHz to 800 MHz, with ultra mode reaching all the way to 6GHz. A switchable 20dB LNA sharpens weak-signal detection, and a microSD slot lets you save measurements, settings and screenshots directly from the device. Expect around 2 hours of battery life during active use, with AM audio output available through the 3.5mm jack.
Specifications
General
| Screen | 4 inch (480x320) resistive touch |
|---|---|
| Displayed points | max. 450 per scan |
| Power supply | 5V USB (1.3 A max) |
| Battery operation | up to 2 hours |
| Memory | microSD 32 GB included |
| Audio output | 3.5 mm jack |
Spectrum Analyzer
| Frequency range (normal mode) | 100 kHz to 800 MHz |
|---|---|
| Frequency range (ultra mode) | 100 kHz to 6 GHz |
| Max. input level | +6 dBm with 0 dB internal ATT |
| Input impedance | 50 Ohm (input ATT > 10 dB) |
| Compression point | 1 dB at -1 dBm with 0 db internal ATT |
| Phase noise | -90 dB/Hz at 100 kHz offset, and -115 dB/Hz at 1 MHz offset |
| Dynamic range | 30 kHz RBW of 70 dB |
| Absolute power lever accuracy | ± 2 dB (after calibration) |
| Resolution filters | Manual (0.2, 1, 3, 10, 30, 100, 300, 600, 850 kHz) or Auto |
| Built-in (optional) | 20 dB LNA with Noise Figure of 5 dB |
| Screen resolution | of 51, 101, 145, 290 or 450 |
| Headphone output | AM only |
Signal generator
| Sine wave output | 100 kHz to 800 MHz |
|---|---|
| Output level | -110 dBm to -20 dBm |
| Square wave | up to 4.4 GHz |
| Output frequency resolution | 57.2 Hz |
| AM modulation depth | between 10% and 100% |
| FM deviation | between 1 kHz and 300 kHz |
Reference generator spec
| Optional square wave output | -35.6 dBm @ cal output |
|---|---|
| Frequency | 1 MHz, 2 MHz, 4 MHz, 10 MHz, 15 MHz or 30 MHz |

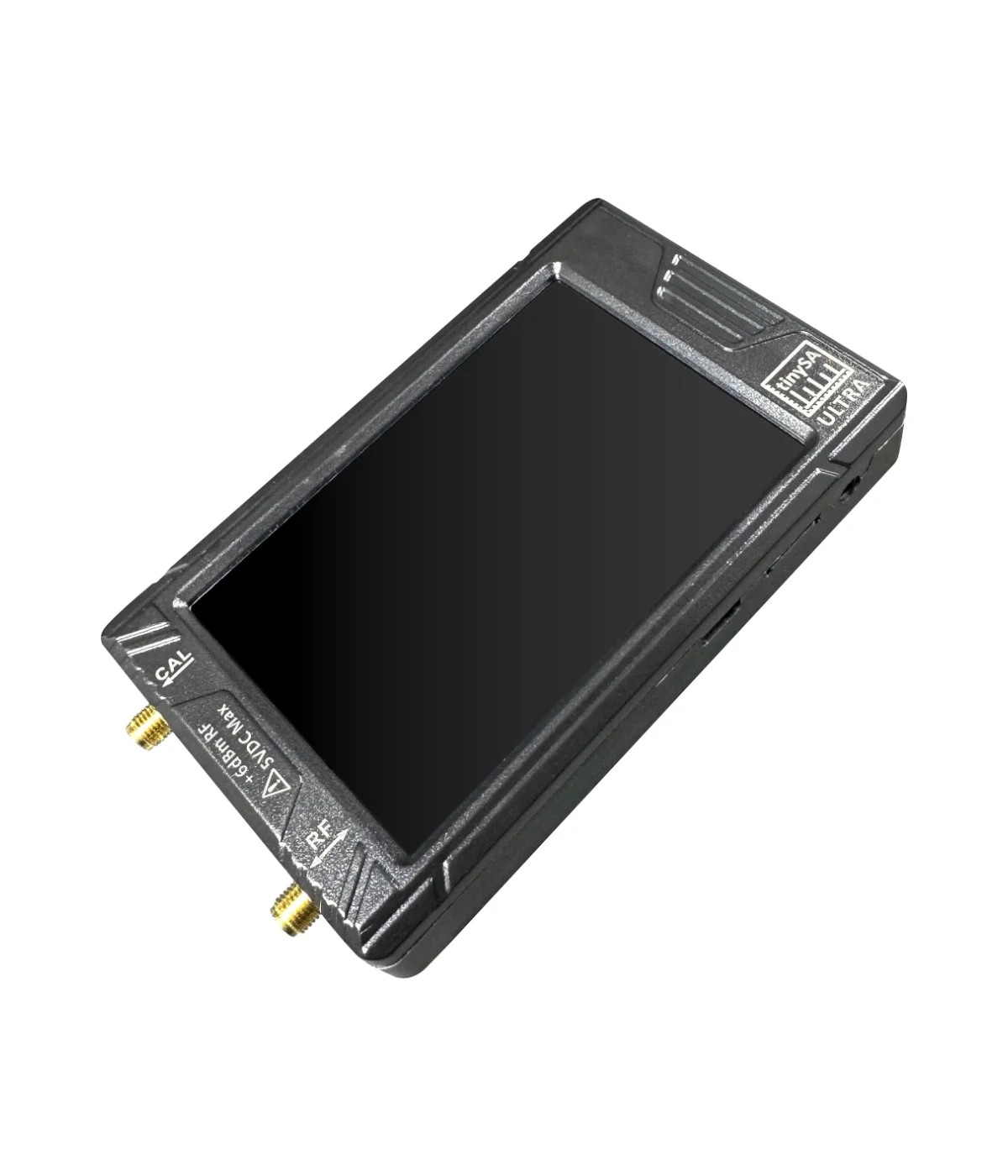

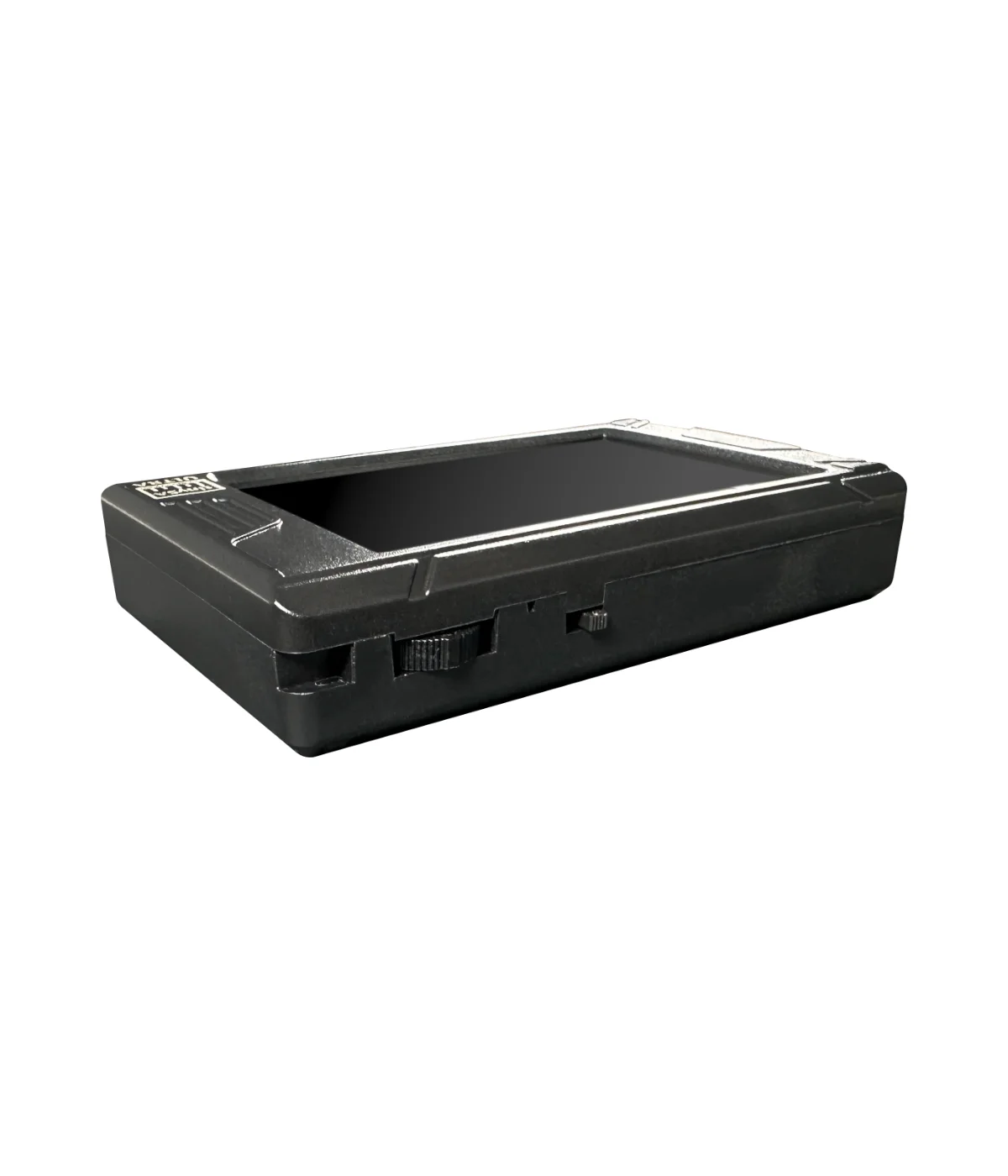

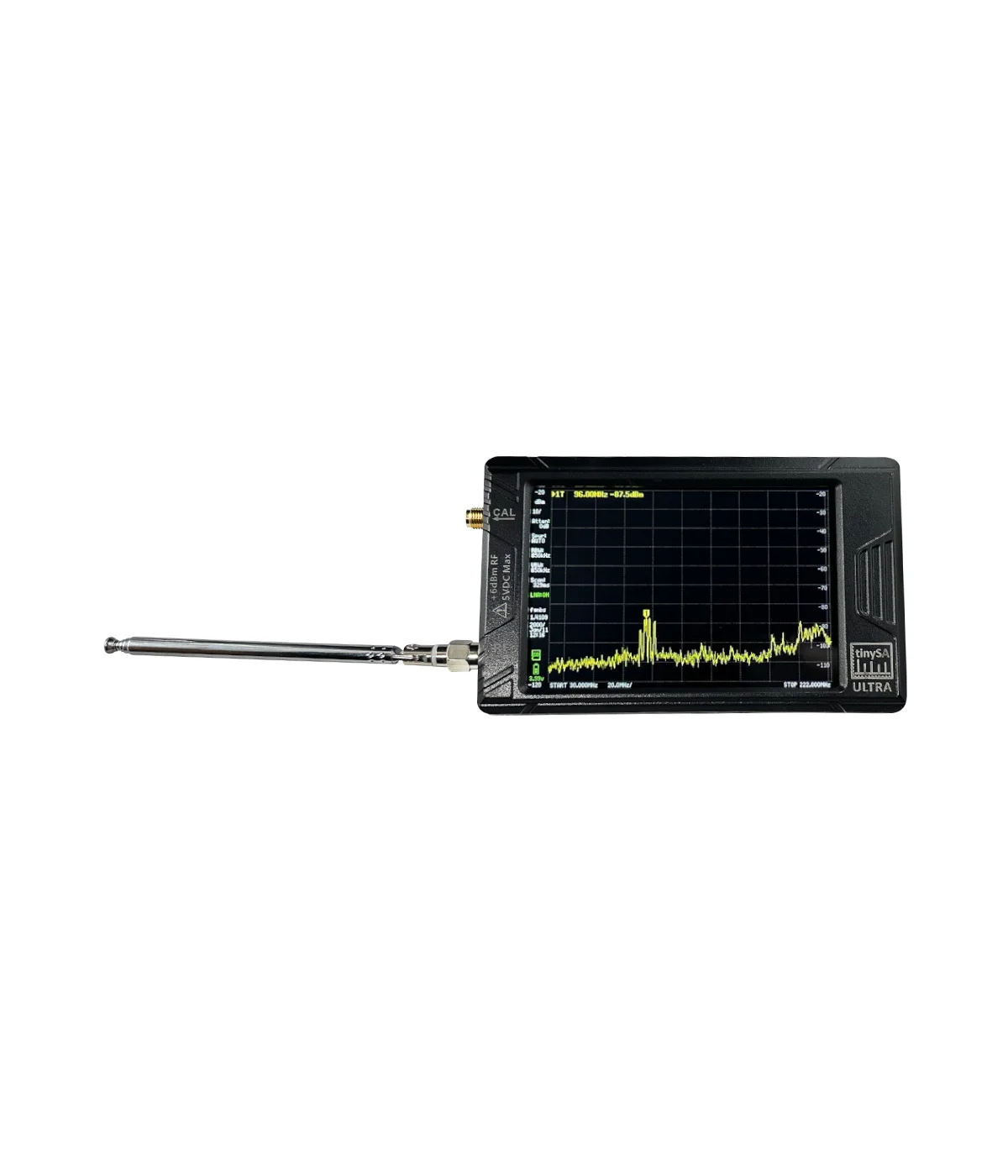

Gallery

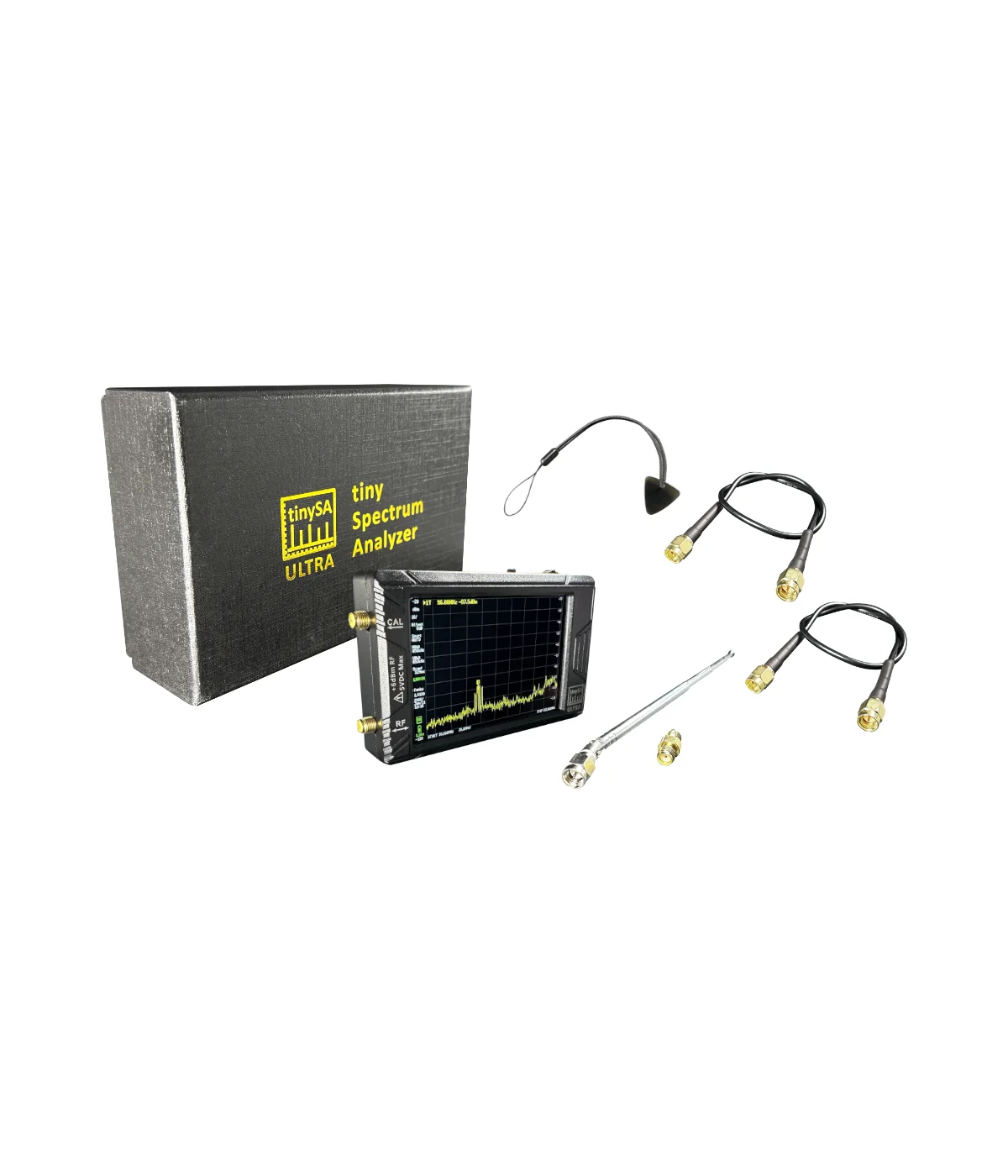

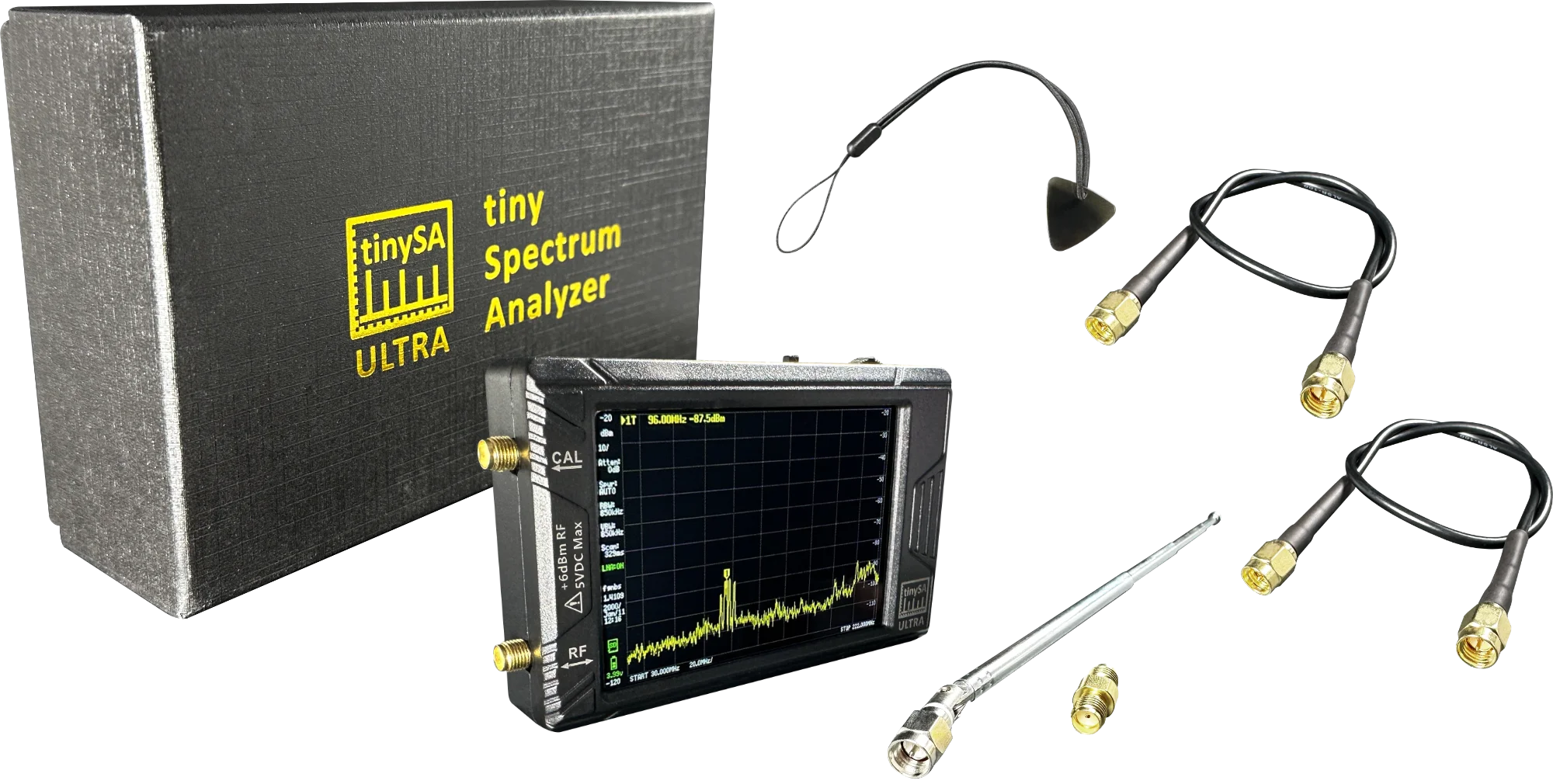

In the box
- TinySA ultra Spectrum analyzer
- 32 GB microSD card
- 2pcs SMA pigtail cable
- SMA male-male adapter
- Telescopic antenna with SMA (30 cm)
- USB-C charging cable
- Control pick
- Packing box
Frequency range:
100 kHz to 6 GHz
Screen:
4 inch
