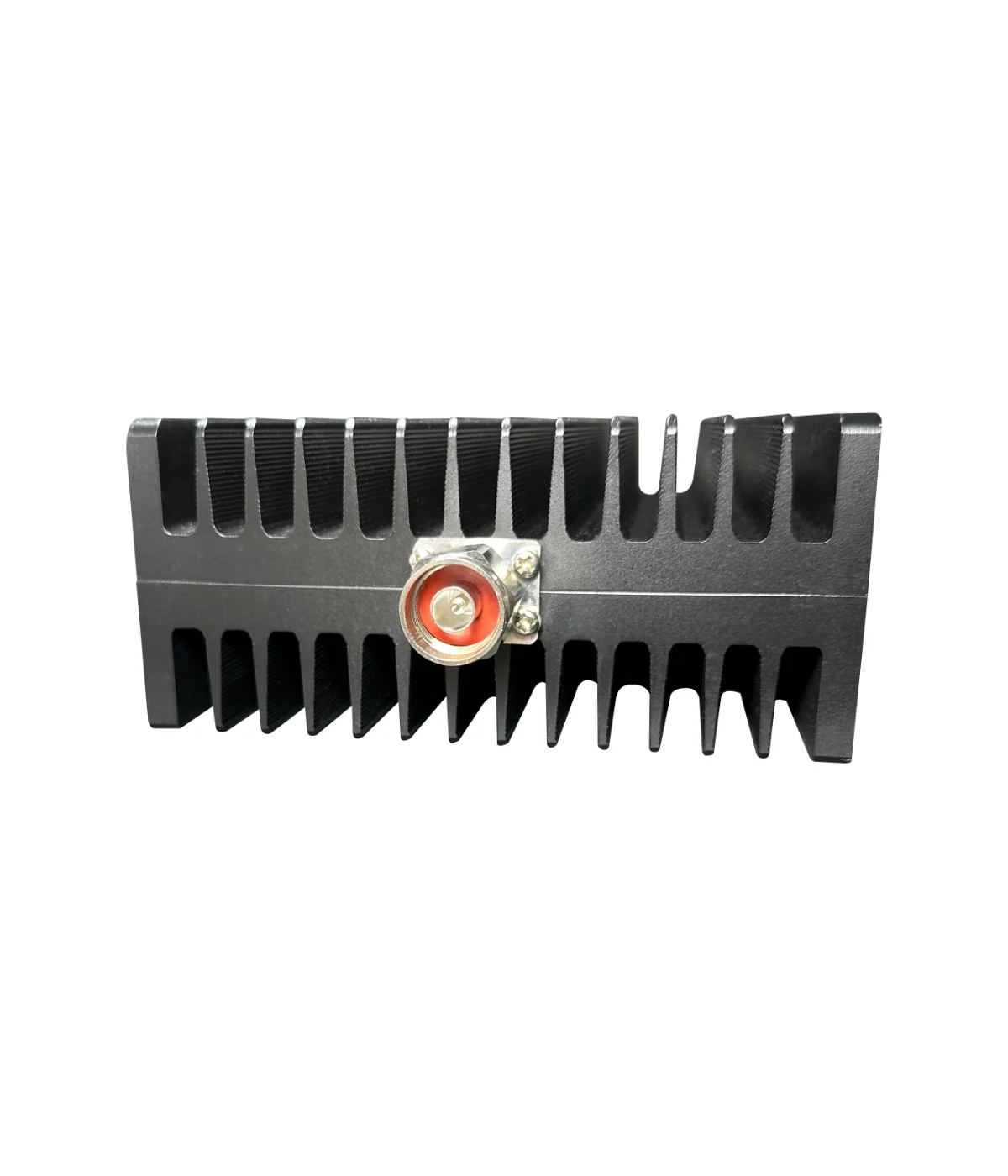

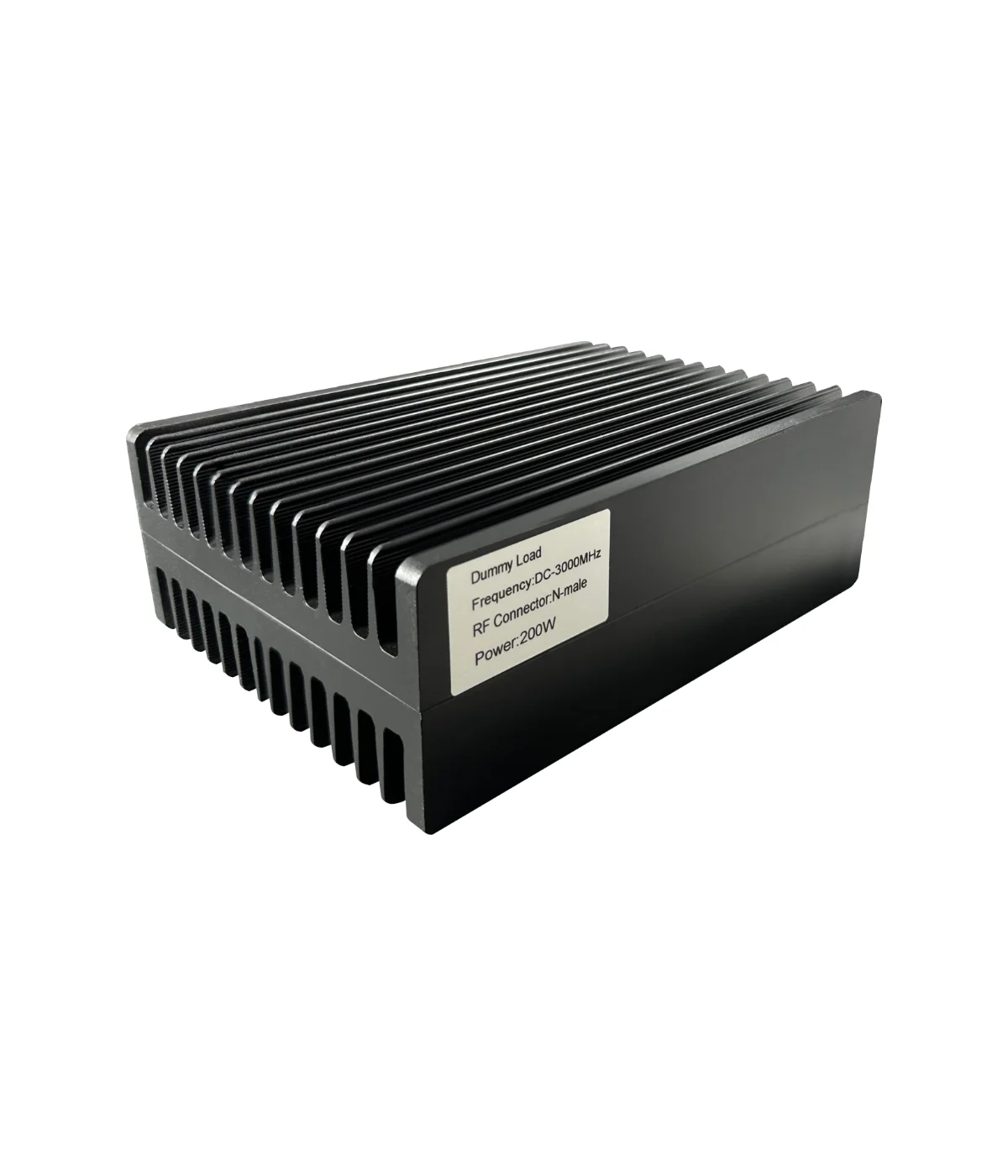

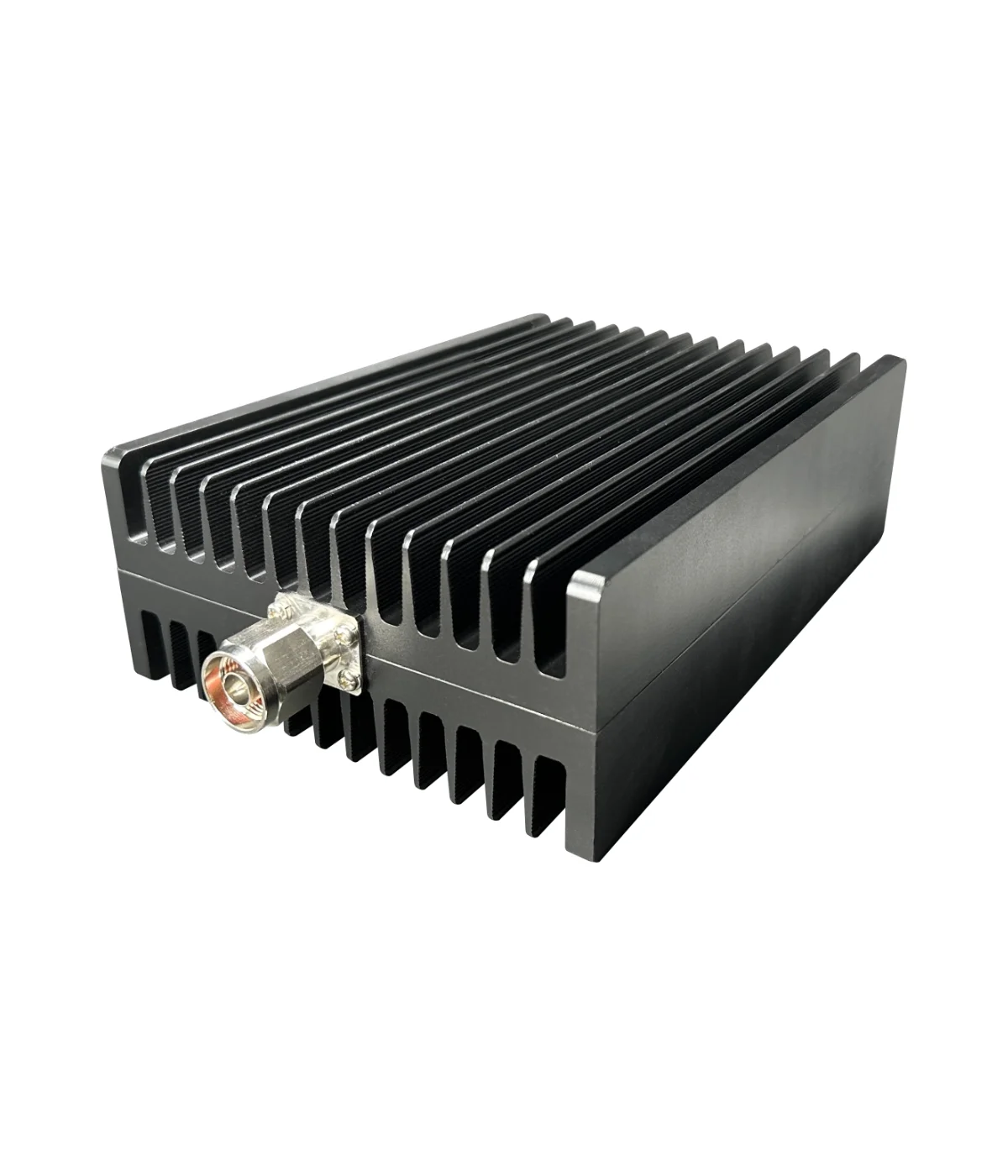

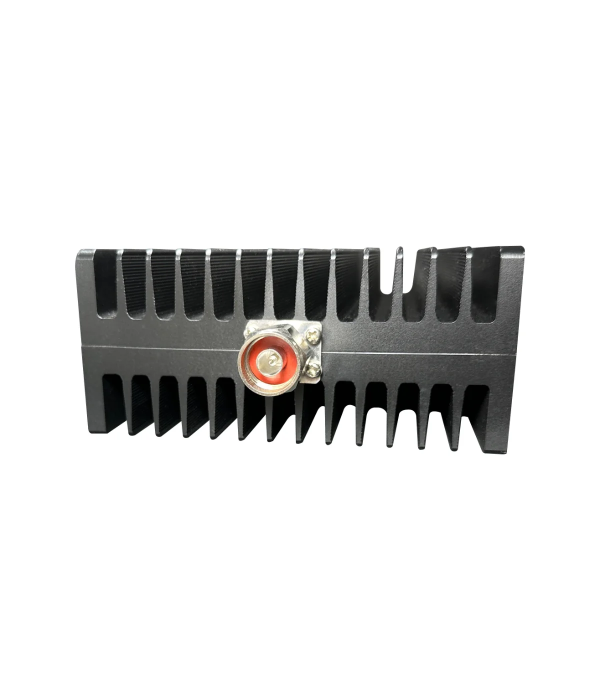

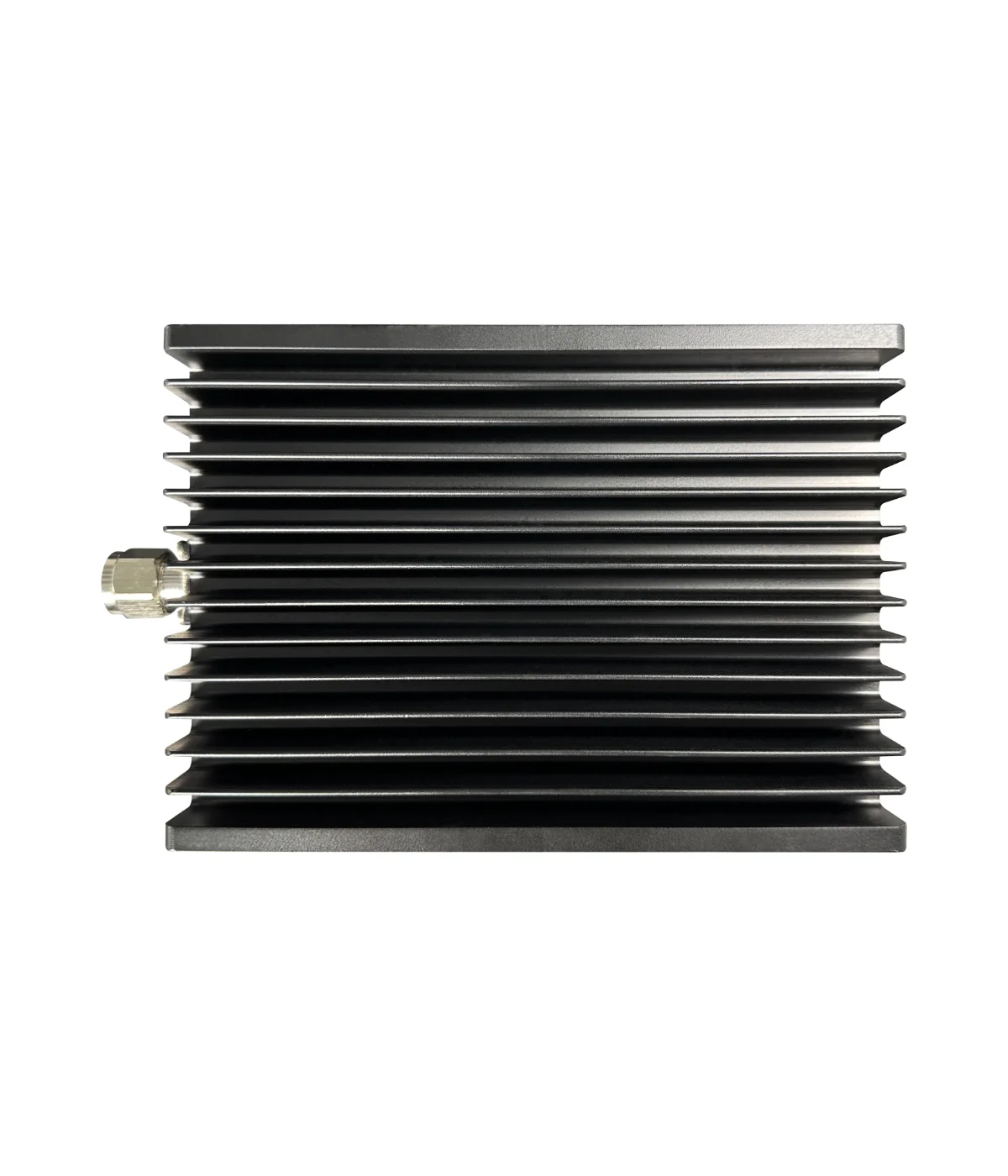

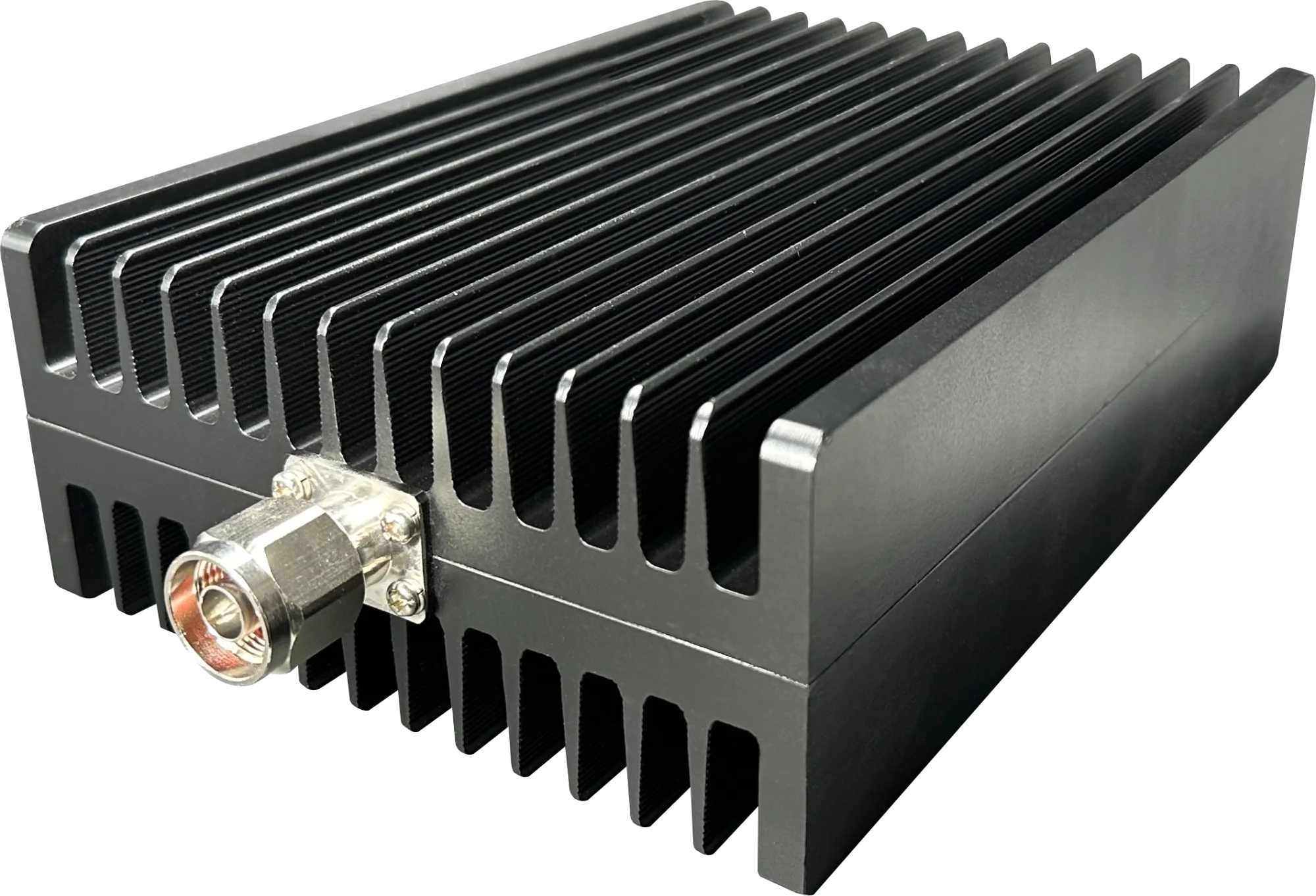

Coaxial dummy load N male 200W 3GHz
High power coaxial dummy load with N male connector
77.44 €
64.00 € tax excl.
in stock, shipped in 2-3 days
This is power 50 Ohm dummy load designed for measuring, testing and operational purposes. The dummy load has a very good impedance matching and with external cooling can handle up to 200W of RF power continuously.
Specifications
| Impedance | 50 Ohm |
|---|---|
| Frequency | DC to 3 GHz |
| Power rating | max. 200 W |
| Maximal SWR | 1:1.2 |
| SWR up to 1.5 GHz | < 1:1.06 |
| Connector: | N male |
| Temperature range | -55 to +125℃ |
| Working temperature range | up to 85℃ |
| Dimensions | 230x142x65 mm |
| Weight | 2.55 kg |
⚠ POWER LOAD: For continuous power loads of more than 50W, the heatsink must be fan blown to ensure heat dissipation!

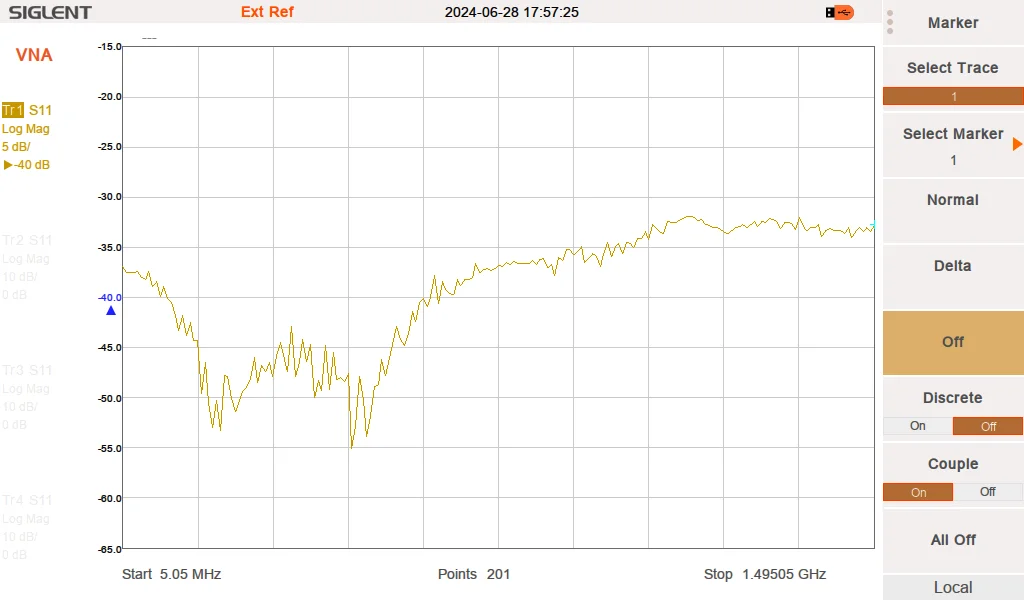

S11 matching to 1.5 GHz
Connector type:
N male
Frequency range:
DC to 3 GHz
Impedance:
50 Ohm
Power load:
200 W
