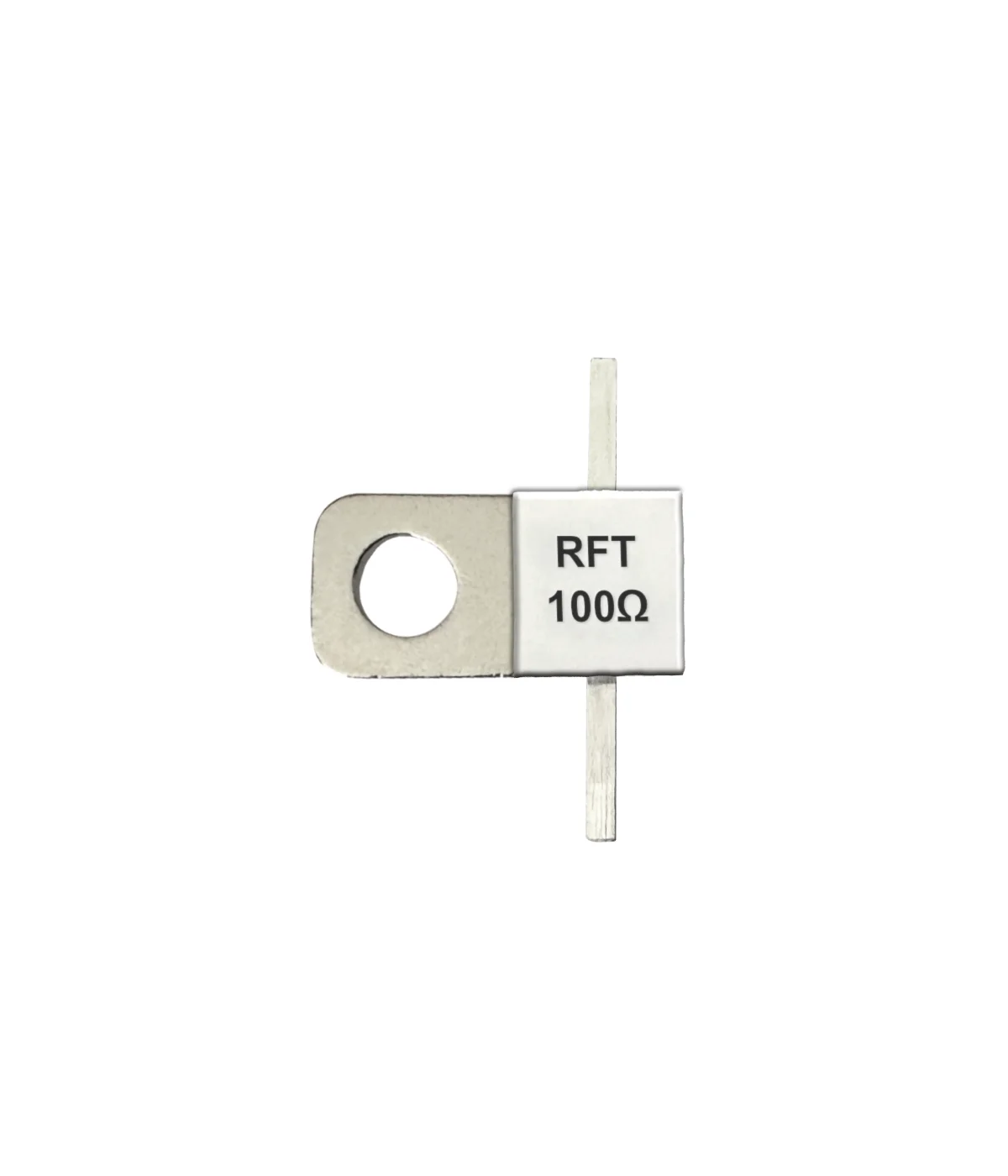

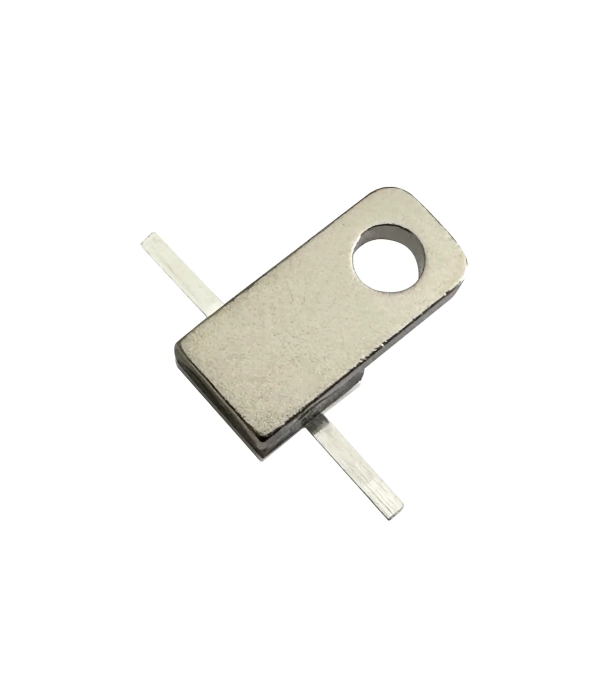

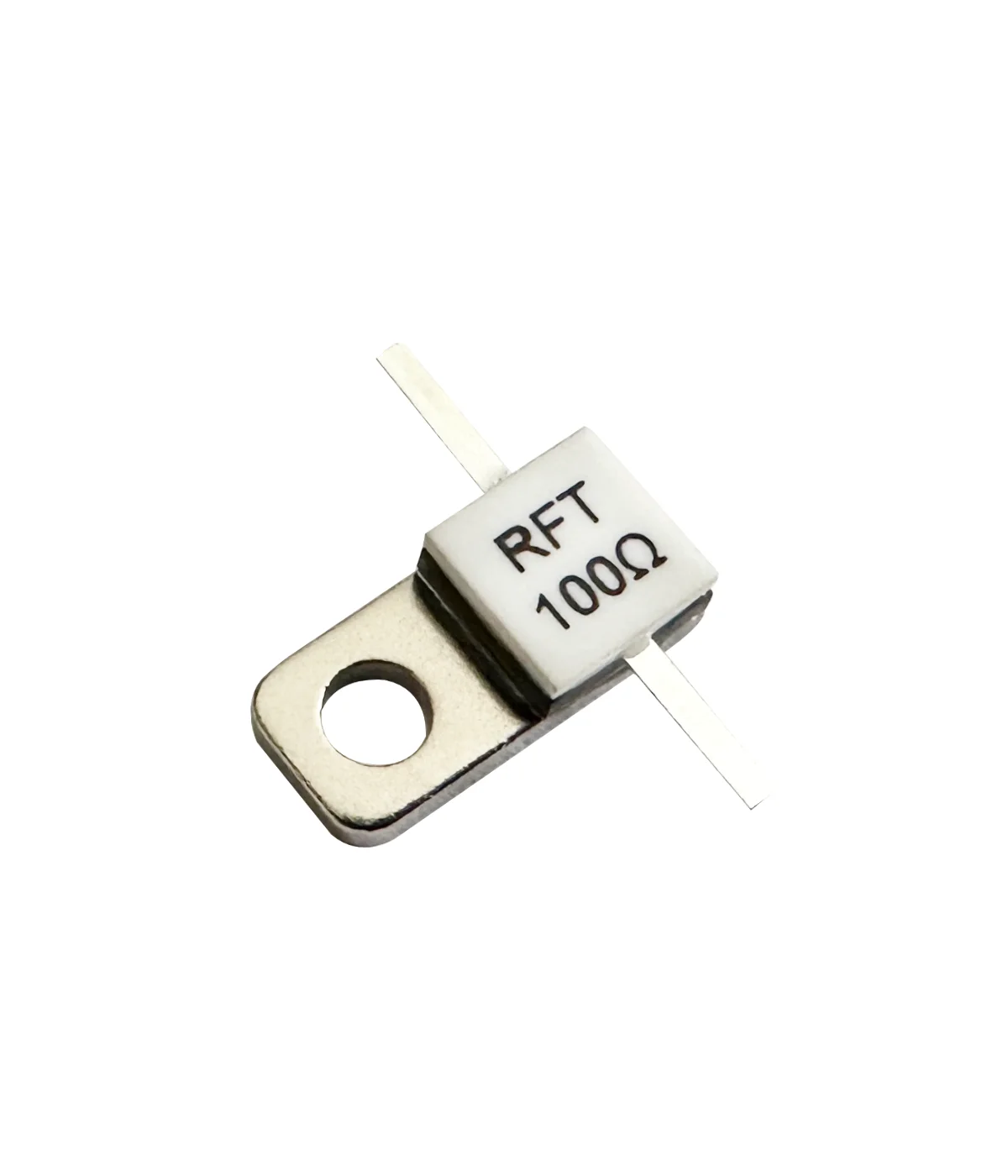

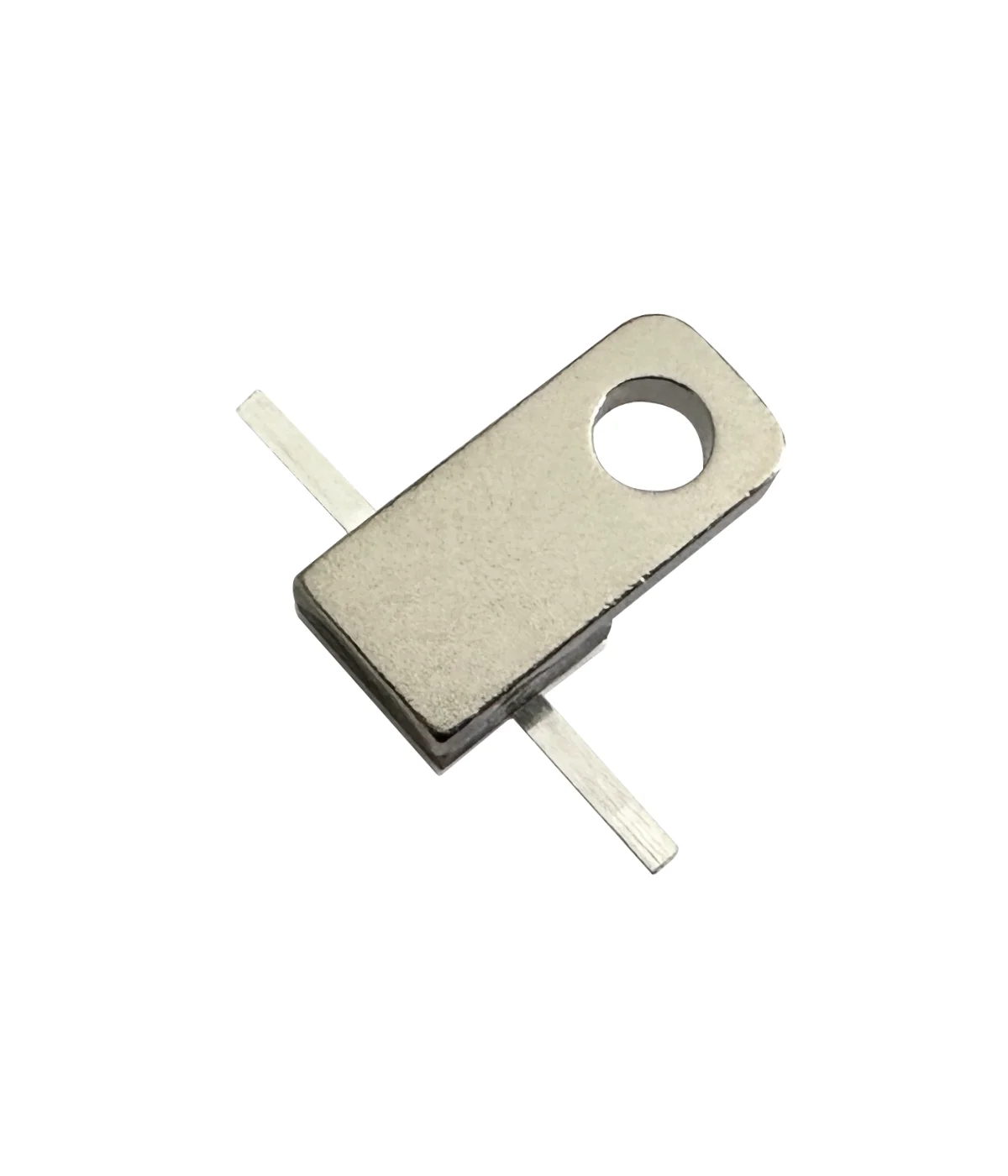

Flange mount dummy load 100Ohm 30W
Flange mount dummy load
14.52 €
12.00 € tax excl.
in stock, shipped in 2-3 days
These flange mount high power resistors are designed for variable use. Resistors are mainly used in power splitters and combiners - the middle resistor in Wilkinson. Resistance is between the strips, isolated from cooler.
Specifications
Substrate materialberyllium oxide ceramic| Frequency | DC to 1.5 GHz |
|---|---|
| Power rating | 30 W (see graph) |
| Resistance range | 100 Ohm |
| Resistor tolerance | 5 % |
| Typical capacitance | ≤ 3 pF |
| Operating temperature | -55℃ to +150℃ |
| Temperature coefficient | ≤ 150 ppm/℃ |
| Manufacturer | RFTYT Technology Co., Ltd. |
| Product name | RFTXXN-30RM1306 |
Downloads & Resources

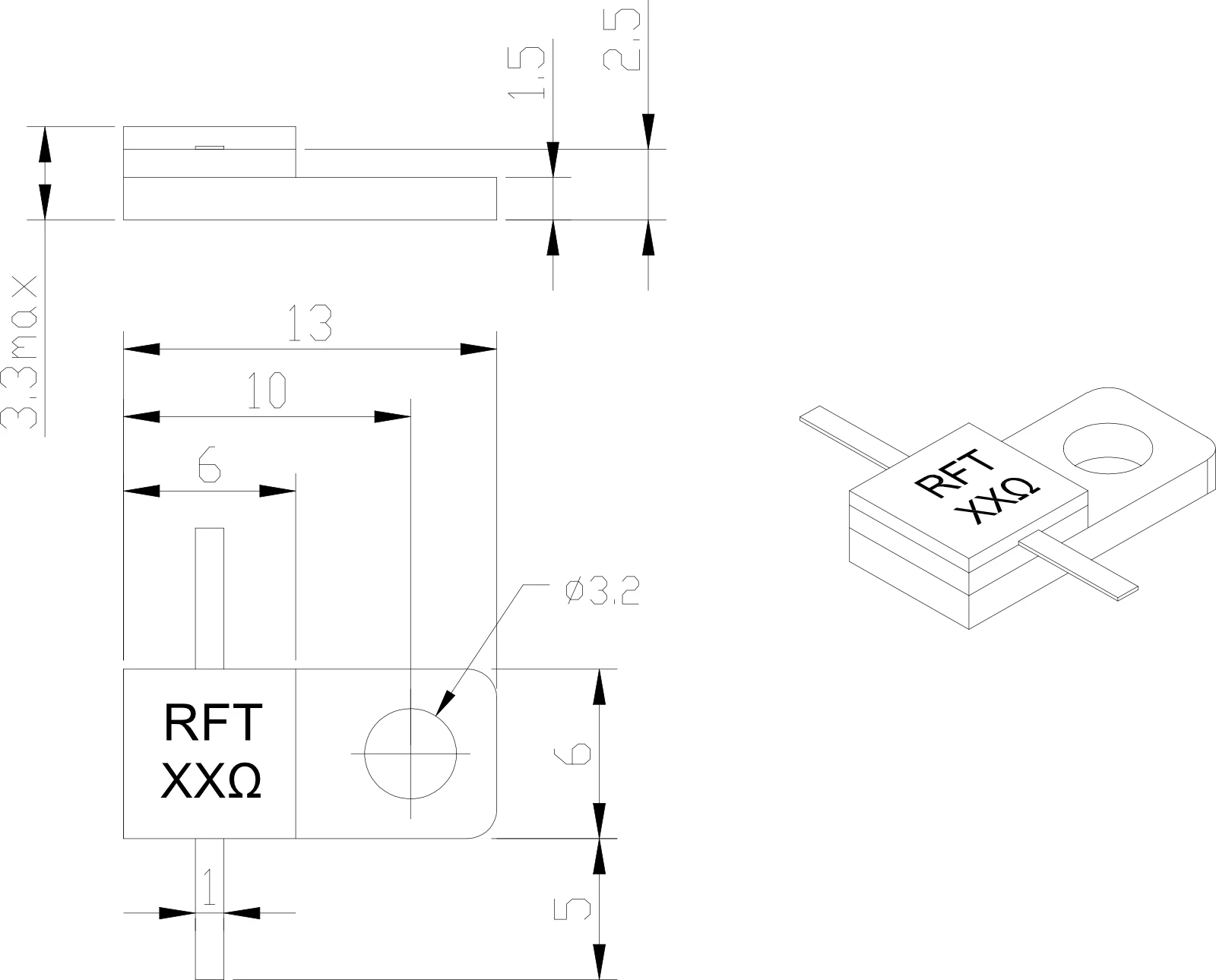

Dimensions [mm]:

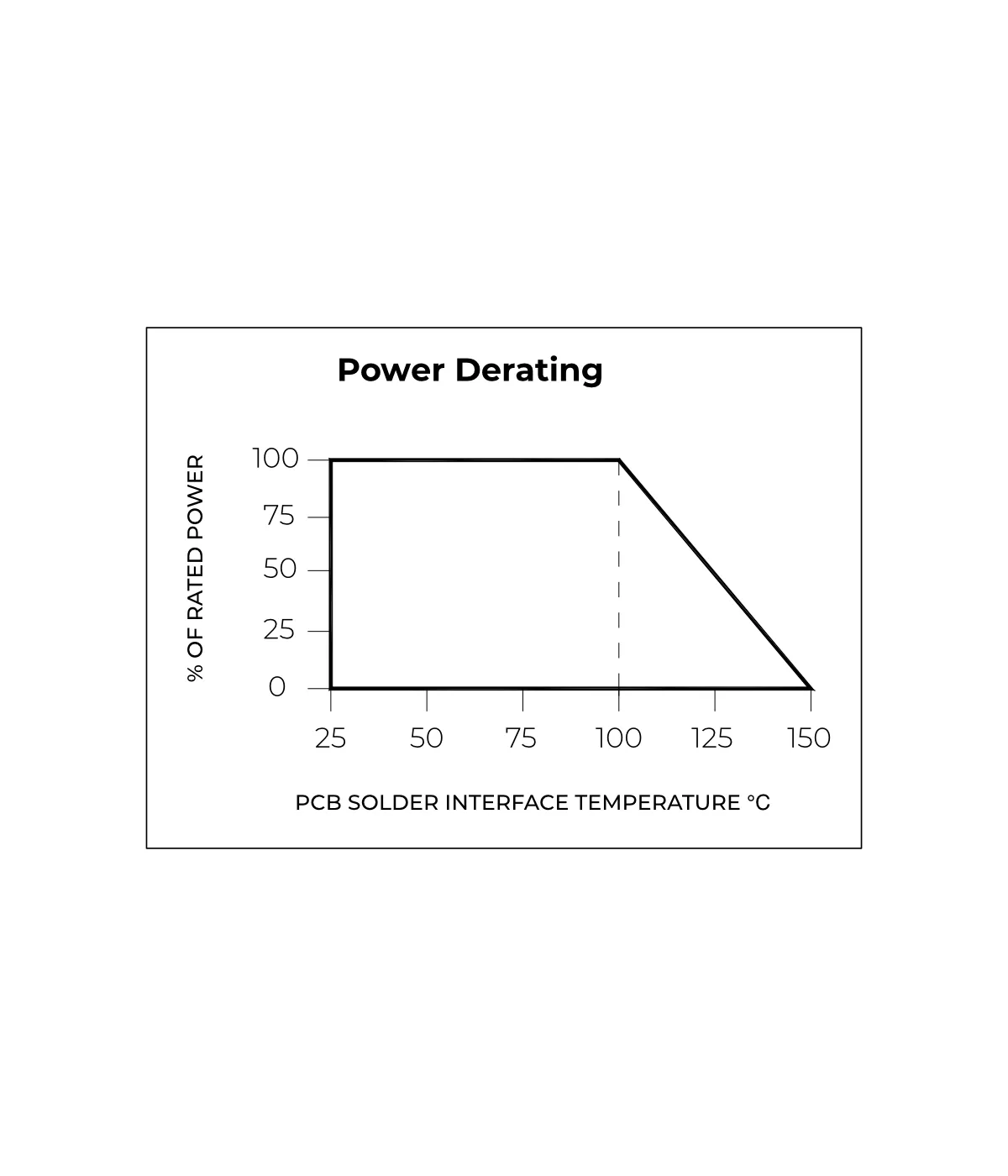

Graph temperature x power

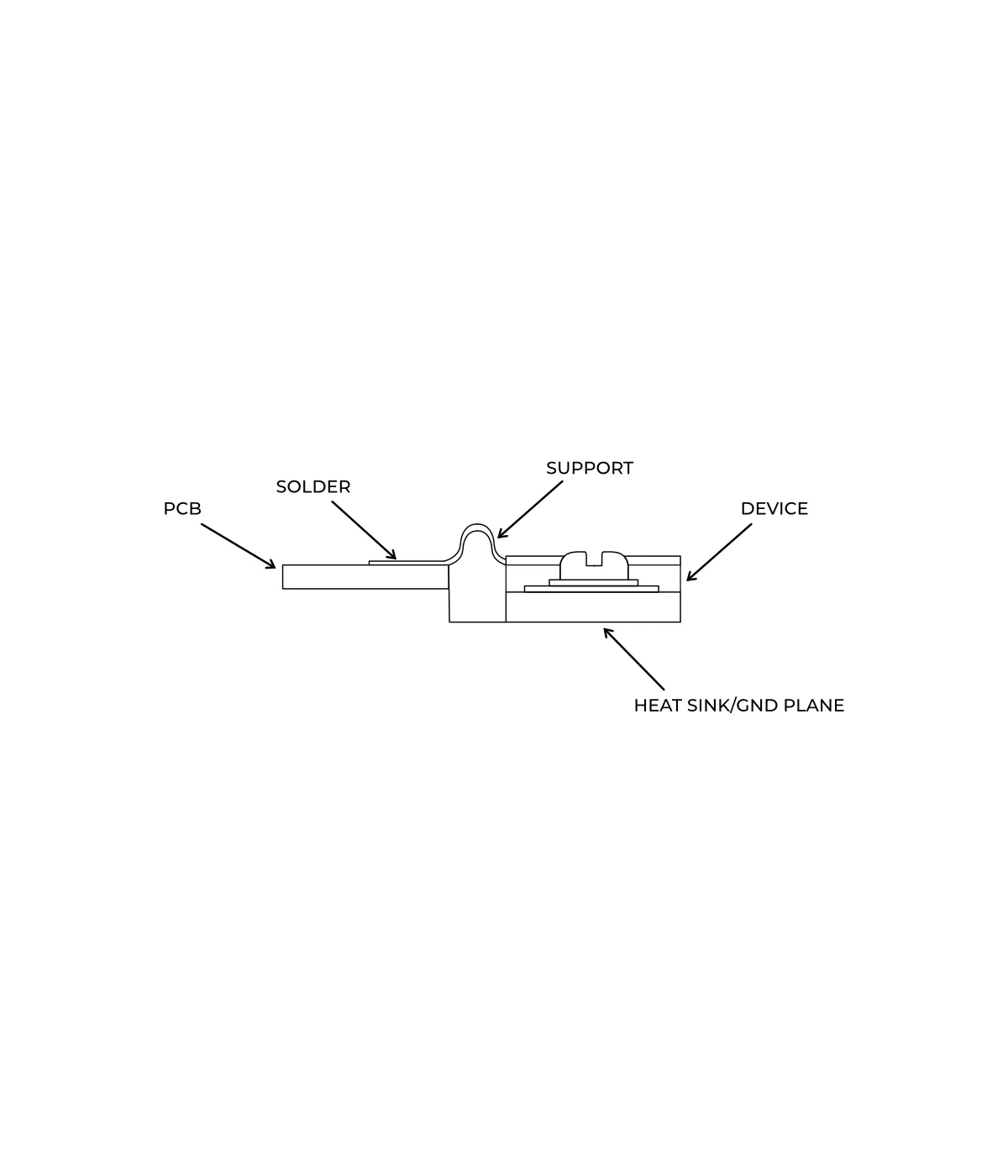

Mounting
Frequency range:
DC to 1.5 GHz
Power load:
30 W
