New

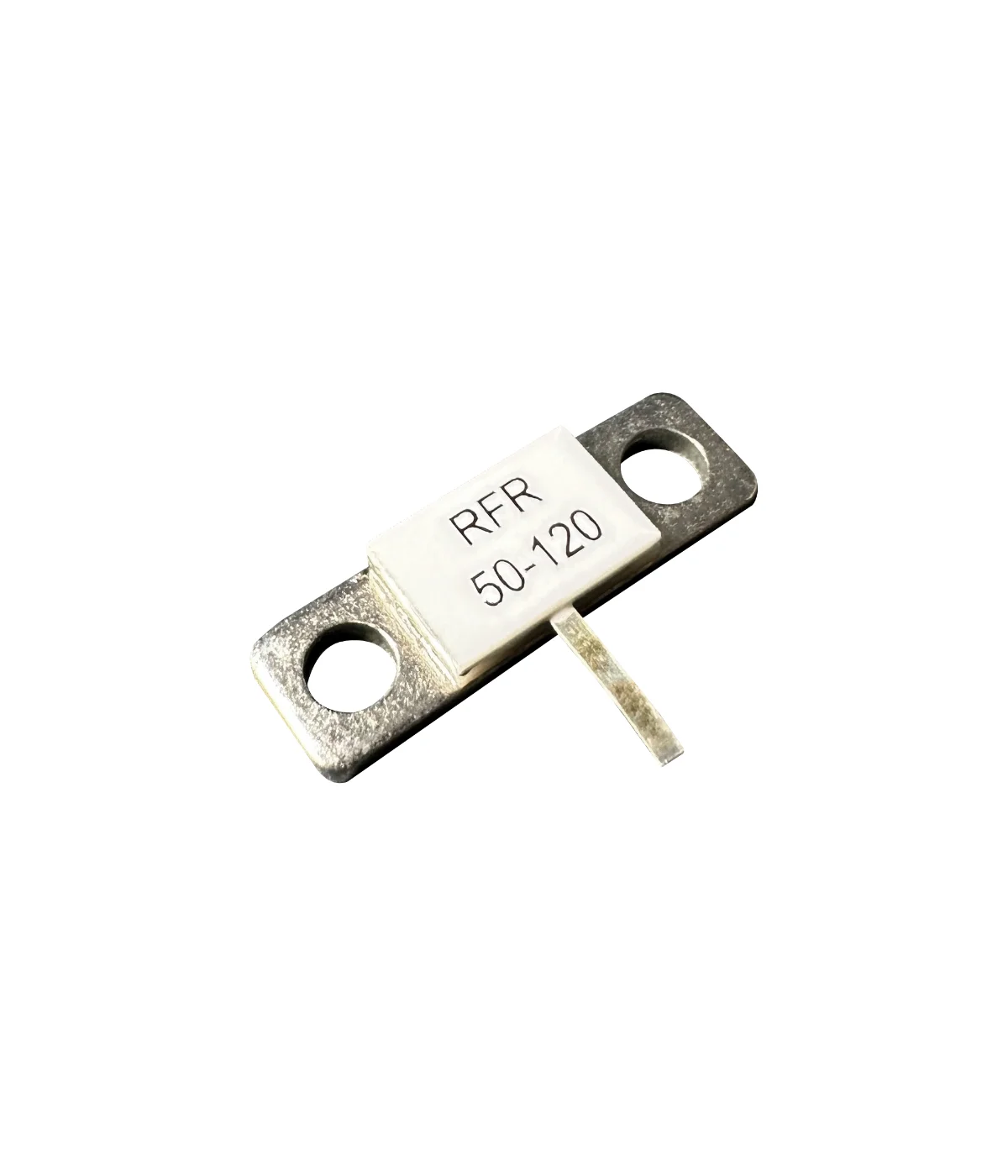

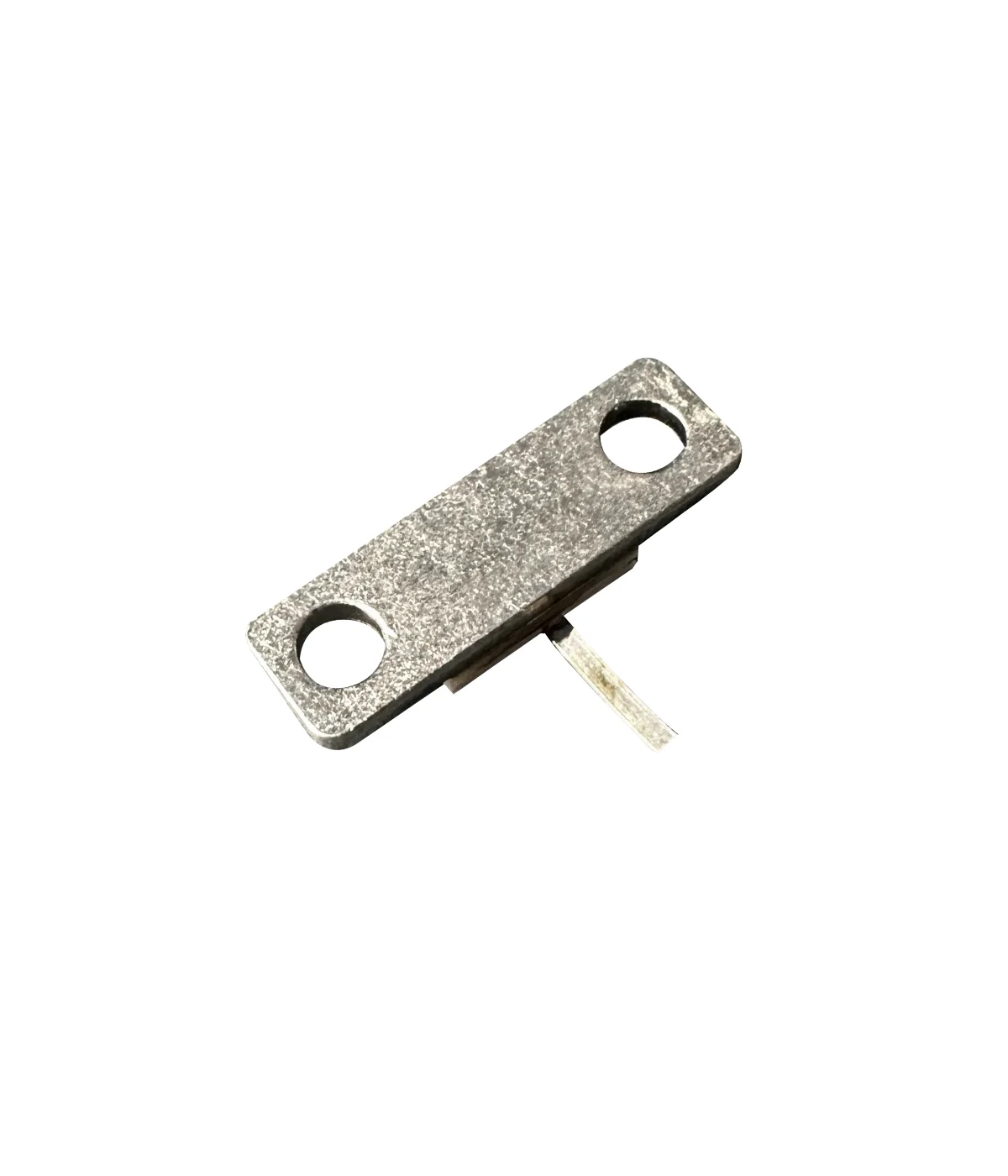

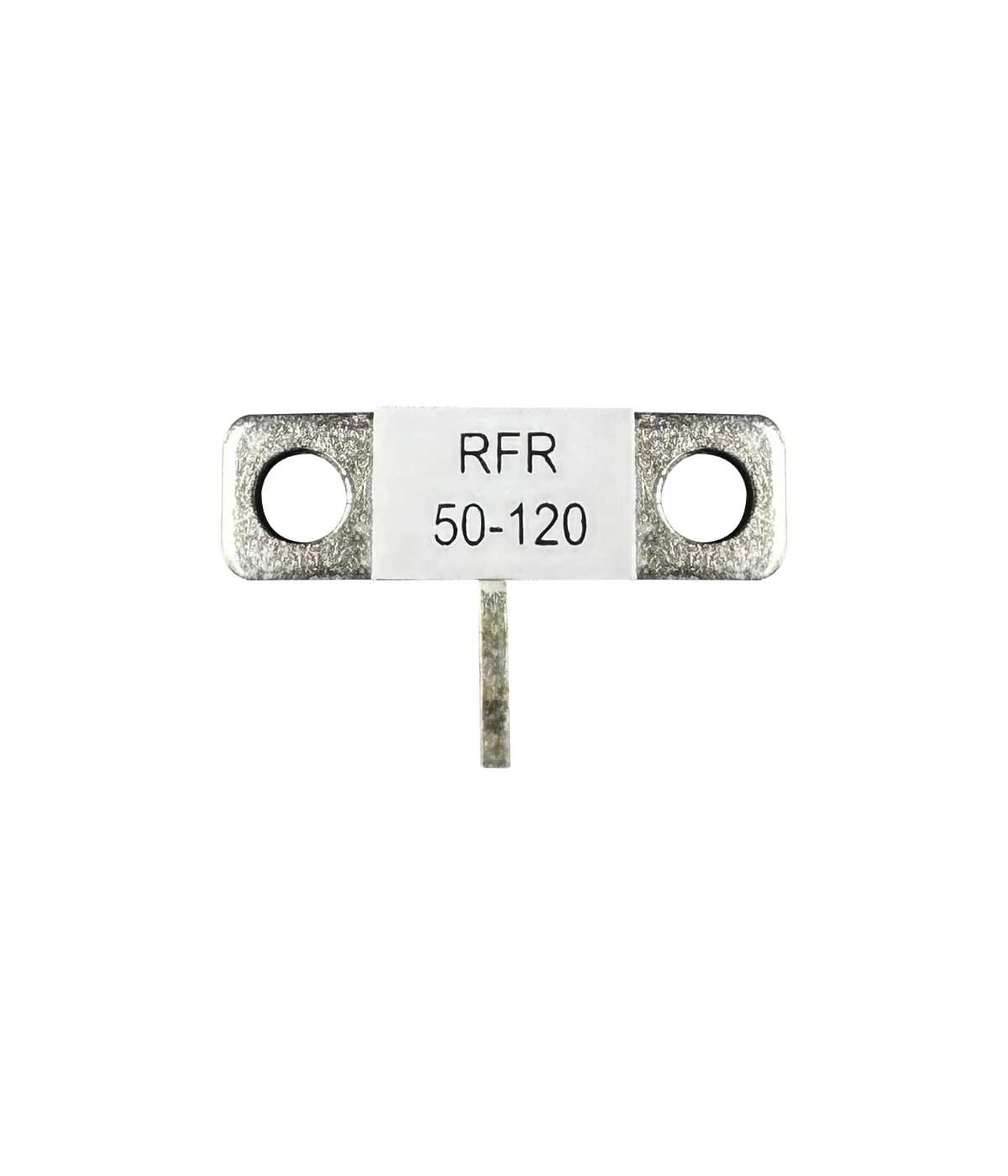

Flange mount dummy load 50Ohm 120W
Flange mount dummy load
11.50 €
9.50 € tax excl.
in stock, shipped in 2-3 days
These flange mount high power resistors are designed for variable use.
Specifications
| Type | RFR50-120 |
|---|---|
| Frequency | DC to 2.0 GHz |
| Power rating | 120 W |
| Resistance range | 50 Ohm |
| Maximal SWR | 1:1.3 |
| Resistor tolerance | 5 % |
| Dimensions |
A = 6mm |
| Substrate material | beryllium oxide ceramic |
| Operating temperature | -55℃ to +150℃ |

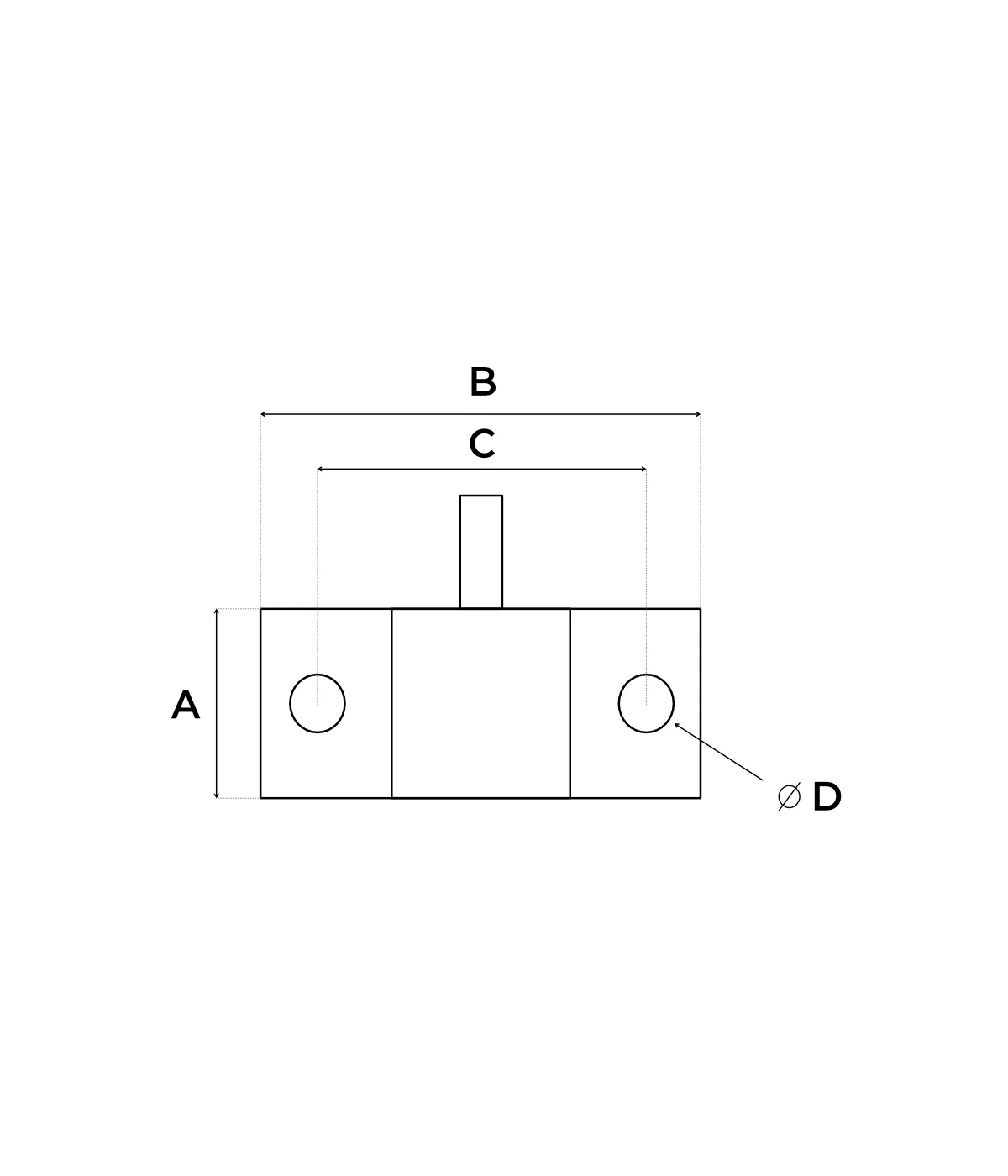

Dimensions [mm]: A = 6, B = 20, C = 14.4, D = 3.2

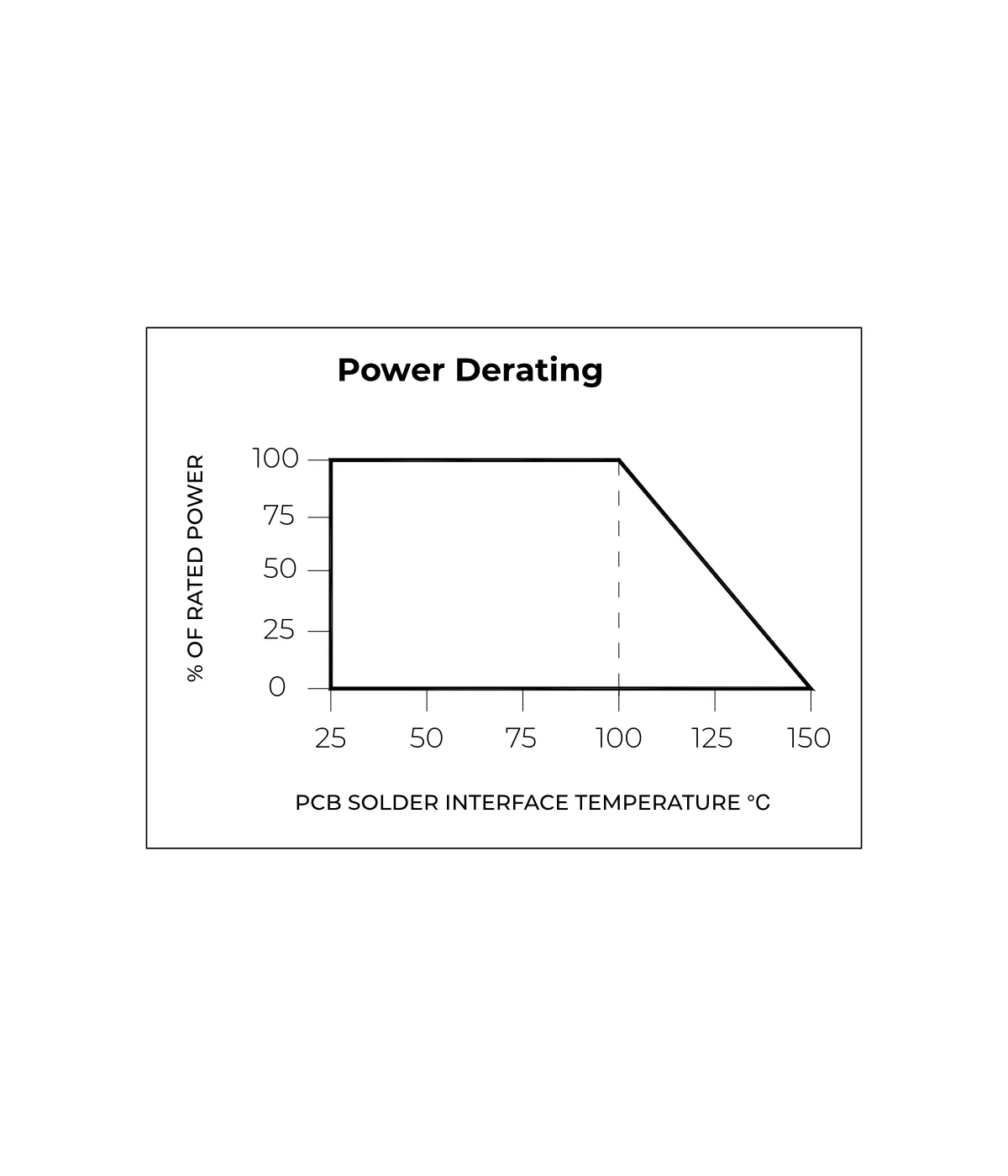

Graph temperature x power

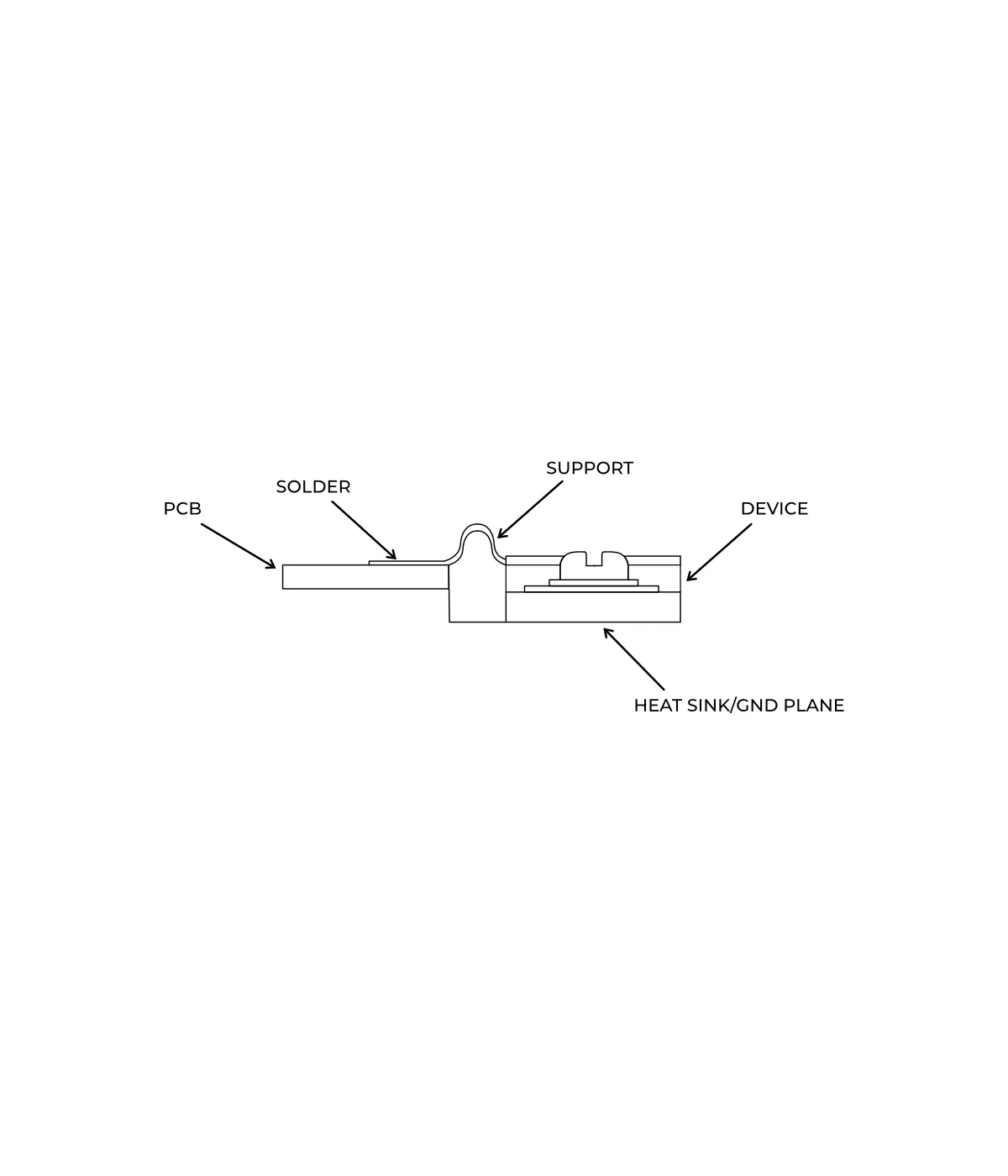

Mounting
Frequency range:
DC to 2 GHz
Power load:
120 W
