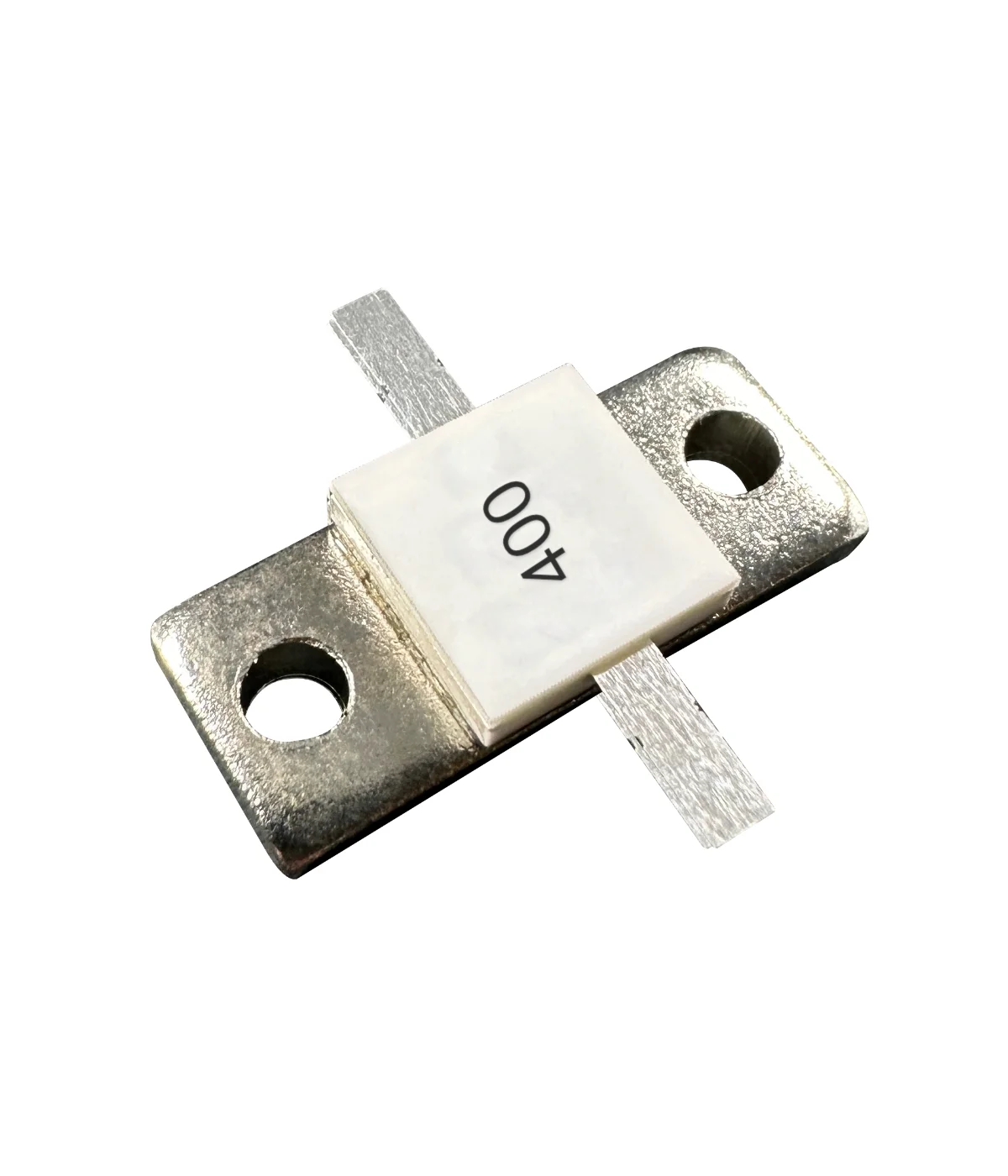

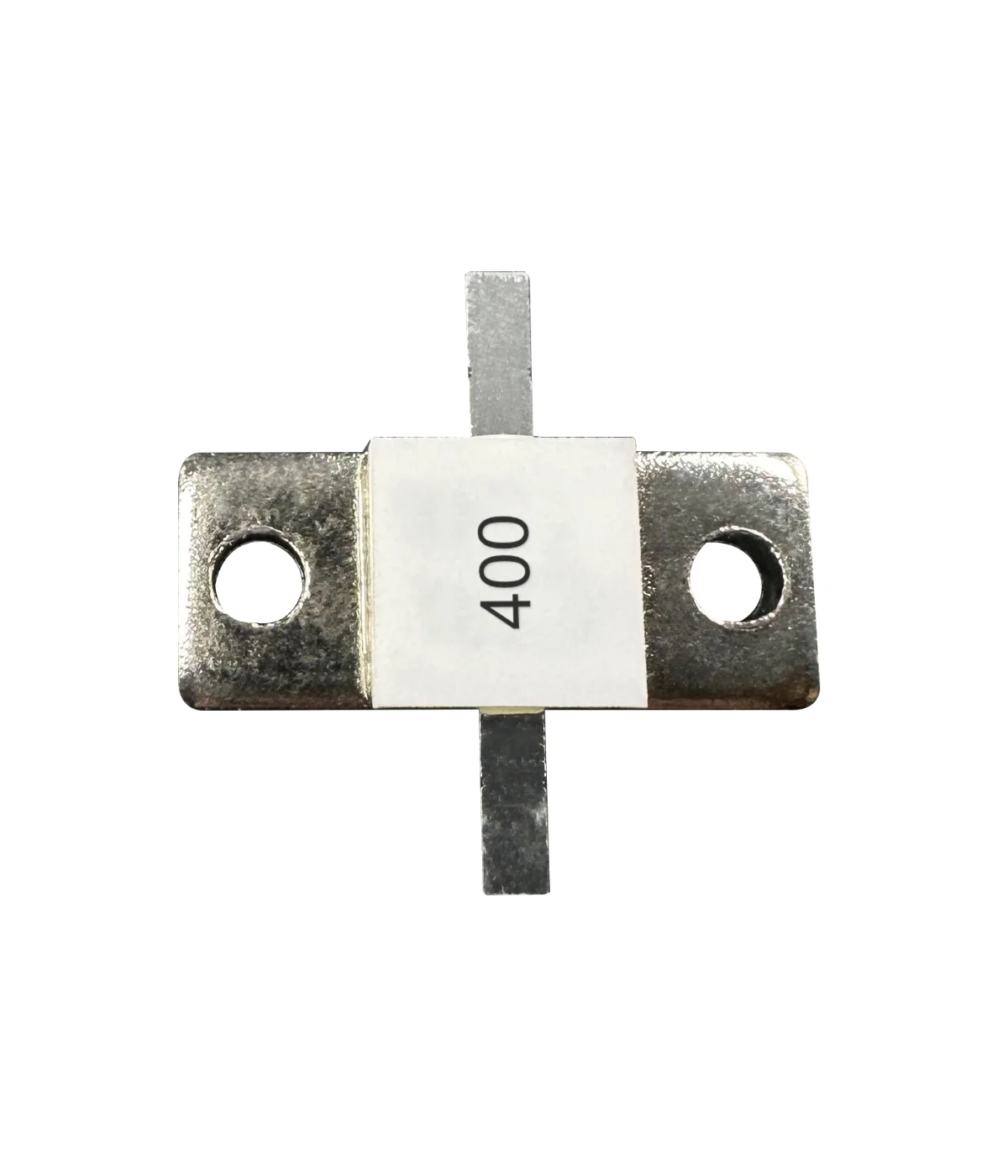

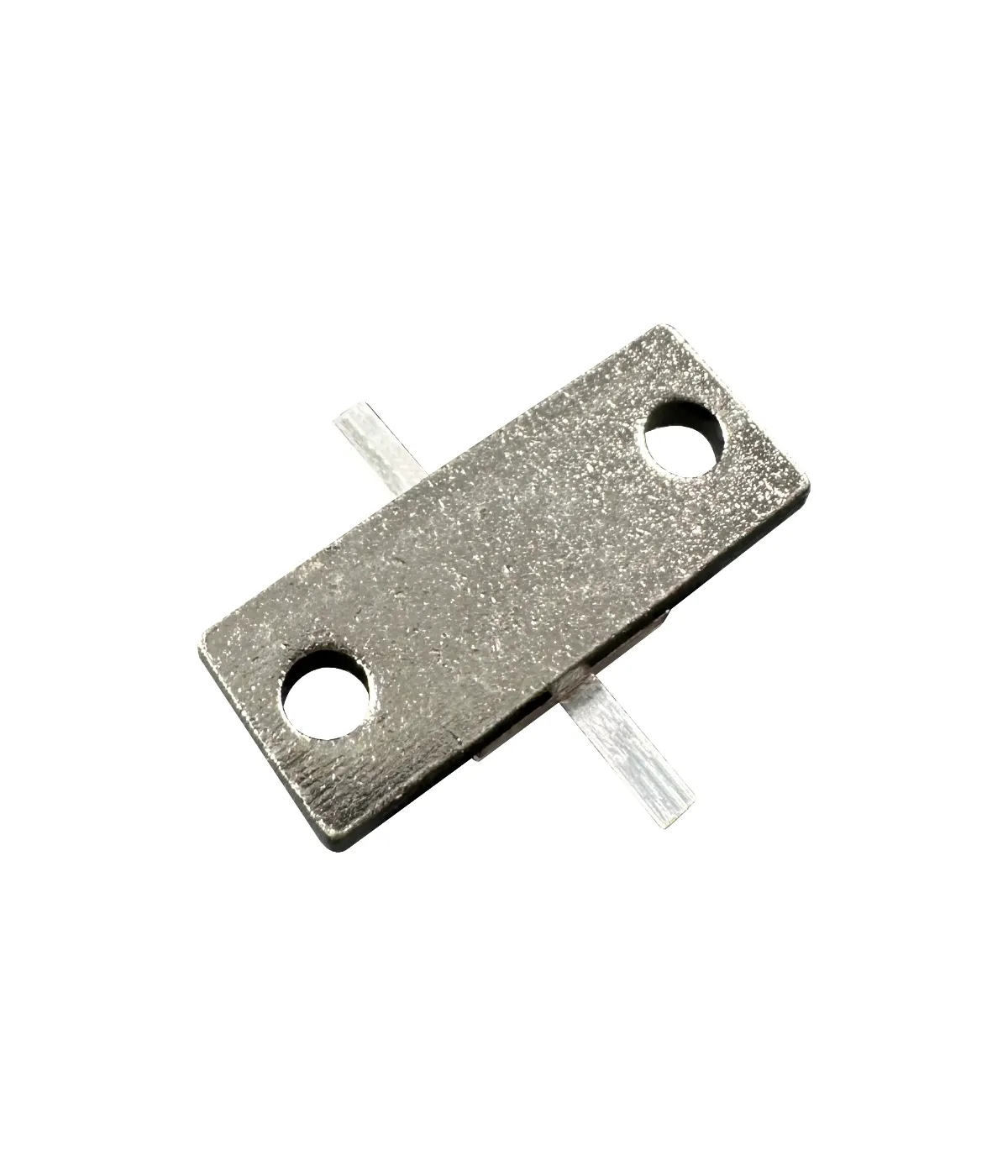

Flange mount dummy load 400Ohm 250W
Flange mount dummy load
26.62 €
22.00 € tax excl.
in stock, shipped in 2-3 days
These flange mount high power resistors are designed for variable use. Resistance is between the strips, isolated from cooler.
Specifications
| Frequency | DC to 2.0 GHz |
|---|---|
| Power rating | 250 W |
| Resistance range | 400 Ohm |
| Resistor tolerance | 5 % |
| Dimensions |
A = 10mm |
| Substrate material | beryllium oxide ceramic |
| Typical capacitance | ≤ 4.5 pf |
| Operating temperature | -55℃ to +150℃ |
| Temperature coefficient | ≤ 150 ppm/℃ |

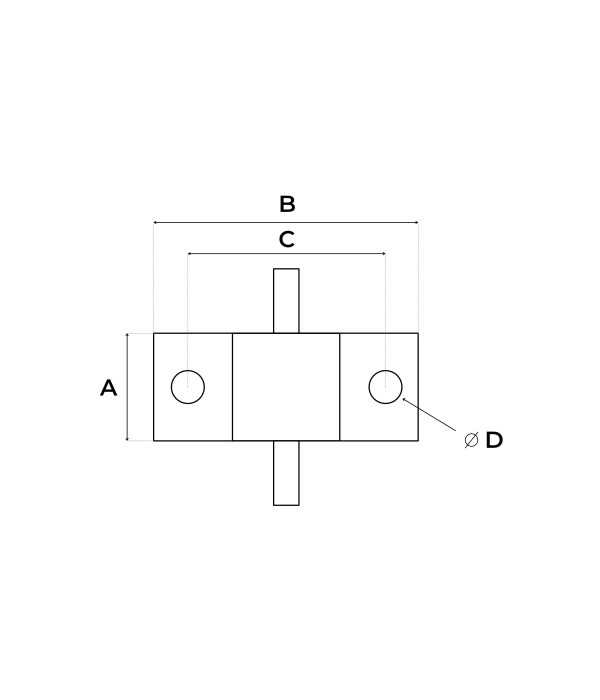

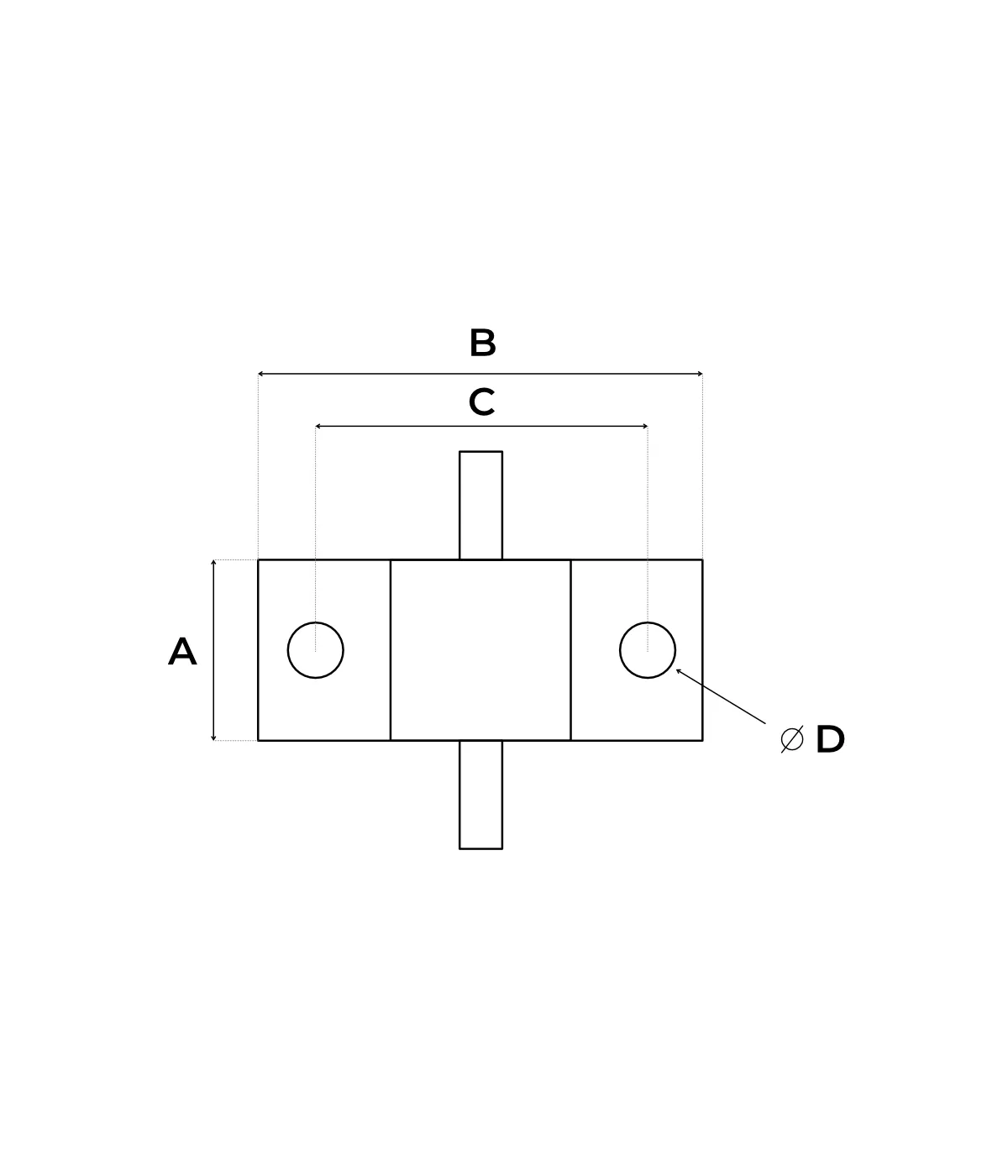

Dimensions [mm]: A = 10, B = 24.8, C = 18.4, D = 3.5

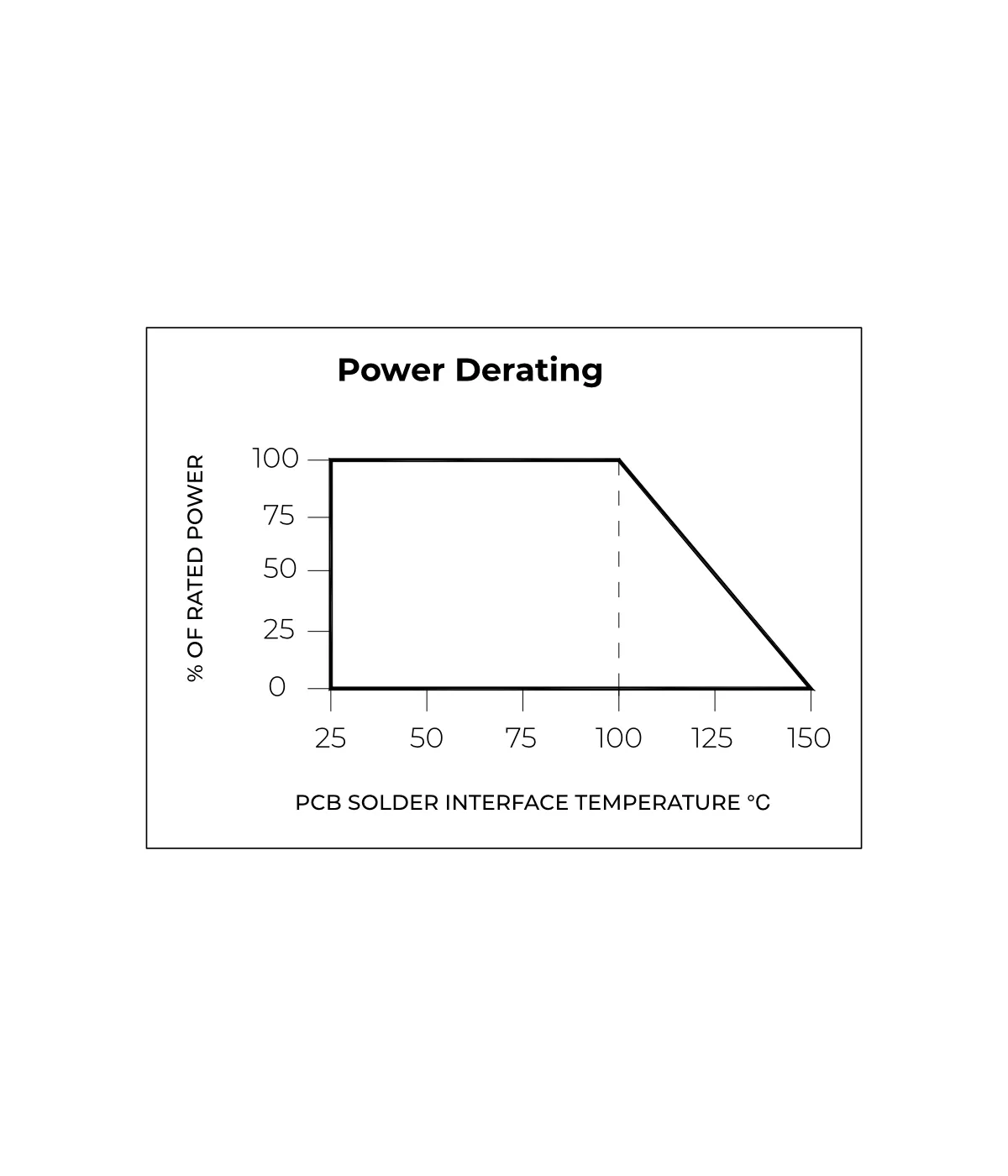

Graph temperature x power

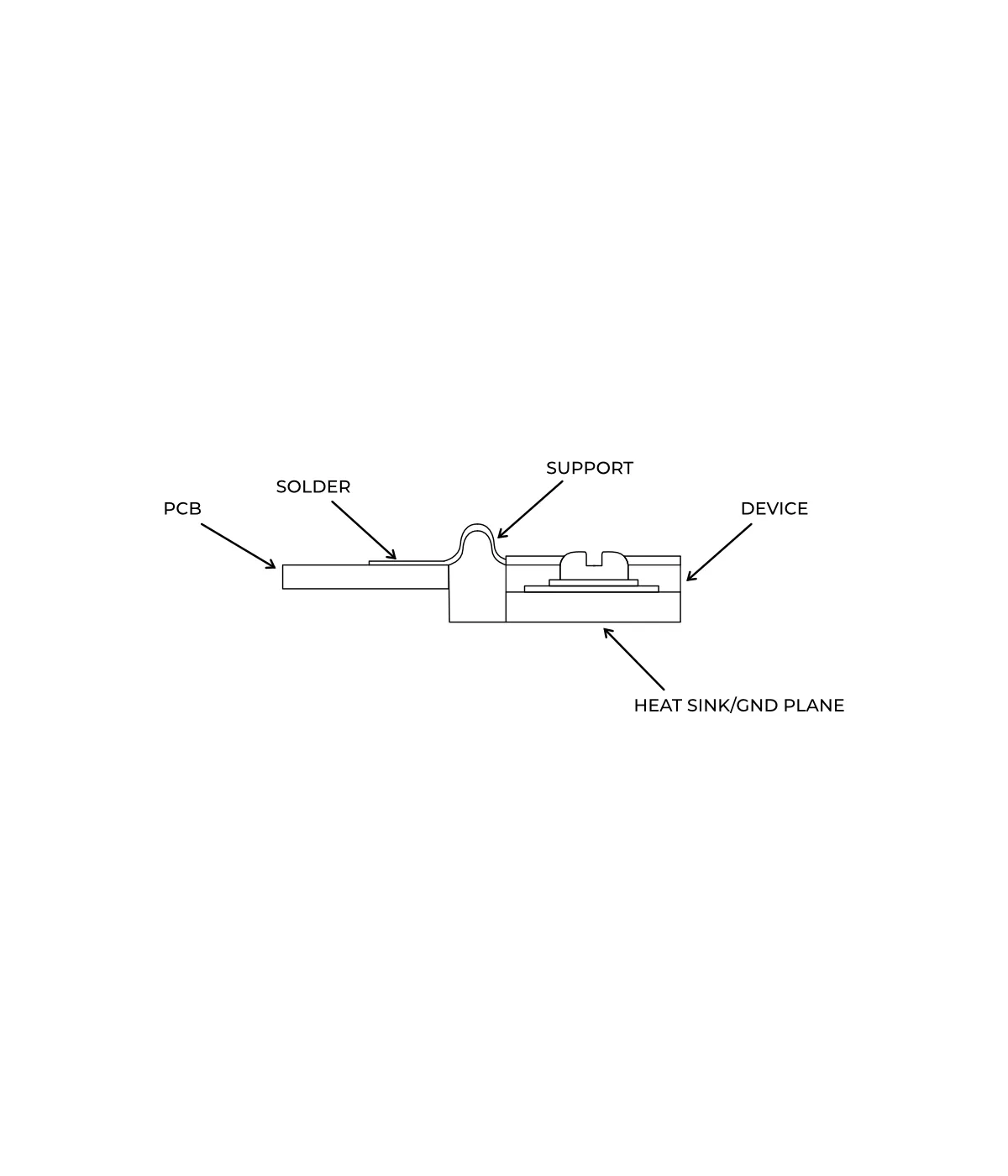

Mounting
Frequency range:
DC to 2 GHz
Power load:
250 W
