Coaxial attenuator N female and N male 30dB 200W 3GHz

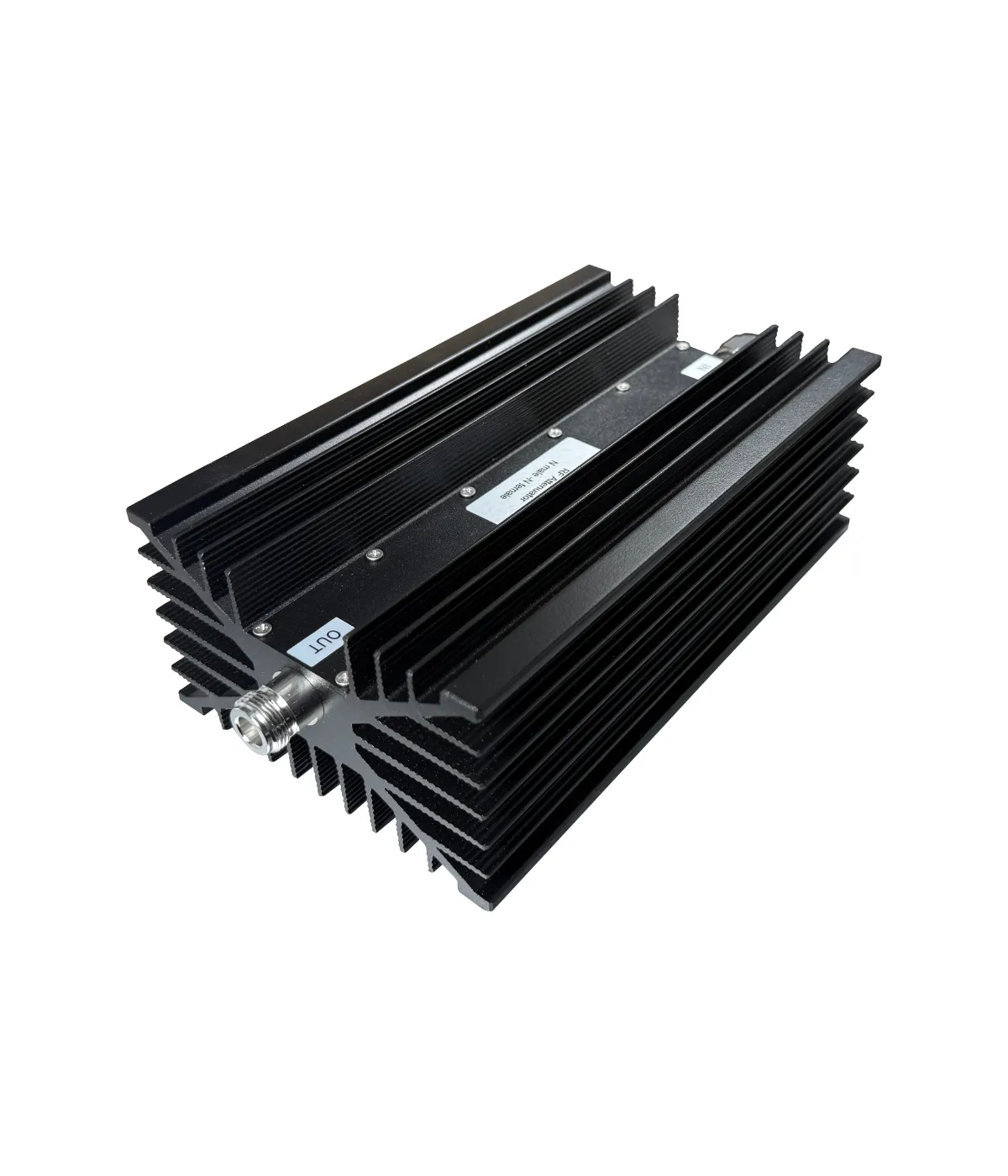

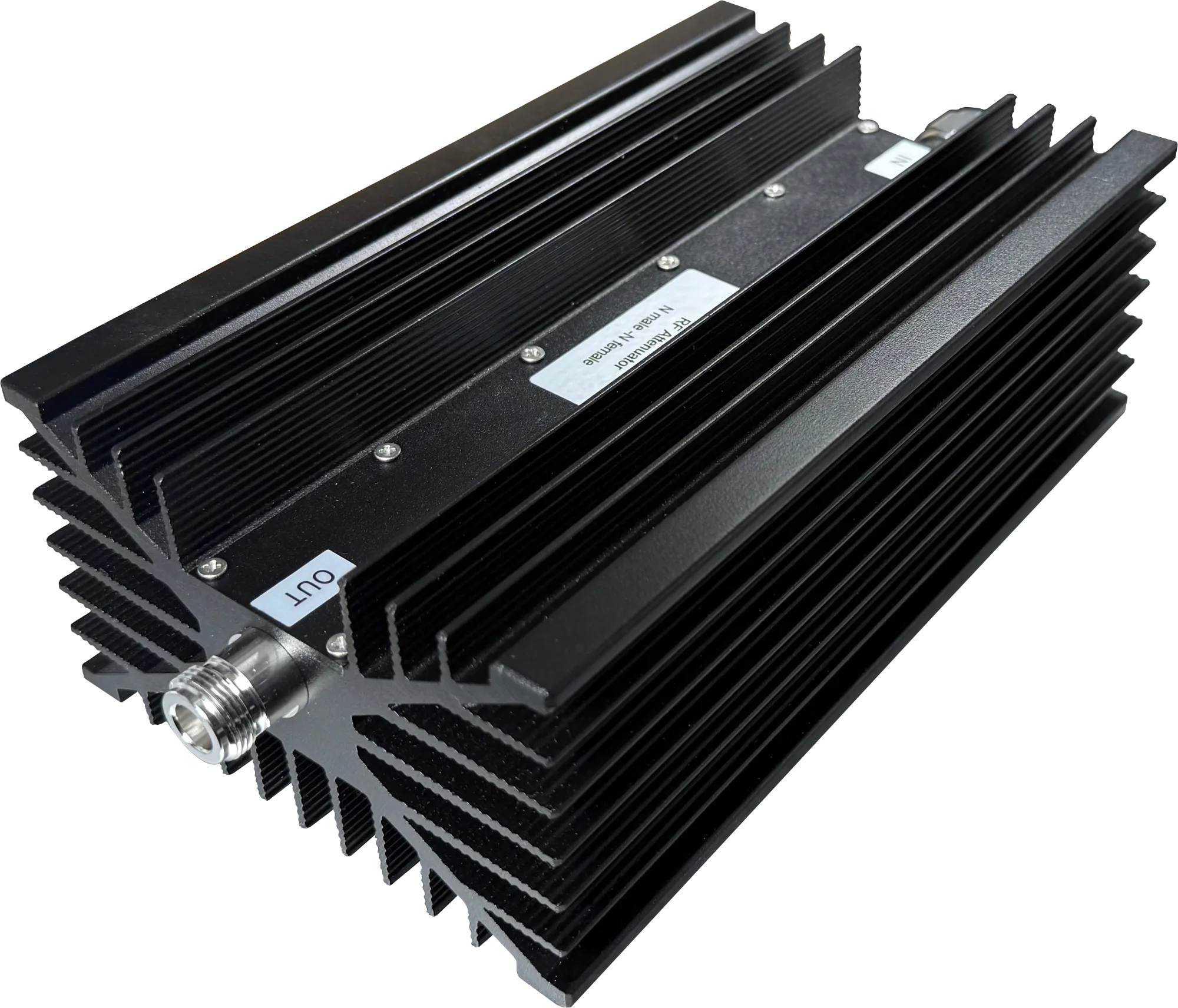

High power coaxial attenuator with N male and N female connectors
127.05 €
105.00 € tax excl.
in stock, shipped in 2-3 days
This is power attenuator designed for measuring and testing purposes. The built-in attenuation is 30 dB and can withstand power loads up to 200 W.

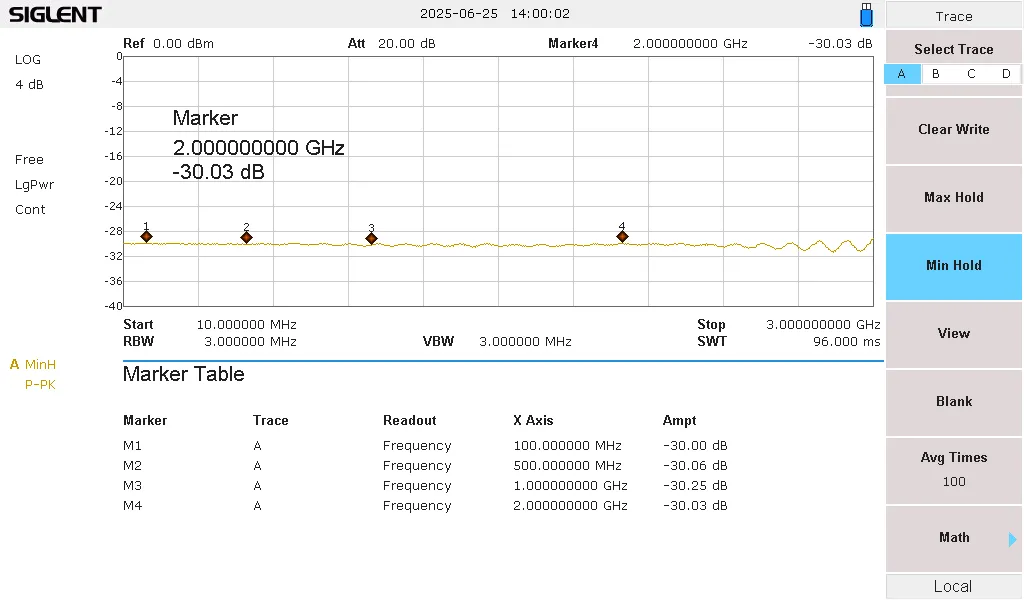

Specifications
| Impedance | 50 Ohm |
|---|---|
| Frequency | DC to 3 GHz |
| Power rating | max. 200 W |
| Maximal attenuator error | 0.8 dB |
| Maximal SWR | 1:1.2 |
| Connector | N male and N female |
| Input | N male |
| Output | N female |
| VSWR: | ≤ 1.2 |
| Temperature range | -55 to +125℃ |
| Working temperature range | up to 85℃ |
| Dimensions | 245x140x65 mm |
| Weight | 1.6 kg |

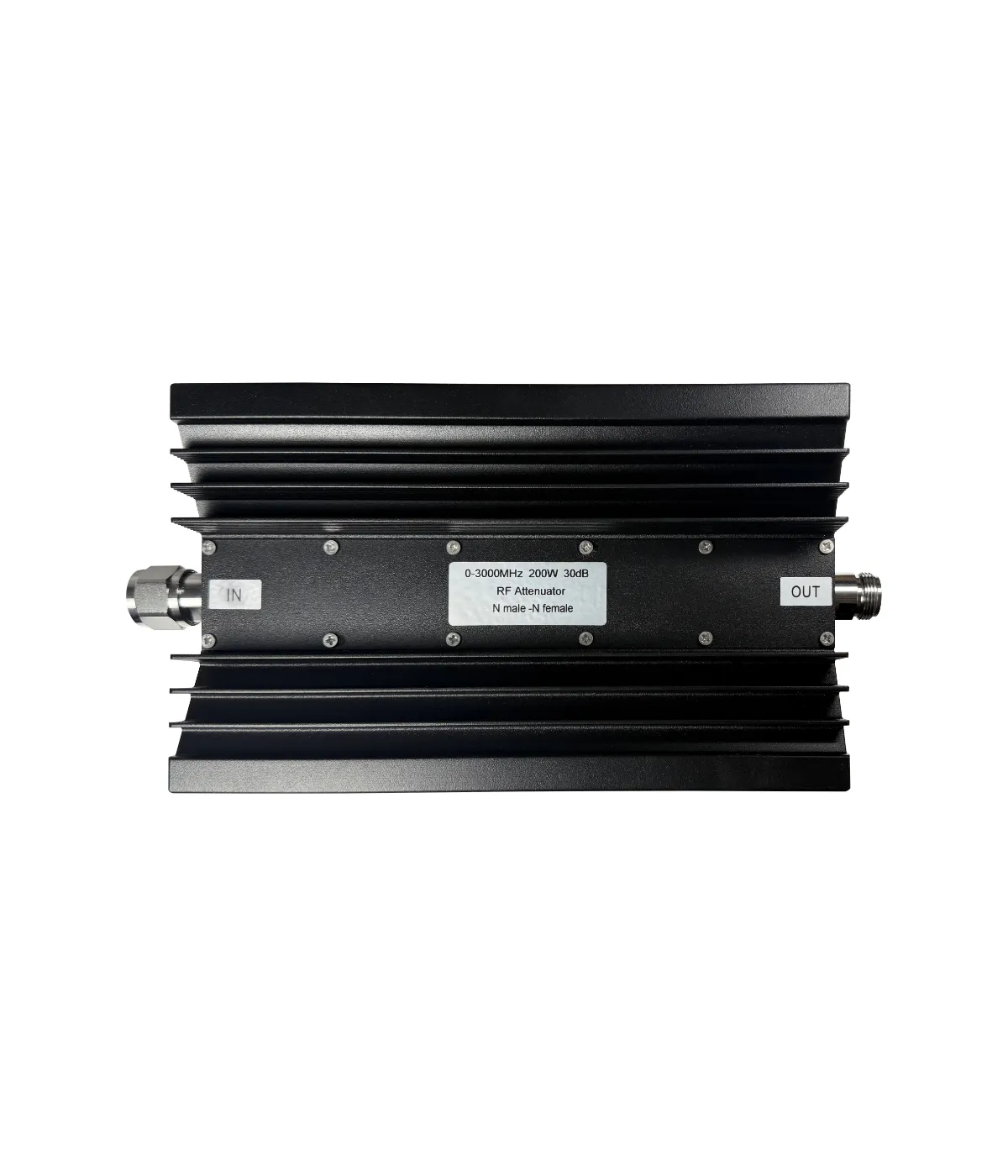

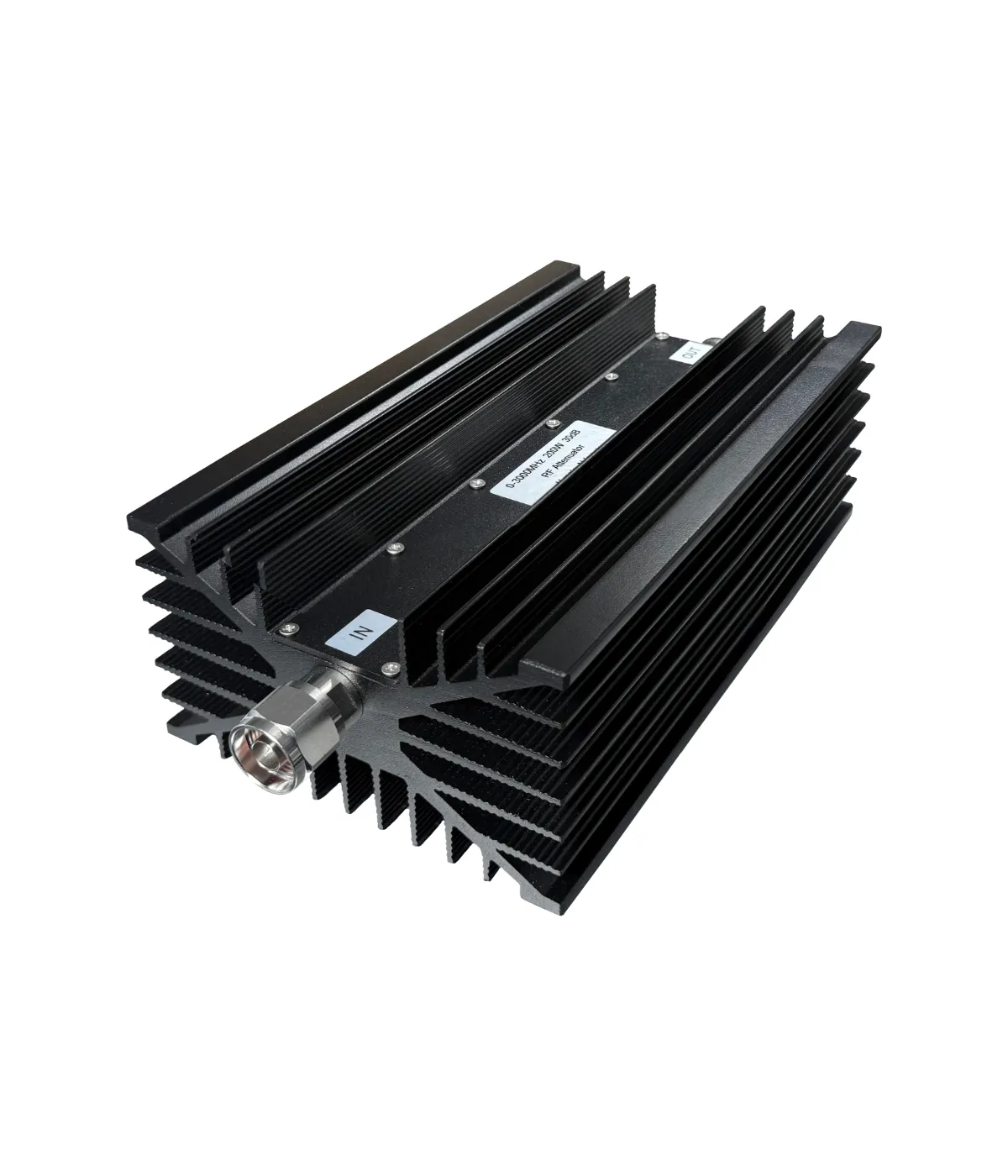

⚠ Make sure you have the correct connection. The port labeled IN is the N male connector and handles up to 200W of RF power — reversing the connection will destroy the attenuator.
⚠ For continuous power loads above 50W, the heatsink must be fan-cooled to ensure proper heat dissipation.
Connector type:
N female, N male
Frequency range:
DC to 3 GHz
Impedance:
50 Ohm
ATT:
30 dB
Power load:
200 W
