EMI filter AC 230V 10A with RF shielding
EMI filter, 230V AC, 10A, RF shielded metal enclosure- three-stage common-mode + differential filtering

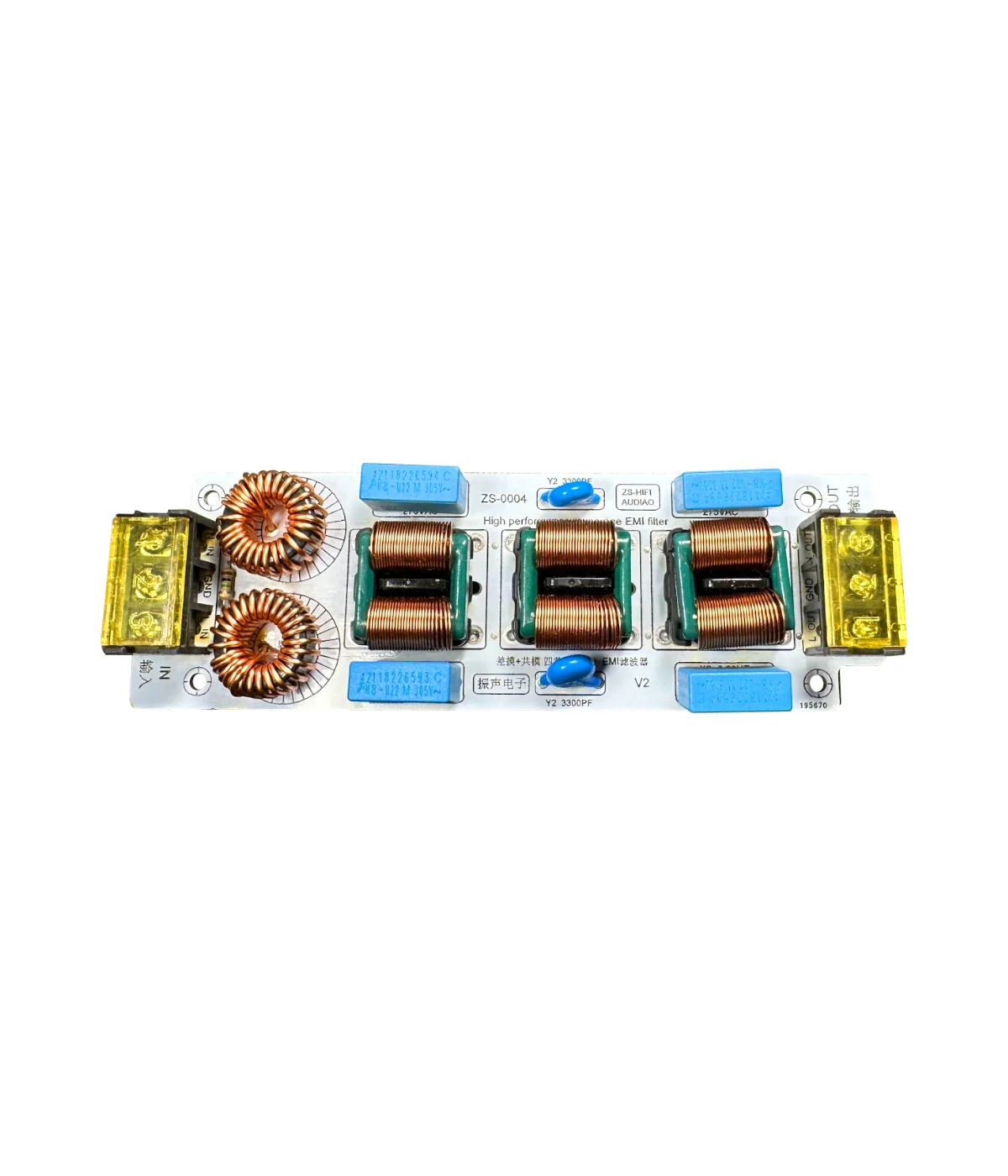

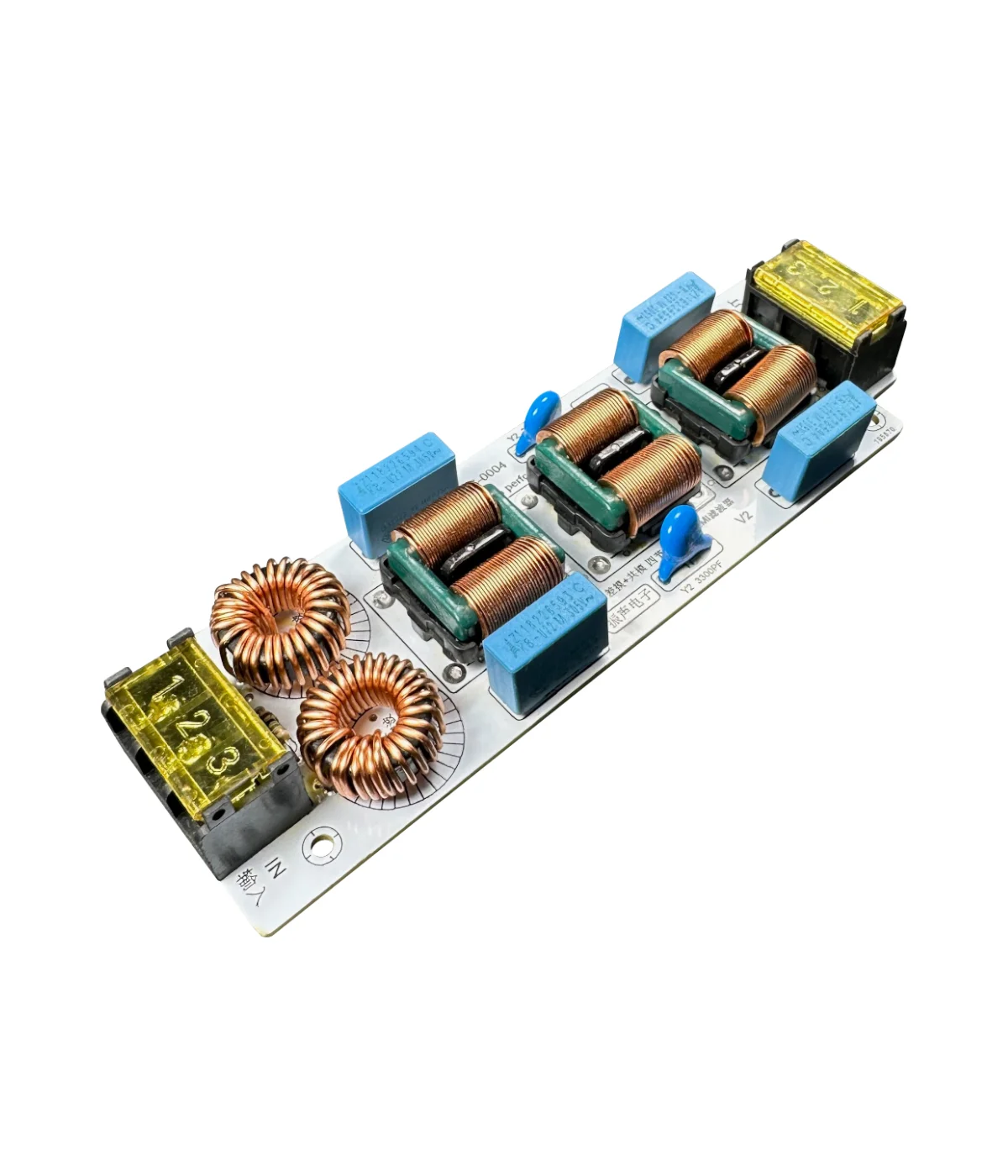

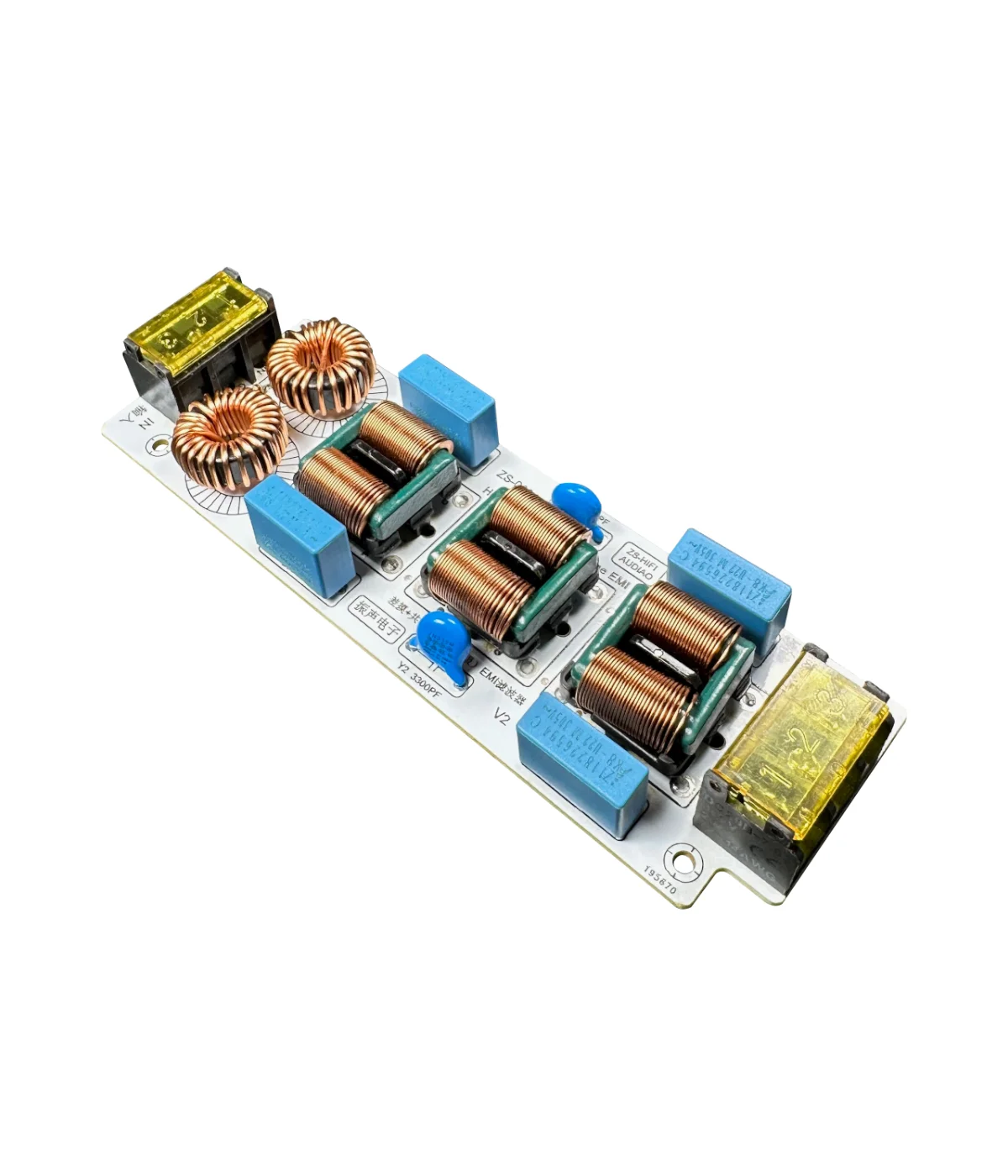

This is a differential and three-stage common-mode 230V 10A AC EMI (electromagnetic interference) filter used to diminish the high-frequency electromagnetic noise generated by different electronic and electrical devices. The common-mode filter is combined through an X2 capacitor and a common-mode inductor. The three-stage common-mode filtering has a better noise filtering effect - it can suppress the problem of fast transient interference by group pulses with a repetition rate of several thousand Hz at some user locations.
Use it to decrease high-frequency electronic noise, as a differential and common-mode line filter, an additional filter for linear and switching mode PSUs, or as a filter for a common 230V AC plug.
Specifications
| Form factor | PCB module in metal enclosure |
|---|---|
| Filter topology | Two-core differential mode LC filter, three-stage common-mode filter |
| AC voltage | 110 V 60 Hz, 230 V 50 Hz |
| Max. current | 10 A |
| Filtering | High RF noise suppression, high differential filtering, very high common-mode isolation |

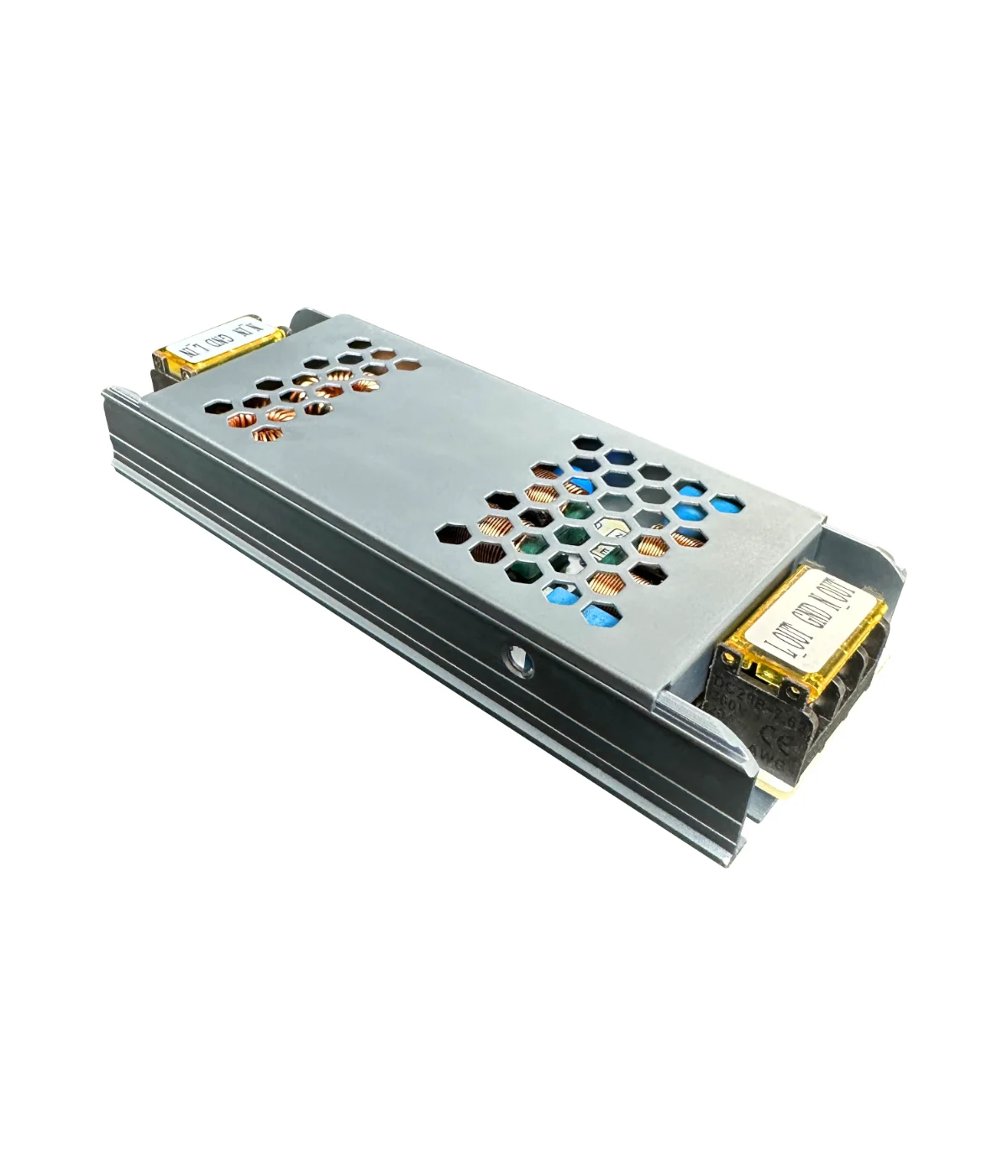

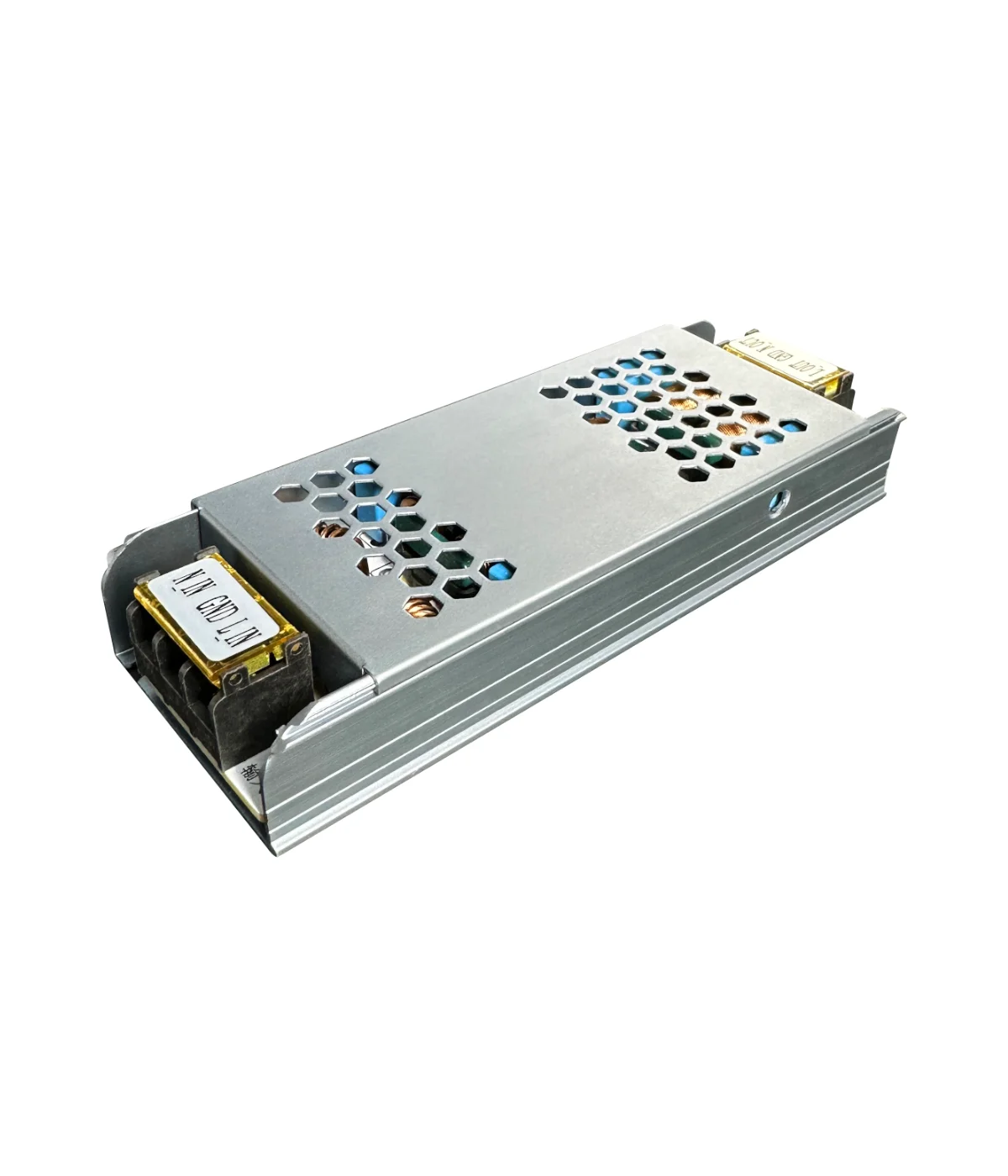

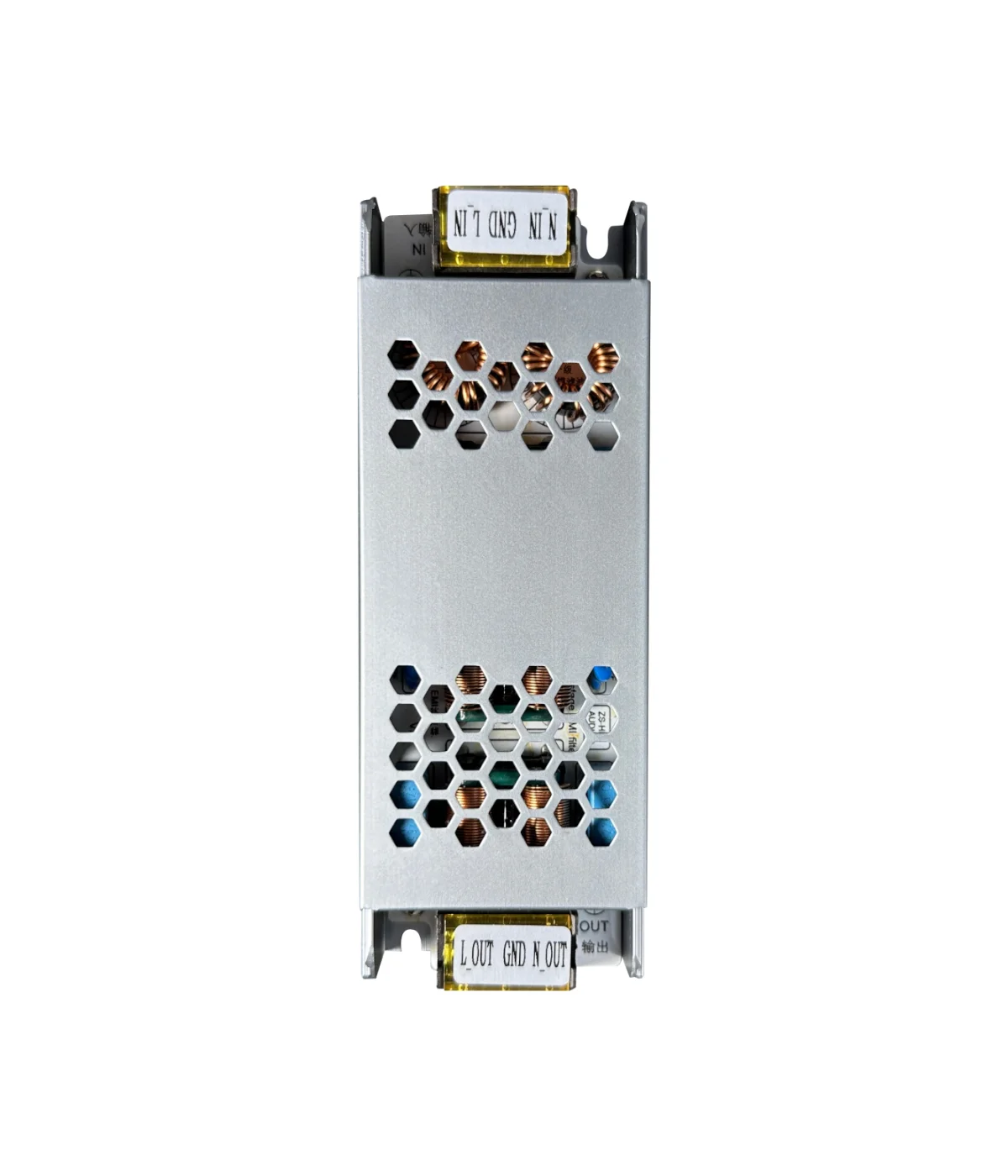

| Shielding | Extra isolation in metal enclosure |
| Dimensions | 140x50x25 mm |
| Weight | 0.17 kg |
