EMI filter DC 36V 20A
Differential DC EMI filter, up to 50V, 15A continuous/20A peak - for symmetrical or isolated DC lines
15.00 €
15.00 € tax excl.
in stock, shipped in 2-3 days

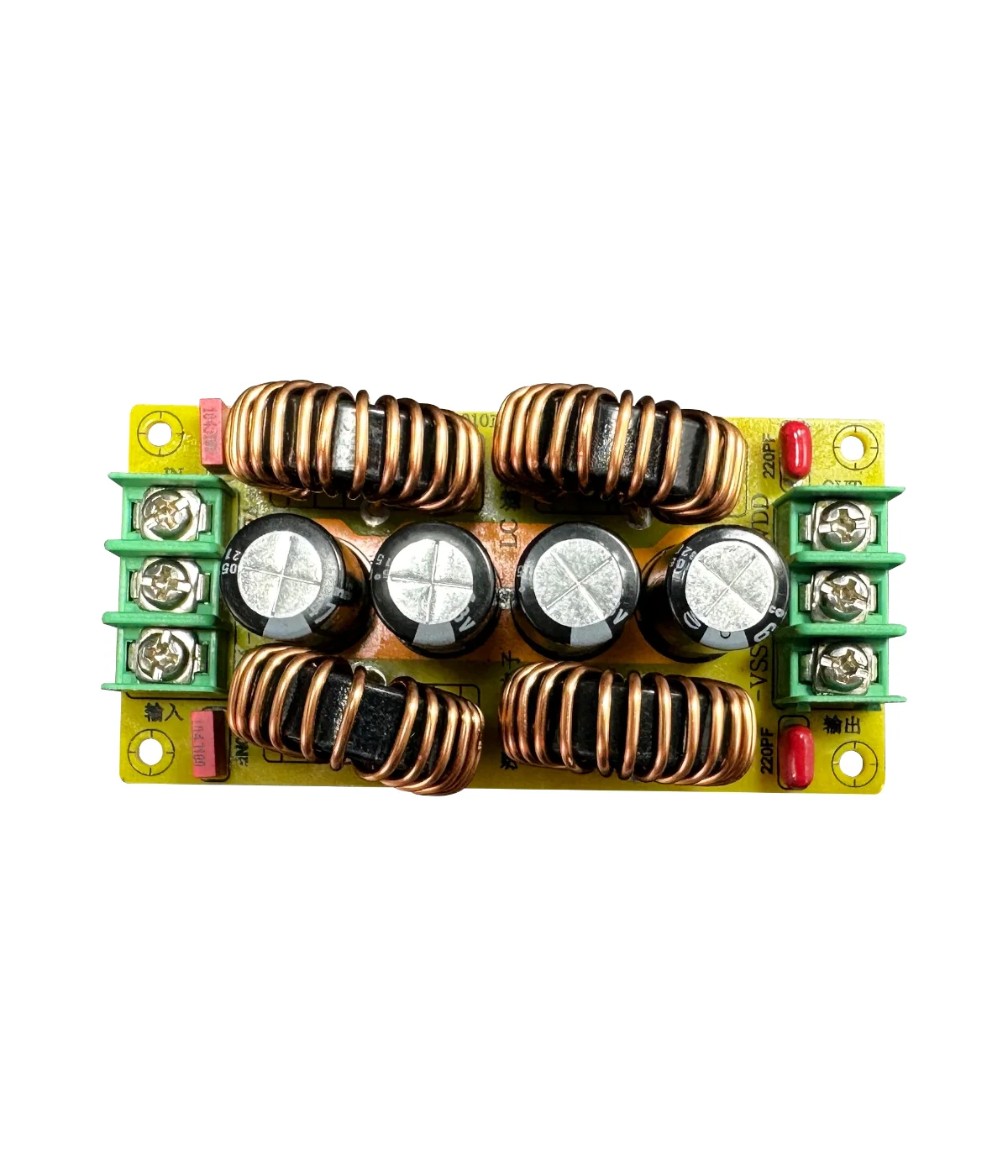

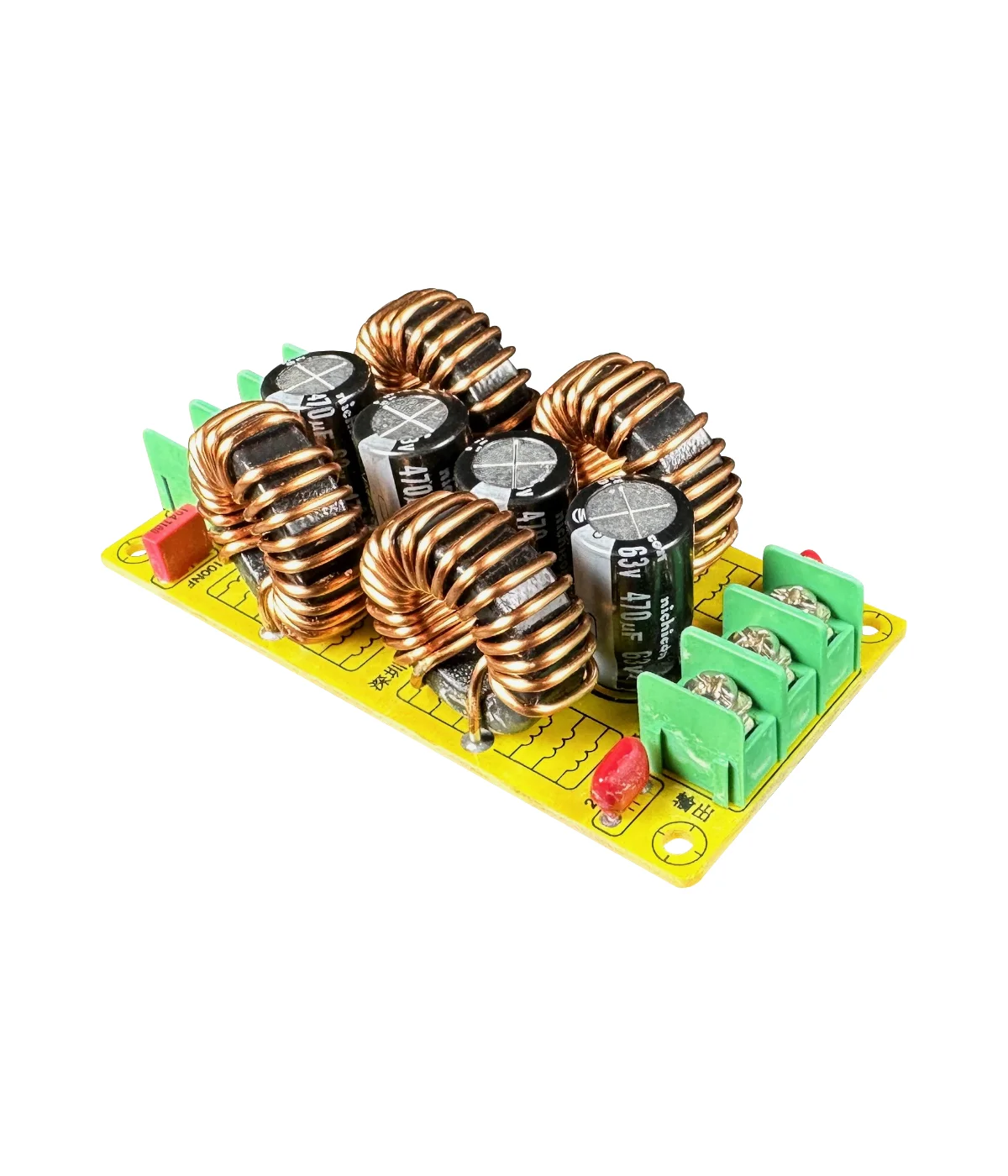

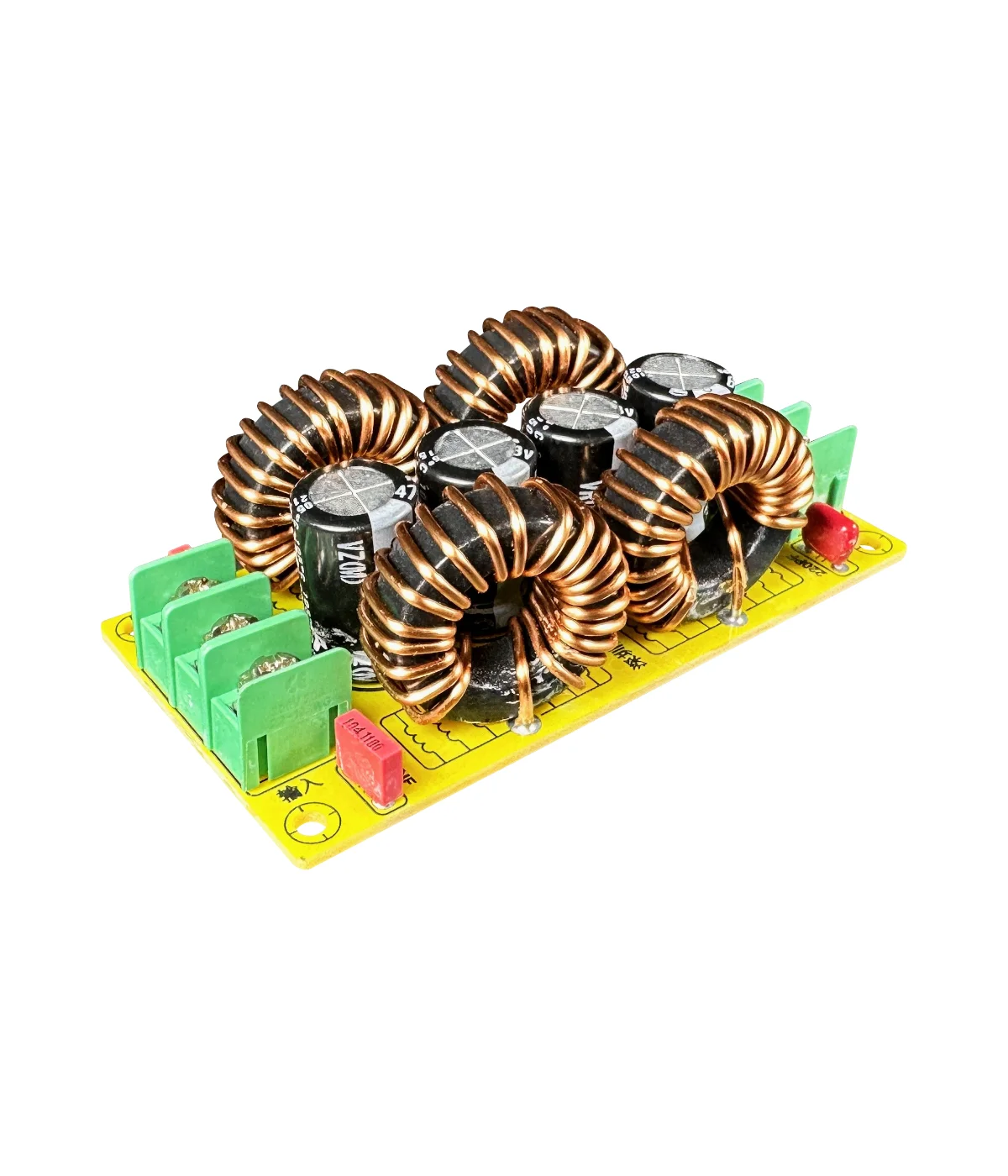

This is a differential DC EMI (electromagnetic interference) filter for symmetrical or isolated DC lines. It can be used with DC+ and DC− referenced to GND, or with a DC output fully isolated from GND (see schematic). It is designed for DC voltage up to 50V (caps rated for 63V) and a maximum peak current of 20A.
Use it to decrease high-frequency electronic noise, as a differential line filter, an additional filter for linear and switching mode PSUs, on the DC output from a power supply, or on the DC input of your device.
Specifications
| Form factor | PCB module, + and - isolated from GND |
|---|---|
| Filter topology | Differential filter, symmetrical configuration for + and - |
| Max. DC voltage | 50 V (caps rated 63 V) |
| Max. current | 15 A continuous, 20 A peak |
| Filtering | High RF noise suppression, high differential isolation |
| Dimensions | 87x44x28 mm |
| Weight | 0.105 kg |
