New
EMI filter DC 36V 12A with RF shielding
DC EMI filter, up to 50V/12A, isolated metal enclosure - common-mode and half-differential filtering
20.00 €
20.00 € tax excl.
in stock, shipped in 2-3 days

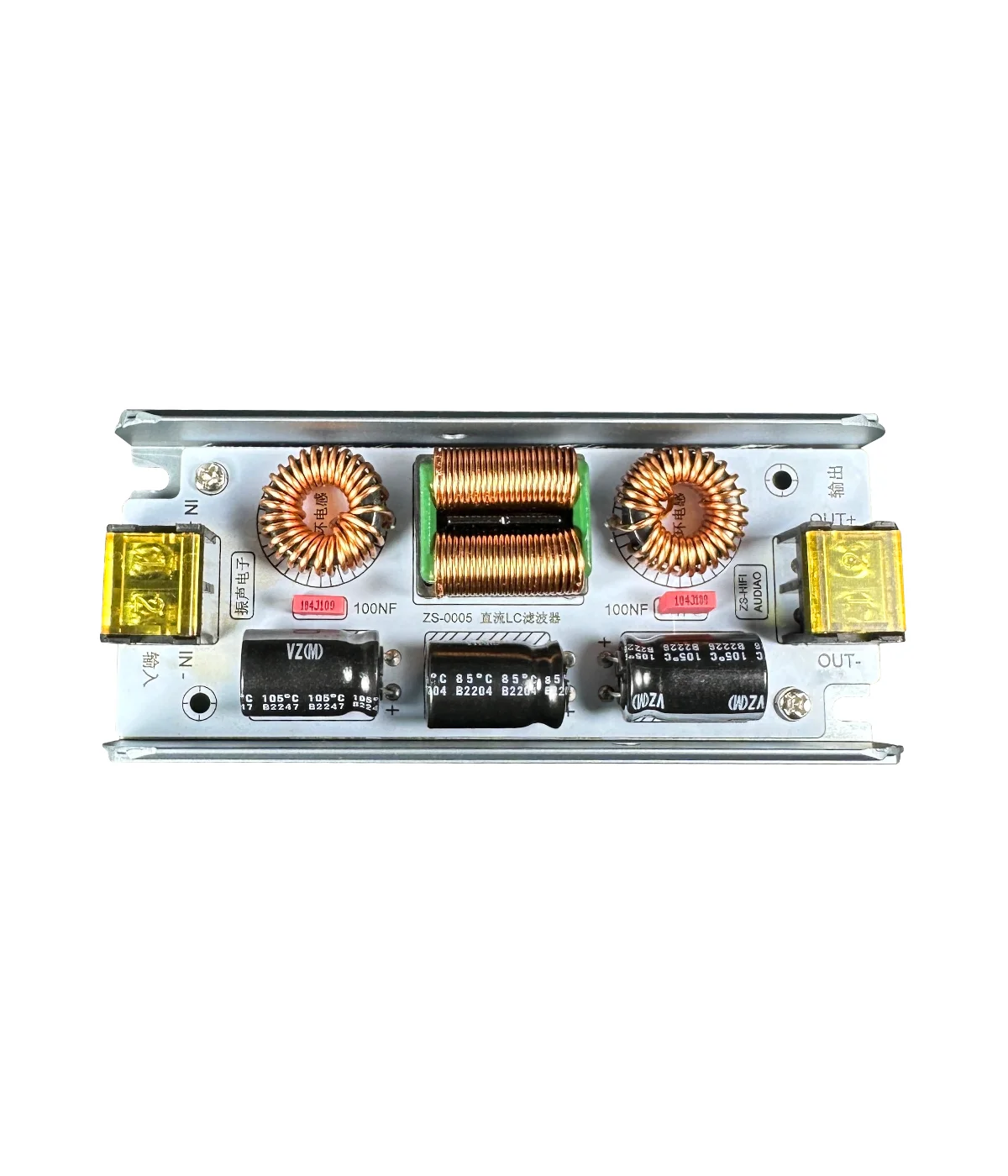

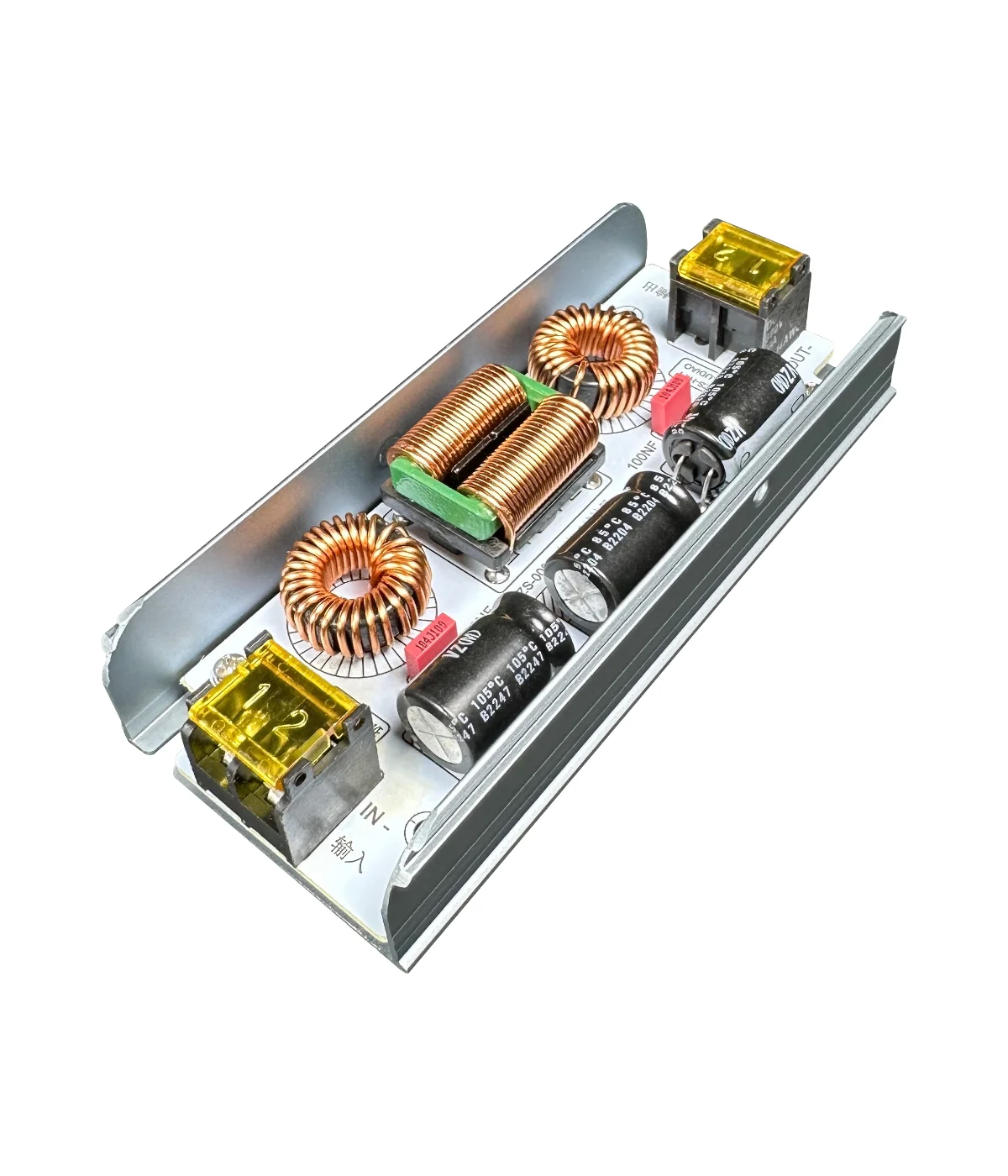

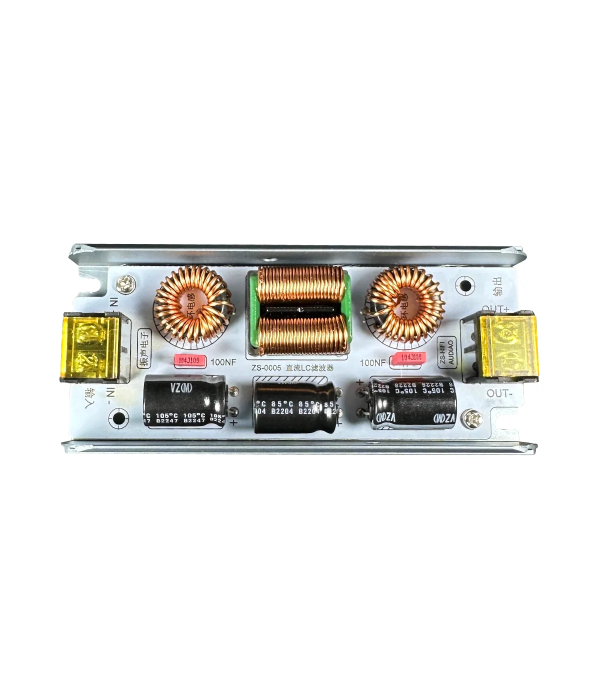

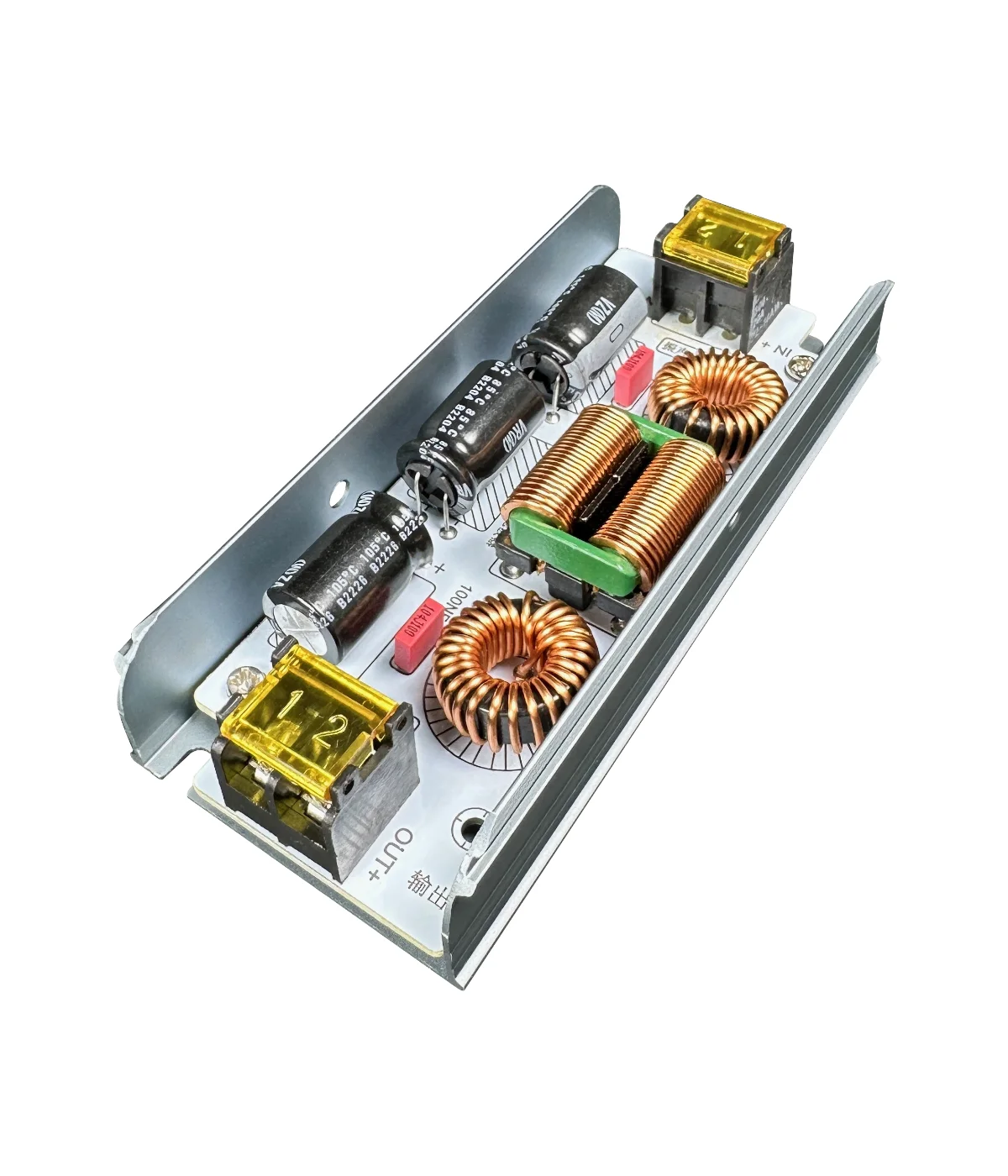

This is a common-mode and half-differential DC EMI (electromagnetic interference) filter. It is designed for DC voltage up to 50V (caps rated for 63V) and a maximum current of 12A. Use it to decrease high-frequency electronic noise, as a common-mode and LC line filter, an additional filter for linear and switching mode PSUs, on the DC output from a power supply, or on the DC input of your device.
Specifications

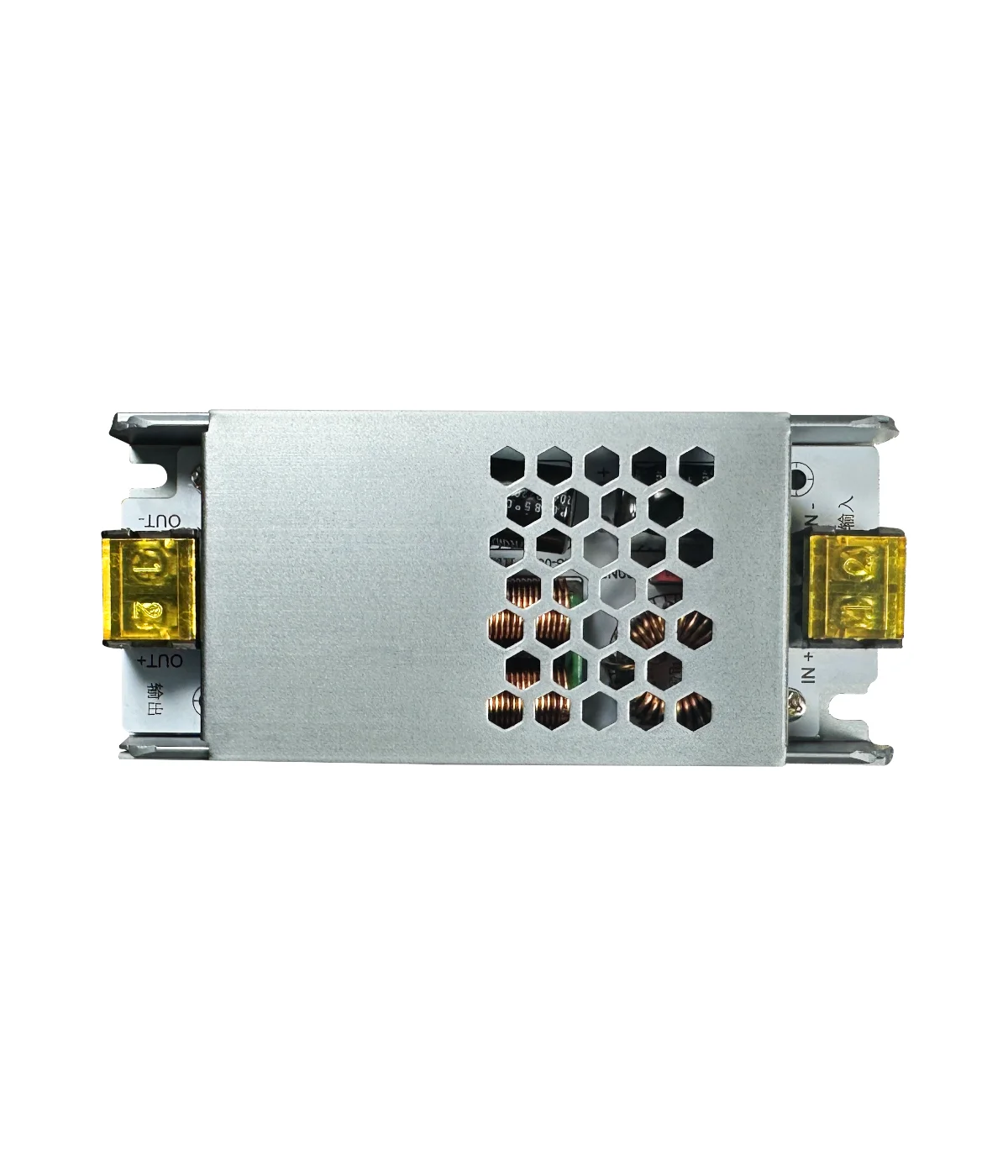

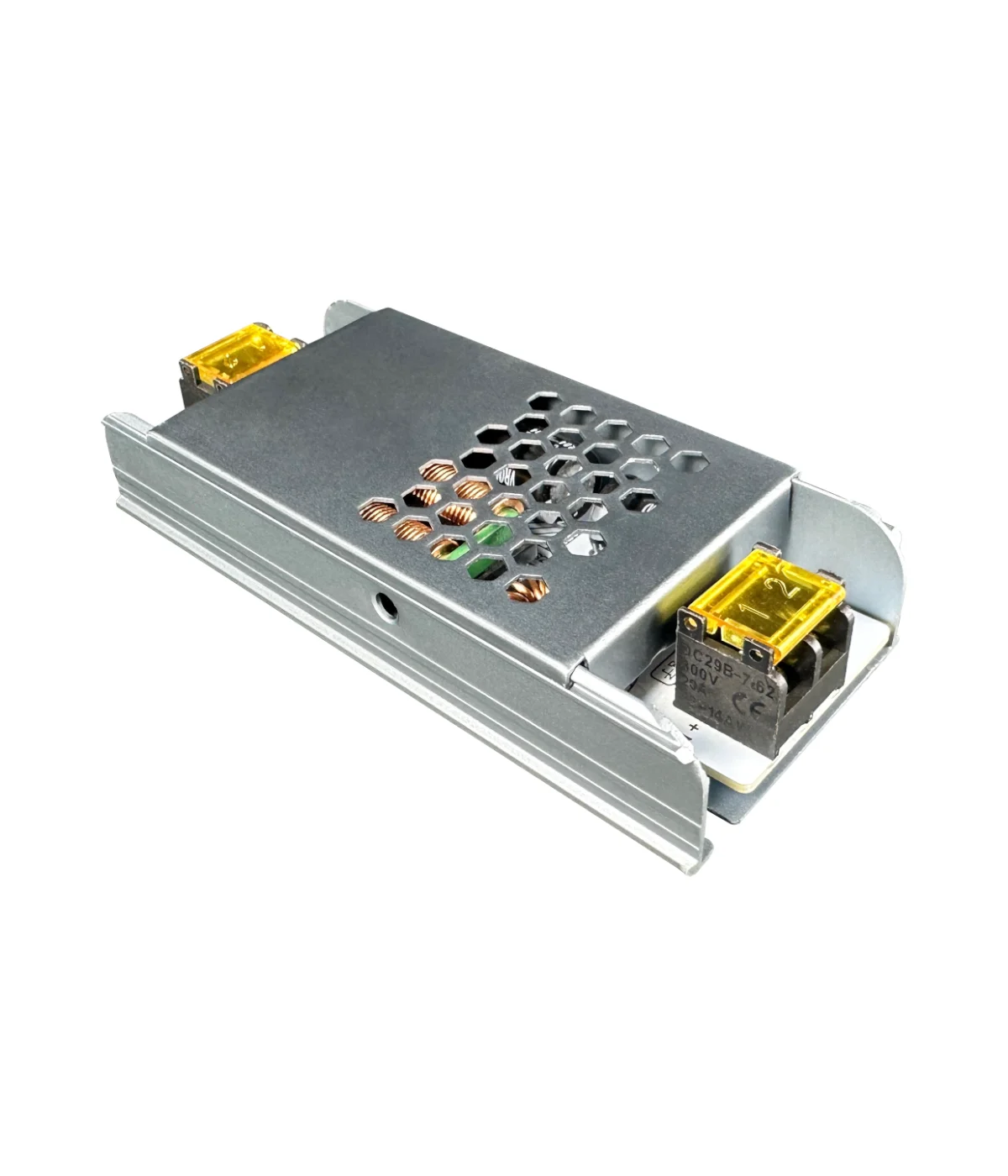

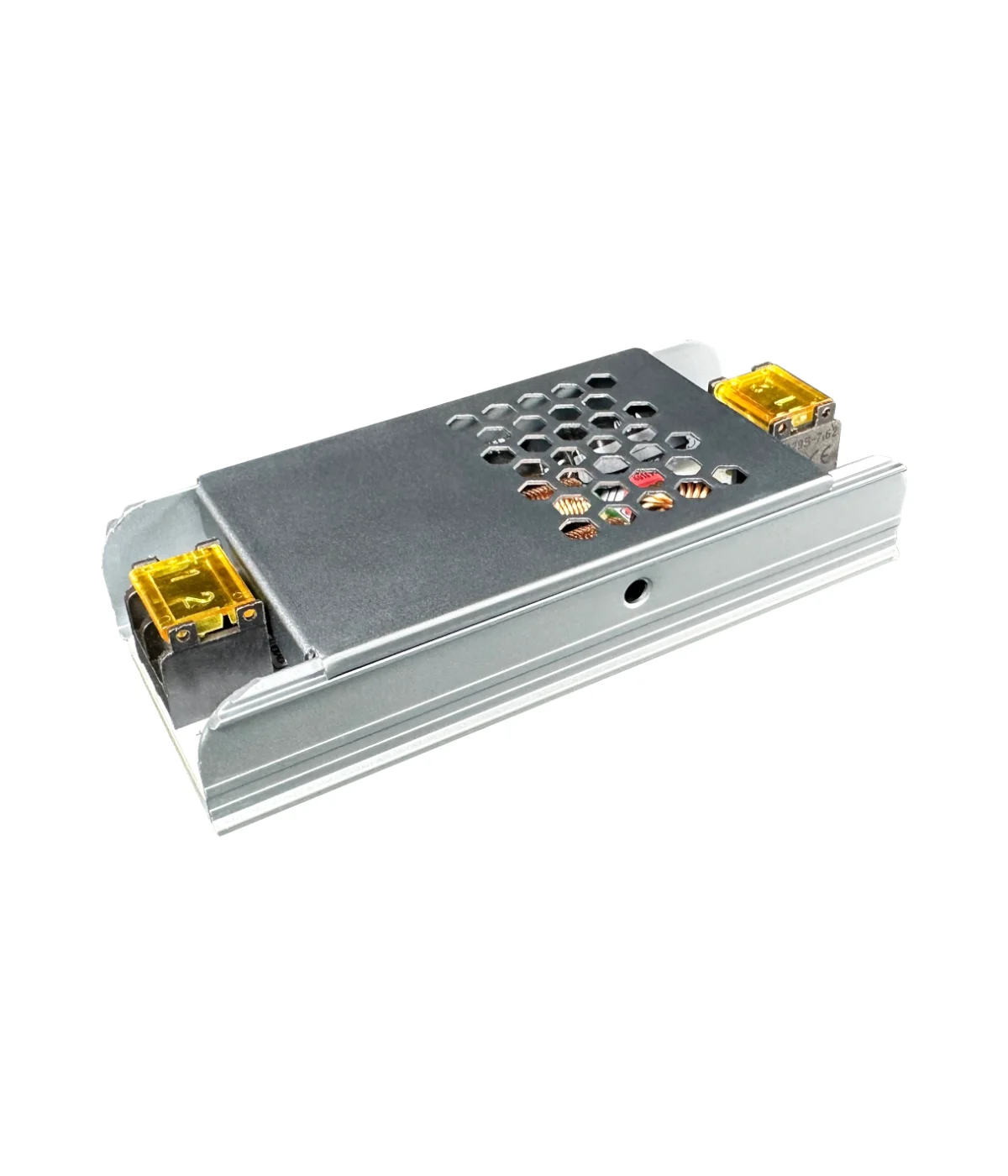

| Form factor | PCB module in metal enclosure, isolated from DC pins |
|---|---|
| Filter topology | Common-mode and LC filter |
| Max. DC voltage | 50 V (recommended 36 V, caps rated 63 V) |
| Max. current | 12 A peak |
| Filtering | High RF noise suppression, high common-mode isolation |
| Dimensions | 114x50x24 mm |
| Weight | 0.131 kg |
