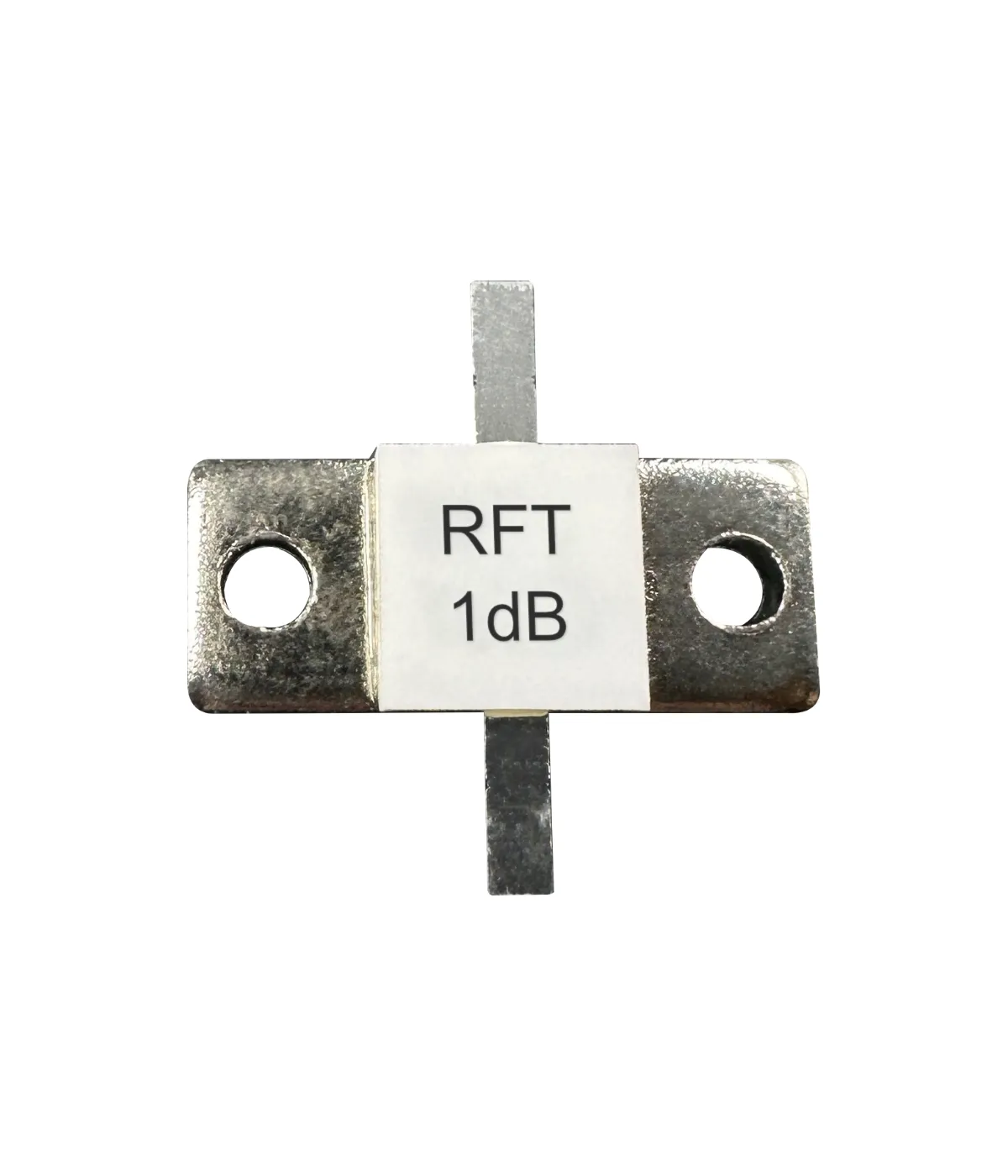

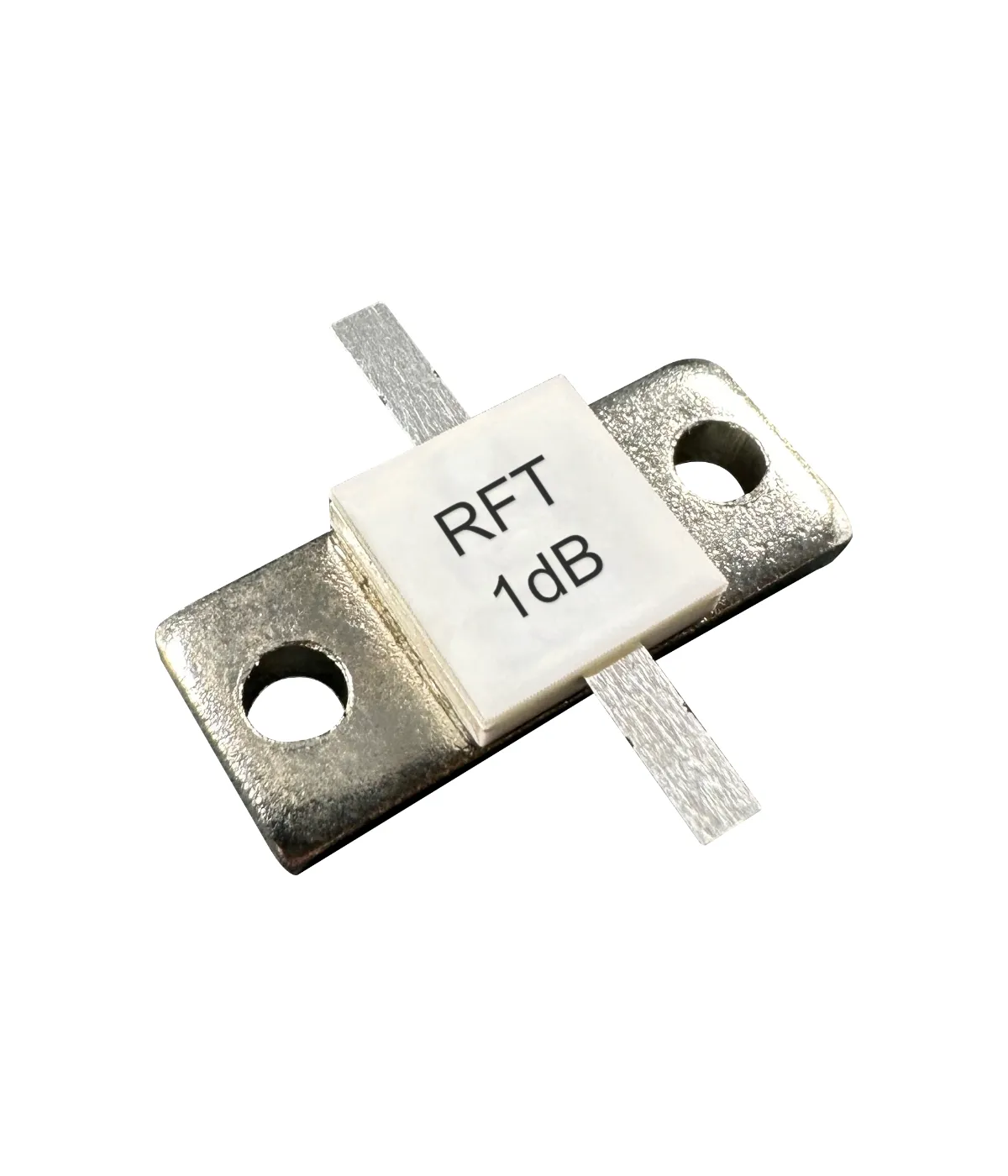

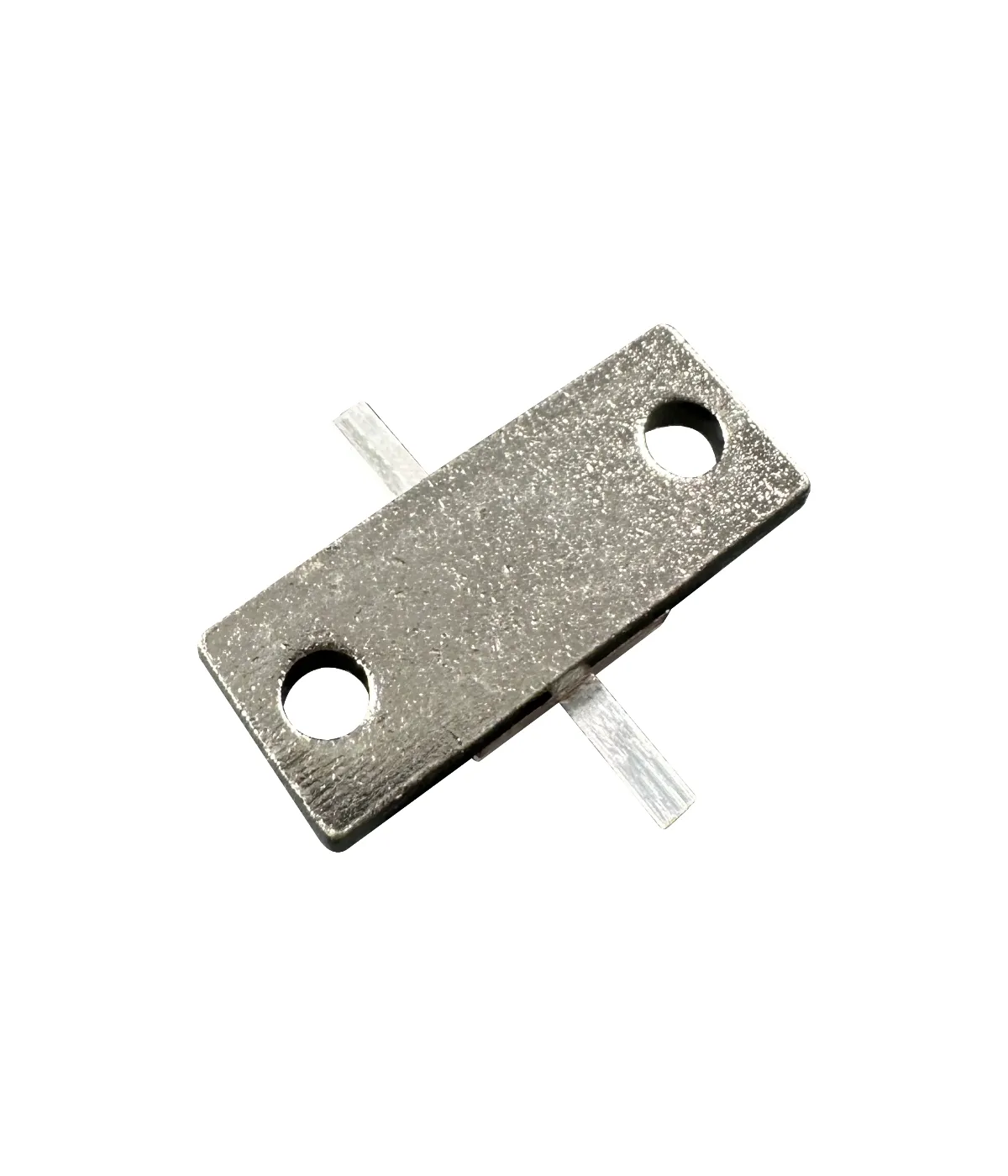

Flange attenuator chip 1dB 250W
Powerfilm flange attenuator chip - for use in high-power amplifiers
26.62 €
22.00 € tax excl.
in stock, shipped in 2-3 days
These powerfilm flange attenuators are designed to reduce power of the RF signal. The flange attenuators are often used in high-power amplifiers.
Specifications
| Frequency | DC to 1.5 GHz |
|---|---|
| Power rating | max. 250 W (see graph) |
| Maximal attenuator error | +/- 0.3 dB |
| Dimensions |
A = 10mm |
| Maximal SWR | 1:1.25 |
| Manufacturer | RFTXX-250AM2510-1.5G |
Downloads & Resources
Typical performance for 1 dB
Typical performance for 3 dB

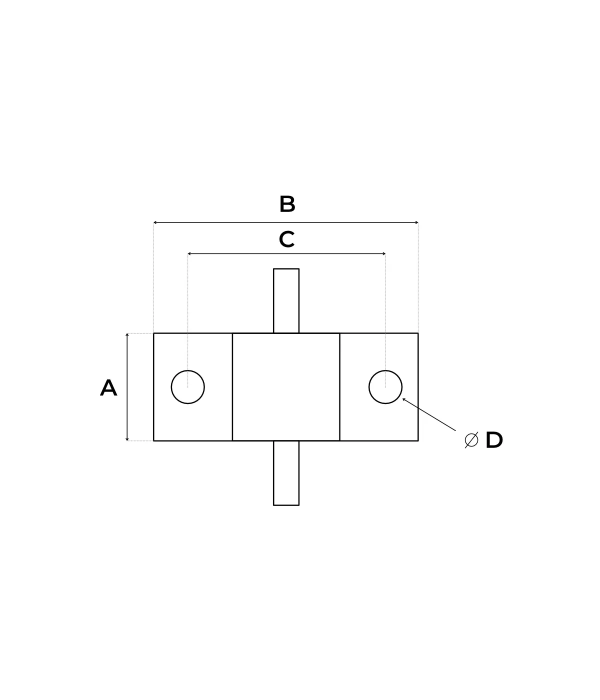

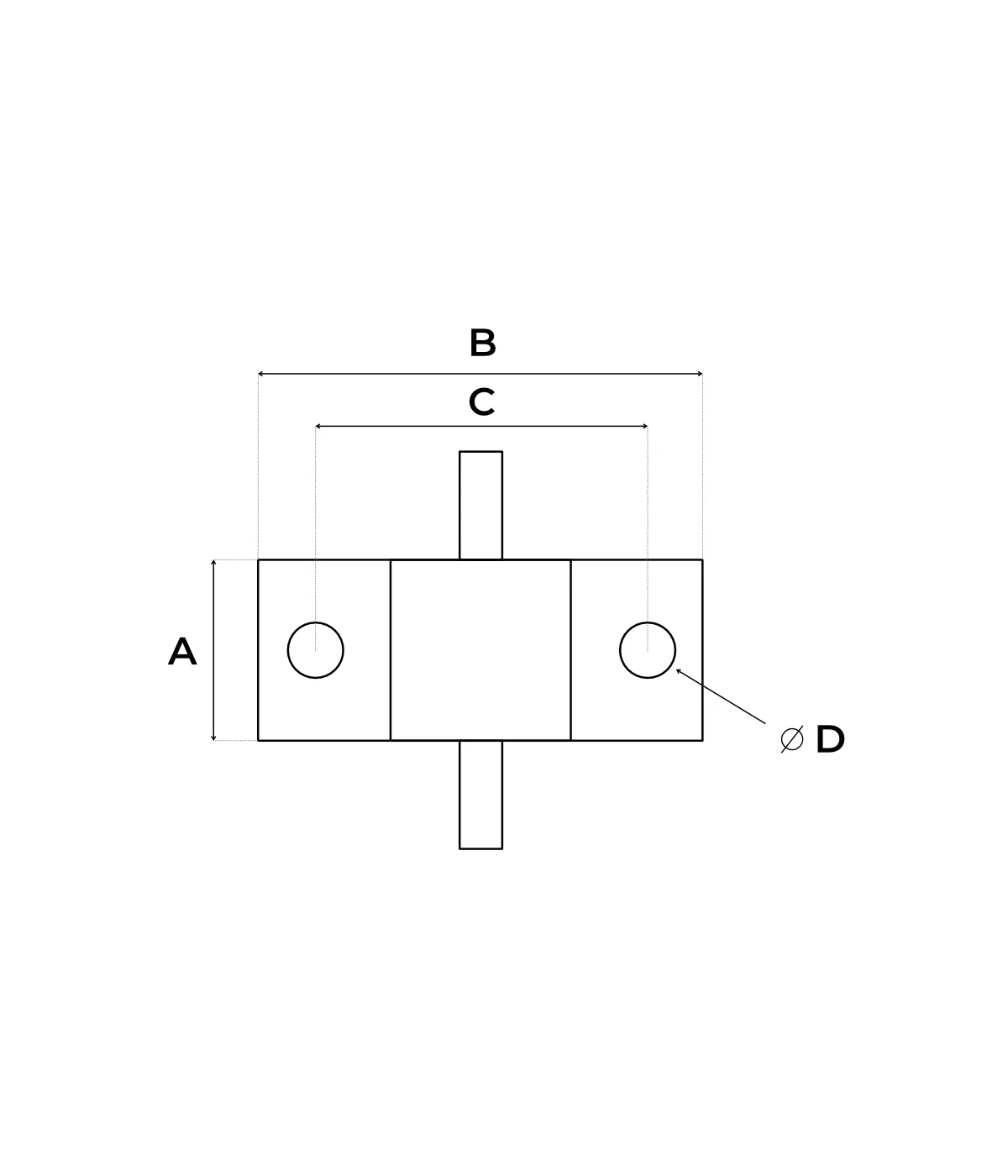

Dimensions [mm]: A = 10, B = 24.8, C = 18.4, D = 3.5

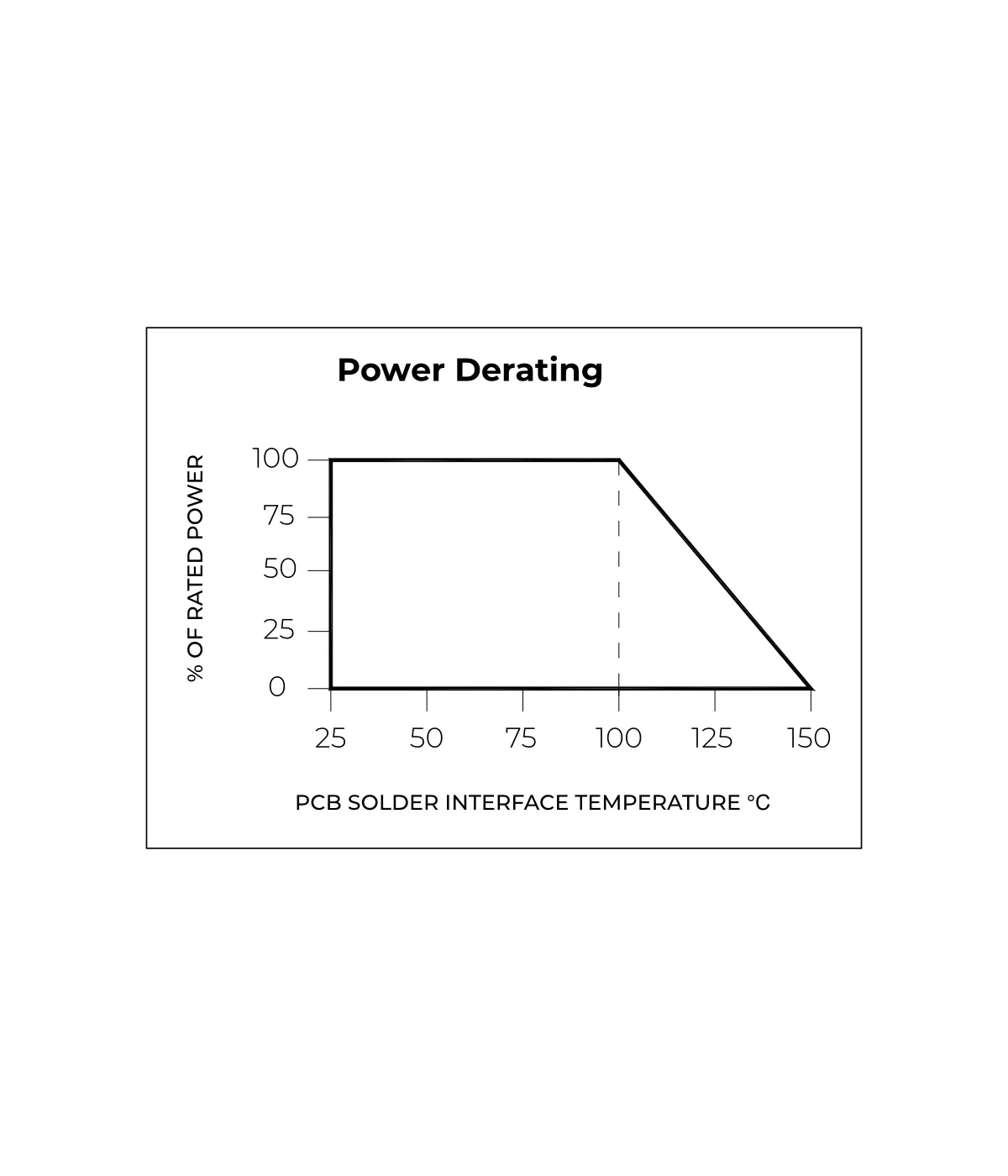

Graph temperature x power

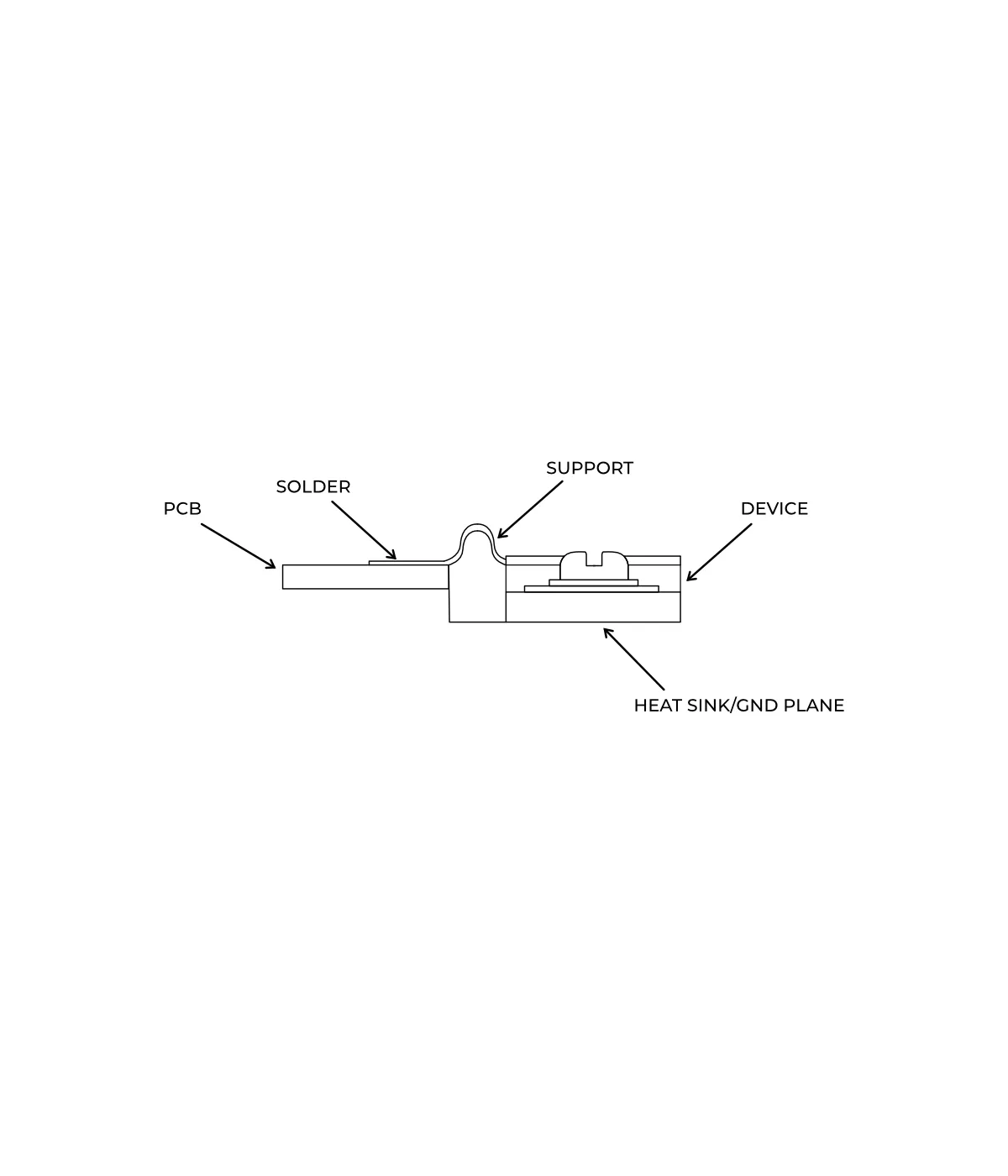

Mounting
Frequency range:
DC to 1.5 GHz
Impedance:
50 Ohm
ATT:
1 dB
Power load:
250 W
