New
30 dB

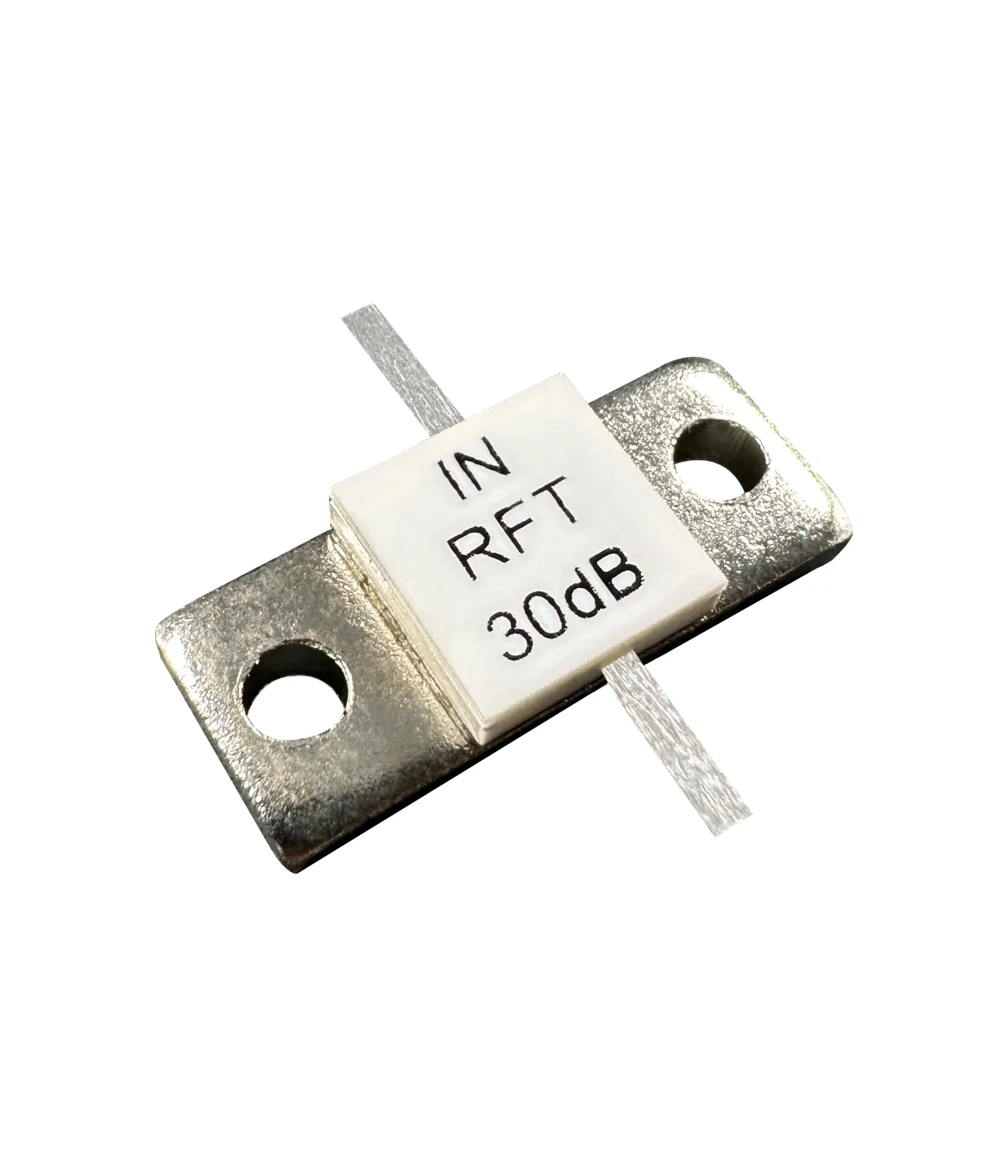

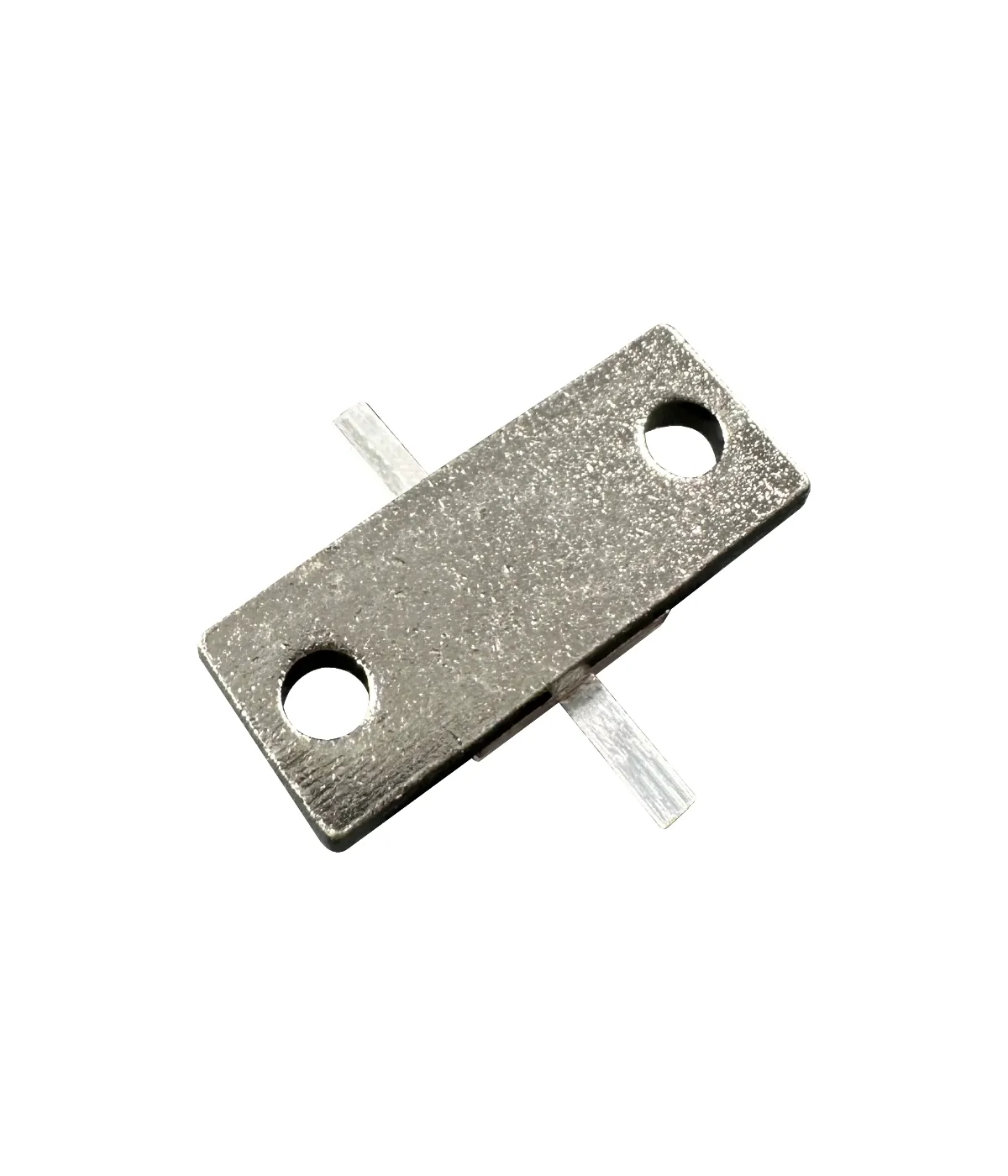

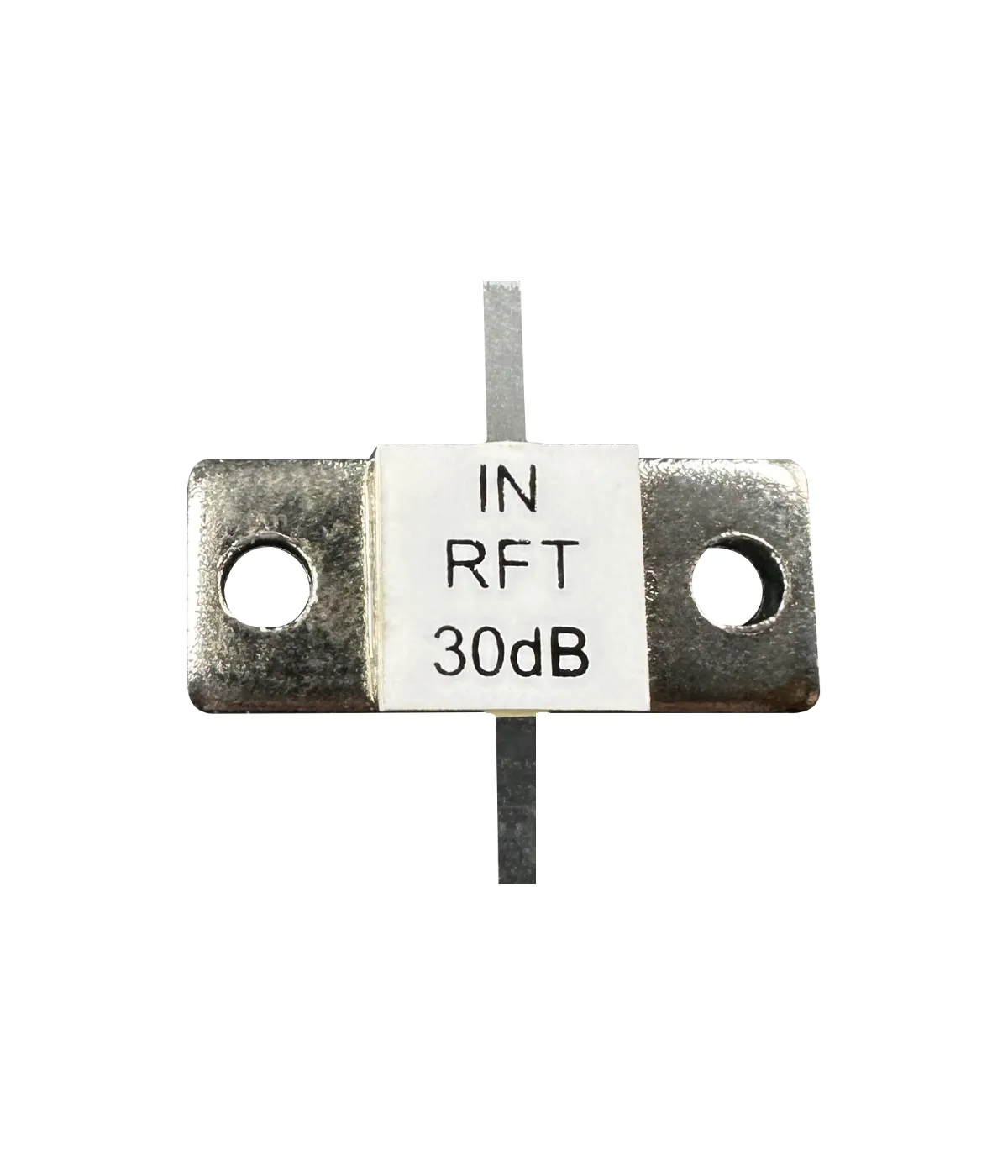

Flange attenuator chip 30dB 150W
Powerfilm flange attenuator chip - for use in high-power amplifiers
22.99 €
19.00 € tax excl.
in stock, shipped in 2-3 days
These powerfilm flange attenuators are designed to reduce power of the RF signal. The flange attenuators are often used in high-power amplifiers.
Specifications
| Frequency | DC to 1.5 GHz |
|---|---|
| Power rating | max. 150 W (see graph) |
| Maximal attenuator error | +/- 1 dB |
| Dimensions |
A = 10mm |
| Maximal SWR | 1:1.25 |
| Manufacturer | RFTYT |

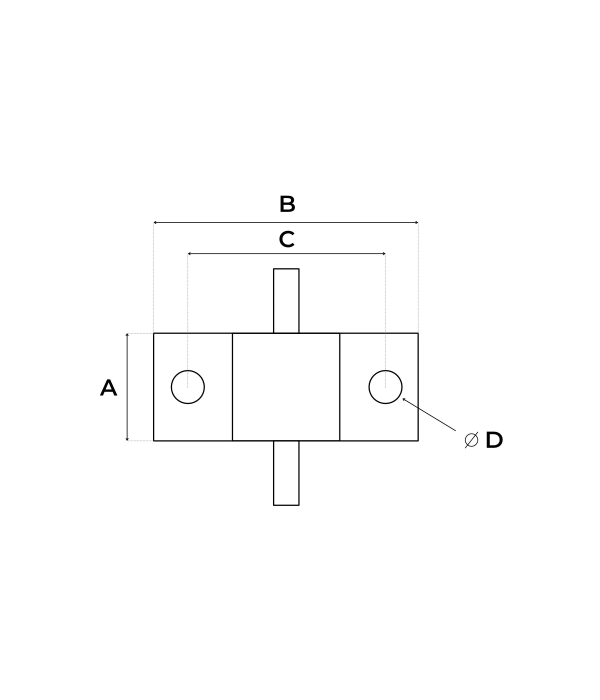

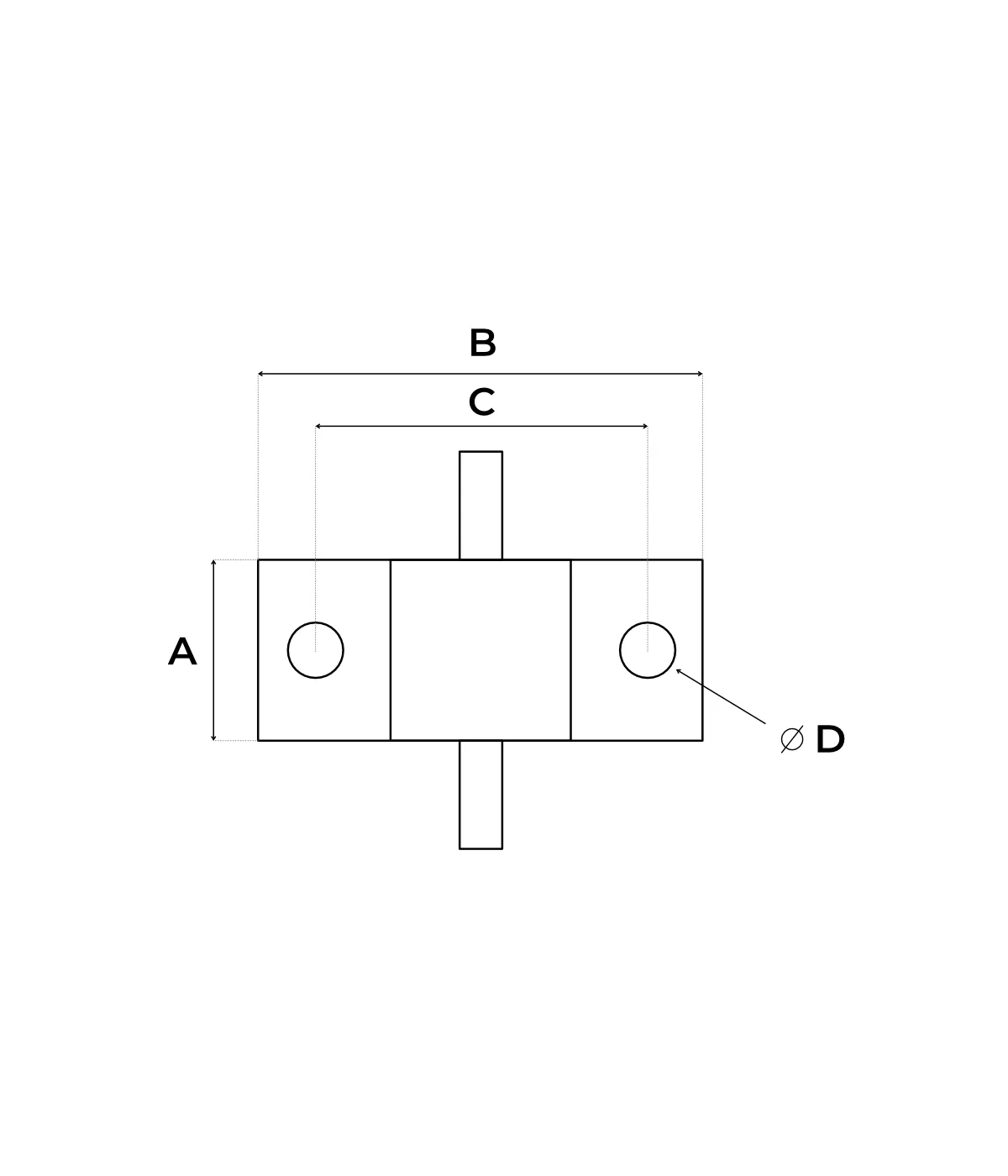

Dimensions [mm]: A = 10, B = 24.8, C = 18.4, D = 3.5

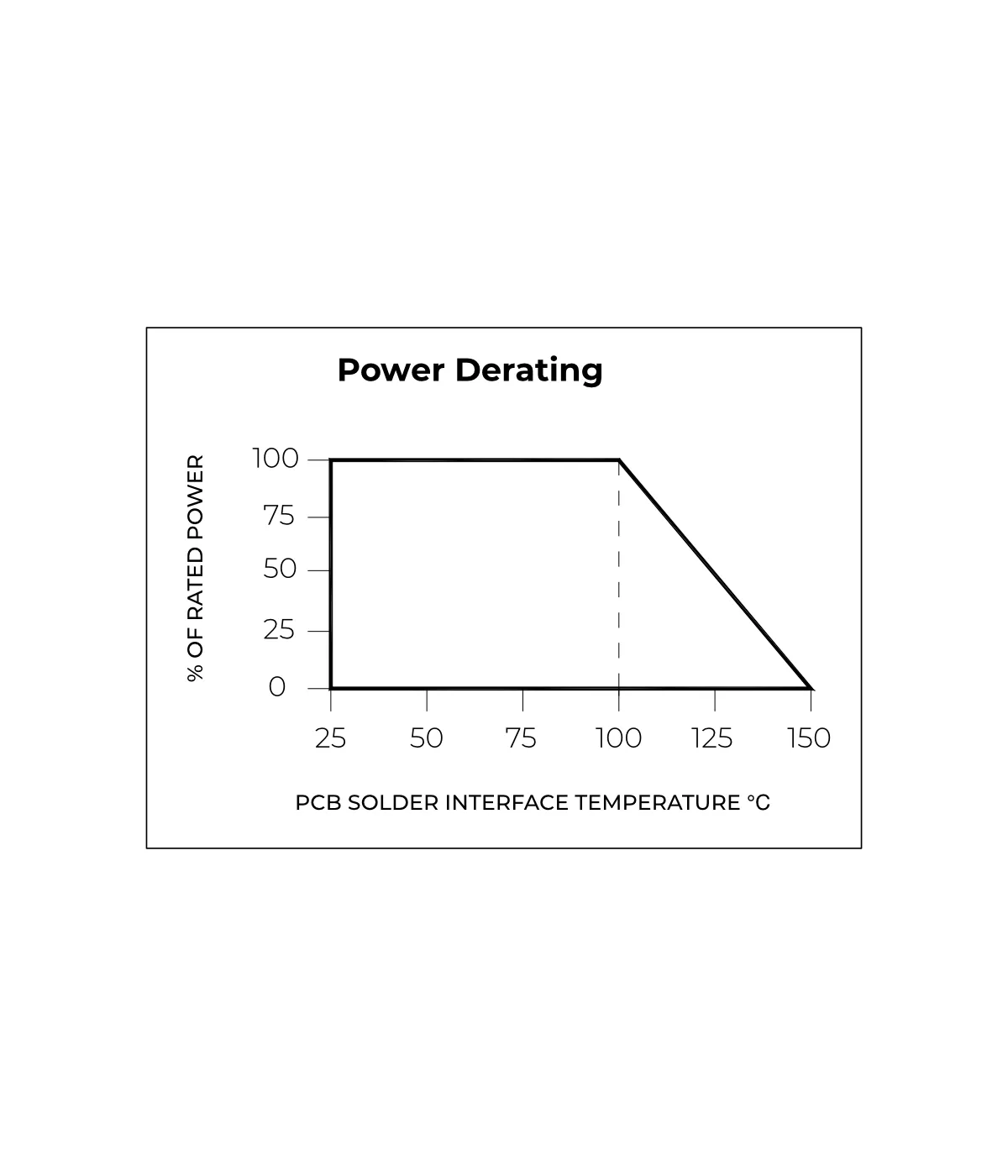

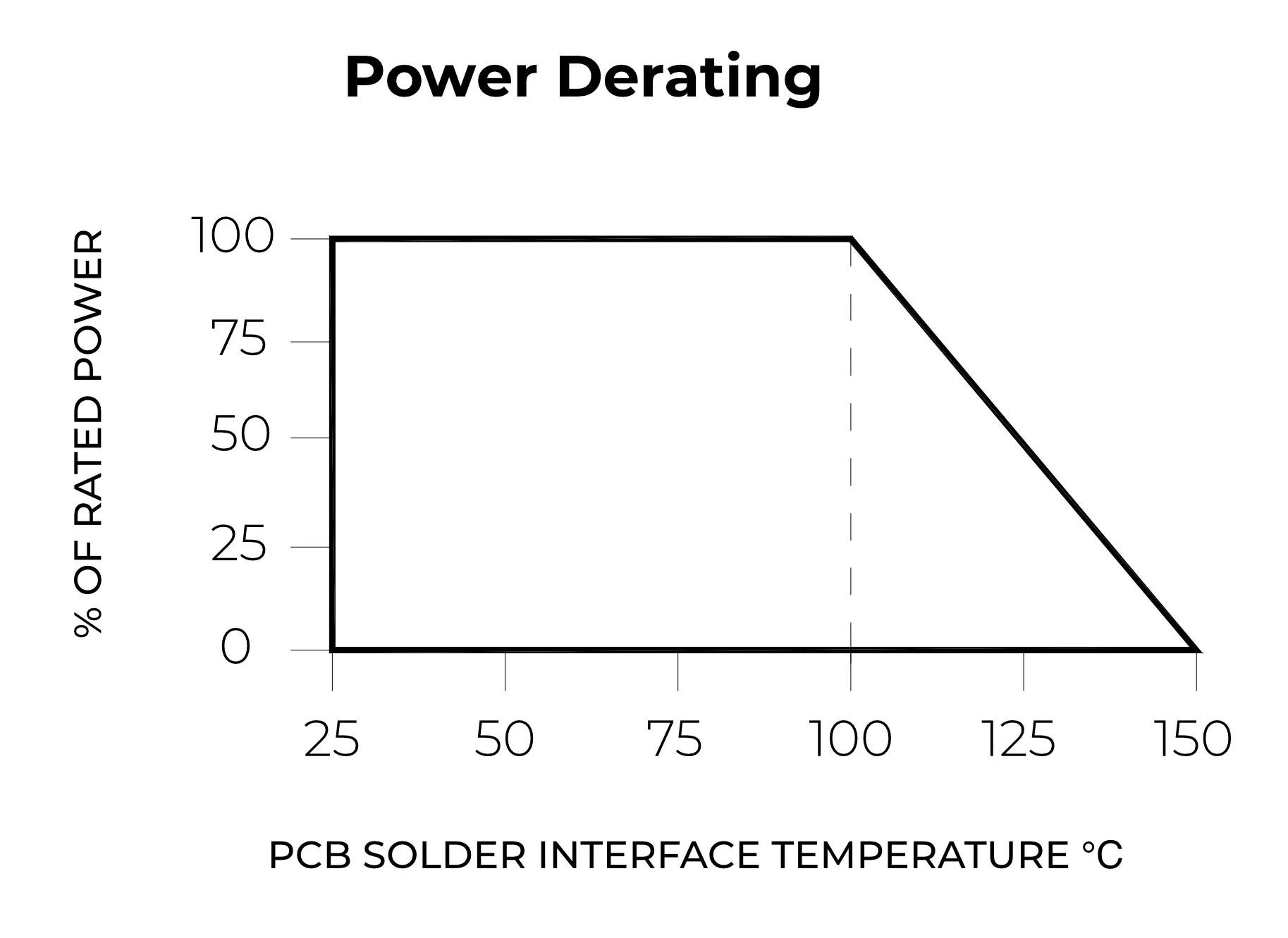

Graph temperature x power

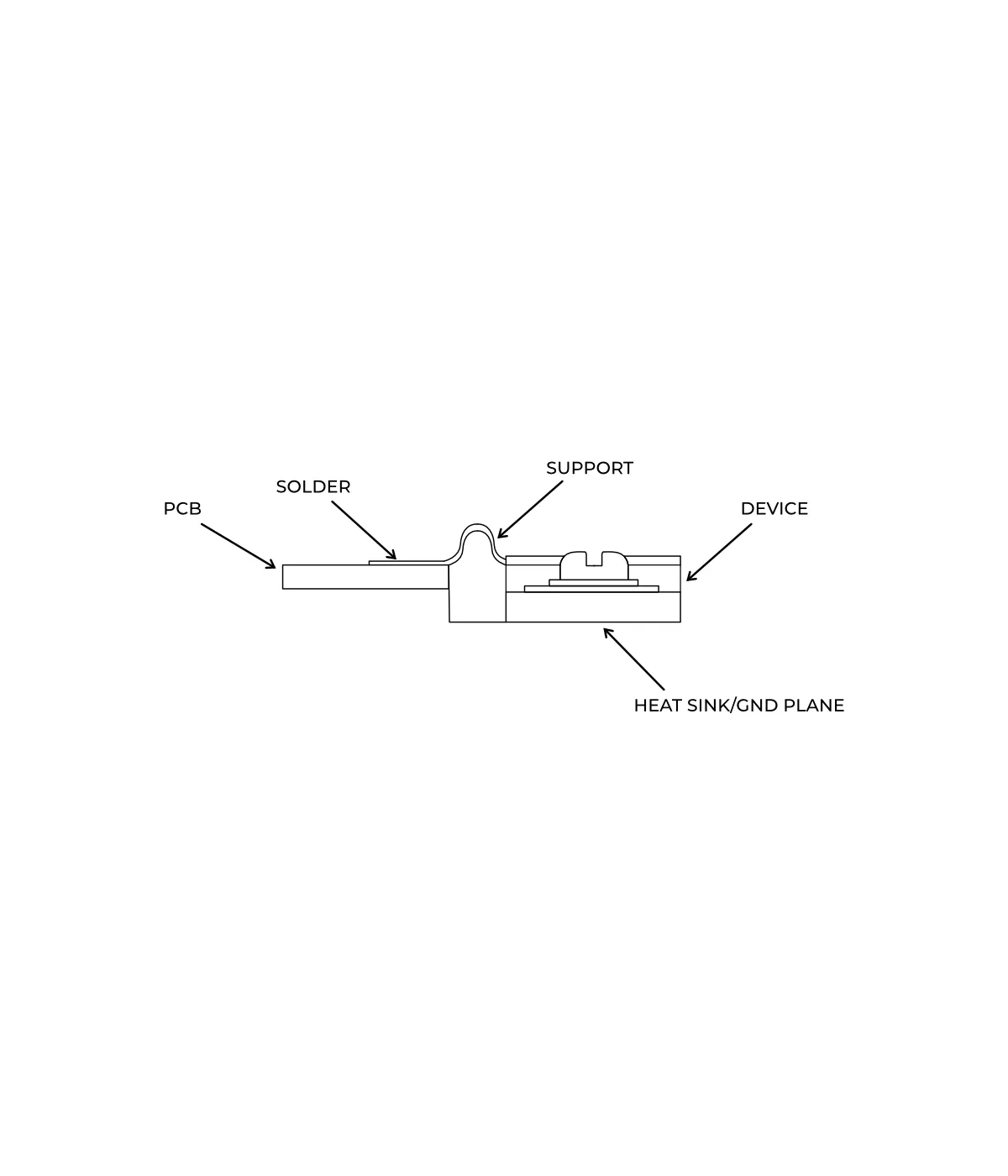

Mounting
Frequency range:
DC to 1.5 GHz
ATT:
30 dB
Power load:
150 W
