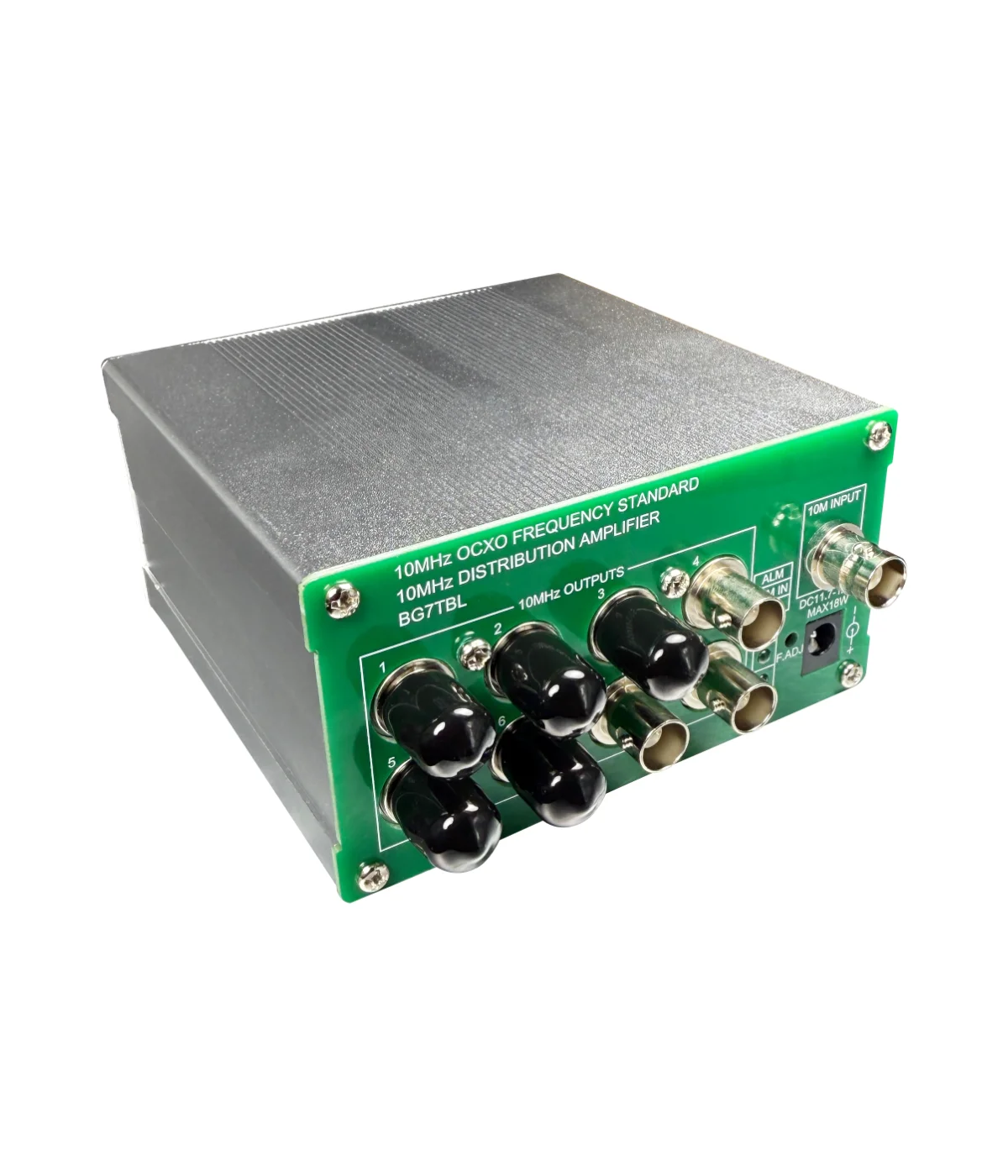

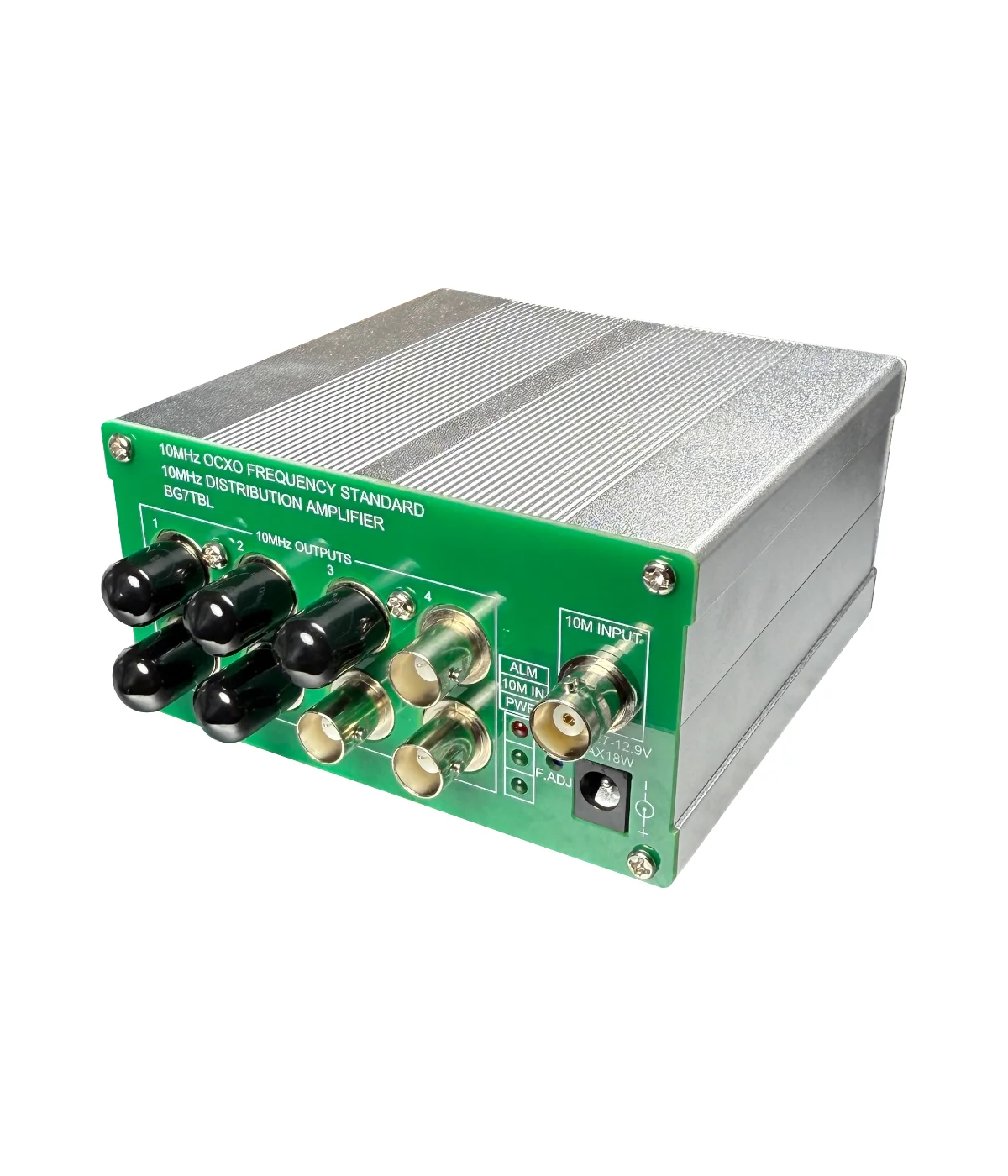

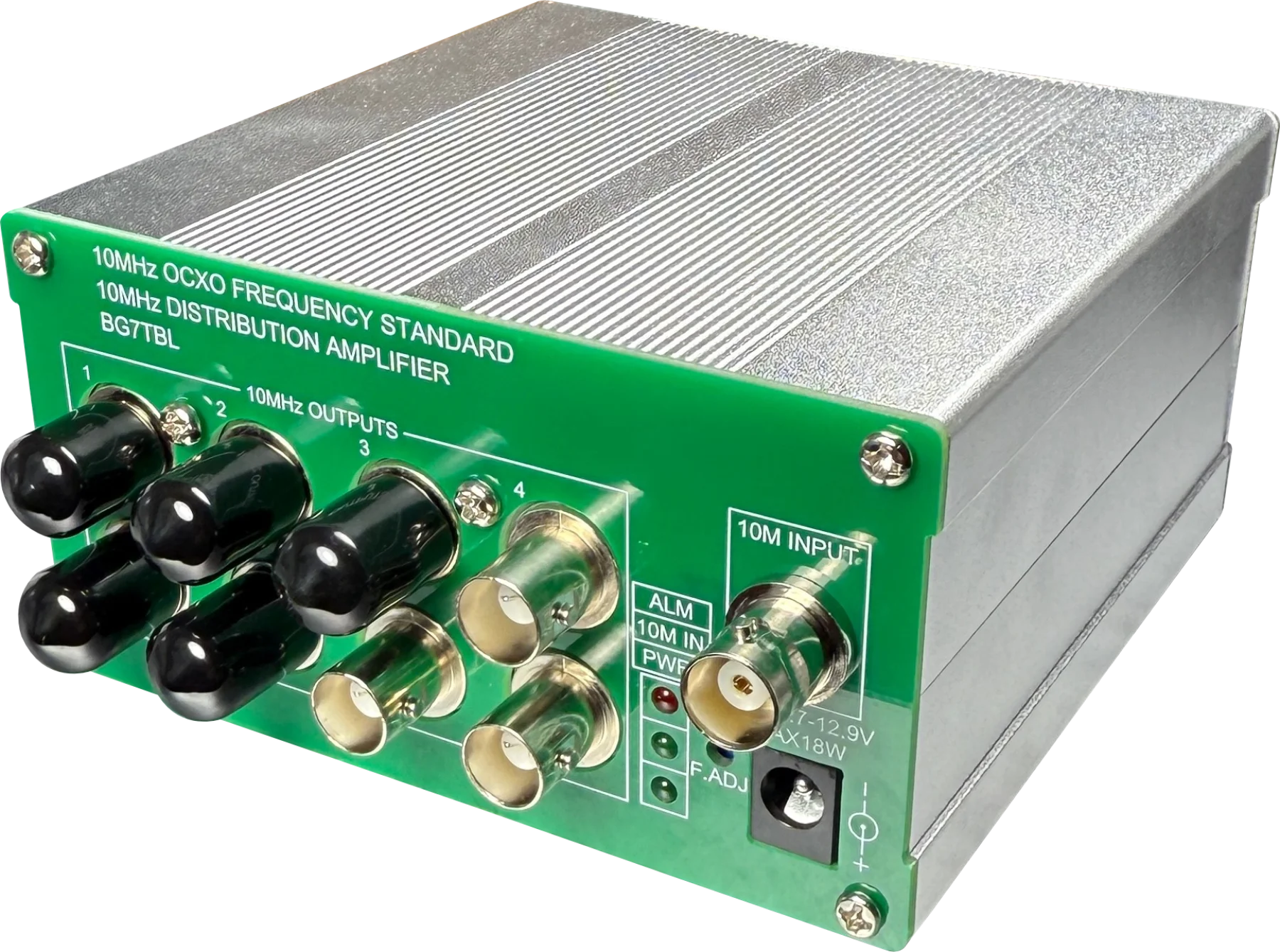

10MHz 8-way active splitter
Active 10MHz reference signal splitter, 1-to-8, with LED indication
99.00 €
99.00 € tax excl.
in stock, shipped in 2-3 days
It is a simple, active 10MHz clock signal distributor. It contains an active amplifier and filters for each output. An LED indicates the presence of a reference signal. The box distributes an input signal from an external source. It does not contain an internal OCXO.
You can use this splitter in your laboratory or hamshack - as a reference signal distributor, reference for an LNB EXT bias tee, 10 MHz source for lab equipment, or reference for a generator/transverter.
Specifications
| DC supply voltage | 12 V |
|---|---|
| RF frequency | 10 MHz |
| Ports | 1 input to 8 outputs |
| Amplifier | Active, low noise |
| DC current | < 150 mA @ 12 V, typ. 2 W |
| Input signal | 10 MHz, 0.1 to 5 Vpp |
| Output | Sine wave, filtered per port |
| Output level | typ. 10 dBm ± 2 dBm @ 50 Ohm |

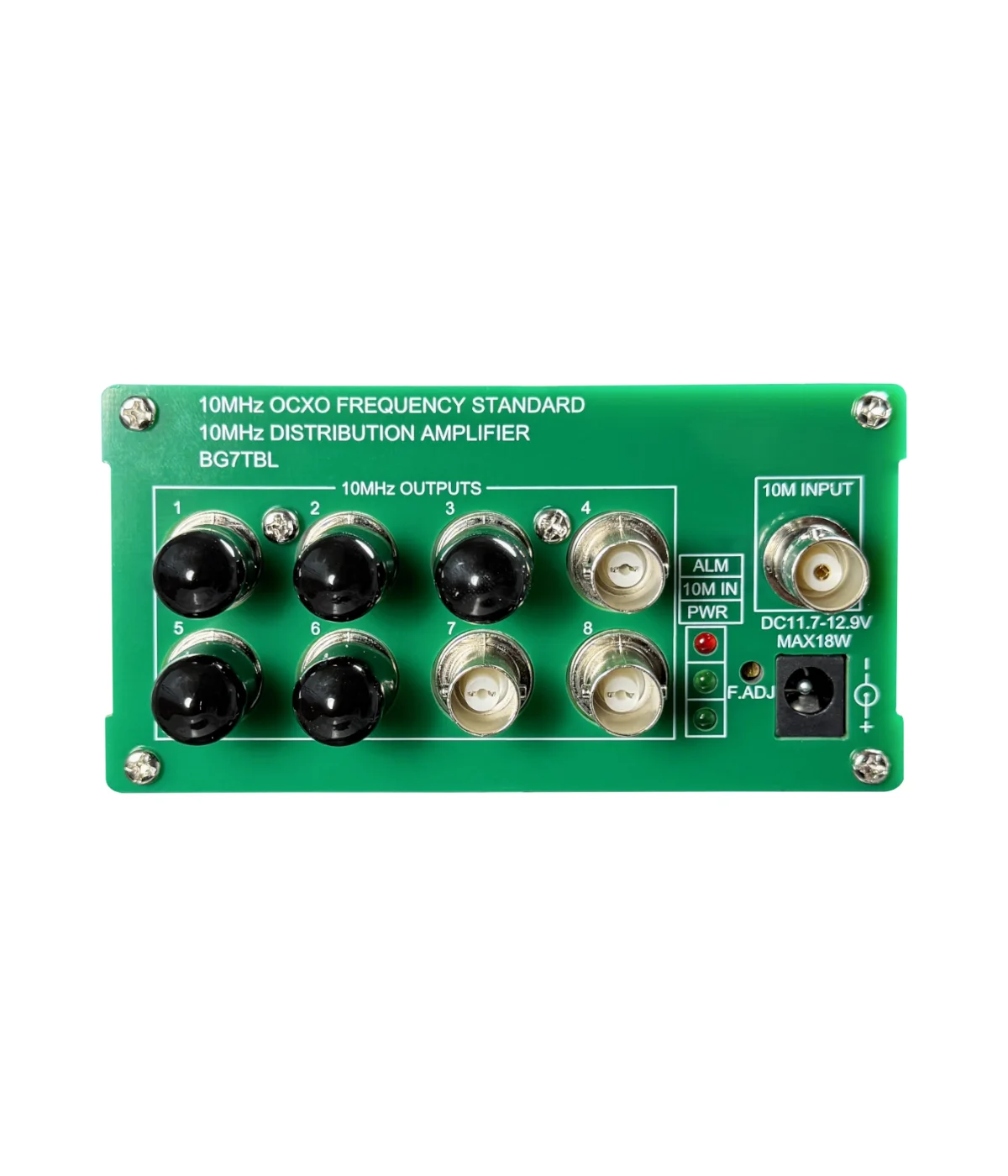

| LED indication | PWR, ALARM, 10 MHz IN |
| RF connectors | BNC female |

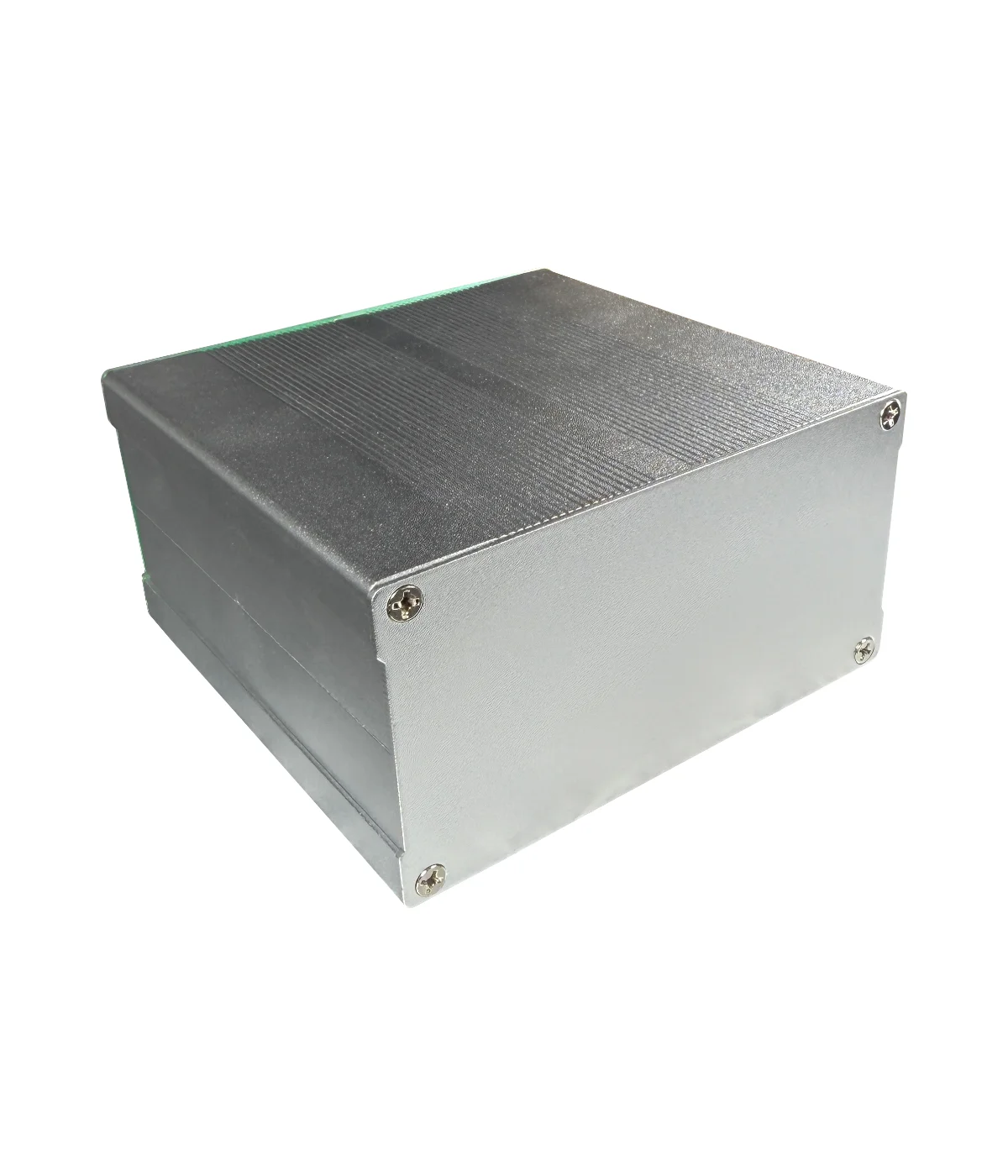

| Size | 115x105x55 mm |
Gallery
In the box
- 10MHz 8-way splitter

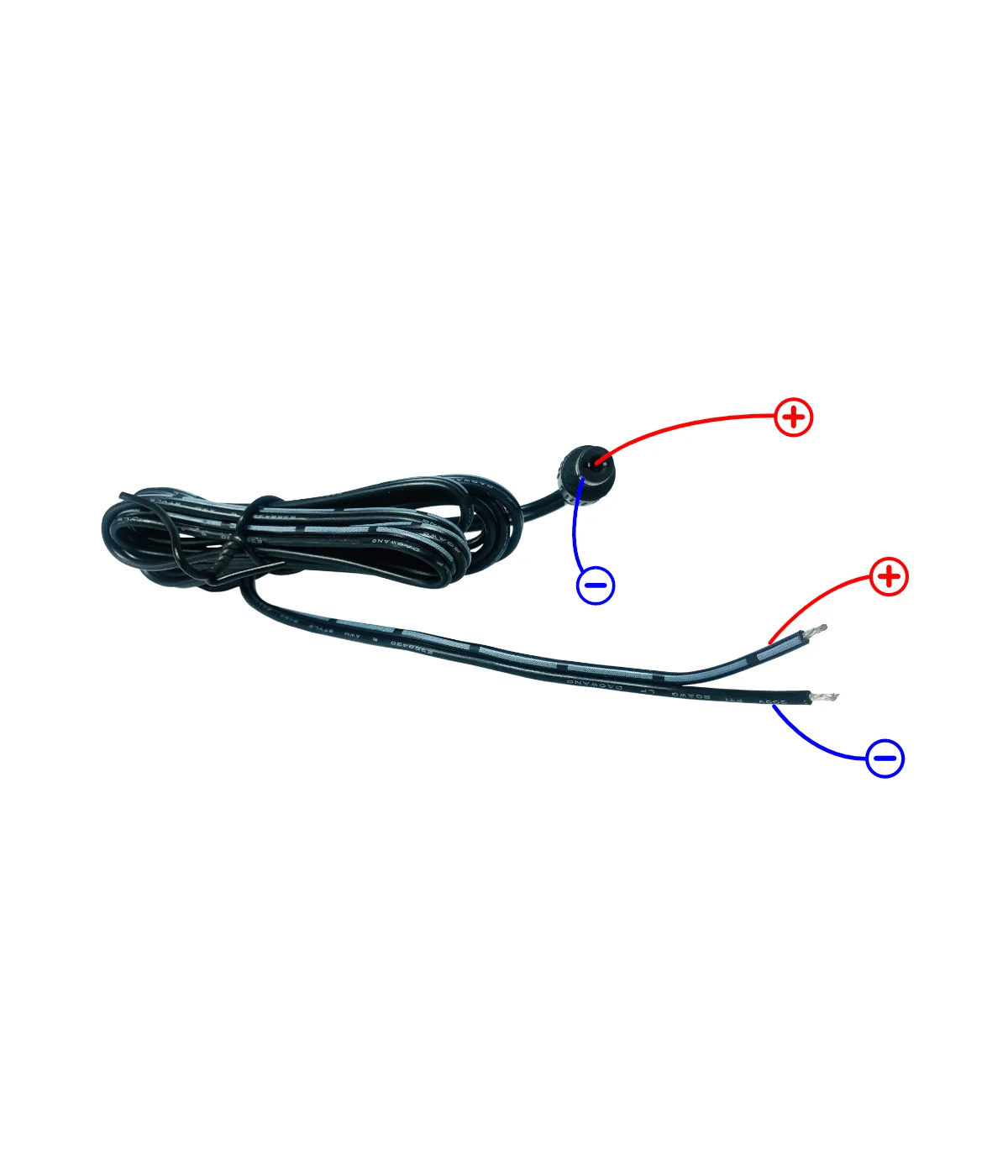

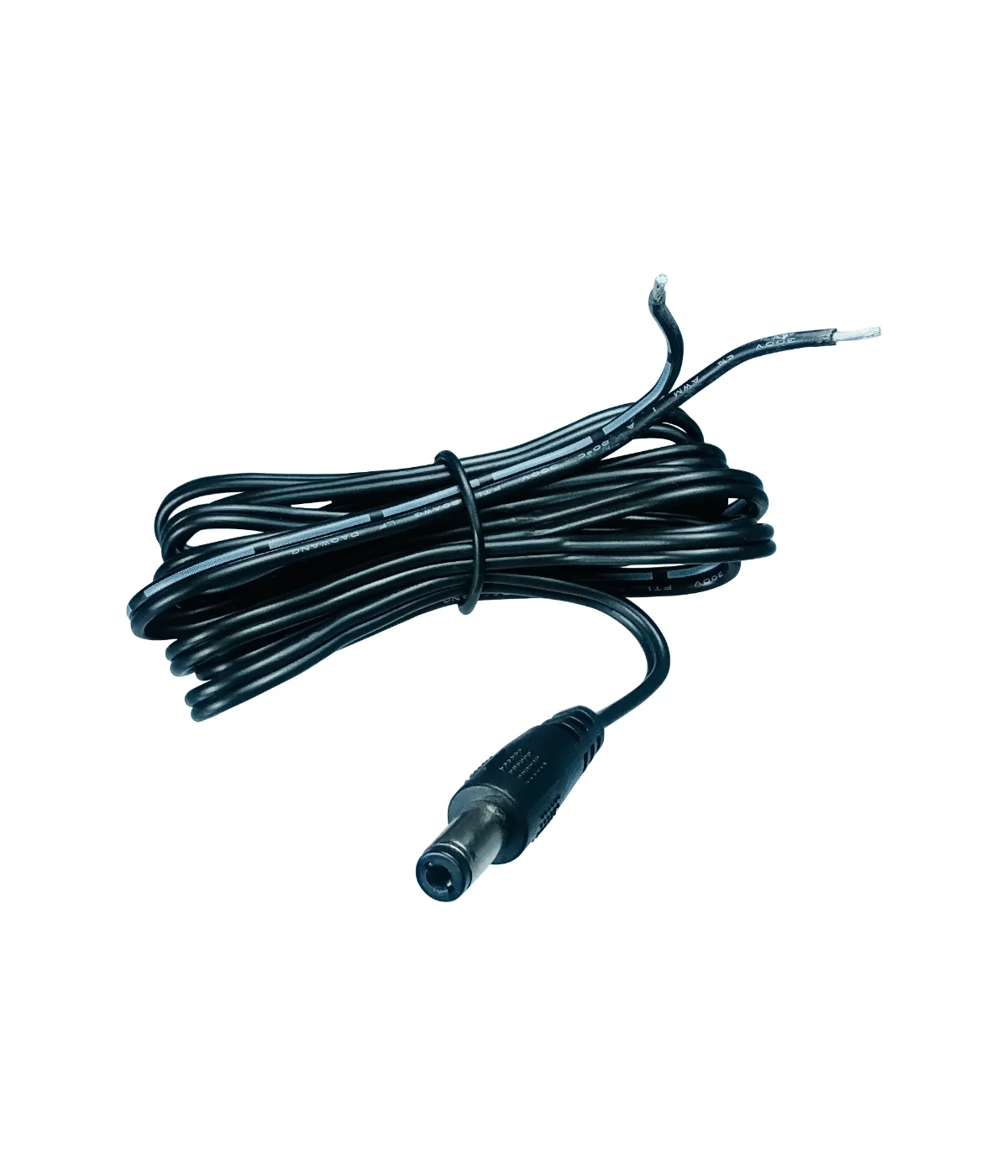

- DC plug
