10MHz Tiny GPSDO
GPS-disciplined 10MHz Rubidium Frequency standard, accuracy 2e-11 within 24 hours - ideal reference for labs and SDR RX/TRX
89.00 €
89.00 € tax excl.
in stock, shipped in 2-3 days

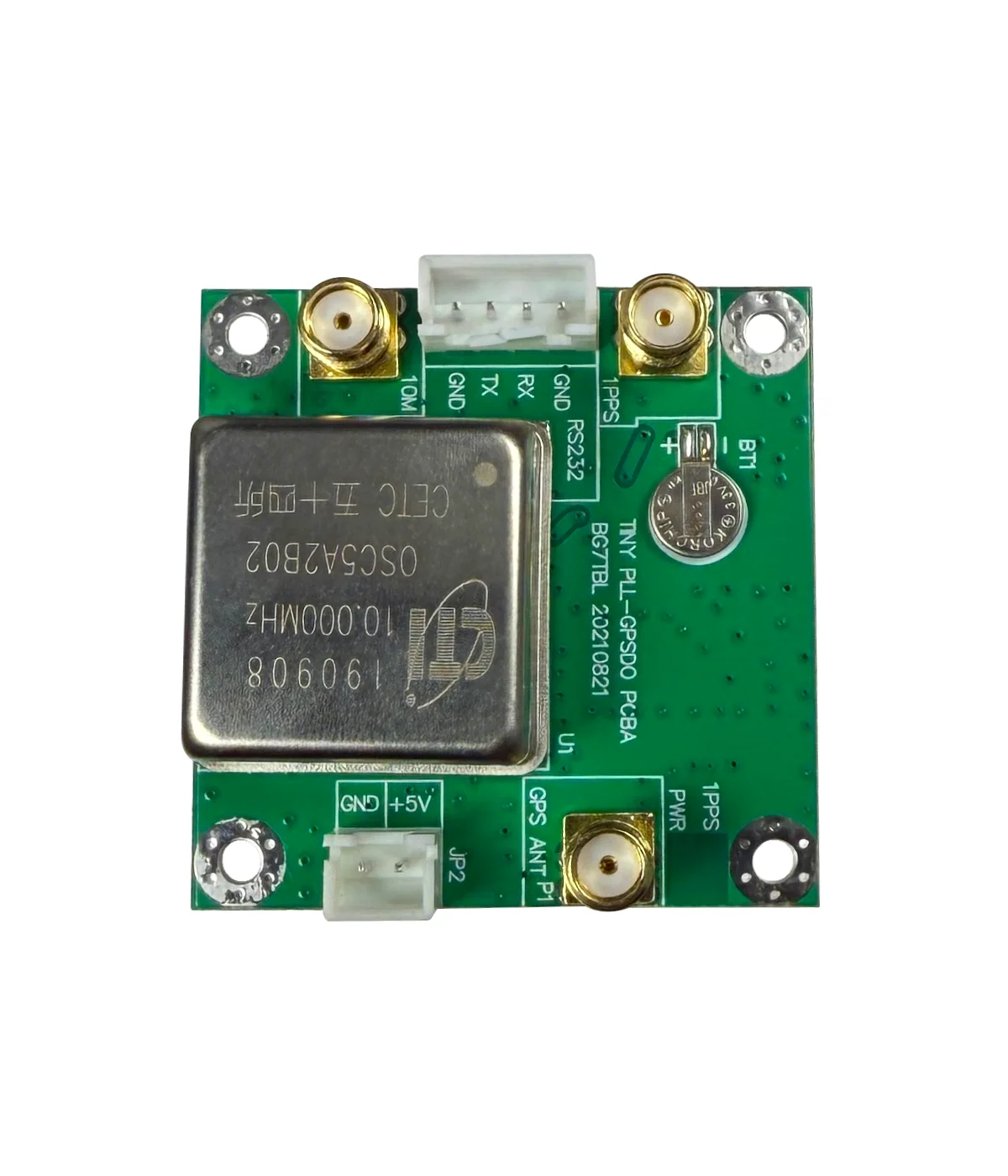

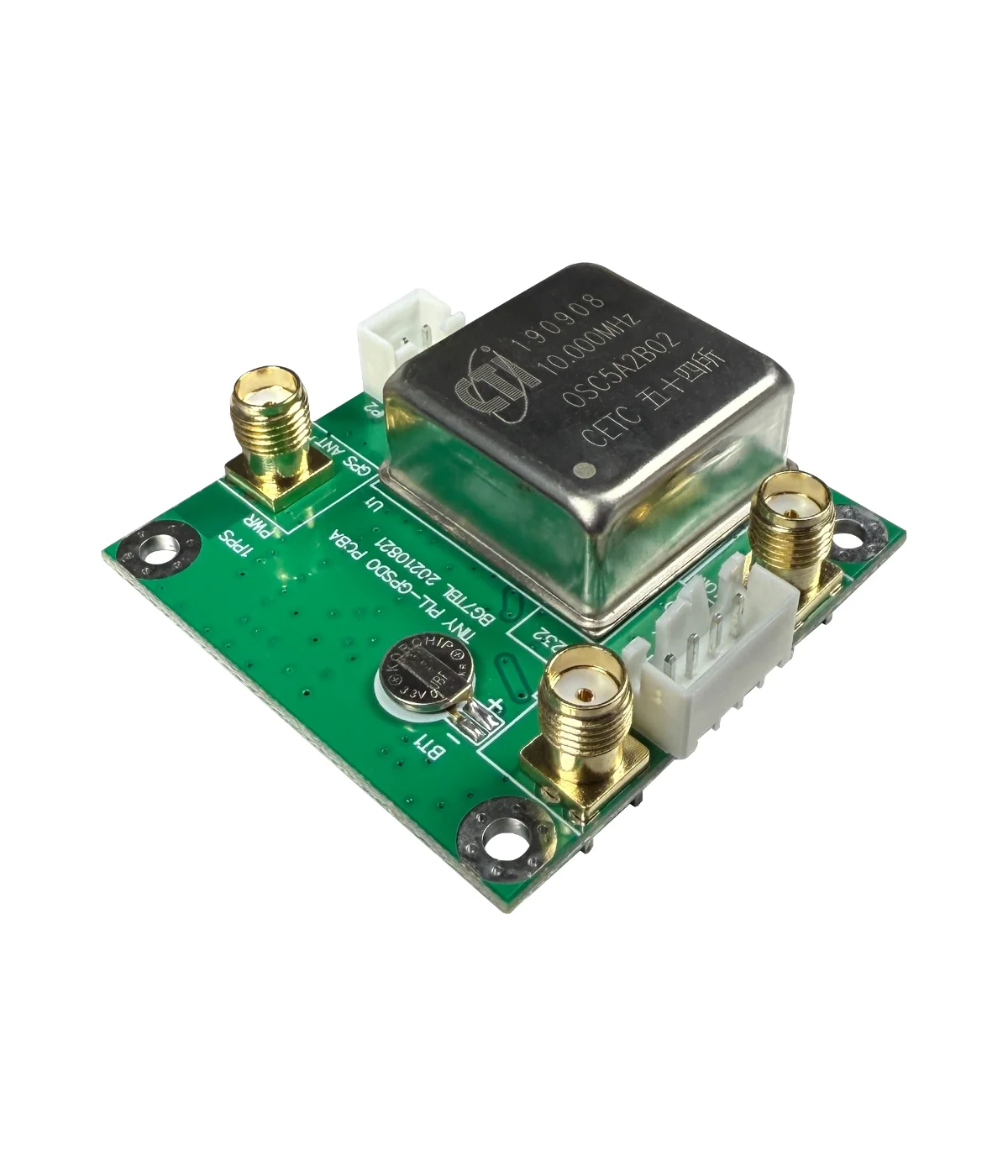

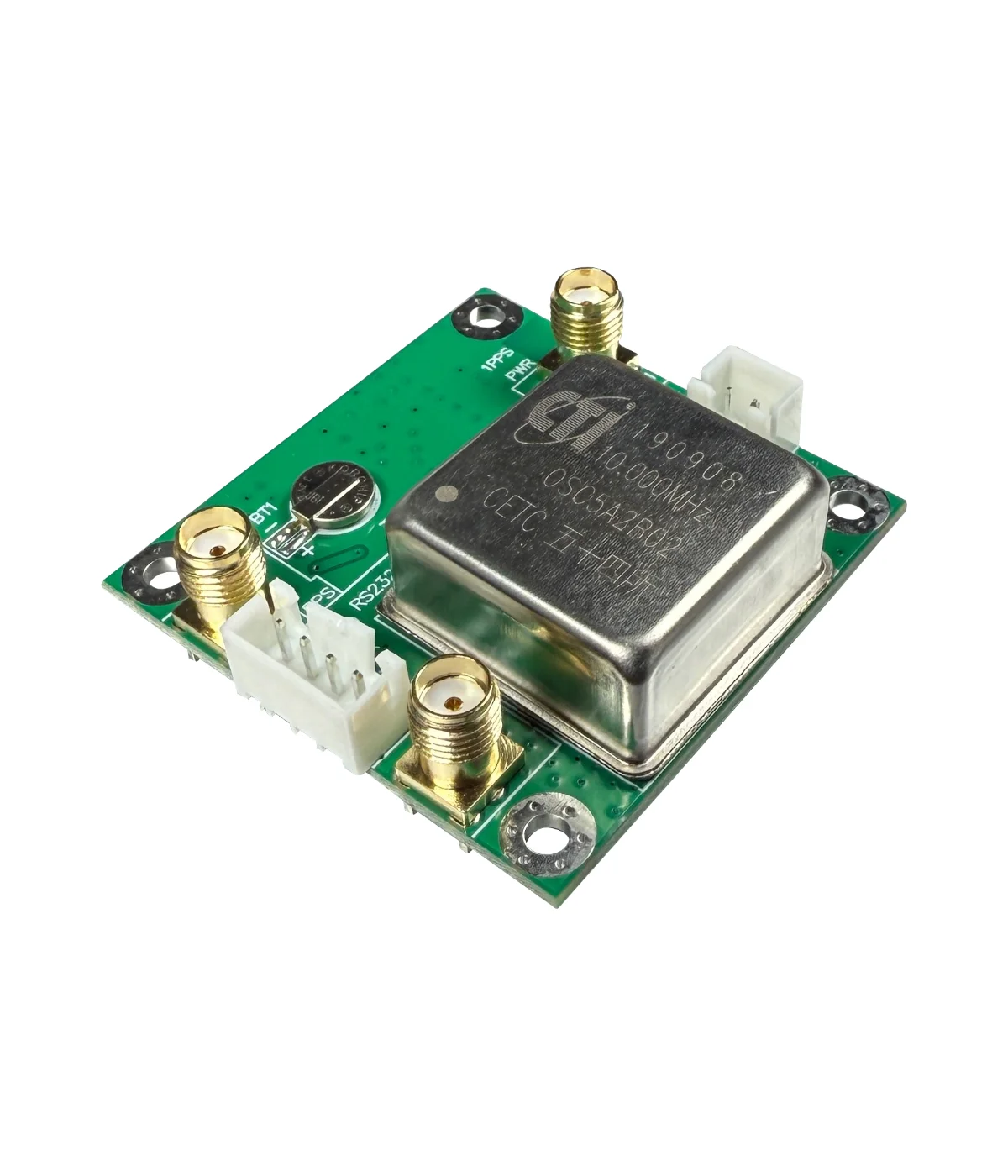

This is a small 10 MHz GPSDO PLL module by BG7TBL. This module is the perfect solution for installing in your device, such as a transverter, beacon, SDR, lab equipment, etc. The module also offers a 1PPS and an RS232 output with NMEA GPS data for possible positioning, display processing, etc. The module uses a large number of systems for synchronization - GNSS (GPS, BDS, GLONASS, Galileo).
Specifications
General
| Function | PLL-GPSDO 10 MHz, sine wave output, 1PPS, GPS NMEA RS232 output |
|---|---|
| Supply voltage | DC 4.8 - 5.3 V |
| Supply power | start < 4 W, running < 1.5 W |
| GPS antenna voltage | DC 5 V/0.1 A |
| 1PPS output | Square wave, 3.3 Vpp |
| 10 MHz output | Sine wave |
| 10 MHz output power | 10 dBm ± 2 dB |
| RS232 output | GPS NMEA, 9600 bps |
| Accuracy | ± 25 µHz @ 10 MHz |
| Long-time jitter | typ. 16 mHz (GPS locked) |
| Oscillator | 10 MHz OCXO from CTI |
| Dimensions | 45x45x18 mm (WxHxL including connectors) |
Warm-up start
- The first start in a new location can take around 10 minutes.
- Depends on satellite count and GPS antenna position.
- Standard warm up after start is less than 5 min.

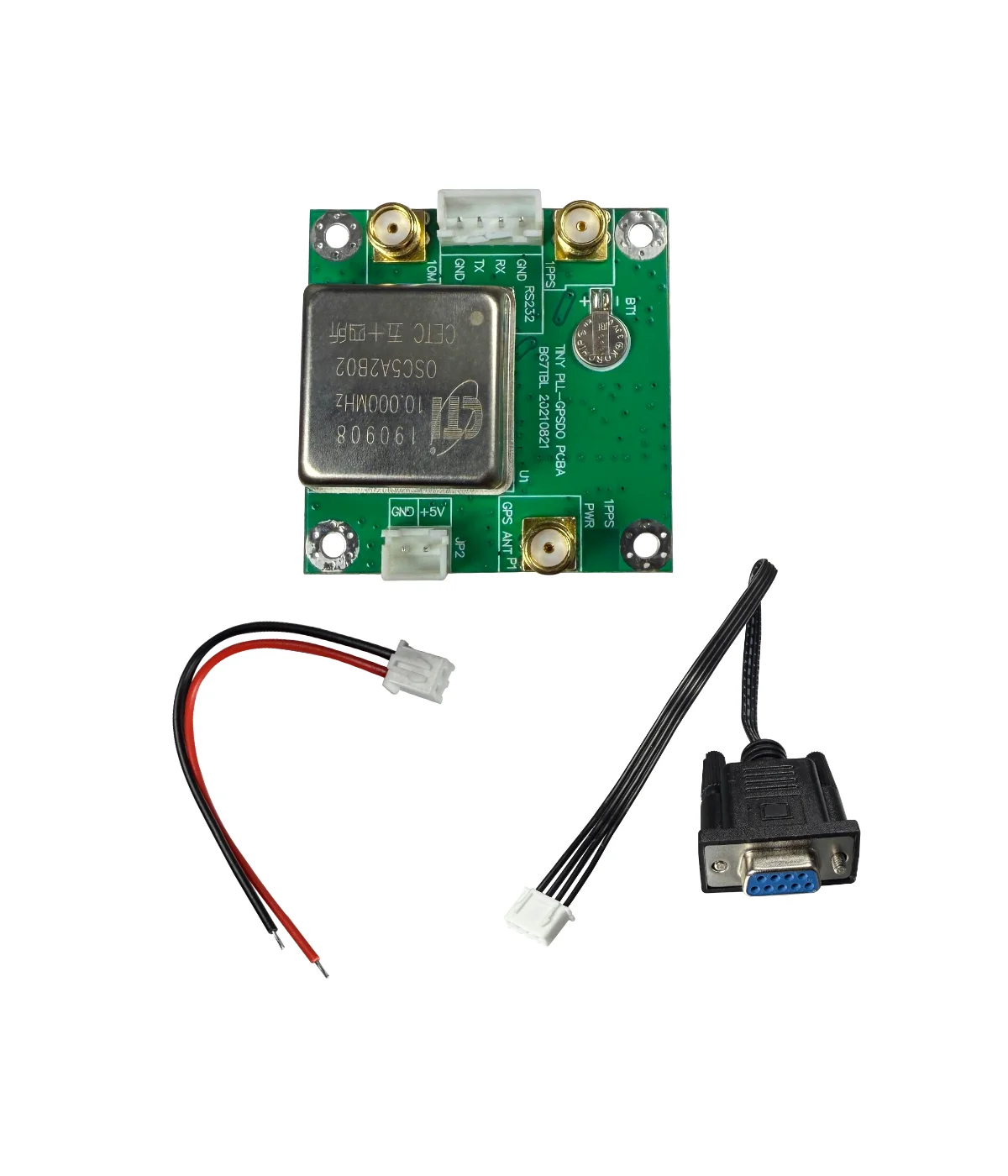

In the box
- Tiny GPSDO PLL module

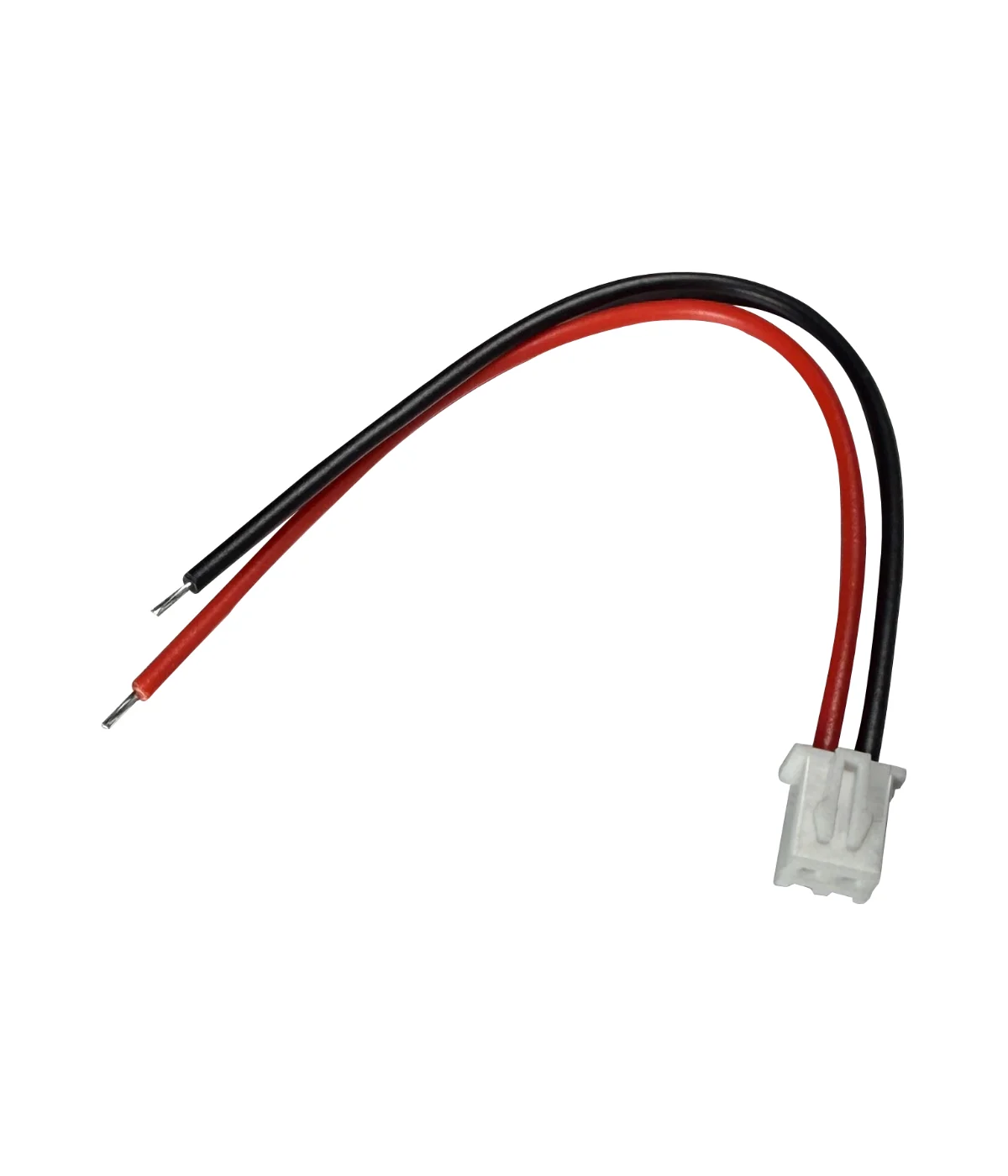

- DC cable

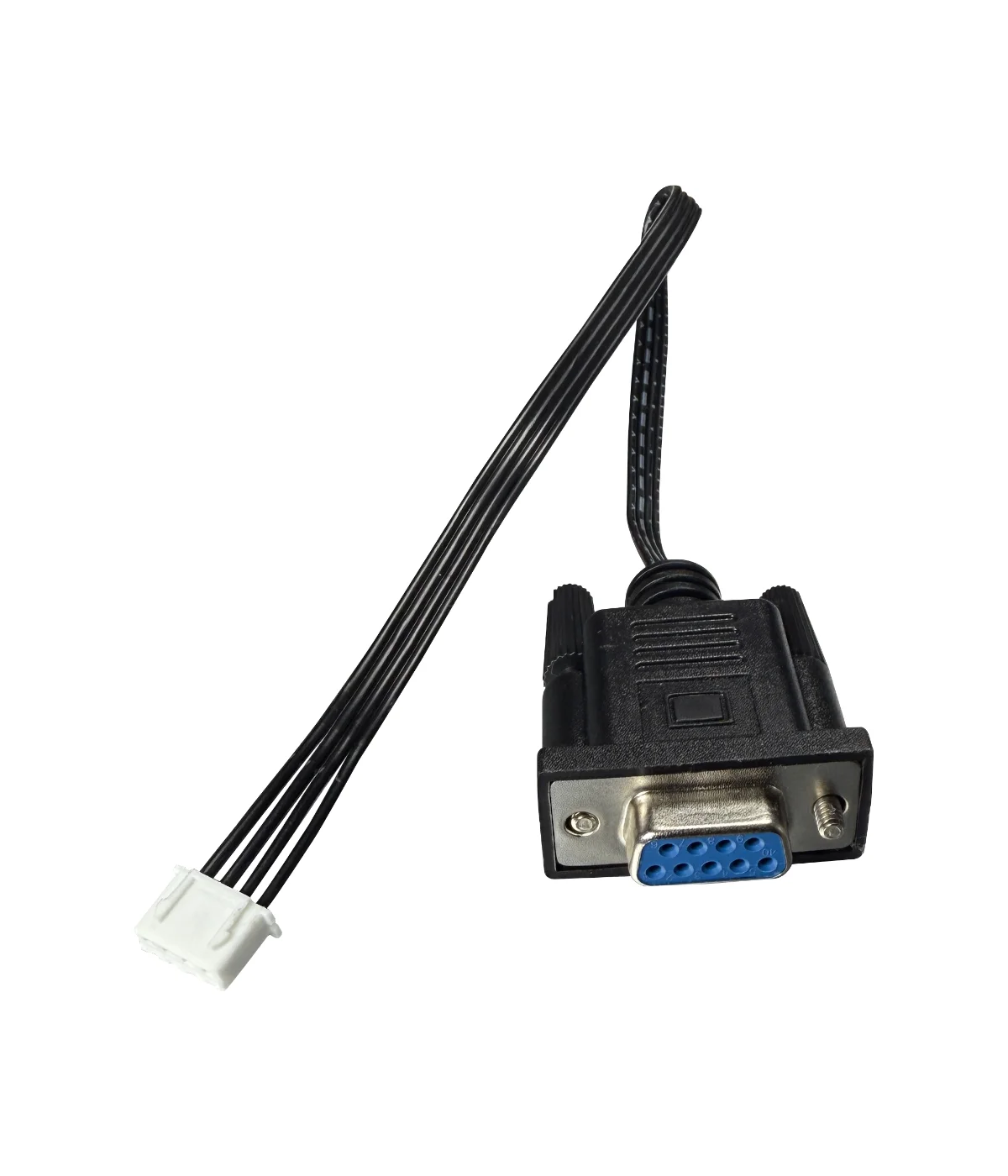

- Adapter cable with D-SUB 9 for GPS NMEA RS232 data
