10MHz Rubidium Frequency Standard with GPS

GPS-disciplined 10MHz Rubidium Frequency standard, accuracy 2e-11 within 24 hours - ideal reference for labs and SDR RX/TRX

Read moreShow less

799.00 €

799.00 € tax excl.

in stock, shipped in 2-3 days

Details

Features

Attachments

Reviews

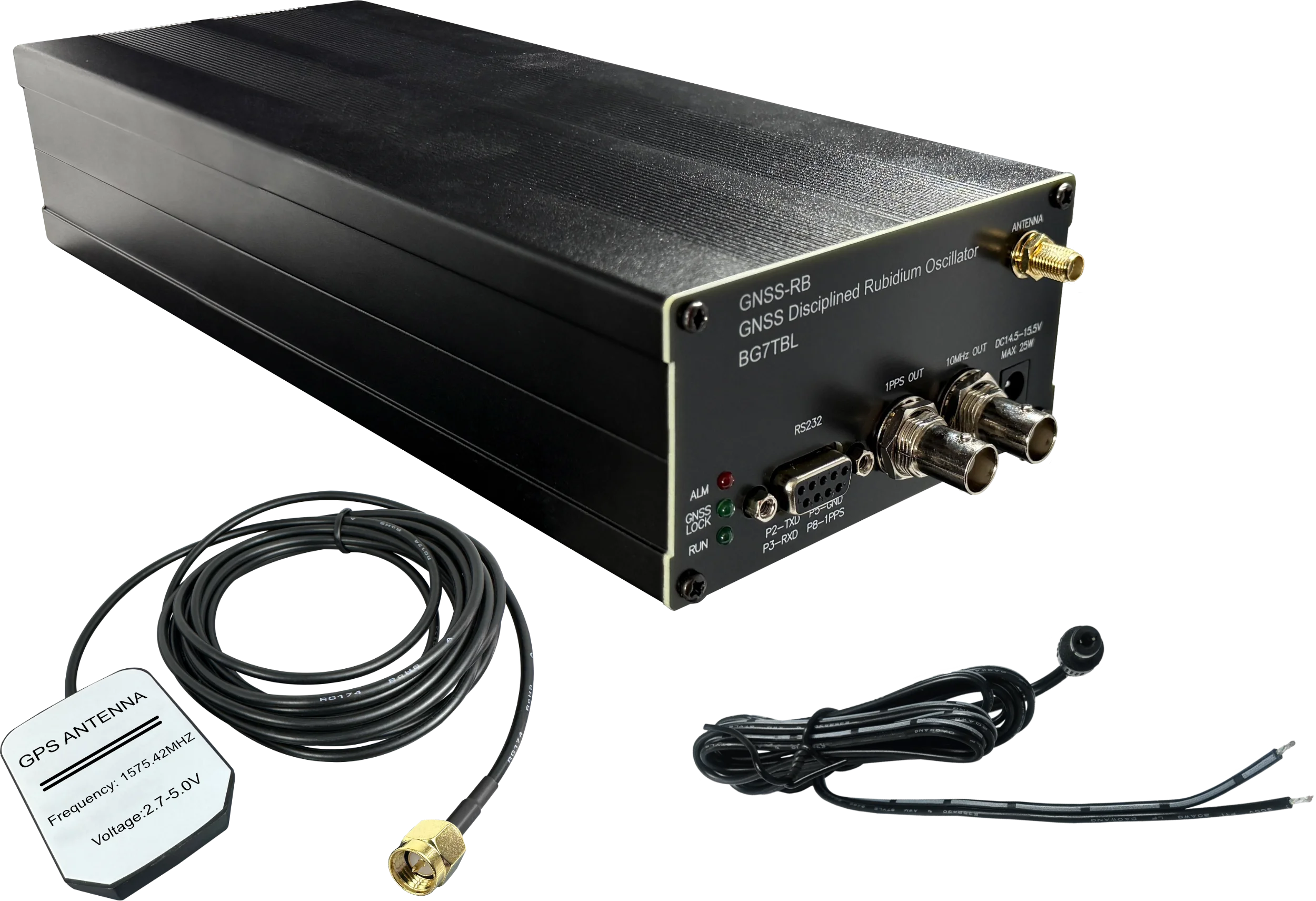

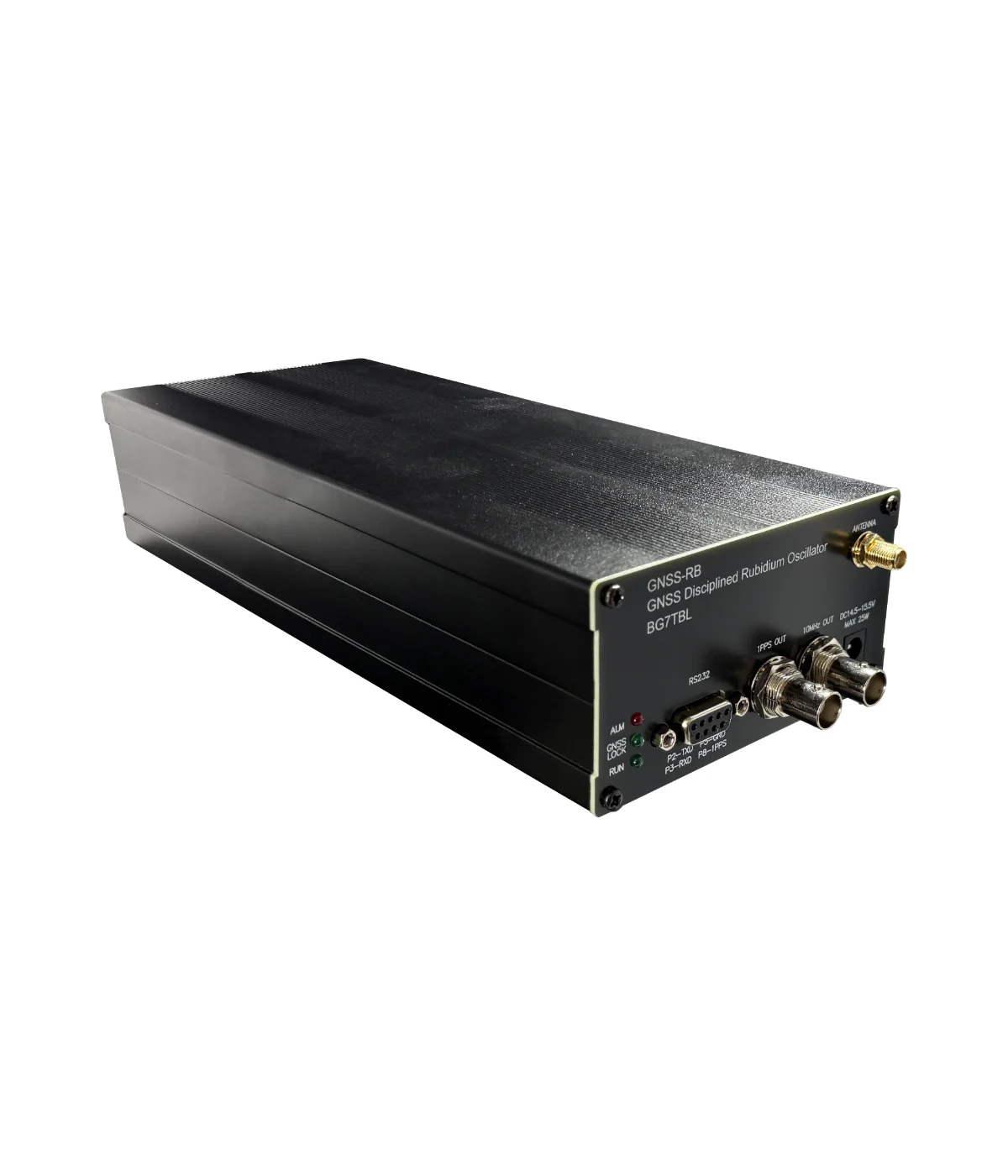

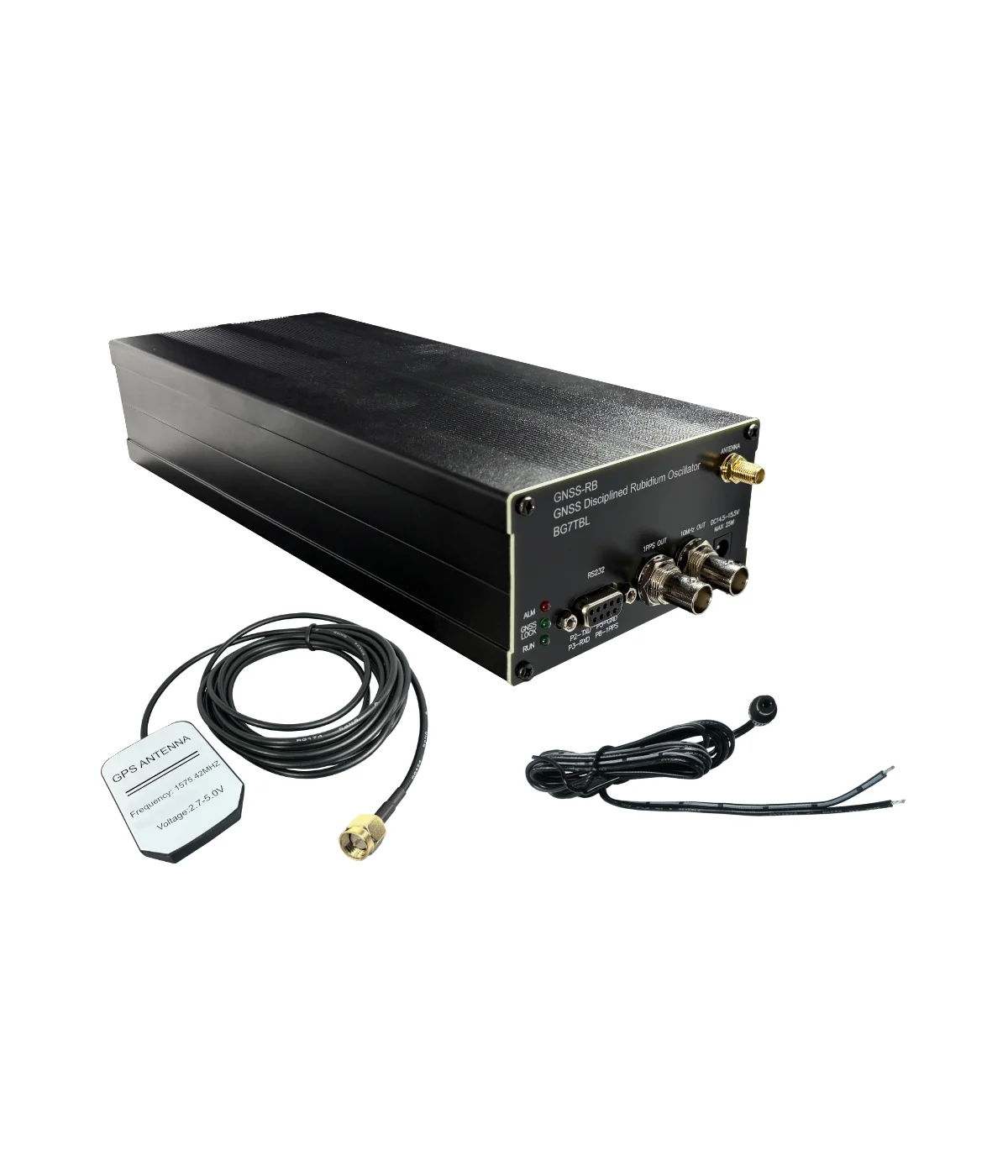

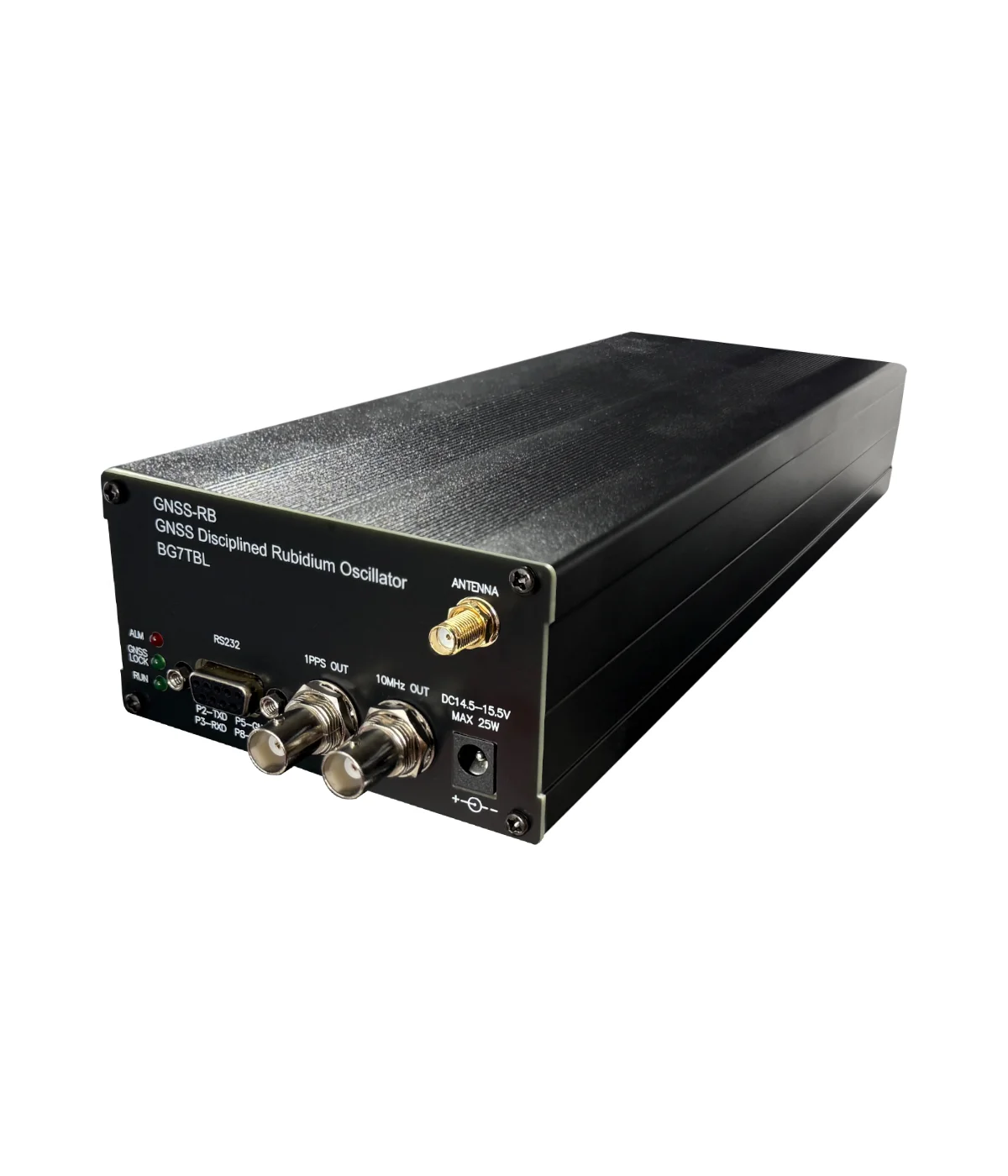

This is a highly accurate frequency standard based on a professional rubidium module. It is a source of atomic time, which is used for precise setting of the 10 MHz output. The device contains an internal splitter, and up to three devices can be connected directly thanks to three BNC connectors with sine wave output. A major advantage of this frequency standard is that it does not require a GPS signal. It will therefore work in enclosed spaces, and there is also no problem with possible GPS signal interference - GPS jamming.

Specifications

General

Function	10 MHz frequency standard, GPS fine-tune accuracy, reference for lab/SDR RX/TRX
Supply voltage	DC 14.5 - 15.5 V, ≤ 25 W

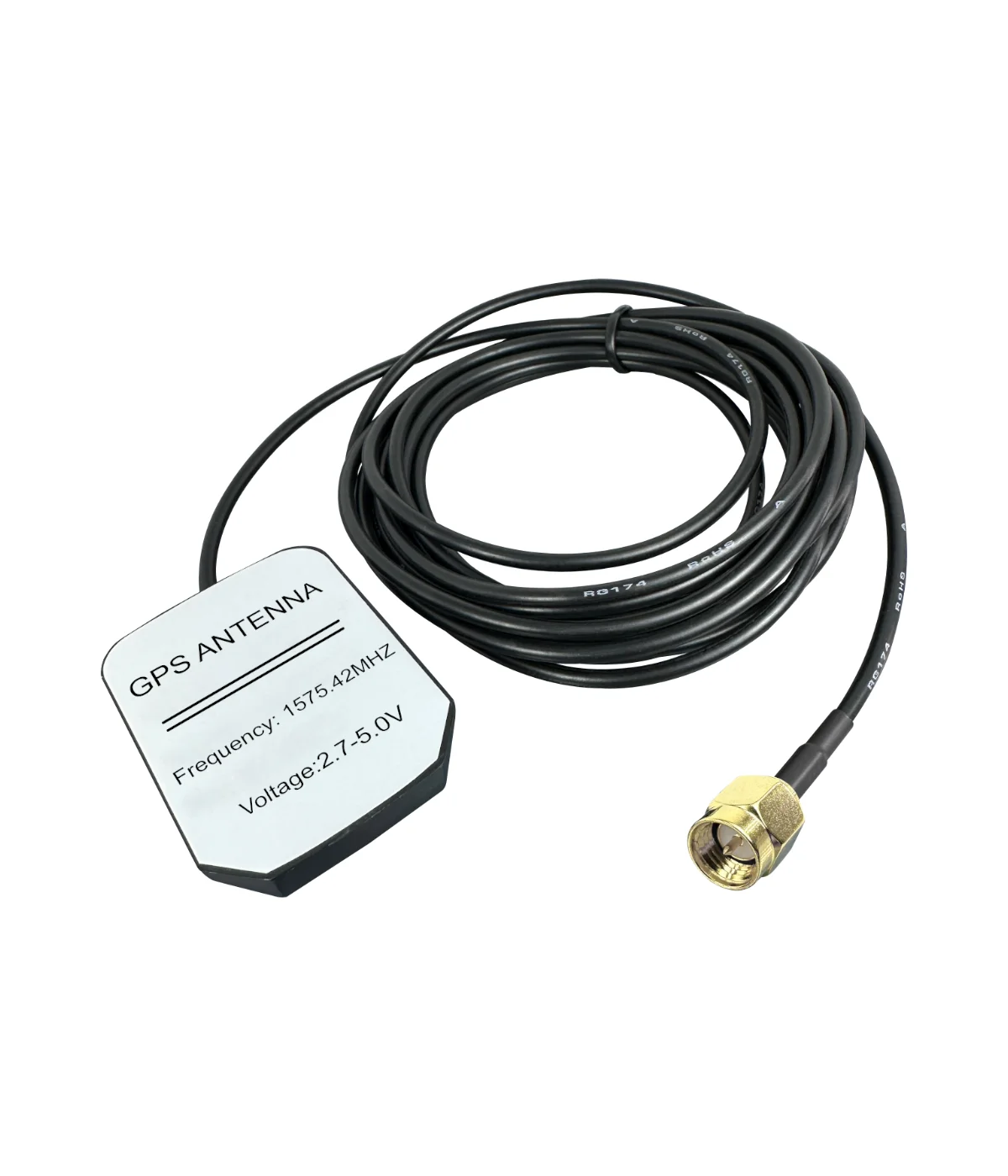

GPS antenna voltage	DC 5 V/0.1 A
1PPS output	Square wave, 3.3 Vpp
10 MHz output	Sine wave
10 MHz output power	13 dBm ± 2 dB
Outputs	BNC female
RS232 output	GPS NMEA, 9600 bps
Final accuracy	typ. 2e-11 (0.0002 Hz @ 10 MHz) < 24 hours
Rubidium module	Portable module, typ. Symmetricom

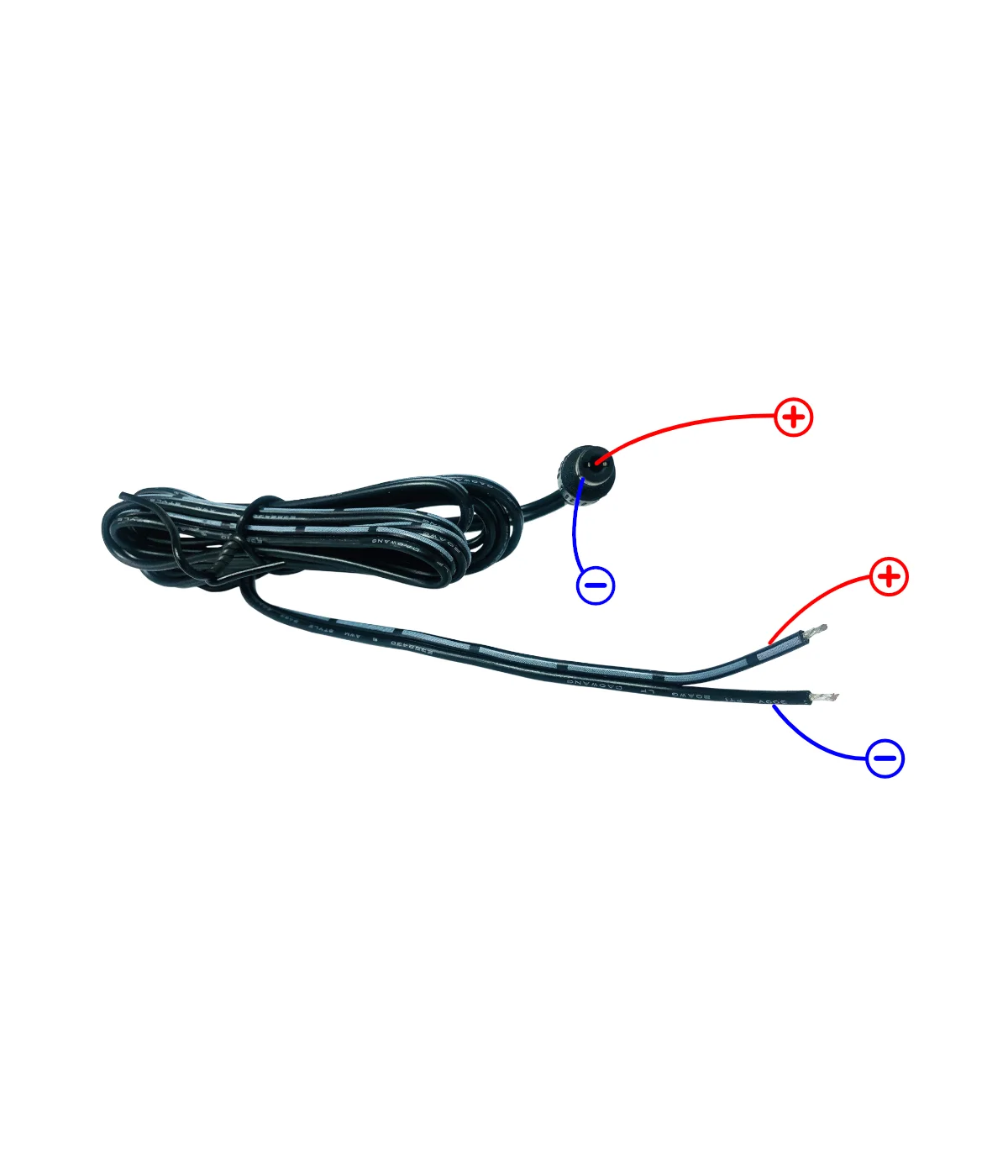

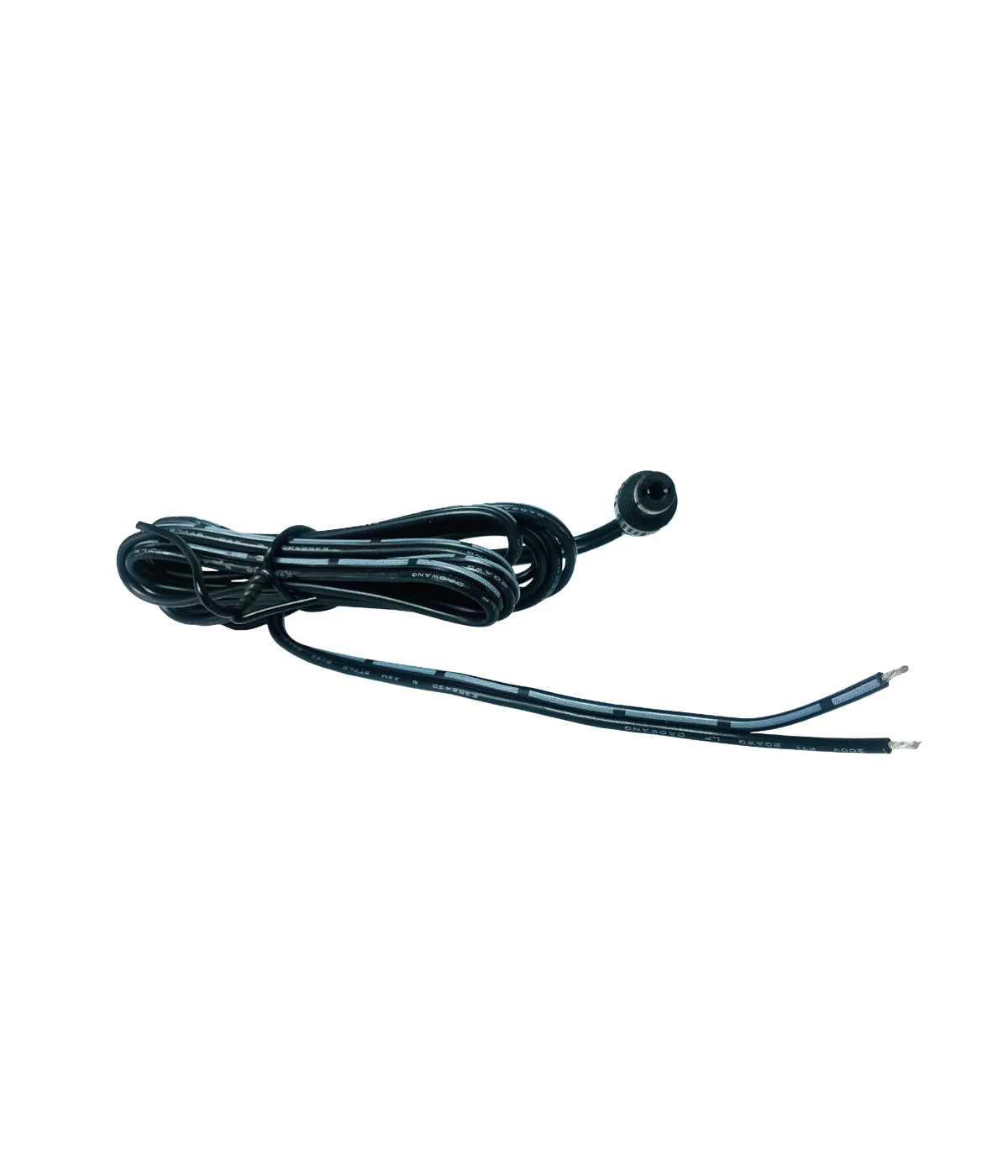

DC jack	5.5x2.1 mm
Dimensions	107x55x290 mm (WxHxL including connectors)

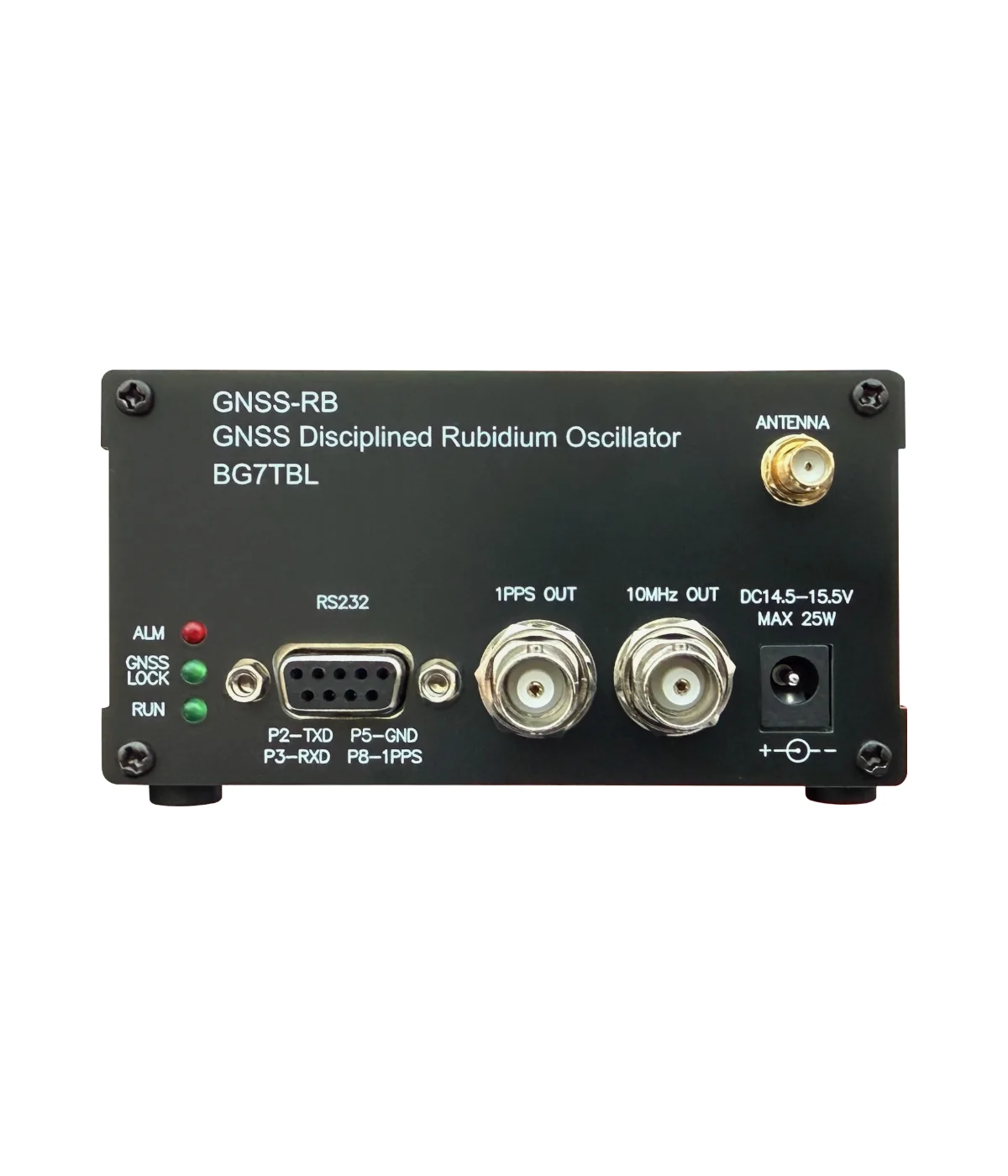

LED indicators

ALM	Flash = Rb not locked, ON = RB deviation > 0.001 Hz, OFF = Rb deviation < 0.001 Hz
GNSS LOCK	ON = GPS locked, OFF = GPS unlocked
RUN	Flash = system running OK
