10MHz GPSDO with LCD display

10MHz GPSDO with LCD display - calibrate to GPS, then run standalone for a stable reference

Read moreShow less

89.00 €

89.00 € tax excl.

in stock, shipped in 2-3 days

Details

Features

Attachments

Reviews

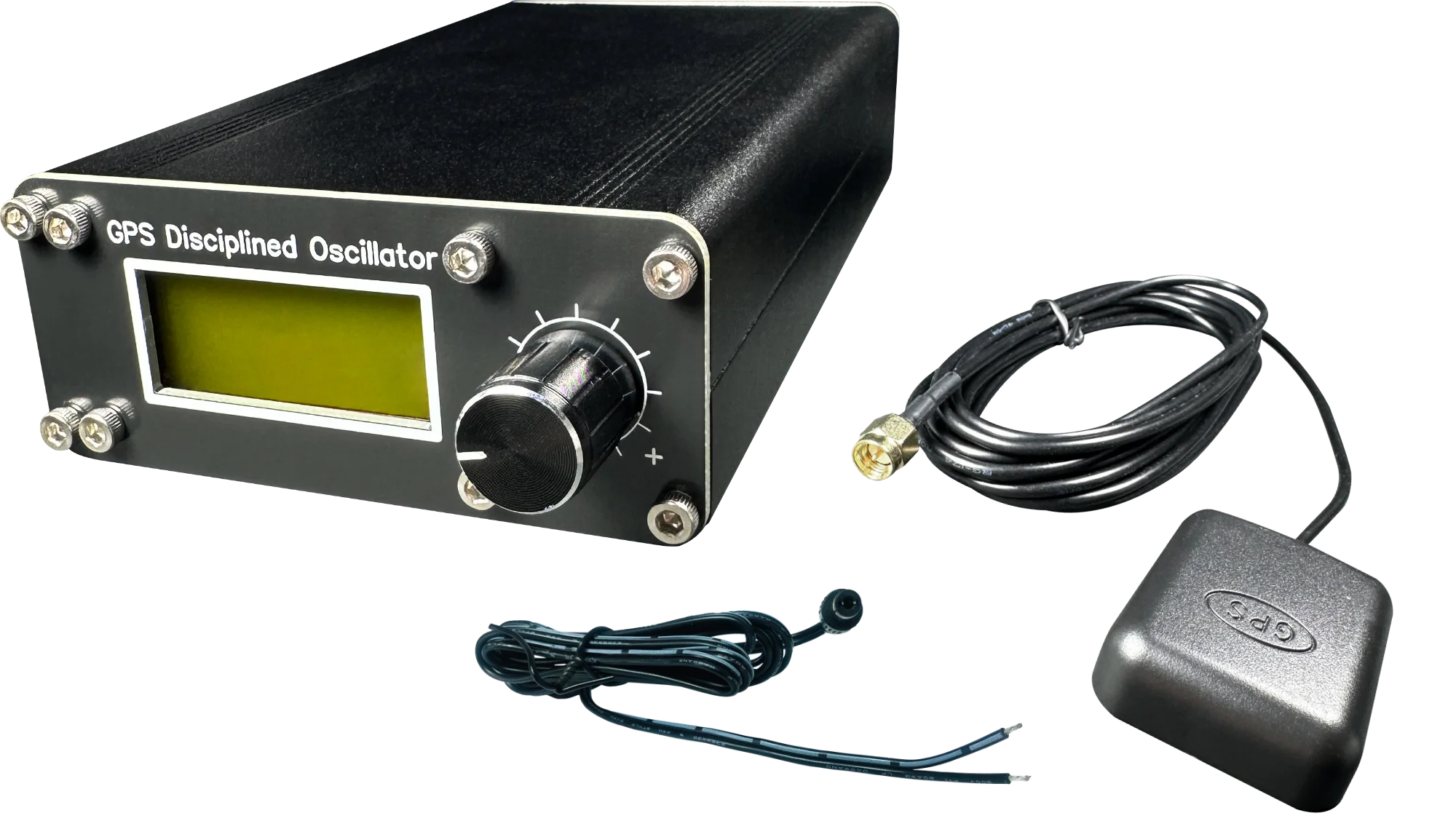

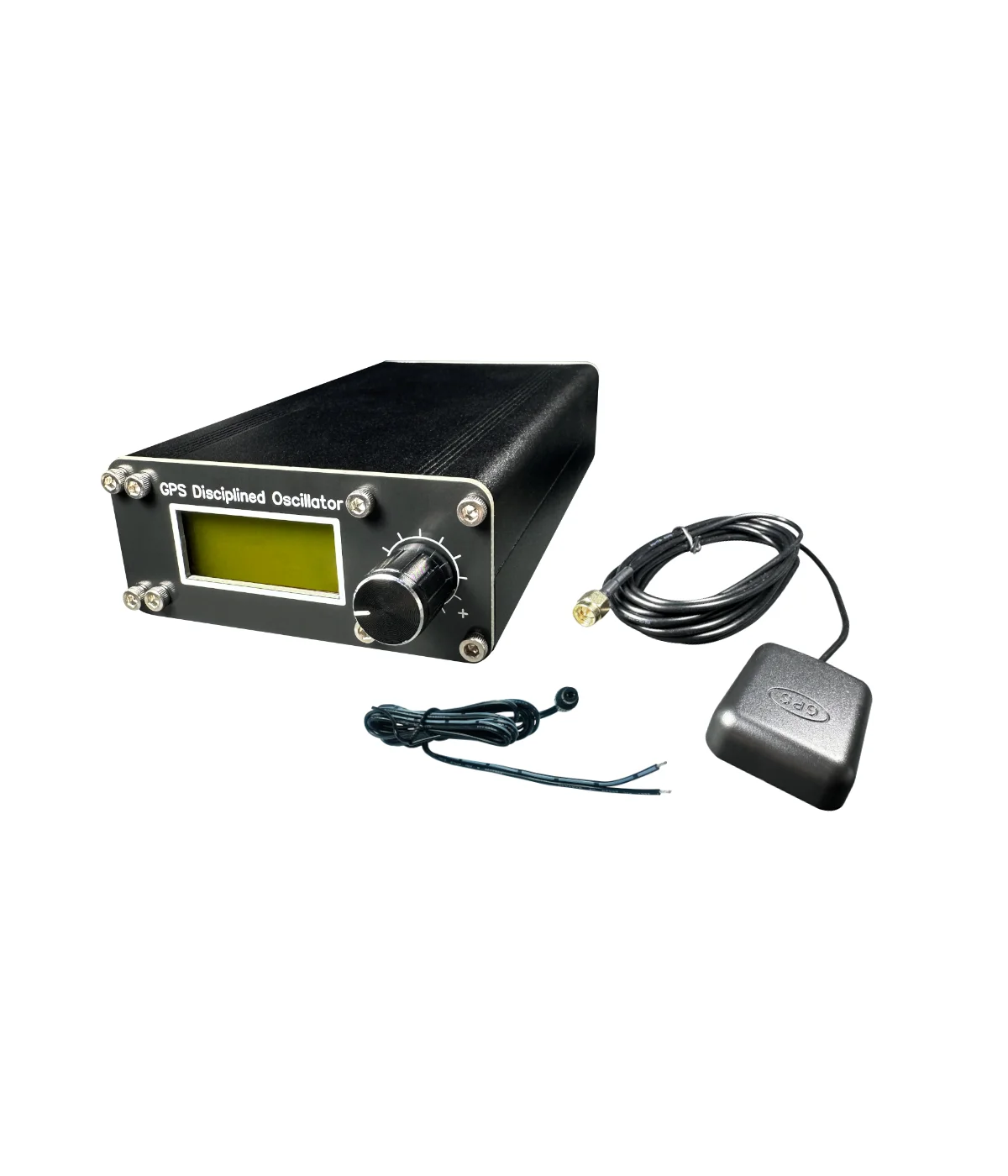

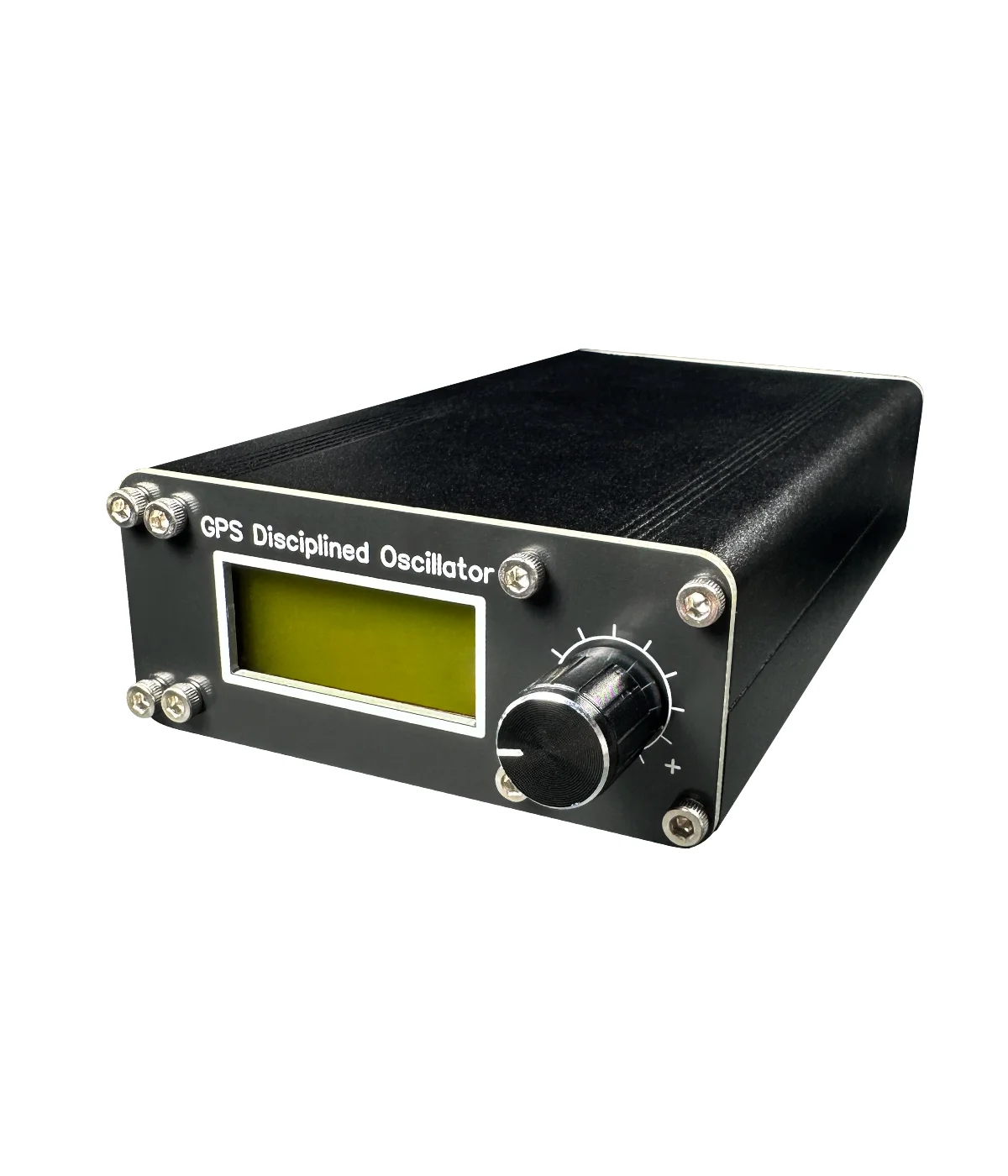

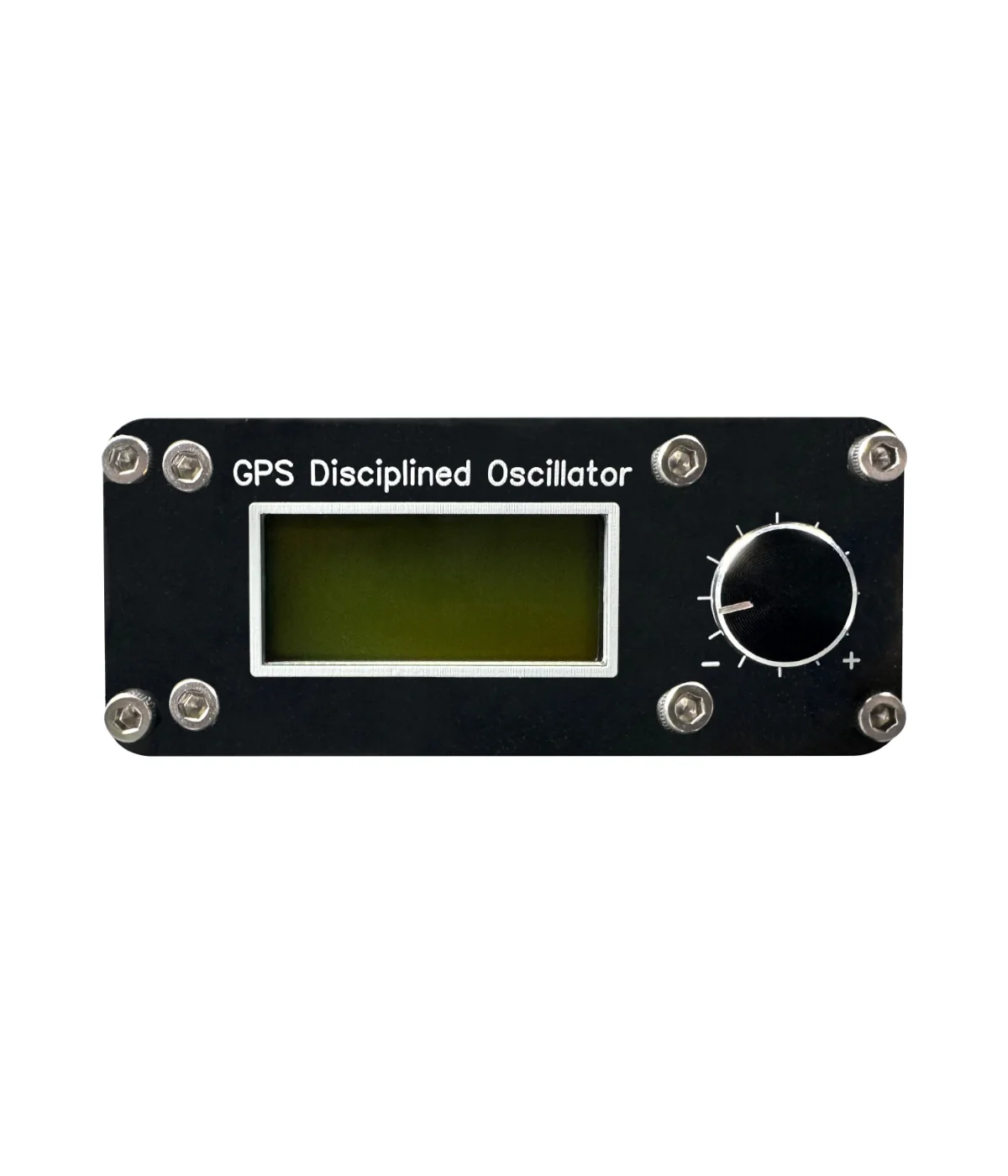

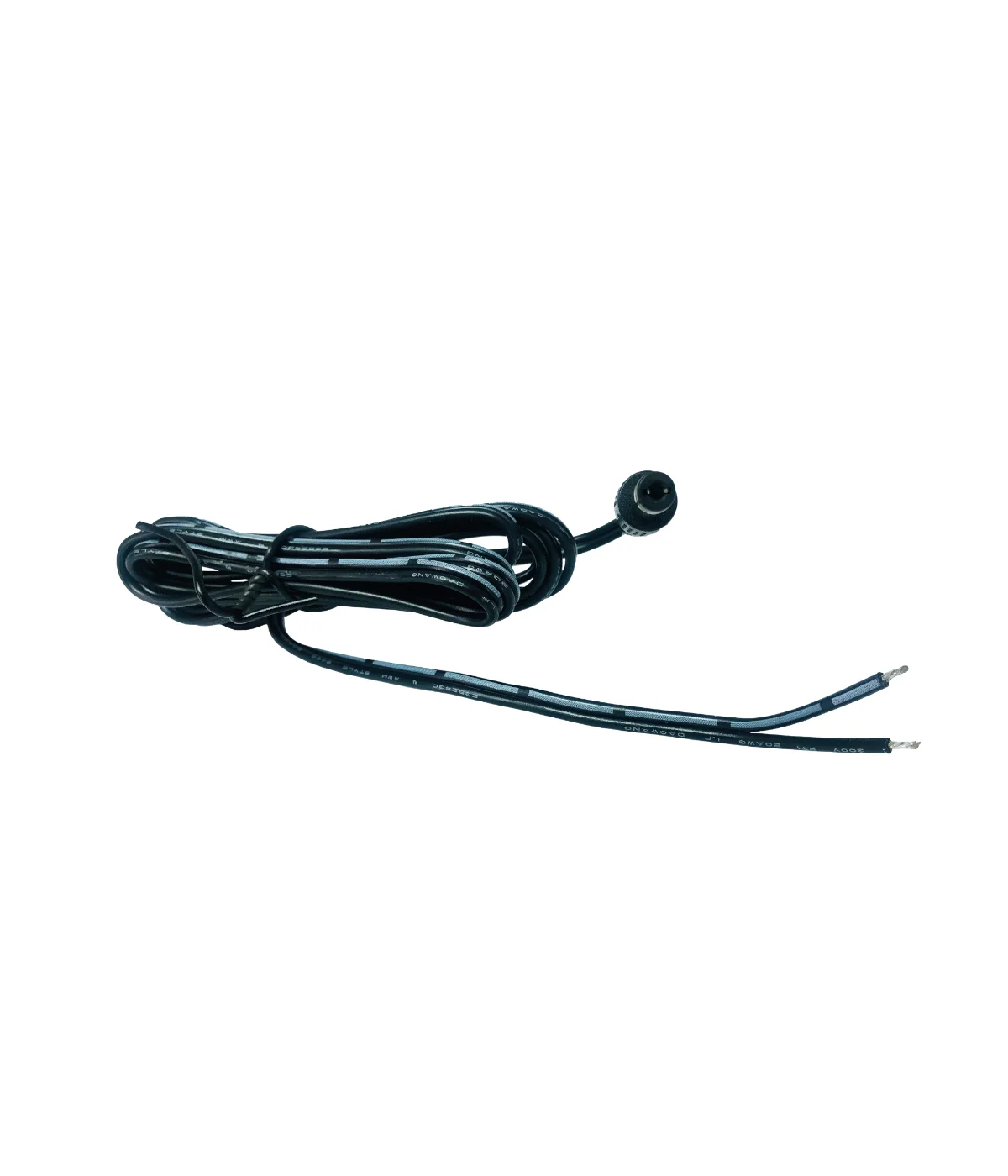

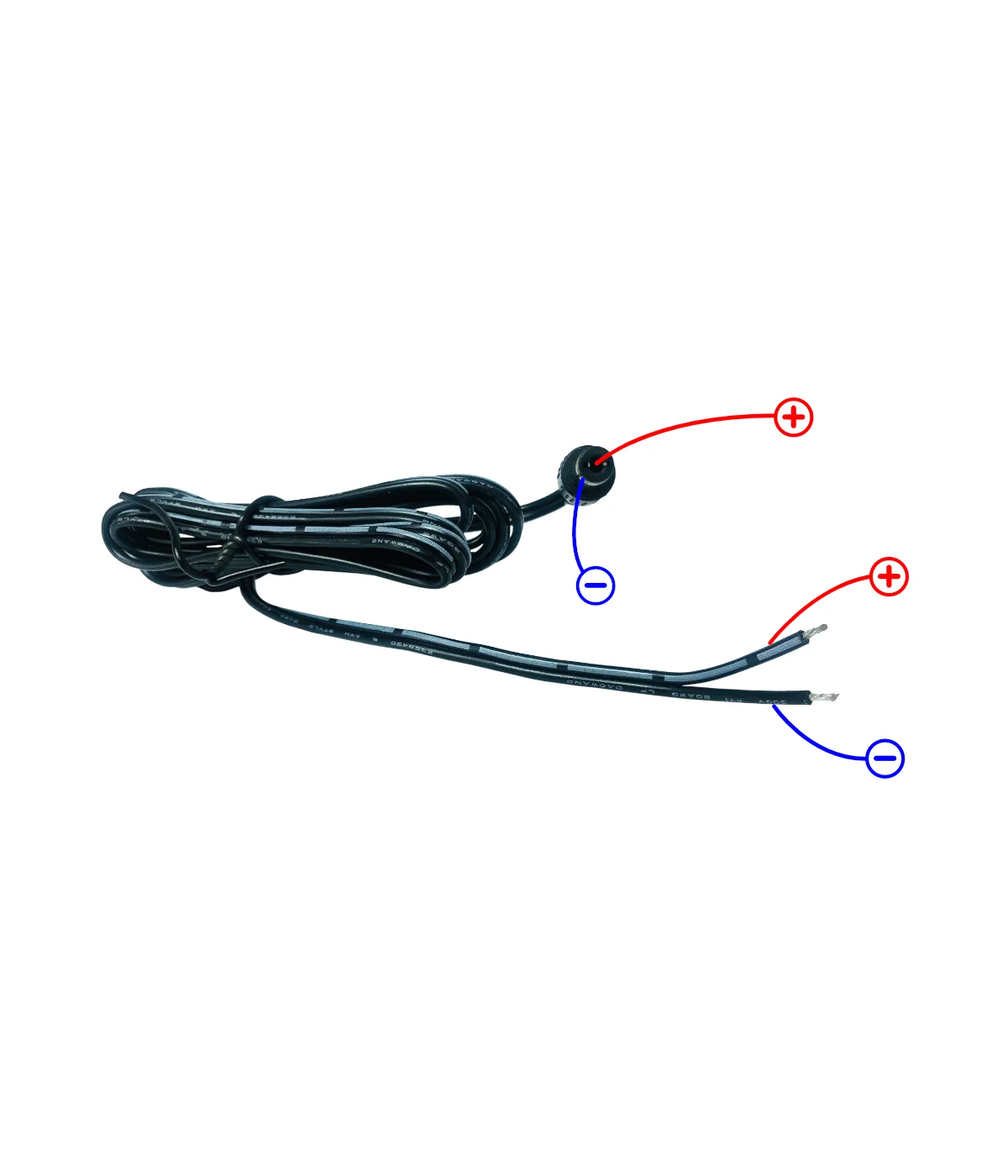

This is a 10 MHz GPSDO (Disciplined Oscillator). Internal TCXO locked to GPS. The LCD display shows the status of the device, and thanks to the menu it is possible to adjust the brightness and, if necessary, the frequency offset. A 1PPM signal is used to set the frequency by CPU and 16-bit PWM tuning voltage. Very stable and with high output power, which can be split to more devices. Includes GPS antenna and DC plug cable.

⚠ Please read before ordering! This is not a classic GPSDO where the frequency is continuously tuned many times per second. In this device, the frequency is adjusted every second - similar to the IC-9700. This results in a small jump in frequency. If you use this GPSDO with, for example, a 10GHz LNB where the PLL signal is multiplied by 390, this tuning jump may be bad for FT8 decoding. This GPSDO is designed to calibrate the frequency to the GPS and then the GPS is no longer used (the antenna is disconnected) - the frequency will then be stable. After some time or relocation, it is possible to reconnect the GPS antenna and recalibrate the frequency accuracy if needed. Please refer to the instructions for more information.

Specifications

Function	GPSDO 10 MHz, square wave output, 1PPM
Supply voltage	DC 10.0 - 14 V
1PPS output	Yes
GPS antenna voltage	DC 5 V/0.1 A

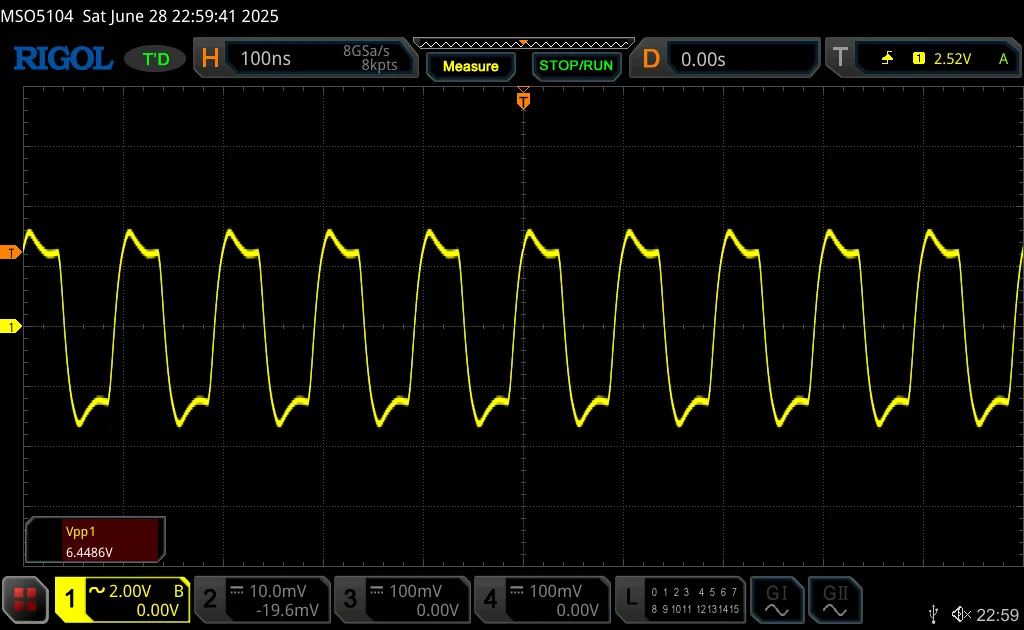

10 MHz output	Square/sine wave
Accuracy	Peak value 0.03 Hz @ 10 MHz
Average frequency stability	0.0001 Hz @ 10 MHz
RF power	typ. 9 dBm
Tuning	16-bit PWM, internal setup menu

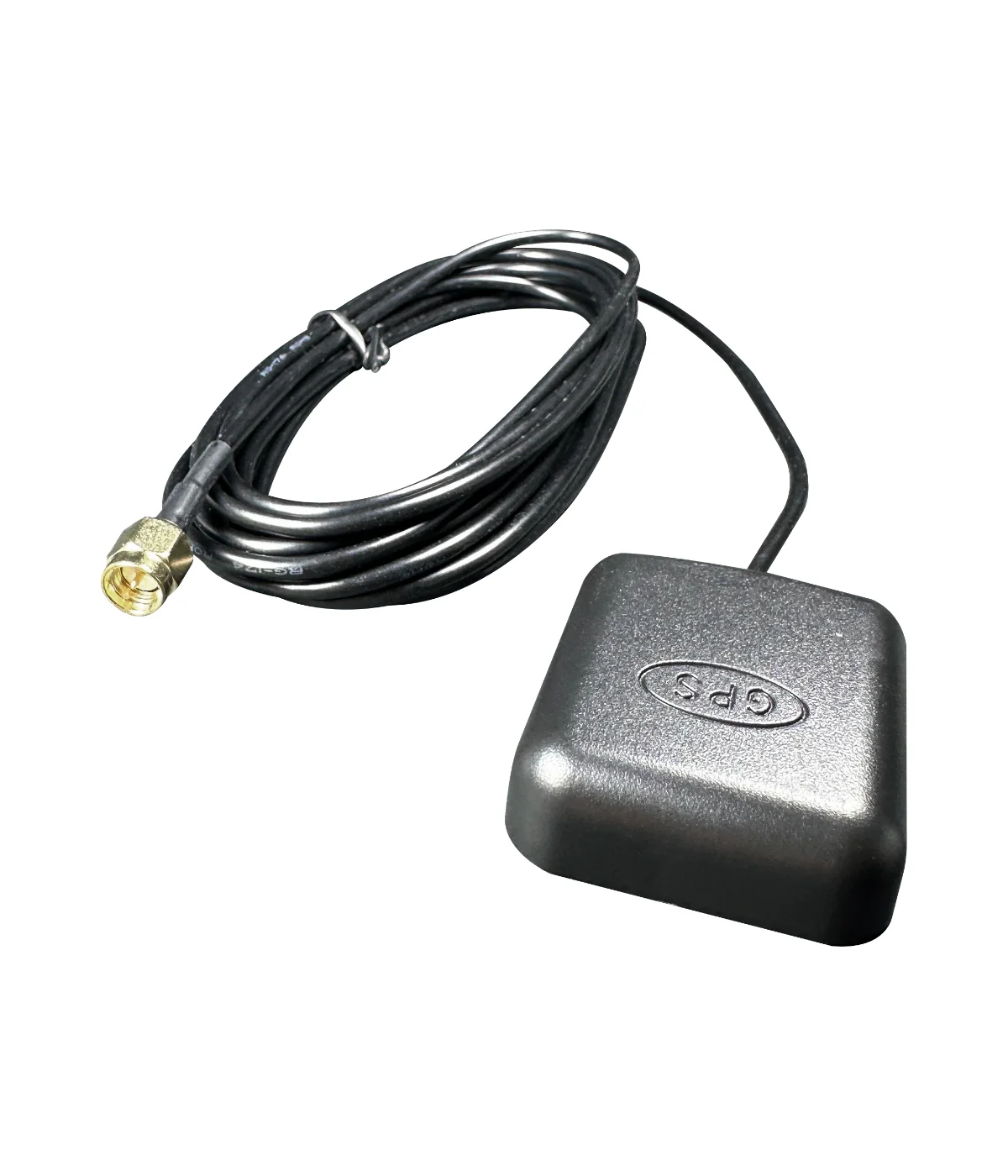

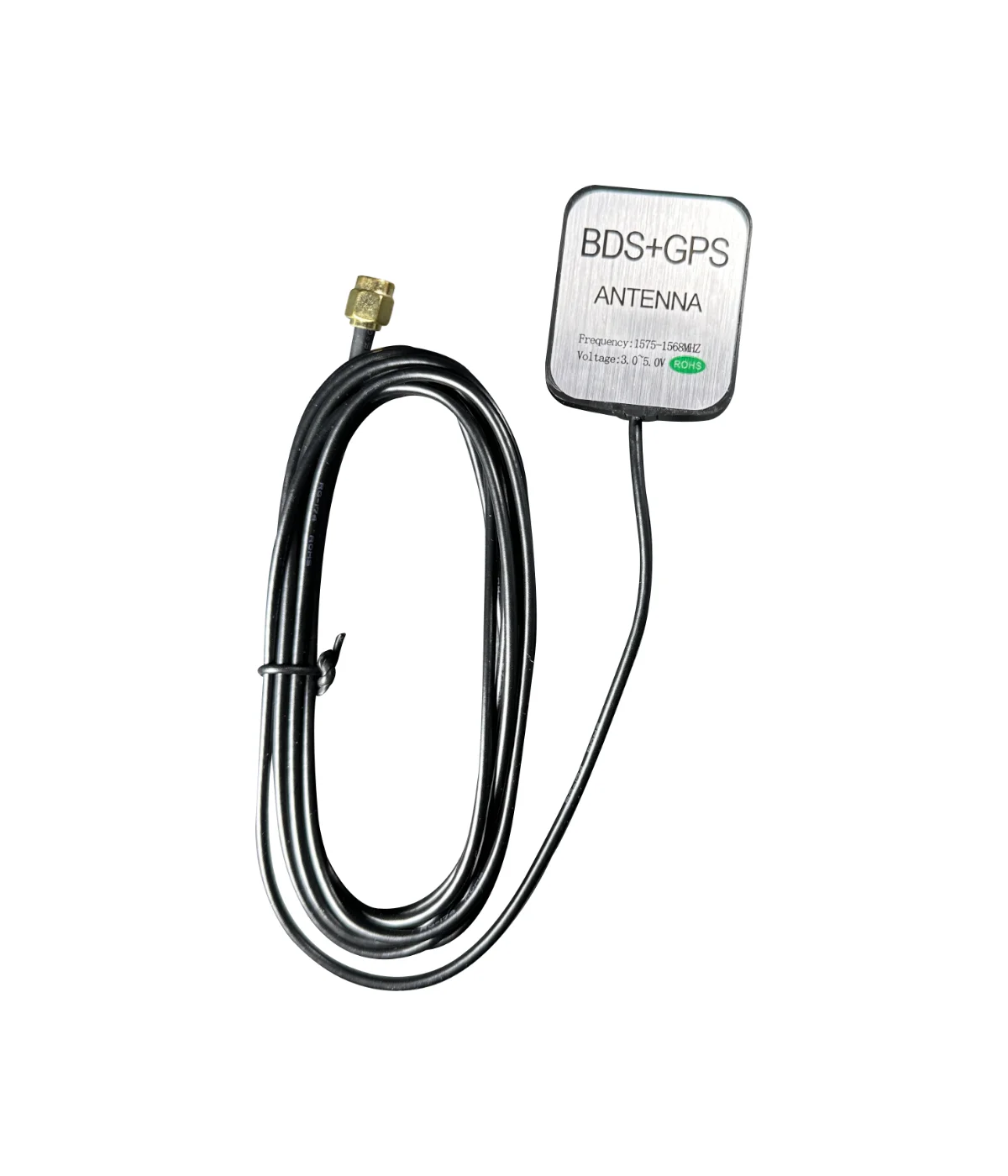

GPS antenna	3m, SMA
Dimensions	190x40x90 mm (WxHxL including connectors)
