10MHz GPSDO-PLL

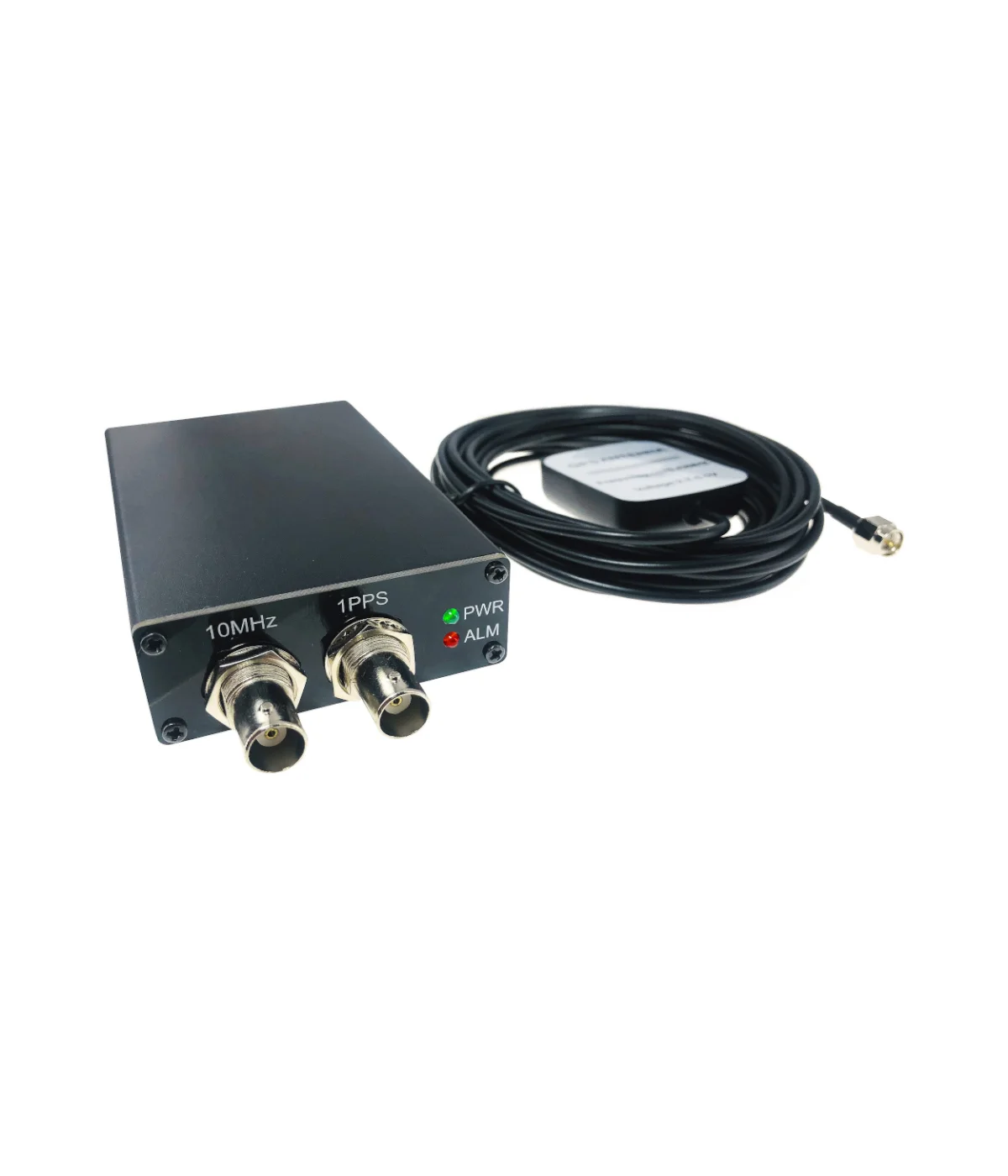

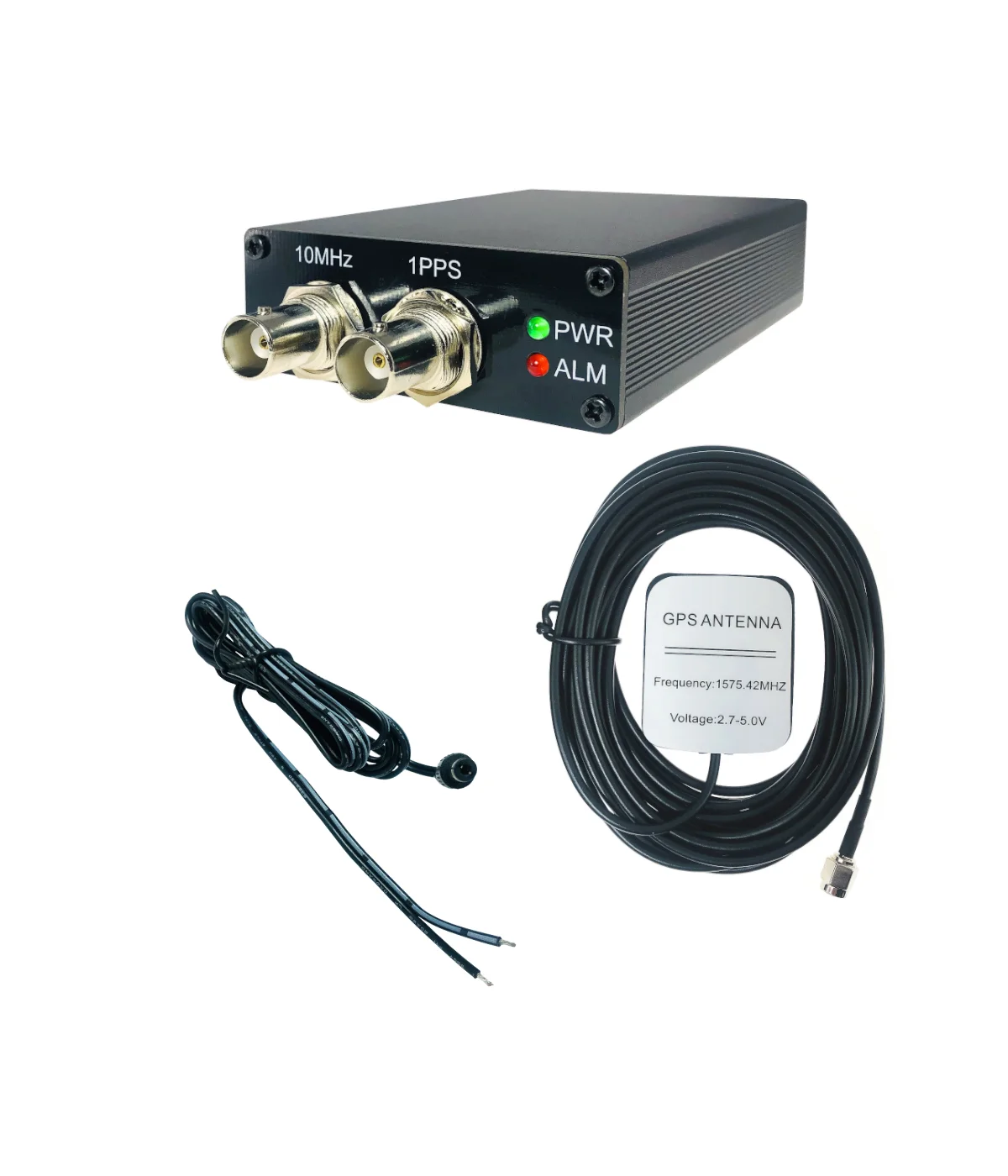

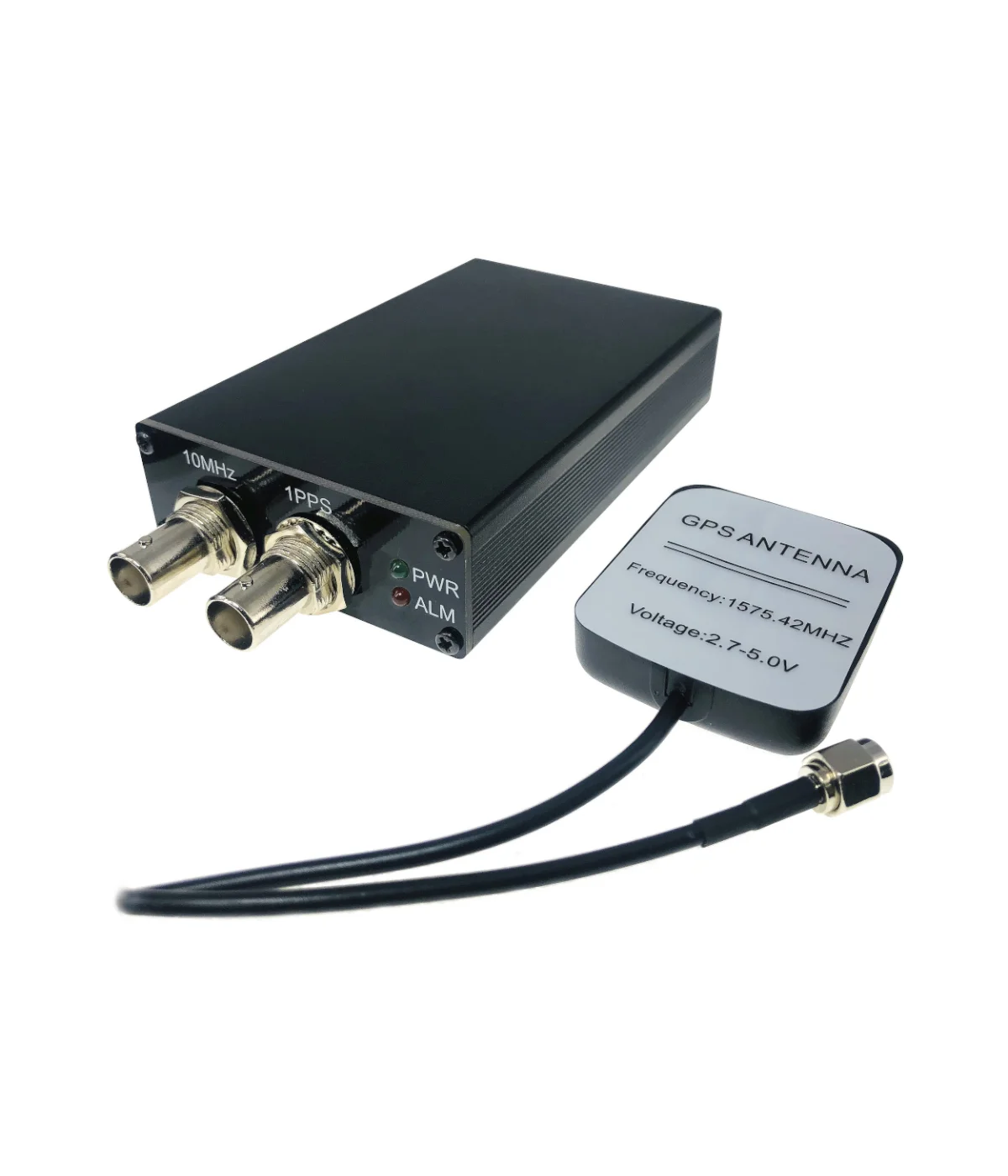

10MHz GPSDO PLL, low phase noise - includes GPS antenna and DC cable

Specifications

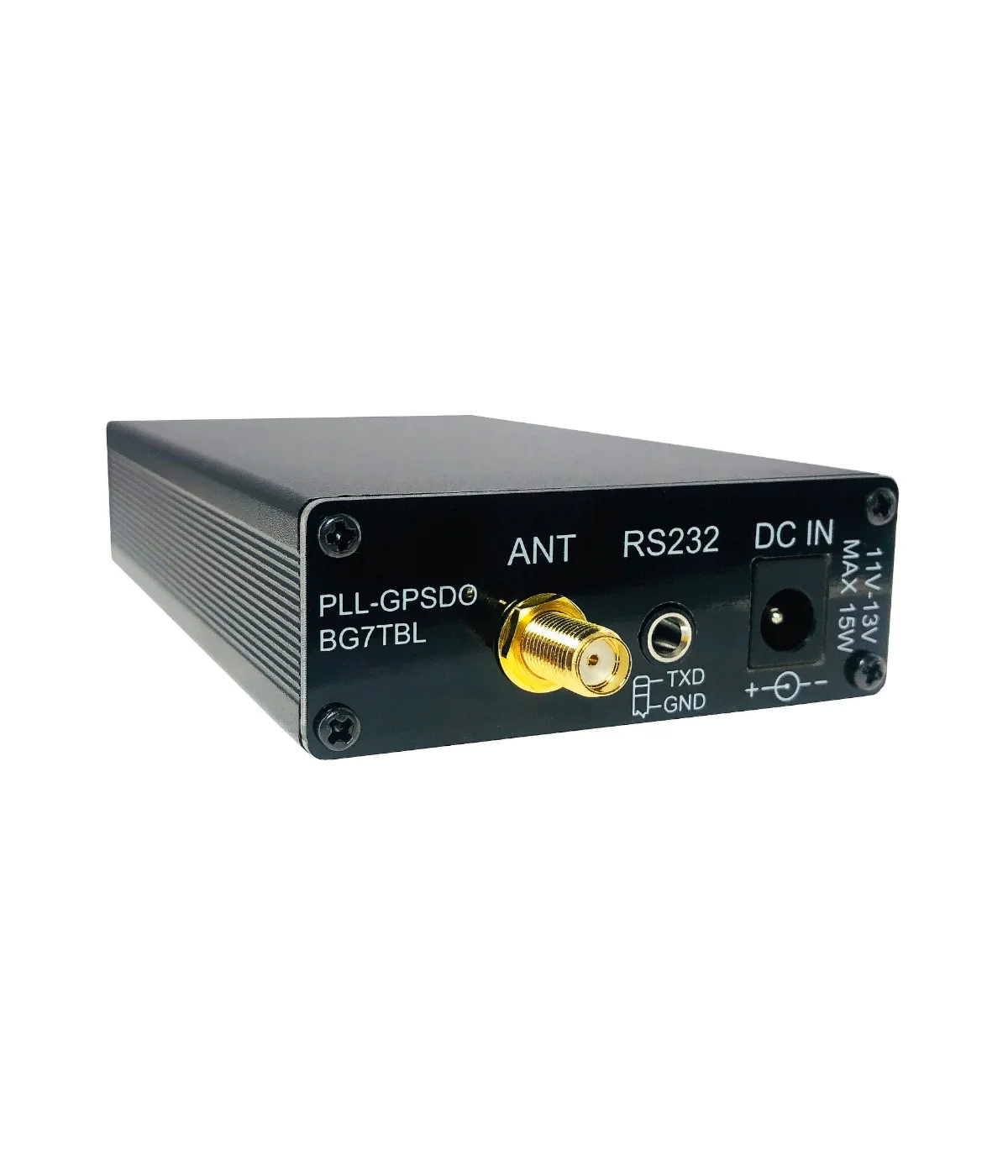

Function	PLL-GPSDO 10 MHz, new version 2021 with very low phase noise, sine wave output, GPS NMEA RS232 output

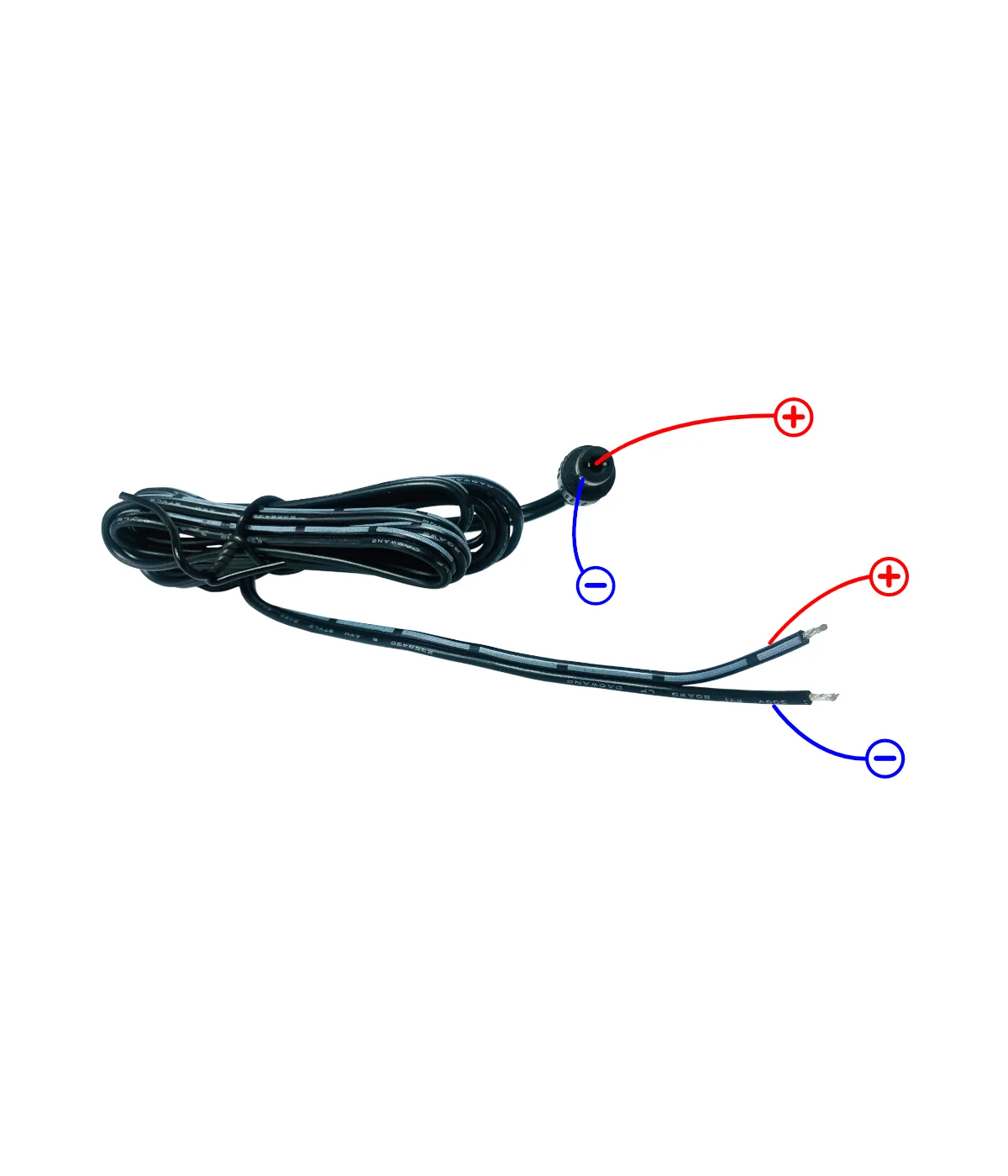

Supply voltage	DC 11.7 - 13.8 V, ≤ 5 W

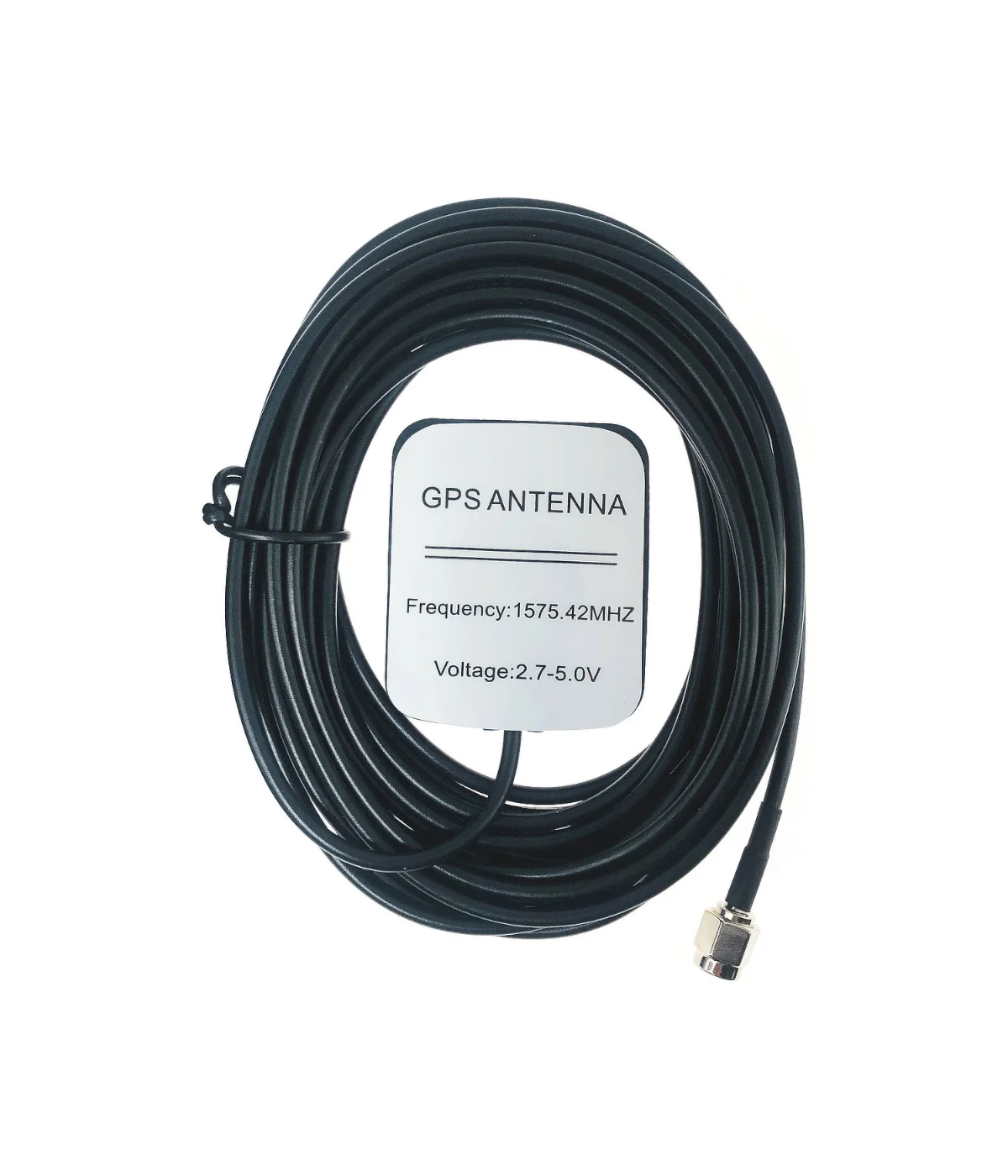

GPS antenna voltage	DC 5 V/0.1 A
1PPS output	Square wave, 3.3 Vpp, synchronised to UTC
10 MHz output	Sine wave
10 MHz output power	11 dBm ± 2 dB
RS232 output	GPS NMEA, 9600 bps
Accuracy	Peak value 0.03 Hz @ 10 MHz
Average frequency stability	0.0001 Hz @ 10 MHz
Dimensions	138x25x68 mm

⚠ This is a PLL-style GPSDO — lock time can take up to 10 to 60 minutes.

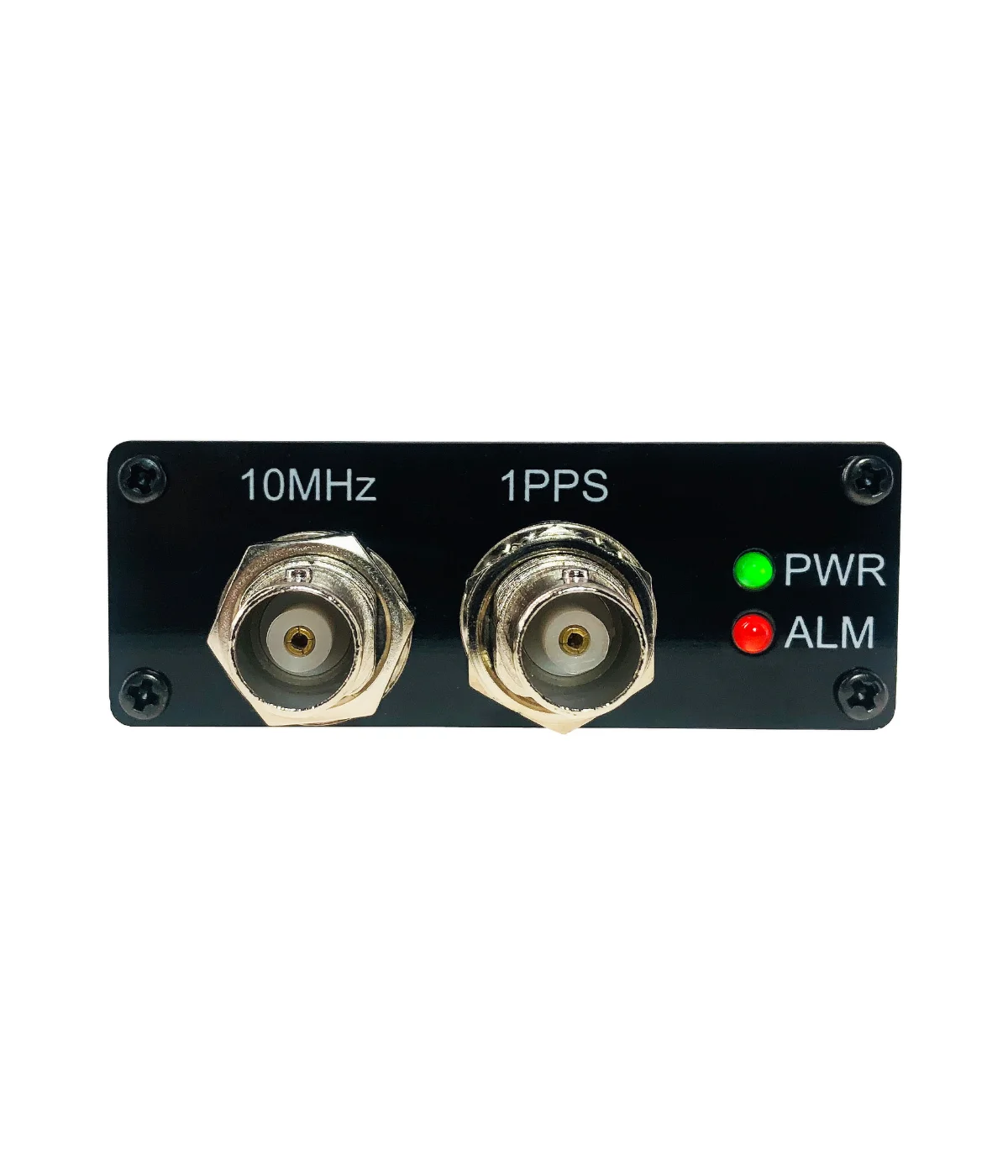

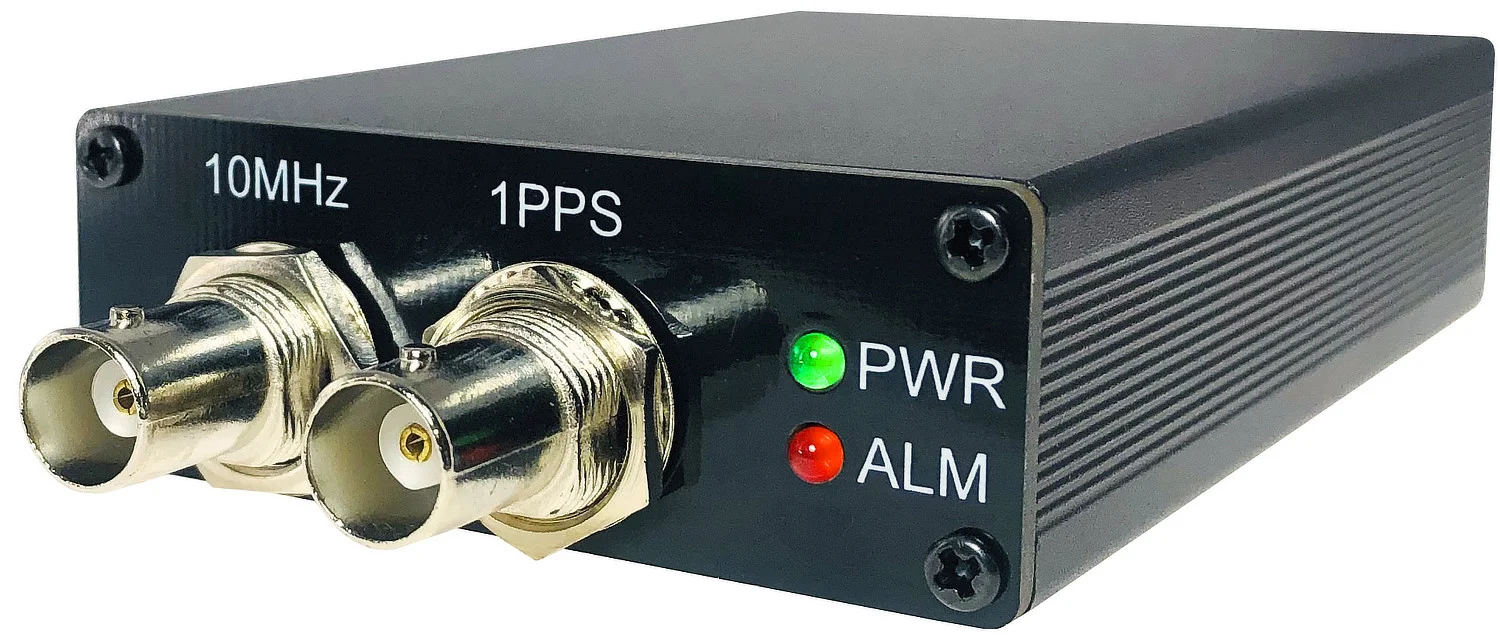

BNC output: 10 MHz sine wave
BNC 1PPS: pulses, synchronized to UTC

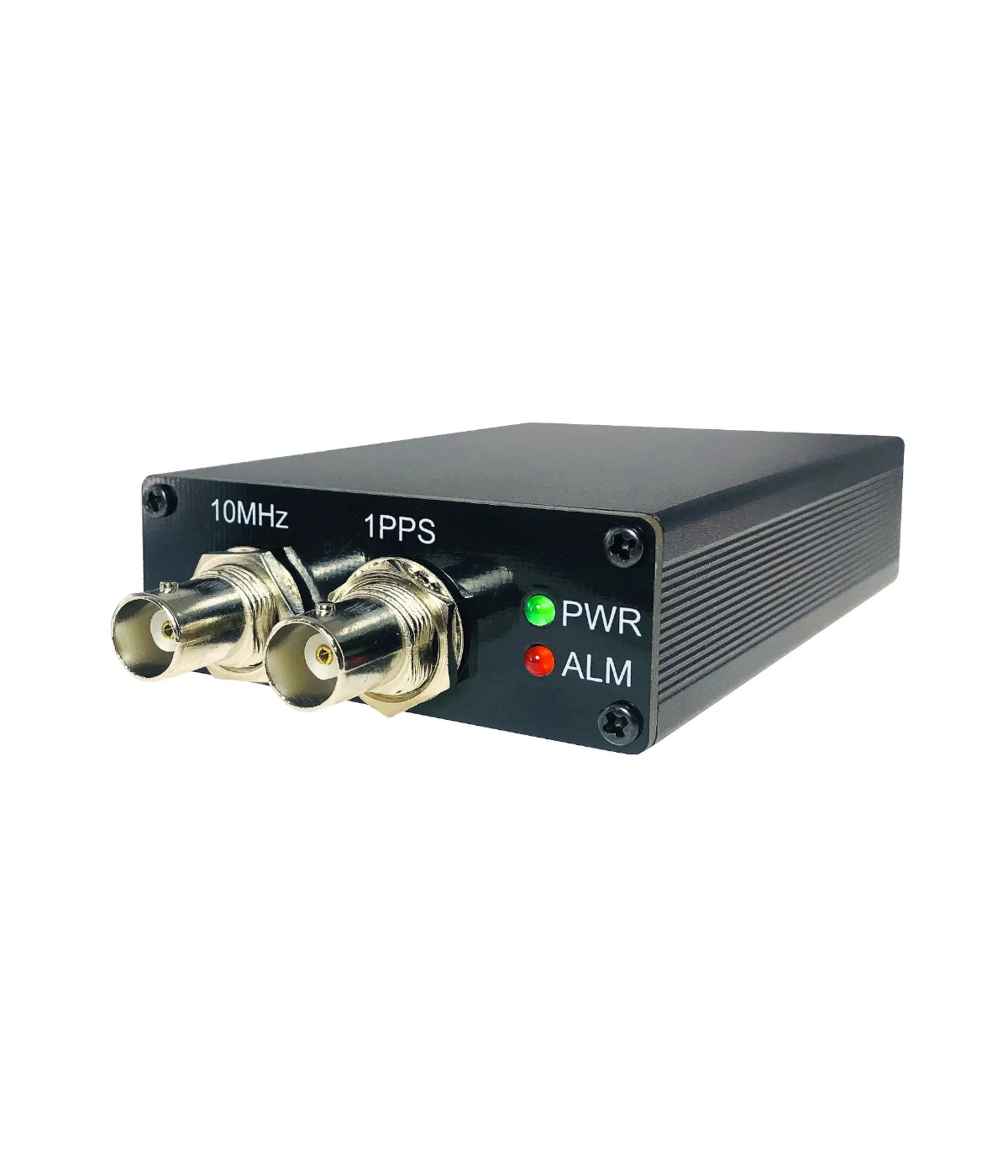

PWR LED: supply and GPS lock status — blinking (GPS not locked), long light (GPS locked), no light (no power)
ALM LED: light (accuracy better than 0.1 Hz), no light (accuracy at or below 0.1 Hz)
