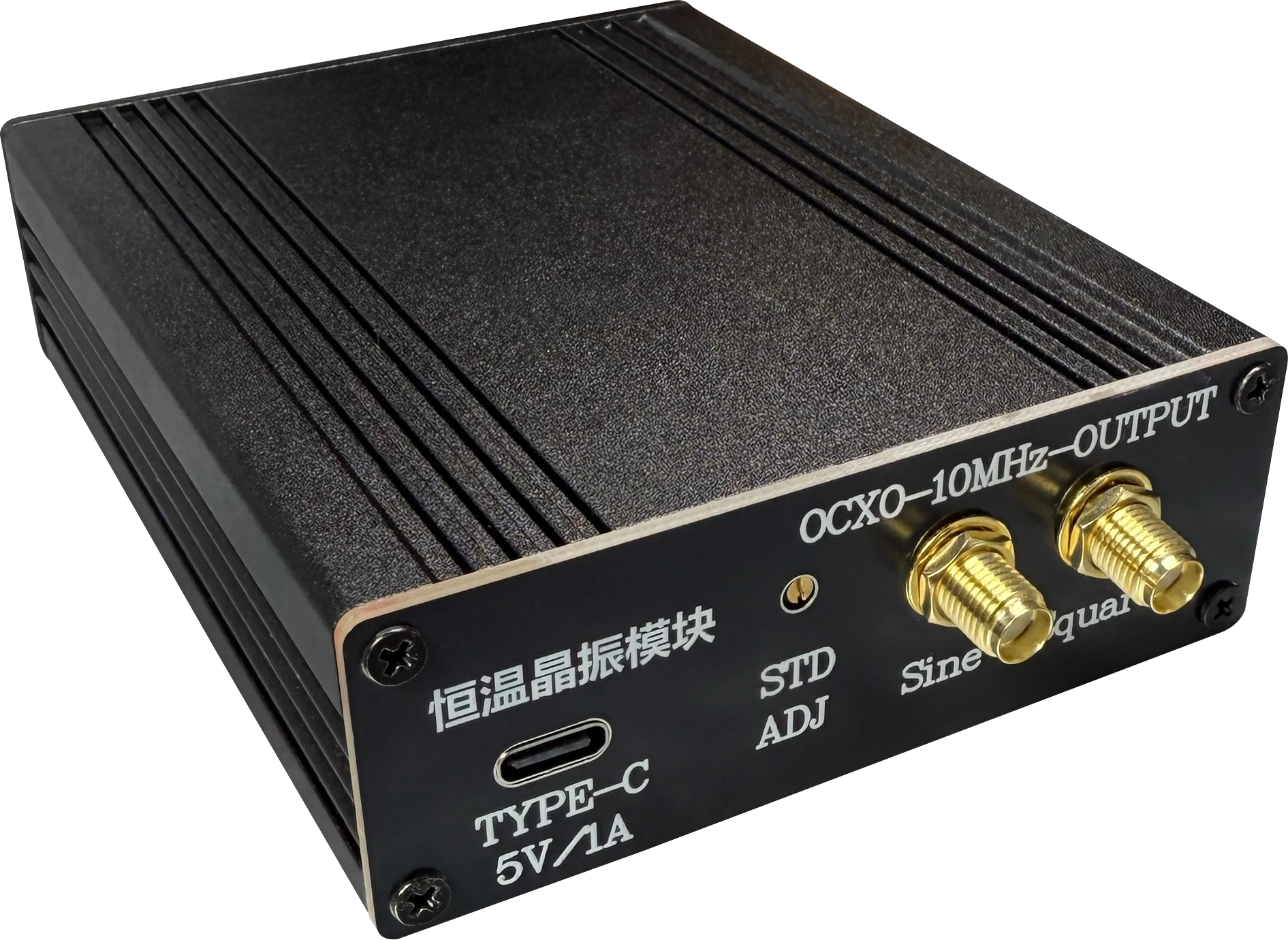

10MHz OCXO reference box
10MHz OCXO reference box, USB-C powered, ultra-low phase noise
49.00 €
49.00 € tax excl.
in stock, shipped in 2-3 days

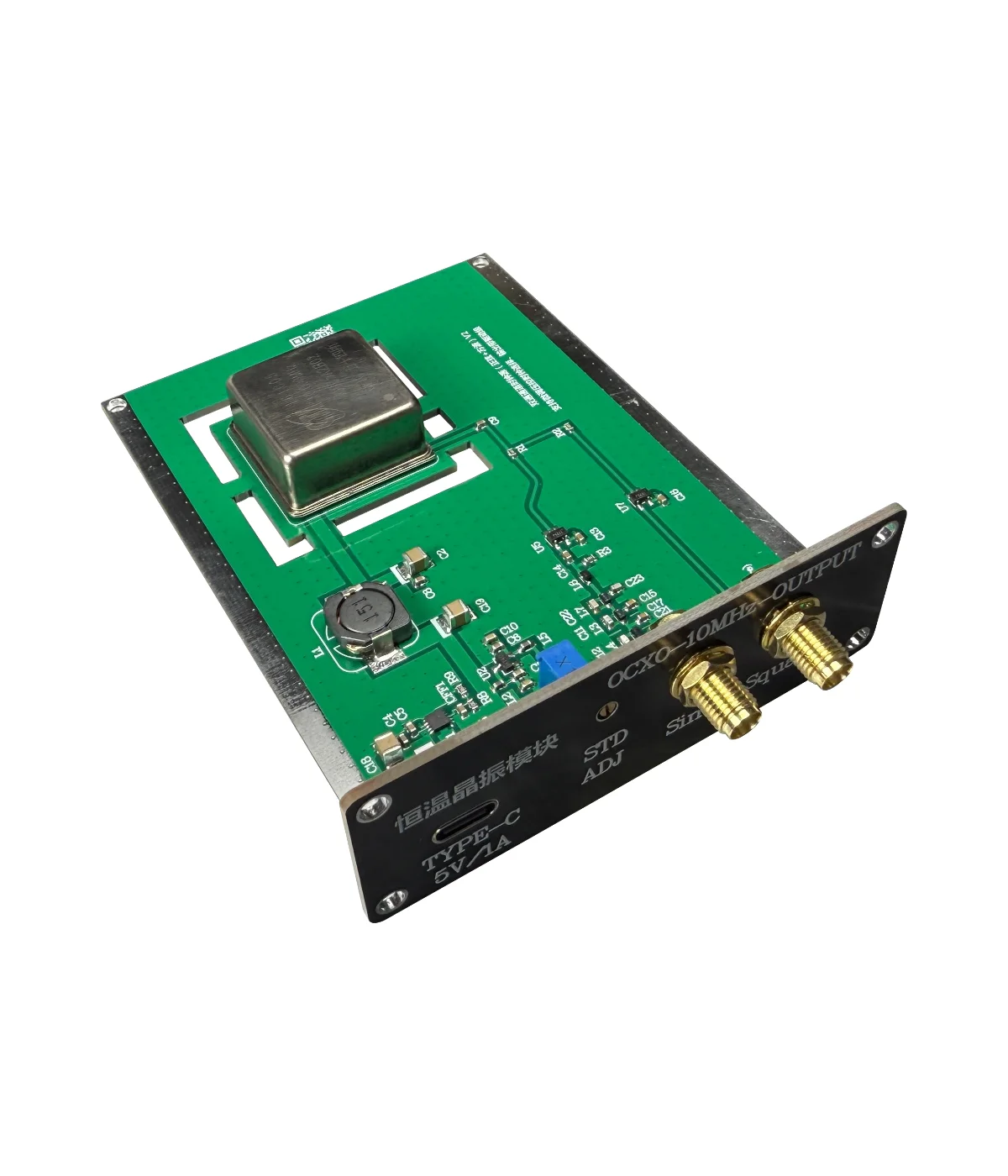

This is a small 10 MHz source box with a high accuracy 10 MHz OCXO (oven controlled crystal oscillator), ultra low phase noise, and both square and sine wave outputs. A multi-turn OCXO frequency fine-tuning trimmer is included. Use it as a very stable reference oscillator - for an LNB EXT bias tee, as a 10 MHz source for lab equipment, or as a reference for a generator/transverter.
Specifications
| DC supply voltage | USB-C 5 V |
|---|---|
| DC current | preheating stage < 1 A, working stage < 300 mA @ 5 V |
| Warm-up time | up to 5 minutes |
| Fine-tuning of frequency | by Multi-turn trimmer |
| Calibration accuracy | ± 0.1 Hz |
| Frequency stability | 5e - 12 |
| Oscillator | Internal high quality OCXO from CTI |
| Phase noise | -140 dBc/Hz @ 100 Hz |
| Output level (sine) | 6 dBm ± 2 dBm @ 50 Ohm |
| Output level (square) | typ. 6 Vpp |
| Size | 114x82x28 mm |
Gallery

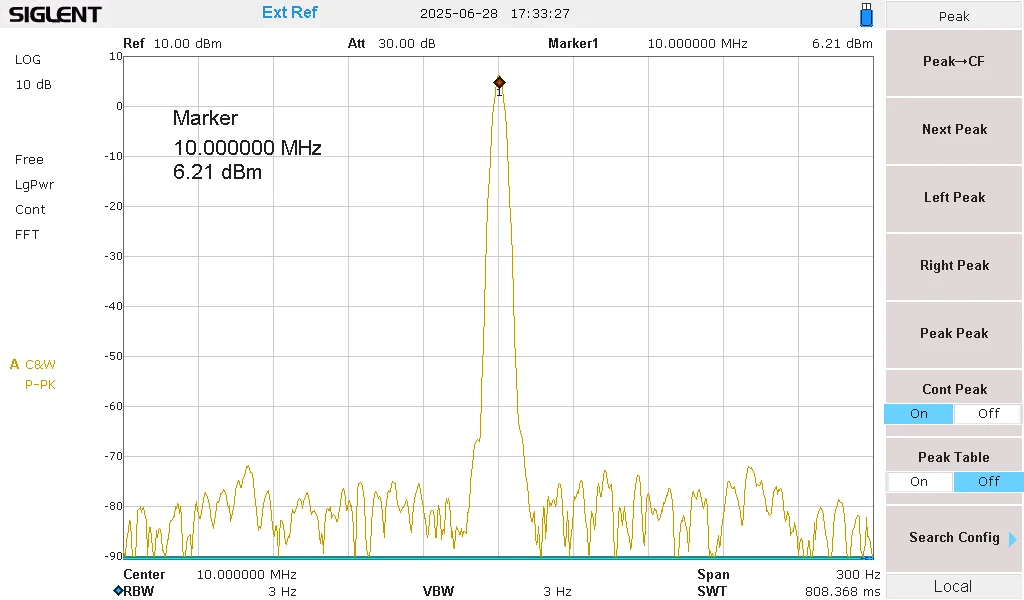

Sine output
Square output (not loaded - high impedance)
In the box

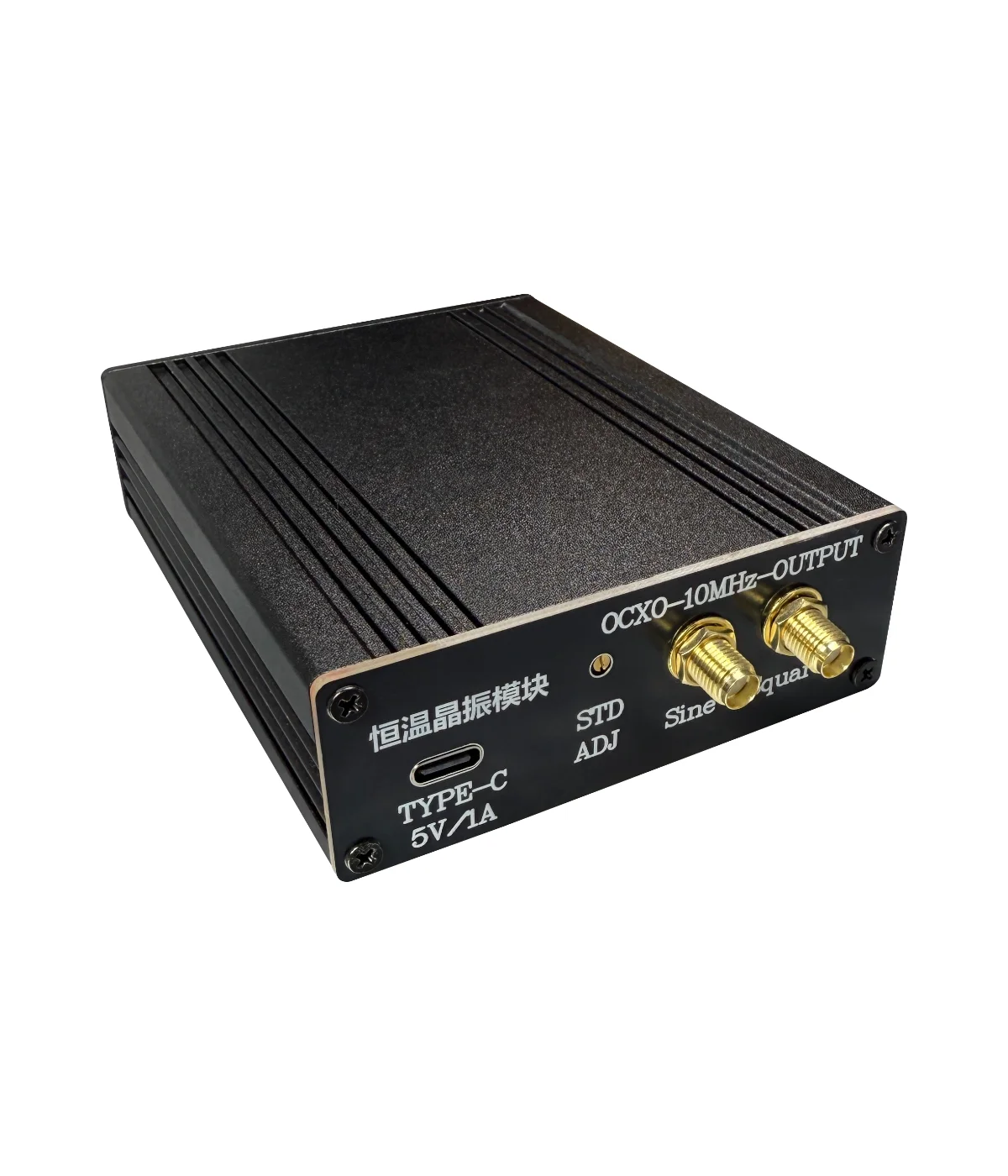

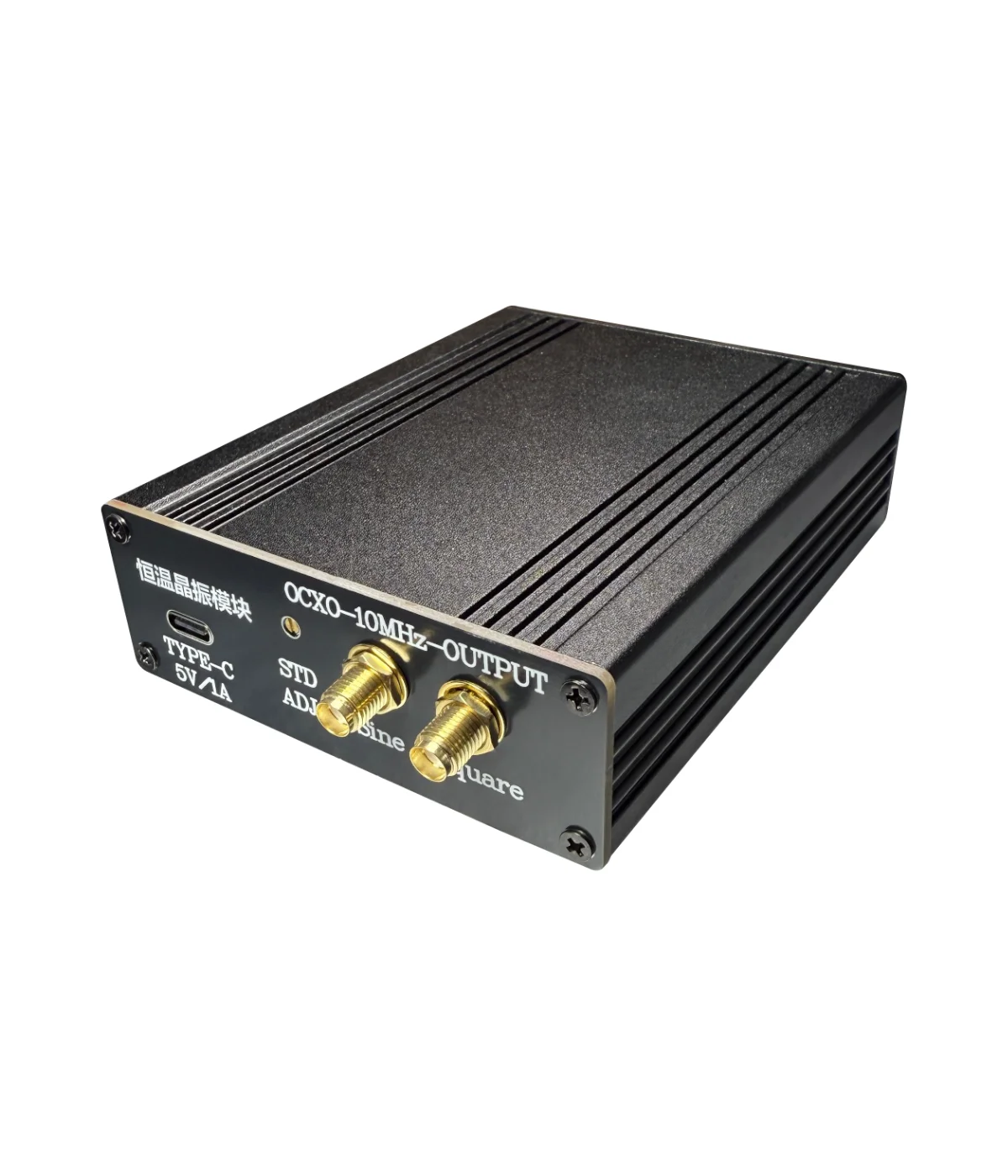

- OCXO enclosure

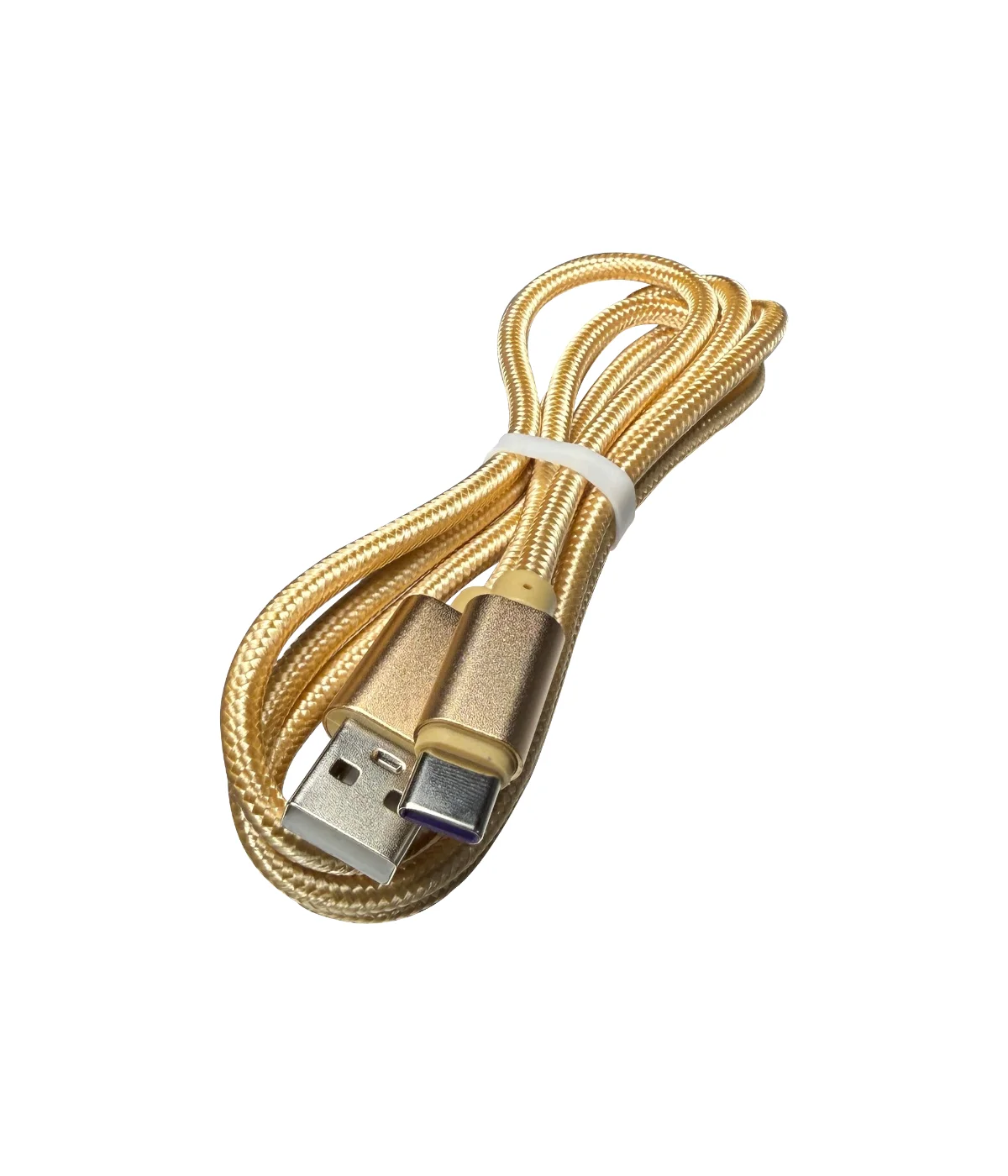

- DC supply USB cable
