10MHz OCXO board
10MHz OCXO reference board, ultra-low phase noise
42.00 €
42.00 € tax excl.
in stock, shipped in 2-3 days

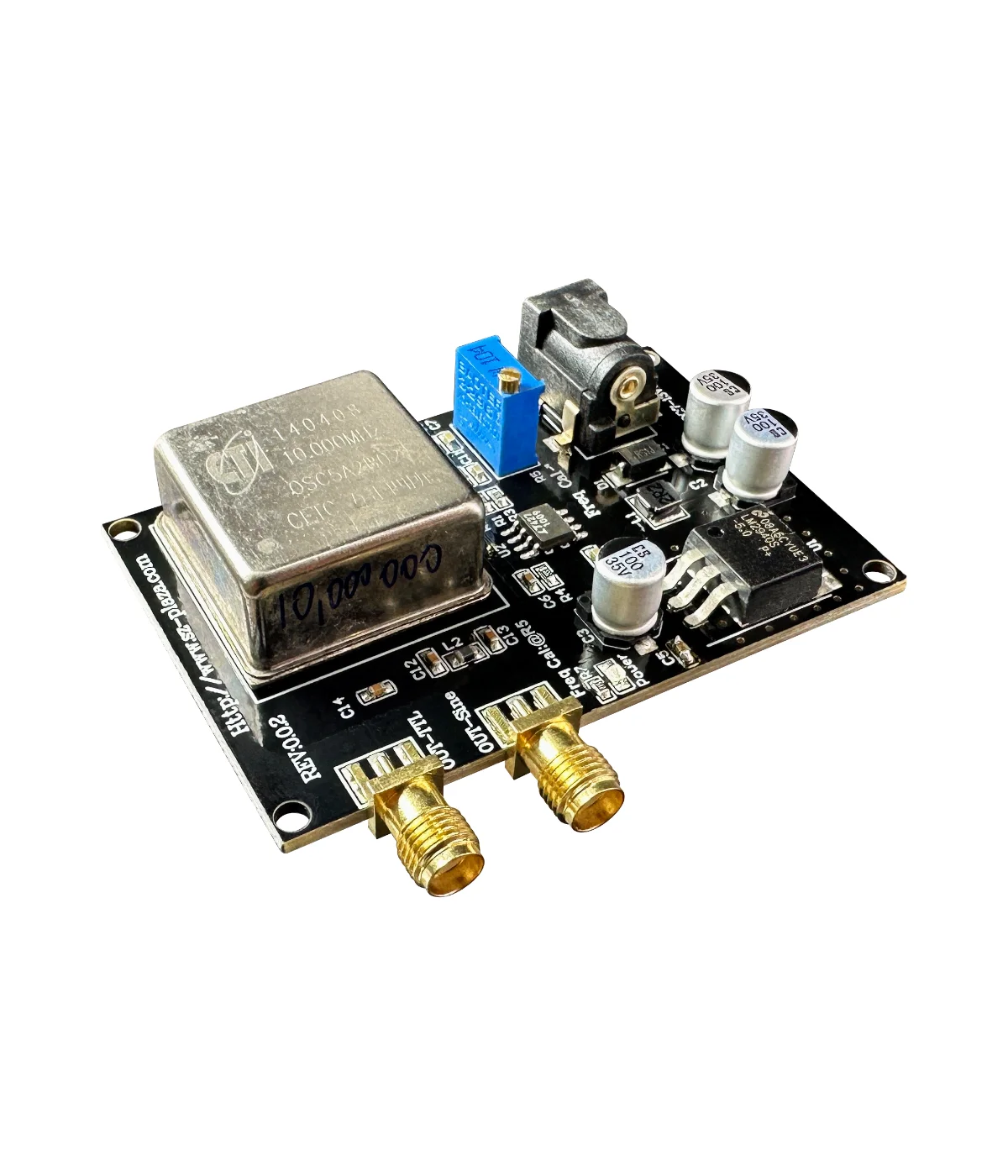

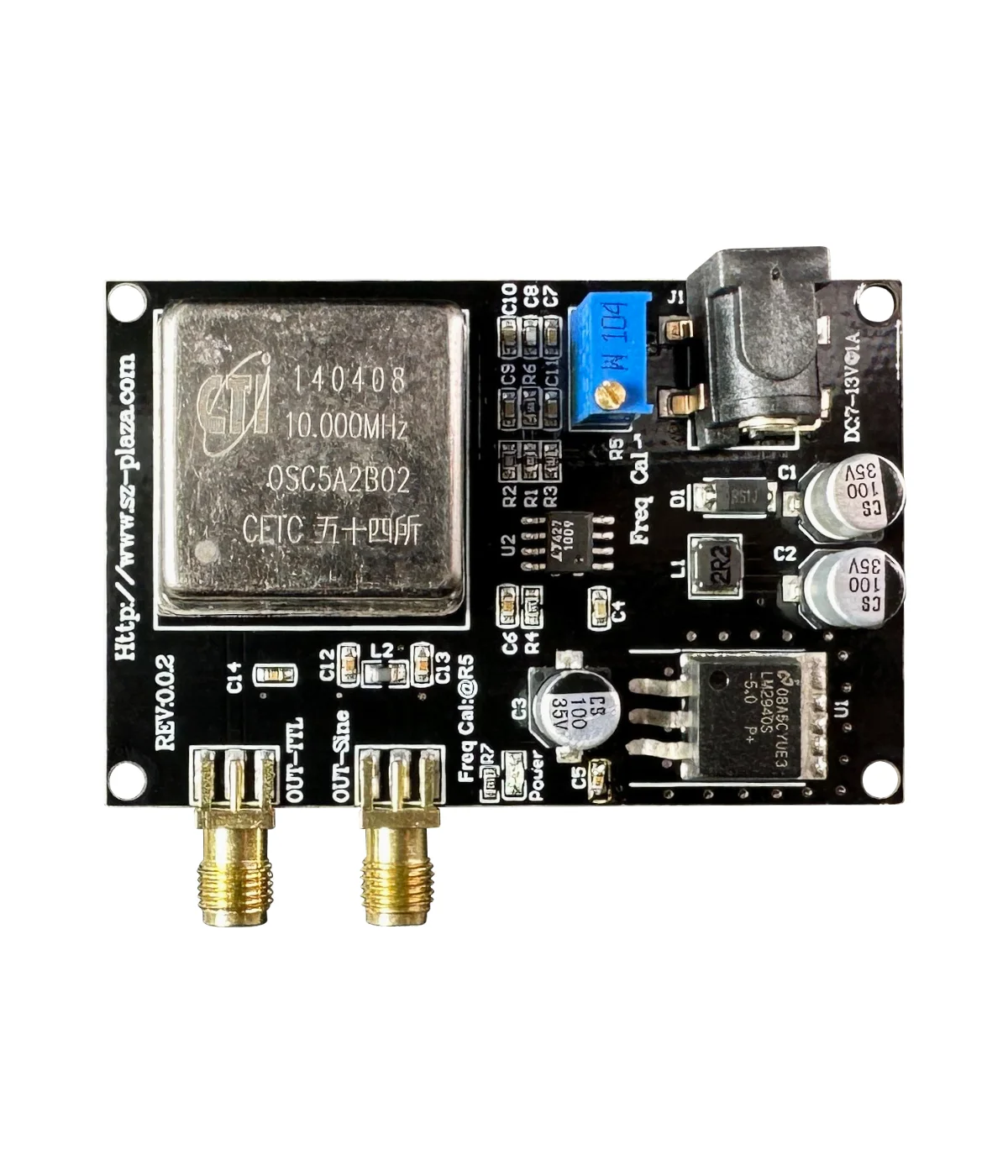

This is a small board with a high accuracy 10 MHz OCXO (oven controlled crystal oscillator), ultra low phase noise, and both square and sine wave outputs. It also includes a linear voltage stabilizer and an OCXO frequency fine-tuning trimmer. Use it as a very stable reference oscillator - for an LNB EXT bias tee, as a 10 MHz source for lab equipment, or as a reference for a generator/transverter.
Specifications
| DC supply voltage | 7 ~ 13 V |
|---|---|
| DC current | preheating stage < 750 mA, working stage < 300 mA @ 12 V |
| Warm-up time | up to 5 minutes |
| Calibration accuracy | ± 0.1 Hz |
| Frequency stability | 5e - 12 |
| Phase noise | -140 dBc/Hz @ 100 Hz |
| Output level | 10 dBm ± 2 dBm @ 50 Ohm |
| Output | Sine and square, 2x SMA |
| Calibration | Each board is calibrated against GPSDO |
| Size | 67x58x14 mm |

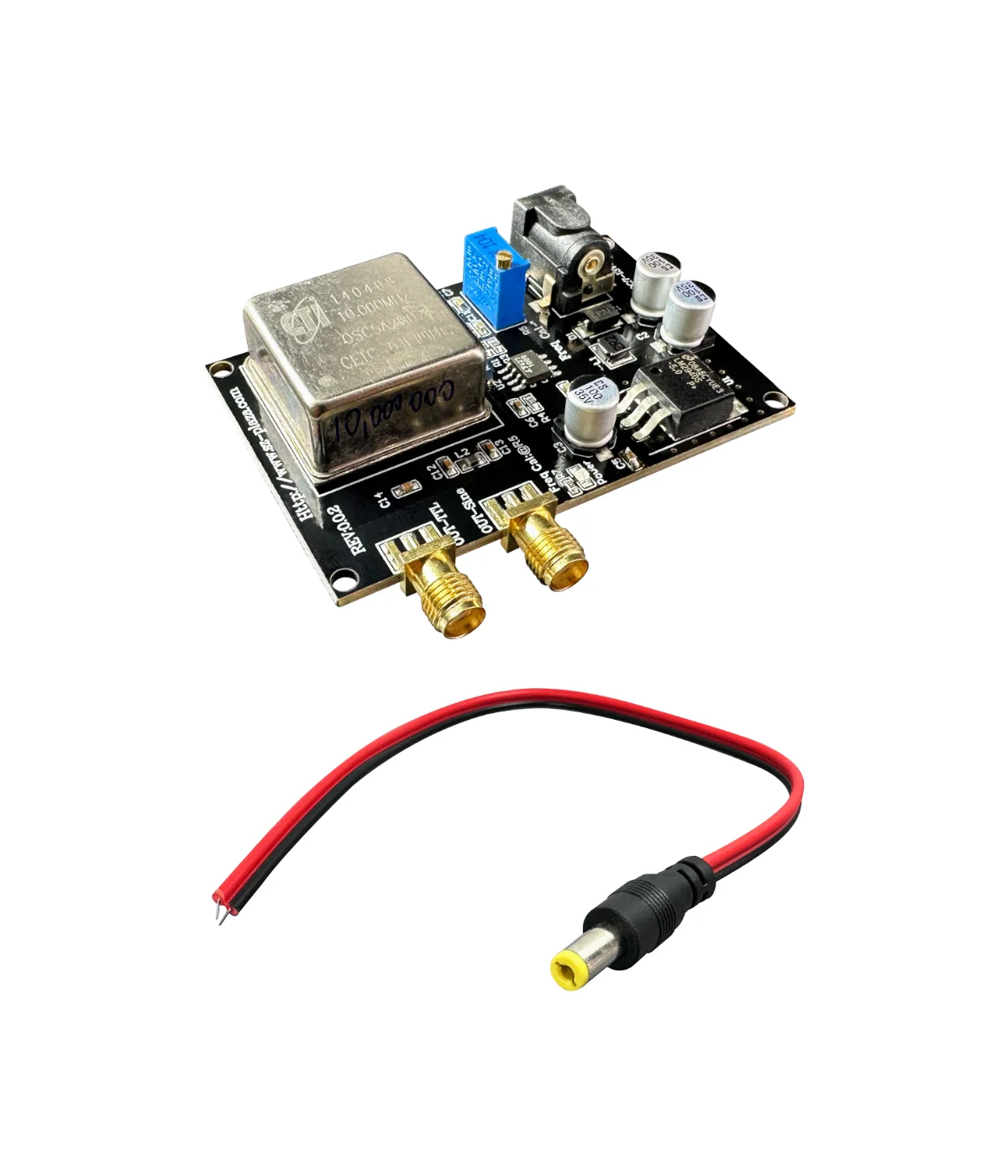

In the box
- 10MHz board

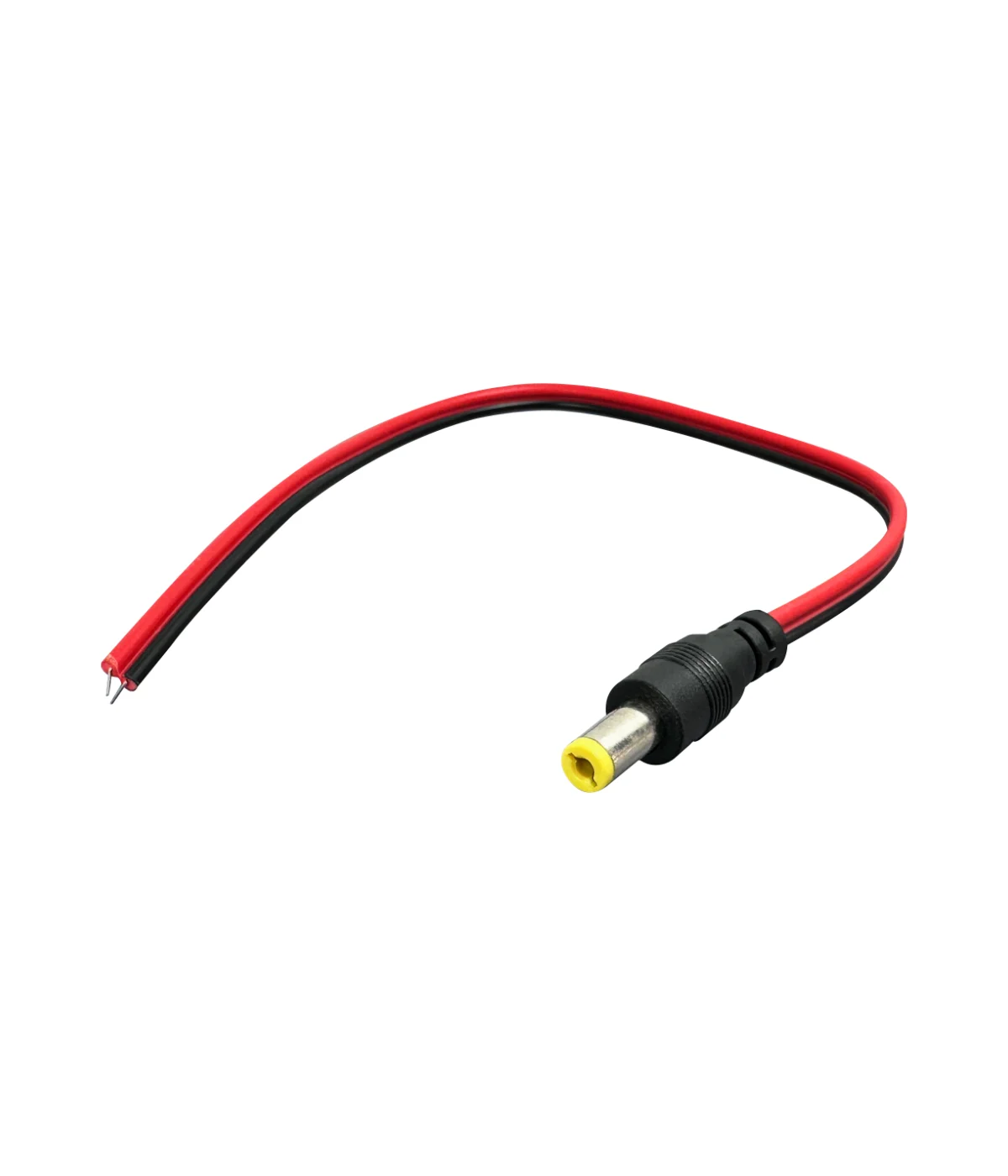

- DC supply jack with cable
