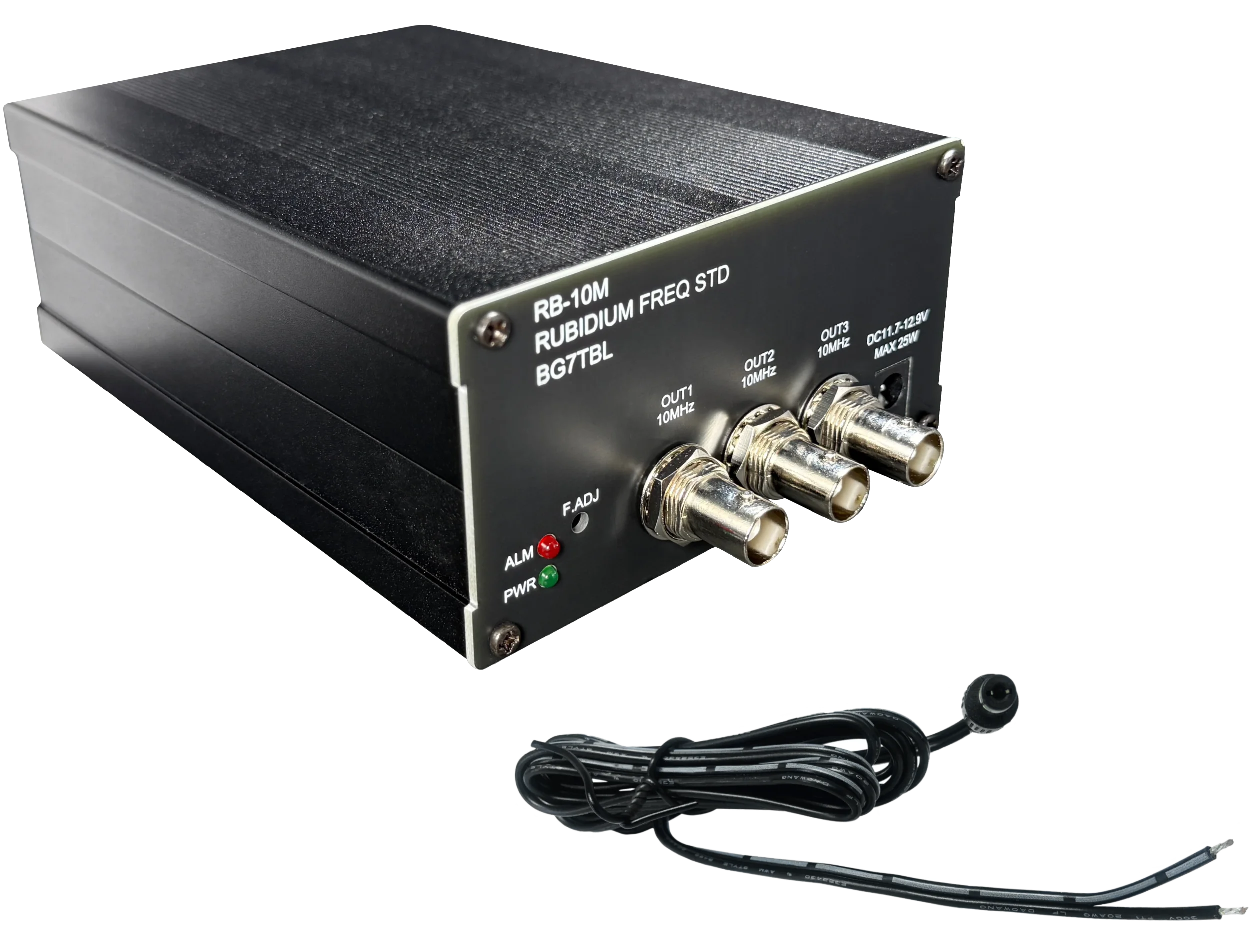

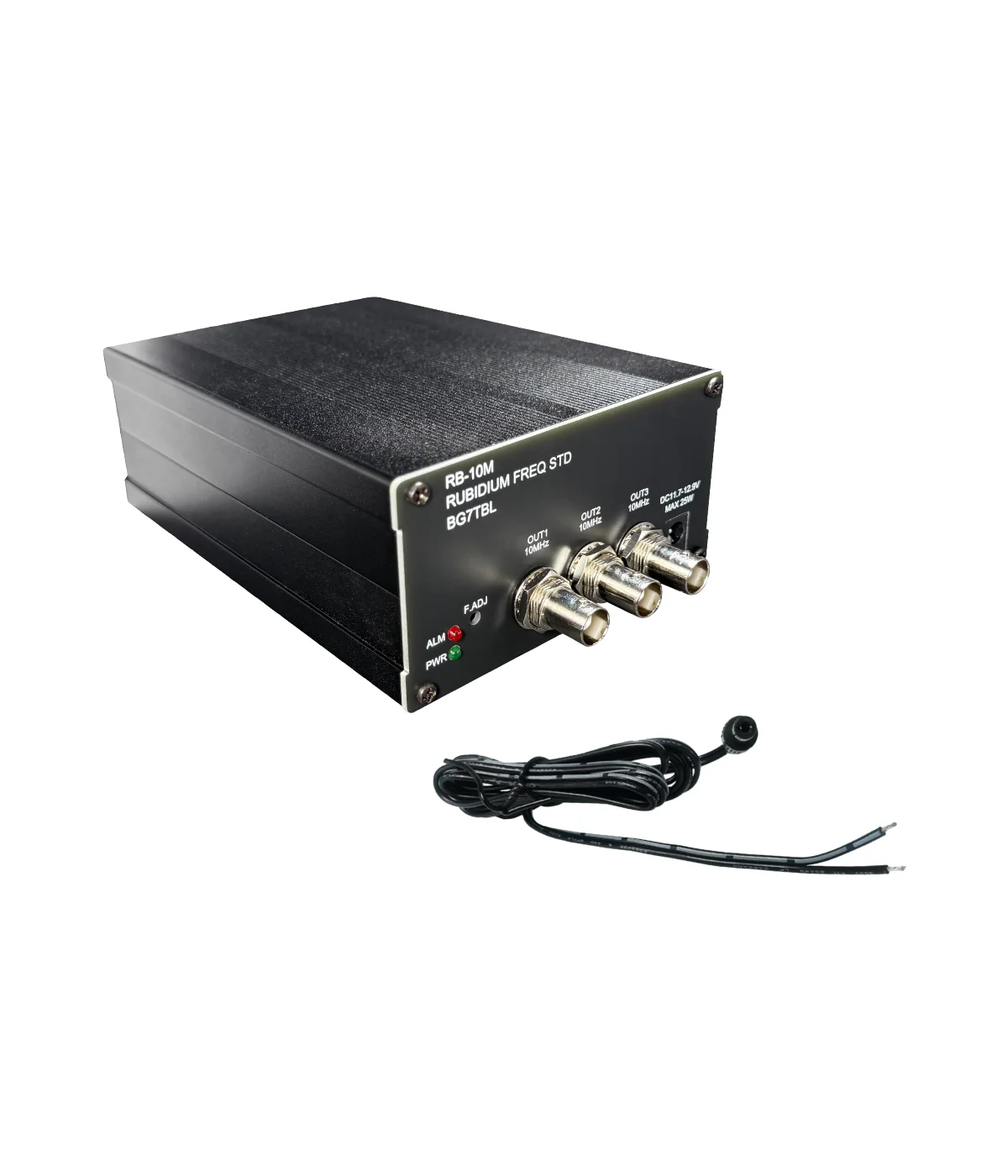

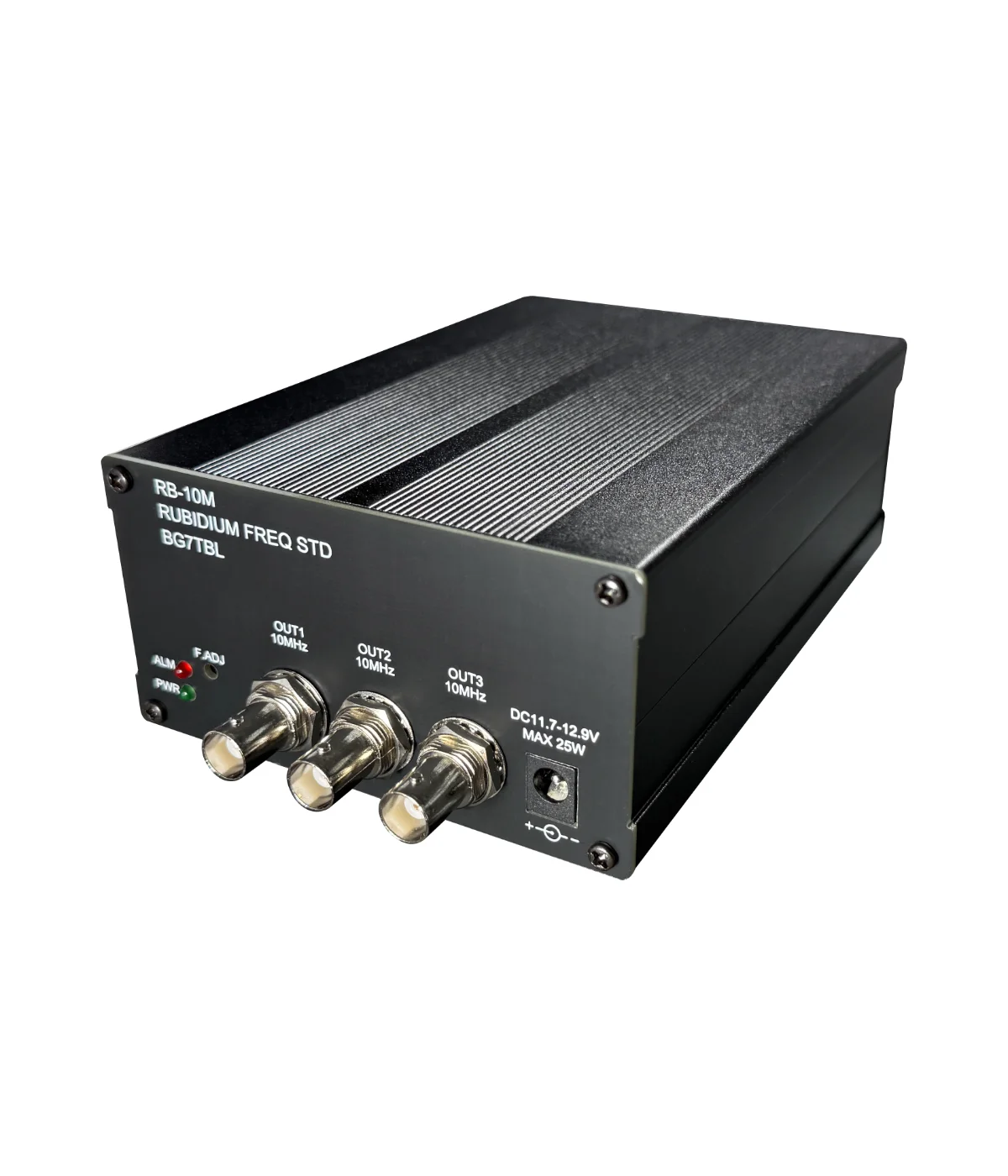

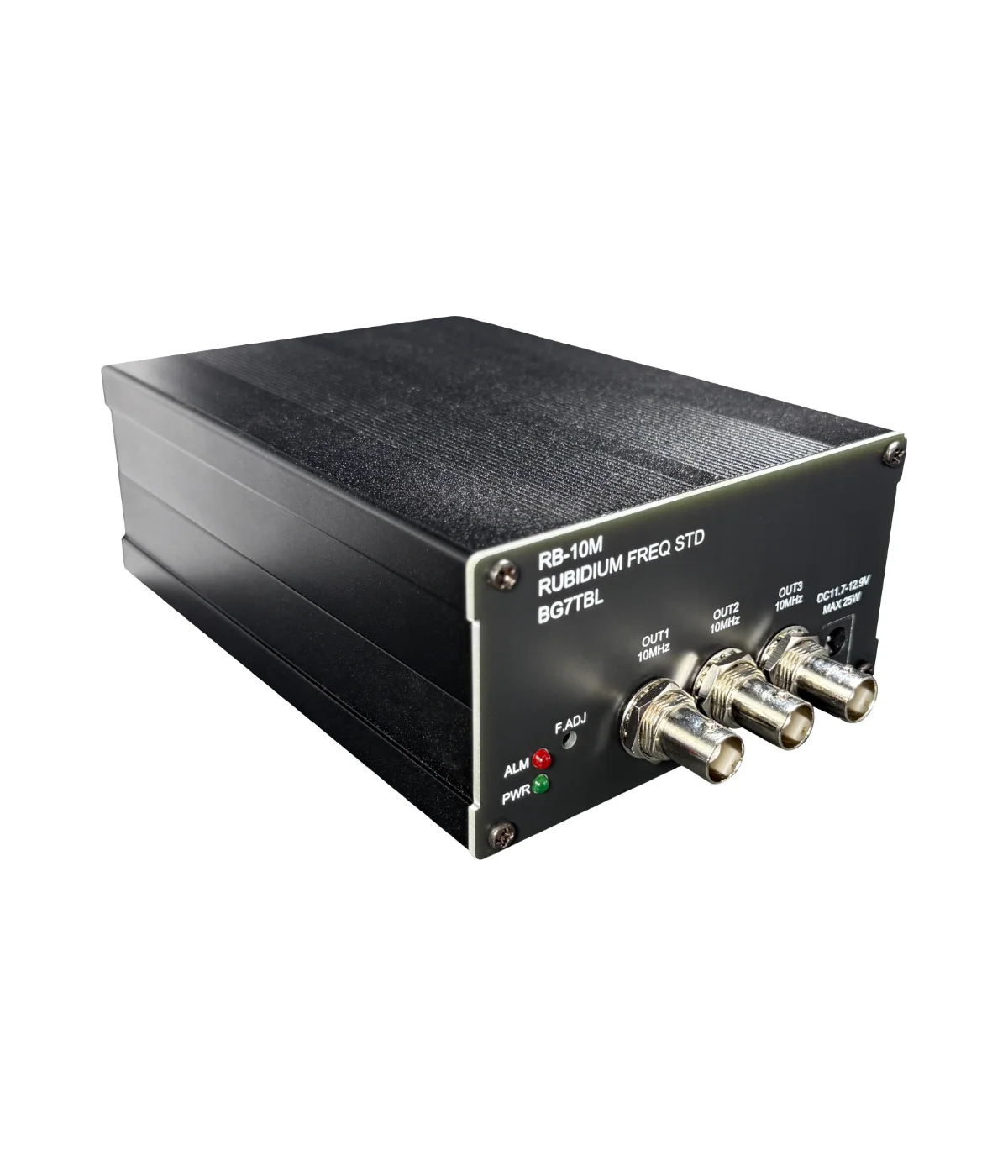

10MHz Rubidium Frequency Standard
10MHz Rubidium Frequency standard, 3x BNC outputs, GPS-independent - ideal SDR RX/TRX reference
699.00 €
699.00 € tax excl.
in stock, shipped in 2-3 days
This is a highly accurate frequency standard based on a professional rubidium module. It is a source of atomic time, which is used for precise setting of the 10 MHz output. The device contains an internal splitter, and up to three devices can be connected directly thanks to three BNC connectors with sine wave output. A major advantage of this frequency standard is that it does not require a GPS signal. It will therefore work in enclosed spaces, and there is also no problem with possible GPS signal interference - GPS jamming.
Specifications
General
| Function | 10 MHz frequency standard, GPS-independent, SDR RX/TRX reference source |
|---|---|
| Supply voltage | DC 11.7 - 12.9 V, ≤ 25 W |
| 10 MHz output | 3x sine wave |
| Output power | 12 dBm ± 2 dB |
| Output connectors | 3x BNC female |
| Frequency adjustment range | 0.05 Hz |
| Rubidium module | Portable module, typ. Symmetricom |
| DC jack | 5.5x2.1 mm |
| Dimensions | 107x55x170 mm (WxHxL including connectors) |

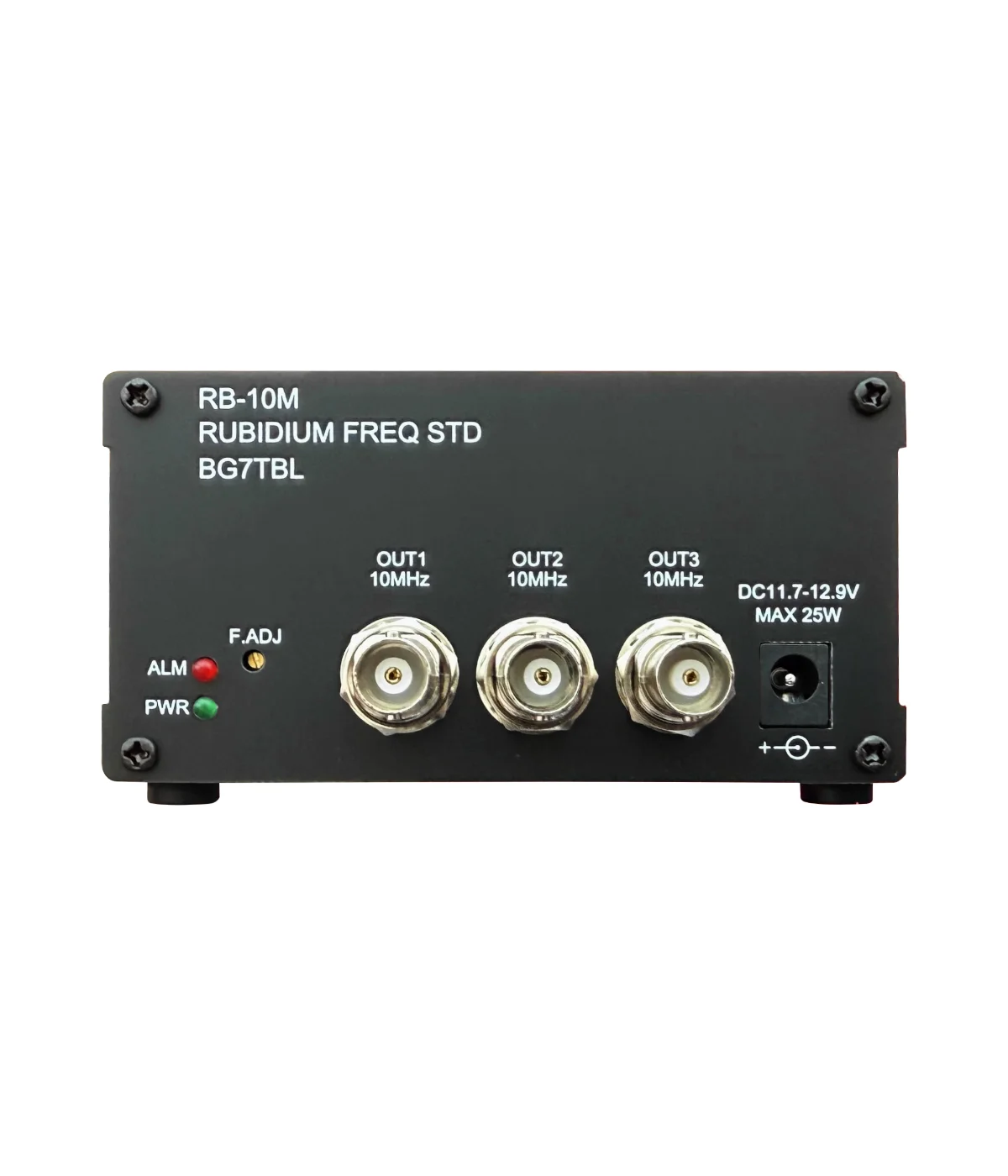

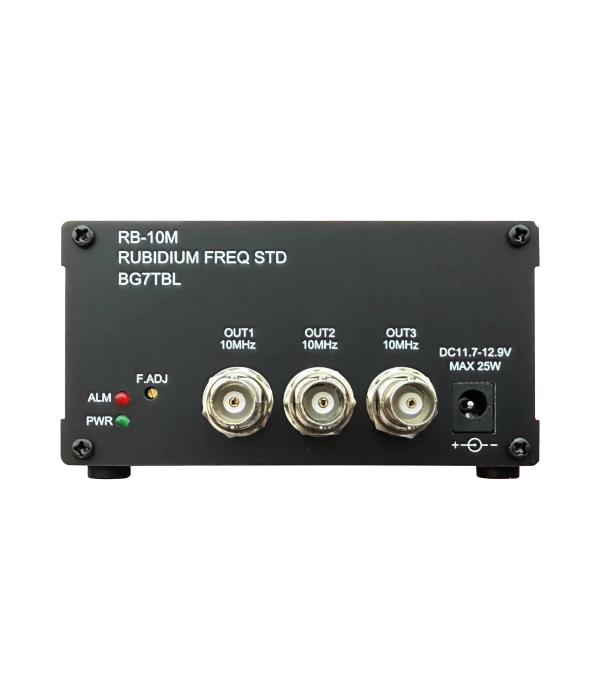

Front panel
| BNC output | 3x 10 MHz sine wave |
|---|---|
| PWR LED indicator | power supply status |
| ALM LED indicator | warm-up after start, PLL lock error |
Gallery
In the box
- Rubidium Standard

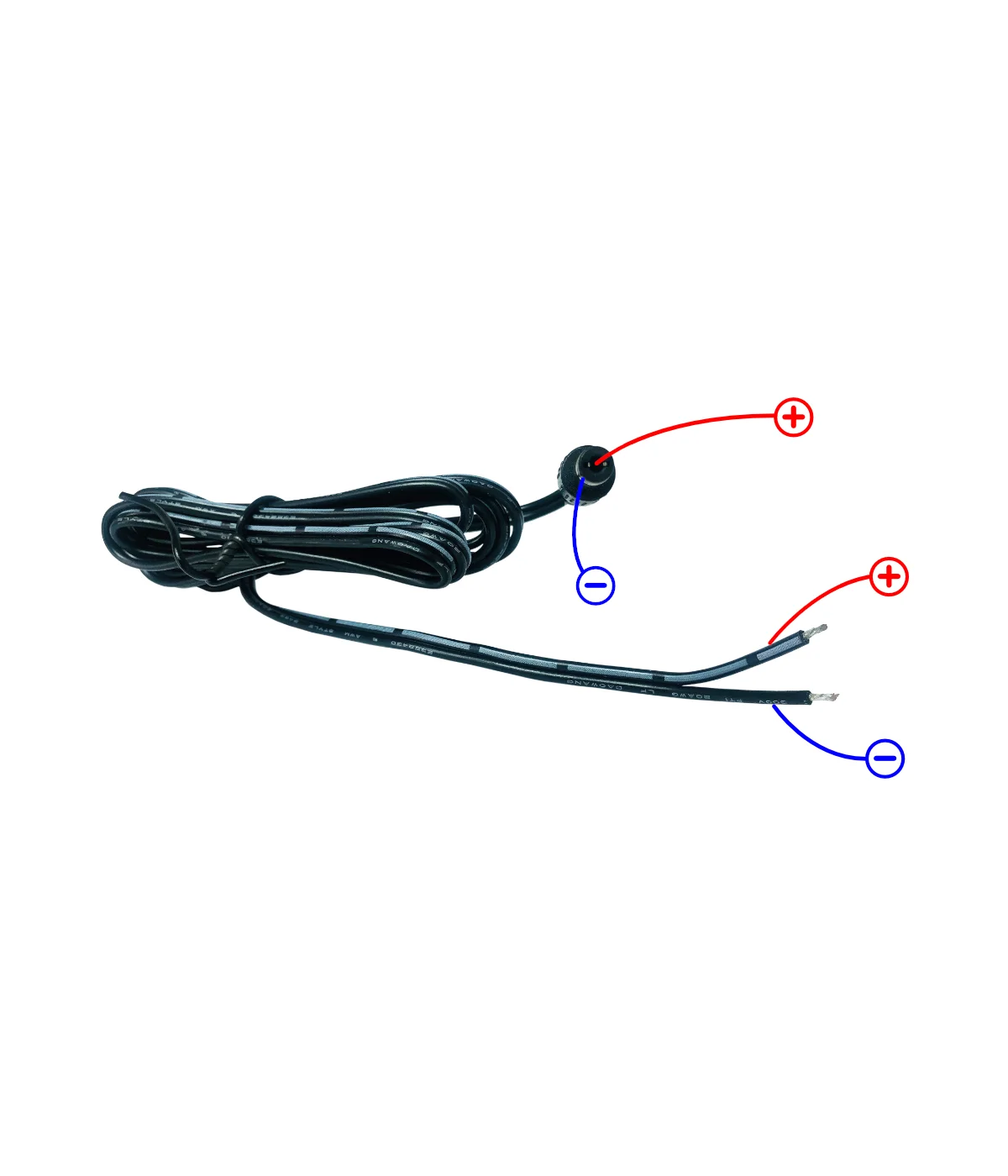

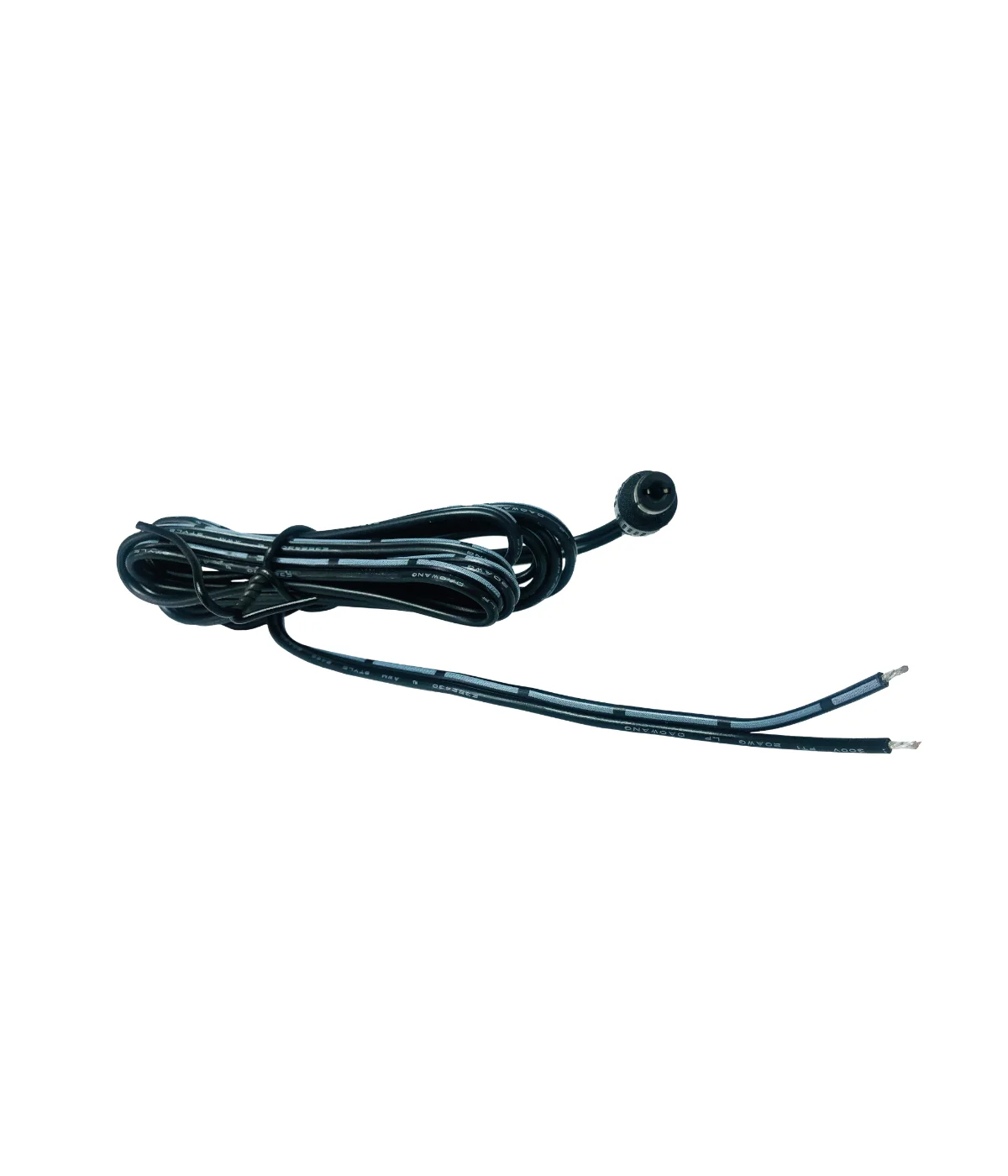

- DC plug cable
